GROWING HIERARCHICAL SELF-ORGANISING MAPS FOR

ONLINE ANOMALY DETECTION BY USING NETWORK LOGS

Mikhail Zolotukhin, Timo H¨am¨al¨ainen and Antti Juvonen

Department of Mathematical Information Technology, University of Jyv¨askyl¨a, Jyvv¨askyl¨a, FI-40014, Finland

Keywords:

Intrusion Detection, Anomaly Detection, N-gram, Growing Hierarchical Self Organising Map, Data Mining.

Abstract:

In modern networks HTTP clients request and send information using queries. Such queris are easy to manip-

ulate to include malicious attacks which can allow attackers to corrupt a server or collect conﬁdential informa-

tion. In this study, the approach based on self-organizing maps is considered to detect such attacks. Feature

matrices are obtained by applying n-gram model to extract features from HTTP requests contained in network

logs. By learning on basis of these matrices, growing hierarchical self-organizing maps are constructed and

by using these maps new requests received by the web-server are classiﬁed. The technique proposed allows

to detect online HTTP attacks in the case of continuous updated web-applications. The algorithm proposed

was tested using Logs, which were aquire acquired from a large real-life web-service and include normal and

intrusive requests. As a result, almost all attacks from these logs have been detected, and the number of false

alarms was very low at the same time.

1 INTRODUCTION

In modern society, the use of computer technologies,

both for work and personal use, is growing with time.

Unfortunately, computer networks and systems are

often vulnerable to different forms of intrusions. Such

intrusions are manually executed by a person or auto-

matically with engineered software and can use legit-

imate system features as well as programming mis-

takes or system misconﬁgurations (Mukkamala and

Sung, 2003). That is why the computer security be-

comes one of the most important issues when design-

ing computer networks and systems.

One of the most popular attack targets are web-

servers and web-based applications. Since web-

servers are usually accessible through corporate ﬁre-

walls, and web-based applications are often devel-

oped without following security rules, attacks which

exploit web-servers or server extensions represent a

signiﬁcant portion of the total number of vulnera-

bilities. Usually, the users of web-servers and web-

based applications request and send informationusing

queries, which in HTTP trafﬁc are strings containing

set of parameters having some values. It is possible

to manipulate these queries and create requests which

can corrupt the server or collect conﬁdential informa-

tion (Nguyen-Tuong et al., 2005).

One means to ensure the security of web-servers

and web-based applications is use of Intrusion Detec-

tion Systems (IDS). As a rule, IDS gathers data from

the system under inspection, stores this data to log-

ﬁles, analyzes the logﬁles to detect suspicious activi-

ties and determines suitable responses to these activi-

ties (Axelsson, 1998). There are a lot of diverse archi-

tectures of IDSs and they continue to evolvewith time

(Patcha and Park, 2007; Verwoerd and Hunt, 2002).

IDSs can also differ in audit source location, detec-

tion method, behaviour on detection, usage frequency,

etc.

There are two basic approaches for detecting in-

trusions from the network data: misuse detection and

anomaly detection (Kemmerer and Vigna, 2002; Goll-

mann, 2006). In the case of the misuse detection ap-

proach, the IDS scans the computer system for pre-

deﬁned attack signatures. This approach is usually

accurate which makes it successful in commercial in-

trusion detection (Gollmann, 2006). However,misuse

detection approach cannot detect attacks for which it

has not been programmed, and, therefore it is prone to

ignore all new types of attack if the system is not kept

up to date with the latest intrusions. The anomaly de-

tection approach learns the features of event patterns

which form normal behaviour, and, by observing pat-

terns that deviatefrom established norms (anomalies),

detects when an intrusion has occurred. Thus, sys-

tems which use anomaly detection approach are mod-

633

Zolotukhin M., Hämäläinen T. and Juvonen A..

GROWING HIERARCHICAL SELF-ORGANISING MAPS FOR ONLINE ANOMALY DETECTION BY USING NETWORK LOGS.

DOI: 10.5220/0003936606330642

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 633-642

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

elled according to normal behaviour and, therefore,

are able to detect zero-day attacks. However, the

number of false alerts will probably be increased be-

cause not all anomalies are intrusions.

To solve the problem of anomaly detection differ-

ent kinds of machine learning based techniques can be

applied, for example, Decision Trees (DTs), Artiﬁcial

Neural Networks (ANNs), Support Vector Machines

(SVMs), etc. As a rule, anomaly detection IDSs for

web-servers are based on supervised learning: train-

ing the system by using a set of normal queries. On

the contrary, unsupervised anomaly detection tech-

niques do not need normal training data and therefore

such techniques are the most usable.

In this study, we consider the approach based on

Self-Organizing Maps (SOMs). A SOM is a based

on unsupervised learning neural network model pro-

posed by Kohonen for analyzing and visualizing high

dimensional data (Kohonen, 1982). SOMs are able

to discover knowledge in a data base, extract rele-

vant information, detect inherent structures in high-

dimensional data and map these data into a two-

dimensional representation space (Kohonen, 2001).

Despite the fact that the approach based on self-

organizing maps has shown effectiveness at detecting

intrusions (Kayacik et al., 2007; Jiang et al., 2009),

it has two main drawbacks: the static architecture

and the lack of representation of hierarchical rela-

tions. A Growing Hierarchical SOM (GHSOM) can

solve these difﬁculties (Rauber et al., 2002). This

neural network consists of several SOMs structured

in layers, whose number of neurons, maps and layers

are determined during the unsupervised learning pro-

cess. Thus, the structure of the GHSOM is automatic

adapted according to the structure of the data.

The GHSOM approach looks promising for solv-

ing network intrusions detection problem. In the

study (Palomo et al., 2008), a GHSOM model with

a metric which combines both numerical and sym-

bolic data is proposed for detecting network intru-

sions. The IDS based on this model detects anomalies

by classifying IP connections into normal or anoma-

lous connection records, and the type of attack if they

are anomalies. An adaptive GHSOM based approach

is proposed in (Ippoliti and Xiaobo, 2010). Suggested

GHSOM adapts online to changes in the input data

over time by using the following enhancements: en-

hanced threshold-based training, dynamic input nor-

malization, feedback-based quantization error thresh-

old adaptation and prediction conﬁdence ﬁltering and

forwarding. The study (Shehab et al., 2008) investi-

gates applying GHSOM for ﬁltering intrusion detec-

tion alarms. GHSOM clusters these alarms in a way

that helps network administrators to make decisions

about true or false alarms.

In this research we aim to detect anomalous HTTP

requests by applying approach based on adaptive

growing hierarchical self-organizing maps. The re-

mainder of this paper is organized as follows. Sec-

tion 2 describes process of data acquisition and fea-

ture extraction from network logs. In Section 3 we

present classic SOM and GHSOM models. Section

4 describes applying adaptive GHSOM for detecting

anomalies. Experimental results are presented in Sec-

tion 5. Section 6 concludes this paper.

2 DATA MODEL

Let us consider some network activity logs of a large

web-service of some HTTP server. Such log-ﬁles can

include information about the user’s IP address, time

and timezone, the HTTP request including used re-

source and parameters, server response code, amount

of data sent to the user, the web-page which was re-

quested and used by a browser software. Here is an

example of a single line from some Apache server log

ﬁle, this information is stored in combined log format

(Apache 2.0 Documentation, 2011):

127.0.0.1 - frank [10/Oct/2000:13:55:36 -0700]

"GET /resource?parameter1=value1&parameter2=

value2 HTTP/1.0"

200 2326 "http://www.example.com/start.html"

"Mozilla/4.08 [en] (Win98; I ;Nav)"

In this study, we focus on HTTP requests analysis.

Such requests can contain some parameters changing

which creates a possibility to include malicious at-

tacks. We do not focus on static requests which do

not contain any parameters because it is not possible

to inject code via static requests unless there are ma-

jor deﬁciencies in the HTTP server itself. Dynamic

requests, which are handled by the Web-applications

of the service, are more interesting in this study. Let

us assume that most requests, which are coming to the

HTTP server, are normal, i.e. use legitimate features

of the service, but some obtained requests are intru-

sions.

All dynamic HTTP requests are analyzed to de-

tect anomalous ones. The input to the detection pro-

cess consists of an ordered set of HTTP requests. A

request can be expressed as the composition of the

path to the desired resource and a query string which

is used to pass parameters to the referenced resource

and identiﬁed by a leading ’?’ character.

To extract features from each request n-gram

model is applied. N-gram models are widely used in

statistical natural language processing (Suen, 1979)

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

634

and speech recognition (Hirsimaki et al., 2009). A n-

gram is a sub-sequence of n overlapping items (char-

acters, letters, words, etc) from a given sequence.

For example, 2-gram character model for the string

’/resource?parameter1=value1&parameter2=value2’

is ’/r’, ’re’, ’es’, ’so’, ’ou’, ’ur’, ..., ’lu’, ’ue’, ’e2’.

N-gram character model is applied to transform

each HTTP request to the sequence of n-characters.

Such sequences are used to construct a n-gram fre-

quency vector, which expresses the frequency of ev-

ery n-characters in the analyzed request. To obtain

this vector, ASCII codes of characters are used to

represent sequence of n-characters as sequence of ar-

rays each of which contains n decimal ascii codes,

and the frequency vector is built by counting the

number of occurences of each such array in the an-

alyzed request. The length of the frequency vec-

tor is 256

, because every byte can be represented

by an ASCII value between 0 and 255. For ex-

ample, in the previous example the following se-

quence of decimal ASCII pairs can be obtained:

[47, 114], [114, 101], [101, 115], [115, 111], [111, 117],

[117, 114], . .., [108, 117], [117, 101], [101, 50]. The

corresponding 256

vector is built by counting the

number of occurences of each of such pair. For ex-

ample, the entry in location (256× 61+ 118) in this

vector contains the value equal to 2 since the pair

[61, 118], which corresponds pair ’=v’, can be seen

twice. Thus, each request is transformed to 256

nu-

meric vector. The matrix consisting of these vectors

is called feature matrix and it can be analyzed to ﬁnd

anomalies.

3 BACKGROUND ON SOM AND

GHSOM

In this study, adaptive growing hierarchical self-

organizing maps are used to ﬁnd anomalies in feature

matrix. Traditional SOM model and growing hierar-

chical SOM model are brieﬂy described in this sec-

tion.

3.1 Self-organizing Maps

The self-organizing map is an unsupervised, competi-

tive learning algorithm that reduces the dimensions of

data by mapping these data onto a set of units set up in

much lower dimensionalspace. This algorithm allows

not only to compress high dimensional data, but also

to create a network that stores information in such a

way that any topological relationships within the data

set are maintained. Due to this fact SOMs are widely

applied for visualizing the low-dimensional views of

high-dimensional data.

SOM is formed form a regular grid of neurones

each of which is fully connected to the input layer.

The neurons are connected to adjacent neurons by a

neighborhood relation dictating the structure of the

map. The i-th neuron of the SOM has an associ-

ated with it d-dimensional prototype (weight) vector

= [w

, w

, . . . , w

], where d is equal to the dimen-

sion of the input vectors. Each neuron has two posi-

tions: one in the input space (the prototype vector)

and another in the output space (on the map grid).

Thus, SOM is a vector projection method deﬁning a

nonlinear projection from the input space to a lower-

dimensional output space. On the other hand, during

the training the prototype vectors move so that they

follow the probability density of the input data.

SOMs learn to classify data without supervision.

At the beginning of learning the number of neurons,

dimensions of the map grid, map lattice and shape

should be determined. Before the training, initial val-

ues are given to the prototype vectors. The SOM is

very robust with respect to the initialization, but prop-

erly accomplished initialization allows the algorithm

to converge faster to a good solution. At each train-

ing step t, one sample vector x(t) from the input data

set is chosen randomly and a similarity measure (dis-

tance) is calculated between it and all the weight vec-

tors w

(t) of the map. The unit having the shortest

distance to the input vector is identiﬁed to be the best

matching unit (BMU) for input x(t). The index c(t)

of this best matching unit is identiﬁed. Next, the in-

put is mapped to the location of the best matching unit

and the prototype vectors of the SOM are updated so

that the vector of the BMU and its topological neigh-

bors are moved closer to the input vector in the input

space:

(t + 1) = w

(t) + δ(t)N

i,c(t)

(r(t))(x(t) − w

(t)),

(1)

where δ(t) is the learning rate function and

i,c(t)

(r(t)) is the neighborhood kernel around the

winner unit, which depends on neighborhood radius

r(t) and the distance between BMU having index c(t)

and i-th neuron.

The most important feature of the Kohonen learn-

ing algorithm is that the area of the neighborhood

shrinks over time. In addition, the effect of learning is

proportional to the distance a node is from the BMU.

As a rule, the amount of learning is fading over dis-

tance and at the edges of the BMUs neighborhood,the

learning process does not have barely any effect.

The SOM have shown to be successful for the

analysis of high-dimensional data on data mining ap-

plications such as network security. However, the ef-

GROWINGHIERARCHICALSELF-ORGANISINGMAPSFORONLINEANOMALYDETECTIONBYUSING

NETWORKLOGS

635

fectiveness of using traditional SOM models is lim-

ited by the static nature of the model architecture. The

size and dimensionality of the SOM model is ﬁxed

prior to the training process and there is no systematic

method for identifying an optimal conﬁguration. An-

other disadvantage of the ﬁxed grid in SOM, is that

traditional SOM can not represent hierarchical rela-

tion that might be present in the data.

3.2 Growing Hierarchical

Self-organizing Maps

The limitations mentioned above can be resolved by

applying growing hierarchical self-organizing maps.

GHSOM has been developed as a multi-layered hi-

erarchical architecture which adapts its structure ac-

cording to the input data. It is initialized with one

SOM and grows in size until it achieves an improve-

ment in the quality of representing data. In addition,

each node in this map can dynamically be expanded

down the hierarchy by adding a new map at a lower

layer providing a further detailed representation of

data. The procedure of growth can be repeated in

these new maps. Thus, the GHSOM architecture is

adaptive and can represent data clearly by allocating

extra space as well as uncover the hierarchical struc-

ture in the data.

The GHSOM architecture starts with the main

node at zero layer and a 2× 2 map at the ﬁrst layer

trained according to SOM training algorithm. The

main node represents the complete data set X and

its weight vector w

is calculated as mean value of

all data inputs. This node controls the growth of the

SOM at the ﬁrst layer and the hierarchical growth of

whole GHSOM. The growth of the map at the ﬁrst

layer and maps at the next layers is controlled by us-

ing the quantization error. This error for the i-th node

is calculated as follows

∑

∈C



− x



, (2)

where C

is the set of input vectors x

projected to the

i-th node and w

is the weight vector of the i-th node.

The quantization error E

of map m is deﬁned as

∑

i∈U

, (3)

where U

is the subset of the m-th map nodes onto

which data is mapped, and |U

| is the number of these

nodes of m-th map.

When E

reaches certain fraction α

of the e

the corresponding parent unit u in the upper layer, the

growing process is stopped. The parent node of the

SOM at the ﬁrst layer is the main node. The parameter

controls the breadth of maps and its value ranges

from 0 to 1. After that, the most dissimilar neighbor-

ing node s is selected according to

s = max

(



− w



), for w

∈ N

, (4)

where w

is the weight vector of the error node, N

the set of neighboring nodes of e-th node, and w

weight vector of neighboring node in set N

. A new

row or column of nodes is placed in between nodes

e and s. The weight vectors of newly added nodes

are initialized with the mean of their corresponding

neighbors.

After the growth process of an SOM is completed,

every node of this SOM has to be checked for fulﬁll-

ment of the global stopping criterium (Rauber et al.,

2002):

< α

, (5)

where α

∈ (0, 1) is parameter which controls the hi-

erarchical growth of GHSOM, and e

is the quanti-

zation error of the main node, which can be found as

follows:

∑

∈X



− x



. (6)

Nodes not satisfying this criterium (5) and therefore

representing a set of too diverse input vectors, are ex-

panded to form a new map at a subsequent layer of

the hierarchy. Similar to the creation of the ﬁrst layer

SOM, a new map of initially 2 × 2 nodes is created.

This maps weight vectors are initialized so that to mir-

ror the orientation of neighboring the units of its par-

ent. For this reason, we can choose to set new four

nodes to the means of the parent and its neighbors in

the respective directions (Chan and Pampalk, 2002).

The newly added map is trained by using the input

vectors which are mapped onto the node which has

just been expanded, i.e., the subset of the data space

mapped onto its parent. This new map will again con-

tinue to grow and the whole process is repeated for

the subsequent layers until the global stopping crite-

rion given in (5) is met by all nodes. Thus, an ideal

topology of a GHSOM is formed unsupervised based

on the input data as well as hierarchal relationships in

the data are discovered.

4 METHOD

The anomaly detection algorithm which is proposed

in this study is based on the usage of GHSOM. The

algorithm consists of three main stages: training, de-

tecting and updating.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

636

4.1 Training

In the training phase, server logs are used to obtain

training set. The logs can contain several thousands

of HTTP requests which are gathered from different

web-resources during several days or weeks. In addi-

tion, these logs can include unknown anomalies and

real attacks. The only condition is that the quantity of

normal requests in the logs used must be signiﬁcantly

greater than number of real intrusions and anomalous

requests. HTTP requests from these logs are trans-

formed to feature matrix by applying n-gram model.

When the feature matrix is obtained, new GH-

SOM is constructed and trained based on this ma-

trix. The zero layer of this GHSOM is formed by

several independent nodes the number of which cor-

responds to the number of different resources of the

web-server. For each such node a SOM is created

and initialized with four nodes. Requests to one web-

resource are mapped to the correspondingparent node

on the zero layer and used for training corresponding

SOM. These SOMs form the ﬁrst layer and each of

these maps can grow in size by adding new rows and

columns or by adding a new map of four nodes at a

lower layer providing a further detailed representation

of data as it is explained in Section 3. For each parent

node on the zero layer the quantization error is calcu-

lated which controls the growing process of maps on

the ﬁrst layer and hierarchical growth of the GHSOM

constructed.

4.2 Detection Method

The aim is not to ﬁnd intrusions in the logs which

were used as the training set, but to detect attacks

among new requests received by the web-server. The

new request is transformed to the frequency vector by

applying n-gram model. After that, it goes to one of

the parent node according to its resource and mapped

to one of the nodes on the corresponding map by cal-

culating the best matching unit for this request. To

determine whether the new request is attack or not,

two following criteria are used:

• If the distance between new request and its BMU

weight vector is greater than threshold value then

this request is intrusion, otherwise it is classiﬁed

as normal;

• If the node which is the BMU for the new request

is classiﬁed as ”anomalous” node, then this re-

quest is intrusion, otherwise it is classiﬁed as nor-

mal.

The threshold for the ﬁrst criterium is calculated

based on the distances between the weight vector of

the node which is the BMU for the new request and

other requests from the server logs already mapped to

this node at the training stage. Assume that new re-

quest is mapped to the node which already contains

l other requests which are mapped to this node dur-

ing the training phase. Denote the distances between

the node and these l requests as e

, e

, . . . , e

. Let us

assume that values of these distances are distributed

more or less uniformly. In this case, we can estimate

maximum τ of continuous uniformly distributed vari-

able as follows (Johnson, 1994):

τ =

l + 1

max

, e

, . . . , e

}. (7)

Obtained value τ can be used as the threshold value

for the node considered, and new request is classiﬁed

as an intrusion if distance between this request and

the node is greater than τ.

To ﬁnd ”anomalous” nodes the U

∗

-matrix

(Ultschk, 2005) is calculated for each SOM. U

∗

matrix presents a combined visualization of the dis-

tance relationships and density structures of a high di-

mensional data space. This matrix has the same size

as the grid of the corresponding SOM and can be cal-

culated based on U-matrix and P-matrix.

U-matrix represents distance relationships of re-

quests mapped to a SOM (Ultsch and Siemon, 1990).

The value of i-th element of U-matrix is the average

distance of i-th node weight vector w

to the weight

vectors of its immediate neighbors. Thus, i-th ele-

ment of U-matrix U(i) is calculated as follows:

U(i) =

∑

j∈N

D(w

, w

), (8)

where n

= |N

| is the number of nodes in the neigh-

borhood N

of the i-th node, and D is a distance func-

tion which for example can be Euclidean distance. A

single element of U-matrix shows the local distance

structure. If a global view of a U-matrix is considered

then the overall structure of densities can be analyzed.

P-matrix allows a visualization of density struc-

tures of the high dimensional data space (Ultsch,

2003a). The i-th element of P-matrix is a measure of

the density of data points in the vicinity of the weight

vector of the i-th node:

P(i) = |{x ∈ X|D(x, w

) < r}|, (9)

where X is the set of requests mapped to the SOM

considered and radius r is some positive real number.

A display of all P-matrix elements on top of the SOM

grid is called a P-matrix. In fact, the value of P(i)

is the number of data points within a hypersphere of

radius r. The radius r should be chosen such that P(i)

approximates the probability density function of the

GROWINGHIERARCHICALSELF-ORGANISINGMAPSFORONLINEANOMALYDETECTIONBYUSING

NETWORKLOGS

637

data points. This radius can be found as the Pareto

radius (Ultsch, 2003b):

r =

), (10)

where χ

is the Chi-square cumulative distribution

function for d degrees of freedom and p

= 20.13%

of requests number containing in the data set X. The

only condition is that all points in X must follow a

multivariate mutual independent Gaussian standard

normal density distribution (MMI). It can be enforced

by different preprocessing methods such as principal

component analysis, standardization and other trans-

formations.

The U

∗

-matrix which is combination of a U-

matrix and a P-matrix presents a combination of dis-

tance relationships and density relationships and can

give an appropriate clustering. The i-th element of

∗

-matrix is equal to the U(i) multiplied with the

probability that the local density, which is measured

by P(i), is low. Thus U

∗

(i) can be calculated as fol-

lows:

∗

(i) = U(i)

|p ∈ P|p > P(i)|

|p ∈ P|

, (11)

i.e. if the local data density is low U

∗

(i) ≈ U(i) (this

happens at the presumed border of clusters) and if the

data density is high, then U

∗

(i) ≈ 0 (this is in the cen-

tral regions of clusters). We can also adjust the multi-

plication factor such that U

∗

(i) = 0 for the p

high

per-

cent of P-matrix elements which have greatest values.

Since we assumed that most of requests are nor-

mal, intrusions can not form big clusters but will

be mapped to nodes which are located on cluster

borders. Thus, ”anomalous” nodes are those ones

which correspond to high values of U

∗

-matrix ele-

ments. In this research, the following criterium for

ﬁnding anomalous nodes is used: if difference be-

tween the U

∗

(i) and U

∗

average

(i) (average value of all

elements of U

∗

-matrix) is greater than difference be-

tween the U

∗

average

(i) and minimal value ofU

∗

-matrix,

then the i-th neuron is classiﬁed as ”anomalous”, oth-

erwise this neuron is classiﬁed as ”normal”. If a node

of GHSOM is classiﬁed as ”normal” but has child

SOM, then all nodes of this child SOM should be also

checked whether they are ”normal” or ”anomalous”

by calculating new U

∗

-matrix for this SOM.

4.3 Updating

Web-applications are highly dynamic and change on

regular basis, which can cause noticeable changes in

the HTTP requests which are sent to the web-server.

It can lead to the situation when all new allowable re-

quests will be classiﬁed as intrusions. For this reason,

the GHSOM should be retrained after a certain period

of time T to be capable of classiﬁng new requests.

Let us assume that the number of requests sent

to the web-server for this period T is much less than

number of requests in the training set. We update the

training set by replacing ﬁrst requests from this set by

requests obtained during the period T. After that, the

GHSOM is retrained by using the resulting training

set. During the update phase the structure of the GH-

SOM can be modiﬁed. The update of the GHSOM

structure starts from the current structure. Parameters

τ and matrices U, P and U

∗

should be recalculated.

The update phase can occur independently from the

detecting anomalies. During retraining, requests ob-

tained are classiﬁed using old GHSOM, and when the

GHSOM retraining is completed the classiﬁcation of

new requests continues with the updated GHSOM.

Countermeasures are necessary against attackers

who try to affect the training set by ﬂooding the web-

server with a large number of intrusions. It can be

enforced for example by allowing a client (one IP ad-

dress) to replace a conﬁgurable number of HTTP re-

quests in the training set per time slot. It is also pos-

sible to restrict the globally allowed replacements per

time slot independent of the IP addresses, in order to

address the threat of botnets.

5 SIMULATION RESULTS

The proposed method is tested using logs acquired

from a large real-life web-service. These logs contain

mostly normal trafﬁc, but they also include anomalies

and actual intrusions. The logﬁles are acquired from

several Apache servers and stored in combined log

format. The logs contain requests from multiple web-

resources. Since it is not possible to inject code via

static requests unless there are major deﬁciencies in

the HTTP server, we focus on ﬁnding anomalies from

dynamic requests because these requests are used by

the web-applications, which are run behind the HTTP

server. Thus, the requests without parameters are ig-

nored.

We run two simulations. In the ﬁrst simulation,

requests to the most popular web-resourse are chosen

from the logs. In the second simulation, thirty-eight

most popular resources are analyzed. In both cases,

the training set is created at the beginning. It contains

10 000 and 25 000 requests in the ﬁrst and second

tests respectively. After GHSOMs are trained, new re-

quests are chosen from logﬁles and classiﬁed by GH-

SOMs one by one to test the technique proposed. The

number of testing requests is equal 20 000 and 50 000

for the ﬁrst and second simulations respectively. Dur-

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

638

ing the testing, the GHSOMs are updated every 2 000

and 5 000 requests in the ﬁrst and second cases re-

spectively.

To evaluate the performance of proposed tech-

nique, the following characteristics are calculated in

both tests:

• True positive rate, ratio of the number of correctly

detected intrusions to the total number of intru-

sions in the training set;

• False positive rate, ratio of the number of normal

requests classiﬁed as intrusions to the total num-

ber of normal requests in the training set;

• True negative rate, ratio of the numberof correctly

detected normal requests to the total number of

normal requests in the training set;

• False negative rate, ratio of the number of in-

trusions classiﬁed as normal requests to the total

number of intrusions in the training set;

• Accuracy, ratio of the total number of correctly

detected requests to the total number of requests

in the training set;

• Precision, ratio of the number of correctly de-

tected intrusions to the number of requests clas-

siﬁed as intrusions.

In the ﬁrst test, the requests in training and testing sets

are related to one web-resource. This resource allows

users to search a project by choosing the appropri-

ate category of the projects or initial symbols of the

project name. Thus, all requests have one of the two

different attributes which can be used by attackers to

inject malignant code. Settings of the ﬁrst simulation

are presented in Table 1. When the GHSOM training

Table 1: The ﬁrst simulation settings.

Number

of web-

resources

Training

set size

Testing set

size

Update

period

1 10 000 20 000 2 000

is completed, U-matrix, P-matrix and U

∗

-matrix are

constructed. In Figure 1, U-matrix and P-matrix are

shown. As one can see, some nodes on one of the map

edges are distant from all others (Figure 1 (a)), and at

the same time density of data inputs in these nodes is

very low (Figure 1 (b)). These facts make these nodes

candidates to ”anomalous” ones. U

∗

-matrix is plot-

ted in Figure 2. We can notice that there are two big

clusters corresponding to the requests in which differ-

ent methods of searching required project are used:

by specifying the project category or initial symbols

of project name. Nodes on one of the map edges are

classiﬁed as ”anomalous”. The technique proposed

can not allow us to deﬁne intrusion types, but we can

check manually the nodes which have been classiﬁed

as ”anomalous” and make sure that requests mapped

to those nodes are real intrusions: SQL injections,

buffer overﬂow attacks and directory traversal attacks,

as shown in Figure 2.

After constructingU

∗

-matrix, detection process is

started. New requests are mapped to the GHSOM

one by one and classiﬁed as intrusions if the distance

between new request and its BMU weight vector is

greater than threshold value or if the node which is the

BMU for this new request is anomalous. During the

detection phase, the GHSOM is retrained periodically

when a certain number of requests are processed. Af-

ter the GHSOM update, threshold values for all nodes

are modiﬁed and U

∗

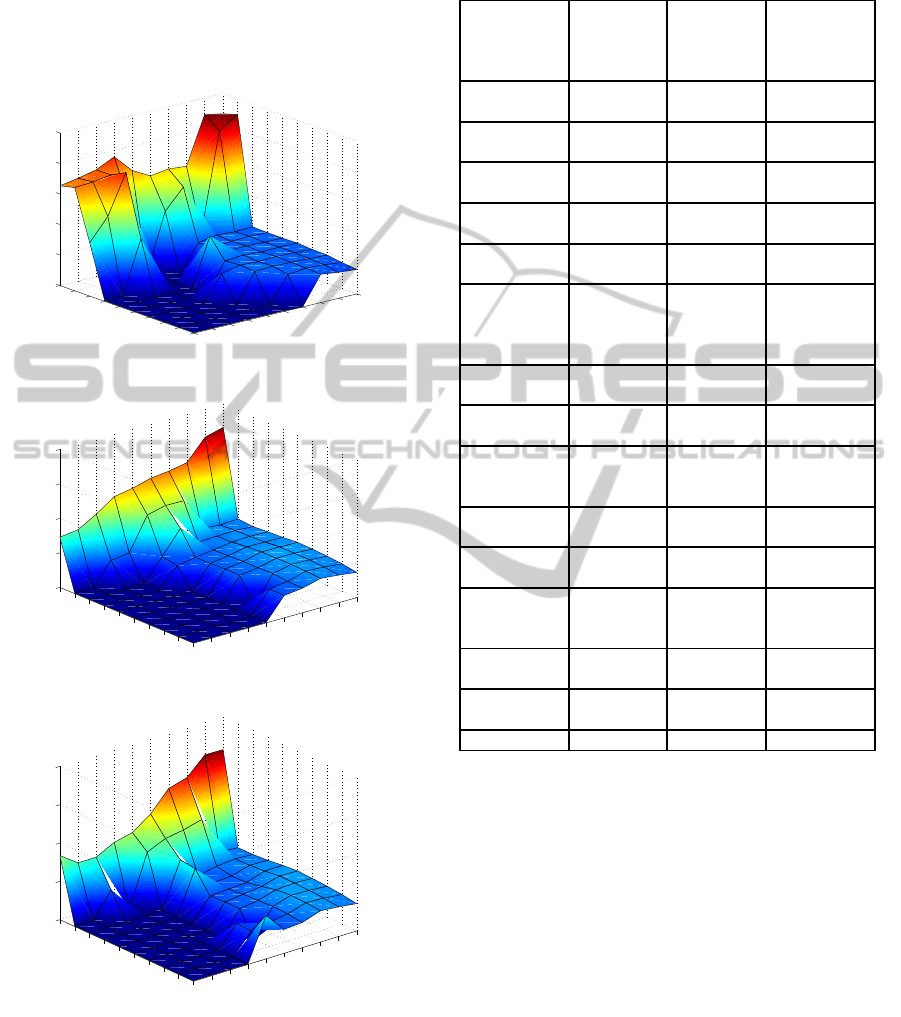

-matrix is also recalculated. Fig-

ure 3 shows the U

∗

matrix after the training phase and

the ﬁrst and ﬁfth updates. Requests which are used

0.05

0.1

0.15

0.2

0.25

0.3

(a) U-matrix.

1000

2000

3000

4000

5000

(b) P-matrix.

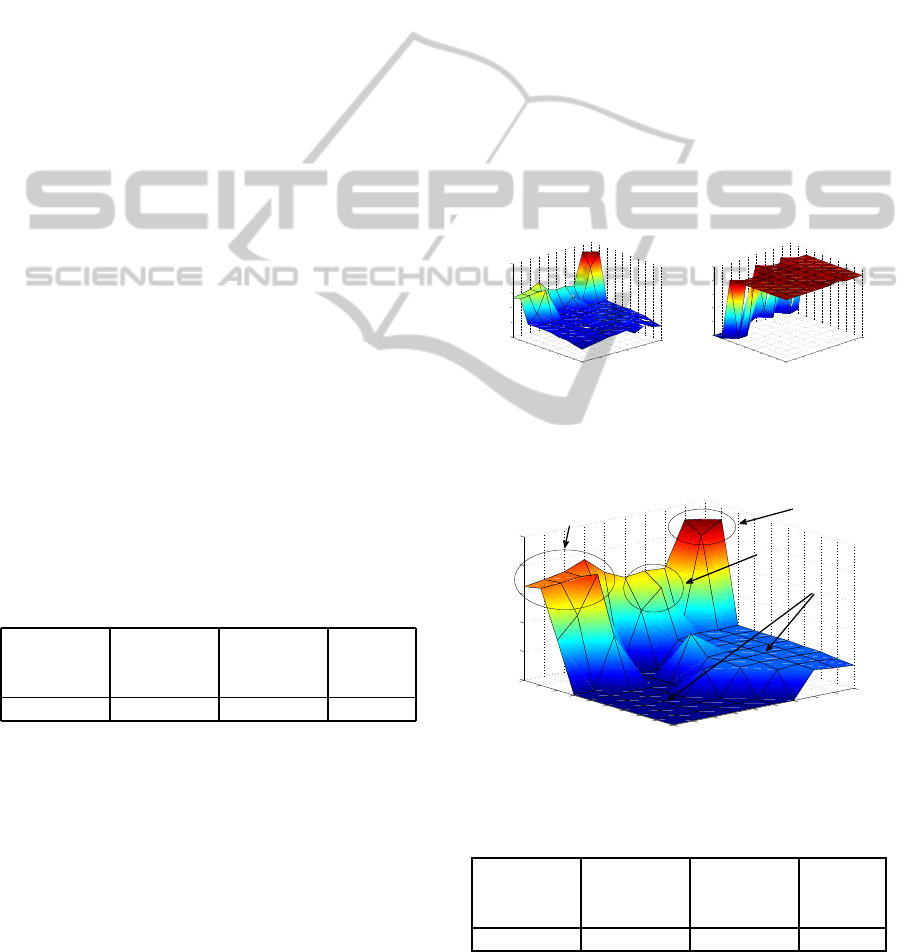

Figure 1: U-matrix and P-matrix after the training stage in

the ﬁrst simulation.

0.05

0.1

0.15

0.2

0.25

Buffer overflow attacks

SQL injection attacks

Normal requests

Directory traversal attacks

Figure 2: U

∗

-matrix for detecting anomalies after the train-

ing stage in the ﬁrst simulation.

Table 2: The second simulation settings.

Number

of web-

resources

Training

set size

Testing set

size

Update

period

38 20 000 50 000 5 000

as the testing set in our ﬁrst simulation, contain also

other types of intrusions except those ones which are

GROWINGHIERARCHICALSELF-ORGANISINGMAPSFORONLINEANOMALYDETECTIONBYUSING

NETWORKLOGS

639

Table 3: The ﬁrst simulation results.

True positive rate Flase positive

rate

True negative

rate

False negative

rate

Accuracy Precision

100 % 0 % 100 % 0 % 100 % 100 %

Table 4: The second simulation results for different web-resources.

Resource

number

True positive

rate

Flase positive

rate

True negative

rate

False negative

rate

Accuracy Precision

1 100 % 0 % 100 % 0 % 100 % 100 %

2 100 % 0 % 100 % 0 % 100 % 100 %

3 98.08 % 0 % 100 % 1.92 % 99.90 % 100 %

4 100 % 0 % 100 % 0 % 100 % 100 %

5 100 % 0 % 100 % 0 % 100 % 100 %

6 100 % 0 % 100 % 0 % 100 % 100 %

7 100 % 0 % 100 % 0 % 100 % 100 %

8 100 % 0 % 100 % 0 % 100 % 100 %

9 100 % 0 % 100 % 0 % 100 % 100 %

10 100 % 0 % 100 % 0 % 100 % 100 %

11 100 % 0 % 100 % 0 % 100 % 100 %

12 100 % 0 % 100 % 0 % 100 % 100 %

13 100 % 0 % 100 % 0 % 100 % 100 %

14 100 % 0 % 100 % 0 % 100 % 100 %

15 100 % 0 % 100 % 0 % 100 % 100 %

16 100 % 0 % 100 % 0 % 100 % 100 %

17 100 % 0 % 100 % 0 % 100 % 100 %

18 100 % 0 % 100 % 0 % 100 % 100 %

19 100 % 0 % 100 % 0 % 100 % 100 %

20 100 % 0 % 100 % 0 % 100 % 100 %

21 95.65 % 0 % 100 % 4.35 % 99.74 % 100 %

22 100 % 0 % 100 % 0 % 100 % 100 %

23 98.57 % 0 % 100 % 1.43 % 99.93 % 100 %

24 100 % 0 % 100 % 0 % 100 % 100 %

25 100 % 0 % 100 % 0 % 100 % 100 %

26 100 % 0 % 100 % 0 % 100 % 100 %

27 100 % 0.10 % 99.90 % 0 % 99.90 % 98.00 %

28 100 % 0.07 % 99.93 % 0 % 99.93 % 98.63 %

29 100 % 0 % 100 % 0 % 100 % 100 %

30 100 % 0.20 % 99.80 % 0 % 99.81 % 95.35 %

31 97.50 % 0 % 100 % 2.50 % 99.87 % 100 %

32 100 % 0 % 100 % 0 % 100 % 100 %

33 100 % 0 % 100 % 0 % 100 % 100 %

34 100 % 0 % 100 % 0 % 100 % 100 %

35 98.51 % 0 % 100 % 1.49 % 99.93 % 100 %

36 100 % 0 % 100 % 0 % 100 % 100 %

37 100 % 0 % 100 % 0 % 100 % 100 %

38 100 % 0 % 100 % 0 % 100 % 100 %

Average 99.69 % 0.01 % 99.99 % 0.31 % 99.97 % 99.79 %

contained in the training set. However, all intrusions

are detected and false alarms are absent. The sum-

mary of the ﬁrst simulation results is presented in Ta-

ble 3.

In the second simulation, thirty eight most popu-

lar web-resources are chosen from web-server logs.

Since the logs contain a few different types of intru-

sions, we generate other types of intrusions and add

them to the testing set. The basic settings of the sec-

ond simulation are presented in Table 2.

Results of the detection phase are shown in Table

4. As one can see, almost all real attacks are clas-

siﬁed correctly as intrusions by using proposed tech-

nique. At the same time, false positive rate is about

0.01% on average which means that the number of

false alarms is very low. The accuracy of the method

is close to one hundred percent.

In the second simulation, the training set contains

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

640

fourteen differenttypes of attack. The results for these

attack types are presented in Table 5. We can see that

our algorithm found 99.63% of all attacks. Thus, all-

most all intrusions are detected despite the fact that

some of them are not contained in the training set.

0.05

0.1

0.15

0.2

0.25

(a) After training phase.

0.05

0.1

0.15

0.2

(b) After the ﬁrst update.

0.05

0.1

0.15

0.2

Figure 3: U

∗

-matrix in the ﬁrst simulation.

Table 5: The second simulation results for different types of

attacks.

Attack type Total

number of

attacks

Number

of de-

tected

attacks

Proportion

of detected

attacks

SQL injec-

tion

229 229 100 %
