EFFICIENT FILTERING OF BINARY XML IN RESOURCE

RESTRICTED EMBEDDED NETWORKS

Sebastian K¨abisch

1,2

, Richard Kuntschke

, J¨org Heuer

and Harald Kosch

Siemens AG, Corporate Technology, Communication Systems & Control Networks, 81730 Munich, Germany

University of Passau, 94032 Passau, Germany

Keywords:

XML, EXI, Filtering, Embedded Networks.

Abstract:

Existing XML-based ﬁlter and publish-subscribe solutions are based on plain-text XML. Due to the com-

putational overhead and memory consumption of parsing and processing textual XML, these approaches are

generally not applicable to embedded devices such as microcontrollers. However, XML-based communica-

tion in embedded networks is a desirable paradigm to ease the development of applications on top of diverse

heterogeneous nodes by leveraging existing XML-based development processes and tools. In this paper, we

present an approach using the W3C Efﬁcient XML Interchange (EXI) format for efﬁciently ﬁltering XML data

against a number of XPath subscriptions with low computational effort and memory usage. Thus, XML-based

messaging can be brought to resource limited embedded devices while at the same time gaining performance

compared to technologies based on plain-text XML.

1 INTRODUCTION

Sensor/actor networks in the embedded domain, e.g.,

in home or industrial automation, can be very hetero-

geneous, containing wired and wireless nodes with

different kinds of resources and service capabilities

such as sensing, acting, and processing. This is

especially true if the sensor/actor network evolves

over time, adding new components or removing old

ones. Since proprietary interfaces drastically limit the

amount of available compatible devices or cause huge

integration effort, research in recent years has focused

on extending generic XML-based technologies such

as Web services to the embedded domain.

By means of using XML-based communication,

it is possible to create interoperable service commu-

nication between heterogeneous machines on today’s

Internet. However, textual XML comes with a huge

penalty for parsing and processing XML data. Thus,

binary XML has emerged and with the W3C Efﬁ-

cient XML interchange (EXI) format (Schneider and

Kamiya, 2011), a binary XML standard has been es-

tablished that enables very efﬁcient usage and seam-

less adoption of XML-based protocols on embed-

ded devices with limited resources such as microcon-

trollers (K¨abisch et al., 2011). EXI eliminates the

overhead of parsing and processing textual XML, re-

ducing both, memory usage and computational effort

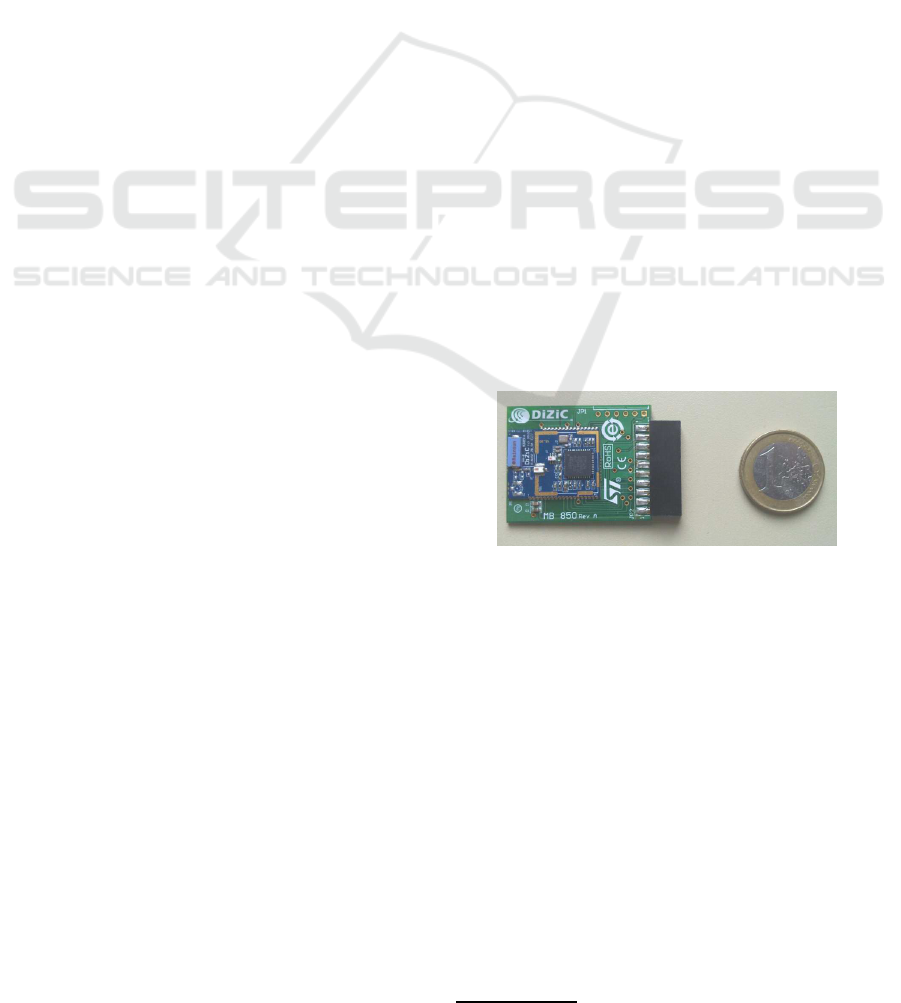

Figure 1: Typical microcontroller for embedded devices.

to a degree that makes XML applicable in the embed-

ded domain.

Figure 1 gives an impression of the kind of em-

bedded devices that we target with the approach pre-

sented in this paper. The Figure shows an STMicro-

electronics

ARM Cortex-M3 microcontroller with a

24 MHz CPU, 8 kilobytes of RAM, and 128 kilo-

bytes of ﬂash memory integrated into a typical inter-

face board.

Figure 2 illustrates an example embedded network

with eight embedded devices. The arrows indicate

that data emitted by device 1, e.g., sensor readings, is

routed to receiving devices 4, 5, and 7 via devices 2,

3, and 6, respectively. In such a scenario, the com-

bined subscriptions of devices 4, 5, and 7 can already

be evaluated at device 1. The resulting stream of data

can then be routed to devices 4, 5, and 7 where it can

http://www.st.com/

174

Käbisch S., Kuntschke R., Heuer J. and Kosch H..

EFFICIENT FILTERING OF BINARY XML IN RESOURCE RESTRICTED EMBEDDED NETWORKS.

DOI: 10.5220/0003939001740182

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 174-182

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

11111

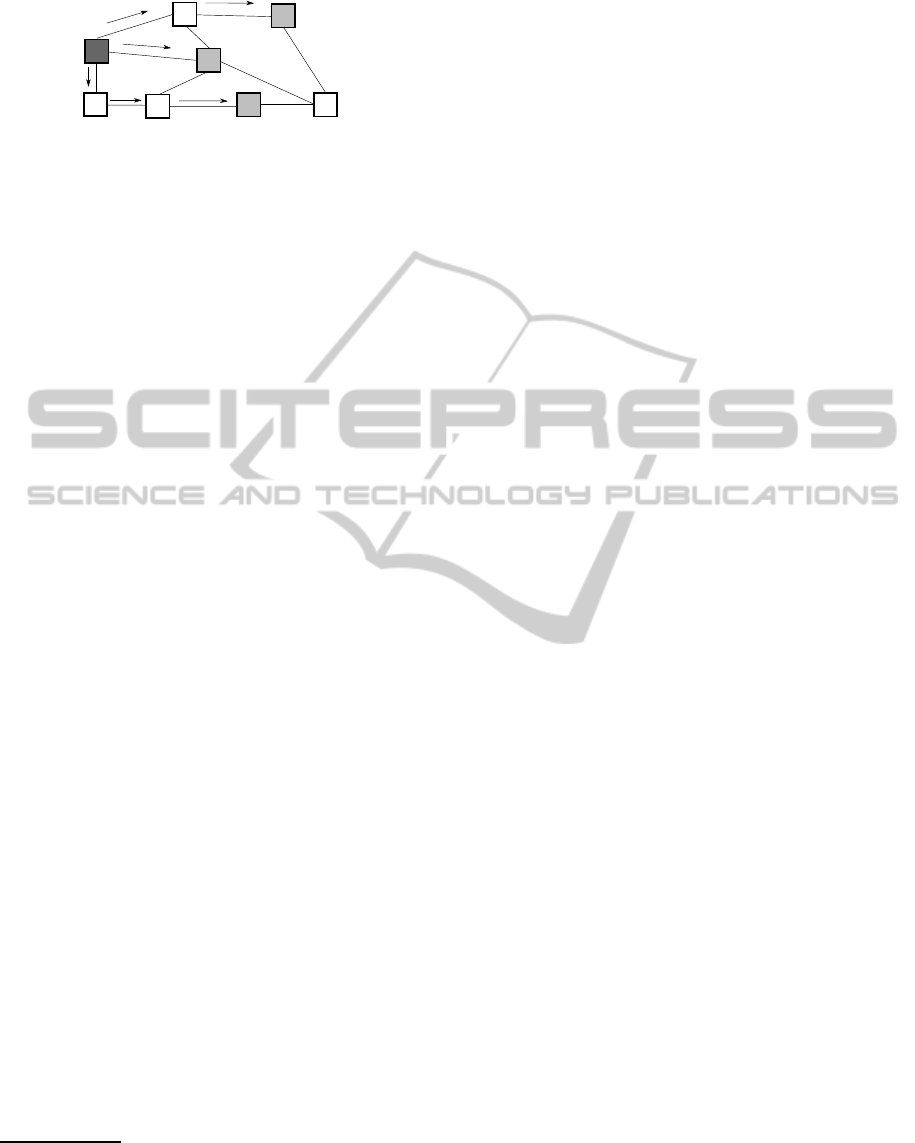

Figure 2: Service communication in embedded network.

again be processed to yield the actual data subscribed

at the respective devices. In this paper, we focus on

technologies for efﬁciently evaluating a batch of sub-

scriptions against a potentially continuous stream of

data at a single device such as, e.g., device 1 in the

example above.

Our main contribution in this paper is the presen-

tation of an approach using the W3C Efﬁcient XML

Interchange (EXI) format (Schneider and Kamiya,

2011) for efﬁciently ﬁltering XML data against a

number of XPath subscriptions with low computa-

tional effort and memory usage, thus making the ap-

proach applicable to resource limited embedded de-

vices. In detail, we make the following contributions:

• We shortly introduce the W3C Efﬁcient XML In-

terchange (EXI) format (Schneider and Kamiya,

2011) and describe how we realize an efﬁcient

EXI processor for embedded devices (K¨abisch

et al., 2010) (Section 2).

• We describe a naive approach for EXI-based

XML ﬁltering based on SAX events as a baseline

and then go on to introduce in detail our solution

for efﬁcient XML ﬁltering for embedded devices

based on EXI (Section 3).

• Finally, we present performance results of our so-

lution, comparing it to the naive approach as well

as to YFilter (Diao and Franklin, 2003) as a repre-

sentative of ﬁltering based on textual XML (Sec-

tion 4). Furthermore, a demo setup of an embed-

ded network is presented that provides some num-

bers of memory usage of the approaches.

2 BINARY XML WITH EXI

The Efﬁcient XML interchange (EXI) for-

mat (Schneider and Kamiya, 2011) is a very

compact representation of the XML Information

Set

(Cowan and Tobin, 2004) that is intended to

simultaneously optimize performance and utilization

The XML Information Set is a W3C speciﬁcation de-

scribing an abstract data model of an XML document in

terms of a set of information items (e.g., elements and at-

tributes). XML and EXI respectively are implementations

thereof.

of computational resources. Since March 2011 EXI

is a W3C recommendation. In the following, a brief

introduction of the functionality of EXI is given.

The next subsection describes an approach how an

efﬁcient EXI Processor can be created that is suitable

for small embedded devices.

2.1 Basic Functionality of EXI

The EXI format uses a relatively simple grammar-

driven approach that achieves very efﬁcient encod-

ings for a broad range of use cases (Peintner et al.,

2009) (Bournez, 2009). The EXI speciﬁcation deﬁnes

a predeﬁned process how schema information is to be

transformed to EXI grammars. The reason for do-

ing so is that EXI grammars are much simpler to pro-

cess, compared to XML Schema information, while

still describing in an accurate way what is expected to

occur at any given point.

Figure 3 shows an example of an EXI grammar

based on the XML schema shown in Listing 1. In gen-

eral, EXI grammars correspond to deterministic ﬁnite

automata (DFA) where each automaton represents a

complex type in an XML schema. States represent

a particular element. The transitions declare which

successor states/elements may arrive. For states that

allow multiple transitions, the grammar uses an event

code (EV) to indicate which path in the automaton has

been chosen.

Listing 1: XML Schema example snippet

xml version

="1.0" encoding="UTF-8"?>

</sequence>

</complexType>

</element>

</schema>

The event code is represented with an n-bit stream

(n = ⌈log

m⌉, where m is the number of transitions

at the state). E.g., the start state of the root grammar

has three transitions. Thus, only 2-bits are required to

signal A (=EV(00)), B (=EV(01)), or C (=EV(10)) as

possible successor states. A transition is considered

to be implicit if there is only one possible next state.

In that case no event code is required (EV(-)).

To understand how such a grammar is used to en-

code and decode EXI streams, we discuss a simple

example: Lets assume there is a plain XML document

EFFICIENTFILTERINGOFBINARYXMLINRESOURCERESTRICTEDEMBEDDEDNETWORKS

175

EV(01)

EV(10)

EV(00)

EV(-)

Root Grammar

EV(0)

EV(1)

EV(-)

A Grammar

EV(-)

B Grammar

EV(-)

EV(0)

EV(1)

EV(-)

C Grammar

Figure 3: EXI grammar example.

as shown on the left hand side in Listing 2.

Listing 2: Two XML instances.

<A> <B>

</A>

For that case, the equivalent EXI stream would

look like:

EXI

Stream

00 1 '123' 'abc'

This EXI stream is produced by traversing the cor-

responding transitions starting from the start state of

the Root Grammar: The root element A in the XML

document is met in this grammar by following the

transition with the event code 00. Signalling this, 2

bits are written to the stream and the A state is vis-

ited next. Since the A element is a complex type the A

Grammar is processed. There, the event code 1 (1 bit)

is written to the stream since the e element is present

in the XML document. The e element itself is a sim-

ple type and at this point the value of the element is

encoded (only sketched here). After that, no event

code is written to the stream since there is no choice

of transitions. Therefore, the d state is visited next

without writing any bits ex ante. The d element is

also a simple type and the value is encoded at this

point. This will also close the stream since no event

codes have to be written based on the grammar and

no other element is present anymore in the example

XML document. The decoding process is realized

in the same manner. Only the EXI stream is read.

Thereby, the event codes navigate through the gram-

mar and for each simple typed state the decoding pro-

cess is triggered.

The EXI stream for the XML instance on the right

hand in Listing 2 is encoded in a similar way. The

corresponding EXI stream has the following content:

EXI

Stream

01 'abc'

2.2 Efﬁcient EXI Processor

In general, there is no prescribed nor a standardized

way how an EXI Processor can be made aware of a

certain set of EXI grammars. There are two apparent

possibilities, but none of them seem to be suitable for

restricted devices. Neither sharing the XML Schema

documents itself nor pre-parsed grammar ﬁles are

suitable. The requirement for a processor to provide

all possible EXI functionalities, datatypes and such in

each case (even if not required) is not feasible for mi-

crocontrollers. In (K¨abisch et al., 2010) we present a

solution to this problem. The main idea can be broken

down into three automated processing steps:

I The analysis of XML schema information pro-

vides all possible XML elements, attributes, and

constraints in a speciﬁc schema context.

II Based on the domain speciﬁc functionalities and

datatypes the EXI grammar set G is generated.

III Those EXI grammars form the basis for creating

the source code of an EXI Processor based on

SAX eventing.

Summing up, we produce an EXI Processor

with a SAX interface (startDocument, endDocument,

startElement, endElement, etc.) that uses a minimal

code footprint and complexity where the runnable

code implicitly contains all required grammar infor-

mation without any external dependencies. This re-

sulting processing unit is able to encode the schema

equivalent XML information to an EXI stream. Vice

versa, an EXI stream or respectively XML informa-

tion items can be decoded.

3 EFFICIENT FILTERING

APPROACHES

In the following, we present two approaches to eval-

uate a number of given XPath requested (e.g., given

by client nodes) on EXI streams. The goal is to get

feedback if the present stream provides information

that is requested and which queries have a match on

the stream. In general, for both approaches we make

the following assumptions:

• In this work, we focus on queries that are written

in a subset of XPath, similar as described in (Diao

and Franklin, 2003). That excludes, e.g., all dy-

namical operators that have to be executed at run

time.

• We have the complete knowledge of the data-

model behind the XML-based messages which

are evaluated by having the underlying XML

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

176

Schema deﬁnition. This enables a type aware

predicate evaluation (e.g., //e[text() > 100]) and

the immediate rejecting of XPath queries which

can never be fulﬁlled.

• A XPath query which uses relative paths such

as the descending-or-self axis (’//’) and/or the

wildcard (’*’) operator is normalized based on

the underlying XML Schema information (e.g.,

//e[text() > 100] → /A/e[text() > 100]). This

may result in one or more XPath queries when

there are multiple paths to the addressed element.

We will start to introduce a basic approach that

works on the top of an EXI grammar to evaluate

XPath queries on binary XML streams. This approach

will be called BasicEXIFiltering. A more sophisti-

cated and optimized approach is presented in the next

subsection that affects the EXI grammar directly. This

approach is called OptimizedEXIFiltering.

3.1 Basic Binary XML Filtering

In general, this approach is based on the XPath evalu-

ation concept with SAX events and follows the mech-

anism given by the the Knuth-Morris-Pratt algorithm

(Cormen et al., 2001). Instead of the usage of a

generic plain XML SAX parser we are using an EXI

Processor with a SAX interface to read binary XML

streams.

The XPath evaluation process is simple: Based on

the SAX events that are released by reading the EXI

stream we keep track of the current step i of each

given XPath query. If an encountered startElement

event matches the next step of one or more of the

queries, the current step index of all affected XPath

queries is incremented (i = i + 1). If there is a mis-

match, the mechanism will fall back to the last step

in the corresponding query that matches the tags we

have seen before and test again if a match was found.

This process is continued for each XPath query un-

til the last element was found (XPath match) or the

endDocument event is reached which results to a no

XPath query match.

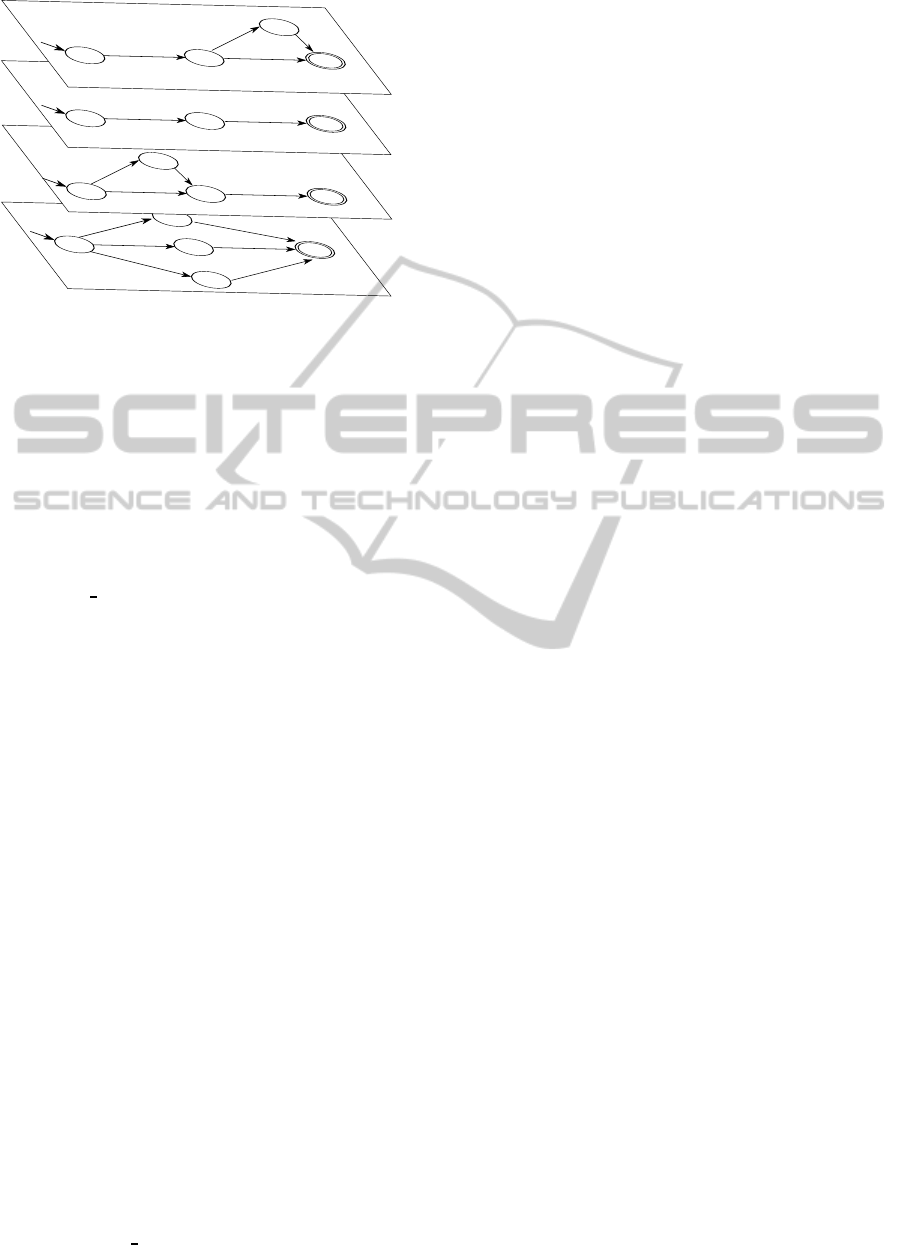

In the following, an example is given based on

the EXI grammar as shown in Figure 3. Thereby,

the EXI

Stream 1 (see section 2.1) is checked if the

XPath query /A/d matches:

EXI Stream SAX Event Current Step i

startDocument() 0

00 startElement(’A’) 1

1 startElement(’e’) 1

’123’ character(’123’) 1

endElement() 1

startElement(’d’) 2

’abc’ character 2

Here, i is only incremented if a startElement pro-

vides the requested XPath node at the corresponding

position. There is a match at the time i = 2 since two

addressing elements are deﬁned in the XPath query.

Consequently, the result can be provided: ’abc’.

Generally, this simple mechanism takes also pre-

dictions into account which are evaluated at the cor-

responding time when they occur. If one predicate

evaluation is negative, this would result to a general

query mismatch.

Since this BasicEXIFiltering is only seen as base-

line we are not going to discuss it any further in detail

in this paper and concentrate on the next presented

binary XML ﬁltering approach.

3.2 Optimized Binary XML Filtering

This proposed mechanism is realized by two main

steps for determining the ﬁlter grammar and one op-

tional code generation step. The details of each step

are described separately in the following subsections.

3.2.1 Determine Accepting and Predicate States

For better clariﬁcation of the following processing

steps lets consider the following 3 simple example

queries that can successfully be applied on XML-

based instances which are created based on the EXI

grammar shown in Figure 3:

• Q

= /C/h

• Q

= /A[e =

′

123

′

]/d

• Q

= //h

addresses the element h that is nested in C. Q

returns the value of element d if e is present and the

value of e is 123 (e =

′

123

′

). The last query selects all

h elements of an XML-based document. Here, only

one will be present, thus the result of Q

will be the

same as that of Q

Based on the set of queries, an analyzing step

is performed to identify the so called Accepting

States (AS) and Predicate States (PS) in the EXI

Grammar. An AS represents the state or element that

is requested by the query. A PS is a state where a pred-

icate evaluation has to be done that is indicated by the

query. Such kind of states can be found by follow-

ing the addressed elements in each XPath query. E.g.,

addresses at ﬁrst the C element. In the EXI gram-

mar the transition is followed that leads to the C state.

As next the h element is searched within the C gram-

mar. Since this is the requested element of Q

the h

state is marked as AS. The general search mechanism

in this process can be done by classical search algo-

rithms such as Depth First Search (DFS) or Breadth

First Search (BFS).

EFFICIENTFILTERINGOFBINARYXMLINRESOURCERESTRICTEDEMBEDDEDNETWORKS

177

EV(01)

EV(10)

EV(00)

EV(-)

Root Grammar

EV(0)

EV(1)

EV(-)

A Grammar

EV(-)

B Grammar

EV(-)

EV(0)

EV(1)

EV(-)

C Grammar





















Figure 4: AS and PS in the grammar.

Query Q

contains a predicate. In that case, the

corresponding e state is marked as PS which means

a predicate evaluation has to be done at this point.

Only if the predicate evaluation is positive then the

requested d element is desired. The d state itself is

also marked as AS.

The last query Q

uses the descending-or-self axis

to ﬁnd all h elements that occur in an XML-based in-

stance. In such a case all paths that lead to an h state

have to be identiﬁed. Since only one h state exists and

we would prune out the descending operator the same

result as Q

is expected.

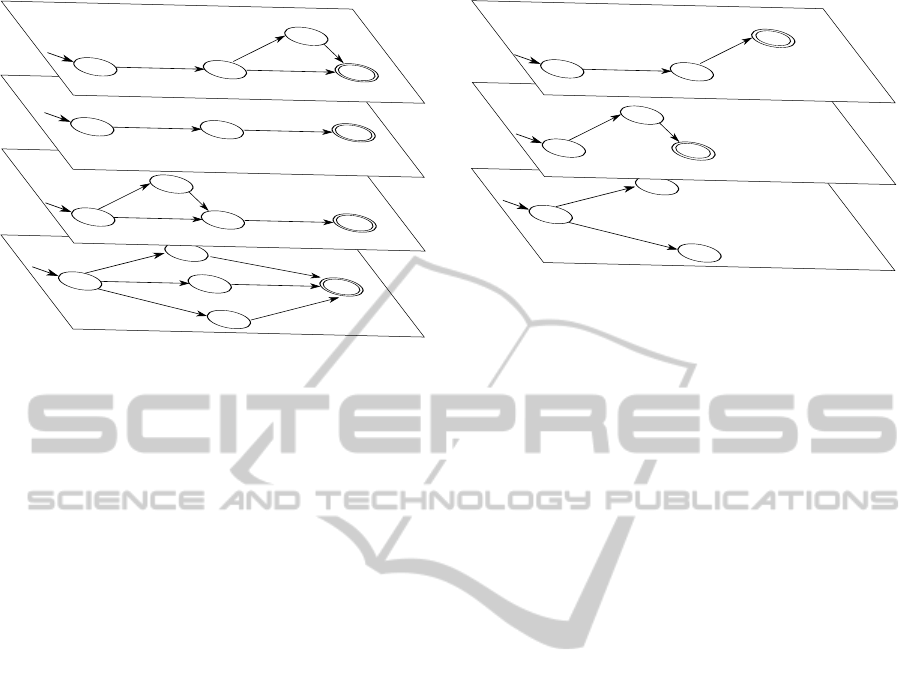

Figure 4 shows the result of the identiﬁcation pro-

cess of AS and PS based on the given queries Q

, Q

and Q

3.2.2 Determine Filter Grammar G

After determining for each query the involved states

in the EXI Grammar the ﬁlter grammar G

is built.

is a subset of G and contains all necessary states

and transitions for the given queries.

To create such a grammar the following steps are

performed:

I Remove all states and transitions which are not

required to reach AS and PS

II Remove all states and transitions that would skip

a PS and would lead to an AS of the same query.

III AS will be an end state if there is no successor AS

at this point

Since we are only interested in states that are required

to evaluate each given query we remove all states and

transitions which do not lead to at least an AS and a

PS. If there are one or more predicates given in an

XPath query the paths are removed which would skip

the evaluation of such predicates. If we consider the

)

EV(00)

Root Grammar

EV(1)

A Grammar

EV(-)

EV(1)

EV(-)

C Grammar

{Q , Q }

{Q }

Figure 5: Filter grammar G

query Q

and the A grammar (see Figure 4) it will

explain this aspect: The start state of the A gram-

mar allows two sucessor transitions, namely to the d

(EV(0)) state and to the e (EV(1)) state. Q

, however,

calls only for e values where the predicate e =

′

123

′

true. EXI stream instances which do not address this

condition by not containing the e value and using the

EV(0) transition at this point will not fulﬁl the query

Figure 5 shows the result of the elimination pro-

cess which leads to the ﬁlter grammar G

. It can be

seen that the number of states and transitions has been

reduced. E.g., all grammar components which are in-

volved by and within B are removed. Thus, the com-

plete B grammar is removed as well as the automaton

fragments which lead to and from the B state in the

root grammar.

In general, this grammar will only read an EXI

stream that is really requested by one or more XPath

queries. Applying the streams which was shown

in section 2.1 Stream

would successfully traverse

through the grammar and would match Q

. However,

Stream

would be discarded since the EV(01) is not

present in the root grammar of G

. This shows the

beneﬁt that we are able to evaluate EXI streams at the

very beginning stage of the decoding process if there

is at least one query that matches this stream.

Corresponding to the number of states and transi-

tions are used for G

it can be said that the following

relation will be always valid:

| ≤ |G|

Thereby, the absolute value (|..|) gives the total

number of used states and transition of the corre-

sponding grammar. This equation is justiﬁed by the

fact that G

is a subset of G (G

⊆ G) and may con-

tain as maximum all states and transitions when there

is a demand of one or more XPath queries.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

178

3.2.3 Generate Filter Code

Based on the ﬁlter Grammar G

that contains the

predicate evaluation functionality and the accepting

state we are already able to use a generic EXI inter-

preter for the evaluation of an EXI message. How-

ever, as mentioned in section 2.2, such a solution is

not suitable for small embedded devices because of

the highly restricted memory and processing capac-

ity.

Based on this motivation we extended our code

generation tool as presented in section 2.2 for the ﬁl-

tering propose:

I The analysis of XML schema information pro-

vides all possible XML elements, attributes, and

constraints in a speciﬁc schema context.

II(a) Based on the domain speciﬁc functionalities

and datatypes the EXI grammar set G is gen-

erated.

(b) For each query determine AS and PS of G (s.

section 3.2.1)

by removing all states and transitions

which do not lead to a AS or PS (s. section

3.2.2)

III Based on G

the source code is generated for the

EXI Processor that involves only the decoding

mechanism and the requested evaluation imple-

mentations.

Mainly, step II and III are modiﬁed. The step

II only integrates the mechanism as described in the

former two subsections. The novelty is the step III

where only the code is generated for only decoding

EXI stream messages as well as the evaluation meth-

ods for the predictions. The motivation for not gen-

erating the code for encoding EXI stream is based on

the simple fact, that we want to ﬁlter EXI streams to

identify, if the requested information is present or not.

4 EXPERIMENTAL EVALUATION

In this section, we are going to evaluate the applicabil-

ity of the presented binary XML ﬁltering approaches.

The evaluation section considers two aspects. First,

the performanceof the approachesis tested in general.

To get an estimation how these approaches perform

compared to an existing XML-based ﬁltering mech-

anism, YFilter (Diao and Franklin, 2003) is involved

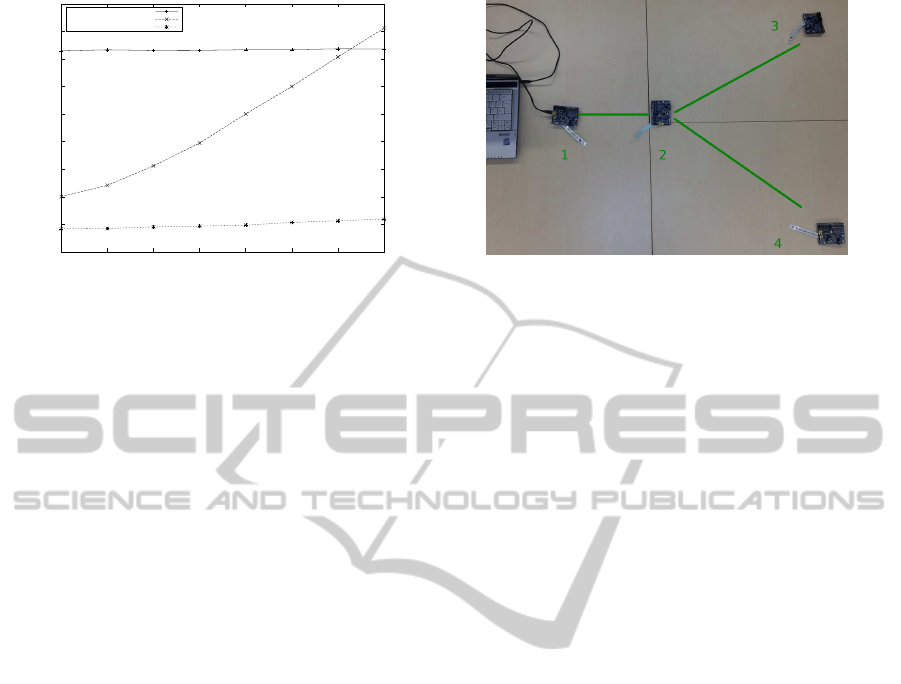

in this test. The second aspect provides some num-

bers of code footprint and RAM usage size of a demo

embedded network scenario that uses the binary XML

ﬁltering approaches.

Both approaches are implemented in the Java pro-

gramming language and use the open source W3C

EXI reference implementation

. For the described

code generation mechanism we modiﬁed our exist-

ing implementation (see section 2.2) to realize the de-

scribed ﬁltering functionality in a code generated way.

So far, the generator produces source code in the C

and Java programming languages which can be used

with platforms such as ContikiOS

and Java Micro

Edition CLDC 1.1, respectively. The functionality to

normalize XPathes if relative paths are used is given

by the implementation of XPathOverSchema

library.

4.1 Performance

To evaluate the performance of both approaches we

also involved the performance results of an imple-

mentation of YFilter

for the same data set. YFilter is

one of the well known fast approaches for XML ﬁlter-

ing that is based on non-deterministic ﬁnite automata

(NFA). The XML-based documents which are used

for the evaluation are based on an embedded device

proﬁle. That includes information such as address-

ing, status of device, time of data, temperature (with

different scales), humidity, voltage, and status of the

LEDs. The example document has a size of 875 bytes.

Based on the underlying XML Schema of this device

proﬁle we serialized the document in binary XML by

means of EXI that produces a size of 13 bytes. Since

we are not able to process plain XML on small em-

bedded devices such as microcontrollers, especially

not the YFilter algorithm, these performance experi-

ments were conducted on an Intel Core 2 Duo with

2.10GHz and 3GB RAM.

To avoid the overhead of the result collection pro-

cess in our measurement we disabled that in our ap-

proaches and in the YFilter (this was done by the

commands: –result=NONE and –nfa

opt=0). How-

ever, to have a fair comparison the parsing time of

the XML-based documents is always included in the

measurement results. This is based on the fact that -

regarding our presented approaches - there is no pre-

processing of the present binary XML stream and the

XPath query evaluation is done at the same time as

the binary XML stream is parsed.

In general, to have a very good shape the average

time of 1000 rounds is determined. The XPath sets

are based on queries with different kinds of requests

of device status, values, times, and addressing. In the

http://http://exiﬁcient.sourceforge.net/

Contiki is an operating system for memory-efﬁcient

networked embedded systems and wireless sensor net-

works. http://www.sics.se/contiki/

http://xpath-on-schema.sourceforge.net/

http://yﬁlter.cs.umass.edu/

EFFICIENTFILTERINGOFBINARYXMLINRESOURCERESTRICTEDEMBEDDEDNETWORKS

179

0.0078125

0.015625

0.03125

0.0625

0.125

0.25

0.5

5 10 20 40 80 160 320 640

Number of Queries

YFilter

BasicEXIFilter

OptimizedEXIFilter

Figure 6: Filtering performance test based on an 875 bytes

plain XML document (YFilter) and the equivalent 13 bytes

binary XML representation (EXI ﬁlter approaches).

context of this paper the number of executed XPath

query sets is small and more oriented at the usage in

the embedded domain.

Figure 6 shows the result of our performance ex-

periments with 8 different XPath query sets in mil-

liseconds (with logarithmic scaling). Considering the

ﬁrst query sets both binary XML ﬁltering approaches

always performs much better as the YFilter imple-

mentation. In the case of 5 queries the BasicEXI-

Filtering approach is 40 times faster and the Opti-

mizedEXIFiltering approach is 70 times faster. This

shows the beneﬁt of the opportunity to operate di-

rectly on the binary XML document without the need

to transform it to a plain text representation. Further-

more, we are able to evaluate the XPath queries at

the same time of this decoding process. YFilter sepa-

rates this process (XML document parsing and XPath

evaluation by the constructed NFA) which results to

slower performances.

The BasicEXIFiltering, however, losses in per-

formance exponentially when the number of XPath

queries increases. This is due to the fact, that for each

start element or attribute SAX event that occurs dur-

ing the decoding process all queries are checked if the

current step index can be incremented or not. This

processing overhead is getting dominant and results

in lower performance when the query set is getting

larger. Here, at the time of around > 320 queries the

BasicEXIFiltering starts to perform slower compared

to YFilter.

Comparing the OptimizedEXIFiltering with the

YFilter one sees that both perform almost constantly

in their time level, even the number of queries in-

creases. This is explained by the fact that all XPath

queries are represented as automata, and duplicated

queries (these occurrences arise if the number of

query sets increases) do not affect the automata size

and thus the automata processing. Only the query reg-

istration for the predicate evaluation and the accepting

Figure 7: Demo embedded network.

state is required.

4.2 Demo Network

To evaluate the applicability of the binary XML ﬁlter-

ing approaches for the embedded domain we set up

a small embedded network with four wireless battery

powered evaluation boards from STmicroelectronics

that embeds the ARM Cortex-M3 microcontroller (24

MHz CPU, 8 kilobytes of RAM, and 128 kilobytes of

ﬂash) as presented in the introduction section. Our

demo network and its topology can be seen in Fig-

ure 7.

Each node running the ContikiOS and the com-

munication is based on IPv6 over Low power Wire-

less Personal Area Networks (6LoWPAN) (Montene-

gro et al., 2007). Node 1 provides (in 1 seconds tact)

its device proﬁle information represented as binary

XML format (compare previous subsection 4.1). For

this test, some values of the device proﬁle are ran-

domized. Node 3 and 4 are the subscriber of node 1.

However, node 3 wants only this information if the

following query is fulﬁlled:

//Temperature[@Scale =

′

]/Value[text() > 27.2]

The precondition of node 4 is given by:

//StatusOfMote[text() =

′

ErrorOccured

′

]

Based on the XML Schema deﬁnition of the de-

vice proﬁle and the provided XPath queries we cre-

ated our binary XML ﬁlter mechanisms (BasicEXI-

Filtering and OptimizedEXIFiltering) with the code

generation variants. In our network node 2 runs the

generated ﬁlter. There, the implementation is realized

in such a way that it receives the device proﬁle doc-

uments from node 1, evaluates the content by using

the ﬁlter, and only forwards the message to the corre-

sponding node (3 and/or 4) if there is a match.

The demo could be successfully executed. At run-

time we used a laptop that is connected to node 1 to

monitor the device proﬁle values which are sent to

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

180

node 2. If there is a match a LED is showing that

event. Also a LED is switching on on the nodes 3 and

4 if they received a message that was requested.

Table 1 gives an overview of the automata size

and memory usage of the ﬁltering set-up on node 2

for the cases the BasicEXIFiltering or OptimizedEX-

IFiltering implementation was used. It can be seen

that the grammar size (transitions and states) of the

OptimizedEXIFiltering is much smaller compared to

the BasicEXIFiltering approach. This is due to the

fact that the BasicEXIFiltering operates on the top of

the full EXI decoder grammar (compare section 3.1).

Meanwhile, the OptimizedEXIFiltering operates di-

rectly within the grammar and states and the transi-

tions are removed which are not required to evaluate

the XPath queries. Consequently, the ROM exhibits a

smaller size since the generated code does not contain

this grammar information. The numbers for this use

case are not impressive since the generic EXI decoder

mechanism dominates the grammar implementation

part.

For the BasicEXIFiltering variant, besides the

predicate data structure, an extra data structure is re-

quired that represents all XPath queries with a track-

ing position. Such a kind of data structure is not

required for the OptimizedEXIFiltering since the ﬁl-

ter grammar is already a representation of all XPath

queries. Thus, the RAM usage shows better results

compared to the BasicEXIFiltering. Since only two

XPath queries are used the difference is relatively

small. It will increase, however, when more XPath

queries are taken into account.

Table 1: Grammar size (number of states / transitions) and

memory usage (in bytes).

BasicEXIFilt. OptEXIFilt.

Grammar Size 31 / 45 21 / 22

ROM 6280 6104

RAM 580 412

5 RELATED WORK

Binary XML has been a research topic for a long

time and related projects started shortly after XML

had been introduced. These efforts were primarily

driven by the desire to employ well-established and

interoperable XML technologies on devices with lim-

ited resources such as, e.g., cell phones and cam-

eras. More sophisticated schema-based techniques

followed shortly after, examples of which include

BiM (Heuer et al., 2002), FastInfoset (Sandoz et al.,

2004) and ASN.1 (ITU, 2002). However, these tech-

nologies neverachievedbroad acceptance in the XML

community. This was mainly due to the fact that many

solutions were proprietary and/or tailored to a partic-

ular application domain. These approaches were thus

not generic and lacked the necessary ﬂexibility. In

addition, some had the potential issue of license fees

compared to a royalty free W3C standard. The W3C

Efﬁcient XML Interchange (EXI) format (Schneider

and Kamiya, 2011) resolves these issues by deﬁning

a generic, ﬂexible, efﬁcient, royalty free W3C Binary

XML standard that ﬁts seamlessly into the portfolio

of existing W3C XML standards.

Efﬁcient ﬁltering, processing, and dissemination

of data has been an area of active research for many

years. This includes work on data management in

embedded networks, such as TinyDB (Madden et al.,

2005). Sinced TinyDB is based on SQL, it is fo-

cused on structured data. With the advent of semi-

structured data models, especially XML, efforts in the

direction of XML ﬁltering, XML transformation, and

Internet-scale XML-based publish/subscribe systems

emerged. These include, among others, XFilter (Al-

tinel and Franklin, 2000), YFilter (Diao and Franklin,

2003), and ONYX (Diao et al., 2004). Since these so-

lutions aim at processing textual XML, they require

systems with adequate amounts of memory and pro-

cessing power. Embedded devices with extremely

limited resources such as the one introduced in Chap-

ter 1 are unable to use such approaches.

Another ﬁeld of related work are data stream man-

agement systems (DSMSs) such as Aurora (Abadi

et al., 2003), Borealis (Abadi et al., 2005), Tele-

graphCQ (Chandrasekaran et al., 2003), and Stream-

Globe (Kuntschke et al., 2005). The main focus

of such systems is on efﬁcient processing of poten-

tially inﬁnite data streams against a set of continu-

ous queries. In contrast to publish/subscribe systems,

continuous queries in DSMSs can be far more com-

plex than simple ﬁlter subscriptions. Also, in dis-

tributed DSMSs such as StreamGlobe and Borealis,

network-aware stream processing and operator place-

ment are important issues. These are also relevant

issues in distributed embedded networks such as the

one illustrated in Figure 2. However, these questions

are not in the focus of this paper which deals with

solutions for efﬁcient ﬁltering of binary XML at a

single node. Most DSMSs, such as TelegraphCQ for

example, are based on relational data. StreamGlobe,

however, focuses on XML data streams. Today, there

are no DSMSs that are based on binary XML. Con-

sequently, the nodes used for distributed data stream

processing in systems such as StreamGlobe and Bo-

realis generally need to be far more powerful than the

microcontrollers for embedded devices we aim at in

this paper. Solutions for direct processing of binary

XML as proposed in this paper help to bring XML-

based publish/subscribe and data stream management

EFFICIENTFILTERINGOFBINARYXMLINRESOURCERESTRICTEDEMBEDDEDNETWORKS

181

systems to the embedded domain.

6 CONCLUSIONS AND

OUTLOOK

In this paper, we proposed mechanisms to enable

XML-based ﬁltering for resource restricted embed-

ded networks. Both approaches use the W3C EXI

format to evaluate XPath queries. The BasicEXIFil-

ter approach works on the top of the EXI grammar,

meanwhile, the more sophisticated OptimizedEXIFil-

ter approach maps all XPath queries directly in the

EXI grammar and removes all states and transitions

which are not required for the evaluation. This results

in a high performance ﬁltering processor with very

low resource usage that makes it also applicable on

small embedded devices such as microcontrollers.

Topics for future work include the further op-

timization of the presented approaches as well as

the development of publish-subscribe and optimized

data dissemination systems for service communica-

tion within embedded networks. Especially, the chal-

lenge of updating XPath query sets at runtime is an

important issue for further work.

ACKNOWLEDGEMENTS

We would like to thank Daniel Peintner for all the ad-

vices corresponding to EXI. Furthermore, we would

like to thank Li Chen for the inspiring discussions and

great support of this topic in general.

REFERENCES

Abadi, D. J., Ahmad, Y., Balazinska, M., C¸ etintemel, U.,

Cherniack, M., Hwang, J.-H., Lindner, W., Maskey,

A., Rasin, A., Ryvkina, E., Tatbul, N., Xing, Y., and

Zdonik, S. B. (2005). The design of the borealis

stream processing engine. In CIDR, pages 277–289.

Abadi, D. J., Carney, D., C¸ etintemel, U., Cherniack, M.,

Convey, C., Lee, S., Stonebraker, M., Tatbul, N., and

Zdonik, S. B. (2003). Aurora: a new model and ar-

chitecture for data stream management. VLDB J.,

12(2):120–139.

Altinel, M. and Franklin, M. J. (2000). Efﬁcient ﬁl-

tering of xml documents for selective dissemination

of information. In Abbadi, A. E., Brodie, M. L.,

Chakravarthy, S., Dayal, U., Kamel, N., Schlageter,

G., and Whang, K.-Y., editors, VLDB 2000, Proceed-

ings of 26th International Conference on Very Large

Data Bases, September 10-14, 2000, Cairo, Egypt,

pages 53–64. Morgan Kaufmann.

Bournez, C. (2009). Efﬁcient XML Interchange Evaluation.

http://www.w3.org/TR/exi-evaluation/. W3C Work-

ing Draft 7 April 2009.

Chandrasekaran, S., Cooper, O., Deshpande, A., Franklin,

M. J., Hellerstein, J. M., Hong, W., Krishnamurthy,

S., Madden, S., Raman, V., Reiss, F., and Shah, M. A.

(2003). Telegraphcq: Continuous dataﬂow processing

for an uncertain world. In CIDR.

Cormen, T. H., Stein, C., Rivest, R. L., and Leiserson, C. E.

(2001). Introduction to Algorithms. McGraw-Hill

Higher Education, 2nd edition.

Cowan, J. and Tobin, R. (2004). XML Information Set (Sec-

ond Edition). http://www.w3.org/TR/xml-infoset/.

W3C Recommendation 4 February 2004.

Diao, Y. and Franklin, M. J. (2003). High-performance

xml ﬁltering: An overview of yﬁlter. IEEE Data Eng.

Bull., 26(1):41–48.

Diao, Y., Rizvi, S., and Franklin, M. J. (2004). Towards

an internet-scale xml dissemination service. In Nasci-

mento, M. A.,

Ozsu, M. T., Kossmann, D., Miller,

R. J., Blakeley, J. A., and Schiefer, K. B., editors,

VLDB, pages 612–623. Morgan Kaufmann.

Heuer, J., Thienot, C., and Wollborn, M. (2002). MPEG-7

Binary Format, chapter 2.3. MPEG-7. Introduction to

MPEG-7: Multimedia Content Description Interface.

ITU, T. S. S. (2002). Abstract Syntax Notation One

(ASN.1) Speciﬁcation of Basic Notation. ITU-T Rec.

X.680.

K¨abisch, S., Peintner, D., Heuer, J., and Kosch, H. (2010).

Efﬁcient and Flexible XML-based Data-Exchange in

Microcontroller-based Sensor Actor Networks. In 5th

International IEEE SOCNE Workshop on Service Ori-

ented Architectures in Converging Networked Envi-

ronments.

K¨abisch, S., Peintner, D., Heuer, J., and Kosch, H. (2011).

Optimized XML-based Web Service Generation for

Service Communication in Restricted Embedded En-

vironments. In 16th IEEE International Conference

on Emerging Technologies and Factory Automation.

Kuntschke, R., Stegmaier, B., Kemper, A., and Reiser, A.

(2005). Streamglobe: Processing and sharing data

streams in grid-based p2p infrastructures. In B¨ohm,

K., Jensen, C. S., Haas, L. M., Kersten, M. L., Lar-

son, P.-

A., and Ooi, B. C., editors, VLDB, pages 1259–

1262. ACM.

Madden, S., Franklin, M. J., Hellerstein, J. M., and Hong,

W. (2005). Tinydb: an acquisitional query processing

system for sensor networks. ACM Trans. Database

Syst., 30(1):122–173.

Montenegro, G., Kushalnagar, N., Hui, J., and Culler, D.

(2007). Transmission of IPv6 Packets over IEEE

802.15.4 Networks. RFC 4944 (Proposed Standard).

Peintner, D., Kosch, H., and Heuer, J. (2009). Efﬁcient

XML interchange for rich internet applications. In

Multimedia and Expo, 2009. ICME 2009, pages 149–

152.

Sandoz, P., Triglia, A., and Pericas-Geertsen, S. (2004).

Fast Infoset. On Sun Developer Network.

Schneider, J. and Kamiya, T. (2011). Efﬁcient XML Inter-

change (EXI) Format 1.0. http://www.w3.org/TR/exi.

W3C Recommendation 10 March 2011.

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

182
