RECMOODLE - AN EDUCATIONAL RECOMMENDER SYSTEM

Dhiego Carvalho

, Carlos Tadeu Queiroz de Moraes

, Dante Barone

and Leandro Krug Wives

PGCC, UFRGS, Porto Alegre, RS, Brazil

PGIE, UFRGS, Porto Alegre, RS, Brazil

Keywords: Recommender Systems, Collaborative Filtering, Moodle.

Abstract: This paper proposes a recommender system for the Moodle platform that uses Apache Mahout as a

recommendation engine. In this system, students receive personalized and adaptive recommendations based

on forum discussions and learning materials available in the environment, according to their interactions.

The recommendation method developed is based on the Moodle's activity log. In this paper, we compare

four different ways to process user's preferences and present recommendations. Three of them exist in the

literature, and one is proposed by us. The test set uses data from a real case scenario, i.e., the activity log

from a graduation course that is given in our institution. We have found that the proposed approach

produced the best set of recommendations.

1 INTRODUCTION

Recently, due to the increasing demand from the

Industry and to the academic effort, new

Recommender Systems’ (RS) technologies were

developed. The interest in this field is very high

because of its many applications, including helping

users cope with information overload and receiving

personalized recommendations. Some examples

include the recommendation of books, products,

scientific papers, movies and so on (Amazon, 2011)

(NetFlix, 2011).

In the educational context, recommender systems

help students be more efficient. For instance,

learners get recommendations about relevant topics,

discussions, learning objects or other students with

the same interest. RS help Virtual Learning

Environments (VLE) like Moodle (Modular Object

Oriented Developmental Learning Environment) to

provide better interaction.

This paper proposes a recommender system for

the Moodle platform. The RS uses as engine the

Apache Mahout. In this system, students receive

personalized and adaptive recommendations based

on forum discussions and learning materials

available in the environment, according to their

interactions. The recommendation method

developed is based on the Moodle's activity log,

which is stored in a relational database, and is used

as the basis to generate the computation of the

recommendation utility, also based on users`

preferences on items.

The paper is structured as follows. In the next

section we discuss some related works. After, in

section 3, we present the proposed recommendation

module for Moodle, describing its components,

algorithms and recommendation model. Then we

provide some evaluations that are performed on

synthetic data. Finally, we present some concluding

remarks, stating current limitations and future work.

2 RELATED WORKS

The first recommender systems appeared in the

decade of 1980 and 1990, (D., 1981), (Resnick et al.,

1994) and (Hill et al., 1995). Later, many studies and

articles related with VLE recommendation were

written.

For instance, Olga (2008) describes a

recommendation model that is applied to learning

scenarios. Such model was conceived based on

empirical results considering some usability and

accessibility criteria. It not only presents

recommendations, but also explains to the user why

the recommendation was performed. This is an

important feature in terms of systems focused on e-

learning, since it helps learners to have a better

understanding of what is going on and have a better

learning performance. The system proposed here,

241

Carvalho D., Tadeu Queiroz de Moraes C., Barone D. and Krug Wives L..

RECMOODLE - AN EDUCATIONAL RECOMMENDER SYSTEM.

DOI: 10.5220/0003939802410246

In Proceedings of the 4th International Conference on Computer Supported Education (CSEDU-2012), pages 241-246

ISBN: 978-989-8565-06-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

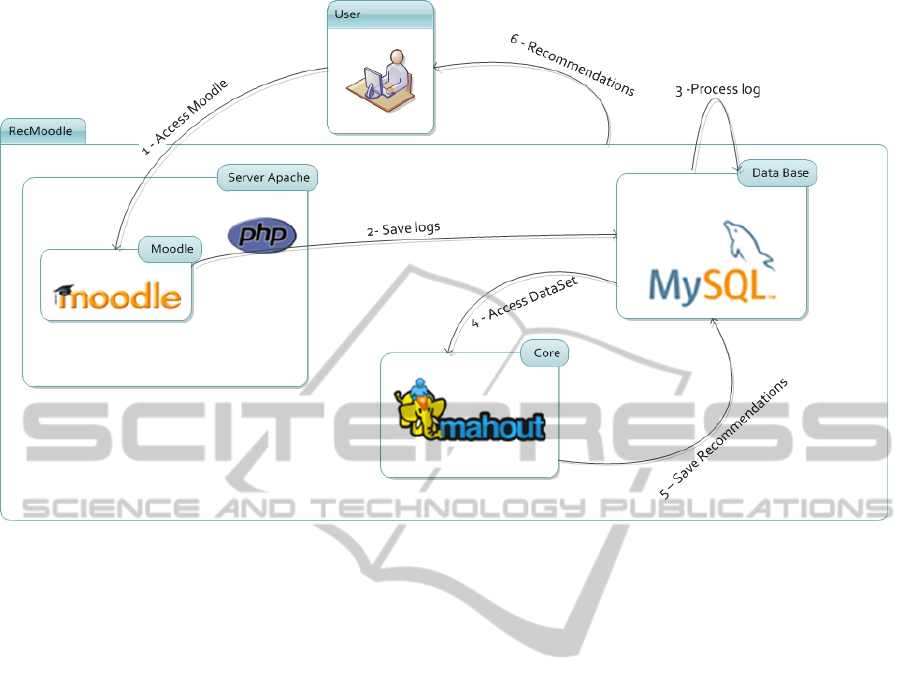

Figure 1: RecMoodle´s general view.

i.e., RecMoodle, uses statistical metrics to generate

recommendations and can generate

recommendations for users and items.

Another interesting tool is described by Fischer

(2005). He developed a tool that can recommend

postings in a discussion forum. The idea is that users

in a forum sometimes post questions that were

already answered or discussed. Then, before posting

the question again, the system is able to detect and

recommend messages with similar content. If the

user is satisfied with the recommendations, the

message is discarded. If the user is not satisfied, then

the message is posted. The tool considers only the

contents of the messages and not the user profile

(i.e., interests). In this sense, RecMoole provides

recommendations that are based on each user`s

interaction with the system.

Barcellos (2009) presents a system that is able to

identify users` interests implicitly, using data mining

techniques. Our system makes recommendations

based on the user profile, but also according to their

interactions.

Finally, Cazella (2009) presents a learning object

recommender system that is based either on contents

and user competences. Its underlying recommender

model allows a user to receive recommendations

about learning objects that are related to their

interests and competences that must be better

developed. These competences are stated in a course

plan. The main problem of this approach is that the

user should explicitly mention their interests.

However, any intelligent recommender system

must be able to adapt to the users´ needs in a

collaborative manner (Tang & Mccalla, 2005). That

means that the user opinion has great value.

According to McSherry (2004), the research on RS

has a growing conscience that the recommendation

process must be more transparent to its users.

RecMoodle not only analyzes activity logs, but

also makes use of the Apache Mahout as a

recommender engine, thus generating relationships

of students and disciplines by the means of adaptive

suggestions using techniques that are based on a

utility function.

3 RECMOODLE

E-learning systems like Moodle store different

information about the activities performed by the

learners in the environment. Specifically on Moodle,

any activity can be logged, e.g., the page being

displayed, a message in a forum, the activity being

accomplished, etc. The system stores this

information in a database containing user

information organized by access and activity. Based

on this, it is possible to recover the sequence of steps

performed by any given user in the environment.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

242

Due to the amount of data daily generated by the

system, teachers need specific tools to aid them

manage courses. Moodle provides a report tool that

shows all the user activities. Such data can be used

to understand user interaction but as there is too

much information, especially considering the

amount of students, it is complicated to manually

analyze it.

Data Mining (DM) and Recommender Systems

techniques aid the teacher in this process. DM is a

pattern identification process that can be applied on

large datasets (Maimon & Rokach, 2005) , and can

be used by instructors to understand students´

patterns and also to evaluate their activities. A RS

generates suggestions to learners about the activities,

resources, paths or other users who may be relevant

to them.

The proposed system was developed as an

extension to Moodle. It is composed of the Moodle

itself, a database and Apache Mahout (Figure 1).

The database, as already stated, is used by Moodle to

store information about the users. Apache Mahout is

a powerful framework to perform mining techniques

such as clustering and classification, and is used by

the recommender module as explained in section

3.2.

The processing steps of our approach are the

following:

1. Data cleansing: information from the database

is transformed into a format appropriated to be

processed by Mahout using an automated task that is

triggered when there is any inclusion of an activity

in the log table of Moodle;

2. Mining: once the data is transformed, the

recommendation module activates Mahout, which

analyses the data and generates recommendations

that are stored again in the database;

3. Recommendation: according to the action that

the user is performing on Moodle, the

recommendation module use the data generated by

Mahout to show recommendations to the user.

3.1 Preprocessing

Moodle follows a structure based on topics for the

courses. When organizing a course, one is able to

add personalized modules, static material (e.g., web

pages, hyperlinks), interactive material (e.g., tasks,

blog, questionnaires) and cooperative activities (e.g.,

chat, forum, glossary, wiki). Each user access to

these activities is logged into the database. In our

case, MySQL was used.

RecMoodle does not use the Moodle database

directly. Instead, it uses specific tables that are

prepared in a format that Mahout understands. Thus,

a preprocessing must be performed. This is

conducted by specific triggers programmed by us to

collect data and store in a table named Tab_rec

(Figure 2).

In this table, course_id identifies the course

accessed by the user. User_id is the user

identification. Item_id represents the element

accessed by the user inside Moodle. Preference

represents the user preference on this item, and

timestamp corresponds to the date and the time the

user has accessed this item.

By this table we are able to know the order of

access or sequence of items the user has followed in

a give curse. We are also able to know the most

accessed items and the items the user has not

accessed.

Preference means how much the user liked or not

a specific item or element in the course. It is based

in a five points’ Likert scale, in which the least

significant is 1 and the most is 5.

In Mahout, the values of de preferences can be

omitted (e.g., like or dislike, accept or not accept,

access or not access or even without a score), or he

value’s preference can be an implicit preference

(when the user simply states that he likes something

given a score).

Figure 2: Pre-processing table.

In the left size of Figure 3 we show a situation in

which the user has single visit to an item. In this

case, it may be a Boolean value. In the right of the

figure, the user scored that his preference for the

item clicked.

In the case of RecMoodle, four types of

preference representation were taken into

consideration. None of them is implicit. The first

one is based on the order of item access followed by

each student and the resulting performance of this

student on the course. Table 1 gives an example of

this kind of representation.

Each time a user access one item, this item is put

on this table, in order of access and do not recount

the times they were accessed. Based on this table, it

is possible to infer the similarity among users. For

instance, in Table 1, users A1 and A3 have

RECMOODLE-ANEDUCATIONALRECOMMENDERSYSTEM

243

Figure 3: User values omitted left and values’ associations

on the right.

accessed similar items, but at different orders. Then,

these users have no similarity. Comparing these

sequences is a difficult task because there may be

many differences between the logs. An example of

this kind of problem can be seen while comparing

U1 and U2 in Table 1. They access the same items,

but they are different because the sequence of

accesses is distinct. However, it allows us to, for

instance, recommend a successful path (order of

activities) to new users or to users that are following

a path that is known to lead to a bad performance.

The second model consists on stating the items

that were visited by the students, independently of

their order of access or how many times they were

accessed (see Table 2).

Table 1: Users vs sequence of items accessed.

Seq_1 Seq_2 Seq_3 Seq_4

U1 Item1 Item1 Item2 Item3

U2 Item1 - - -

U3 Item3 Item2 Item1 Item1

Table 2: Items accessed by each user.

I1 I2 I3 I4 I5 I6 I7

U1 1 0 0 1 0 0 1

U2 1 1 0 0 1 1 1

U3 0 1 0 1 1 0 0

The problem of the representation used in Table

2 is that it is impossible to know the most visited

item by each user neither how many times a specific

user visited any given item. So it's not possible, for

example, know what the five most accessed by the

user or which items are most accessed. Another

problem is the accuracy of the recommendations,

which, in our case, was only 47%.

The third representation model takes into

consideration the number of items accessed by each

user and normalizes the number of access of each

item using Equation 1.





∑







(1)

In this equation, for each user, x

represents the

number of times item i was accessed. P is the

frequency of each item, and n is the number of

items. For instance, given the values presented in

Table 3, Table 4 shows the result of the application

of Equation 1.

Table 3: Users versus number of accesses on each item.

I1 I2 I3 I4

U1 3 1 0 4

U2 3 1 0 1

U3 2 0 0 0

Table 4: Results of the application of equation 1.

I1 I2 I3 I4

U1 0,375 0,125 0,000 0,500

U2 0,600 0,200 0,000 0,200

U3 1,000 0,000 0,000 0,000

We associate items to users by computing their

similarity using Equation 1, which is applied to the

data in Table 3, and generating Table 4.

Based on this information, it is possible to assess

the similarity among users and perform

recommendations. The more data we have, the better

will be the assessment. This assessment is explained

in the next section.

3.2 Users’ Similarity Assessment

RecMoodle can be seen as a utility-based

recommender system, following (Burke, 2007)

definition.

As already stated, Apache Mahout is the core of

our system. It is used to analyze the user versus item

matrix explained in the previous section, and, thus,

generate recommendations based on users or items.

Mahout is a complete framework for the

generation of recommendations. It accesses the data,

processes and generates recommendations based on

the algorithms chosen by the application developer.

In order to generate recommendations with

Mahout, four steps are needed: Mahout must access

the DataModel containing users’ preferences about

the different items (i.e., the matrixes explained in the

last section). Then, item or user similarity is

assessed based on this DataModel. The items or

users are clustered based on its neighborhood.

Finally, recommendation is performed based on

similar items or users (Owen et al., 2011).

The system access the DataModel table

containing the users’ preferences by a JDBC

connection.

Mahout provides different similarity and

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

244

recommendation algorithms. We have used the one

named Generic User Based Recommender (GUBR),

based on the Euclidean Distance Similarity. The

result of this process is as follows:

user_id [item_id:score, item_id:score, ...].

In this case, user_id is user identification,

item_id:score are the ids of the items accessed by

this user and its corresponding scores of preference

(by the specific user).

3.3 Frontend Application on Moodle

While the user interacts with Moodle,

recommendations are generated based on his/her

navigation. A frontend module is responsible by

showing recommendations to the user. It shows the

Top 5 (the five best) recommendations made by

Mahout.

Figure 4: Example of recommendation in RecMoodle.

Figure 4 shows a screenshot of a

recommendation made by the RecMoodle module.

The black circle at the bottom left is (1) a list of

personalized recommendations as messages on the

discussion forum of Moodle or links to materials.

The circle (2) shows what users are logged on the

course and circle (3) the materials that students can

access.

4 EVALUATION

Evaluations were performed based on the precision

assessment that is provided by a Mahout’s tool that

is known as Recommender Evaluator. The data set

used in this evaluation was built based on a real

scenario in which the students’ interaction logs from

a course given at University Federal of Rio Grande

do Sul (UFRGS), Brazil, in the period of March

2009 to October 2009. We have recorded the logs

from five different classes, summing up 24,986 log

lines, 282 items, 158 users and a table of users

versus item interaction, as described in Table 4, with

3,422 lines.

For the evaluation of the recommendation

algorithm, we have used data as specified in Table 4.

We have analyzed some similarity metrics and the

quality of the neighborhood algorithm. The Average

Absolute Difference was used to assess the various

user-based recommendation algorithms for n users,

and using their neighborhood. The closer to zero, the

better the evaluation.

Table 5: Average absolute difference to assess the types of

similarity using different amounts of neighbourhood.

Similarity n=2 n=5 n=10 n=20

Euclidean 0,0231

0,0204

0,2837 0,2891

Pearson 0,1880 0,2709 0,2897 0,2877

LogLikel 0,5301 0,2848 0,2741 0,2820

Tanimoto 0,4987 0,2438 0,2597 0,2763

We have also tested other kinds of

neighbourhood assessment, i.e., User Threshold

Neighbourhood. Its computation is based on all the

similarities between users.

Table 6: Average absolute difference to assess different

types of similarity threshold using threshold-based.

Similarity t=0.95 t=0.80 t=0.5 t=0.20

Euclidean 0,0289 0,0289 0,0289 0,0289

Pearson 0,0292 0,0332 0,0288 0,0287

LogLikel 0,0323 0,0265 0,0281 0,0281

It was concluded that the best recommendations

for this database are generated through the user-

based recommender, using the Euclidean distance

and the fifth-nearest neighbourhood. The

recommendations accuracy considering this

approach was around 98%.

Finally, it was found that the most frequent

recommendations from users are:

 Item recommendation: Internet use in school;

 Forum recommendation: The use of Internet

services in the School;

 Item recommendation: Registries and domain

on the web;

 Item recommendation: Internet at school.

5 CONCLUSIONS

User preferences can be represented in different

RECMOODLE-ANEDUCATIONALRECOMMENDERSYSTEM

245

forms such as access, grades, etc. In proposed

approach, it was possible to reach 98% of accuracy,

while using the Boolean approach the accuracy was

only 42%.

In the future, we will use different strategies to

achieve better recommendations. Besides, we also

want to take into consideration the courses’ contents

besides users' preferences.

ACKNOWLEDGEMENTS

We’d like to thank the Institute for Informatics,

Federal University of Rio Grande do Sul, for the

support.

REFERENCES

Amazon, 2011. Amazon. [Online] Available at: http://

www.amazon.com [Accessed 1 November 2011].

Barcellos, C. D., Musa, D. L., Brandã, o. A. L. &

Warpechowski, M. e. a., 2007. Sistema de

recomendação para apoio a aprendizagem. In

CINTED-UFRGS. Porto Alegre/RS, 2007.

Burke, R. D., 2007. Hybrid Web Recommender Systems.,

2007.

Cazella, S. C., Reategui, E. B., Machado, M. & Barbosa, J.

L. V., 2009. Recomendação de Objetos de

Aprendizagem Empregando Filtragem Colaborativa e

Competência. Anais do Simpósio Brasileiro de

Informática na Educação SBIE.

D., M. J., 1981. Approximation Theory and Methods.

Cambridge University Press.

Fischer, C. G. & Wives, L. K., 2005. Recomendação de

conteúdo em fóruns eletrônicos. Fórum de Inteligência

Artificial.

Hill, W., Stead, L., Rosenstein, M. & Furnas, G., 1995.

Recommending and evaluating choices in a virtual

community of use., 1995. ACM Press/Addison-

Wesley Publishing Co.

Maimon, O. & Rokach, L., eds., 2005. The Data Mining

and Knowledge Discovery Handbook. Springer.

McSherry, D., 2005. Explanation in Recommender

Systems. Artif. Intell. Rev., 24(2), pp.179-97.

NetFlix, 2011. Netflix. [Online] Available at: http://www.

netflixprize.com/ [Accessed 1 November 2011].

Owen, S., Anil, R., Dunning, T. & Friedman, E., 2011.

Mahout in Action. 1st ed. Manning Publications.

Resnick, P. et al., 1994. GroupLens: an open architecture

for collaborative filtering of netnews., 1994. ACM.

Santos, O. C. & Boticario, J. G., 2009. Building a

knowledge-based recommender for inclusive

eLearning scenarios. Amsterdam, The Netherlands,

The Netherlands, 2009. IOS Press.

Tang, T. & Mccalla, G., 2005. Smart Recommendation for

an Evolving e-Learning System: Architecture and

Experiment. International Journal on e-Learning,

4(1), pp.105-29.

CSEDU2012-4thInternationalConferenceonComputerSupportedEducation

246
