GESTURE RECOGNITION

Control of a Computer with Natural Head Movements

Kornél Bertók and Attila Fazekas

University of Debrecen, Faculty of Informatics, P.O.Box 12, 4010 Debrecen, Hungary

Keywords: Gesture Recognition, Head Pose Estimation, Facial Feature Extraction, Head Gestures.

Abstract. The topic of this article is a basic research considering a human-computer interaction. The system is still

under construction, however its basis – facial features tracking and head pose estimation – is ready to use,

thus it could bring a head gesture controlled system into reality. We present an approach to control applica-

tions with head movements. We construct an Active Appearance Model (AAM) for facial feature extraction.

Based on the landmarks of AAM shape, the head pose is modelled in the three-dimensional space by three

Euler angles of rotation around the three axes orthogonal to each other, and three orthogonal translation di-

rections. Regarding all the above mentioned facts, we are capable of recognizing gestures like head point-

ing, nodding, and shaking, blinking, opening and closing mouth.

1 INTRODUCTION

As I have mentioned before, the article details a

basic research considering a human-computer inte-

raction. It describes the funds of a head gesture con-

trolled system put into effect. This system is still

under construction, however its basis is ready to use

and it is also capable of opening new ways to our

researches.

Varied interaction with humans requires accurate

perception and tracking of their body parts to recog-

nize nonverbal signals of attention and intention.

Estimating head pose is critical – in order to deter-

mine the joint focus of attention – since it is usually

fall in with the gaze direction. Furthermore, head

pose estimation is also essential for analyzing com-

plex meaningful gestures such as pointing gestures

or head nodding and shaking.

In this paper, we present an approach to control

Bing Maps (Microsoft Corporation: Bing Maps,

2011) with head movements. This problem is based

on facial features tracking and head pose estimation.

The head pose is modelled in the three-dimensional

space by three Euler angles of rotation around three

axes orthogonal to each other, and three orthogonal

translation directions. Accordingly our system pro-

vides continuous head pose estimation in all three

rotation-, and translation directions. We propose a

method which is based on distinctive facial features

such as corners of eyes, nose, mouth, etc. Our ap-

proach proceeds in a hierarchical structure. Starting

with face detection and following with extraction of

distinctive facial features within the bounding box of

the detected face. Finally, the head pose estimation

has the fund of the positions of facial features. By

using a few local features instead of the whole face

image, we achieve a compact representation that

allows a computationally efficient estimation for

training.

We construct an Active Appearance Model

(AAM) (Edwards et al., 2001) for facial feature

extraction. As we show in our experiments, this

AAM accurately locates the distinctive facial fea-

tures. Based on the position of facial features, we

use the POSIT algorithm (DeMenthon and Davis,

1995) to estimate the three rotation and translation

vector of the head. This paper is organized as fol-

lows: the next section details the applied approaches

for facial feature detection, tracking and head pose

estimation. In addition, Section 3. presents the expe-

rimental results and conclusions for the previously

defined approaches connected as the base system.

2 USED APPROACHES

As we explained earlier in the previous section,

estimating head gestures is composed of several well

or less known image processing methods. In this

section these will be shortly summarized and de-

527

Bertók K. and Fazekas A..

GESTURE RECOGNITION - Control of a Computer with Natural Head Movements.

DOI: 10.5220/0003943105270530

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2012), pages 527-530

ISBN: 978-989-8565-02-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

scribed. In the last few years, many researches have

been focused on head pose estimation based on low-

resolution images. Existing methods can be catego-

rized as appearance-based and model-based me-

thods. Appearance-based techniques use the whole

sub-image containing the face. Most of them con-

centrate on face detection and consider the pose

estimation as a classification problem (Meynet et al.,

2009).

Model-based approaches for head pose estima-

tion use a pre-defined geometric face model. Most of

them extract a set of facial features such as eyes,

mouth, nose and map them onto the 3D model space

using a perspective projection (Dornaika and Ahl-

berg, 2004). Our head pose estimation system pre-

sented in this paper, combines these two ideas.

2.1 Facial Feature Detection

In most cases, the retrieval and reconstruction of a

3D object from any of its 2D view projections re-

quires the parametrization of its shape structure and

surface reflectance properties. In our system a mod-

el-based approach was used to establish correspon-

dences between a small set of determinative feature

points. In addition, the correspondences between

other image points are then approximated by inter-

polating between the determinative feature points,

such as corners of the eyes, nose and mouth.

An Active appearance model (AAM) is used in

our system for facial feature detection. It is proposed

by Cootes et al. (Edwards et al., 2001) and it is one

of the most effective model-based algorithms. It can

be traced back to the active contour model (Kass et

al., 1988) and active shape model (ASM) (Cootes et

al., 1995). Particularly, AAM create separately the

shape and the texture model of an object, and it is

able to generate similar instances.

AAM Modeling. AAM creates separately two mod-

els from every object: one shape and one texture

model. The shape is a vector formed by concatenat-

ing the position elements of the labelled landmarks,

while the texture means the intensities of pixels.

Furthermore, a training set of images with the cor-

respondent labelled landmarks is required for model

training. First of all, the shape is modelled based on

the labelled landmarks. The shapes are then norma-

lized by the Procrustes analysis (Goodall, 1991) and

projected onto the shape subspace by PCA:

s = s



+ P



·b



(1)

where 



denotes the mean shape, 









de-

scribes the modes of variations derived from training

set, and 



include the shape parameters in the shape

subspace. Subsequently, based on the corresponding

points, images in the training set are warped to the

mean shape to produce so-called “shape-free

patches”.

Secondly, based on the shape-free patch, the tex-

ture model is generated. The texture can be raster

scanned into a vector . Then the texture is linearly

normalized. The texture is similarly projected onto

the texture subspace by PCA:

=g



+



·



(2)

where g



denotes the mean texture, 



=g



 de-

scribes the modes of variation derived from training

set, and 



includes the texture parameters in the

texture subspace.

Finally, the joined relationship between the

shape and texture model is analyzed by one other

PCA – to create the appearance subspace. After

some additional transformation, the shape and the

texture model can be described as follows:

=





·c, = g



+ Q



·c

(3)

where  is a vector of appearance parameters, con-

trolling both the shape and texture, as well as Q



and



are matrices for describing the modes of varia-

tion derived from the training set.

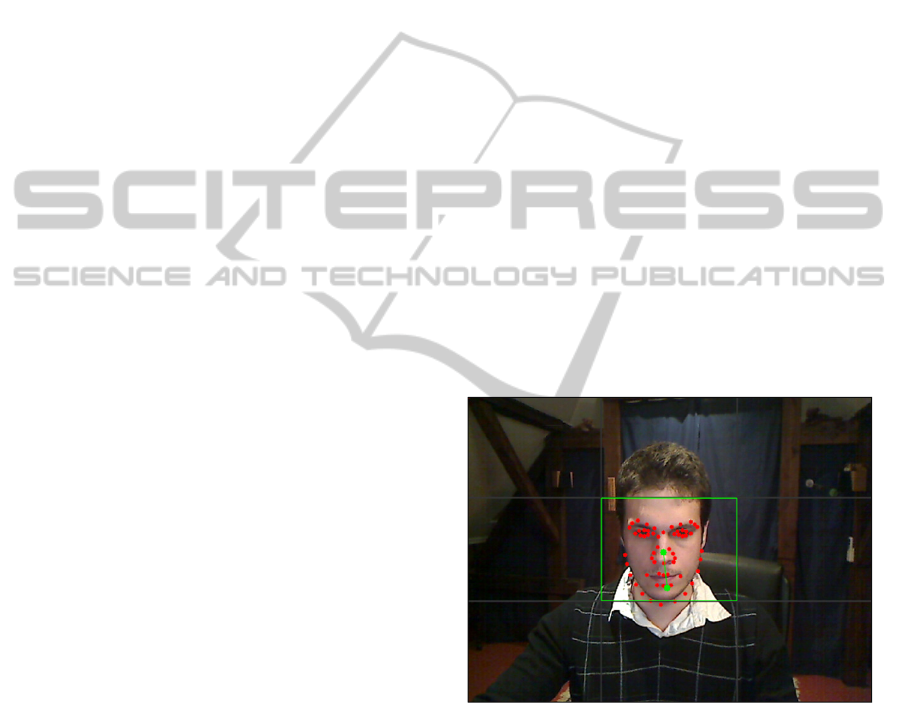

Figure 1: (Red circles) represent the landmarks of the

fitted AAM shape over the face region. The (upper green

point) is the centroid of the landmarks, and the (lower) one

is the focus of attention. Nine directions can be separated

by the current system, which are represented by nine

pieces of (rectangles).

Model Fitting. Since the model is created, then it

can be fitted over new images, which is essential to

find the approximate parameters of the model for an

object. However, the task is an unconstrained opti-

mization problem, which is quite hard to solve. In

most cases, it can be solved by the gradient descent

algorithm.

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

528

2.2 Facial Feature Tracking

Once the facial feature points are extracted, their

trajectory is found with a comparison between the

real image and its prediction, based on the previous

history. This tracking process predicts the trajectory

based on the centroid of facial feature points and it is

implemented by the Kanade-Lucas-Tomasi (KLT)

Feature Tracker to adaptively adjust the weights of

the predictor filter. If we know the target location at

times ,  − 1,  − 2, … then the location where the

target will be at time +1 can be predicted. The

KLT feature tracker is based on two papers: (Lucas

and Kanade, 1981); (Tomasi and Kanade, 1991).

In our case, the facial feature points are found by

AAM, and tracked by KLT Tracker. During the

tracking procedure, an affine transformation fits

between the image of the currently tracked feature

and its image from a non-consecutive previous

frame. If the affine compensated image is too dissi-

milar, then the feature is dropped. If a feature point

is lost in a subsequent frame, then the system auto-

matically requests the AAM procedure to create

another fitting step again to keep the number of

features constant. Facial feature points tracking

results better and more delicacy procedure as AAM

fitting over every subsequent frame because in this

way, small changes do not occur in any of facial

feature points, and they later will not appear as glob-

al results.

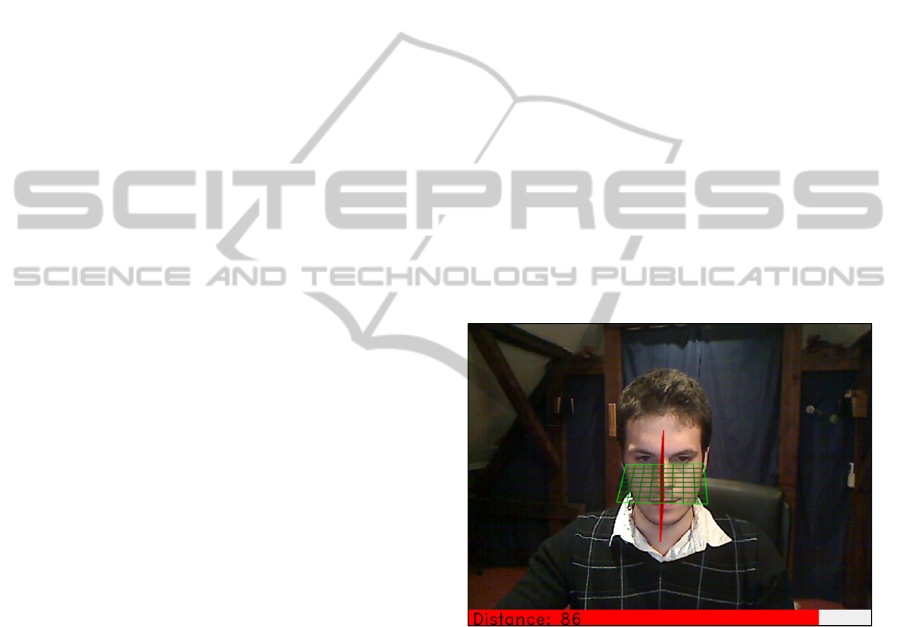

2.3 Head Pose Estimation

Computation of the position and orientation of an

object (object pose) using feature points when their

geometry on the object is known has the following

possible important applications, such as calibration,

cartography, tracking and object recognition. In this

section, we describe a method for estimating the

head pose from a single image. We assume that we

can detect and match in the image four or more non-

coplanar feature points (i.e. the landmarks of AAM

shape) on faces, in addition we also know their rela-

tive geometry.

The POSIT algorithm is used in our system to es-

timate the all three continuous rotation angles and

the translation vector of head pose. It is proposed by

DeMenthon (DeMenthon and Davis, 1995) and it is

one of the most effective feature-based algorithm.

POS Algorithm. The method combines two algo-

rithms; the first is the POS (Pose from Orthography

and Scaling). It approximates the perspective projec-

tion with a scaled orthographic projection and finds

the rotation matrix and translation vector of the head

by solving a linear system.

POSIT Algorithm. The second algorithm is the

POSIT (POS with ITerations). It uses the approx-

imate pose (result of POS) in its iteration loop, in

order to compute better the scaled orthographic

projections of the feature points, and then applies

POS again to these projections. The next iterations

apply exactly the same calculations, but with the

corrected image points. The process shifts the fea-

ture points of the object in the pose just found, to the

lines of sight (where they would belong if the pose

would be correct) and obtains a scaled orthographic

projection of these shifted points.

POSIT converges to accurate pose measurements

in a few iterations, POSIT can be used with many

feature points at once for added insensitivity to mea-

surement errors and image noise. Compared to clas-

sic approaches like the Newton's method, POSIT

does not require starting from an initial guess, and

computes the pose using fewer floating point opera-

tions. So therefore, it may be a useful alternative for

real-time operation. (Fig. 2. shows the result of

POSIT.)

Figure 2: Visualizing head pose with (two perpendicular

planes). The distance between a camera sensor and the

user is represented by the (red line) at the bottom of the

image. This one is not a measurement, because we use

only one camera. However, we can recognize if the user

bends forward, or sits back.

3 RESULTS AND CONCLUSIONS

Because the development is not finished yet, we

could not make a full performance test, but we used

a face database with 50 images for evaluation of the

pose estimation. We experienced that the head pose

seen on the pictures, corresponds to all intents and

purposes more than 90% with the head pose that

computes the application. The only limitation of the

GESTURE RECOGNITION - Control of a Computer with Natural Head Movements

529

algorithm is that the near-profile poses are not ap-

proximated with high accuracy, because we use only

a face detector for frontal faces. Additionally, we

will perform qualitative experiments to evaluate the

capability of our approach to estimate the head pose

in real-time. Using a standard webcam with a resolu-

tion of 640×480 pixels, we currently achieve a rate

of 15 fps on a standard PC.

For demonstration purposes we made a gesture

controlled map application based on the determined

facial features and head pose. For gesture controlling

we need to estimate the intersection of head direc-

tion and monitor plane. This one is an easy task,

because only the position of a reference point (the

focus of attention) is to be multiplied by the rotation

matrix and then shifted by the translation vector (so

by the result of POSIT). Choosing the reference

point can affect the delicacy of controlling. The best

way is if its position depends on the current distance

between the user and camera. This reference point is

represented by the lower green point on Fig. 1. The

upper one is the centroid of the landmarks. Nine

directions can be separated by the current system,

which are represented by nine pieces of rectangles.

At last but not least, the map should be displaced to

the direction of the appropriate rectangle which

includes the reference point.

Finally it is important to emphasize, that this

process can be considered as a simple head pointing

gesture recognition and control. In the future, with

the help of the previously shown base system, fur-

ther gestures will be extracted. For presentation of

functioning, we made a simple C# application based

on Bing Maps access. The camera handling and

image processing part is done by a C++ application

using the OpenCV library (Willow Garage:

OpenCV, 2010). The communication between these

two program units happens over TCP/IP. On the

basis of the reached achievements, it can be declared

that the system worths further developments and

broadening.

REFERENCES

Microsoft Corporation: Bing Maps. In: Bing Maps. (Ac-

cessed 2011) Available at: http://www.bing.com/

maps/

Edwards, G., Taylor, C., Cootes, T.: Active appearance

models. IEEE Transactions on Pattern Analysis and

Machine Intelligence 23(6), 681–685 (2001)

DeMenthon, D. and Davis, L.: Model-based object pose in

25 lines of code. International Journal of Computer

Vision 15(1-2), 123-141 (June 1995)

Meynet, J., Arsan, T., Mota, J., Thiran, J.: Fast multiview

tracking with pose estimation. 7th IEEE-RAS Interna-

tional Conference on Humanoid Robots, 330-335

(2009)

Dornaika, F. and Ahlberg, J.: Fast and reliable active

appearance model search for 3D face tracking. IEEE

Transactions on Systems, Man, and Cybernetics, Part

B 34(4), 1838–1853 (2004)

Kass, M., Witkin, A., Terzopoulos, D.: Snakes: Active

contour models. International Journal of Computer

Vision 1(4), 321-331 (1988)

Cootes, T., Taylor, C., Cooper, D., Graham, J.: Active

shape models - their training and application. Comput-

er Vision and Image Understanding 61(1), 38–59

(1995)

Goodall, C.: Procrustes methods in the statistical analysis

of shape. Journal of the Royal Statistical Society, Se-

ries B 53(2), 285-339 (1991)

Lucas, B. and Kanade, T.: An Iterative Image Registration

Technique with an Application to Stereo Vision. In-

ternational Joint Conference on Artificial Intelligence,

674–679 (1981)

Tomasi, C. and Kanade, T.: Detection and Tracking of

Point Features. Technical Report CMU-CS-91-132,

Carnegie Mellon University, Pittsburgh, Pennsylvania,

USA (1991 April)

Willow Garage: OpenCV. In: Open Source Computer

Vision Library. (Accessed 2010) Available at:

http://opencv.willowgarage.com

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

530
