AN EFFICIENT APPROACH TO RENDER 3D MESHES BY

MANAGING MULTIRESOLUTION TRIANGLE STRIPS

Francisco Ramos, Jesus Gumbau and Miguel Chover

Institute of New Imaging Technologies, University Jaume I of Castellon, Campus Riu Sec s/n, Castellon, Spain

Keywords: Real-time Rendering, Multiresolution Model, Level of Detail, Triangle Strips, Hardware Acceleration.

Abstract: Visualization of large 3D scenes is a problem often solved by means of multiresolution modeling or level of

detail. In this paper, we present a uniform resolution model that noticeably improves existing models, in

terms of storage and visualization cost. The model is entirely based on optimized hardware primitives,

triangle strips. Management of triangle strips coherence, on a multiresolution mesh, is key to achieving

optimum performance. This model is able to take advantage of coherence in a software level as well as

directly on the graphics hardware, integrating part of the model in that hardware. Use of stripification

techniques, oriented to exploit vertex cache, has been taken into account to minimize vertex reprocessing.

Comparisons to existing multiresolution model implementations show improvements of approximately 25%

in storage space cost, 40% in level-of-detail extraction cost and visualization as much as 5 times better by

applying hardware acceleration techniques.

1 INTRODUCTION

Increasing complexity of 3D applications requires

processing of vast amounts of graphic information

for rendering, which often becomes in no more than

a few pixels when introduced into the output device.

With the purpose of solving this situation,

multiresolution models have been created.

According to (Ribelles et al., 2002), these models

can be classified in two important groups: discrete

models and continuous models. Within the latter, we

can distinguish between uniform resolution models

and variable models.

Discrete models have been widely used, however

modern graphic application requirements are

becoming more demanding. Thus, continuous

models are required because they have more exact

approximations, less storage cost and they are fast in

visualization.

In recent years, continuous variable resolution

models have evolved considerably (El-Sana et al.,

1999); (Stewart, 2001); (Shafae and Pajarola, 2003).

Important applications, like terrain renderers use this

kind of models, although level-of-detail extractions

quite penalize its performance.

At the present time, important 3D game engines,

such as Torque, CryEngine or CodeCreatures,

implement continuous uniform resolution models.

Recently, some advances have been reached

(Belmonte et al., 2003); (Ramos et al., 2004);

(Hoppe, 1996); (Ribelles et al., 2000); (Ramos and

Chover, 2004), but for one reason or another, none

satisfies all the key requirements in a model of this

type: facility of implementation, low level-of-detail

extraction cost, appropriate spatial cost and simple

integration with graphics hardware.

Figure 1: Happy_buddha model. a) The highest level of

detail: 543699 vertices and 31596 triangle strips. b) The

lowest level of detail: 5438 vertices. c) Strips at the lowest

level of detail.

In this paper, we present a continuous uniform

resolution model that efficiently manages algorithms

395

Ramos F., Gumbau J. and Chover M..

AN EFFICIENT APPROACH TO RENDER 3D MESHES BY MANAGING MULTIRESOLUTION TRIANGLE STRIPS.

DOI: 10.5220/0003943203950403

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2012), pages 395-403

ISBN: 978-989-8565-02-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

and data structures for real-time rendering of

multiresolution polygonal meshes. The model is

conceived in such a manner that mesh updating be

fast and efficient. Thus, some data structures are

ordered in accordance with the level of detail, it is

also possible to integrate part of these into the

graphics hardware, providing a hardware orientation

to the model. Moreover, the model has been

designed to facilitate the application of any hardware

and software acceleration technique: coherence,

vertex cache optimized stripification, OpenGL

extension, and so on.

The model has been implemented on

multiresolution meshes, initially generated by means

of vertex cache static stripification techniques

(NVIDIA, 2003) and based on progressive edge

collapses (Garland and Heckbert, 1997). Certain

data structures have also been implemented on the

graphics hardware (NVIDIA, 2002).

Main contributions of this model are:

 Spatial cost. Simple data structures, oriented and

built for easy application of acceleration techniques

and for fast removal of degenerate triangles. This

provides improvements of approximately 25% in

this aspect.

 Complete exploitation of coherence. At an

extraction level, we base level-of-detail extraction

on information that changes from one LOD to

another. At a visualization level, it uses efficient and

fast-access data structures. Extraction cost is

improved by approximately 40%.

 Hardware integration: Allocation of the model

data structures into the graphics hardware and

complete exploitation of the most modern

techniques in hardware acceleration for current

GPUs. Thus, visualization speed improvement can

be as high as 5 times faster.

2 RELATED WORK

Garland (Garland, 1999) defines a multiresolution

model as a model representation that captures a wide

range of approximations of an object and which can

be used to reconstruct any one of them on demand.

Ribelles (Ribelles et al., 2002) presented a

characterization of multiresolution models. This

work classifies the models taking into account other

criteria. A classification obtained from the same

work separates continuous multiresolution models

into uniform and variable models.

Variable resolution models are able to

concurrently render two or more resolutions on the

same multiresolution mesh, although these models

consume a great deal of rendering time in level of

detail extraction. This is mainly due to the use (on

models based on triangle strips) of dynamic

stripification, which requires new rendering

primitive calculations in real-time, in addition to the

cost of maintaining various resolutions on the same

mesh. This type of model has advanced

considerably, and there are many solutions available:

(Hoppe, 1997); (El-Sana et al., 1999); (Stewart,

2001); (Shafae and Pajarola, 2003).

In general, continuous uniform resolution models

have lower extraction times and allow a total

rendering time that is more competitive than variable

resolution models. After the appearance of

progressive meshes, a model based on triangles and

implemented in the DirectX graphics library, some

models of this type were presented.

The first multiresolution model to use the

triangle fan primitive in their data structures, taking

advantage of the connectivity information between

triangles in a mesh, is the model by Ribelles et al.

called MOM-Fan (Ribelles et al., 2000). The main

drawback of this model is the high number of

degenerate triangles used in representation, although

they are purged before the rendering stage. Another

drawback of the model is that the average number of

triangles in each triangle fan is small. Furthermore,

rendering primitives are triangle lists, which have

lower performance than triangle strips.

Vertices:34834

Strips: 6194

Vertices:54296

Strips: 58799

Figure 2: Some objects with triangle strips generated by

NvTriStrip utility.

As regards strips, the first multiresolution model

to take advantage of the triangle strip on the whole

model is that of Belmonte et al., called MTS

(Belmonte et al., 2003). Its main drawback is the

high spatial cost, and its level-of-detail extraction

time, although that loss is minimized by means of

rendering with triangle strips.

Recently, LodStrips (Ramos and Chover, 2004)

was presented, as an evolution of (Ramos et al.,

2004). This model is wholly based on triangle strips,

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

396

however it does not present simple data structures

either to implement or to integrate them into the

graphics hardware. Moreover, its spatial cost is

considerable.

In general, this kind of models, either offer such

a high level of detail extraction cost that they

compensate rendering by means of implicit

connectivity primitives, or have low extraction cost

but without efficiently using these primitives.

Furthermore, in certain cases, storage cost becomes

excessive. In some models, another point to take into

account is that of difficulties in applying existing

acceleration techniques.

Nowadays, varied acceleration techniques have

appeared, which integrated into a multiresolution

model would become key to improve its

performance. Basically, we can notice: stripification

techniques oriented to exploit vertex caches

(NVIDIA, 2003) and hardware acceleration

techniques by means of graphics library extensions

(NVIDIA, 2002).

There also are works that intend to exploit new

GPUs characteristics. Chow presented a method for

geometry compression (Chow, 1997), Hoppe

developed an algorithm for generating triangle strips

taking into account vertex cache (Hoppe, 1999) and

Bogomjakov and Gostman presented a method for

vertex cache optimization applied to progressive

meshes (Bogomjakov and Gostman, 17).

3 MODEL CONSTRUCTION

Our model is built from a polygonal mesh, usually

composed of triangles on which a sequence of

processes is applied in order to obtain a

multiresolution representation in the model data

structures.

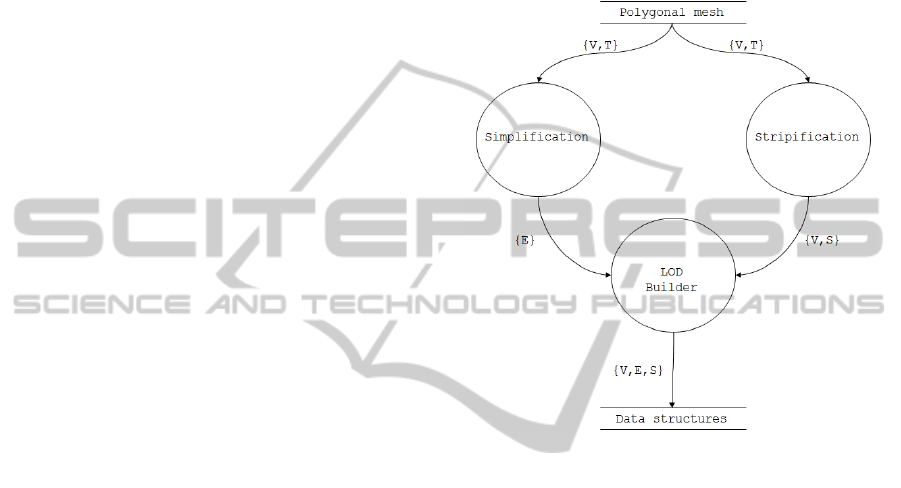

In figure 3, we can observe the data flow

diagram associated with the global construction

process.

3.1 Simplification

Simplification process allows us to obtain versions,

at different levels of detail, of the input polygonal

mesh. This algorithm is based on iterative

contractions of vertex pairs.

The fundamental information that supplies this

process consists of a sequence of collapses necessary

to simplify the polygonal mesh.

3.2 Stripification

The model is wholly based on triangle strip

primitives, which are generated at the highest level

of detail.

The stripification process consists of converting

a polygonal mesh, geometrically composed of

triangles, into triangle strips.

Figure 3: Model construction.

3.3 LOD Builder

Once obtained from the simplification process, the

information about vertices to be simplified for each

level of detail, and, from the stripification process,

triangle strips at the highest level of detail, we

proceed to the initial construction of the model.

In this process vertices are reordered in a

simplified way, that is, the first vertex to be

collapsed will be the zero; the second will be one,

and so on. Once completed, it is necessary to modify

the strips to reflect the changes realized. Finally, this

process stores the ordered vertices into the model

data structures and the triangle strips at the highest

level of detail. With this information, it is already

possible to build a multiresolution model that

traverses through the levels of detail. However,

whenever a change of level of detail occurs, it will

be required to search among the strips for the

vertices to be collapsed, and this operation has a

high cost in real-time. So, another process is

required that pre-computes and stores this

information into another data structure.

Moreover, this process computes, for each level

AN EFFICIENT APPROACH TO RENDER 3D MESHES BY MANAGING MULTIRESOLUTION TRIANGLE STRIPS

397

of detail, the strips that change and where exactly, in

every strip, the vertex to be simplified is located. It

permits to quickly traverse between levels of detail

of the model, offering optimum performance.

4 MULTIRESOLUTION MODEL

This model represents a mesh as a set of

multiresolution triangle strips (figure 4). It is an

evolution of models (Ramos and Chover, 2004)

(Ramos et al., 2004). Data structures were

noticeably improved, reducing their size and

integrating part of them into the graphics hardware.

Moreover, with these new data structures it is easy

to apply varied hardware acceleration techniques.

All this, results in lower level of detail extraction

times, lower visualization times and more efficient

storage cost compared to the recently published

uniform resolution multiresolution models.

LOD 1 LOD 0.5 LOD 0

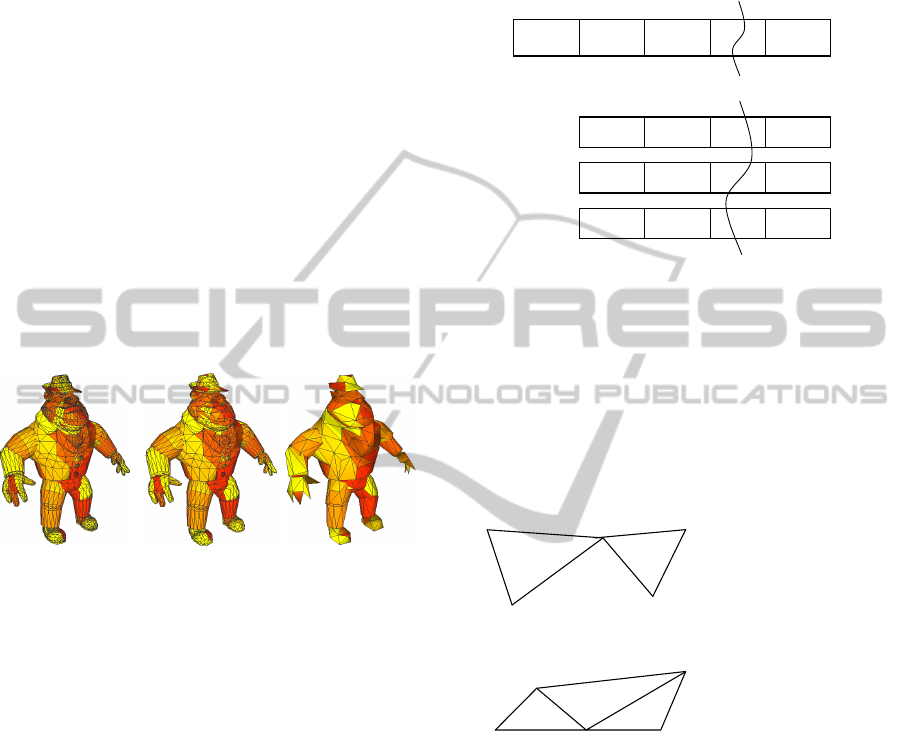

Figure 4: Three levels of detail from AL model.

At the beginning, data structures are informed by

the pre-process that constructs the model. All this

information is loaded at runtime and, afterwards,

depending on application parameters, collapses,

splits or resizes into multiresolution strips are

performed.

4.1 Basic Data Structures

In order to visualize a polygonal mesh at the highest

level of detail, we only need two data structures:

hStrips and hVertices. hVertices stores the 3D

coordinates for each vertex in the mesh, and hStrips,

a set of triangle strips, where each strip contains a

sequence of indices to hVertices. Figure 5 shows a

simple representation of those data structures.

After the construction process, we know where

collapses each vertex. This information is essential

for level of detail management because it will

determine collapses and splits onto the mesh,

obtaining the LOD demanded by the application.

All this information in managed by the

hVertexLOD data structure, storing for each LOD,

the index to the vertex to collapse when that LOD is

traversed.

Figure 5: hVertices and hStrips representation.

Thus, with these three data structures, we can

build a simple multiresolution model. However, this

initial idea has a problem: to move across levels of

detail is necessary to update strips looking for the

vertex to collapse in every one. This task would

imply a no competitive multiresolution model in

some aspects, overall, in level of detail extraction

cost.

Figure 6: Type of patterns removed by model data

structures.

A possible solution to this problem, above

mentioned, that improves very much the model

performance, consists of storing, in the data

structures, what strips change, and for each strip in

what position is located the vertex to be collapsed. It

allows us to quickly locate information to be

modified from a LOD to another. This approach

offers a good performance, but as model moves to

coarse LODs, an accumulation of identical vertices

is produced. Sending these vertex repetitions to the

graphics hardware does not contribute at all to the

final scene, because it is equivalent to send

degenerated triangles.

hVertices

012…n

x0,y0,z0 x1,y1,z1 x2,y2,z2 … xn,yn,zn

hStrips

01…

index00 index01 … index0a

index10 index11 … index1b

……………

indexp0 indexp1 … indexpr

Strip: 5 6 2 2 2 3 4

Replace aa(a)+ by aa

Strip: 5 6 2 2 3 4

Strip: 5 6 2 3 2 3 4

Replace ab(ab)+ by ab

Strip: 5 6 2 3 4

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

398

We have checked that most vertex repetitions,

which can be removed, follows patterns like aa(a)+

or ab(ab)+. Patterns aa(a)+ are replaced by aa, and

ab(ab)+ by ab. Figure 6 shows an example for each

kind of pattern, we can observe that final geometry

of strips do not change after removing these patterns.

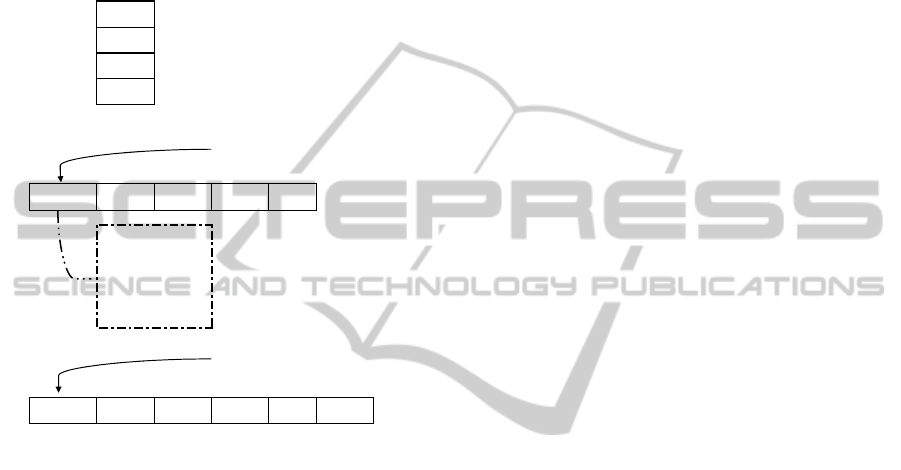

Figure 7: Model data structures.

In summary, we need additional data structures

in order to support the aspects before mentioned: to

index vertex to be collapsed and to remove more

frequent patterns. These functions are performed by

hRecordsLOD and hInterLeavedData.

hRecordsLOD data structure is managed by

pCurrentRecordLOD, which is always positioned on

the first record of hRecordsLOD to be applied in the

next level of detail to the current one. Every record

of this data structure contains the minimum

information required to change a strip in a specific

LOD. Concretely:

Strip Strip to be modified

#Collapses Number of collapses

#ResizesL1 Number of aa(a)+ patterns to be

removed

#ResizesL2 Number of ab(ab)+ patterns to be

removed

In this record, strip field will determine over

what strip we are operating, and next fields let find

in hInterLeavedData the type of operation to

perform.

On the other hand, hInterLeavedData contains

this information:

Collapses

Positions in a strip where a vertex will be replaced by

another.

ResizesL1

Composed of position and number of aa(a)+ patterns in

this position.

ResizesL2

Composed of position and number of ab(ab)+ patterns

in this position.

In figure 7, we show a representation for every data

structure.

Construction Example. Model construction starts

from the information obtained from the

simplification and stripification processes. This

information is stored in hVertexLOD, which saves,

for each level of detail, what vertex collapses. In this

case (figure 8), and due to the model organization, in

LOD 0, vertex 0 is collapsed to 7, in LOD 1 vertex 1

to 2, and so on. From the stripification process we

obtain hStrip, which contains indices to vertices.

With this data, transition calculations sub process

starts. It pre-calculates the changes to be produced

into strips from the highest level of detail to the

lowest one.

In figure 8, we can observe the model

construction process saving information to the data

structures.

From the highest level of detail (LOD 0), we can

observe that to move to LOD 1, we must replace

vertex 0 by 7, in every strip where it appears. Once

collapses are performed, we proceed to detect vertex

repetition patterns. In this case, a pattern 4 7 is

detected in position 5. In brief, we have in strip 0,

one collapse and one pattern ab(ab)+, so [0,1,0,1].

Furthermore, the collapse is located in position 6,

and the pattern in position 5 and it repeats once, so

[6,5,1]. Thus, we are building the model until the

lowest level of detail.

4.2 Coherence

In this model, we have applied coherence at two

levels: coherence at an extraction level and

coherence at a visualization level.

Coherence at an extraction level means taking

advantage of information obtained from the last

level of detail extracted. Use of this kind of

coherence noticeably improves time consumed by

level of detail extraction algorithm, avoiding

extractions already computed. Thus, if we are

visualizing certain LOD, to move to the next or

previous LOD will only need a few operations over

strips. These operations will require a data structure,

hStrips, with constant time in insertions and

deletions, although access is penalized.

Coherence at a visualization level means using

auxiliary data structures that provide a fast access

hVertexLOD

LOD

Vertex

Collapse

0 index0

1 index1

……

q indexq

hRecordsLOD

pCurrentRecordLOD

Rec00 Rec01 Rec10 … RecQS

hInterleavedData

pCurrentData

Pos00 Pos01 L101 Pos02 L202 …

Strip

#Collapses

#ResizesL1

#ResizesL2

AN EFFICIENT APPROACH TO RENDER 3D MESHES BY MANAGING MULTIRESOLUTION TRIANGLE STRIPS

399

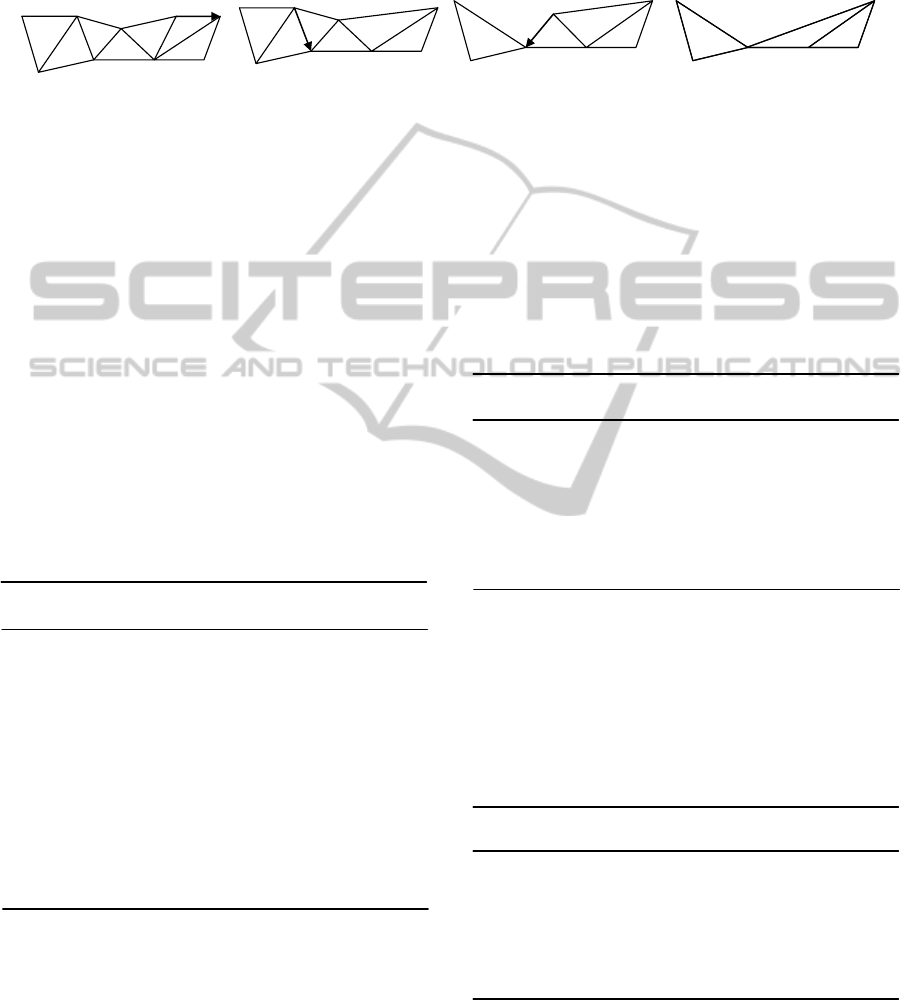

Figure 8: Model construction example.

and, thus, accelerates visualization. This kind of

coherence can be applied at a software level and at

hardware level. At a software level, the most

efficient solution consists of using a fast data

structure, in terms of sequential data access

containing strips to be visualized for each moment.

Thus, while a LOD is maintained during certain

time, meshes are rendered at the maximum possible

performance. Moreover, maintenance of these strips

can be directly realized on the graphics hardware by

means of specific buffers in its memory. It improves

visualization very much, as shown in the results

section.

Algorithm 1: Level of detail extraction from a LOD to a

coarse one.

for(lod=currentLOD;lod<demandedLOD;lod++) {

for(i=0;i<totalRecs[lod];i++) {

strip=pCurrentRecordLOD->Strip;

stripChanged[strip]=1; //for visualisation

//Collapses

for(n=0;n<pCurrentRecordLOD->Collapses;n++){

hStrips[strip,*pCurrentData]=hVertexLOD[lod];

pCurrenData++;

}//aa(a)+ Patterns

for(n=0;n<pCurrentRecordLOD->ResizesL1;n++){

hStrips[strip].Erase( *pCurrentData ,

*(pCurrentData+1) );

pCurrenData+=2;

}//ab(ab)+ Patterns

for(n=0;n<pCurrentRecordLOD->ResizesL2;n++){

hStrips[strip].Erase( *pCurrentData ,

*(pCurrentData+1) );

pCurrenData+=2;

}

}//End for i

} //End for lod

Visualization. To exploit coherence in visualization,

every multiresolution strip has two representations:

hStrips, a data structure with constant time in

insertions and deletions, which corresponds with

model geometry at the current LOD, and another

representation, efficient and fast in access, which

contains the same strips ready to render. This

representation can be allocated in main memory or

directly in the graphics hardware, which produces a

great acceleration, as shown in results section.

Depending on the type of coherence in visualization

applied, the algorithm is also different.

Algorithm 2: Visualization algorithm with coherence at a

software level.

//visStrips: strips visualisation data structure

for(s=0;s<hStrips.size();s++) {

//Update visStrips when proceed

if (stripChanged(i)) {

visStrips[i]=hStrips[i];

stripChanged[i]=0;

}

//Send strips to GPU

glBegin(GL_TRIANGLE_STRIP);

for(v=0;v<visStrips[i].size();v++)

glVertex(hVertices[visStrips[i][v]);

glEnd();

} //End for s

In the visualization algorithm shown above, we

apply coherence at a software level. It uses visStrips,

which stores strips ready to render guaranteeing an

optimum access time. stripChanged data structure is

informed by extraction algorithm, indicating what

strips have changed in transitions between levels of

detail, thus we know when to update visStrips data

structure.

Algorithm 3: Visualization algorithm with coherence at a

hardware level.

//visStrips: strips visualisation data structure

for(s=0;s<hStrips.size();s++) {

//Update hardware buffer when proceed

if (stripChanged(i)) {

glBufferSubDataARB(. . .);

stripChanged[i]=0;

}

//Send strips to the GPU using extensions

glDrawRangeElements(. . .);

} //End for s

Algorithm 3 corresponds to visualization at a

hardware level. This algorithm takes advantage of

new GPU capacities. It directly store and manage

strips to visualize from graphics hardware memory.

hVertexLOD:[7,3,3,4]

hStrip 0: 6 5 1 3 2 4 0 4 7 8

LOD: 0

hStrip 0: 6 5 1 3 2 4 0 4 7 8

Collapse 0 >> 7

hStrip 0: 6 5 1 3 2 4 7 4 7 8

Repet (v1 v2)+

hStrip 0: 6 5 1 3 2 4 7 8

LOD: 1

pRecordsLOD:

NULL

pInterLeavedData:

NULL

pRecordsLOD:

[0,1,0,1]

pInterLeavedData:

[6,5,1]

hStrip 0: 6 5 1 3 2 4 7 8

Collapse 1 >> 3

hStrip 0: 6 5 3 3 2 4 7 8

LOD: 2

pRecordsLOD:

[0,1,0,1]

[0,1,0,0]

pInterLeavedData:

[6,5,1,2]

hStrip 0: 6 5 3 3 2 4 7 8

Collapse 2 >> 3

hStrip 0: 6 5 3 3 3 4 7 8

Repet: (v1)+

hStrip 0: 6 5 3 3 4 7 8

LOD: 3

pRecordsLOD:

[0,1,0,1]

[0,1,0,0]

[0,1,1,0]

pInterLeavedData:

[6,5,1,2,4,3,1]

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

400

Different versions of this algorithm have been

developed, storing only vertices in GPU, vertices

and strips, and using two different OpenGL

extensions too. We have checked the improvements

achieved with this kind of visualization.

5 RESULTS

This model was submitted to several tests, all of

which were aimed at evaluating the rendering time

in a real-time application by applying different

acceleration techniques.

Tests designed to compare multiresolution

models follow the ones introduced by (Ribelles et

al., 1999) and those carried out in this study was the

linear test: this consists in extracting a number of

LODs of the model in a linear and proportionately

increasing or decreasing way.

To carry out the tests, some well-known meshes

from the Stanford 3D Scanning Repository were

taken as a reference, so as to make it easy to

compare this model with other well-developed

models.

Tests were carried out using a NVIDIA GeForce

graphics card. C++ was employed for the

implementation, using the graphics library OpenGL,

and it is completely portable.

5.1 Spatial Cost

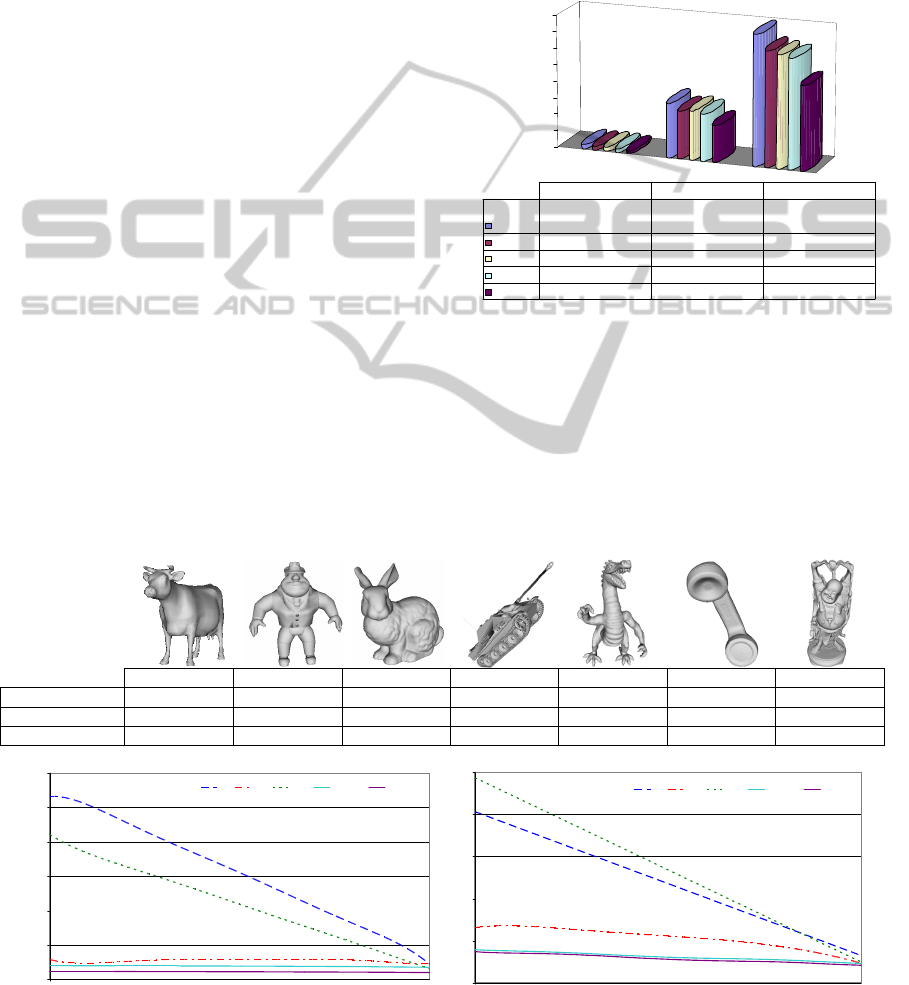

Figure 9 shows a spatial cost comparative between

the most important continuous uniform resolution

models, at present time. As we can see, the

presented model improves lodstrips, which had the

best spatial cost among existing models, in around a

40%.

Figure 9: Spatial cost comparison.

5.2 Level of Detail Extraction Cost

In figure 10a, we can observe that the presented

model, hStrips, offers the best extraction time from

compared models. It is mainly due to the effect of

using coherence in extraction algorithm and to the

efficient data structures implementation that manage

level of detail.

Cow AL Bunny Panther Dragon Phone Buddha

Vertices 2904 3618 34834 38911 54294 83044 543699

Strips 551 177 6194 4368 8799 1747 31596

Storage MB. 0.17 0.20 2.64 2.00 4.01 5.08 35.51

Figure 10: Extraction (a) and visualization (b) cost comparison for the bunny model with continuous uniform resolution

models.

0.00

1.00

2.00

3.00

4.00

5.00

6.00

7.00

8.00

MegaBytes

Vertices

2904 34834 83044

0.27 3.28 7.86

MOM

0.24 2.88 6.94

MTS

0.25 2.96 6.77

LodStrips

0.22 2.83 6.64

hStrips

0.17 2.21 5.08

Cow Bunny Phone

Extraction times

1 0

Level of detail

Milliseconds

PM MTS MOM LodStrips hStrips

Visualization times

1 0

Level of detail

Milliseconds

PM MTS MOM LodStrips hStrips

AN EFFICIENT APPROACH TO RENDER 3D MESHES BY MANAGING MULTIRESOLUTION TRIANGLE STRIPS

401

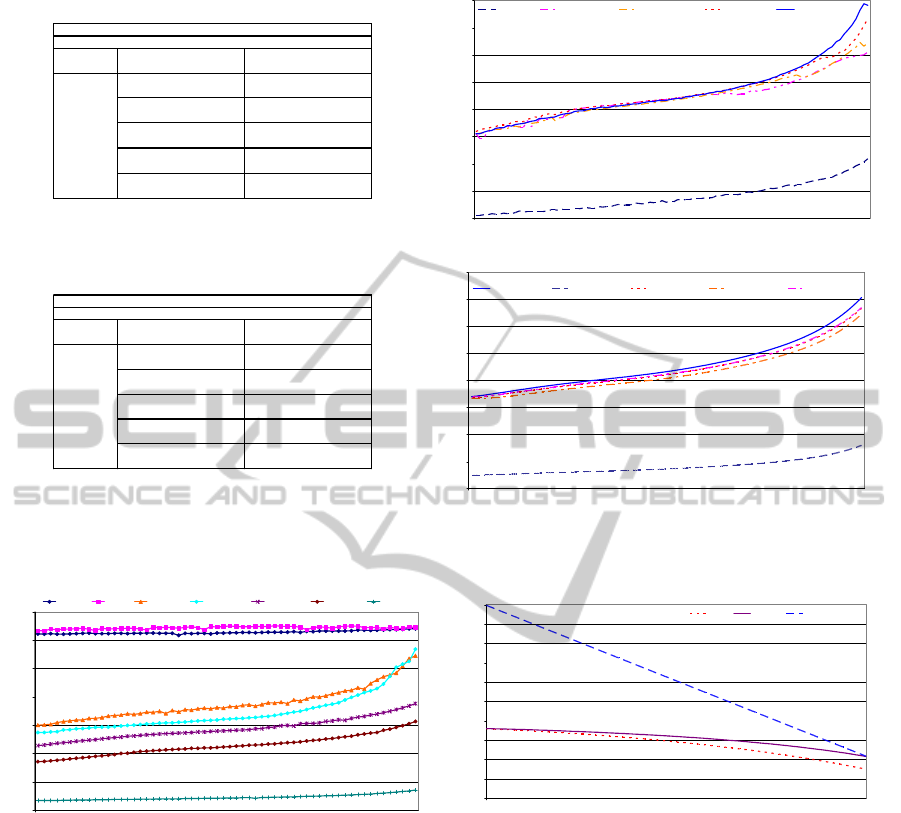

a) Bunny model frames per second average b) Bunny model performance chart

c) Buddha model frames per second average d) Buddha model performance chart

Figure 11: Bunny and Buddha model rendered by means of hardware acceleration techniques.

Figure 12: Multiresolution performance obtained from our

model, rendering with MultiDraw extension allocating

vertices and strips in the graphics hardware memory.

Figure 13: Vertices sent comparison for the phone model,

from the highest lod (1) to the lowest (0).

5.3 Visualization

Results of visualization are shown in figure 10b,

where it is compared to other models using

immediate mode to render. It is possible to observe

that our model offers the best visualization times. In

spite of rendering in immediate mode, the coherence

at a software level is exploited.

5.4 Hardware Acceleration

Rendering by means of hardware acceleration

techniques noticeably improves models

performance. On one side, we might upload different

kind of information to special buffers in the graphics

hardware memory. We have tested these buffers

uploading only vertex information and uploading

vertex and strips index information. It is shown at

figure 11 as (v) and (v+i) respectively. On the other

side, we can take advantage of those buffers by

using OpenGL extensions, like glDrawRangeEXT

and glMultiDrawsEXT. Thus, in figure 11, we can

see the effect of combining these modern features

offered by current GPUs, with a multiresolution

model that exploits them to the maximum.

Comparing immediate mode to VBO Multidraw

ertices 34834 Strips 6194

Bunny Model

380

382

VBO (v) DrawRange

Test Hardware technique

Linear Test

Immediate Mode

VBO (v) MultiDraw

VBO (v+i) MultiDraw

VBO (v+i) DrawRange

Render (fps)

187

371

372

Acceleration techniques performance

150

200

250

300

350

400

450

500

550

1 0

Level of detail

Frames per second

Immediate DrawRange (v) DrawRange (v+i) MultiDraw (v) MultiDraw (v+i)

ertices 543699 Strips 31596

VBO (v+i) MultiDraw

Buddha Model

Test Hardware technique Render (fps)

Linear Test

Immediate Mode 8

VBO (v) DrawRange 45

VBO (v+i) DrawRange 43

VBO (v) MultiDraw 44

Acceleration techniques performance

0 1

Level of detail

Frames per second

MultiDraw (v+i) Immediate MultiDraw (v) DrawRange (v+i) DrawRange (v)

Rendering using MultiDraw (v+i)

100

200

300

400

500

600

700

1 0

Level of Detail

Frames per Second

Cow AL Bunny Panther Dragon Phone Buddha

Level of detail

50000

100000

150000

200000

250000

300000

350000

400000

450000

500000

ertices sent

Vertices

MTS hStrips PM & MOM

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

402

(v+i) technique, improvements are considerable, on

average, around 200% for the bunny model and

570% for the budhha model.

Figure 11 shows a chart with various models

tested with the best performance technique:

MultiDraw (v+i).

5.5 Tripification Techniques

As shown in figure 13, hStrips model sends more

vertices to the GPU than MTS. When it moves to

coarser LODs, degenerated triangles appear, it does

not affect to visual mesh quality, but useless

information is processed. hStrips model removes

much of degenerated triangles, although some

remain. This is an aspect to be improved in future

work. Notwithstanding, hStrips is the best model in

visualization cost.

6 CONCLUSIONS

We have presented a uniform resolution model that

noticeably improves existing models, in terms of

storage and visualization cost. This model features:

optimized hardware primitives, coherence, vertex

cache exploitation, graphics hardware integration

and low spatial cost.

Comparisons to existing multiresolution model

implementations show improvements of

approximately 25% in storage space cost, 40% in

level-of-detail extraction cost and visualization as

much as 5 times better by applying hardware

acceleration techniques.

ACKNOWLEDGEMENTS

This work was supported by the Spanish Ministry of

Science and Technology (Project TIN2010-21089-

C03-03) and Feder Funds, Bancaixa (Project

P1.1B2010-08) and Generalitat Valenciana (Project

PROMETEO/2010/028).

REFERENCES

Ribelles, J., López, A., Belmonte, O., Remolar, I., Chover,

M., 2002. Multiresolution modeling of arbitrary

polygonal surfaces: a characterization. In Computers

& Graphics, ISBN/ISSN 0097-8493, vol. 26, num. 3,

pp. 449-462.

El-Sana, J., Azanli, E., Varshney, A., 1999. Skip strips:

maintaining triangle strips for view-dependent

rendering. In Proceedings of Visualization 99. p.131-

137.

Shafae, M., Pajarola, R., 2003. DStrips: Dynamic Triangle

Strips for Real-Time Mesh Simplification and

Rendering. In Proceedings Pacific Graphics

Conference.

Stewart, A., 2001. Tunneling for Triangle Strips in

Continuous Level-of-Detail Meshes. In Graphics

Interface, p. 91-100.

Belmonte, O., Remolar, I., Ribelles, J., Chover, M.,

Fernández, M., 2003. Efficient Use Connectivity In-

formation between Triangles in a Mesh for Real-Time

Rendering. In Future Generation Computer Systems,

Special issue on Computer Graphics and Geometric

Modeling.

Ramos, F., Chover, M., Belmonte, O., Rebollo, C. ,2004.

An approach to improve strip-based multiresolution

schemes. In proceedings of WSCG 2004, Vol. 12, N.

2, p. 349-354.

Hoppe, H., Progressive Meshes. 1996. In SIGGRAPH

1996, p. 99-108.

Ribelles, J., López, A., Belmonte, O., Remolar, I., Chover,

M., 2000. Multiresolution Modeling of Polygonal

Surface Meshes Using Triangle Fans. In Proceedings

of 9th DGCI 2000, 431-442.

Ramos, F., Chover, M., 2004. LodStrips: level of detail

strips. Lecture notes in Computer Science,

Proceedings of Computational Science ICCS 2004 vol.

3039, pp. 107-114.

NVIDIA Corporation. NvTriStrip Library, 2003. Available

in http://developer.nvidia.com/object/nvtristrip_

library.html.

Garland, M., Heckbert, P., 1997. Surface simplification

using quadric error metrics. In Proceedings of

SIGGRAPH ’97 p. 209-216.

NVIDIA Corporation, 2002. ARB_vertex_buffer_object

Specification. In http://oss.sgi.com/ projects/ ogl-

sample/ registry/ ARB/ vertex_buffer_object.txt

Garland, M., 1999. Multiresolution Modeling: Survey &

Future Opportunities. In Proceedings

EUROGRAPHICS’99, p. 111-131.

Hoppe H., 1997. View-dependent refinement of

progressive meshes. In Proceedings of SIGGRAPH

1997. p. 189-198.

Hoppe, H., 1999. Optimization of Mesh Locality for

Transparent Vertex Caching, In Proceedings of

SIGGRAPH 1999, p. 269-276.

Chow, M., 1997. Optimized Geometry Compression for

Real-time Rendering. In

Proceedings of the IEEE

Visualization 1997, p. 347–354.

Bogomjakov, A., Gostman, C., 2001. Universal Rendering

Sequences for Transparent Vertex Caching of

Progressive Meshes. In Proceedings of Graphics

Interface 2001.

Ribelles, J., Chover, M., Lopez, A., Huerta, J., 1999. A

First Step to Evaluate and Compare Multiresolution

Models, In Short Papers and Demos of

EUROGRAPHICS 1999, p. 230-232.

AN EFFICIENT APPROACH TO RENDER 3D MESHES BY MANAGING MULTIRESOLUTION TRIANGLE STRIPS

403
