IMPROVING THE USER EXPERIENCE BY WEB TECHNOLOGIES

FOR COMPLEX MULTIMEDIA SERVICES

Tayeb Lemlouma

IRISA Lab and University of Rennes I, Lannion, France

Keywords:

Content Accessibility, Content Adaptation, Web Pagination, Media Segmentation, Digital Home, DLNA,

Device Independence.

Abstract:

In this paper we address the accessibility to advanced networking functionalities and media rendering using a

new framework. The objective of proposing this new framework is to make advanced services accessible for

heterogeneous and limited devices. The context of this work concerns digital homes where several multimedia

services exist and their use requires complex conﬁgurations and the ability to handle advanced networking op-

erations. This required ability is not satisﬁed for handheld devices that are heterogeneous in terms of software

and hardware capabilities. Indeed, even advanced mobile terminals do not support, at least natively, network-

ing operations such as the multicast, services discovery and multimedia streaming with different protocols. In

order to improve the user’s experience in such environments, we focus on the Web accessibility and the adop-

tion of the HTTP protocol that are nowadays supported by the majority of heterogeneous terminals such as

mobile phones, TVs and game boxes. In order to demonstrate the feasibility and the validity of our framework

we consider, as a digital home architecture, the Digital Living Network Alliance (DLNA) environment. We

show that even if the existing architecture and multimedia/networking services are complexes, the proposed

framework simpliﬁes the architecture for the user and guarantees the delivery of an accessible and adapted

response.

1 INTRODUCTION

With the increasing popularity and the emergence of

smart powerful mobile devices, users become more

demanding in terms of quality of experience. As mo-

bile devices become widely used in a similar way

like with desktop terminals, users require similar ac-

cessibility regarding network’s content and services.

Unfortunately, even with the clear and huge advance

of mobile devices capabilities, many services still in-

accessible natively. Without further extensions and

advanced conﬁgurations, many services, content for-

mats and delivery methods remain rich, complex and

not adapted to ”limited” environments compared to

desktop platforms. In order to handle the hetero-

geneity of environments and terminals and provide

a universal accessibility, it is necessary to determine

a minimal set of compatible and standard function-

alities that can be used in advanced and limited en-

vironments. In the context of content access, the

HTTP protocol represents the most common and sim-

ple method used for delivering data. HTTP can be

easily implemented in limited environments and can

deliver data from simple Web pages to media con-

tent. Our framework is based on this observation. It

aims to improve the user’s experience regarding the

use and the access of complex multimedia services.

The objective is to enable the use of complex services

and content, using limitted terminals, in a universal

way. For limited devices, digital homes represent a

challenging context because several multimedia ser-

vices are availables but their use requires complex

conﬁgurations and the ability to handle advanced net-

working operations. This required ability is not sat-

isﬁed for handheld devices that are heterogeneous in

terms of software and hardware capabilities. Indeed,

even advanced mobile terminals do not support, at

least natively, networking operations such as the mul-

ticast, services discovery and multimedia streaming

with different protocols. We believe that the adop-

tion of the HTTP protocol coupled with the respect

of Web accessibility guidelines improve the quality

of experience of users regarding the access and use

of multimedia and networking services even in com-

plex architectures. We consider any network service

as the union of the following three sets: (1) input argu-

ments, (2) advanced operations and (3) output results.

Consequently, enabling a service in a limited environ-

444

Lemlouma T..

IMPROVING THE USER EXPERIENCE BY WEB TECHNOLOGIES FOR COMPLEX MULTIMEDIA SERVICES.

DOI: 10.5220/0003943904440451

In Proceedings of the 8th International Conference on Web Information Systems and Technologies (WEBIST-2012), pages 444-451

ISBN: 978-989-8565-08-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

ment becomes equivalent to perform the following:

(1) delegate the execution of incompatible operations

to an intelligent component, and (2) provide a stan-

dard and compatible interface that allows the user to

interact with services and rich content and receives an

adapted form of the service’s output. The application

of this approach will be validated in the Digital Liv-

ing Network Alliance (DLNA) environment (DLNA,

2007). DLNA represents an ideal context that rep-

resents heterogeneity regarding the content, servers,

services and terminals that can aim to access the home

network services and content. The framework of Uni-

versally, that we present in this paper, is discussed

regarding the provided Web interface and its compli-

ance with the W3C recommendations and the content

fragmentation (Web pagination and media segmenta-

tion).

2 DLNA

The objective of DLNA technology is to distribute

digital content from a source to all the compatible de-

vices (DLNA, 2007; DLNA, 2006). The key func-

tions of DLNA are: connectivity and networking, de-

vice discovery and control, media management, me-

dia formats and media transport (Fig. 1). Connectiv-

ity and networking use the existing network platform

at home. Device discovery and control is based on the

UPnP Device Architecture (DA) 1.0 (UPNP FORUM,

2008b). Media management is based on the UPnP

AV (UPNP FORUM, 2008a). Media formats are de-

ﬁned as a set of required and optional format proﬁles.

The media transport in DLNA is done overHTTP. The

RTP protocol is introduced recently and still optional

(DLNA, 2007; DLNA, 2006).

Three entities are speciﬁed: devices, services and

control points (CPs). Services are functions provided

by a device, found and invoked by a CP. The main

functions of a UPnP device are: IP addressing, dis-

covery (periodic advertisement of services), descrip-

tion of services and capabilities, control in response

of CPs requests, eventing to notify registered CPs

and presentation in HTML to possibly monitor the

device. This depends on the speciﬁc capabilities of

the presentation page and device and if the device

has a presentation’s URL. SSDP messages are sent

over HTTPMU (HTTP Multicast over UDP) in order

to discover resources in the network (UPNP FORUM,

2008b). SOAP allows to specify available operations.

In the audio video (AV) digital home, the three main

entities are: the media server (MS) that offers me-

dia content, the media renderer that plays content and

CPs that control what and how contents are played.

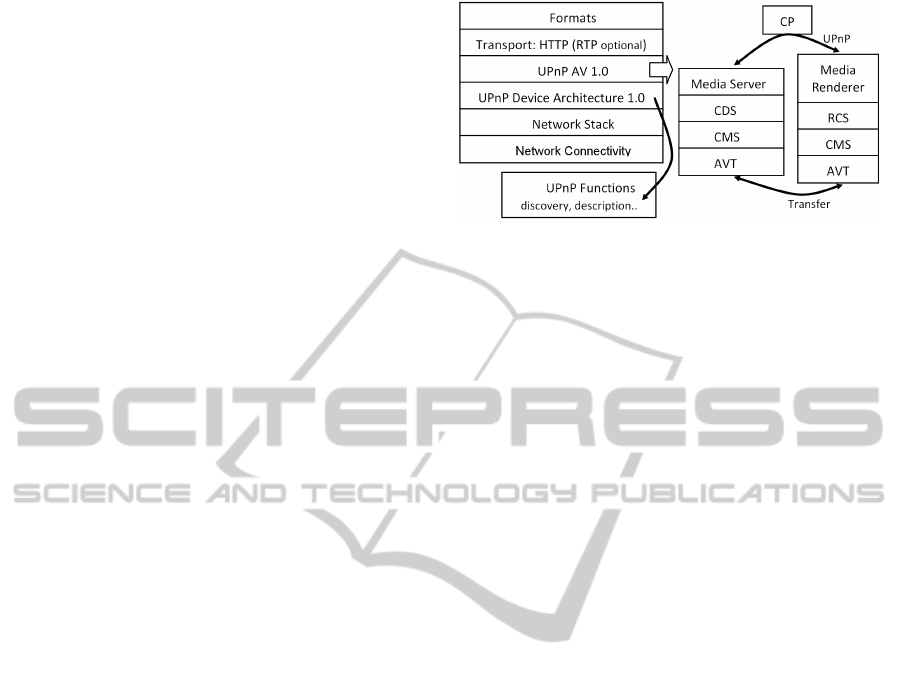

Figure 1: DLNA framework.

MS provides three services: Content Directory Ser-

vice (CDS), Connection Manager Service (CMS) and

AV Transport Service (AVT) (Fig. 1). A media ren-

derer provides the Rendering Control Service (RCS),

the CMS and AVT services. CDS provides actions

for CPs in order to list media items and relative meta-

data. RCS provides actions for a CP to control the

rendering of a media resource. CMS handles con-

nections with a device and AVT controls the player

actions (play, seek, etc.). DLNA deﬁnes two main en-

tities: Digital Media Server (DMS) and Digital Media

Player (DMP). DMS is a UPnP/AV CDS device that

provides media resources. DMP is a UPnP/AV CDS

control point that can discover resources and render

them.

In a DLNA/UPnP environment, the number, na-

ture (UDP and multicast) and the periodicity of UPnP

advertisements can be inconvenient. Also, in order to

render a media resource, several messages and steps

must be achieved. A mobile device, used in the dig-

ital home, has to support the multicast, UPnP Tem-

plate Langugae parsing, SOAP protocol and the un-

reliable nature of UDP especially over a wireless ac-

cess. Moreover, there is no guarantee that the origi-

nal format and proﬁle of the requested media resource

will be supported. This situation is not adapted to het-

erogeneous environments where rendering capabili-

ties, delivery and access technology, bandwidth, con-

gestion probability and power consumption are not

the same for all the existing devices.

3 UNIVERSALLY

The aim of our proposition is to enable and optimize

the access and control of existing media resources

in home for heterogeneous and mobile devices with

limited access and rendering capabilities. To do so,

we propose Universally: a new component that can

be easily integrated into the digital home architec-

ture and provide a universal access in a heterogeneous

environment. The modular architecture of Univer-

IMPROVINGTHEUSEREXPERIENCEBYWEBTECHNOLOGIESFORCOMPLEXMULTIMEDIASERVICES

445

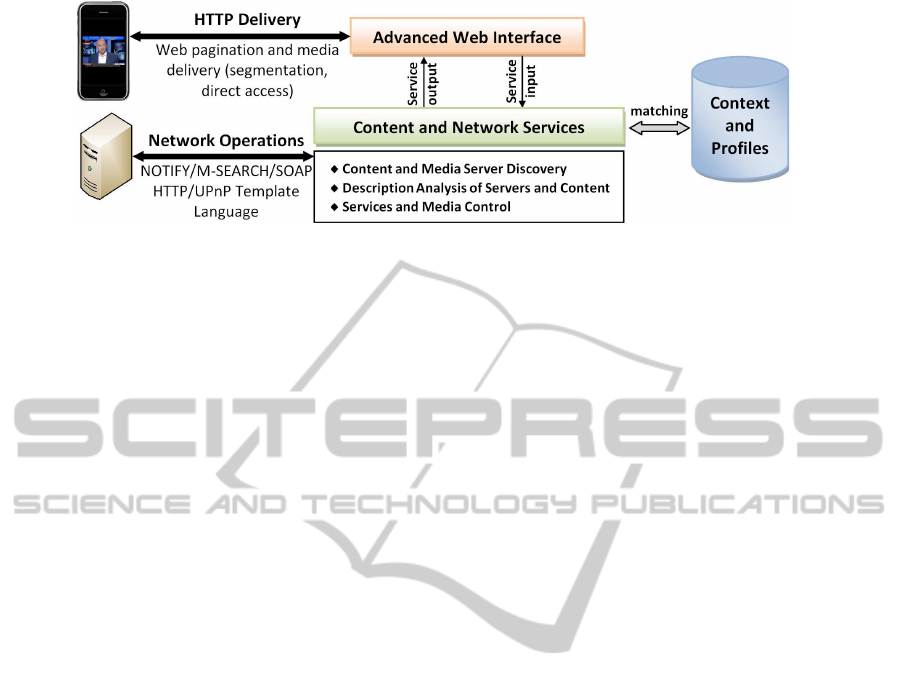

Figure 2: The Universally architecture.

sally is presented in Fig. 2. The key idea is to pro-

vide an easy media access only when it is needed

by a user and requested by its device. Based on an

Advanced Web Interface (AWI) module, devices can

browse available DMSs and resources since it is done

over HTTP. Once a media resource is found and dis-

played on the AWI with a hyperlink, the user can use

it directly, or use an adapted version delivered in a real

time. Universally delegates the UPnP main functions

(discovery, control, etc.) to a speciﬁc module that

ensures the access for limited devices such as those

which do not support the multicast natively or are not

compatible with DLNA. Since devices with advances

capabilities can also use the proposed AWI, UPnP ad-

vertisements of media services are ﬁltered and only

responses to the Universally’s M-SEARCH requests

are authorized. Unnecessary trafﬁc is so avoided. The

context module is used to describe the hardware and

software capabilities of devices that aims to play a

media resource (Lemlouma, 2012). If the original for-

mat of a media is not supported, it can be adapted then

transferred to the device. Based on the device’s pro-

ﬁle, the Web interface is also dynamically adapted by

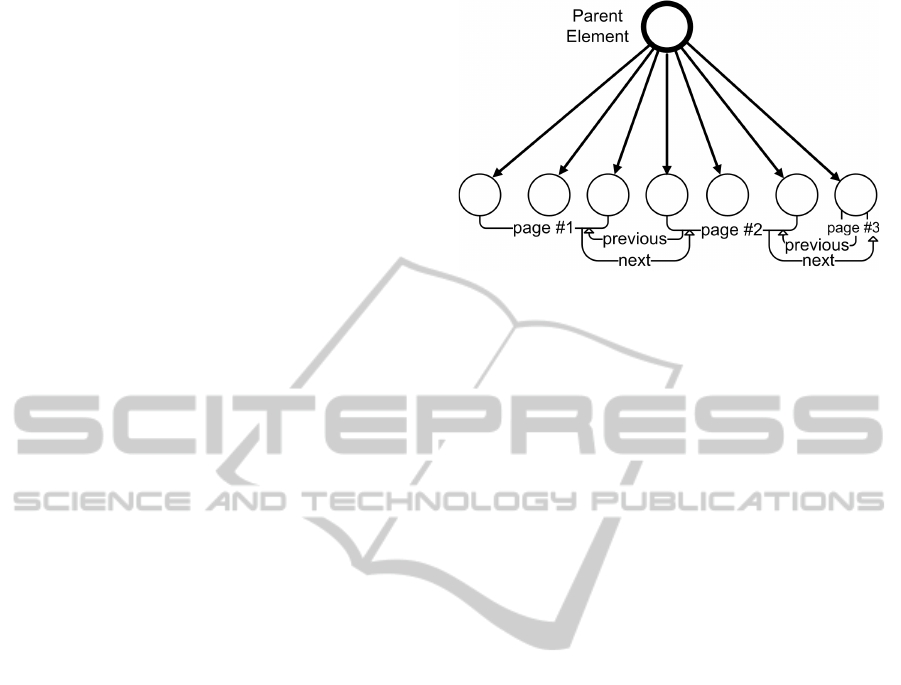

performing a pagination of discovery results when the

device explores media resources of available DMSs.

Searching MSs are done only once when the user ac-

cesses the AWI interface. The AWI’s home page is

a simple page with an HTML refresh duration, after

what the user is redirected to a new page where the

result of services discovery is displayed. At any mo-

ment, the user can manually trigger a new services

discovery. Universally has allowed to: avoid unnec-

essary trafﬁc (NOTIFY and M-SEARCH), unify the

eventual available presentations of MSs and devices,

make the browsing of resources possible and optimal

and avoid SOAP and XML UPnP handling and pars-

ing for limited heterogeneous devices.

4 ACCESSIBILITY OF THE

ADVANCED WEB INTERFACE

The W3C Web Content Accessibility Guidelines

(WCAG) 2.0 (W3C-WCAG, 2008) propose recom-

mendations for making Web content more accessi-

ble for users. The W3C Mobile Web Best Practices

(MWBP) recommendation 1.0 (W3C-BP, 2008) ad-

dresses a series of recommendations designed to im-

prove the user experience of the Web with mobile de-

vices. The proposed recommendations refer to deliv-

ered content but are not intended to be the best prac-

tice for the processes of content creation and render-

ing on devices. The result of performing networks

operations must lead to Web interfaces designed in a

compliant way to the two previous W3C standards.

As we focus on the accessibility of limitted devices,

we consider, in the design of our gerented interfaces,

the recomandations of the MWBP standard. We have

evaluated the Advanced Web Interface according to

the sixty statements of MWBP 1.0.

Table 1 summarizes the support of MWBP 1.0 by

the advanced Web interface of Universally. The large

compliance, regarding the MWBP statements, is due

to the structure simplicity of our Web interface that

hides the support of advanced networking functional-

ities. Some statements such as the user input are not

applicable since the user’s interaction is mainly based

on exploring existing media servers and items.

An important number of statements are ensured

thanks to: the use of content pagination with small

size, navigation hyperlinks used in content explo-

ration and pages navigation, the use of the same and

simple template for different pages, the simple and

short URI that identiﬁes the hosting server of Univer-

sally. Page refreshing, used while a network oper-

ation (media servers searching) is triggered, is com-

pliant with the statement #14 of the MWBP 1.0. At

anytime, the user can stop it using the stop hyperlink

(Fig. 3).

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

446

Table 1: The support of MWBP 1.0 by the Advanced Web Interface of Universally.

Best Practice # of MWBP 1.0 # of N/A # of Supported

Group of MWBP 1.0 Statements Statements Statements

Overall Behavior 4 0 4

Navigation and Links 12 4 8

Page Layout and Content 12 2 10s

Page Deﬁnition 25 4 21

User Input 7 6 1

Figure 3: The advanced Web interface of Universally.

5 EVALUATION OF THE

DELIVERY SIZE

According to the statement #21 of the MWBP 1.0,

a delivered page must be limited in size. In our ap-

proach, we propose to make a balance between the

scrolling and pagination of the result presented in the

Web interface. Scrolling long pages can affect the

user experience and requires a long time load. On

the other hand, an important pagination implies mul-

tiple requests to receive the relevant result. In order

to optimize our process, we consider three input pa-

rameters: the screen size of the user’s device, the size

of delivered page and the network access technology

used by the device. We distinguish four types of dis-

played pages: searching progression, negative result,

media servers list and items list (Fig. 3). The two ﬁrst

pages are displayed in the case where Universally is

looking for media servers or when no media servers

are found. The size of these two pages is small (1,6

Kb) which is compliant with the MWBP recommen-

dation. The servers list page includes hyperlinks to

different found media servers. The items list page in-

cludes links to folders and media resources items that

a media server hosts. The following is an example of

links extracted from our experimentations.

a accesskey=”3” href=”/ms?serv=3&id=0&inf

=0&total=3”

Me-PC: TVersity Media Server

a accesskey=”7” href=”/ms?serv=3&id=0/3/976

&inf=0&total=11”

All

a accesskey=”9” href=”/ms?serv=3&id=0/3/976

&idmedia=5&action=adapt”

Cool-T-Magic

Key(2 Jays Remix)

(video)

br/

The ﬁrst line represents the third found media

server (named ”Me-PC: TVersity Media Server”) in

the digital home network. The second one represents

a folder item (named ”All”) of the media server. The

third line represents a video item of the found media

server (existing in the ”All” folder).

The HTML code of each hyperlink has the follow-

ing format:

<a accesskey="[access key of the hyperlink]"

href="[arguments]">[name of the item]

</a>([type of media item])<br/>

IMPROVINGTHEUSEREXPERIENCEBYWEBTECHNOLOGIESFORCOMPLEXMULTIMEDIASERVICES

447

The access key parameter is used to be compli-

ant with statement #9 of the MWBP 1.0. It is set

to the position of the link in the HTML page; it can

vary from 1 to 20, so it is coded with two charac-

ters. The source of the hyperlink ([arguments]) is

formatted for media servers and folders as follows:

ms?serv=[identiﬁer of the server]&id=[identiﬁer of

the folder (set to ”0” if the link represents a media

server)]&inf=[starting index of items that will be ex-

plored if the link is hit]&total=[number of XML child

items (folders and/or media items) used in pagina-

tion]. For a media resource link (e.g. a video or audio

ﬁle), the format is similar to media servers and folders

links with the new attributes: idmedia and action. The

idmedia is an identiﬁer of the resource. It is used to

avoid including the hard link provided by the media

server that is in general very long. Using the idme-

dia attribute allows to adapt, in real time, the original

media if it is not supported by the user’s terminal (ac-

tion=adapt). Otherwise, the user can directly access

to the media without adaptation (action=deliver). The

delivered page’s size of the found servers and items

list can be calculated as follows:

Size = sizeof(templateOfThePage)+

n· sizeof(itemLink) + sizeof(navigationImages)

(1)

The size of the template is ﬁxed (3,83 Kb in our

implementation). The size of a navigation icon (next

or previous) is 1,69 Kb. Note that only one naviga-

tion icon is displayed in the ﬁrst and the last page

of the paginated result (Fig. 4). Also, even that the

same navigation icon is displayed twice on the bot-

tom and the top of the page (in respect to the MWBP

statement #6), the icon size is considered only once

in calculating the size of the delivered page. This is

done because the browser requests the icon only one

time, and thanks to its cache, the icon is displayed in

the top and the bottom of the page without sending a

new request.

The maximal length of a hyperlink’s text (the

[name of the item] value) is set to 30 characters (fol-

lowed by the

".."

string if the original text is greater

than 30. According to the format discussed previously

(

<a accesskey="[access key of the hyperlink]"

href="[arguments]">[name of the item]</a>

([type of media item])<br/>),

and the max-

imal encoding length of each attribute, we have

evaluated the maximal length of a complete link to

121 bytes.

With the result of (1), the maximal overall size of

a delivered page (including n links) is then:

Size(Kbytes) = 3, 83+ 0, 118· n+ 2· 1, 69

= 7, 21+ 0, 118· n

(2)

Figure 4: Pagination and interlinking of a parent element.

The advanced Web interface of Universally deliv-

ers a paginated result where the number of displayed

links in each page depends to the proﬁle of the user’s

terminal (the screen size) and is limited to a maximum

of 20 links. This property, with the result of (2), guar-

antees the compliance with the MWBP statement #21

in respect to the default delivery context which was

deﬁned as being the minimum delivery context spec-

iﬁcation necessary for a reasonable experience of the

Web (W3C-BP, 2008). Indeed, the considered met-

ric here is the size of each delivered page. Whatever

services complexity, in our case the result’s size will

never exceed 10 Kbytes which is suitable for any net-

work access technology (cellular, wireless and wired)

and required in a default delivery context. This sat-

isﬁed property means that the size of each received

result (after the network discovery of services) still

very small. Hence, this will not affect negatively the

user experience in discovering multimedia resources.

6 PAGINATION

The content pagination is applied to deliver fragments

of the original content in a suitable way that is well

balanced between the number of necessary requests

and the size of each fragment. In a digital home en-

vironment, Universally applies pages pagination re-

garding the list of discovered media servers and the

list of items hosted by a media server or stored in an

explored folder. In other term, if the list of discov-

ered media servers or items of a given folder is long

and not adapted to the terminal’s limitations, the list

will be divided in small pages interlinked with next

and previous hyperlinks (Fig. 4). In order to paginate

the content of a root element (media server or folder),

the number of child elements must be know in ad-

vance. To do so, Universally uses the invocation of

the SOAP actions: Browse and BrowseMetadata sent

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

448

to the Content Directory service of the media server.

This service is identiﬁed by the URI: urn:schemas-

upnp-org:service:ContentDirectory:1#Browse. The

number of child elements is returned within the SOAP

result in the XML attribute childCount. In the follow-

ing, an example of the result of a SOAP Browse action

received, in Universally, from a media server.

<DIDL-Lite xmlns="..">

<container id="0" childCount="4" parentID

="-1" restricted="true">

<dc:title>root</dc:title>

<res protocolInfo="http-get:*:image/jpeg:

DLNA.ORG_PN=JPEG_TN">

http://192.168.1.10:5001/get/0/..

</res>

<upnp:class>

object.container.storageFolder

</upnp:class>

</container>

</DIDL-Lite>

The container tag, speciﬁes the identiﬁer of the

current element (here it is the root of the media

server, id=0) and the number of child elements (child-

Count=4). As shown in Section 5, every browsing

link, displayed within our Web interface, includes the

inf and total arguments. The ﬁrst argument is used

to display child items (of the current parent element)

starting from the inf position (Algorithm 1, line 2).

The second argument has the value of the childCount

attribute. It allows to check if there are more ele-

ments to display in a next page or not (Algorithm

1, line 3). If it is the case, a next link is included

in the presentation page. As mentioned previously,

the number of the child elements to display in a page

(itemsPerPage) is set according to the terminal’s pro-

ﬁle. Handling terminal’s proﬁles is based on the Mul-

timedia Universal Proﬁling (MUP) schema that we

have deﬁned based on the W3C RDF language (the

proposed RDF schema will not be discussed in this

paper) (Lemlouma, 2012). MUP allows to describe

the proﬁles that are stored in a proﬁles repository and

specify the displaying and rendering capabilities of a

device. Near to 14000 different user agents are stored

(Lemlouma, 2011).

Figure 5 shows an overview of the HTTP content-

length variation over the access time. The measure-

ments concern all the HTTP responses (HTML and

images) of Universally to a mobile phone while ex-

ploring four media servers during about one minute.

The results show the conformance of Universally re-

sponses regarding the size metric adopted in the de-

fault delivery context of MWBP as predicted and dis-

cussed in Section 5. Here, the maximal size is near to

3,5 Kb.

Algorithm 1: Result pagination and exploration.

Require: inf, itemsPerPage and childCount.

Ensure: Display items in a paginated way.

1: nextHTML ←

′′

; previousHTML ←

′′

;

2: displays itemsPerPage items from the parent el-

ement starting from the item position: in f;

3: if (inf + itemsPerPage) < childCount then

4: nextHTML ←

'<a accesskey="N" href="/ms

?serv = ID

&id=objectID+&inf=(

inf+itemsPerPage)

total=(

childCount

)"><img alt="Next"

src="Next.png" ..></a>';

5: end if

6: if inf > 0 then

7: previousHTML ←

'<a accesskey="P" href="/ms

serv=ID

&id=objectID+&inf=(

inf-itemsPerPage)

&total=(

childCount

)"><img alt="Previ-

ous" src="Previous.png" ..></a>';

8: end if

9: displayingHTML ←

'<..>'+

previousHTML

<..>'+

nextHTML

+'<..>'+

displayingHTML

+'<..>'+

previousHTML

+'<..>'+

nextHTML;

Figure 5: Content pagination and HTTP content-length over

access time.

7 REAL TIME MEDIA

ADAPTATION

Similar to content pagination, media delivery has to

improve the user experience and be adapted to lim-

ited devices. In a digital home environment, a large

amount of the stored content is rich media content

(movies, music, pictures, etc.) having often a high

quality and requires an important storage space. Sev-

eral media delivery protocols and methods were pro-

IMPROVINGTHEUSEREXPERIENCEBYWEBTECHNOLOGIESFORCOMPLEXMULTIMEDIASERVICES

449

posed for different environments including limited

devices (Ma K. J.; Barto and R., 2011). In order to

gain access to a large amount of heterogeneous de-

vices and avoid complex network requirements, we

adopt the HTTP as the delivery protocol. For hetero-

geneous environments, HTTP represents a common

protocol either for downloading or streaming media

and structural resources. Furthermore, the protocol

is easily accepted by ﬁrewalls and different network

conﬁgurations which is not the case of other methods

like RTP over UDP with dynamic ports. Universally

considers the media fragmentation with the HTTP

protocol by implementing the HTTP Live Streaming

(Pantos and May, 2011). In Universally, when an

original video has to be adapted (based on the termi-

nal’s proﬁle (Lemlouma, 2012)), our advanced Web

interface delivers a hyperlink pointing to a playlist ﬁle

(a m3u8 ﬁle, as shown bellow) that contains links to

different video fragments.

#EXTM3U

#EXT-X-TARGETDURATION:10

#EXT-X-MEDIA-SEQUENCE:4

#EXTINF:10,

http://../0_3_976-5-00000004.ts

#EXTINF:10, ..

The playlist content is updated each time a new video

fragment is created. In a video adaptation instance,

the playlist includes links to the last ﬁve created

segments. Our implementation of the media frag-

mentation is based on the VLC transcoding of the

VideoLAN project (VIDEOLAN, 2011) with a video

segment’s duration of 10 seconds. Figure 6 shows

an overview of the different segments length down-

loaded by the native player (AppleCoreMedia) of a

mobile phone (an iPhone 4GS, iOS 5.0.1) during a

real time video adaptation. The original video, of our

experimentation, is a HD video with a size of 1,02

Gbytes, a duration near to 25 minutes, video codec of

H264 MPEG4 AVC (part 10), a dimension of 1440

per 1080 and audio codec of A52 with a rate of 384

Kb/s. The adapted format is H.264 Base Proﬁle, level

3 (ITU-T H.264, 2009) with a dimension of 320

per 240 resolution. The generated fragments allow

the player to download and use segments buffering

for a smooth play-out. Ideally, since each segment -

generated in real time- represents 10 seconds of the

original video, the player should buffer required seg-

ments prior to the current instant of video playing.

For instance, at t=50 seconds (from the beginning of

a video), the ﬁfth segment must be previously gener-

ated and downloaded. The generation and download

of a segment depend to the segmenter implementa-

tion, the original and targeted video transcoding, the

segment size and the available link bitrate between

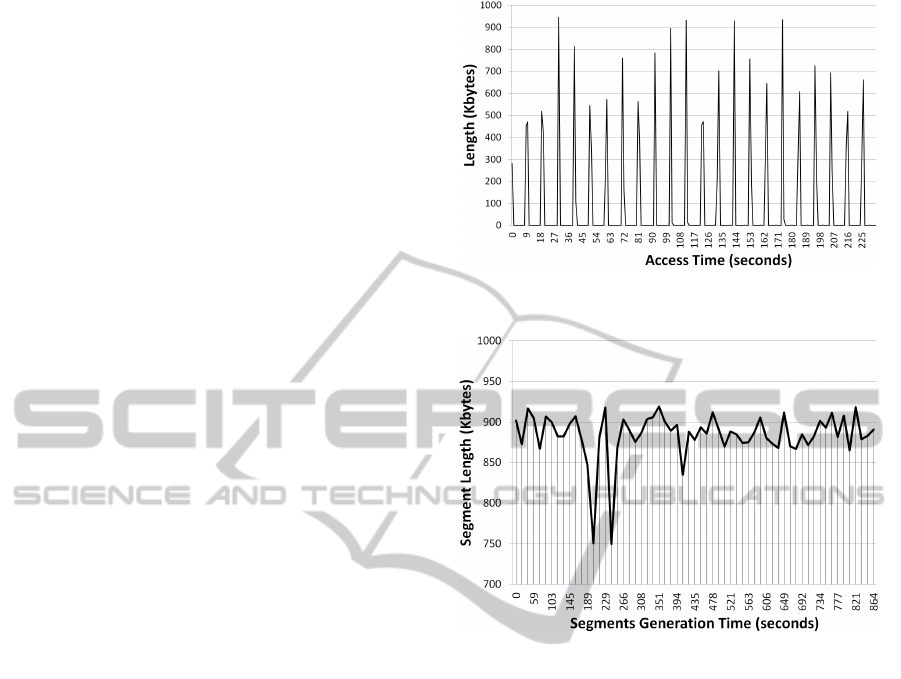

Figure 6: Media segmentation streaming.

Figure 7: Media fragments generation.

Universally and the user’s terminal. Figure 7, shows

the generation times and lengths of sixty segments of

10 seconds of our HD test video. For the user expe-

rience, the observed video segmentation delays vary

from 0 to 4 seconds. This real time media adaptation

enables users to explore quickly existing media items

and start to render them in an optimal way indepen-

dently to the original size and format constraints.

8 CONCLUSIONS

In this paper, we addressed the accessibility to ad-

vanced networking functionalities and media render-

ing using a new framework. The objective of propos-

ing this new framework is to make advanced services

accessible for heterogeneous and limited devices that

are natively unable to: handle networking protocols,

interact with other components of the network and

achieve complex networking and access actions. We

have shown that based on a standard Web interface

and the HTTP protocol, the user experience (in dis-

covering, using and accessing complex networking

WEBIST2012-8thInternationalConferenceonWebInformationSystemsandTechnologies

450

and multimedia services) was improved. First, thanks

to the Universally approach, limited terminals are

now able to discover and access complex services;

this was not initially possible for terminals that do

not support advanced networking operations such as

the multicast. Secondly, the approach guarantees a

standard and accessible network response which is

very limited in size: a maximum of 10 Kb for the

Web interface and 950 Kb for media segments what-

ever the complexity of the existing digital home net-

work. Whether with the content pagination or the me-

dia segmentation, the quality of experience of the user

is improved whatever the access technology used by

its device. The content fragmentation regarding Web

pages and media content has permitted to optimize

the content delivery for terminals with a minimal set

of capabilities. Within the DLNA environment, and

thanks to Universally, searching, access and render-

ing of media resources and services is enabled from

anywhere to mobile phones and other limited devices

that do not support natively required DLNA network-

ing functionalities and complex media rendering.

REFERENCES

Lemlouma, T. (2011). An overview of the MUP

repository’s identiﬁers, january 2012. http:// peo-

ple.irisa.fr/Tayeb.Lemlouma/mup/UNIVERSALLY

identiﬁers repository version 01 2012.txt.

Lemlouma, T. (2012). Source of the multimedia universal

proﬁling (MUP) schema, january 2012. http:// peo-

ple.irisa.fr/Tayeb.Lemlouma/mup/schema.

Ma K. J.; Barto, R. B. S. and R., N. (2011). Mobile video

delivery with HTTP. In IEEE Communications Mag-

azine 2011, Volume: 49, Issue: 4, pp: 166-175.

Pantos, R. and May, W. (2011). HTTP live streaming,

september 2011. http://tools.ietf.org/id/draft-pantos-

http-live-streaming-07.txt.

DLNA (2006). DLNA Network Device Interoperability

Guidelines, october 2006. http:// www.dlna.org/.

DLNA (2007). Digital Living Network Alliances:

DLNA overview and vision whitepaper, 2007.

http://www.dlna.org/.

ITU-T H.264 (2009). ISO/IEC 14496-10 AVC. ad-

vanced video coding for generic audiovisual ser-

vices [s]. http://tools.ietf.org/id/draft-pantos-http-live-

streaming-07.txt.

UPNP FORUM (2008a). UPNP AV Architecture:1, 30

september 2008. http://www.upnp.org/.

UPNP FORUM (2008b). UPNP Device Architecture 1.0,

24 april 2008. http://www.upnp.org/.

VIDEOLAN (2011). VideoLAN project. http://

www.videolan.org/.

W3C-BP (2008). Mobile web best practices 1.0, mobile

web initiative (mwi). In W3C Recommendation, 29

July 2008. http://www.w3.org/TR/mobile-bp/.

W3C-WCAG (2008). Web content accessibility guidelines

(wcag) 2.0. In W3C Recommendation 11, December

2008. http://www.w3.org/TR/WCAG20/.

IMPROVINGTHEUSEREXPERIENCEBYWEBTECHNOLOGIESFORCOMPLEXMULTIMEDIASERVICES

451
