MOSAIK - SMART GRID SIMULATION API

Toward a Semantic based Standard for Interchanging Smart Grid Simulations

Steffen Sch

utte, Stefan Scherfke and Michael Sonnenschein

OFFIS, Escherweg 2, 26121 Oldenburg, Germany

Keywords:

Smart Grid, Co-simulation, Coupling, Semantic, Simulation Interface, Domain-speciﬁc Language, Distributed

Simulation.

Abstract:

Simulation is an important method to test and evaluate new control mechanisms for future Smart Grids. To

generate sound simulation results one has to use validated and established simulation models. In this paper we

present the ﬁrst two out of six layers of our approach to a modular simulation framework, called mosaik. It will

allows to specify, compose and simulate Smart Grid scenarios based on the reuse of existing, technologically

heterogeneous simulation models. The layers presented here include a syntactic layer deﬁning an interface

for Smart Grid simulators and a semantic layer implemented using a domain-speciﬁc language that allows to

describe the structure and semantics of the simulator that is interfaced.

1 INTRODUCTION

Nowadays the electricity grid undergoes a large struc-

tural change toward a so-called Smart Grid, among

other reasons triggered by the increased integration

of renewable energy sources. In the future, the power

grid will no longer be dominated by a relatively small

number of large coal and nuclear power plants, but

rather by a large number of dispersed, renewable en-

ergy sources (DER). The major problem thereby is

the coordination of this large number of DER such

that generation and demand are balanced at any time.

This is a challenging task due to the number and re-

strictions of the involved components. Control strate-

gies for this complex and new task still need to be

developed and in particular evaluated and tested, for

example with respect to grid stability or other scenario

speciﬁc objectives. To ensure that this transition pro-

cess can be done as economically as possible and es-

pecially without losing the reliability of today’s grid,

these control strategies need to be tested in simulated

Smart Grid scenarios ﬁrst.

In order to yield sound and scientiﬁcally reliable

results, simulations have to rely on valid and (ideally)

established models. As a consequence, a lot of effort

is put into the modeling and validation of both single

system components such as photovoltaics or wind en-

ergy converters and composite sub-systems, e.g. en-

tire low or medium voltage power grids. Therefore, it

is desirable to reuse existing models in new projects

and simulation studies as much as possible. However,

a number of problems arises when reusing existing

simulation models to form new Smart Grid scenarios.

Physical Topology

Information Topology

Available simulations

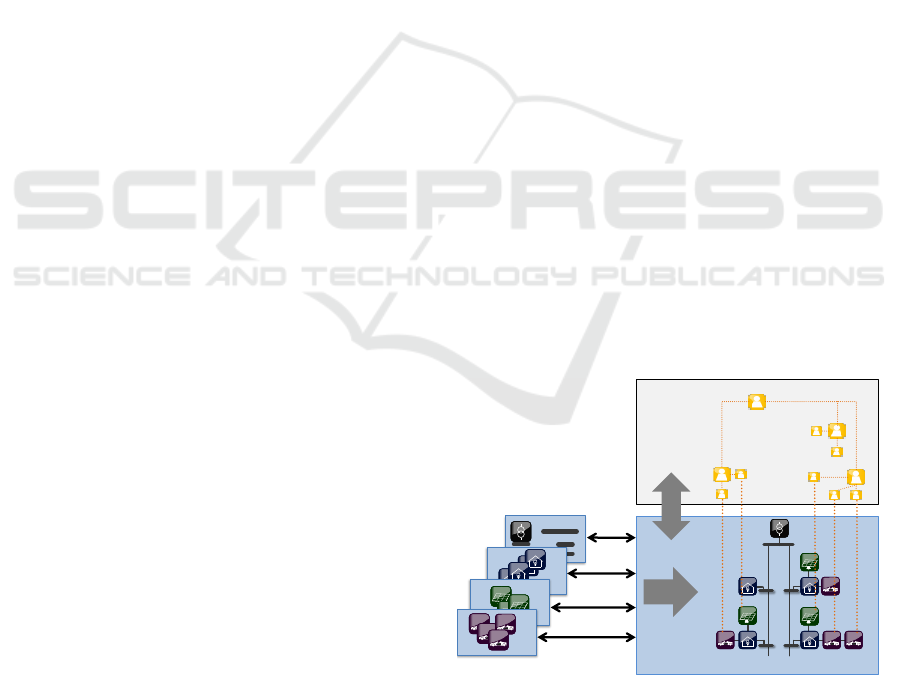

Figure 1: Identiﬁed problem areas.

Figure 1 shows the problem areas that mosaik

aims to solve. First, the available simulators are usu-

ally not designed to be reused (1). Therefore they

do not offer any interface that is appropriate for in-

teracting with the executed simulation. Second, one

has to ﬁnd a way to compose the different simulation

models in a ﬂexible way such that different scenarios

can be composed and simulated (2). And ﬁnally, the

composed simulation has to allow the interaction with

control strategies (3). In our research we focus on

the integration of multi-agent based control strategies

which includes two major tasks. First, a standardized

API has to be offered to the agents such that different

Schütte S., Scherfke S. and Sonnenschein M..

MOSAIK - SMART GRID SIMULATION API - Toward a Semantic based Standard for Interchanging Smart Grid Simulations.

DOI: 10.5220/0003950100140024

In Proceedings of the 1st International Conference on Smart Grids and Green IT Systems (SMARTGREENS-2012), pages 14-24

ISBN: 978-989-8565-09-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

strategies and simulation models can be interchanged

seamlessly. Second, a way to keep the agents syn-

chronized with the simulation time has to be found,

as multi-agent platforms are usually not made to work

with simulated environments (Gehrke et al., 2008).

To overcome these problems, we developed a con-

cept called mosaik (Sch

utte et al., 2011) (Sch

utte,

2011b) which allows the automatic composition of

Smart Grid scenarios as a test bed for control strate-

gies based on the reuse of existing simulators. This

also includes the use of available commercial simu-

lation packages. Inspired by the M&S architecture

proposed by (Zeigler et al., 2000, p. 496), the concept

is based on six layers as shown in ﬁgure 2.

Syntactic layer

Semantic layer

Scenario layer

Control layer

Current research/

first ideas presented

in (Schütte, 2011b)

Chapter 3

Chapter 4

(Scherfke and

Schütte, 2012)

Composition layer

Technical layer

Figure 2: Layers of the mosaik concept.

The technical layer provides a mechanism to ﬁnd,

initialize and manage the available simulators at run-

time. The syntactical layer offers a generic simulator

API to make simulators interoperable. The semantic

layer formally describes parameter, models and enti-

ties of each simulator such that the semantic of the

data exchanged via the generic API is unambiguous.

The syntactic and semantic layer are described in de-

tail in this paper. The formal simulator descriptions

are then used in the scenario layer to formally de-

scribe Smart Grid scenarios. A scenario deﬁnes a cer-

tain composition and can also be used hierarchically

in other scenarios. Finally, the composition layer per-

forms the actual simulator composition based on the

formal scenario and simulator descriptions, and the

control layer allows to interact with the simulated en-

tities at runtime.

The rest of the paper is organized as follows. In

section 2 we present and discuss related work from

the Smart Grid and other domains. Section 3 intro-

duces the generic interface (SimAPI) proposed for

the syntactic layer. Section 4 introduces the semantic

layer. In this layer, the structure and semantic of each

simulator implementing the SimAPI is described in a

formal way using a domain-speciﬁc language (DSL)

we have developed for this purpose. We demonstrate

the usability of our SimAPI in section 5 by present-

ing a ﬁrst simulation use case based on a prototypical

implementation. Finally, in section 6 we conclude by

discussing the current results and planned future en-

hancements.

2 RELATED WORK

Different tools and approaches for simulating Smart

Grid scenarios exist. (Karnouskos and Holanda,

2009) have “analyzed, designed, and built a simulator

based on software agents that attempts to create the

dynamic behavior of a smart city.” The advantages are

the possibility to observe and manipulate the behav-

ior of single entities (opposed to simulations that only

operate on static load proﬁles) and as such the evalua-

tion of a broad range of control strategies. As the sim-

ulation platform is based on the JADE agent frame-

work (JADE, 2012) and the Smart Grid, due to its

dispersed and large-scale nature, promotes the use of

agent based control strategies, these can be integrated

seamlessly into the simulator. However, the approach

does not consider the integration of existing simula-

tors/models, but rather requires to model all entities

of a Smart Grid scenario as JADE agents. GridLAB-

D (Chassin and Widergren, 2009) is a powerful sim-

ulation tool for power systems developed by the Pa-

ciﬁc Northwest National Laboratory (PNNL) in coop-

eration with industrial partners. It allows the speciﬁ-

cation of a wide range of scenarios. However, com-

pared to GridLAB-D, the mosaik concept is designed

explicitly for the composition of heterogeneous simu-

lation models by using formal, semantically enriched

descriptions of the models and a powerful scenario

speciﬁcation formalism, allowing to specify large sce-

narios with little code.

To our knowledge, no simulation interoperabil-

ity standard speciﬁc to the Smart Grid domain ex-

ists. Up to now, the military domain has been a ma-

jor driver for the development of simulation interop-

erability standards starting in the early 90s. This need

was initially triggered by the “need for a common

‘synthetic environment’ that could interconnect sim-

ulators in support of small-team training”. This can

be compared to today’s online games (Page, 2007).

The latest standard for distributed simulation that has

evolved from these efforts is the HLA. This standard

is very complex and thus hardly used outside the mil-

itary domain (Boer et al., 2008). We argue that this

is also true for Smart Grid simulations for the pur-

pose of evaluating and benchmarking control strate-

gies for distributed energy resources such as photo-

voltaics (PV), electric vehicles (EV) and other con-

trollable devices, as “new approaches [for simulation

interoperability] are unlikely to be accepted by the

M&S industry if they are connected with tremendous

MOSAIK-SMARTGRIDSIMULATIONAPI-TowardaSemanticbasedStandardforInterchangingSmartGrid

Simulations

migration costs due to reprogramming efforts” (Tolk

and Muguira, 2004). Therefore we present a very

lightweight interoperability solution for Smart Grid

simulation.

In the ﬁeld of environmental sciences the OpenMI

(Gijsbers and Gregersen, 2005) standard is a suc-

cessful example for a lightweight and pragmatic

approach (which has been developed although the

HLA was already an IEEE standard when the work

on OpenMI began)

. However, there are fundamental

differences to the Smart Grid domain making the

OpenMI approach of manually connecting different

models inapplicable. Usually, few uncontrollable

models with complex interdependencies (e.g. a

river and a groundwater model) are analyzed in

the environmental domain while many models

of potentially controllable energy resources with

topological relationships characterize the Smart Grid

domain. Therefore, we decided to develop a Smart

Grid speciﬁc solution that allows (1) interfacing

and semantically describing simulators and their

models (presented in this paper), (2) describing

potentially large-scale Smart Grid scenarios and (3)

automatically composing these scenarios using the

available simulation models for purpose of evaluat-

ing control strategies (beyond the scope of this paper).

3 SYNTACTIC LAYER - SIMAPI

In this section we describe the requirements and de-

sign of a simulator API that we developed to achieve

basic, syntactic interoperability between the different

simulators.

3.1 Requirements

Although the SimAPI presented in this paper is not

Smart Grid speciﬁc in a technical way, we developed

it based on the analysis of different Smart Grid scenar-

ios we simulated in past projects and expect for future

projects. We identiﬁed three major requirements that

inﬂuenced the design of the SimAPI.

3.1.1 COTS Integration

As mentioned in the introduction it is important to

rely on valid and (ideally) established models. This

is especially true for the simulation models used for

the electrical infrastructure. For these models, differ-

ent (commercial-off-the-shelf) COTS simulators exist

http://www.openmi.org/documents/

OpenMI Newsletter1 0405.pdf

that have been used in industry and academia for a

long time. Therefore, the mosaik framework should

support the integration of such closed-source soft-

ware packages as well. For the syntactical layer, the

SimAPI should also be applicable to COTS simula-

tors, e.g. by implementing an adapter that mediates

between the SimAPI and API of the COTS compo-

nent.

3.1.2 Control Strategy Integration

Control strategies for all kinds of power grid re-

sources starting from a circuit breaker up to a pool of

several thousand electric vehicles are the major com-

ponents that distinguish the vision of the Smart Grid

from today’s less controlled power grid. For being

able to use composed simulation models as a test-

bed for the evaluation of new control strategies the

SimAPI has to provide information about the entity

relationships within a model.

For example, assume that we have the model of

a power grid comprised of an MV grid and differ-

ent LV grids. It has entities for transformers, buses

(nodes) and branches (power lines). Further we have

different models of controllable consumers and pro-

ducers. Now we want to use these models to form a

simulative scenario for assessing the performance of

a new multi-agent based control strategy. For such

multi-agent systems, different organization forms ex-

ist (Horling and Lesser, 2004). Let us assume we

have one agent per transformer (transformer agent)

and subordinate to this, one agent per controllable

resource (resource agent) in the subordinate LV grid

section and we have initialized the simulation models

by now. However, for initializing the agent system,

we need to know what resource agents are related to

which transformer agent.

Assuming that the grid topology is described by

a speciﬁc ﬁle, one way to get this information is to

include a parser into the control strategy code which

can read this ﬁle so that the grid topology can be nav-

igated for initializing the agents in the right topol-

ogy. However, different grid models may use different

ﬁle formats which makes it difﬁcult to use other grid

models in this scenario and the parser code is more

or less redundant as the grid model has this informa-

tion anyway. Therefore we extended the SimAPI to

provide information about the model’s entity relation-

ships. This way, we can easily determine which nodes

are (via the branches) related to which transformer

just by querying the model without having to parse

any other ﬁles.

SMARTGREENS2012-1stInternationalConferenceonSmartGridsandGreenITSystems

3.1.3 Simulation Result Analysis

For being able to evaluate the performance of a con-

trol strategy, different metrics (e.g. resource utiliza-

tion) have to be calculated. The calculation of these

metrics is usually done based on the simulation results

(entity data that has been recorded during simulation).

For example, the maximum load of a transformer or

the maximum current through a power line could be

a possible metric. But how do we know what thresh-

olds are permissible? One way is to hard code the

values into the metric. However, it is much better to

obtain these values directly from the entity in ques-

tion. Therefore, the API must provide access to such

data describing static properties of the entities.

3.2 Abstraction Level

The syntactical layer is the lowest layer of our

concept, determining the possible interactions with

the simulation models. Therefore, a suitable ab-

straction level has to be chosen for the simulator

API that allows the integration of a broad range of

simulation models as well as sufﬁcient ﬂexibility

and detail for using these in different scenarios,

while at the same time being as simple as possible to

minimize integration effort and improve acceptance

of the SimAPI. As the mosaik framework focuses

on the composition of discrete event simulation

models (Sch

utte et al., 2011), the lowest reasonable

abstraction level is the DEVS formalism introduced

by Zeigler (Zeigler, 1976). Although such a low-

level abstraction provides maximum ﬂexibility, a

number of disadvantages arises. First of all, for the

integration of a simulation model (implementing

the SimAPI for this simulator) on this low abstrac-

tion level all low-level information (internal states,

state transitions, events, etc.) has to be integrated

into the SimAPI as well as described in a formal

way (see next chapter) to make it available for the

composition. Implementing such a complex API is

time consuming, error prone and likely to be rejected

by the users as “new approaches are unlikely to be

accepted [...] if they are connected with tremendous

migration costs due to programming efforts.” (Tolk

and Muguira, 2004) Furthermore, the integration

of simulation models based on COTS simulation

packages (see 3.1.1) is not likely to be possible on

this low abstraction level as such simulation packages

are usually not ”open” (Boer, 2005). Regarding the

last point, (Boer, 2005) did extensive research upon

distributed simulation in industry and deﬁnes three

different levels of ”openness” of COTS simulation

packages: ”fully open”, ”partly open” and ”fully

closed”. A fully open simulation package is a simula-

tion package that allows access to all entities and their

attributes at every step in time. (Boer, 2005) states

that according to this deﬁnition most of the available

simulation packages are only partly open. (Boer,

2005) therefore also uses a higher abstraction than

the DEVS formalism and only focuses on the entities

and their attributes without considering the internal

processes and events. (Zhang et al., 2005, p.3) use

a similar abstraction level since their approach for

oil reservoir performance forecasting is also based

on existing software and thus is “not concerned with

modeling the internal structures or implementation

of the building software components.” Instead they

“only capture the interfaces [of the components] each

of which can be characterized with a set of input

signals and a set of output signals”.

Assumption: An abstraction level as detailed as

the DEVS formalism is not required for compos-

ing the majority of Smart Grid scenarios.

On the other end of the scale a complete black

box view of a simulator could be assumed. Such an

API may only allow to read and manipulate certain

attributes of a simulation and advance the simulation

time step by step. Such an API is likely to be too

restricted.

3.3 Resulting Design

Based on the analysis of different simulation mod-

els we developed in our past Smart Grid projects, we

decided to let our SimAPI deal with 3 different con-

cepts:

1. Entity. Any object or component in the modeled

system that requires explicit representation (e.g.

a transformer, a power line, an electric vehicle)

(Banks et al., 2005)

2. Model. A (simulation) model is an abstract repre-

sentation of a system and is executed by a simu-

lation environment (e.g. a model of a low voltage

grid).

3. Simulator. A simulator is the execution environ-

ment for one or more models (in this paper, the

term simulation refers to a simulator, executing its

simulation models).

In other words, a simulator can contain one or

more models which again contain one or more en-

tities, representing objects in the real world. The

SimAPI has to account for this structure and allow

to specify the parameters for the simulator (start time,

step size, etc...), the number and conﬁguration of the

MOSAIK-SMARTGRIDSIMULATIONAPI-TowardaSemanticbasedStandardforInterchangingSmartGrid

Simulations

models to execute as well as to access (read and write)

the attributes of the entities contained in the mod-

els. Entities cannot be simulated directly but rather

are the result of initializing a model in the simulator.

The possible step sizes of a simulation, the number

of models the simulator can handle and other non-

syntactic information will be part of the semantic de-

scription of the simulator (see next chapter).

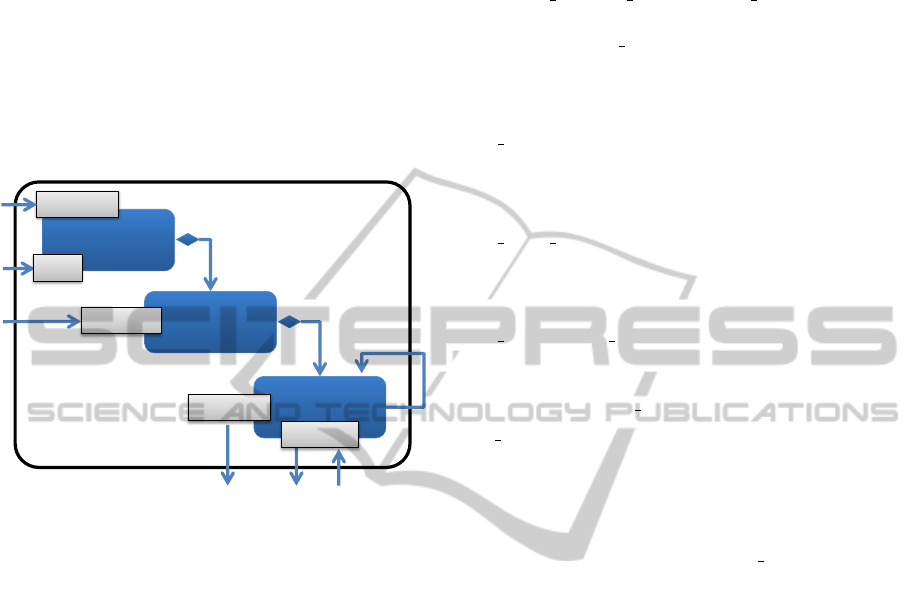

Figure 3 shows the structure of a simulator and the

data that is made accessible by the SimAPI (arrows

crossing the black box).

Entity

Simulator

Model

1..*

0..*

Parameter

Static Data

Time

Dyn. Data

Figure 3: Simulation features exposed by the API.

3.4 Implementation

The mosaik SimAPI is designed to be very generic

and ﬂexible which allows a wide range of simula-

tions to be used with it. We use ØMQ (ZeroMQ) as a

message transport layer and JSON (JavaScript Object

Notation) for object serialization. ØMQ is fast, well-

documented, available on a wide range of platforms

(including Python, Java, C/C++) and freely avail-

able under the Lesser General Public License (LGPL)

(iMatix Corporation, 2012). JSON “is a lightweight

data-interchange format”. It is much more compact

and less verbose than XML and thus easier and faster

to read and parse (JSON, 2012). As opposed to e.g.

XML/RPC (Remote Procedure Calls with XML seri-

alization) which we used in an earlier prototype, using

ØMQ/JSON also allows us to asynchronously han-

dle multiple simulations at once without the need for

threading and locking. The mosaik framework cur-

rently offers a SimAPI adapter for simulations written

in Python. We also aim to provide adapters for at least

Java and C. The SimAPI adapters provided by mosaik

offer an interface for the SimAPI calls and take care of

the serialization of messages and the communication

with the mosaik framework (or any other client).

3.4.1 SimAPI Methods

The SimAPI consists of the following methods:

init (step size, sim params, model conﬁg):

Initializes a simulation and creates model in-

stances. model conﬁg contains a list of tuples pro-

viding information about how many instances of

what model have to be initialized with which pa-

rameter values.

get relations ():

Returns a list of tuples for each entity relation.

Each tuple contains a pair of related entities (their

IDs).

get static data ():

Returns the values of all static attributes for all

entities. Static attributes are attributes that don’t

change during the execution of the simulation.

get

data (model name, etype, attributes):

This methods returns the current values for all at-

tributes in attributes for all etype typed entities of

the model model name.

set data (data):

Sets the values of the given attributes for each en-

titiy in data, a list of tuples of an entity ID and

new attribute values for this entity.

step ():

Advances the simulation by step size steps (as de-

ﬁned in the init method) and returns the current

simulation time.

3.4.2 The Low-level Communication Protocol

When a simulator has been started, it has to signal

the client (e.g. the mosaik framework) when it is

ready to receive commands. The client can then do

any number of SimAPI calls, that is sending simula-

tor commands and receiving their return value. When

the client is done, it sends a stop message, so that the

simulator can cleanly shut down itself.

Each message sent is a tuple containing the mes-

sage type (that is equivalent to the SimAPI method

name) and a dictionary with data which will be

mapped to the method parameters (see previous sec-

tion). Note that the client can send commands to mul-

tiple simulations at the same time and asynchronously

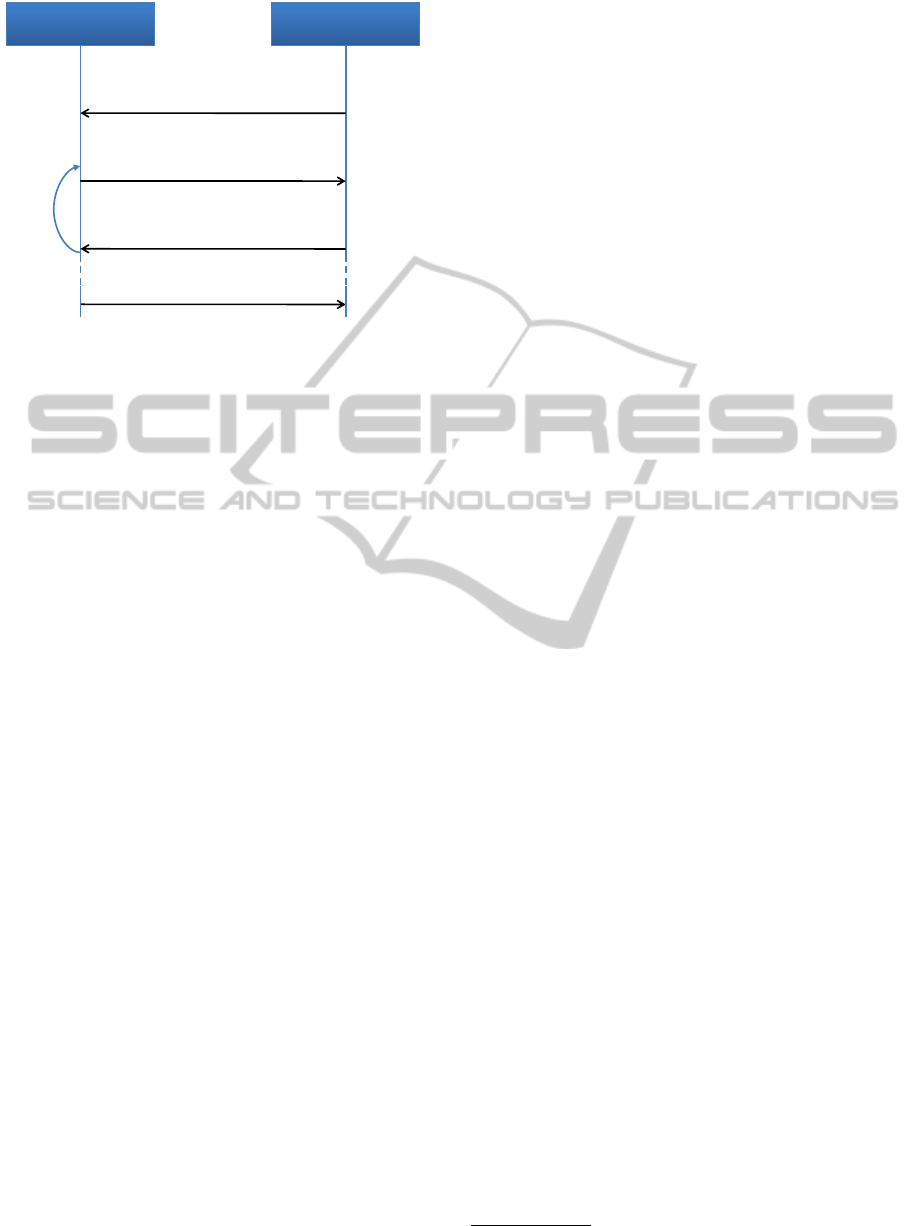

receive their replies. Figure 4 visualizes the commu-

nication sequences between the simulator and a client.

4 SEMANTIC LAYER

In the last section we deﬁned a generic simulator API,

i.e. methods and their signature do not change from

SMARTGREENS2012-1stInternationalConferenceonSmartGridsandGreenITSystems

mosaik/Client Simulator

['sim_ready', sim_name]

['<sim_cmd>', params]

['sim_cmd_done',

['<sim_cmd>', return_value]]

['stop', {}]

repeat

Figure 4: The communication sequence between a simula-

tion and a client (e.g. mosaik).

one simulator to another. It allows to initialize, exe-

cute and access a simulator and its models and enti-

ties. Such a generic API is beneﬁcial to integrate new

simulators into a simulation composition engine with-

out changing its implementation. But to allow the en-

gine and/or human clients to make correct use of the

simulators, additional information about the follow-

ing aspects of the SimAPI is required:

• What step sizes does the simulator support?

• What parameters are available for the simulator

and the models?

• What is their data type and what values are per-

missible?

• Which and how many models can a simulation ex-

ecute?

• How many models can a simulator execute and

can they have different parameter conﬁgurations?

• What entities does a model contain?

• What is the structure of the entities I/O-data?

• What static data is available?

We propose a domain-speciﬁc language (DSL)

called mosl (mosaik speciﬁcation language) that is tai-

lored speciﬁcally for this purpose and allows to de-

scribe all these different aspects of a simulation in a

formal, human and machine readable way. We imple-

mented our DSL using the Xtext framework which

is available as a plugin for the Eclipse IDE. Both,

Xtext and Eclipse are freely available. Compared

to an XML based approach, for example, Xtext of-

fers a DSL speciﬁc editor with advanced consistency

checks, auto-completion, syntax highlighting and fur-

thermore the DSL has a custom syntax and is thus less

verbose (see (Xtext, 2011)).

Regarding the non-technical aspects, we try to

make use of the Common Information Model (CIM)

whenever it is possible and appropriate. The CIM pro-

vides a large information model for the energy do-

main and is standardized by standards series IEC

61970 and 61968. It is also recommended as one

of the core standards for the future smart grid (NIST,

2010).

Listing 1 shows the basic structure of our DSL us-

ing the example of a PowerFlow Simulator as we used

it in our ﬁrst case study (see section 5). Although it is

very simple, it already covers a number of the aspects

listed above. Each simulator is described in a separate

ﬁle.

Listing 1: Basic simulation deﬁnition.

simulator Pow e r F l ow stepsize [1 ,] sec

model 1. . * S t a t i c Po w e rF l o w

entity B us

end

entity Branch

end

entity Tra n s fo r m e r

end

It allows to deﬁne a simulation and the valid step

sizes for this simulation as well as the possible mod-

els the simulation can execute. For each model, the

possible number of instances the simulation can exe-

cute can be deﬁned (1 or more in the example), and

the entity types that the model contains are deﬁned as

well. In the next sections we introduce the other con-

cepts of the DSL to deﬁne the remaining aspects of

the simulation based on this basic structure.

4.1 Simulation and Model Parameter

An important part of the DSL is the deﬁnition of con-

ﬁguration parameters on both, simulation and model

level. A formal and standardized description of the

parameters as well as the standardized SimAPI to set

these parameters will ease model reuse, as the conﬁg-

uration of all participating simulators is speciﬁed in a

central place. According to our experience this is an

important point for increasing the usability of com-

posed simulations. Up to now, each simulator had to

be conﬁgured using its proprietary conﬁguration ﬁle

format and location, making it very difﬁcult to keep

track of the simulator conﬁgurations used for a sce-

nario. Listing 2 shows the parameter description us-

ing the example of an EV simulation.

International Electrotechnical Commission

MOSAIK-SMARTGRIDSIMULATIONAPI-TowardaSemanticbasedStandardforInterchangingSmartGrid

Simulations

Listing 2: Parameter deﬁnition.

simulator EVSim stepsize {1 , 15} min

start : d ate t i m e

stop : d a t etim e

model 1. . * identical EVMod e l

p_c h a r g e : float in W

{37 0 0 . 0 ,1 100 0 . 0 }

c_bat : float in Wh [1. 0 ,]

ini t _ s o c : float in p erce n t

[0.0 ,1.0 ] default = 0. 5

entity Vehicle

end

The deﬁnition of a parameter begins with a name

and a colon, followed by a data type. Currently,

possible types are int, ﬂoat, string, boolean and

datetime. For numerical types an additional unit can

be speciﬁed using the ‘in’ keyword. The units that are

available have been extracted from the enumeration

UnitSymbol deﬁned in the Domain package of the

CIM. For numerical types and the string type, the

deﬁnition of valid values is possible by either using

square brackets to specify a range or using curly

brackets to deﬁne a discrete set of allowed values.

The deﬁnition of a default value indicates the value

that is used by the model or the simulation when

the parameter is not provided via the SimAPI. The

keyword identical indicates that a single simulation

can only simulate the given number of models

with the same conﬁguration parameters, i.e. the

simulation described above cannot simulate vehicles

with different battery sizes.

4.2 Data Flow and Composition

As already stated in the introduction, the work pre-

sented here is part of a larger concept (see ﬁgure

2)which will allow the automatic composition of dif-

ferent simulation models to form different Smart Grid

scenarios. Therefore, a model will usually be used

in combination with other models. This means that

the inputs and outputs of the different entities of the

models have to be connected. For example, the power

drawn by an EV, which is provided by the EV entity

as output value, is an input value for the Bus entity

which represents the node in the grid the EV is con-

nected to.

4.2.1 Reference Data Model

In order to allow such an automatic mapping, we pro-

pose the use of a reference data model that is used

for deﬁning the entities’ inputs and outputs. Without

such a reference model a manual mapping would be

required between every possible combination of enti-

ties. By using the reference model this O(n

) prob-

lem is reduced to an O(n) problem (Tolk and Diallo,

2005, p.67) as the entities of a simulation model only

have to be adapted to the reference model (see ﬁgure

5). This adaption has to be done when implementing

and semantically describing the SimAPI. To base our

data model on a standardized and thus wide-spread

and solid basis we make again use of data structures

deﬁned in the CIM whenever possible.

Simulator A

mosl

Simulator D

mosl

Simulator B

mosl

Simulator C

mosl

Reference

Data Model

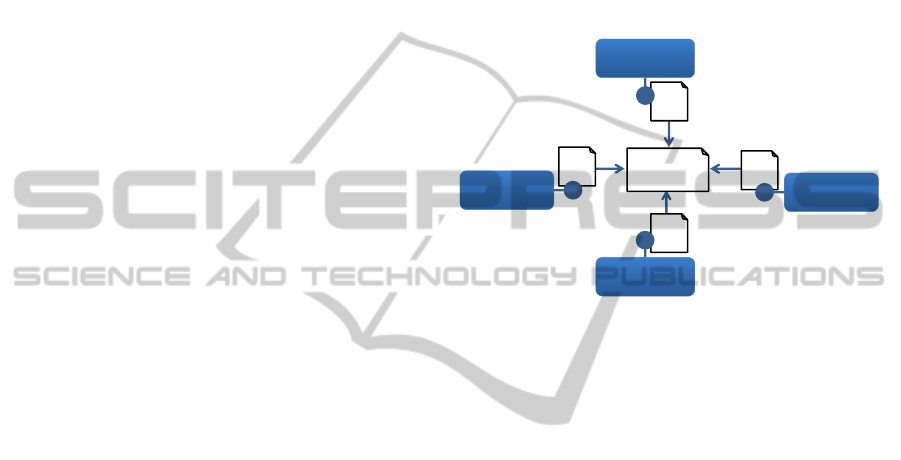

Figure 5: Reference data model for semantic description of

simulator interfaces

The structure of the data that is consumed or pro-

vided by the entities (data ﬂow) is of different com-

plexity. For example, information about the state of

charge (SOC) of a vehicle’s battery may be a simple

ﬂoat value whereas the voltage of a node is a tuple

of voltage and angle and the power drawn by a con-

sumer is a tuple of active and reactive power. An EV

or other potentially controllable resources may also

be able to receive more complex data structures such

as operating schedules.

We have extended our DSL to allow the deﬁnition

of a reference data model with such complex struc-

tures by using a subset of the JSON-Schema (JSON-

Schema, 2012) speciﬁcation. However, to keep our

DSL as readable and non-verbose as possible, we

chose not to use the JSON-Schema syntax but rather

a compatible notation syntax called Orderly (Orderly,

2012). This part of our DSL is based on an available

Xtext implementation of Orderly (Github, 2012), with

one exception: Orderly uses curly brackets to spec-

ify a range of allowed values. We decided to stick

to our syntax (using square brackets for ranges and

curly brackets for sets of allowed values) as this seems

much more intuitive and is well known from set the-

ory. Listing 3 shows the deﬁnitions of the different

entity data ﬂow structures discussed above using our

DSL.

SMARTGREENS2012-1stInternationalConferenceonSmartGridsandGreenITSystems

Listing 3: Reference Data Model.

reference data model de . o f fis . mosaik

data flows

//IEC61970.StateVariables.SvPowerFlow

@Equals( vol t a g eL e v el )

Sv P o w er f l ow :object {

p :float in W

q :float in W

}

//IEC61970.StateVariables.SvVoltage

Sv V o l t ag e :object {

angle :float in rad

v :float in V

}

curr e n t :float in A

st a t eO f C ha r g e :float in p ercen t

[0.0 ,1.0 ]

v2 g _ sc h e d u l e :object {

st a r t T im e :datetime

ti m e P oi n t s :array [object {

time :integer in s

dur a t i o n :integer in s

comm a n d :string { idle , cha rge ,

di s c h a rg e }

power :float in W [0 .0 ,]

}]

}

end

static data

vo l t ag e L e v e l :string { LV , MV , HV }

//From IEC61970.OperationalLimits

Cu r r en t L i m i t :float in A

end

entity types //From IEC61970.Wires

AC L i ne S e gm e n t : Con d u c tor

Co n d u c to r

Bu s b ar S e ct i o n : Con n e c tor

Co n n e c to r

Jun c t i o n : Conn e c t or

end

The v2g schedule data, for example, is a complex

data type (object) with two ﬁelds. The ﬁeld startTime

is a simple type representing a date, the ﬁeld time-

Points is a list (array) of complex data types each of

which having the 4 ﬁelds time, duration, command

and power.

For the SvPowerﬂow and SvVoltage items we have

used the structures deﬁned in the CIM. For the other

data, custom structures have been created. In addition

to the deﬁnition of the data structures, the reference

model also allows to deﬁne static data for the enti-

ties. As mentioned in 3.1.3, we deﬁne static data as

any data that describes an entity but does not change

over time. Besides using this static data when analyz-

ing the simulated scenario (see section 3.1.3) it can

also be used to specify domain-speciﬁc data ﬂow con-

straints using the @Equals keyword. In this example,

we have deﬁned that the voltage level of entities in-

terchanging SvPowerﬂow data must be the same. For

example, it must not be possible to connect an EV

(assuming EVs charge at the low voltage level) to a

bus in a medium voltage grid. As both entities have

to have the same attribute, it is deﬁned in the refer-

ence data model as well, but within a special static

data section. The static data items can have the same

complex structure as the other items. Finally, the en-

tity types section allows to deﬁne a hierarchy of ab-

stract entity types. In our case the object hierarchy

deﬁned in the IEC61970 package Wires is an appro-

priate option. The usage of these abstract entity types

is described in the next section.

The reference data model deﬁnes a unique names-

pace (here: de.ofﬁs.mosaik) as it is unlikely that

a globally standardized reference model will ever

be available. Using distinct namespaces, simulators

from different sources (companies) can be used to-

gether without mixing up data model elements with

the same name. Of course, in such cases a mapping

between the used reference data models has to be de-

ﬁned. However, this is beyond the scope of the paper

and subject to future work.

4.2.2 Using the Reference Model

The mosaik scenario layer (see ﬁgure 2) will allow

to specify relations between the entities of different

simulators. Based on the semantic information in the

simulator description the data ﬂows between any two

related entities shall then be derived automatically to

ease composition. The elements of the reference data

model provide the base for this process. They can be

referenced from within the simulator descriptions by

importing the corresponding namespace. The Xtext

framework natively supports the concept of names-

paces so that no further manual implementation is re-

quired. Listing 4 shows the ﬁnal simulator description

for PowerFlow and EV simulator used in one of our

projects (see next section).

Deﬁning the static data offered by the entities is

straight forward. It is simply deﬁned using the static

keyword followed by a static data item from the ref-

erence data model. As with all other references, the

DSL editor generated by Xtext allows the user to use

only those elements that are deﬁned in the reference

data model and thus supports the user in creating a

consistent simulator deﬁnition.

MOSAIK-SMARTGRIDSIMULATIONAPI-TowardaSemanticbasedStandardforInterchangingSmartGrid

Simulations

Listing 4: Deﬁning static and dynamic data.

import de . o f fis . mosaik .*

simulator EVSim stepsize {1 , 15} min

model 1. . * identical EVMod e l

entity Vehicl e

static vo l t a ge L e ve l

port for 1 Conn e c t or

out gri d _ p ow e r : S v Po w e r Fl o w

end

port

cont r o l : v 2 g _ s c h ed u l e

end

simulator Pow e r F l ow stepsize [1 ,] sec

model 1. . * S t a t i c Po w e rF l o w

entity B us : Conn e c t o r

static vo l t a ge L e ve l

port for 0. . * //Can have n loads

in lo a d : S v P o we r f l ow

end

entity Branch : ACL i n eS e g me n t

static Cu r r e nt L i mi t

port

out i_br a n c h : c u r r e nt

end

entity Sla c k N o de : P o w er T r a n s fo r m e r

static vo l t a ge L e ve l //Primary side

port

out lo a d : S v P o we r f l ow

end

The dynamic data ﬂow deﬁnition is slightly more

complex as these ﬂows are the basis for simulation

composability. Generally, two entities (of models

from different simulators) can be connected when one

entity provides a data ﬂow deﬁned in the reference

data model and the other consumes it. To describe

these ﬂow directions, each data ﬂow is given a direc-

tion in the simulator description using either the in or

the out keyword. In case of an EV being connected

to a node in the power grid the EV will have an out-

going ﬂow (the power it draws from the grid) and the

grid node has to provide an incoming ﬂow. Further-

more, the allowed multiplicity for incoming ﬂows can

be speciﬁed (depending on the type/capabilities of the

simulation model). In our example, it may be possi-

ble to connect multiple EVs to the same bus. In this

case it is the task of the simulator to aggregate the nu-

merous incoming ﬂows to a meaningful value for the

underlying model entity.

Figure 6 shows a more complex scenario with an

EV having power ﬂows to a bus (power drawn) and

power (kW)

SOC (%)

Connector Vehicle Storage

1 1

is a is a

Bus Vehicle LiPoBat

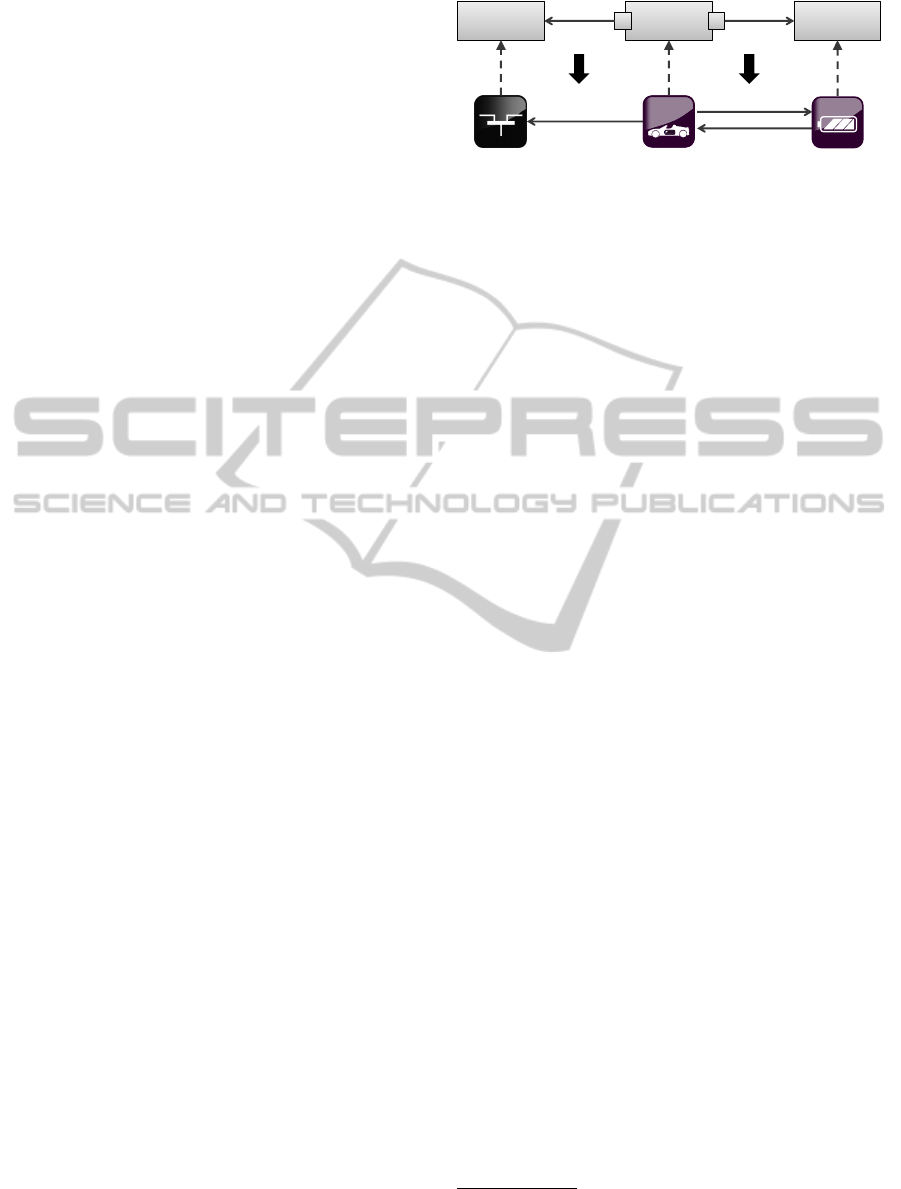

Figure 6: Port based entity composition.

a battery model (power drawn/charged). For both

ﬂows, the same data item power is used. Note that

this is different to the reference model presented in

listing 3 but used for illustration purposes. With the

concepts deﬁned so far, each outgoing ﬂow of the

EV can be connected to both, the bus as well as the

battery, as the power ﬂow is more abstract than our

SvPowerFlow which is to be used for AC power ﬂows

only

. This is a general problem: A more abstract

ﬂow increases the combination possibilities of an en-

tity but also increases semantic ambiguity. Of course,

one solution to this dilemma is to deﬁne different data

ﬂows for AC (bus) and DC (battery). However it does

not tackle the general problem, which is a lack of se-

mantic. As mentioned before, data ﬂows should be as

abstract as possible to increase combination possibil-

ities. We therefore added the concept of abstract en-

tities (see last section in listing 3) and introduced the

notion of ports. A port serves the purpose of grouping

all ﬂows that are to be connected to an entity of a cer-

tain type (or all types if no type is speciﬁed). The type

of an entity is speciﬁed after its name using a colon.

In the example shown in ﬁgure 6, the EV entity de-

ﬁnes two ports: one for the connection to a Connector

in power grid and another for connecting the EV to a

Storage entity.

A port of an entity A can be connected to another

entity B when: (1) A has a port accepting B and B has

a port accepting A, (2) all incoming ﬂows of each port

can be satisﬁed (i.e. type and direction match) and (3)

the domain speciﬁc data ﬂow constraints are fulﬁlled.

Now the data ﬂows can be established unambiguously

when composing the entities as shown in the bottom

part of ﬁgure 6. To avoid specifying the multiplicity

for incoming ﬂows multiple times it has been moved

to the port deﬁnition as well.

5 A FIRST USE CASE

Within the eMobility project GridSurfer (BMWi,

Note: SvPowerFlow can still be used on different volt-

age levels but we therefore added the @Equals constraint in

the data model.

SMARTGREENS2012-1stInternationalConferenceonSmartGridsandGreenITSystems

2010), different simulators implementing the

SimAPI, as it has been presented here, have already

been successfully composed for the evaluation of

electric vehicle charging strategies (Nieße et al.,

2011). For this purpose, simulation models of electric

vehicles (Python/SimPy), photovoltaics (MAT-

LAB/Simulink), residential loads (CSV timeseries)

and two different distribution grids (rural and city

for a single-phase power ﬂow simulator based on

Python/Pylon (Pylon, 2012)) have been composed

into a complex scenario. The analyzed scenarios

contained about 70 to 100 residential loads and

PV systems and 100 to 170 EVs, depending on the

speciﬁc scenario. Figure 7 depicts the topology of

the used low voltage grid for the rural scenarios and

the entities of the different simulators that have been

integrated.

0.4 kV

20 kV

SimPy

Java/Matlab

Pylon

CSV

Matlab

Python

Stat.

loadflow

Python

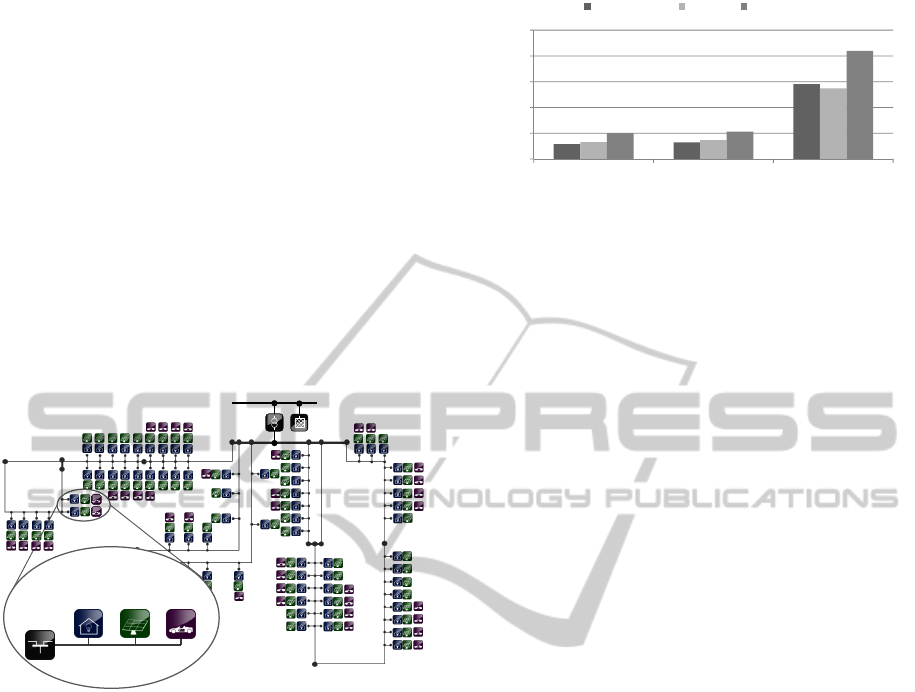

Figure 7: Topology of the simulated rural LV grid.

However, we only used a less powerful and ﬂexi-

ble prototypical implementation of the mosaik layers

(ﬁgure 2) as partially described in (Sch

utte, 2011a).

The consequences, for example, were a hard coded

control and data ﬂow (execution order and I/O-

mapping) for the participating simulations. We de-

scribed the next generation of the semantic layer in

this paper and the remaining layers (scenario, com-

position and control layer) are subject to current and

future work. The mosaik framework will then be able

to dynamically determine the control and data ﬂow

as well as to synchronize with potentially connected,

agent-based control strategies. Nevertheless, we ob-

tained different interesting results regarding the in-

tegration of renewable energy feed-in for the differ-

ent scenarios that we analyzed. We evaluated three

charging strategies for electric vehicles, namely un-

controlled charging, controlled charging and vehicle-

to-grid regarding their ability to store local feed-in

from photovoltaic power plants. Figure 8 shows the

aggregated and averaged results from several simula-

tion runs of the speciﬁed scenario. Since both the un-

20 0%

30,0%

40,0%

50,0%

V feed-in used

spring/autumn summer winter

0,0%

10,0%

uncontrolled charging controlled charging vehicle-to-grid

percentage of

Figure 8: Percentage of local PV feed-in stored by electric

vehicles in a low voltage distribution grid using different

control strategies.

controlled and controlled charging strategy don’t take

the vehicles’ batteries ability to feed electric power

back to the grid into account, they can only use small

shares of PV feed-in (i.e., the electric power previ-

ously used for driving). In contrast, the vehicle-to-

grid agents fully exploit the batteries’ capabilities,

thus signiﬁcantly increasing the percentage of used

PV feed-in.

6 CONCLUSIONS

The work presented here is, according to our knowl-

edge, the ﬁrst attempt toward a Smart Grid speciﬁc

standard for simulation model exchange and interop-

erability. The generic SimAPI is intentionally kept

simple but allows to use a simulation for a broad range

of scenarios and provides a standardized way to com-

municate with simulators. The formal description of

each simulator’s API using the presented DSL serves

as a documentation and as the basis for an automatic

composition of simulated Smart Grid scenarios like-

wise. A concept for the latter has been presented in

(Sch

utte et al., 2011) and a corresponding extension

of the DSL that will allow to describe complex scenar-

ios based on different simulations in a formal way is

currently under development. An in depth evaluation

of the overall mosaik concept will follow once this ex-

tension is available. Due to its high abstraction level,

the SimAPI will also be applicable to COTS simu-

lation tools. We currently develop such an adapter

for the broadly used tool PowerFactory (DiGSILENT,

2012). As the composability of simulation models de-

pends on the use of a common reference data model, it

will be beneﬁcial to have a reference data model that

is not speciﬁc to a single institute or company. There-

fore, our work presented in this paper, as well as the

overall mosaik concept, will also be presented to the

Simulations Working Group of the Open Smart Grid

International Users Group (OpenSG, 2012), in which

one of the authors is actively involved right from the

beginning.

MOSAIK-SMARTGRIDSIMULATIONAPI-TowardaSemanticbasedStandardforInterchangingSmartGrid

Simulations

REFERENCES

Banks, J., Carson, J. S., Nelson, B. L., and Nicol, D. M.

(2005). Discrete-Event Simulation. Prentice Hall, 4th

edition.

BMWi (2010). Gridsurfer - inter-urbane integration

von elektrofahrzeugen in energiesysteme inklusive

batteriewechselkonzept. http://www.ikt-em.de/de/

GridSurfer.php.

Boer, C. A. (2005). Distributed Simulation in Industry. PhD

thesis, Erasmus University Rotterdam.

Boer, C. A., de Bruin, A., and Verbraeck, A. (2008). Dis-

tributed simulation in industry - a survey part 3 - the

hla standard in industry. In Proceedings of the 2008

Winter Simulation Conference, pages 1094–1102.

Chassin, D. P. and Widergren, S. E. (2009). Market op-

erations. Power & Energy Society General Meeting,

2009. Pes ´09, pages 1–5.

DiGSILENT (2012). DIgSILENT GmbH - software - digsi-

lent powerfactory. http://www.digsilent.de/Software/

DIgSILENT PowerFactory/.

Gehrke, J. D., Schuldt, A., and Werner, S. (2008). De-

signing a Simulation Middleware for FIPA Multia-

gent Systems. In 2008 IEEE/WIC/ACM International

Conference on Web Intelligence and Intelligent Agent

Technology, pages 109–113. IEEE.

Gijsbers, P. J. A. and Gregersen, J. B. (2005).

The OpenMI Standard in a nutshell. http://

www.openmi-life.org/downloads/documentation/the

openmi standard in a nutshell.pdf.

Github (2012). crealytics/orderly-json-xtext - GitHub.

https://github.com/crealytics/orderly json xtext.

Horling, B. and Lesser, V. (2004). A survey of multi-agent

organizational paradigms. Knowl. Eng. Rev., 19:281–

316.

iMatix Corporation (2012). ZeroMQ – the intelligent trans-

port layer. http://www.zeromq.org/.

JADE (2012). JADE - Java Agent DEvelepment Frame-

work. http://jade.tilab.com/.

JSON (2012). Introducing JSON. http://www.json.org/.

JSON-Schema (2012). Json schema. http://

json-schema.org.

Karnouskos, S. and Holanda, T. N. D. (2009). Simulation of

a Smart Grid City with Software Agents. 2009 Third

UKSim European Symposium on Computer Modeling

and Simulation, pages 424–429.

Nieße, A., Tr

oschel, M., Scherfke, S., Sch

utte, S., and Son-

nenschein, M. (2011). Using electric vehicle charg-

ing strategies to maximize pv-integration in the low

voltage grid. In 6th International Renewable Energy

Storage Conference and Exhibition (IRES 2011).

NIST (2010). NIST framework and roadmap for smart

grid interoperability standards, release 1.0. nist spe-

cial publication 1108.

OpenSG (2012). Home - SG Simulations. http://

osgug.ucaiug.org/SG Sim.

Orderly (2012). Orderly JSON. http://orderly-json.org/.

Page, E. H. (2007). Theory and practice for simulation in-

terconnection: Interoperability and composability in

defense simulation. In Fishwick, P. A., editor, CRC

Handbook of Dynamic System Modeling, chapter 16.

CRC Press.

Pylon (2012). Welcome - pylon home. http://

rwl.github.com/pylon/pylon/.

Scherfke, S. and Sch

utte, S. (2012). mosaik - simulation en-

gine architecture. http:// mosaik.ofﬁs.de/ downloads/

mosaik architecture 2012.pdf.

Sch

utte, S. (2011a). A domain-speciﬁc language for simu-

lation composition. In Burczynski, T., Kolodziej, J.,

Byrski, A., and Carvalho, M., editors, 25th European

Conference on Modelling and Simulation, pages 146–

152, Krakow.

Sch

utte, S. (2011b). Composition of simulations for the

analysis of smart grid scenarios. In Energieinformatik

2011, pages 53–64. Prof. Dr. Dr. h.c. H.-J

urgen Appel-

rath, Clemens von Dinther, Lilia Filipova-Neumann,

Astrid Nieße, Prof. Dr. Michael Sonnenschein and

Christof Weinhardt.

Sch

utte, S., Scherfke, S., and Tr

oschel, M. (2011). Mosaik:

A framework for modular simulation of active compo-

nents in smart grids. In 1st International Workshop on

Smart Grid Modeling and Simulation (SGMS), pages

55–60. IEEE.

Tolk, A. and Diallo, S. (2005). Model-Based Data Engi-

neering for Web Services. IEEE Internet Computing,

9(4):65–70.

Tolk, A. and Muguira, J. A. (2004). M&s within the model

driven architecture. In Interservice/Industry Training,

Simulation, and Education Conference (I/ITSEC).

Xtext (2011). Xtext 2.0 documentation. http://

www.eclipse.org/ Xtext/documentation/2 0 0/000-

introduction.php#DSL.

Zeigler, B. P. (1976). Theory of Modelling and Simulation.

Wiley & Sons, New York.

Zeigler, B. P., Kim, T. G., and Praehofer, H. (2000). Theory

of Modeling and Simulation. Academic Press, New

York, 2nd edition.

Zhang, C., Prasanna, V., Orangi, A., Da Sie, W., and Kwa-

tra, A. (2005). Modeling methodology for application

development in petroleum industry. IRI - 2005 IEEE

International Conference on Information Reuse and

Integration., pages 445–451.

SMARTGREENS2012-1stInternationalConferenceonSmartGridsandGreenITSystems
