Product Quantization for Vector Retrieval with No Error

Andrzej Wichert

Department of Informatics, INESC-ID/IST, Technical University of Lisboa, Lisboa, Portugal

Keywords:

High Dimensional Indexing, Multi-resolution, Quantization, Vector Data Bases.

Abstract:

We propose a coding mechanism for less costly exact vector retrieval for data bases representing vectors. The

search starts at the subspace with the lowest dimension. In this subspace, the set of all possible similar vectors

is determined. In the next subspace, additional metric information corresponding to a higher dimension is used

to reduce this set. We demonstrate the method performing experiments on image retrieval on one thousand

gray images of the size 128× 96. Our model is twelve times less complex than a list matching.

1 INTRODUCTION

In this paper we propose a hierarchical product quan-

tization for less costly vector retrieval. The space in

which a vector is represented is decomposed into low

dimensional subspaces and quantize each subspace

separately. Each subspace corresponds to a subvector

described by a mask. A global feature corresponds to

a subvector of a higher dimension, a local feature to

a subvector of a lower dimension. During similarity-

based vector retrieval, the search starts from the im-

ages represented by global features. In this represen-

tation, the set of all possible similar images is deter-

mined. In the next stage, additional information cor-

responding to the representation of more local feature

is used to reduce this set. This procedure is repeated

until the similar vectors can be determined. The de-

scribed method represents a vector indexing method

that speeds up the search considerably and does not

suffer from the curse of dimensionality. The method

is related to the subspace trees (Wichert et al., 2010).

We describe a mathematical model of the hierar-

chical product quantization. The paper is organized

as follows:

• We show why the search with the product quan-

tization is an improvement to simple quantization

due to the curse of dimensionality.

• We introduce a new indexing method, called hier-

archical product quantization and preform exper-

iments on image retrieval on one thousand gray

images of the size 128× 96 resulting in vectors of

dimension 12288.

2 HIERARCHICAL PRODUCT

QUANTIZATION

2.1 Euclidean ε-similarity

Two vectors~x and~y are similar if their Euclidian dis-

tance is smaller or equal to ε, d(~x,~y) ≤ ε. Let DB be

a database of s vectors~x

(i)

dimension m in which the

index i is an explicit key identifying each vector,

{~x

(i)

∈ DB|i ∈ {1..s}}. (1)

The set DB can be ordered according to a given query

vector~y using an Euclidian distance function d. This

is done by a monotone increasing sequence corre-

sponding to the increasing distance of ~y to ~x

(i)

with

an explicit key that identiﬁes each vector indicated by

the index i,

d[y]

:= {d(x

)

,y)

| ∀t ∈ {1..s}, ∀i

∈ {1..s} :

d(x

)

,y)

≤ d(x

)

,y)

≤ ... ≤ d(x

)

,y)

.... ≤ d(x

)

,y)

} (2)

if~y ∈ DB, then d[y]

:= 0. The set of similar vectors

in correspondence to ~y, DB[y]

, is the subset of DB,

DB[y]

⊆ DB with size σ = |DB[y]

|, σ ≤ s:

DB[y]

:= {x

(i)

∈ DB | d[y]

= d(x

(i)

,y) ≤ ε}. (3)

2.2 Related Work

Could we take advantage of the grouping of the vec-

tors into clusters?

Wichert A..

Product Quantization for Vector Retrieval with No Error.

DOI: 10.5220/0003952800870092

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 87-92

ISBN: 978-989-8565-10-5

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

The idea would be to determine the most similar

cluster center which represents the most similar cate-

gory. In the next step we would search for the most

similar vectors DB[y]

only in this cluster. By do-

ing so we could save some considerable computation.

Such a structure can be simply modeled by a cluster-

ing algorithm, as for example k-means. We group the

images into clusters represented by the cluster centers

. After the clustering cluster centers c

,...,c

with clusters C

,...,C

are present with:

= {x|d(x,c

) = min

d(x, c

)} (4)

= {

∑

x∈C

x}. (5)

Suppose s = min

d(y,c

) is the distance to the

closest cluster center and r

max

the maximal radius of

all the clusters. Only if s ≥ ε ≥ r

max

we are guaranteed

to determine DB[y]

. Otherwise we have to analyze

other clusters as well. When a cluster with a minimum

distance s was determined, we know that the images

in this cluster have the distance between s+ r

max

and

s− r

max

. Because of that we have to analyze addition-

ally all the clusters with {∀i|d(y,c

) < (s+ r

max

)}. It

means that in the worst case we have to analyze all the

clusters. The worst case is present when the dimen-

sion of the images is high. High dimensional spaces

(like for example dimensions > 100) have negative

implications on the number of clusters we have to an-

alyze. These negative effects are named as the “curse

of dimensionality.” Most problems arise from the fact

that the volume of a sphere with the constant radius

grows exponentially with increasing dimension.

Could hierarchical clustering overcome those

problems? Indeed, traditional indexing methods are

based on the principle of hierarchical clustering of

the data space, in which metric properties are used to

build a tree that then can be used to prune branches

while processing the queries. Traditional indexing

trees can be described by two classes, trees derived

from the kd-tree and the trees composed by deriva-

tives of the R-tree. Trees in the ﬁrst class divides the

data space along predeﬁned hyper-planes regardless

of data distribution. The resulting regions are mutu-

ally disjoint and most of them do not represent any

objects. In fact with the growing dimension of space

we would require exponential many objects to ﬁll the

space. The second class tries to overcome this prob-

lem by dividing the data space according to the data

distribution into overlapping regions, as described in

the second section. An example of the second class

is the M-tree (Paolo Ciaccia, 1997). It performs ex-

act retrieval with 10 dimensions. However its perfor-

mance deteriorates in high dimensional spaces. Most

indexing methods operate efﬁciently only when the

number of dimensions is small (< 10). The growth

in the number of dimensions has negative implica-

tions in the performance; these negative effects are

also known as the “curse of dimensionality.”

A solution to this problem consists of approximate

queries which allow a relative error during retrieval.

M-tree (Ciaccia and Patella, 2002) and A-tree (Saku-

rai et al., 2002) with approximate queries perform re-

trieval in dimensions of several hundreds. A-tree uses

approximated MBR instead of a the MBR of the R-

tree. Approximate metric trees like NV-trees (Olafs-

son et al., 2008), locality sensitive hashing (LSH)

(Andoni et al., 2006) or product quantization for near-

est neighbor search

(Jegou et al., 2011) work with an acceptable error up

to dimension 1000.

We introduce hierarchical product quantizer, who

preforms exact vector queries in high dimensions.

The hierarchical product quantizer model is related to

the subspace-tree. In a subspace-tree instead of quam-

tizing the subvectors deﬁned by masks the mean value

is computed (Wichert, 2008),

(Wichert et al., 2010). Mathematical methods and

tools that were developed for the analysis of the sub-

space tree, like the correct estimation of ε (Wichert,

2008) and the algorithmic complexity (Wichert,

2008) can be as well applied for the hierarchical quan-

tization method. Hierarchical quantization for image

retrieval was ﬁrst proposed by (Wichert, 2009).

2.3 Searching with Product Quantizers

The vector ~x of dimension m is split into f distinct

subvectors of dimension p = dim(m/ f ). The subvec-

tors are quantizied using f quantiziers:

~x = x

,,x

,·· · ,x

{z }

(~x)

,·· · ,x

m−p+1

,·· · ,x

{z }

(~x)

(6)

(x) ∈ x|t ∈ {1.. f}

We group the subvectors of dimension p =

dim(m/ f ) into clusters represented by the cluster cen-

ters c

of dimension p. After the clustering cluster

centers c

,...,c

with clusters C

,...,C

are present with

= {u

(x)|d(u

(x),c

) = min

d(u

(x),c

)} (7)

= {

∑

(x)∈C

(x)}. (8)

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

We assume that all subquantuzers have the same

number k of clusters. To a query vector y we deter-

mine the most similar vector x of the database using

the qunatizied codes and the Euclidean distance func-

tion d.

d(U(~x),U(~y)) =

∑

t=1

d(u

(~x),(u

(~y))

d(U(~x),U(~y)) =

∑

t=1

d(c

t(x)

t(y)

)

(9)

We represent vectors by the corresponding cluster

centers:

U(~x) = c

,·· · ,c

{z }

(~x)=c

1(x)

,·· · , c

,·· · ,c

{z }

(~x)=c

f(x)

(10)

By using d(U(~x),U(~y)) instead of d(~x,~y) an esti-

mation error is produced:

d(U(~x),U(~y)) + error = d(~x,~y) (11)

To speed up the computation of d(U(~x),U(~y)) all the

possible d(c

t(x)

t(y)

)

are pre-computed and stored in

a look-up table. The size of the look-up table depends

on the number k, it is k

. The bigger the value of k, the

slower the computations due to the size of the look-up

table. However the bigger the value of k the smaller

is the estimation error. To determine ε similar vectors

according to the Euclidean distance to a given query y,

we have to compute d(~x,~y) for all vectors x out of the

database. If the distances computed by the quantizied

product d(U(~x),U(~y)) are smaller or equal than the

distances in the original space d(~x,~y), a lower bound

which is valid in both spaces can be determined. The

distance of similar objects is smaller or equal to ε in

the original space and, consequently, it is smaller or

equal to ε in the quantizied product as well. The use

of a lower bound between different spaces was ﬁrst

suggested by

(Faloutsos et al., 1994), (Faloutsos, 1999). Because

of the estimation error the lower bound is only valid

for a certain ω value:

d(U(~x),U(~y)) − ω ≤ d(~x,~y). (12)

How can we estimate the ω value for all {~x

(i)

∈ DB|i ∈

{1..s}}? Suppose s = min

d(u

(y),c

) is the dis-

tance to the closest cluster center and r

max

the max-

imal radius of all the clusters. That means that in the

worst case we have d to subtract r

max

for each subvec-

tor before computing the Euclidian distance function,

ω = k × r

max

If we compute the Euclidian distance between

all vectors and {~x

(i)

∈ DB|i ∈ {1..s}} compare it to

the Euclidian distance between{U(~x)

(i)

, we ﬁnd that

ω << k× r

max

We can estimate the ω value by computing the Eu-

clidian distance between a a random sample of vec-

tors and their product quantizier representation. If the

lower bound is satisﬁed with the correct value ω, all

vectors at a distance lower than ε in the original space

are also at a lower distance in the product quantizier

representation. The distance of some that are above

ε in the original space may be below ε in the product

quantizier representation. This vectors are called false

hits. The false hits are separated from the selected ob-

jects through comparison in the original space.

The set of ε similar vectors in correspondence to

a query vector~y is computed in two steps. In the ﬁrst

step the set of possible candidates is determined us-

ing product quantizier representation. The speed re-

sults from the usage of the look-up table. In the sec-

ond step the false hits are separated from the selected

objects through comparison in the original space. A

saving compared to a simple list matching is achieved

if the set of possible candidates is sufﬁciently small in

comparison to the size of database. An even greater

saving can be achieved, if one applies this method hi-

erarchically.

2.4 Searching with Hierarchical

Product Quantizers

We apply the product quantizier recursively. The vec-

tor ~x of dimension m is split into f distinct subvec-

tors of dimension p = dim(m/ f). The subvectors

are quantizied using f quantiziers, the resulting quan-

tizied vectror are quantizied using e quantiziers with

g = dim(m/e) and f > e

~x = x

,·· · ,x

{z }

(~x)

,·· ·

{z }

(U(~x))

,·· · ,· ·· ,x

m−p+1

,·· · ,x

{z }

(~x)

{z }

(U(~x))

(13)

with following hierarchical representation,

U1(~x) = U(~x) = c

,· ·· , c

U2(~x) = U(U1(~x)) = c

,· ·· ,c

·· ·

Un(~x) = U(U(n− 1)(~x)) = c

,· ·· ,c

,· ··

·· · , c

,· ·· ,c

(14)

and

∗

(Uk(~x),Uk(~y) = d(Uk(~x),Uk(~y)) − ω

≤ d(~x,~y),

(15)

k ∈ {1..n}

The DB is mapped by the ﬁrst product quantizers U1

into U1(DB), by the k th quantizers Uk into Uk(DB).

ProductQuantizationforVectorRetrievalwithNoError

The set Uk(DB) can be ordered according to a given

query vector Uk(~y) using an Euclidian distance func-

tion with ω

as explained before

d[Uk(y)]

:= {d

∗

(Uk(x

(i)

),Uk(y)) | ∀t ∈ {1..s} :

∗

[Uk(y)]

≤ d

∗

[Uk(y)]

t+1

}

for a certain ε value,

Uk(DB[y])

:= {Uk(x)

(i)

∈ Uk(DB) | d[Uk(y)]

∗

(Uk(x)

(i)

,Uk(y)) ≤ ε}

with the sizeUk(σ) = |Uk(DB[y]

)| and σ < U1(σ) <

U2(σ) < ··· < s.

To speed up the computation of d(U(~x),U(~y))

all the possible d(c

j(x)

j(y)

)

are pre-computed and

stored in a look-up table For simplicity we assume

that the the cost for a look-up operation is a constant

c = 1. This is the case, given the size of the look-up

tables for each hierarchy is constant. Consequently

the computational dimensions of the quantized vector

~x is dim(Uk) = m/ f, where dim(Uk) is the number

of distinct subvectors of dimension f of the vector~x .

It follows, that dim(Uk) is the number of quantiziers.

The higher the hierarchy, the lower the number of the

used quantiziers. Given that dim(U0) =: m (the di-

mension of the vector~x), the computational cost of a

hierarchy on n level is:

cost

∑

i=1

Ui(σ) · dim(U(i− 1) + s· dim(Un) + n

(16)

where the last summand n represents the cost of the

look-up operation. The cost cost

of retrieving a

dozen most similar vectors out of the database DB to

a query vector ~y, is signiﬁcantly lower as the cost of

simple list matching s· m.

To estimate ε we deﬁne a mean sequence

d[Uk(DB)]

which describes the characteristics of an

vector database of size s:

[Uk(DB)]

∑

i=1

d[Uk(x

(i)

)]

. (17)

We will demonstrate this principle on an example

of high dimensional vectors representing gray images.

2.5 Example: Image Retrieval

The high dimensional vectors correspond to the

scaled gray images, representing the gray level dis-

tribution and the layout information. Two images ~x

and ~y are similar if their distance is smaller or equal

to ε, d(~x,~y) ≤ ε. The result of a range query computed

by this method is a set of images that have gray level

distribution that are similar to the query image.

We preformexperiments on image retrieval on one

thousand (s = 1000) gray images of the size 128× 96

resulting in vectors of dimension 12288. Each gray

level is represented by 8 bits, leading to 256 differ-

ent gray values. The image database consists images

with photos of landscapes and people, with several

outliers consisting of drawings of dinosaurs or photos

of ﬂowers (Wang et al., 2001). We use a hierarchy of

four n = 4.

(a)

(b)

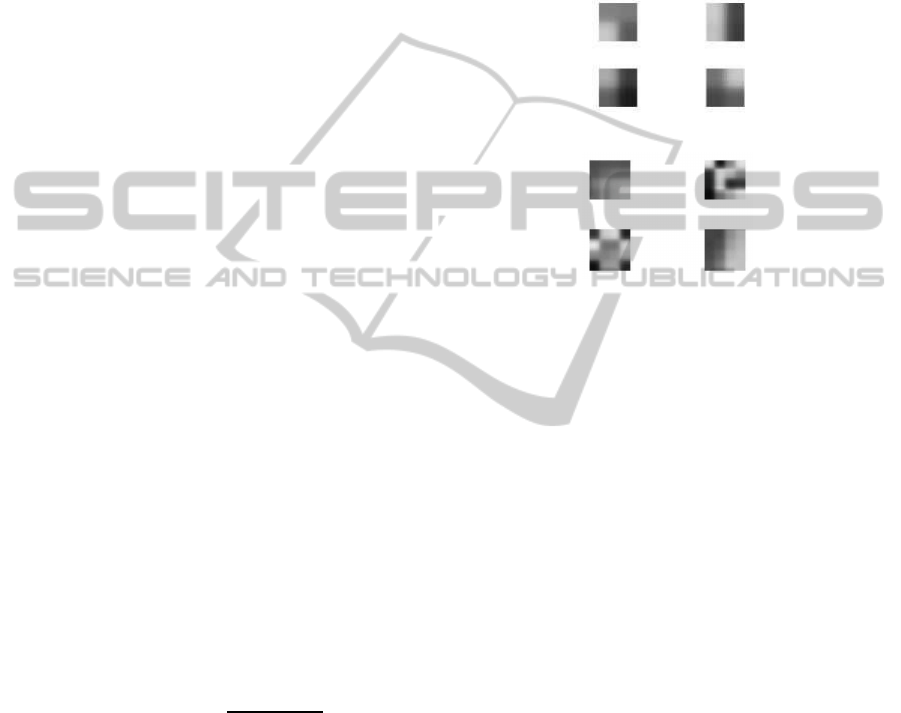

Figure 1: (a) Two examples of of squared masks M of a size

2× 2. (b) Two examples of of squared masks M of a size

4× 4.

• In the ﬁrst level of hierarchy each image corre-

sponds to a of dimension 12288. It is is split

into 3072 distinct subvectors of dimension 4 =

dim(12288/3072). Each subvector corresponds

to a squared mask M of a size 2 × 2. A natu-

ral grouping of the components into subvectors is

achieved by the coverage of the image with 3072

masks M (see, Figure 1 (a)). The subvectors of

dimension four are grouped into clusters repre-

sented by 256 cluster centers.

• In the second level of the hierarchy the resulting

quantizied images are quantizied using 768 quan-

tiziers with 16 = dim(12288/768) . Each sub-

vector corresponds to a squared mask M of a size

4× 4 (see, Figure 1 (b)). The subvectors of dimen-

sion sxten are grouped into clusters represented by

256 cluster centers. We follow the procedure re-

cursively additionally two times.

• The resulting quantizied images are quantizied us-

ing 192 quantiziers with 64 = dim(12288/192) .

Each subvector corresponds to a squared mask M

of a size 8× 8 (see, Figure 2 (a)). The subvectors

of dimension 64 are grouped into clusters repre-

sented by 256 cluster centers.

• The resulting quantizied images are quantizied us-

ing 48 quantiziers with 256 = dim(12288/48) .

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

Each subvector corresponds to a squared mask M

of a size 16 × 16 (see, Figure 2 (b)). The sub-

vectors of dimension256 are grouped into clus-

ters represented by 256 cluster centers. (Note:

The number of cluster centers remains constant

through the hierarchy.)

(a)

(b)

Figure 2: (a) Two examples of of squared masks M of a size

8× 8. (b) Two examples of of squared masks M of a size

16× 16.

The computational dimensions of the quantized

vectors are dim(U1) = 3072, dim(U2) = 768,

dim(U3) = 192 and dim(U4) = 48. An example of

the quantizied representation of an image is indicated

in the Figure 3. In each layer the image is described

with less accuracy, so that the following layers repre-

sent less information. The set of ε similar vectors in

correspondence to a query vector ~y is computed in 5

steps. For the estimation of the value of ε we use the

characteristics, see Equation 17 and Figure 4

• In the ﬁrst step the set of possible candidates is de-

termined using product quantizier representation

in theU4(DB) of the computational dimension 48

and determine the subset U4(DB[y])

• Recursively out of the set U4(DB[y])

we deter-

mine U3(DB[y])

U3(U4(DB[y])

)

• U2(DB[y])

= U2(U3(DB[y])

)

• U1(DB[y])

= U2(U2(DB[y])

)

and

• ﬁnally the set DB[y]

in which the false hits

are separated from the selected objects through

comparison in the original space by DB[y]

U0(U1(DB[y])

)

To retrieve in the mean 5 most similar images the

estimated ε value is 6036. We estimate the values

and ε by a random sample of hundred vectors and

their product quantizier representation. We computed

the mean value Uk(

σ) over all possible queries (one

thousand queries, each time we take an element out

(a)

(b)

(c)

(d)

(e)

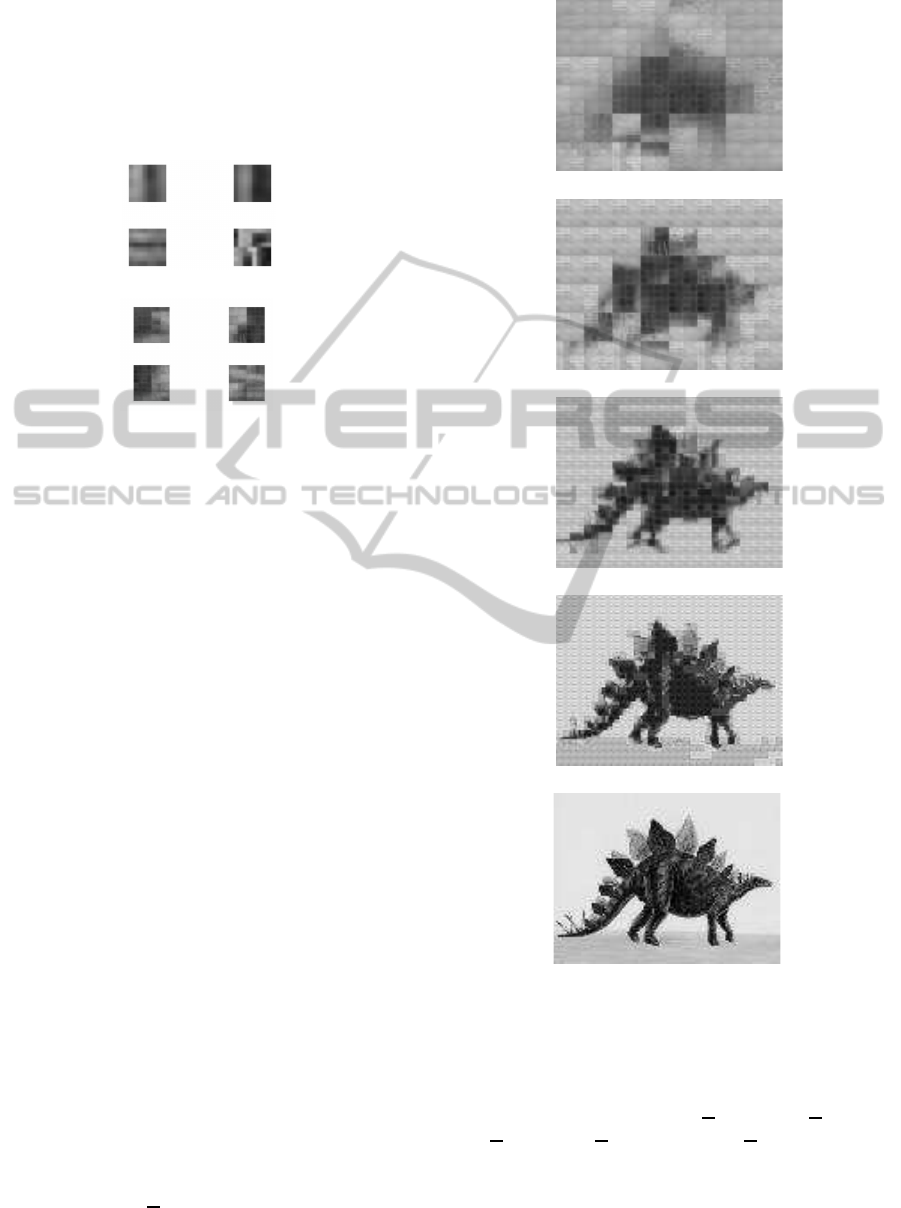

Figure 3: Gray image and its quantized representation, (e)

is equal to the original space, (d) corresponds to U1(DB),

of the database out and and preform a query). For

ε = 6036 the values are U0(

σ) = 5, U1(σ) = 20,

U2(

σ) = 95, U

(σ) = 315 and U4(σ) = 835. To re-

trieve the 5 most similar images to a given query im-

age of the image test database, the mean computation

costs are according to Equation 16:

ProductQuantizationforVectorRetrievalwithNoError

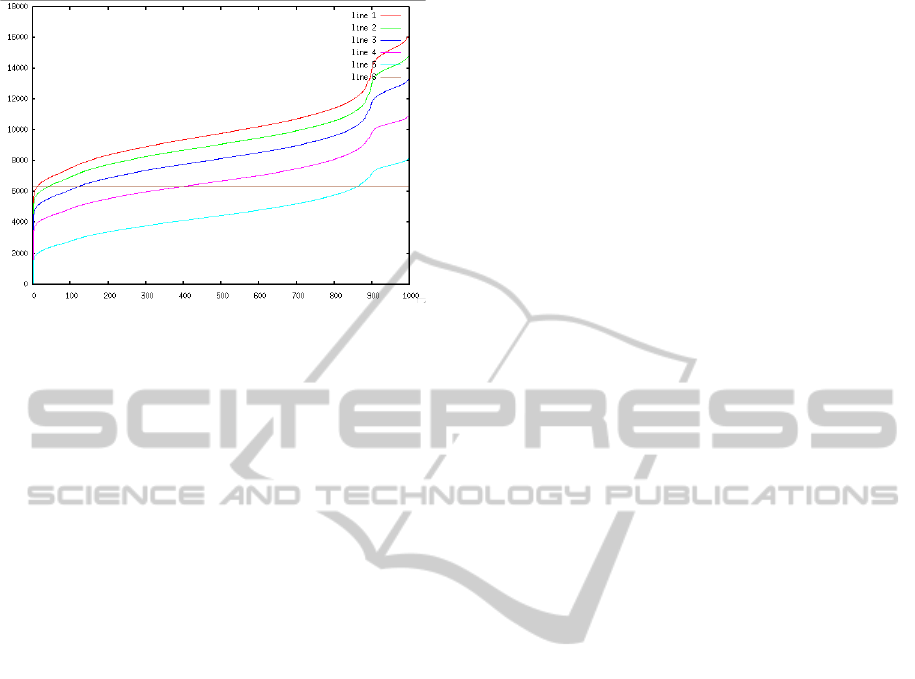

Figure 4: Characteristics of s = 1000, d

[U0(DB)]

line 1, d

[U1(DB)]

= line 2, d

[U2(DB)]

= line 3,

[U3(DB)]

= line 4 and d

[U4(DB)]

= line 5. Line 5

represents ε.

(12288 · 20+ 3072· 95+ 768· 315+ 192· 835+

+48· 1000+ 4 = 987844

which is 12.4 times less complex than a list matching

which requires 12288· 1000 operations. Further op-

timization of our results could be achieved by better

quantization training (clustering algorithms).

3 CONCLUSIONS

We propose hierarchical product quantization for vec-

tor retrieval with no error for vector based databases.

Through quantization by hierarchical clustering the

distribution of the points in the high dimensional vec-

tor space can be estimated. Our method is exact and

not approximative. It means we are guaranted to ﬁnd

the most similar vector according to a distance or sim-

ilarity function. We demonstrated the working prin-

ciples of our model by empirical experiment on one

thousand gray images which correspond to 12288 di-

mensional vectors.

ACKNOWLEDGEMENTS

This work was supported by Fundac¸˜ao para a Ciˆencia

e Tecnologia (FCT): PTDC/EIA-CCO/119722/2010.

REFERENCES

Andoni, A., Dater, M., Indyk, P., Immorlica, N., and Mir-

rokni, V. (2006). Locality-sensitive hashing using sta-

ble distributions. In MIT-Press, editor, Nearest Neigh-

bor Methods in Learning and Vision: Theory and

Practice, chapter 4. T. Darrell and P. Indyk and G.

Shakhnarovich.

Ciaccia, P. and Patella, M. (2002). Searching in metric

spaces with user-deﬁned and approximate distances.

ACM Transactions on Database Systems, 27(4).

Faloutsos, C. (1999). Modern information retrieval. In

Baeza-Yates, R. and Ribeiro-Neto, B., editors, Mod-

ern Information Retrieval, chapter 12, pages 345–365.

Addison-Wesley.

Faloutsos, C., Barber, R., Flickner, M., Hafner, J., Niblack,

W., Petkovic, D., and Equitz, W. (1994). Efﬁcient and

effective querying by image content. Journal of Intel-

ligent Information Systems, 3(3/4):231–262.

Jegou, H., Douze, M., and Schmid, S. (2011). Product quan-

tization for nearest neighbor search. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

33(1):117–128.

Olafsson, A., Jonsson, B., and Amsaleg, L. (2008). Dy-

namic behavior of balanced nv-trees. In Interna-

tional Workshop on Content-Based Multimedia Index-

ing Conference Proceedings, IEEE, pages 174–183.

Paolo Ciaccia, Marco Patella, P. Z. (1997). M-tree: An ef-

ﬁcient access method for similarity search in metric

spaces. In VLDB, pages 426–435.

Sakurai, Y., Yoshikawa, M., Uemura, S., and Kojima, H.

(2002). Spatial indexing of high-dimensional data

based on relative approximation. VLDB Journal,

11(2):93–108.

Wang, J., Li, J., and Wiederhold, G. (2001). Simplicity:

Semantics-sensitive integrated matching for picture li-

braries. IEEE Transactions on Pattern Analysis and

Machine Intelligence, 23(9):947–963.

Wichert, A. (2008). Content-based image retrieval by hier-

archical linear subspace method. Journal of Intelligent

Information Systems, 31(1):85–107.

Wichert, A. (2009). Image categorization and retrieval. In

Proceedings of the 11th Neural Computation and Psy-

chology Workshop. World Scientiﬁc.

Wichert, A., Teixeira, P., Santos, P., and Galhardas, H.

(2010). Subspace tree: High dimensional multimedia

indexing with logarithmic temporal complexity. Jour-

nal of Intelligent Information Systems, 35(3):495–

516.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems
