ARCHITECTURAL CONCERNS IN MULTI-TENANT SaaS

APPLICATIONS

Rouven Krebs

, Christof Momm

and Samuel Kounev

SAP AG, Dietmar-Hopp-Allee 16, 69190 Walldorf, Germany

Karlsruhe Institute of Technology, Am Fasanengarten 5, 76131 Karlsruhe, Germany

Keywords:

Multi-tenancy, SaaS, Platform, Resource Sharing, Afﬁnity, Performance Isolation.

Abstract:

Multi-tenant applications serve different customers with one application instance. This architectural style

leverages sharing and economies of scale to provide cost efﬁcient hosting. As multi-tenancy is a new concept,

a common deﬁnition of the word and related concepts is not yet established and the architectural concerns are

not fully understood. This paper provides an overview of important architectural concerns and there mutual

inﬂuences. Beside that, it deﬁnes multi-tenancy and differentiates it from several related concepts.

1 INTRODUCTION

Software-as-a-Service (SaaS) is a cloud service offer-

ing comprising a ready to run, hosted application like

a CRM

or a Web mailer

. To reduce the total costs of

ownership (TCO), some of these SaaS offerings allo-

cate users of different customers to the same applica-

tion instance. If the users of one customer represent a

closed group, which is usually charged and handled as

a single entity, they are referred as a tenant. Applica-

tions designed to serve multiple tenants with a single

runtime instance are referred as multi-tenant applica-

tions (MTA).

Sharing resources in general yields cost beneﬁts

in cloud environments (Schuller, 2009). This is most

efﬁcient on the level of application instances (Momm

and Krebs, 2011), since in this case the general over-

head is minimal and it is possible to perform a very

ﬁne grained workload and resource management (e.g.

requests, threads).

To still meet customers’ expectations regarding

the service levels, systems have to ensure a functional

and non-functional isolation of the tenants, which is a

major challenge, especially when the application in-

stance itself is shared.

However, from a research point of view multi-

tenancy is a ﬁeld that still introduces many undeﬁned

concepts and acronyms. This causes confusion, not

only because of different deﬁnitions of multi-tenancy

e.g. http://www.salesforce.com

e.g. http://www.googlemail.com

but also because of various biased assumptions about

its implementation.

The major contribution of this paper is a dis-

cussion of software architecturel concerns for im-

plementing multi-tenant applications by pointing out

characterizing features and differentiating aspects

from other related concepts such as system virtual-

ization.

The remainder of the paper is structured as fol-

lows. Section 2 provides a deﬁnition of multi-tenancy,

including a discussion of related concepts. Section 3

points out the major architectural concerns when de-

signing MTAs and section 4 discusses the relation-

ships between these concerns. Section 5 presents the

related work, while section 6 concludes this paper.

2 SHARING CONCEPTS AND

MULTI-TENANCY

This section introduces different approaches for shar-

ing resources in cloud environments and concise def-

initions for the terms tenant and multi-tenancy.

The following section brieﬂy explains different

commonly used sharing mechanisms based on (Os-

ipov et al., 2009) (Guo et al., 2007) and discuss their

relationship to our notion of multi-tenancy.

2.1 Different Layers

When a single code base is shared between different

426

Krebs R., Momm C. and Kounev S..

ARCHITECTURAL CONCERNS IN MULTI-TENANT SaaS APPLICATIONS.

DOI: 10.5220/0003957604260431

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 426-431

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

customers/tenants it comes up with some require-

ments for the code. If one single code base is used

the application has to be widely conﬁgurable to be

adapted for customer speciﬁc needs. Sharing the code

base yields reuse and is omnipresent. Nevertheless, a

single code base is not sufﬁcient enough to reduce the

operational costs. Developing widely conﬁgurable

software instead of customer speciﬁc branches is a

question related to product line engineering and not

speciﬁc for MTAs.

Sharing a data center is the lowest level of re-

source sharing one could imagine. Reusing the facil-

ities environment like air conditioner or network in-

frastructure is the simplest way of decreasing costs.

Application Service Providers already have adopted

this concepts for years. However, sharing the data

center only has a very limited cost saving poten-

tial, e.g. workload ﬂuctuations of different customers

can’t be considered for resource optimization.

Virtualization provides an easy way for sharing a

single server. Running a separate instance of the ap-

plication within one VM for each customer is a ﬁrst

step towards efﬁcient operation and probably todays

most widely adopted sharing approach. In opposite to

a shared data center, virtualization allows leveraging

workload ﬂuctuations by overcommitting the servers,

while allowing a good isolation. However, the over-

head of this solution per customer is still quite high.

Virtualization is a well established ﬁeld of research

with challenges and goals on a hardware related level

and should not be referred to multi-tenancy which is

a concept on the applications level.

Another approach shares the middleware. In this

scenario the middleware becomes shared by several

application instances. This means, that the implemen-

tation of the application itself has low or no overhead

regarding multi-tenancy. The disadvantages are the

challenges regarding isolation of tenants and the over-

head due to separated application instances. Hosting

different applications within one middleware is not

different than hosting the same application multiple

times, which is a topic that is already discussed ex-

tensively in the literature.

A Multi-tenant Application (MTA) shares one ap-

plication instance among different customers to re-

duce overhead the most. Handling different tenants

within one application instance requires several mod-

iﬁcations as every tenant needs its own view. MTAs

started to become of interest as SaaS technologies

arose and thus multi-tenancy is still not clearly de-

ﬁned. Therefore, we provide a deﬁnition of the terms

tenant and multi-tenancy in the next section.

2.2 Deﬁnition of Multi-tenancy

A tenant is a group of users sharing the same view

on an application they use. This view includes the

data they access, the conﬁguration, the user man-

agement, particular functionality and related non-

functional properties. Usually the groups are mem-

bers of different legal entities. This comes with re-

strictions (e.g. data security and privacy).

Multi-tenancy is an approach to share an appli-

cation instance between multiple tenants by provid-

ing every tenant a dedicated ”share” of the instance,

which is isolated from other shares with regard to per-

formance and data privacy. A commonly used anal-

ogy for explanation is a living complex where differ-

ent parties share some of their resources like heating

to reduce costs, but also love to enjoy their privacy

and therefore demand a certain level of isolation (in

particular when it comes to noise).

Besides multi-tenancy there is also the notion of

tenant space. A tenant space refers to the situation

where customers rent a predeﬁned space of resources

in which they can run different application instances.

One example is a IaaS offering where a customer buys

resources in which he installs the applications of his

choice.

Scenarios where multiple applications run in one

instance of the same runtime environment, some-

times are also referred to as multi-tenancy, in par-

ticular from the perspective of PaaS providers, be-

cause their customers deploy several applications.

This concept we call multiple application deploy-

ment and not multi-tenancy, because the entities to be

separated have different characteristics and the chal-

lenges in this scenario are of different nature. Thus,

multi-application deployment should not be equated

to multi-tenancy.

Data center-, virtualization- and middleware shar-

ing are sometimes seen as one approach to achieve

a multi-tenant like behavior for the tenant. All these

approaches base on one application instance for each

tenant and some references (e.g. (Calvin and Friedl,

2009)) call them multi-instance solutions. Conse-

quently, they lack in sharing resources and in efﬁ-

ciency. The development of such applications cannot

be considered to be something special. As all of these

concepts for sharing resources are covered by a sep-

arate scientiﬁc ﬁeld with its own challenges we pro-

pose to clearly distinguish all the mentioned concepts

for the sake of differentiation.

ARCHITECTURALCONCERNSINMULTI-TENANTSaaSAPPLICATIONS

427

3 HIGH LEVEL DESIGN

CONCERNS

When developing an MTA one has to tackle mul-

tiple challenges (Bezemer and Zaidman, 2010) and

has to ﬁnd a balance between several architectural

trade-off decisions (Koziolek, 2011). In the follow-

ing we present different high level design concerns

inﬂuencing the architecture. First, we discuss afﬁnity

and persistence concerns, which are usually transpar-

ent to the tenants. Second, we focus on three con-

cerns that might be key differentiators for competi-

tors: performance-isolation, service-differentiation

and customizability. For each design concern we pro-

vide examples from real-life applications.

3.1 Afﬁnity

One could easily think of applications where hun-

dreds or even thousands of application instances

serve several tens of thousands of tenants (Schonfeld,

2009). In this situation, the way the users of one ten-

ant are distributed becomes a signiﬁcant issue in the

design of a MTA. Afﬁnity deﬁnes how the requests

of different users of a tenant are bound to process-

ing nodes. Contrary to traditional request/response

based systems the method is based on tenant speciﬁc

attributes for the routing of requests and not user spe-

ciﬁc ones. In the following, we introduce the different

types of tenant afﬁnity and explain reasons for using

them.

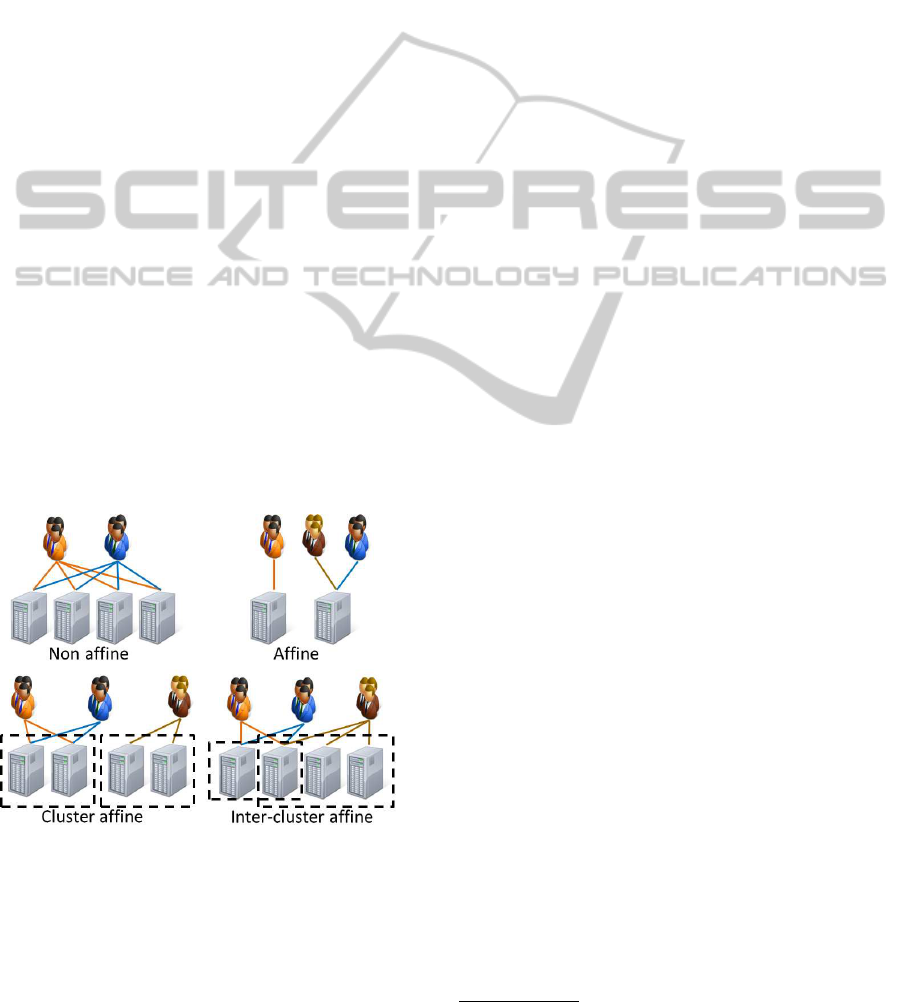

Figure 1: Different Afﬁnities in a Multi-tenant Landscape.

In a tenant Non-afﬁne application a number of ap-

plication instances exist and every incoming request

could be handled by any of the instances without at-

tention to the tenant from which the request origins.

In Server-afﬁne cases the requests from one ten-

ant must be handled by the same application instance.

This means, that users from one tenant cannot be dis-

tributed among several application instances but one

instance can handle multiple tenants. A possible rea-

sons for such behavior is a tenant context whereby

sharing among instances is not feasible. Furthermore,

a weak afﬁnity, artiﬁcially introduced, might increase

the cache hit rate.

In Cluster-afﬁne situations the users of one tenant

could be served by a ﬁxed subgroup of all application

instances, whereby one subgroup serves several ten-

ants. This scenario also implies that each application

instance is only part of exactly one subgroup. Keep-

ing a tenants context, state or locking in sync among

several instances or a long logical network distance

could inﬂuence the performance negative and restrict

the distribution.

Inter-cluster-afﬁne is the same as the cluster afﬁn-

ity, but one application instance could be part of sev-

eral groups. For the tenant speciﬁc context, state and

locking the same arguments as for the Cluster-afﬁne

behavior arise. Legal restrictions are other aspects.

For example, a server which is located in Germany is

also located in the EU and thus part of two groups.

Examples. The SAP Business ByDesign solution

was developed with an afﬁne behavior in mind due

to a high amount of caching. Other applications like

those based on the Google’s App Engine base on low

tenant speciﬁc context. This means, that one tenant

might be distributed over several instances of the ap-

plication.

3.2 Persistence Design

Multi-tenant database designs are widely discussed

(Wang et al., 2008) (Chong et al., 2006). In the fol-

lowing we give a short summary of the different ap-

proaches. In a dedicated database system, every ten-

ant uses its own completely separated database. A

dedicated table/schema approach shares one database

which contains a separate table or schema for each

tenant. In such a scenario one achieves at least a

partial sharing. The shared table/schema approach

shares the same tables and schemas, a differentiation

of the data is usually provided by adding a tenantId

column.

Examples. SAP’s systems use relational data bases

with a tenentId column. In contrast, Calvin (Calvin

and Friedl, 2009) describes a solution using a separate

database within Windows Azure

http://www.windowsazure.com

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

428

3.3 Performance Isolation

The lack of performance guarantees is one of the

major obstacles for potential cloud users (bitcurrent,

2011). Performance related issues are often caused

by a minority of tenants with a high workload. In

the following we deﬁne performance-isolated, -weak

isolated and unisolated systems with respect to perfor-

mance measured and the quota each tenant has. In this

case quota means the workload a tenant is allowed to

produce.

Performance-isolation exists if for tenants work-

ing within their quota the SLAs are fulﬁlled, even if

other tenants exceed their quotas. If this is met within

all conditions a system is performance-isolated. An

increased response time R

for tenant A because of

a high workload for tenant B is acceptable if R

still within the SLAs. A related concept is resource

isolation, it isolates the existing resources like CPU

time or memory. Thus resource isolation is one way

to achieve performance isolation.

Weak isolation is achieved if performance isola-

tion is achieved within a limited number of requests

sent by disruptive tenants. An overcommitted sys-

tem, for example, might have the chance to restrict

the load of a disruptive tenant to the amount allowed

by the SLAs, but because of the overcommitmentsev-

eral tenants using their entire quota at one time, might

infer with the other tenants.

An unisolated system does not provide any of the

aforementioned features. This means, that tenants

working within their quoata directly suffer from ten-

ant exceeding their quota.

Examples. Google’s App Engine provides auto-

mated horizontal elasticity for the application. How-

ever, it is not tenant speciﬁc and does not ensure per-

formance isolation if elasticity is restricted. Lin’s (Lin

et al., 2009) approach ensures performance isolation

within one single MTA.

3.4 QoS Differentiation

QoS differentiation provides one tenant another ser-

vice quality than another tenant. QoS differentiation

is not directly related to isolation aspects. It’s easy

to think of a system which can not isolate, but guar-

antees one tenant always better performance than an-

other one. An example is a system where tenant A

has higher thread priorities than tenant B. This en-

sures different response times. Nevertheless, the per-

formance is not isolated as tenant B could still trash

the system by increasing his workload. We also dif-

fer, between input and output related service differ-

entiation, which are not mutual exclusive. The input

related differentiation promises the same behavior re-

garding non-functional properties for all tenants by

allowing different amount of workload. In the out-

put case, the system allows the same amount of load

for every tenant but differs in the output related prop-

erties, like response time.

Examples. In the academic community service dif-

ferentiation in multi-tenant environments started to

become of interest. Lin (Lin et al., 2009) for example

provides an approach to differ response times within

MTAs.

3.5 Customization

The ability to handle different tenant speciﬁc conﬁgu-

rations regarding the UI, the systems functional/non-

functional behavior and the services referenced is a

key enabler for MTAs. In Kozioleks (Koziolek, 2011)

architecture a separate Meta-Data Manager provides

the customization information to adapt the applica-

tion. Mietzner (Mietzner et al., 2009) created some

patterns for multi-tenant services and service compo-

sitions. Based on these patterns they built up a service

oriented system allowing extensive modiﬁcations in-

cluding tenant speciﬁc developments.

We will take these two ideas to differentiate the

degree a multi-tenant systems could be customized. A

conﬁgurable application is one which provides tenant

speciﬁc behavior or appearance, whereby this behav-

ior is conﬁgured without tenant speciﬁc code. Thus,

every tenant access the same code base. Such conﬁg-

urations might be provided by conﬁguration ﬁles for

each tenant or by tenant speciﬁc admin UIs. A change

of a conﬁguration for one tenant should not inﬂuence

the behavior or appearance of the application for an-

other tenant.

An application allowing tenant speciﬁc code ex-

tensions provides the most powerful way to adapt it to

customers’ needs. This leads to signiﬁcant technical

challenges in the multi-tenant scenario. Mietzner’s et

al. (Mietzner et al., 2008) SOA based approach of

MTAs provides one way in which a tenant might re-

place or extend pieces of code without inﬂuencing the

others.

Examples. Google Docs

provides ofﬁce applica-

tions for private usage or companies with limited op-

portunities for customer speciﬁc customizing. Other

SaaS providers like Salesforce provide a wide range

of options including tenant speciﬁc code (Weissman

and Bobrowski, 2009).

https://docs.google.com/

ARCHITECTURALCONCERNSINMULTI-TENANTSaaSAPPLICATIONS

429

4 MUTUAL INFLUENCES AND

INTERDEPENDENCIES

This section sets the aforementioned concepts and ar-

chitectural concerns in relation to each other. First,

we show an overview in ﬁgure 2 followed by a tex-

tual description which contains the rationale for the

interdependencies.

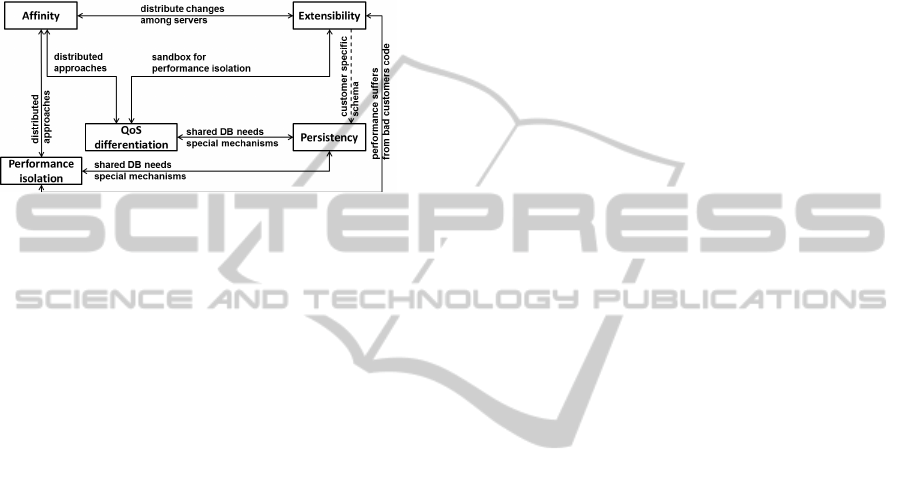

Figure 2: Interdependencies between different architectural

concerns.

Basically it would be possible to use every type

of afﬁnity independently from the expected customiz-

ability, QoS differentiation or performance-isolation.

However, choosing the one or the other approach

might lead to more or less sophisticated implemen-

tations. The customizability feature for example re-

quires a mechanism to deploy changes over all nodes.

It is very similar to the performance-isolation and

QoS differentiation aspects as both need a centralized

mechanism to ensure their goals. All these aspects in-

ﬂuence the decission to prefer the one type of afﬁnity

or the other.

The QoS differentiation’s impact on the persis-

tence layer is because one could achieve it by lever-

aging database features like different storage capaci-

ties. Another point is to provide every tenant its sin-

gle database with different hardware settings or to use

database features to prefer one tenant’s requests in-

stead of those sent by another one. The QoS differen-

tiation implicates that one must conﬁgure the differ-

ences between the tenants, thus a tenant aware con-

ﬁguration is required. Beside that direct implication a

particular conﬁguration or extension might inﬂuence

the tenants QoS. We do not see this as a problem for

the QoS differentiation as the tenant perceives differ-

ent functionality.

Extending or customizing the application signif-

icantly inﬂuences different aspects. In a non-server

afﬁne situation one has to synchronize changes in

the conﬁguration across the boundaries of the appli-

cation instances. Nevertheless, solving this problem

is part of the extensibility topic and not part of the

afﬁnity. Tenant speciﬁc code extensions or modiﬁ-

cations might rely on a customer speciﬁc database

schema. There are some approaches (Weissman and

Bobrowski, 2009) to solve this problem without cre-

ating a separate database model. Nevertheless, one

has to think about different databases for each tenant,

if such extensive modiﬁcations are offered.

The decision about the chosen persistency concept

might inﬂuence the level of performance-isolation

which could be achieved. Independently from the ten-

ant’s restrictions at the application level, one single

query on the database might cause signiﬁcant perfor-

mance issues for all tenants. This is why performance

isolation is a major challenge when the database is

shared and no isolation techniques applied on persis-

tency. Beside that, we have the already discussed re-

lations with respect to the customizability, the QoS

differentiation and the performance impact on differ-

ent afﬁnities.

Performance isolation is inﬂuenced by many other

aspects. As discussed before one has to make dis-

tributed control mechanisms available in non-server

afﬁne situations. Besides that, sandbox approaches

isolating the code extensions are required as without

providing sandboxes, a user could easily deploy code

affecting other tenants. Another issue is the database

which needs to provide adequate mechanisms to en-

sure isolation.

5 RELATED WORK

Multi-tenancy is a new ﬁeld of research and started to

get in focus with the arising of enterprise SaaS appli-

cations.

Koziolek (Koziolek, 2011) describes an architec-

tural style of MTAs called SPOSAD based on the

well-known multi-tier web application model with its

architectural constraints and tradeoffs. Mietzner et al.

(Mietzner et al., 2009) describes a multi-tenant archi-

tecture based on the Service Component Architecture

(SCA).

We instead focus on the most important features

for the tenant and its implications to some architec-

tural concerns. Furthermore, our assumptions and re-

strictions regarding the architectural style are not as

restrictive as presented by Koziolek.

A list of some key characteristics, a conceptual

architecture of MTAs and the resulting challenges is

listed in (Bezemer and Zaidman, 2010). Nevertheless,

the challenges are rather discussed on a technical level

and the authors did not discuss how one challenge in-

ﬂuences conceptual architectural decisions.

There are publications (e.g. (Chong et al., 2006),

(Osipov et al., 2009)) discussing how to separate the

tenant’s data and how to create tenant speciﬁc data

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

430

models. Wang (Wang et al., 2008) also did some per-

formance related research. Nevertheless, there is no

discussion about mutual inﬂuences of non-database

and database related concepts.

Besides that, a number of publications associated

with performance and resource optimization (Fehling

et al., 2010), (Lin et al., 2009) exist.

6 CONCLUSIONS

In this paper we deﬁned the concept of multi-tenancy

from a vendor’s point of view as sharing an appli-

cation instance for several customers with their own

private view onto it and motivated the approach by

increased efﬁciency. Furthermore, we provided an

overview and a discussion of concepts and architec-

tural concerns of interest. In particular, these are

performance-isolation, persistency, QoS differentia-

tion and customizability. We presented a classiﬁca-

tion schema within each of these topics and added the

discussion of different afﬁnities. Based on the deﬁni-

tion of these concepts we show, how these concepts

how the different aspects are related.

ACKNOWLEDGEMENTS

The research leading to these results has re-

ceived funding from the European Unions Seventh

Framework Programme (FP7/2007-2013) under grant

agreement N

258862.

REFERENCES

Bezemer, C.-P. and Zaidman, A. (2010). Multi-tenant

saas applications: maintenance dream or nightmare?

In Proceedings of the Joint ERCIM Workshop on

Software Evolution (EVOL) and International Work-

shop on Principles of Software Evolution (IWPSE),

IWPSE-EVOL ’10, pages 88–92, New York, NY,

USA. ACM.

bitcurrent (2011). Bitcurrent cloud computing survey 2011.

Technical report, bitcurrent.

Calvin, P. and Friedl, S. (2009). Lessons leraned: Build-

ing multitenant applications with the windows azure

platform. video.

Chong, F., Carraro, G., and Wolter, R. (2006). Multi-tenant

data architecture. website.

Fehling, C., Leymann, F., and Mietzner, R. (2010). A

framework for optimized distribution of tenants in

cloud applications. In Cloud Computing (CLOUD),

2010 IEEE 3rd International Conference on, pages

252 –259.

Guo, C. J., Sun, W., Huang, Y., Wang, Z. H., and Gao, B.

(2007). A framework for native multi-tenancy appli-

cation development and management. In E-Commerce

Technology and the 4th IEEE International Confer-

ence on Enterprise Computing, E-Commerce, and E-

Services, 2007. CEC/EEE 2007. The 9th IEEE Inter-

national Conference on, pages 551 –558.

Koziolek, H. (2011). The sposad architectural style for

multi-tenant software applications. In Proc. 9th

Working IEEE/IFIP Conf. on Software Architecture

(WICSA’11), Workshop on Architecting Cloud Com-

puting Applications and Systems, pages 320–327.

IEEE.

Lin, H., Sun, K., Zhao, S., and Han, Y. (2009). Feedback-

control-based performance regulation for multi-tenant

applications. Parallel and Distributed Systems, Inter-

national Conference on, 0:134–141.

Mietzner, R., Leymann, F., and Papazoglou, M. (2008).

Deﬁning composite conﬁgurable saas application

packages using sca, variability descriptors and multi-

tenancy patterns. In Internet and Web Applications

and Services, 2008. ICIW ’08. Third International

Conference on, pages 156 –161.

Mietzner, R., Unger, T., Titze, R., and Leymann, F.

(2009). Combining different multi-tenancy patterns

in service-oriented applications. In Enterprise Dis-

tributed Object Computing Conference, 2009. EDOC

’09. IEEE International, pages 131 –140.

Momm, C. and Krebs, R. (2011). A Qualitative Discus-

sion of Different Approaches for Implementing Multi-

Tenant SaaS Offerings. In Proceedings of Software

Engineering 2011 (SE2011), Workshop(ESoSyM-

2011).

Osipov, C., Goldszmidt, G., Taylor, M., and Poddar,

I. (2009). Develop and deploy multi-tenant web-

delivered solutions using ibm middleware: Part 2: Ap-

proaches for enabling multi-tenancy. website. http://

www.ibm.com/ developerworks/ webservices/library/

ws-multitenantpart2/index.html visited 23.Nov. 2011.

Schonfeld, E. (2009). The efﬁcient cloud: All of salesforce

runs on only 1,000 servers. website.

Schuller, S. (2009). What if salesforce.com werent multi-

tenant? visited on 23. Nov. 2011.

Wang, Z. H., Guo, C. J., Gao, B., Sun, W., Zhang, Z., and

An, W. H. (2008). A study and performance evalu-

ation of the multi-tenant data tier design patterns for

service oriented computing. In e-Business Engineer-

ing, 2008. ICEBE ’08. IEEE International Conference

on, pages 94 –101.

Weissman, C. D. and Bobrowski, S. (2009). The de-

sign of the force.com multitenant internet application

development platform. In Proceedings of the 35th

SIGMOD international conference on Management of

data, SIGMOD ’09, pages 889–896, New York, NY,

USA. ACM.

ARCHITECTURALCONCERNSINMULTI-TENANTSaaSAPPLICATIONS

431
