HOW GREEN IS YOUR CLOUD?

A 64-b ARM-based Heterogeneous Computing Platform with NoC Interconnect for

Server-on-chip Energy-efficient Cloud Computing

Sergio Saponara

Marcello Coppola

and Luca Fanucci

STmicroelectronics, Grenoble, France

Dip. Ingegneria della Informazione, Università di Pisa, Pisa, Italy

Keywords: Green Cloud Computing, Energy-efficiency, Hardware Platform, Network on Chip (NoC), Multi-core

Systems.

Abstract: This position paper discusses the role of energy-efficient cloud-server-on-chip (CSoC) solutions to reduce

the total cost of ownership and the ecological impact of cloud computing data centers. A green cloud

computing platform, based on a multi core architecture with upcoming 64-b ARM processors of the ARMv8

family, interconnected by a service-aware Network on Chip (NoC) ensuring cache coherency, could reduce

costs (due to energy consumption and extra cooling systems) and increase system reliability (by avoiding

thermal issues) of cloud data centers. Implementation figures on 28 nm and 20 nm silicon technology nodes

from STMicroelectronics are provided.

1 NEED OF GREEN CLOUD

COMPUTING

Cloud computing is where data, software

applications, or computer processing power are

accessed from the cloud of online resources. This

permits individual users to access their data and

applications to any edge device. As well as to any

organization to reduce their capital costs by

purchasing hardware and software as utility services.

Cloud Computing, also referred as utility computing,

as has rapidly emerged as a new computing

paradigm representing a fundamental shift in

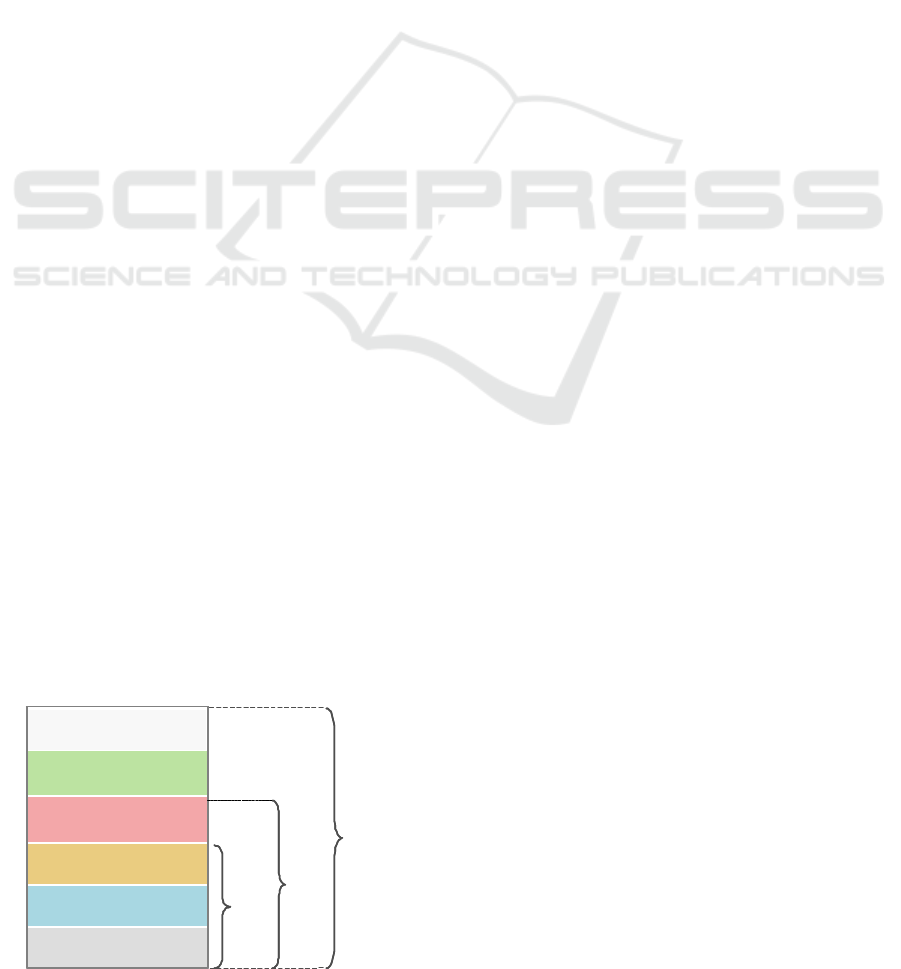

Figure 1: Layers in the Cloud Computing Architecture.

delivering information technology services via on-

demand computing resources.

According to Fig. 1 cloud computing is generally

defined as consisting of 3 layers or set of services:

Software as a Service (SaaS), Platform as a Service

(PaaS) and Infrastructure as a Service (IaaS).

These layers are separating the end-user to the

physical infrastructure of the data center. All this

allows users to run applications and store data

online. However each layer offers a different level of

user flexibility and control. In particular, IaaS is the

set of services closest to the hardware, which allows

users to run any applications on the cloud hardware

of their choice. They include typical services at the

operating system-level creating abstractions of

“Resource Clouds” consisting of managed and

scalable resources using enhanced virtualisation

capabilities. Abstract resources are provided via a

service interface allowing for:

• Data & Storage Clouds dealing with reliable and

timely access to data;

• Computing Clouds providing scalable, reliable

and timely access to computational resources.

The fundamental unit of the cloud computing

infrastructure is a server, which can be physical or

virtual. Physical servers are discrete individual

computer on which online applications can be run



Data center infrastructure

(Space, power, electricity, cooling, etc.)

Hardware layer

(Compute, storage, networking)

Hardware / software interface

(Operating system & virtualization)

Middleware layer

(Messaging, service bus, database)

Applicatio n lay er

(Business logic)

User interface

(Portal, web app, mobile app)

IaaS

PaaS

SaaS

Data center infrastructure

(Space, power, electricity, cooling, etc.)

Hardware layer

(Compute, storage, networking)

Hardware / software interface

(Operating system & virtualization)

Middleware layer

(Messaging, service bus, database)

Applicatio n lay er

(Business logic)

User interface

(Portal, web app, mobile app)

IaaS

PaaS

SaaS

Source: Morgan Stanley Research

135

Saponara S., Coppola M. and Fanucci L..

HOW GREEN IS YOUR CLOUD? - A 64-b ARM-based Heterogeneous Computing Platform with NoC Interconnect for Server-on-chip Energy-efﬁcient

Cloud Computing.

DOI: 10.5220/0003959801350140

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CLOSER-2012), pages 135-140

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

and data can be stored. In contrast, virtual servers

allow many users to share the processing power of

one physical server. Servers are individual circuit

boards, known as blades, mounted within equipment

racks in a data centre.

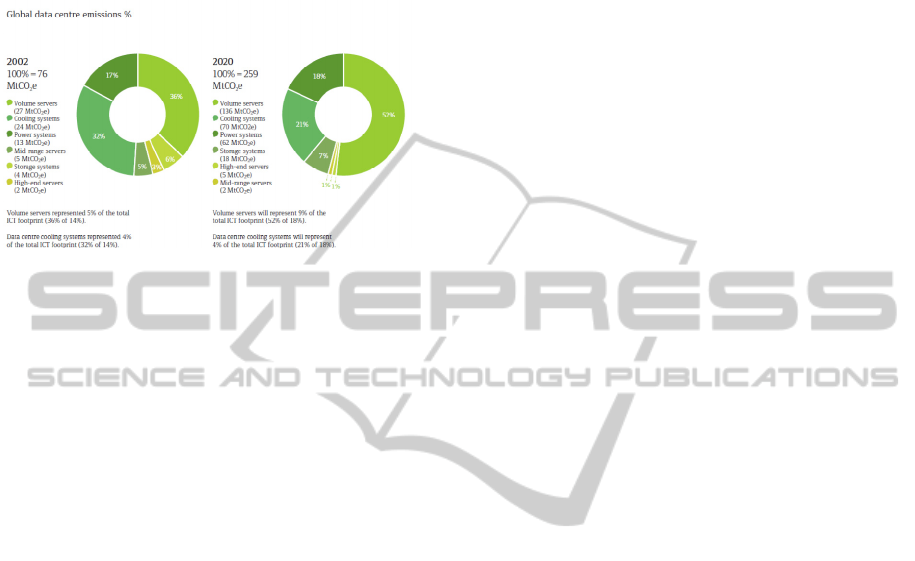

Figure 2: % of emissions for different classes of systems.

One of the driving factors of the success of the

Cloud concept is a new business model based on the

elimination of the up-front capital and operational

expenses (Schubert, 2010). However, the total cost

of ownership (TCO) is still an obstacle for having

billions of users accessing millions of services. In

fact, a significant fraction of a data center’s TCO

comes from the recurring energy costs consumed

during its lifecycle. Beside the cost of energy (Fan et

al., 2007; White et al., 2004; Shah et al., 2008), other

issues are driving the R&D focus on cloud

computing platforms towards low-power: the

ecological impact of cloud servers and the thermal

management since high power consumption needs

costly and heavy cooling systems and the thermal

stress reduces the reliability and the life time of the

computing platforms (Mullas et al., 2009; Reda,

2011). The problem of power “Green IT” is one of

the most popular areas in research today.

In particular, energy-efficient cloud computing is

one of the key research item since analysis of the US

Environmental Protection Agency (EPA) states that

powering the nation's data centers consisting of vast

server grids, power supply and cooling

infrastructures is growing to unprecedented levels,

~100 billion KW hours by 2011 costing $7.5B.

In September 2011, Google said that its global

operations continuously draw 260 million megawatts

of power, roughly a quarter of the energy generated

by a nuclear power plant. Considering that most

server processors in use today draw about 160 watts

under normal operations and 80 watts even when

they're idle, there is a huge opportunity for power

reduction. Moreover, as the level of carbon emission

in IT and communication technologies is estimated

to triple by 2020, see Fig. 2, IT professionals

continue to raise public awareness and policy

makers are forced to prepare legislation incentives

towards green computing. The Smart 2020 report

estimates the potential impact of ICT-enabled

solutions to be as much as 18 percent of total global

carbon emissions. Broad adoption of cloud

computing can stimulate innovation and accelerate

the deployment of these enabled solutions. Cloud

computing may have a major impact on global

carbon emissions. In the new era of energy efficient

performance, the question how cloud computing

could be implemented in practice the constraints of

efficient energy utilization.

2 STATE-OF-ART MANY-CORE

PLATFORMS

In 2005, PC market hits a wall. As described in

(Sutter, 2005), "the Free Lunch was Over". The

major PC manufacturers from Intel and AMD to

IBM, have run out of gas with most of their

traditional approaches to boosting CPU

performance. Thus key semiconductor challenge has

moved from only performance, to energy efficiency

(measured in performance per joule) and extreme

miniaturisation. Higher still performance is also

required for enterprise computing and

communications. In order to sustain the Moore’s

law, the 2005 was the starting year to move the

industry toward an architectural solution called

multi-core, integrating multiple cores on a single die.

During all these years we have seen 3 majors multi-

core computing platform styles (Woo et al., 2008;

Kumar et al., 2003a; Kumar et al., 2003b). The first

one, it is a symmetric many-core processor that

simply replicates a state-of-art superscalar processor

on a die. The second one, it is a symmetric many-

core processor that replicates a smaller and more

power-efficient core on the same die. The third

multi-core computing style is a heterogeneous

computing platform containing distinct classes of

processing cores on the same die. One example is to

have a state-of-the-art host processor as the host

integrated with an array of parallel processing

elements for accelerating certain parts of an

application. Heterogeneous computing has emerged

to address the growing concerns of energy efficiency

and silicon area effectiveness. The 2011 was a

special year in which we completed to small-scale

heterogeneous multi-core computing platform with

the arrival of multi-core tablets (e.g., iPad 2,

Playbook, Kindle Fire, Nook Tablet) and

smartphones (e.g., Galaxy S II, Droid X2, iPhone

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

136

4S). On the server computing side we have assisted

to the recent transition to high performance multi-

core platforms, providing an array of register sets,

shared cache and multiple threads of execution,

leading to power-efficient, high bandwidth (and

often real-time) processing similar to that of past

supercomputers and/or embedded systems. Existing

high end server architectures, such as IBM’s Power7

high-end server, Oracle Sun PowerNap processor

and AMD’s “Magny Cours” Opteron processor

incarnation, benefit from powerful out-of-order

cores, large on-chip cache hierarchies and/or rapid

non-intrusive power model transitions between a

high-performance active state and a near-zero-power

idle state. This trend will carry on in 2012 with

quad- and eight-core solutions.

However the high computational capabilities, Tera

operations per seconds, of the above platforms are

paid with high power and energy cost, and related

thermal issues reducing system reliability and

creating cooling overheads in terms of cost and size.

Solving the energy-efficiency problem is a key issue

to reduce cost, ambient and energy impact of the

cloud computing paradigm. Moreover energy-

efficiency will reduce thermal problems thus

increasing life time and reliability of the cloud

computing infrastructures.

To be noted that cloud computing will be not

devoted solely to multimedia web-service for

consumer and entertainment applications, but also to

services to increase efficiency of the public

administration or of private companies, both SME

and big ones. Hence reliability, low risk or service

denial, long life time, low ambiental impact, reduced

energy cost are all key factors for the widespread

adoption of the cloud computing paradigm.

3 GREEN CLOUD PLATFORM

WITH MANY-CORE 64-B ARM

PROCESSORS AND

SERVICE-AWARE NOC

INTERCONNECT

In this position paper a novel cloud computing

infrastructure is introduced that considers energy

awareness as key optimization factor. At the lowest

levels, special hardware support for power efficiency

and proper mechanisms for supporting it at the

hypervisor level within the infrastructure of an IaaS

provider are investigated. Particularly, the following

objectives will be addressed.

The green cloud computing will be based on a new

ARM architecture with the addition of a new "A64"

64-b instruction set, which will enable to use ARM

cores into the server and enterprise computing space.

In this context today there are a lot of headlines

about the HP announcement to build servers with

ARM processors. Since the proposed platform is

based on ARM the amount mobile and consumer

legacy software that potentially can run on cloud

computing is huge. Through the use of a 64-b

extended instruction set, more suited for cloud

server applications than state-of-art cores of the 32-b

ARMv7 family, we expect a performance gain of a

factor of least 2.

Cloud computing based on ARM cores, could enable

vast energy savings, since new ARM chips and

platform architectures offer speed, low power

consumption and require a reduced amount of

cooling. It was announced earlier this year that

Windows 8 will support ARM architecture

(Osborne, 2011). Moreover, ARM Cortex-A9

MPCore can already compete with a 1.6GHz Intel

Atom (Humphries, 2010), even when running at

500MHz. Last but not least, the new ARMv8

architecture features the "A64": a 64-b instruction

set, which will enable to use ARM core into the

server and enterprise computing space

(Grisenthwaite, 2011; Goodacre, 2011). ARMv8

will succeed ARMv7, which is the foundation for

current processors such as the Cortex-A9 and

Cortex-A15. ARMv8 has also floating point

processing capability (Goodacre, 2011).

ARMv8 will effectively be a superset of ARMv7.

All ARMv8 chips will run legacy 32-bit ARMv7

code in the "AArch32" execution state, while 64-bit

code will be run in the "AArch64" state.

By widening the integer registers in its register file

to 64 bits, ARMv8 can store and operate on memory

addresses in the range of millions of terabytes. This

is particularly interesting for server applications

such as cloud computing.

As far as the target implementation technology is

concerned, STMicroelectronics is developing and

producing in Europe high-end CMOS processors

and custom System-on-chip integrated circuits (ICs).

The silicon technology process of

STMicroelectronics has a track record in the low

power category of core CMOS, specially devoted to

mobile/consumer applications. These technologies

are able to address high frequency applications as

well, currently as higher than 2.5 GHz in 28 nm

CMOS. Concurrently STMicroelectronics is

developing technologies on Full-Depleted Silicon-

on-Chip (FDSOI) (Skotnicki et al., 2011), which are

HOWGREENISYOURCLOUD?-A64-bARM-basedHeterogeneousComputingPlatformwithNoCInterconnectfor

Server-on-chipEnergy-efficientCloudComputing

137

able to address both the high performance end of the

spectrum (3 GHz and more) and ultra low power

operation thanks in particular to an improved

electrostatic control on the transistor channel. The

challenge is to dynamically adapt the power

consumption to the required performance at each

moment such as wasting the minimum of energy.

To achieve such a goal, a fully vertical integration

from technology to software level virtualization

layer and virtual machine management would be

implemented.

Our estimation is that targeting already available

submicron CMOS technologies the basic cluster for

cloud computing can be composed of at least 4 64-b

ARM cores integrated on a single chip. For a server

on chip application we aim at implementing an

heterogeneous architecture with a network on chip

of several clusters. All ARM clusters have the same

ISA but they will be implemented some using G

(general/fast) process technology and other in LP,

low power process technology. LP transistors have

very low leakage but can't run at super high

frequencies, while G transistors on the other hand

are leaky but can switch very fast.

Targeting more advanced 20 nm technologies the

number of basic clusters, and hence of basic cores in

a single chip with 2D integration, should increase by

a factor at least 2 resulting computational power up

to Tera operations per seconds.

The architecture will conceived so that it will allow

in the future also 3D integration, targeting a number

of cores for a cloud server-in-a-single-package of

several hundreds.

In case of big cloud data center the green cloud

platform will be further scaled adopting low latency

interconnection for off-chip communication (e.g.

LLI Low-Latency-Interface and C2C Chip-to-Chip

standards recently proposed by the MIPI Alliance of

electronic companies) and achieving thousands of

cores on a single board.

Therefore the computing platform will be conceived

so that it can be used to realise not only cloud

server-on-a-chip (CSoC) solutions, with tens of 64-b

ARM cores, but in case of bigger data centers the

proposed architecture can be scaled to realize also

cloud server-in-a-package (CSiP), with more than

one hundred of 64-b ARM cores, and cloud server-

on-a-board (CSoB) solutions, with thousands of 64-b

ARM cores.

According to (Dally, 2001), an important source of

power consumption is moving data in interconnects.

Quoting data from nVIDIA's 28nm chips (see Fig.

3), 20 pJ are the computation costs required for

performing a floating point operation, and for an

integer operation, the corresponding number is 1 pJ.

However, getting the operands for the computation

from local memory (situated 1mm away) consumes

26 pJ. If the operands need to be obtained from the

other end of the die, 1 nJ is required and, if the

operands need to be read from DRAM, the cost is 16

nJ. As shown in (Kumar et al., 2005) the

interconnect network of an eight-core

microprocessor might consume as much energy as

one core and as much area as three cores.

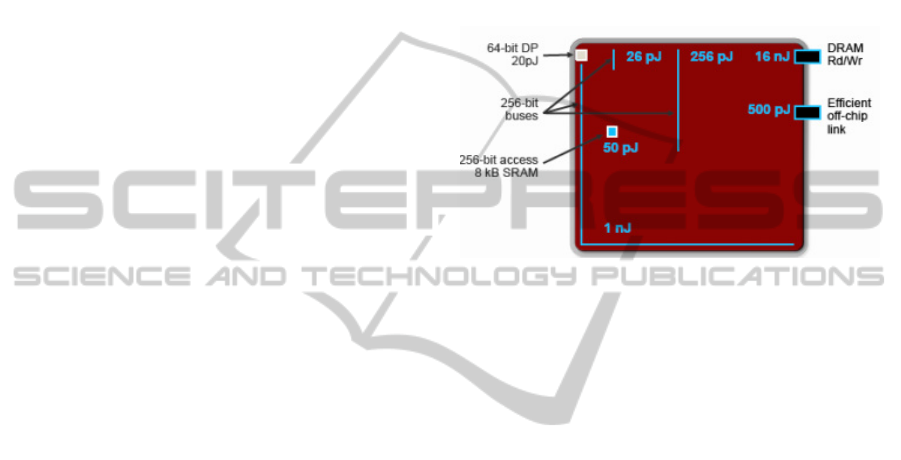

Figure 3: Computation cost is significantly lower than

communication cost in 28nm nVIDIA chips (Dally, 2001).

The energy required for computation is significantly

smaller than the energy needed for interconnects. In

addition, this trend is expected to get worse with

scaling.

In conclusion, computation costs require much less

energy than moving operands to and from the

computation units. Thus, the traditional cloud

computing SoC architecture which extensively uses

off-chip SDRAM as the main memory for buffering

and/or for transferring data information needs

rethinking and a well-deserved optimization. The

architecture we propose cuts down power and

energy consumption by reducing the data transfer in

and out of the chip. Of course, such an approach

requires a coordinated vertical approach touching

hardware and software. For example, at the

infrastructure level, cloud management software

(e.g. OpenNebula) should minimize communication,

even at the expense of additional computation. If the

energy cost of moving data across the die is high, the

Virtualization Layer SW should reuse local data for

computations whenever possible. The compiler

should be able to figure out when it is energetically

favourable to recompute or to move data, and should

also try to sub-divide problems to minimize

communication cost.

With respect to the state of the art the designed

service-aware NoC, also called Interconnect

Processing Unit (IPU) supports on-chip advanced

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

138

service functionalities (Coppola et al., 2008;

Saponara et al., 2012) such as cache coherency,

power down management, quality of service

management, memory remapping and others.

Thanks to the IPU the multi-core server-on-chip can

be partitioned in different islands each dynamically

optimized in terms of power (Saponara et al., 2007;

Saponara et al., 2011a; Saponara et al., 2011b;

Vitullo et al., 2008) according to the required high

level software service by a well defined software

API.

4 GREEN CLOUD

ARCHITECTURE IN

SUBMICRON CMOS

Figure 4 shows the proposed green cloud

architecture enabling the realization of a cloud

server-on-single-chip, with estimated complexity in

28 nm and 20 nm CMOS technology by

STMicroelectronics. The architecture is

hierarchically organized in a combination of:

- a first cloud computing kernel represented by the

cluster of 4 ARM processors of the V8 family with

64-bit instruction set extension (referred as Core v8

in Fig.4);

- a second level represented by high-speed STNoC

IPU (Coppola et al., 2008) encircling 4 clusters for a

total of 16 ARMv8 processors plus two DDR4

multi-port memory controllers for off-chip access,

fast PCI-Express (PCIe) and Ethernet MAC for

high-speed I/O and two special links for networking

with other server-on-chip devices. All I/O modules

are connected to the STNoC via I/O Memory

management units (IOMMUs) that translate all

devices access to host memory.

From the memory hierarchy point of view, beside

the L1 cache for each ARM V8 core, a L2 cache

memory of 2Mbytes is shared among the 4

processors in each cluster. Thanks to the STNoC

IPU, which exploits a Spidergon topology with bi-

directional rings and across connections, the

memory can be extended to on-chip L3 cache (4

blocks in Fig. 4) and to large of-chip DDR DRAM

thanks to two memory controllers, each with 2 ports,

connected through the NoC.

From preliminary synthesis in CMOS silicon

technology considering 28 nm and 20 nm

technology nodes, a complexity of about 30 mm

28 nm for a V8 like cluster can be foreseen. In 20

nm the occupation for a cluster is halved, roughly 15

The area occupation for the whole architecture is

about 200 mm

in 28 nm and 100 mm

in 20 nm.

The main area limiting factor is due to the on-chip

memory size for large caches at L2 and L3 hierarchy

levels. In these technologies for system-on-chip

integration there is a density higher than 3.5 Millions

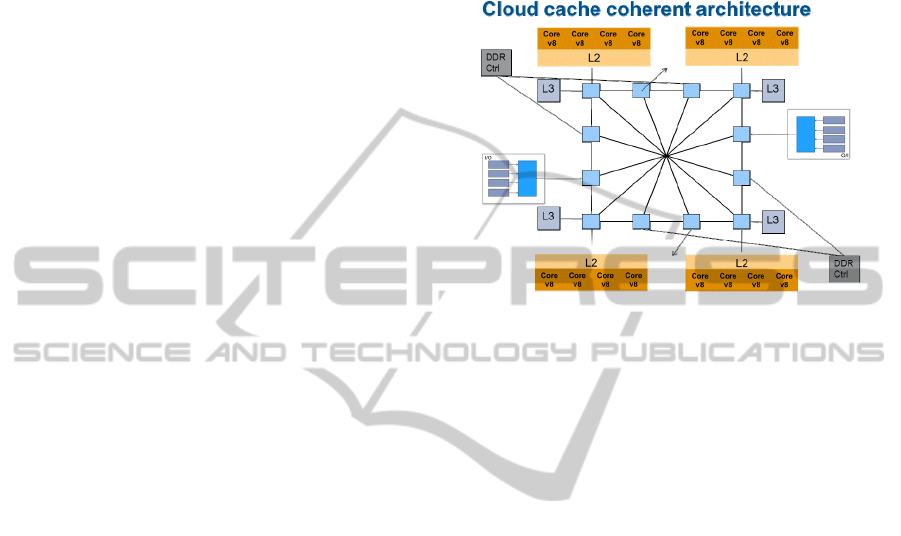

Figure 4: Architecture of the green cloud for server on a

single chip realizations.

of logic gates in 28 nm and less than 0.15 mm

per

Mbits for on-chip SRAM. In 20 nm CMOS

technology, for the same area, the complexity of

logic gates and memory bits that can be integrated is

doubled. The target clock frequency is 1.8 GHz in

28 nm CMOS node and 2 GHz in 20 nm CMOS

node.

An accurate analysis of the power consumption of

the proposed platform in 28 nm and 20 nm CMOS

technologies, considering leakage and dynamic

power consumption (for different functional

benchmarks), is on-going.

Given the target ARM-based architecture we have

foreseen the design of a parametric on-chip

interconnect scalable in terms of connected cores;

from few cores of the basic cluster (4) to tens of

cores (16 in the proposed embodiment but that can

be increased by 2 or by 4 using 20 nm technology)

for a server on chip using planar silicon

technologies. The number of cores can be raised to

hundreds in case of migration to 3D integration

technology.

The proposed architecture of Fig. 4 implements

directly in hardware, in the NoC, advanced

networking services to minimize the use of software

services for on-chip communication and the access

to off-chip resources. The NOC has been configured

with a flit-size of 128 bits and it supports data

conversion, frequency conversion, store& forward

transmission, management of out of order

transactions, quality of service management, cache

coherency, security and power down states.

HOWGREENISYOURCLOUD?-A64-bARM-basedHeterogeneousComputingPlatformwithNoCInterconnectfor

Server-on-chipEnergy-efficientCloudComputing

139

In addition, the software API provided by the IPU,

will enable the creation of a virtualization-based

self-adapting infrastructure which dynamically

optimizes energy consumption and performance

across computing, storage and communications

resources within clouds, ensuring that the overall

platform performance and energy consumption

adapts to the minimum level required to fulfil the

contracted QoS for each service defined in terms of

measurable KPIs. Finally, the envisaged energy and

performance -aware infrastructure could be extended

to work across sites, including federated data centers

or data center scale-out to public clouds.

5 CONCLUSIONS

The role of energy-efficient cloud-server-on-chip

solutions in reducing the total cost of ownership and

the ecological impact of cloud computing data

centers has been discussed in this position paper. A

green cloud heterogeneous computing platform,

based on a multi-clusters architecture with upcoming

64-b ARM processors of the ARMv8 family and off-

chip memory controllers and fast I/O modules,

interconnected by a power-aware IPU ensuring

cache coherency, could achieve a better performance

gain per watt. In addition the input/output (IO) has

been integrated; thereby a latency and power

reduction will be envisaged mainly due better

sharing of data.

REFERENCES

M. Coppola, M. Grammatikakis, R. Locatelli, G.

Maruccia, L. Pieralisi, Design of cost efficient

interconnect processing units, CRC Press Book,

September 2008

T. Cucinotta et al., "QoS Control for Pipelines of Tasks

Using Multiple Resources," IEEE Tran. on Computers,

Vol. 53, N. 3, pp. 416-430, 2010

W. Dally, keynote talk at IEEE Int. Parallel and

Distributed Proc. Symp. (IPSPS) 2001

Dong Hyuk Woo et al., "Extending amdahl’s law for

energy-efficient computing in the many-Core Era",

IEEE Computer 2008, pp. 24-31

X. Fan, et al., “Power Provisioning for a Warehouse-sized

Computer", ACM ISCA '07

J. Goodacre, White paper, Technology preview: the

ARMv8 architecture, pp.1-10, 2011

R. Grisenthwaite, ARMv8 technology preview,

2011.www.arm.com/files/downloads/ARMv8_Archite

cture.pdf

M. Humphries, "ARM posts Cortex-A9 vs Atom

performance video, Intel should be worried". on-line:

http://www.geek.com/articles/chips/arm-posts-cortex-

a9-vs-atom-performance-video-intel-should-be-

worried-2010016/

R. Kumar, et al., “A multi-core approach to addressing the

energy-complexity problem in microprocessors”,

Workshop on Complexity-Effective Design, June

2003

R. Kumar, et al., “Single-ISA Hetero geneous Multi-Core

Architectures: The Potential for Processor Power

Reduction”, IEEE/ACM Int. Symp. Microarchitecture,

2003, pp 81-92

R. Kumar, V. Zyuban and D.M. Tullsen,

“Interconnections in Multicore architecture:

Understanding Mechanisms, Overheads, and Scaling”

Proc. 32

Ann. Int’l Symp. Computer Architecture

(ISCA 05), ACM, 2005

F. Mullas et al., "Thermal Balancing Policy for

Multiprocessor Stream Computing Platforms," IEEE

Tran. on CAD, Vol. 28, N. 12, 2009

B. Osborne, "Next version of Windows will support

ARM-based systems". on-

line:http://www.geek.com/articles/mobile/next-

version-of-windows-will-support-arm-based-systems-

2011015/

S. Reda, "Thermal and Power Characterization of Real

Computing Devices", IEEE Tran. on Emerging and

Selected Topics in Circuits and Systems, pp. 76-87,

vol. 1, N. 2, 2011

S. Saponara et al., "Architectural-level power optimization

of microcontroller cores in embedded systems", IEEE

Tran. Ind. Electr., vol. 54, n. 1, 2007

S. Saponara et al., "Coverage-driven Verification of HDL

IP cores", Springer Lecture Notes in Electr.

Engineering, vol. 81, pp. 105-119, 2011

S. Saponara et al. "A multi-processor NoC-based

architecture for real-time image/video enhancement",

Journal of Real-Time Image Processing, pp. 1-15, doi

10.1007/s11554-011-0215-8, 2011

S. Saponara et al., "Design of a NoC Interface Macrocell

with Hardware Support of Advanced Networking

Functionalities", SI - Networks-on-Chip, IEEE

Transactions on Computers 2012

L. Schubert “The Future of Cloud Computing:

Opportunities for European Cloud Computing

Beyond 2010” EC, Information Society and

Media,http://cordis.europa.eu/fp7/ict/ssai/docs/cloud-

report-final.pdf

Shah et al., “Optimization of global data center thermal

management workload for minimal environmental and

economic burden”, IEEE Trans. Components and

Packaging Tech., vol. 31, n. 1, pp. 39-45, 2008

T. Skotnicki et al., "Competitive SOC with UTBB SOI”,

IEEE SOI Conference 2011

Herb Sutter, "The free lunch is over: a fundamental turn

toward concurrency in software", Dr. Dobb's Journal,

vol. 30, n. 3, 2005

F. Vitullo et al., "Low-complexity link micro architecture

for mesochronous communication in Networks on

Chip", IEEE Tran. on Computers, vol. 57, n. 9, pp

1196-1201, 2008

White et al., “Energy resource management in the virtual

data center”, IEEE Int. Symp. Electronics and the

Environ., pp. 112- 116, 2004

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

140
