Design Patterns for Event-driven Enterprise Architectures

urgen Dunkel and Ralf Bruns

Department of Computer Science, Hannover University of Applied Sciences and Arts, Ricklinger Stadtweg 120, 30459

Hannover, Germany

Keywords:

Event-driven Architecture, Complex Event Processing, Design Pattern, Enterprise Architecture.

Abstract:

In recent years, event processing has gained considerable attention as an individual discipline in computer

science. For event processing, generally accepted software architectures based on proven design patterns and

principles are missing. In this paper, we introduce a catalogue of design patterns that supports the development

of event-driven enterprise architectures and complex event processing systems. The design principles originate

from experiences reported in publications as well as from our own experiences in building event processing

systems with industrial and academic partners. We present several patterns on different layers of abstractions

that deﬁne the overall structure as well as the building blocks for event processing systems. Finally, we discuss

a general reference architecture for event-driven enterprise systems.

1 INTRODUCTION

Recently, event processing (EP) has established it-

self as an individual discipline in computer sci-

ence. Event-driven architecture (EDA) introduces

event processing as the central architectural concept

(Chandy and Schulte, 2010). One key concept of

EDA is the employment of complex event process-

ing (CEP) as the general processing model (Luckham,

2002). CEP analyses continuous streams of incoming

events in order to identify the presence of complex

sequences of events, so called event patterns. Funda-

mental concepts of CEP are an event processing lan-

guage (EPL), to express event processing rules con-

sisting of event patterns and actions, as well as an

event processing engine that continuously analyzes

the event stream and executes the matching rules. If a

pattern matches either a new complex event could be

created or an appropriate action could be triggered.

But event-driven applications have not yet reached

the maturity of well-established software architec-

tures (Paschke, 2009), (Dunkel et al., 2009). Al-

though several concrete software architectures have

emerged there is a lack of established design patterns,

best practice examples, reusable components, process

models, and reference architectures offering guide-

lines on how to build enterprise event processing sys-

tems. In particular, design patterns and reference ar-

chitectures exist only in early draft versions (Schulte

and Bradely, 2009), (Paschke and Vincent, 2009), or

are related to certain technologies (Coral8, 2006) and

application domains (Dunkel et al., 2010).

In this paper, we are considering event processing

from a software engineering perspective. We present

a catalogue of patterns providing the basic structure

and the building blocks of a software architecture for

event processing systems. The proposed patterns can

serve as general guidelines for the development of

event-driven enterprise architectures. Using the pat-

tern catalogue we derive a general reference software

architecture for event processing enterprise systems.

Patterns encapsulate knowledge: they are based

on the repertoire of general principles and idiomatic

solutions of experienced developers. The design pat-

terns presented here originate from experiences re-

ported in published work as well as from our own ex-

periences in building event processing systems with

industrial and academic partners. This paper presents

a pattern catalogue that provides a way of organiz-

ing solutions for general problems in EP and makes

it easier to reuse them. In other words, our approach

introduces a vocabulary for the architecture of EP as

well as a conceptual framework that leads to a more

structured approach for the design of EP systems.

After discussing related work in the next section

we present in section 3 the catalogue of patterns. Fi-

nally, section 4 introduces a general reference archi-

tecture based on the proposed patterns.

187

Dunkel J. and Bruns R..

Design Patterns for Event-driven Enterprise Architectures.

DOI: 10.5220/0003971301870192

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 187-192

ISBN: 978-989-8565-12-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

General Patterns: Most of the pattern literature is

focused on conventional process-oriented software ar-

chitectures. But some of the general design pat-

terns like layers (Gamma et al., 1998) can be ap-

plied on EDA as well. Other patterns that can be di-

rectly transferred to event processing are discussed in

enterprise application integration (EAI). (Hohpe and

Woolf, 2003) presents numerous patterns describing

the message-based interaction between applications.

Obviously, the general ideas of Message Routing and

Message Transformation can be reused for event pro-

cessing as well. EAI patterns, as Pipes and Filters,

Message Filter, Aggregator, and Content Enricher are

applied on event processing in (Coral8, 2006).

Event Processing Patterns: In recent years, a lot

of work has been published reporting on manifold ex-

periences with event-driven systems. Luckham in-

troduced the concept of event processing networks

(EPN) in order to cope with the complexity of real-

world event-driven applications (Luckham, 2002).

A collection of CEP patterns is presented in

(Coral8, 2006) for illustrating the capabilities of CCL,

their proprietary event processing language. Because

the patterns are that closely tied to a certain technol-

ogy, they are much more recipes than patterns.

Paschke (Paschke, 2009) does not describe a cat-

alogue of patterns but presents a multidimensional

scheme for the categorization of CEP patterns.

Reference Architectures: A reference architecture

provides a generic and abstract software architecture

that provides a template for the design of an EP-

based system. Actually, there is only few work that

addresses directly a general reference architectures

for event processing. (Chandy and Schulte, 2010)

present a coarse-grain reference architecture for EPNs

containing event producers, channels, consumers, and

intermediaries. In (Paschke and Vincent, 2009) the

processing entity is structured into three logical steps:

event selection, aggregation, and handling.

An initiative towards professionalization of the

area is the EPTS Reference Architecture Working

Group founded by the Event Processing Technical So-

ciety (EPTS) in 2009 (EPTS, 2012).

3 PATTERNS

In the following we present the patterns in in an ade-

quate structured form: ﬁrst, we describe the problem

in its context, then the solution, and ﬁnally the bene-

ﬁts and dependencies of the pattern are evaluated.

3.1 Architectural Patterns

Architectural patterns describe how the entire system

can be structured and divided into components.

3.1.1 Layers

Problem and Context: First, the top-level structure

of the EDA has to be determined: The different tasks

and responsibilities of the resulting components have

to be identiﬁed and clearly separated.

Solution: The familiar architectural pattern of soft-

ware layers (Buschmann et al., 1998) can also be ap-

plied on event processing systems. The overall struc-

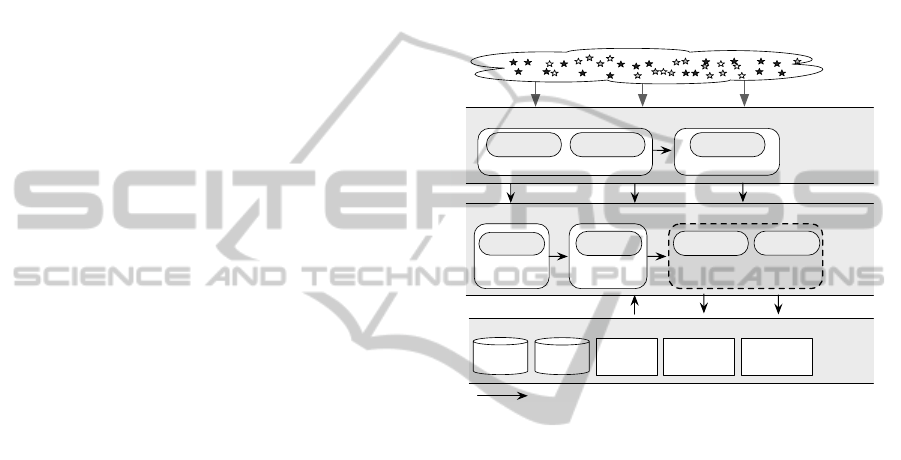

ture of an event-driven architecture consists of three

different logical layers.

1. Monitoring Layer: The Monitoring Layer is re-

sponsible for capturing the events from multiple

event sources as well as for the preprocessing of

the raw events. First, it implements the technical

access to the different event sources. In a second

step, the proprietary formats of the event data are

translated into standardized internal event objects.

2. Event Processing Layer: The Event Processing

Layer is responsible for the core processing of

continuous event streams using CEP, which is re-

sponsible for event pattern matching.

3. Event Handling Layer: The Event Handling

Layer is responsible for appropriate reactions on

matched event patterns. Mostly, a service in the

enterprise systems that performs simple business

functions or entire business processes is triggered.

Evaluation: The Layers pattern describes the global

structure of an EDA and decouples the key respon-

sibilities: detecting events, processing events and re-

acting on events: the Monitoring Layer does not un-

derstand the further processing, the Event Processing

Layer has no knowledge about the technical details

of the event sources, and the Event Handling Layer

does not know ﬁne-grained events and has no idea

how complex business events have been processed

by the above layers. The pattern can also be ﬁnd in

other EDA work, e.g. (Schulte and Bradely, 2009),

(Paschke and Vincent, 2009), (Michelson, 2006).

3.1.2 Agents

Problem and Context: The processing of events is

realized by a set of event processing rules. To reduce

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

188

complexity and to make event processing scalable an

approach is required for distributing event processing

rules to different execution environments.

Solution: David Luckham has introduced the con-

cept of event processing agents (EPA) in (Luckham,

2002). An EPA is a software component specialized

on event stream processing with its own rule engine

and rule base. An event processing network (EPN)

connects several EPAs to constitute an architecture

for event processing. Event processing agents com-

municate with each other by exchanging events.

Evaluation: Event processing agents are a central

and well-known CEP concept (Etzion and Niblett,

2010), (Luckham, 2002). Agents can be considered

as a distribution pattern deﬁning the relation between

rules and runtime environments. Firstly, agents pro-

vide an approach for modularizing and structuring

rules in the Event Processing Layer. Light-weighted

agents with few rules improve comprehensibility and

maintainability. Usually, the rules contained in a cer-

tain agent fulﬁll a coherent domain-speciﬁc task. Sec-

ondly, agents make the system faster and more scal-

able by exploiting distributed system architectures.

3.1.3 Pipeline

Problem and Context: To cope with complexity of

event processing, a general approach for structuring

the Event Processing Layer is needed.

Solution: A pipeline can be used as the general event

processing model. A pipeline is of a chain of pro-

cessing elements, arranged so that the output of an

element serves as the input of the next. This ap-

proach applies the well-known pipes-and-ﬁlters pat-

tern (Buschmann et al., 1998) on event processing.

The different stages of the pipeline are characterized

by the following properties.

Each stage knows only its direct successor. The

ﬁrst stage processes the raw events of the event

sources. The ﬁnal stage sends events to the backend

systems for triggering event handling.

A stage transforms incoming simple events into

more complex and meaningful events. Thus, the pro-

cessing of elements of the pipeline is directly related

to the hierarchy of event types. Each processing stage

is implemented by an event processing agent.

Evaluation: The Pipeline pattern provides a gen-

eral processing model for events. In particular, the

pipeline stages introduce sequential processing order

in CEP. The rules of a certain stage cannot be ap-

plied until the processing of the former stage has been

ﬁnished. This sequential view on event processing

makes the Event Processing Layer easier to under-

stand and to maintain. Furthermore, the stages of the

pipeline are good candidates for processing agents.

They provide loosely coupled processing elements

implementing a ﬁre-and-forget strategy: a stage sends

its results as event to its successor without knowing

anything about the subsequent processing stages.

3.2 Design Patterns

Design patterns describe the general mechanisms and

building blocks of event processing. They specify

archetypal processing stages of the Pipeline pattern.

3.2.1 Event Consistency

Problem and Context: Event data can contain

incorrect, meaningless or faulty data. Especially data

captured from the physical world tends to be noisy

and unreliable (Jeffrey et al., 2006).

Solution: A special cleaning step has to be processed

by a dedicated cleaning agent to detect any relevant

inconsistency. OCL constraints (OMG, 2003) can

be used to deﬁne valid ranges of event values. They

can be easily transformed into event processing

rules (Dunkel et al., 2009). Inconsistent events

can be deleted so that only completely consistent

events are subsequently processed. Incorrect data

is transformed into meaningful data, e.g. by using

default values. So, also events with partly incorrect

data are considered. Eventually, incorrect events

could simply be ignored, if the subsequent event

processing rules can deal with wrong event data.

Evaluation: An explicit cleaning step guarantees that

only consistent events are considered in subsequent

event processing steps. Thus, it simpliﬁes the CEP

rules, because they only have to deal with reasonable

data. Generally, the Consistency pattern decouples

event cleaning from event processing.

3.2.2 Event Reduction

Problem and Context: Event processing systems

have to deal efﬁciently with extremely high volumes

of event data. Therefore, one of the ﬁrst stages in

the processing pipeline tries to reduce the number of

events as early and as drastically as possible.

Solution: There are several design patterns to reduce

the set of the considered events.

• Filtering: All events that are not required for fur-

ther processing are logically removed from the

DesignPatternsforEvent-drivenEnterpriseArchitectures

189

event stream, i.e. only relevant events are passed

to the next stage. Usually, ﬁltering criteria are

rather simple, just considering events of a certain

type or containing data of speciﬁc ranges.

• Content-based Routing: propagates events only

to those agents that are interested in this type of

events. It provides some kind of event dispatch-

ing and splits an event stream into different sub-

streams. In fact, the total number of events is not

decreased, but each EPA has to deal with fewer

events. Note that content-based routing yields

stronger coupling between the agents, because

they need some knowledge about subsequent pro-

cessing (Bruns and Dunkel, 2010).

• Sliding Windows: To cope with the inﬁnite num-

ber of data, sliding windows are used, i.e. a his-

torical snapshot considering the most recent set of

events. Sliding windows are well-established in

event processing. Nearly all event processing lan-

guages contain language constructs for deﬁning

sliding windows. Sliding windows extract a lim-

ited set of events from an inﬁnite stream of events.

Evaluation: Different types of ﬁltering mechanisms

reduce the number of events. All the mechanisms

are well-known and established (Etzion and Niblett,

2010), (Hohpe and Woolf, 2003). Filtering should

be processed in a dedicated EPA as early as possi-

ble. Content-based routing provides the controlling

of event streams and can be implemented by a single

dispatching agent or spread over multiple agents. In

contrast, reduction windows are used in a single rule

as restrictive condition.

3.2.3 Event Transformation

Problem and Context: Usually, event data is not op-

timized for further processing: Event sources produce

events in a proprietary data format, which cannot

be used directly in the CEP engines. Often, events

don’t carry all the data necessary in a processing step.

Therefore, expensive accesses to the backend system

are necessary to retrieve the missing information.

Solution: There exist two types of transformation

steps to cope with the above problems.

• Translation: In an explicit translation step, the

data format is changed to another format appro-

priate to further processing (e.g. XML or JSON).

Note that a translation step does not add any new

information to an event instance.

• Content-enrichment: Simple events contain only

low-level data and are often incomplete for fur-

ther processing. For instance, measured vehicle

velocities should berelated to the allowed speed

limit. Thus, in an explicit transformation step the

event objects are enriched with additional struc-

tural information by accessing the backend sys-

tems. The content enrichment step improves the

performance of the entire system by reducing the

number of requests to the backend systems in the

subsequent processing steps.

Evaluation: Event translation and content-

enrichment preserve the total number of events,

but change the data format or insert additional

information to event objects. Content-enrichment is

also established in event processing (Coral8, 2006)

or message-oriented systems (Fowler, 2002). Note

that added information does not put any new meaning

to the events, but makes them self-contained for the

next processing steps. The content-enrichment step

should be located after event reduction and before the

more intelligent event processing starts, which needs

the enriched events.

3.2.4 Event Synthesis

Problem and Context: The main task of complex

event processing is to extract a domain-speciﬁc mean-

ing out of the observed streams of simple ﬁne-grained

and uncorrelated events. Considering a solitary event

is usually of no signiﬁcance, because it represents

just a single incident in the physical world. Instead,

according to the key idea of CEP, a set of ﬁne-grained

simple events must be correlated to a single complex

event with a signiﬁcant meaning (Luckham, 2002).

Solution: A set of simple events is synthesized to one

complex event that has more meaning. Event cor-

relation is strongly domain-speciﬁc, but some gen-

eral aspects of correlation can be identiﬁed. First,

we discuss how to determine the set of correlated

events. Then two stages of correlations are distin-

guished: granularity shifts and semantic shifts.

• Correlation Sets: A certain correlation set con-

tains all events that share a particular context.

Generally, we can distinguish different dimen-

sions for constructing correlations sets: Domain-

speciﬁc correlation correlates events according

to domain-speciﬁc properties (usually determined

by constraints on the event data attributes). Tem-

poral correlation takes temporal relations be-

tween events into account: Nearly all event pro-

cessing languages include temporal operators to

specify the chronological order of events or to

consider temporal sliding windows. Spatial cor-

relation considers those events that are observed

at a certain location for identifying spatial behav-

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

190

ior. To consider the occurrence space of events,

spatial operators must be used. Such operators

should allow space coordinate windows similar to

temporal sliding windows.

• Granularity Shift: Usually, the events emitted by

the event sources are too ﬁne-grained and uncorre-

lated to be meaningful for the business processes.

Therefore, an important aspect of CEP is achiev-

ing a shift of the event granularity. (Too) many

ﬁne-grained events are aggregated to a new and

more abstract composite event. Aggregation uses

rather simple numerical operations such as calcu-

lating averages or sums of event data for correlat-

ing events of the same type. It reveals no new

sophisticated insights in analyzing the situation

caused by the arrived events.

• Semantic Shift: The key issue of CEP is shift-

ing the event semantics: The single events within

a certain correlation set are mapped to a new

complex event that assigns the occurred events a

new non-obvious and semantically richer mean-

ing. The underlying correlation sets are based on

rather complex event patterns with respect to the

sophisticated knowledge of domain experts. Se-

mantic patterns describe complex dependencies

between events taking temporal constraints into

account. The signiﬁcance of a complex event is its

occurrence, not the data it is carrying. A complex

event can be used in subsequent processing or for

triggering immediate reactions in operational en-

terprise systems.

Evaluation: Event synthesis aggregates simple

events and transforms them to a new complex event

on a higher level of abstraction. Event correlation is

discussed generally in the context of event patterns in

many works, e.g. (Luckham, 2002), (Coral8, 2006).

Here, we present some general correlation mecha-

nisms that are application independent. First, corre-

lation sets determine the simple events to be corre-

lated. The concept of correlations sets is well-known

in other areas such as in business process model-

ing. Secondly, we argue that event correlation is pro-

cessed in two subsequent steps of the event process-

ing pipeline. A granularity shift just aggregates sim-

ple ﬁne-grained events to a coarse-grained compos-

ite event still without providing new gain of insights.

Then, complex event processing rules deﬁne patterns

in the stream of composite events that represents a sig-

niﬁcant meaning about. Thus, a semantic shift takes

place.

4 REFERENCE ARCHITECTURE

In this section, we apply the catalogue of patterns to

derive a reference architecture for event processing.

The reference architecture provides a template for the

design of event processing systems. To obtain a con-

crete architecture for a particular domain, the refer-

ence architecture has to be customized and adapted

to the speciﬁc domain requirements. Figure 1 depicts

the logical view of the architecture with its essential

layers and components.

Event Consistency

Event

Reduction

Historical

Data

Event Processing

Event Flow

Structural

Data

Services Visualization

Monitoring

ltering

Event Synthesis

In-Adapter

translation

granularity

shift

semantical

shift

Event Trans-

formation

content

enrichment

Business

Events

cleaning

technical

access

Event Handling

Event

Streams

Figure 1: Reference architecture for event processing.

The global structure is based on the Layers pattern

distinguishing the three software layers monitoring,

event processing and event handling with the particu-

lar responsibilities described in section 3.1.1.

The event processing layer is organized as a pro-

cessing Pipeline according to section 3.1.3. The

pipeline provides a general processing model of

events deﬁning a number sequentially traversed

stages. Each stage of the pipeline is implemented

by a dedicated Agent (as described in section 3.1.2).

Light-weighted agents allow the distribution of event

processing rules between different runtime environ-

ments. Design patterns of our pattern catalogue de-

scribe the different components of each layer:

Event Monitoring: The monitoring layer is re-

sponsible for gathering events from multiple event

sources as well as for the preprocessing of the

raw events. The In-Adapter component implements

the technical access to the different types of event

sources. Afterwards, according to the Event Consis-

tency pattern, a separate cleaning step is processed

(see section 3.2.1): defect, faulty or double event ob-

jects are sorted out or corrected.

Event Processing: The event processing layer im-

plements a pipeline, where each stage transforms sim-

DesignPatternsforEvent-drivenEnterpriseArchitectures

191

ple incoming events into more complex and meaning-

ful events. The pipeline is organized on the base of

the following archetypal agents. As a ﬁrst step of the

pipeline an Event Reduction agent reduces the number

of events by performing a ﬁltering step (as described

in section 3.2.2). Only events relevant for further pro-

cessing are propagated to the next pipeline stage.

Then the relevant events pass an Event Transfor-

mation phase, where a content-enrichment step is pro-

cessed (according to section 3.2.3). Structural data re-

trieved from the backend systems is added to the event

objects to make them self-contained for the next pro-

cessing steps.

Event Synthesis: The last stage in the process-

ing chain is the most signiﬁcant one: The ﬁltered

and enriched simple events are aggregated, correlated,

and synthesized to new and more complex (business)

events. This stage is usually complex and can con-

sist of a processing pipeline on its own. The concrete

steps are domain-speciﬁc and can only be described

on a general level as discussed in section 3.2.4. First

event aggregation provides a granularity shift. Then

a semantic shift infers higher insight out of the set of

correlated events by applying rules based on expert

knowledge.

Event Handling: The event handling layer is re-

alized by the enterprise backend systems, which im-

plement appropriate reactions to received events (see

bottom layer in Figure 1).

5 CONCLUSIONS

In this paper, we introduced a catalogue of patterns

that supports the development of event-driven enter-

prise architectures. All patterns are described in a

standardized form providing a vocabulary and a con-

ceptual framework that leads to a more structural ap-

proach for the design of event processing systems.

We proofed the usefulness the presented pattern

catalogue by deriving a general reference architec-

ture. Our reference architecture is pattern-based and

supports the developers of event processing applica-

tions in their design decisions. It facilitates the con-

struction of systems, leads to reduced development

time of event processing applications, and fosters the

reuse of successful EP solutions.

REFERENCES

Bruns, R. and Dunkel, J. (2010). Event-Driven Archi-

tecture: Softwarearchitektur f

ur ereignisgesteuerte

Gesch

aftsprozesse. Springer-Verlag, Berlin Heidel-

berg.

Buschmann, F., Meunier, R., Rohnert, H., Sommerlad,

P., and Stal, M. (1998). Pattern-Oriented Software-

Architecture Volume 1: A System of Pattern. Addison

Wesley.

Chandy, K. and Schulte, W. (2010). Event Processing: De-

signing IT Systems for Agile Companies. McGraw-

Hill.

Coral8 (2006). Complex event processing: Ten

design patterns. http://complexevents.com/wp-

content/uploads/2007/04/Coral8DesignPatterns.pdf.

Dunkel, J., Fernandez, A., Ortiz, R., and Ossowski, S.

(2009). Injecting semantics into event-driven architec-

tures. In Proceedings of the 11th International Con-

ference on Enterprise Information Systems (ICEIS),

pages 70–75.

Dunkel, J., Fernandez, A., Ortiz, R., and Ossowski, S.

(2010). Event-driven architecture for decision support

in trafﬁc management systems. Expert Systems and

Applications.

EPTS (2012). Event Processing Technical Society.

http://www.ep-ts.com.

Etzion, O. and Niblett, P. (2010). Event Processing in Ac-

tion. Manning.

Fowler, M. (2002). Patterns of Enterprise Application Ar-

chitecture. Addison-Wesley.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1998). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Hohpe, G. and Woolf, B. (2003). Enterprise Integrations

Patterns: Designing, Building, and Deploying Mes-

sage Solutions. Addison-Wesley.

Jeffrey, S., Alonso, G., Franklin, M., Hong, W., and Widom,

J. (2006). A pipelined framework for online cleaning

of sensor data streams. In ICDE, pages 140–142.

Luckham, D. (2002). The Power of Events. Addison-

Wesley.

Michelson, B. (2006). Event-driven architecture overview.

http://www.psgroup.com/detail.aspx?id=681.

OMG (2003). UML 2.0. Object Con-

straing Language (OCL) Speciﬁcation.

http://www.omg.org/docs/ptc/03-10-14.pdf.

Paschke, A. (2009). A semantic design pattern language

for complex event processing. In Proceedings of the

AAAI Spring Symposium on Intelligent Event Process-

ing, pages 54–60.

Paschke, A. and Vincent, P. (2009). A reference architec-

ture for event processing. In Proceedings of the Third

International Conference on Distributed Event-Based

Systems (DEBS). ACM.

Schulte, R. and Bradely, A. (2009). A Gartner refer-

ence architecture for event processing networks. ID

G00162454.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

192
