A Study in User-centric Data Integration

Heiner Stuckenschmidt

1,2

, Jan Noessner

and Faraz Fallahi

School of Business Informatics and Mathematics, University of Mannheim, 68159 Mannheim, Germany

Institute for Enterprise Systems (InES), L 15, 1-6, 68131 Mannheim, Germany

ontoprise GmbH, An der RaumFabrik 33a, 76227 Karlsruhe, Germany

Keywords:

Data Integration, User Study, Software Tools, Usability.

Abstract:

Data integration is a central problem in information systems. While the problem of data integration has

been studied intensively from a technical point of view, less attention has been paid to user aspects of data

integration. In this work, we present a user-centric approach to data integration that supports the user in ﬁnding

and validating mapping rules between heterogeneous data sources. The results of our report underline that the

user-centric approach leads to better integration results and is perceived as being more intuitive, especially for

users with little or no technical knowledge.

1 INTRODUCTION

The problem of information integration is om-

nipresent in information systems and can be seen as

one of the major challenges, both, on the technical

and the organizational level. In this paper, we fo-

cus on the problem of transferring complex data from

one into another representation in order to support ex-

change between different systems, also referred to as

data integration.

The problem of data integration has been studied

intensively on a technical level in different areas of

computer science (Halevy et al., 2006; Euzenat and

Shvaiko, 2007). Researchers have investigated the au-

tomatic identiﬁcation of semantic relations between

different datasets (Euzenat and Shvaiko, 2007) as well

as the representation and use of identiﬁed relations for

data transfer and query answering (Bellahsene et al.,

2011). A prominent line of research investigates the

use of ontologies - formal representations of the con-

ceptual structure of an application domain - as a basis

for both, identifying and using semantic relations.

In contrast to this work, we are more interested in

data integration as a task and in how we can empower

the user to solve this task more efﬁciently and effec-

tively. A successful solution to this problem would

have signiﬁcant implications for data integration in

industrial practice. Traditionally, data integration is

done by computer science experts of an enterprise or

even outsourced to a service provider specialized in

solving data integration problems. The fundamental

problem of this approach is the fact, that the integra-

tion experts are often not experts with respect to the

data that is to be integrated. This means that their

ability to identify conceptual errors within the inte-

grated data is limited. As a consequence, errors are

often found by the user when the data has already

been migrated. Fixing such problems at this point

typically requires intensive communication between

the user and the integration expert and causes over-

head. This efﬁciency loss could be avoided if the user,

who knows the data, but not necessarily the underly-

ing technology, would be able to identify and ﬁx inte-

gration problems directly.

Following the design science approach (Von Alan

et al., 2004), we designed and implemented a user-

centric data integration tool called MappingAssis-

tant(Noessner et al., 2011; Fallahi et al., 2011)

. This

tool allows the user to specify and validate semantic

mappings between two datasets following an interac-

tive process model: after specifying a semantic map-

ping, the system automatically translates data using

the speciﬁed mapping and presents selected results of

this translation to the user, who can then mark individ-

ual results as correct or incorrect. Based on this user

input, the system identiﬁes mistakes in the semantic

mappings by asking the user about the correctness of

The interested reader is referred to

http://www.ontoprise.de/de/forschung-und-entwicklung/m

appingassistant/ for further information. An illustrative

video is available at http://www.youtube.com/watch?v=72

abBBTﬂ E.

Stuckenschmidt H., Noessner J. and Fallahi F..

A Study in User-centric Data Integration.

DOI: 10.5220/0003971700050014

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 5-14

ISBN: 978-989-8565-12-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

certain statements dealing with the conceptual model

of the data.

In this paper we report the results of a user study

that compared the user-centric integration method im-

plemented in the MappingAssistant tool with the use

of a pure mapping editor that does not interact with

the user. We show that the use of the MappingAssis-

tant approach signiﬁcantly improves the performance

of human users and that the method is especially

suited for supporting users with few technical skills.

The paper is organized as follows. In Section 2

we discuss the concept of user-centric data integration

and brieﬂy review related work on the topic. Section 3

brieﬂy introduces the MappingAssistant tool that we

created. The user study evaluating the MappingAs-

sistant tool, which is the main topic of this paper, is

described in Section 4. We present our research hy-

potheses, deﬁne the experimental setting and the used

datasets. Section 5 presents and discusses the results

of the study. The paper closes with some conclusions

in Section 6.

2 USER-CENTRIC DATA

INTEGRATION

Studying data integration from a user point of view is

a relatively new ﬁeld of investigation. Traditionally,

user studies have rather focused on the problem of

personal information management. Data integration

can be seen as an important aspect of personal infor-

mation management (Teevan et al., 2006), however,

research has focused on other aspects like the orga-

nization of emails or documents. In a recent study,

Gass and Maedche have investigated the problem of

data integration in the context of personal informa-

tion management from a user-centric point of view

(Gass and Maedche, 2011). The scenario addressed

in their work, however, focuses on the integration of

rather simple data schemas, in that case personal data

where the task is mainly to map properties describ-

ing a person (e.g. name or bank account number). In

many data integration scenarios like product data inte-

gration or computer aided design and manufacturing

we face much more complex conceptual models and

mapping rules.

Recently, researchers in ontology and schema

matching have recognized the need for user support in

aligning complex conceptual models (Falconer, 2009;

Falconer and Storey, 2007). Most approaches are

based on advanced visualization of the models to

be integrated and the mappings created by the user

(Granitzer et al., 2010). While the appropriate use of

visualizations is known to be a key aspect for success-

Figure 1: The cognitive support model for data integration

by Falconer (Falconer and Noy, 2011).

ful manual data integration, visualizations quickly

reach their limits in the presence of very complex or

very large models.

As a result, recent work tries to go beyond pure

visualization support and tries to include cognitively

efﬁcient interaction strategies to support the user (Fal-

coner and Noy, 2011). Falconer proposes an interac-

tive strategy for data integration where the integration

task is distributed between the user and the tool (com-

pare Figure 1).

3 THE MappingAssistant TOOL

In data integration much work has been invested in

producing data integration rules with ontology match-

ing systems automatically (Euzenat, J. and Ferrara,

A. and Hollink, L. and Isaac, A. and Joslyn, C. and

Malais

e, V. and Meilicke, C. and Nikolov, A. and

Pane, J. and Sabou, M. and others, 2010). However,

these rules are still error-prone and, therefore, need to

be supervised by a human domain expert. This su-

pervision should be effectively supported by applica-

tions.

Existing applications like AgreementMaker (Cruz

et al., 2009) present the generated data integration

rules directly to the user. Although these tools try

to visualize complex data integration rules in an easy

understandable way, the evaluation of these rules still

requires a signiﬁcant amount of expert knowledge.

Furthermore, in real-world scenarios users are usually

confronted with ill-labeled concepts, making the anal-

yses even more complex and time-consuming.

The approach of MappingAssistant (Noessner

et al., 2011; Fallahi et al., 2011) simpliﬁes the align-

ment evaluation process by investigating the direct

consequences of the data integration rules. In particu-

lar, the MappingAssistant approach allows to evaluate

the instance data like product numbers or customers

directly, rather than analyzing complex data integra-

tion rules. One of the advantages is that in real-world

scenarios the domain expert often has sophisticated

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

Figure 2: Modiﬁed cognitive support model implemented

in the MappingAssistant Tool.

knowledge about the instance data in his domain.

The MappingAssistant approach implements the

cognitive support model for data integration by Fal-

coner (compare Figure 2). In the decision making

process, the user inspects the data and decides which

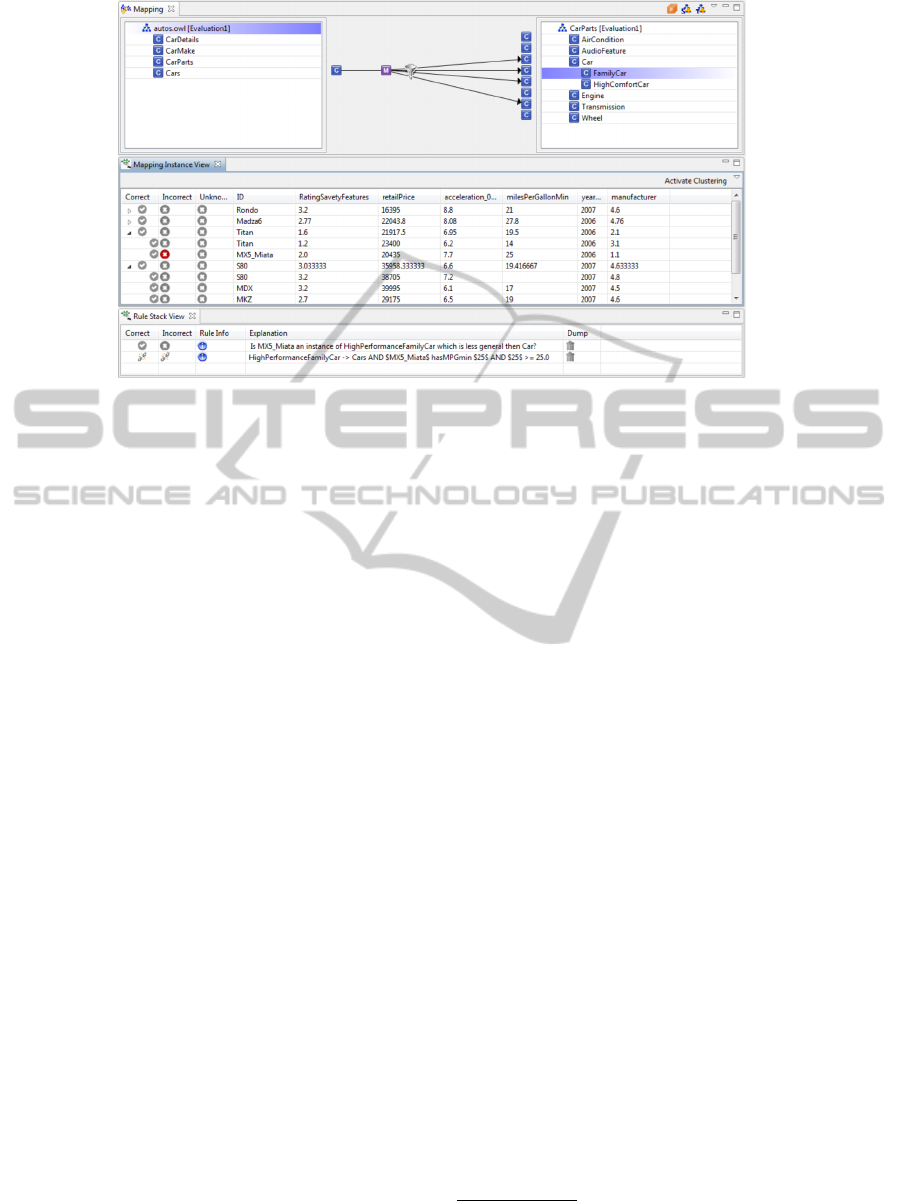

concept he wants to examine. In the example shown

in Figure 5 the user selected FamilyCar in the target

schema. In the interaction step, the user identiﬁes

those instances which have been classiﬁed incorrectly

and marks them as correct or incorrect. Due to the

amount of instances a user can be faced to diagnose

we utilize different clustering techniques in order to

reach data simpliﬁcation. Attribute-driven combina-

tions of weighted hierarchical and partial clustering

algorithms, as mostly described in (Hair Jr et al.,

1995), are therefore utilized. In our example of Fig-

ure 5 the MX5 Mieta is a two seated car and, thus, not

a FamilyCar.

In the generation phase a diagnostic algorithm

computes the minimal amount of user questions

which are needed in order to determine wrong rules

or facts. When the user depicts an instance as in-

correct, we generate a proof-tree for the correspond-

ing concept-assertion like FamilyCar(MX5 Mieta)

in our example. Since the user evaluation is correct

by assumption, the prolog-based proof-tree must con-

tain at least one wrong node. In order to determine

this wrong node our approach traverses the proof-tree

in a way that the amount of user questions are mini-

mized for correct as well as for incorrect answers of

the user.

In the representation phase, the MappingAssis-

tant tool generates questions based on the information

it gets from the proof-tree algorithm before. These

questions are represented to the user in natural lan-

guage based sentences in a todo-list, as shown in Fig-

ure 5. If the wrong rule or fact already has been

determined the algorithm terminates. Otherwise the

user is faced with the next question, which was deter-

mined by the diangostic algorithm in the generation

phase. The approach is implemented as an extension

of the OntoStudio Ontology Engineering Workbench

(Maier et al., 2003).

4 A USER STUDY

As part of the MappingAssistant project, we carried

out a study in user-centric data integration. The goal

of the study was to show that an interactive approach

to data integration leads to better results than tradi-

tional approaches. In the following we discuss the

goals, the design and the results of this study in more

details. In Subsection 4.1 we ﬁrst deﬁne the hy-

potheses tested in the study in more details, we then

present and justify the experimental design in Subsec-

tion 4.2.1 and present the dataset used in the experi-

ment in Subsection 4.3. Finally, Subsection 4.4 pro-

vides demographic information about our subjects.

4.1 Hypotheses

The user study was carried out to establish the gen-

eral hypotheses of our work, which can be phrased as

follows:

The cognitive support model helps users to correctly

and efﬁciently integrate complex data.

We have to further substantiate this hypothesis in sev-

eral ways to arrive at a useful experimental design. In

particular, we have to be more explicit about the na-

ture of the support model, the kind of users addressed

as well as the integration task to be solved and the

notions of efﬁciency and correctness. In the follow-

ing, we thus provide more concrete deﬁnitions of the

hypotheses to be tested.

4.1.1 Cognitive Support Model

We consider the extended cognitive support model

in the way it is implemented in the MappingAssis-

tant System (Figure 2): The system generates map-

ping hypotheses and executes them. Traditionally,

automatic generation of such mappings are generated

by lexical and/or tree structure based matching algo-

rithms as described in (Euzenat and Shvaiko, 2007).

The results are represented in terms of translated data

instances. The user inspects the translated data and

decides on the correctness of data items thereby pro-

viding feedback to the system. The user thereby trig-

gers a second interaction cycle, where the system asks

questions about the mappings and the underlying con-

ceptual model waiting for the user to answer them.

4.1.2 Propective Users

The motivation for designing the extended cognitive

support model and for implementing the MappingAs-

sistant was to enable users with little or no technical

knowledge in data integration. Thus, our reﬁned hy-

pothesis is that users with limited knowledge in conc-

AStudyinUser-centricDataIntegration

eptual modeling and data integration show a better

performance when supported by the cognitive support

model. Further, we assume that the positive effect is

stronger for people with very little knowledge than it

is for users with more knowledge in these areas.

4.1.3 Integration Task

We decided to focus on the task of validating an exist-

ing set of mappings rather than creating a new set of

mappings. If each subject is asked to create a new set

of mapping, we would get many different solutions

which might all be correct. Especially when complex

data structures are involved the same integration task

can be solved using different sets of mapping rules.

This makes it extremely difﬁcult to measure the cor-

rectness and completeness of the solution provided by

a user. In contrast to this, identifying errors in an ex-

isting set of mapping rules is a more well-deﬁned task

that has a unique solution, provided the test data is de-

signed in a suitable way.

4.1.4 Quality Criteria

We expect two positive effects of using the cogni-

tive support model. The ﬁrst one is efﬁciency, which

means that a user is able to ﬁnd errors in a set of map-

ping rules in a shorter period of time. The second

one is effectiveness: we assume that a user is able to

ﬁnd more errors with the MappingAssistant approach,

which would have remained undiscovered without the

support by the system.

In the context of a controlled experiment, it is hard

to distinguish these two effects; our hypothesis is that

users are able to ﬁnd more errors in a ﬁxed period of

time.

4.2 Experimental Design

In the following, we describe the experimental design

of a user study we carried out to test our hypotheses.

4.2.1 Study Design

The general idea of the experiment is to compare the

MappingAssistant approach to data integration with a

conventional approach that is solely based on the use

of a mapping editor. As a result, the study consists

of two tasks, both concerned with identifying errors

in a set of mapping rules that combines two concep-

tual schemas. In order to control external parameters

of different integration tools, both tasks are carried

out using the OntoStudio knowledge Engineering en-

vironment. OntoStudio contains a mapping editor that

can be used to visually inspect and modify a set of

mapping rules as well as an extension that implements

the MappingAssistant approach.

Based on this technology we created the study de-

sign depicted in Figure 3.

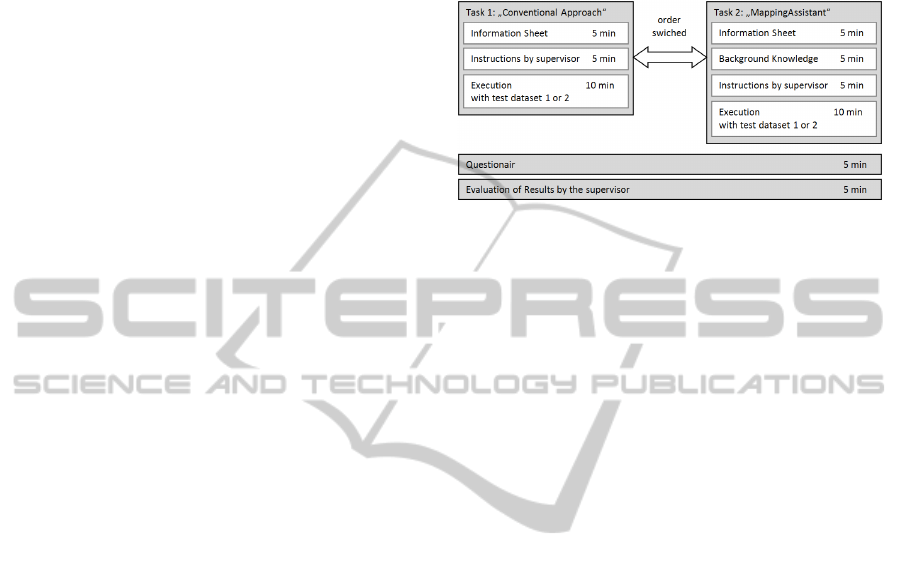

Figure 3: Design of the user study.

Participants have to solve two integration tasks in

a timeframe of 10 minutes each. Before each task, the

participants are briefed about the task. The informa-

tion given to the user consists of an information sheet

explaining the task and instructions by a supervisor

who answers questions about the task without provid-

ing hints towards the expected results. The timeframe

for this instruction phase has been determined indi-

vidually for the two tasks, but is the same for all par-

ticipants.

The order in which the two tasks are carried out is

switched after every subject in order to avoid an efﬁ-

ciency bias for the second task due to a training effect.

Since all participants perform both tasks, we do not

need to divide the users in groups, but can compare

the performance and experience of the users directly.

Furthermore, two different datasets are used,

which are assigned to the two different tasks ran-

domly for the purpose of ruling out a possible bias

due to a different level of difﬁculty. After a subject

has carried out both tasks, he or she is asked to ﬁll

in a questionnaire on the perceived difﬁculty and sup-

port by the tool as well as on the level of expertise of

the subject.

Thus, in our study the independent variable is de-

termined by either using the conventional approach

(Integration Task 1) or the MappingAssistant ap-

proach (Integration Task 2). The dependent variable

is the number of errors the subjects found in the re-

spective dataset(Wohlin, 2000).

The following subsections provide more informa-

tion about the two integration tasks, data and subjects

used in the study as well as on the contents of the

questionnaire.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

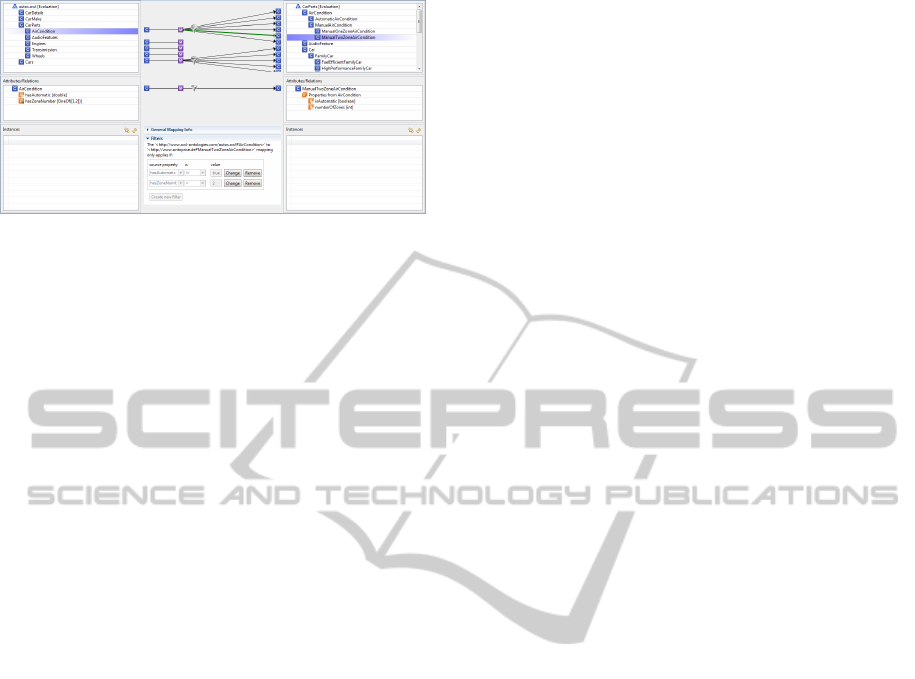

Figure 4: Traditional user interface for creating and evalu-

ating semantic mappings.

4.2.2 Integration Task 1 (Conventional

Approach)

Integration Task 1 consists of using the conventional

user interface of the OntoStudio Mapping Editor to

discover errors in a set of mapping rules. Figure 4

shows the user interface used in this task. It shows

the conceptual model of the source data on the left and

the source model on the right hand side. The models

consist of classes, relations and instances.

The mapping rules connecting the two models are

displayed visually in the middle of the screen. Below

the visual representation of the mappings, speciﬁc ﬁl-

ter conditions for mapping rules can be displayed in

the form of pre-selected drop-down menus by click-

ing on a mapping rule.

The task of the user is to inspect the mapping rules

for errors by navigating the conceptual models and the

mapping rules and their ﬁlter conditions. This stan-

dard conﬁguration of the tool does not provide spe-

cial functionality for focusing on problematic issues,

meaning that the user has to actively search for errors

without being guided by the tool.

4.2.3 Integration Task 2 (MappingAssistant

Approach)

The second task consists of solving the same prob-

lem, namely the identiﬁcation of errors in a set of

mapping rules. However, instead of the conventional

mapping editor, the MappingAssistant plug-in is used.

Its interface also shows the conceptual model of the

source and the target data set and the mappings be-

tween the elements. Instead of the ﬁlter conditions

of the rules, however, the interface shows results of

translating data using the mapping rules, as well as

a todo-list with questions generated by the tool that

have to be answered by the user (compare Figure 5).

Additionally, the plug-in allows for utilizing different

clustering techniques in order to reach data simpliﬁ-

cation on the instance level.

The task of the user is again to inspect the map-

pings for errors. This time, however, an interactive

process is used. The user actively selects a class in

the target model and inspects the instances that have

been created by executing the mapping rules. Based

on his or her knowledge of the domain, the user can

mark rows in the data table as incorrect indicating that

they are not mapped coorectly to the selected class in

the target model. His action then triggers a diagnosis

procedure that generates yes/no questions about the

conceptual structure of the data and displays the ques-

tions in the todo-list. The user has to answer these

questions thereby guiding the semi-automatic diag-

nosis process to the errors. Once an error has been

found, the user can select another class in the target

schema and so forth.

4.2.4 Questionaire

The questionnaire that had to be ﬁlled in by all par-

ticipants consisted of four parts. All questions except

demographic questions had to be answered on a 1-5

scale:

1 deﬁnitely disagree,

2 rather disagree,

3 neither agree nor disagree,

4 rather agree,

5 deﬁnitely agree.

In the following, the different question categories

are discussed:

Previous Knowledge: this category contained

questions about the knowledge and expertise of

the subject in the areas of data modeling and data

integration. Examples of questions from this area

were:

• I am experienced with using complex software

tools

• I am used to apply ﬁlter rules for selecting data

(e.g. in Microsoft Excel)

• I have good knowledge about formal data models

• I have good knowledge in data matching and inte-

gration

Task 1: This part of the questionnaire explicitly ad-

dresses the experiences of the subjects with respect to

performing Task 1. The goal was to get a better idea

of the perceived complexity and difﬁculty of this task.

Examples of questions were:

• I was confused by the representation of the map-

ping rules

AStudyinUser-centricDataIntegration

Figure 5: Interactive user interface of the MappingAssistant data integration tool.

• I was able to decide on the basis of the ﬁlter ex-

pressions whether a mapping is correct or not

• It was easy to work off the mappings without

missing out on something

Task 2: This part focused on the experience of the

subjects with solving task 2 and being supported by

the MappingAssistant tool. The goal was to judge

the level of support provided by the system. Exam-

ple questions were:

• It was easy to identify wrong instance data

• The presentation of wrong mapping rules by the

system was intuitive

• The attributes of translated data items helped me

to identify mistakes

Comparison of Task 1 and Task 2: In order to be

able to compare task 1 and task 2 the following ques-

tion was asked in both tasks:

• The handling was intuitive

Demographics: Finally some demographic infor-

mation was asked including age, gender and occupa-

tion of the subjects.

4.3 Datasets

When selecting the datasets for the study, we had to

ﬁnd a trade-off between the following issues. On the

one hand having a problem that can be understood

and solved within the limited timeframe of the study

and on the other having enough complexity to ade-

quately represent a realistic data integration challenge

and supporting our assumption that our method works

well for complex problems. In order to be able to sat-

isfy these needs we decided to use a combination of

existing data and data that has been created manually

for the study.

4.3.1 Source Dataset

We decided to use a technical domain because of the

typical rich feature-sets and complex deﬁnitions. As

it turned out that real world datasets were much too

large and complex to be handled in the study, we

chose an instructional dataset from the car-selling do-

main

that was automatically converted to ﬁt the data

model of the OntoStudio Tool. The dataset contains

324 data records that are described using more than

100 attributes. In addition the data is organized in

a concept hierarchy containing 91 concepts. This

makes the dataset complex enough to pose a real data

integration challenge, but as we could also conﬁrm

in the study, small enough to be handled in a limited

amount of time.

4.3.2 Target Schema

In order to be able to control the experiment and in-

clude different types of errors in the alignment, we

manually built a target schema to which the records

of the source dataset need to be translated. Building

the schema, we followed established best practices for

conceptual modeling.

The resulting schema consists of a 29 classes or-

ganized in a hierarchy (compare Figure 6) and 20 at-

http://gaia.isti.cnr.it/∼straccia/download/teaching/SI/20

06/Autos.owl

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

tributes for describing data records.

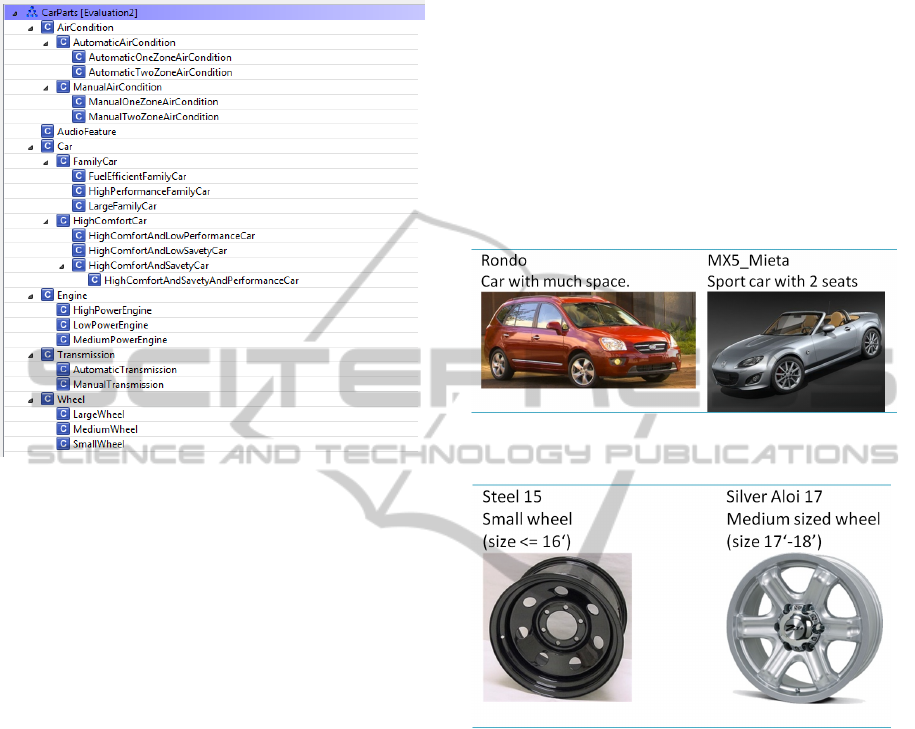

Figure 6: Class hierarchy of the manually created target

schema.

4.3.3 Mapping Rules

We manually created a set of mapping rules between

the two schemas and validated the correctness of the

mappings with respect to correctly translated data.

Based on this correct mapping set, we created two

mapping sets each of which contain ten errors. We

introduced errors with different level of complexity.

The main task of the participants in the study was

detecting as much of the produced errors as possible

within the limited timeframe.

The simplest type of wrong mapping rules are

rules connecting classes that are not identical. An

example is the mapping rule wheel on engine. We

assume that these kinds of errors are easy to spot even

by inexperienced users. Out of ten errors each dataset

contained four errors of such a kind.

The second type of errors was introduced

by modifying the ﬁlter conditions associated

with a correct mapping rule. An example

would be the rule mapping AirCondition to

AutomaticOneZoneAirCondition. The cor-

rect ﬁlter conditions for this mapping rule are

hasZoneNumber = 1 and hasAutomatic = true.

In this case we modiﬁed the ﬁlter conditions to

hasZoneNumber = 2 and hasAutomatic = false.

We assume that these kinds of errors are harder to

identify by the user because it requires a detailed

investigation of the mapping deﬁnition. Each of the

two mapping sets contained six out of ten errors of

this type.

4.3.4 Domain Information

Participants were provided with background knowl-

edge about the domain of interest. The knowledge

consisted of information about speciﬁc car types and

car equipment. The respective information was pro-

vided in terms of images in combination with short

descriptions. Figures 7 and 8 show examples of such

information for cars and wheels.

Figure 7: Simulated background knowledge about cars.

Figure 8: Simulated background knowledge about wheels.

4.4 Participants

Twenty-two subjects participated in the user study.

Six of the subjects were female and sixteen male.

The average age of the subject was 27.8 year with

the youngest subject being 21 and the oldest over 50.

About half of the subjects (54% of the persons in-

volved in the study) were students.

All participants were used to utilize complex soft-

ware tools (average: 4.91). On average subjects had

medium experience with using ﬁlter rules (average:

3.72), conceptual models (average: 3.13), and data

integration (average: 2.72) in the past.

In all three cases, the answers ranged from 1 to 5

providing a good coverage of different levels of ex-

pertise. In particular, the variance of the subjects’ ex-

perience using ﬁlter rules was 1.92, using conceptual

models was 2.22, and using data integration was 1.79.

AStudyinUser-centricDataIntegration

5 EXPERIMENTAL RESULTS

We analyzed the results of the study with respect to

the quality of the results produced by the participants,

the correlation of the results with the level of exper-

tise and the perceived support by the system. Since all

users perform both integration tasks, we can directly

compare the users’ performance on the respective in-

tegration tasks.

The detailed results are presented in the following

subsections.

5.1 Quality of the Results

We measure the quality of the results for an individual

participant by comparing the errors identiﬁed by the

user with the set of errors previously introduced in the

mapping set. We use well known quality measures

from the area of information retrieval, more speciﬁ-

cally precision, recall and F

-measure. Before pre-

senting the results, we brieﬂy recall the deﬁnition of

these measures.

Let T P denote the number of true positives, that is

the number of errors that have correctly been identi-

ﬁed by a subject, FP the number of false positives that

is the number of mapping rules that have falsely been

identiﬁed by the subject as an error and FN the num-

ber of false negatives, namely the number of errors

that have not been found by the subject. Following

this deﬁnition precision (P), recall (R) and F

mea-

sure (F

) are deﬁned as follows:

P =

T P

T P + FP

(1)

R =

T P

T P + FN

(2)

(1 + 2

)P · R

)P + R

5P · R

4P + R

(3)

Figure 9 compares precision, recall and F2 mea-

sure that have been achieved by the subjects on aver-

age for the two integration tasks.

The results show that there was no signiﬁcant

difference between the conventional tool and the

MappingAssistant approach with respect to precision.

Both values are close to 1.0 meaning that subjects al-

most never identify mappings as errors that are actu-

ally correct. We can see however, that there is a sig-

niﬁcant difference with respect to recall. Using con-

ventional technology, the subjects were only able to

ﬁnd two thirds of the errors on average. In compari-

son to that, using our approach the yielded recall was

much higher than utilizing conventional technology.

In particular, the subjects on average were able to ﬁnd

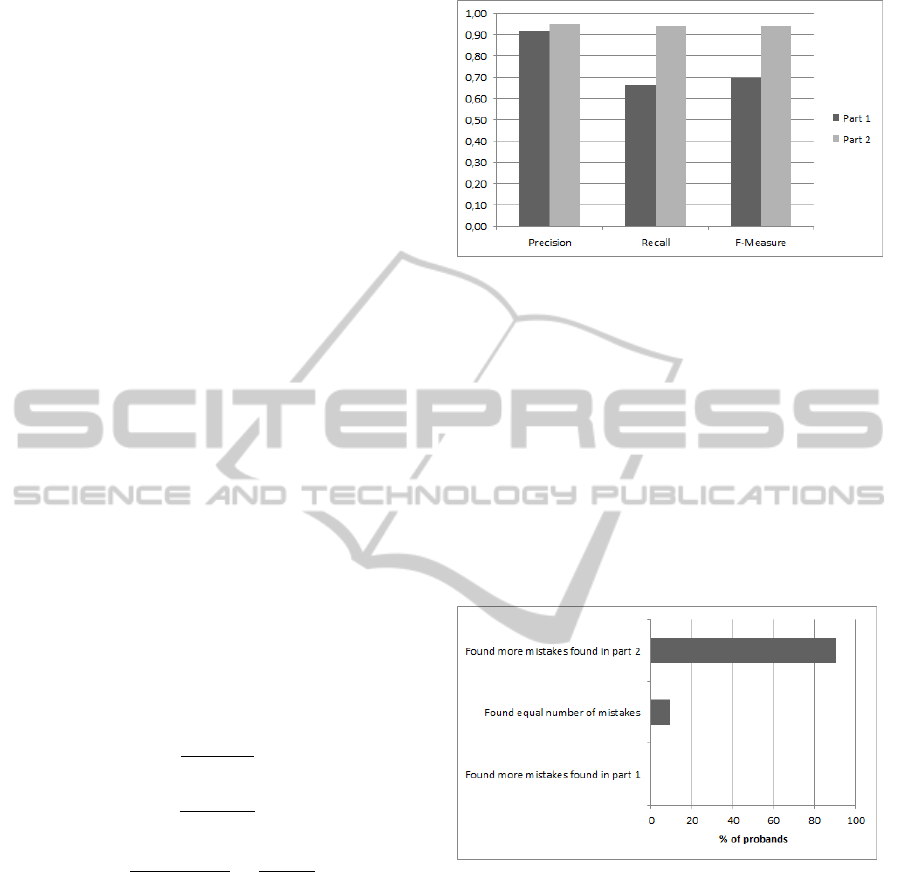

Figure 9: Average performance of subjects on the two inte-

gration tasks.

nine out of ten errors within the given time frame of

ten minutes.

The advantage of the MappingAssistant approach

with respect to identifying existing errors more efﬁ-

ciently becomes even more obvious when looking at

Figure 10. It shows that 91% of the subjects found

more errors using MappingAssistant than with the

conventional tool. 9 % of subjects found the same

number of errors and none of the subjects showed a

better performance with the conventional technology.

Figure 10: Comparison of performance on subject level.

The results clearly show that our method helps

users to ﬁnd more errors in a given period of time

thereby conﬁrming our hypothesis that the method in-

creases efﬁciency and effectiveness of data integra-

tion.

5.2 Correlation with Level of Expertise

In order to test our hypothesis that our method in par-

ticularly supports users with limited technical knowl-

edge, we compared the performance of participants

with their previous knowledge in conceptual model-

ing and data integration. When comparing previous

knowledge in conceptual modeling and data integra-

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

tion with the overall performance in task 1, we can

see that there is indeed a relation between these two

aspects (compare Figure 11).

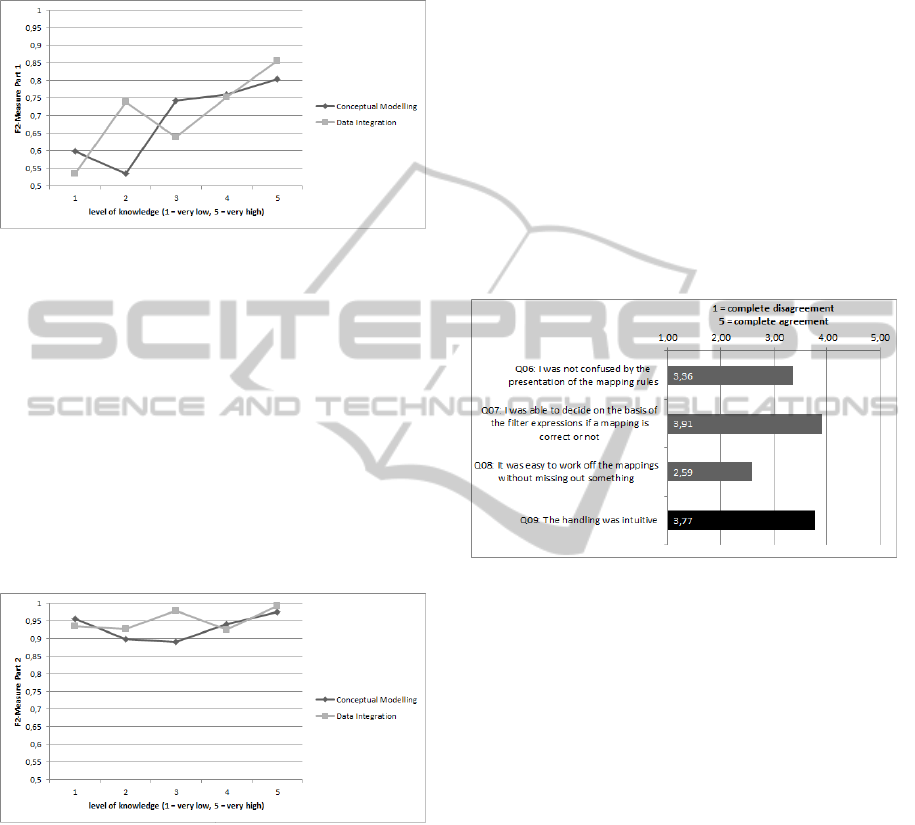

Figure 11: Relation between previous knowledge and per-

formance in integration task 1.

We can conclude that for successfully performing

data integration with a conventional tool a high degree

of expertise in conceptual modeling and data integra-

tion is needed. While the trend is not that clear with

respect to previous knowledge in conceptual model-

ing, the result is more conclusive with respect to pre-

vious knowledge in data integration.

Figure 12 shows the relation between the level of

previous knowledge and the performance improve-

ment achieved by using the MappingAssistant ap-

proach.

Figure 12: Relation between previous knowledge and per-

formance in integration task 2.

With the MappingAssistant approach the subjects

achieved high F

measure results. The results of the

test persons were independent from the previous de-

gree of expertise in conceptual modeling as well as

data integration.

Although the results are not as clear as for the

quality improvement, we can observe that the per-

formance using the MappingAssistant is independent

from previous knowledge. In summary, these results

conﬁrm our hypothesis that a user-centric interactive

approach to data integration has a stronger positive

effect for people with little technical knowledge com-

pared to the conventional approach.

5.3 Qualitative Results

In addition to the objective results, we were also inter-

ested in how the different tasks were perceived by the

users. In particular, we wanted to ﬁnd out, how intu-

itive the user interface was and how the users judged

the difﬁculty and the support by the systems. In the

following we present the answers to several questions

related to the mentioned aspects.

Figure 13 shows the average answer of the users

with respect to task 1 according to the 1-5 scale

where 1 means complete disagreement and 5 com-

plete agreement.

Figure 13: User feedback on task 1.

The results show that users found difﬁcult to com-

plete the task without missing mapping rules. With

respect to the other questions about the difﬁculty of

the task and the design of the user interface, the users

were rather indifferent. Figure 14 shows the an-

swers of users with respect to task 2. Here we see

that in general there is a much higher agreement of

users with questions concerning the beneﬁts of the

approach. In particular, users considered the Map-

pingAssistant approach to be more intuitive than the

traditional one (3.77 vs. 4.55 average score) support-

ing our hypothesis.

While the results are not directly comparable, we

can still conclude that our assumption about the ben-

eﬁts of the MappingAssistant approach being more

intuitive and easier to follow by the users is shared by

the subjects of our study.

6 CONCLUSIONS

Data integration is a difﬁcult task that typically re-

quires substantial knowledge not only of the data to

AStudyinUser-centricDataIntegration

Figure 14: User feedback on task 2.

be integrated but also of data integration technolo-

gies. The goal of our research was to enable the peo-

ple with less or no knowledge of these technologies

to integrate their data. We presented a user-centric

approach to data integration that is based on a cogni-

tive support model, which has been implemented in

the MappingAssistant data integration tool. We pre-

sented the results of a user study demonstrating that

the approach empowers users to solve data integra-

tion problems more effectively and efﬁciently. In par-

ticular, we showed that users were able to ﬁnd more

errors in mapping rules in a given period of time.

Further, we were able to show that while with con-

ventional mapping technology a high level of exper-

tise in mapping technology is required, the Mappin-

gAssistant approach signiﬁcantly reduces the perfor-

mance difference of experienced and inexperienced

users. Finally, we could show that users considered

our approach to be more intuitive.

We believe that the user-centric approach to data

integration presented in this paper can have a real

impact on the practice of data integration in enter-

prises. In particular, the approach can help expert

users within an organization to retain more responsi-

bility for data integration. While today, data integra-

tion tasks often either have to be delegated to the IT

department or even be outsourced to specialized com-

panies, our technology can enable users to perform

non critical data integration tasks themselves. This

can save time and money in enterprise data integra-

tion. Furthermore, it can create more options for on

the ﬂy data integration or mesh-ups that can provide

useful information but are not needed on a regular ba-

sis.

In future work we will extend the presented di-

agnosis component of the MappingAssistant with an

induction component. This induction component will

provide suggestions for repairing the wrong mapping

rule which has previously been found with the diag-

nosis component.

REFERENCES

Bellahsene, Z., Bonifati, A., and Rahm, E. (2011). Schema

Matching and Mapping. Springer Publishing Com-

pany, Incorporated.

Cruz, I., Antonelli, F., and Stroe, C. (2009). Agree-

mentmaker: efﬁcient matching for large real-world

schemas and ontologies. Proceedings of the VLDB

Endowment, 2(2):1586–1589.

Euzenat, J. and Shvaiko, P. (2007). Ontology matching.

Springer-Verlag New York Inc.

Euzenat, J. and Ferrara, A. and Hollink, L. and Isaac, A.

and Joslyn, C. and Malais

e, V. and Meilicke, C. and

Nikolov, A. and Pane, J. and Sabou, M. and others

(2010). Results of the ontology alignment evaluation

initiative 2010.

Falconer, S. (2009). Cognitive support for semi-automatic

ontology mapping. PhD Thesis, University of Victo-

ria.

Falconer, S. and Noy, N. (2011). Interactive techniques to

support ontology matching. Schema Matching and

Mapping, pages 29–51.

Falconer, S. and Storey, M. (2007). A cognitive support

framework for ontology mapping. The Semantic Web,

pages 114–127.

Fallahi, F., Noessner, J., Kiss, E., and Stuckenschmidt,

H. (2011). Mappingassistant: Interactive conﬂict-

resolution for data integration. Poster at the 8th Ex-

tended Semantic Web Conference, ESWC.

Gass, O. and Maedche, A. (2011). Enabling end-user-

driven data interoperability - a design science research

project. In Proceedings of the 17th Americas Confer-

ence on Information Systems (AMCIS 2011), Detroit,

USA.

Granitzer, M., Sabol, V., Onn, K. W., Lukose, D., and

Tochtermann, K. (2010). Ontology alignment - a sur-

vey with focus on visually supported semi-automatic

techniques. Future Internet, 2(3):238–258.

Hair Jr, J., Anderson, R., Tatham, R., and Black, W. (1995).

Multivariate data analysis. Prentice-Hall, Inc.

Halevy, A., Rajaraman, A., and Ordille, J. (2006). Data

integration: The teenage years. In Proceedings of

the 32nd international conference on Very large data

bases, pages 9–16. VLDB Endowment.

Maier, A., Schnurr, H., and Sure, Y. (2003). Ontology-

based information integration in the automotive indus-

try. The Semantic Web-ISWC 2003, pages 897–912.

Noessner, J., Fallahi, F., Kiss, E., and Stuckenschmidt, H.

(2011). Interactive data integration with mappingas-

sistant. Demo Paper at the 10th International Seman-

tic Web Conference ISWC.

Teevan, J., Jones, W., and Gwizdka, J. (2006). Personal in-

formation management. Communications of the ACM,

49(1):68–73.

Von Alan, R., March, S., Park, J., and Ram, S. (2004).

Design science in information systems research. Mis

Quarterly, 28(1):75–105.

Wohlin, C. (2000). Experimentation in software engineer-

ing: an introduction, volume 6. Springer.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems
