SECURING PROCESSES

FOR OUTSOURCING INTO THE CLOUD

Sven Wenzel

, Christian Wessel

, Thorsten Humberg

and Jan J

urjens

1,2

Chair of Software Engineering, Technical University Dortmund, Dortmund, Germany

Fraunhofer ISST, 44227 Dortmund, Germany

Keywords:

Business Processes, Cloud Computing, Compliance, Risks.

Abstract:

Cloud computing is yet one of the leading developments and depicts the biggest progress in web technologies.

It offers a convenient way for using shared and easy accessible resources, in both a web-based and demand-

oriented sense. However, cloud computing brings concept-based risks, e.g. the risk of private data becoming

publicly available. Outsourcing of services into a cloud computing environment arises numerous compliance

and security-problems for the potential customer. Legal as well as business requirements have to be met after

migration to a cloud environment. Compliance to laws, industry-speciﬁc regulations and other rules have to

be kept. In this paper we present the research project SecureClouds and our ongoing research towards security

and compliance analysis of processes which are to be outsourced into the cloud. We further show a ﬁrst

prototype of an analytic tool-environment that allows us to examine whether outsourcing of a business process

is possible while keeping all security and compliance requirements.

∗

1 MOTIVATION

Cloud computing is currently one of the most rapid

growing trends and represents the technological de-

velopment on the web. Computational power, stor-

age space as well as other complex services are out-

sourced and made accessible through deﬁned inter-

faces across the internet. The main advantage is that

users are only billed according to the actual usage

of the utilized service. Cloud computing hence pro-

vides comfortable, demand- and web-based access to

shared and freely available resources, which are in-

stantly and automatically made accessible (Mell and

Grance, 2009). This enables small- and medium-

sized enterprises to minimize costs by conﬁguring

their IT infrastructure more efﬁciently due to a dy-

namic structure.

At the same time, cloud computing inherently

comes along with risks. For example, conﬁdential

data could be made public or might be accessed by

employees of a cloud service provider. According

to different surveys, e.g. (BITKOM, 2009), these

risks lead to limited acceptance of cloud comput-

ing in business scenarios dealing with conﬁdential

∗

Parts of this work have been funded ﬁnancially by

BMBF grant 01IS11008D (SecureClouds).

data. Especially small and medium-sized enterprises

(SMEs) have their doubts regarding cloud computing,

although they perfectly ﬁt into the target audience of

cloud computing services.

With the research project SecureClouds we fo-

cus on that target audience and support small and

medium-sized enterprises (SMEs) to securely utilize

cloud computing technology and thus gaining eco-

nomic advantages. Our idea is to deal with the risks

of cloud computing as early as possible, i.e. in the de-

cision phase whether processes should be outsourced

into a cloud environment or not. Therefore, we cur-

rently develop a threefold approach to investigate the

security and compliance requirements of such busi-

ness processes. During the decision phase we as-

sist SMEs with a risk analysis for their business pro-

cesses. The analysis reveals potential security risks

for the case that these processes are moved into the

cloud. In the implementation phase, we provide

compliance and security analysis for the processes,

which are partially or even completely executed in the

cloud. The analyses are thereby tool assisted. The

toolset contains different components: for risk anal-

ysis, for compliance analysis and for security anal-

ysis. The approach and the toolset are described in

what follows. They constitute the ongoing work of

675

Wenzel S., Wessel C., Humberg T. and Jürjens J..

SECURING PROCESSES FOR OUTSOURCING INTO THE CLOUD.

DOI: 10.5220/0003979306750680

In Proceedings of the 2nd International Conference on Cloud Computing and Services Science (CloudSecGov-2012), pages 675-680

ISBN: 978-989-8565-05-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

the BMBF-funded project SecureClouds, which also

includes the local security consultant admeritia and

the logistics SME LinogistiX. Parts of the approach

have already been implemented in prototypes. The

validation of the approach is planned to be performed

by the logistics service provider LinogistiX, who will

serve as test customer for outsourcing business pro-

cesses into the cloud.

The next section will give a brief overview over

cloud computing and compliance. Subsequently, we

present the three pillars of our approach: risk analy-

sis (Section 3), compliance analysis (Section 4), and

security analysis (Section 5). The prototype imple-

mentation of our approach in a toolset based on the

CARiSMA tool environment is shown in Section 6.

We brieﬂy discuss related work in Section 7. Finally,

we conclude this paper and take a look on open re-

search topics in Section 8.

2 BACKGROUND

Before we introduce our approach on risk, compli-

ance and security analysis of processes that are to be

outsourced into a cloud, we ﬁrst want to introduce

some terms.

2.1 Cloud Computing

The American National Institute of Standards and

Technology (NIST) subdivides cloud computing into

three layers named service levels. In a bottom-up

manner these layers are Infrastructure as a Service

(IaaS), which provides basic virtual hardware re-

sources such as virtual machines or networks, Plat-

form as a Service (PaaS), which acts as a middleware

such as a programming interface for distributed and

scalable software, and Software as a Service (SaaS)

representing the top-level layer that provides applica-

tions ready to use.

Depending on the chosen layer type, different se-

curity needs have to be considered. If an IaaS struc-

ture was chosen, only the bare virtual hardware is pro-

vided. Therefore all protection needed must be in-

stalled by the customer of the cloud service. With

PaaS it is necessary that the software developed on

top of it meets the security standards needed for the

business process. On the SaaS layer software must be

chosen, that comply with the security needs.

Furthermore a cloud belongs to one of four char-

acteristics deﬁned as the deployment model, mean-

ing its accessibility or the intended user groups of

the cloud: Private clouds are only accessible for the

users of one speciﬁc company or organization. Com-

munity clouds are shared between several companies

or organizations which have common goals or secu-

rity requirements. Public clouds are public accessible

for a large range of users. Typically a cloud provider

chooses this deployment model to sell cloud services.

Hybrid clouds are composed of two or more clouds

of different deployment models. This model may be

used for load balancing e.g. if the resources of a pri-

vate cloud are insufﬁcient in times with high peaks, a

public cloud can be hired for compensation.

Depending on the deployment model different se-

curity needs have to be considered. While private

clouds can be considered relatively secured against

attacks from outside they are exposed to internal at-

tackers. The security needs for community clouds

are a bit more complex, since there is more than one

party accessing the cloud. The weakest security level

is found within public clouds. Therefore a business

process outsourced to a public cloud must either be

non-critical or they deserve respective data protection.

Carrying sensitive data to or from a private cloud to

a public or community cloud as it happens in hybrid

clouds, has also to be realized in a secured manner.

2.2 Risks & Compliance

In our understanding risks are deﬁned as the compo-

nents mentioned in the BSI basic protection catalog

(BSI, 2006); probability of occurrence and amount of

damage are seen as irrelevant. Risks are considered

to be more IT security related while compliance is de-

ﬁned as the internal regulations and laws a company

have to comply with. Security risks, compliance and

security are tightly bound to each other, e.g. consider

an attacker that is able to gather personal data from

an unsecured server. Because of the security issue the

compliance requirement of personal data protection

cannot be held.

Risks. Here, a risk is deﬁned as a IT security related

weakness in a cloud-based process. This may be an

unsecured communication channel between one host

of the cloud with another, insufﬁcient rights manage-

ment on a speciﬁc host, or just the processing of con-

ﬁdential data.

Compliance. A security analysis on the cloud com-

puting environment should be performed before a se-

curity requirement analysis is performed on the busi-

ness operation. This will yield the maximum number

of security requirements that can be met. The confor-

mance to compliance regulations should be audited on

three levels.

Process & Compliance Analysis. Documents from

which business processes can be derived should be

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

676

analyzed. Our approach, which is presented in what

follows, considers processes given in form of process

models (e.g. UML activity diagrams or BPMN mod-

els). The risk analysis works also on less structured

documents such as textual process descriptions.

Design Time Compliance. The implementation of a

business process has to comply with legal regulations

and company policies. The main focus here is the

cloud interface, the process steps within the cloud and

the data ﬂows between the cloud and the user.

Runtime Compliance. It has to be ensured that

all compliance-relevant and critical processes (esp.

those outsourced into a cloud) are monitored and

logged. Such a monitoring can be performed by us-

ing business process mining and conformance check-

ing (W. van der Aalst et al., 2007). It is not further

considered in this paper.

3 RISK ANALYSIS

The ﬁrst pillar of our approach is a security risk analy-

sis of the business processes that are to be outsourced

into a cloud environment.

We have developed an algorithm that enables en-

terprises to check their business processes for activ-

ities that comprise security requirements. The algo-

rithm takes a business process as input. The entire

text of the model is extracted from all entities of the

model and is then imported in an internal data model.

The other input for the algorithm is a set of secu-

rity patterns, which are derived from the basic pro-

tection catalogs of the BSI (BSI, 2006). A security

pattern consist of three parts:

1. An unique Identiﬁer, derived from the hierarchy

given by the catalogs.

2. The Title stating the content of the pattern.

3. The complete text itself, as given in the standard.

Using methods from the ﬁeld of natural language pro-

cessing, the algorithm is able to compare the descrip-

tions of an activity to security patterns, thus identify-

ing relevant activities and patterns. Given a pair of

one activity and one pattern, the method proceeds in

three steps (cf. Algorithm 1):

First, all stop words are removed from the descrip-

tion text. Those words are a concept from the area of

language processing and form a set of words that do

not contribute to the meaning of a text. Typical ex-

amples are words like ”the”, ”that” or ”a” (Runeson

et al., 2007). As those are quite common in the texts

of the patterns as well as in the activity labels, these

would cause many irrelevant matches and are there-

fore excluded from further consideration.

Algorithm 1: Risk detection algorithm.

Input: Text T, composed of words

W = {w

,...,w

}, Pattern P={p

,..., p

}, Set

S of stopwords

Result: Set M of security-relevant words in T

W =

w∈W

w ∪ synonyms(w) /* extend */

−

= P/S /* patterns w/o stopwords */

M = W

ext

∩ P

−

/* matching words */

return M

The next step applies language tools to the de-

scription: For each word remaining after the removal

of the stop words, words with similar meanings are

added, to allow for a better comparison to the patterns.

Finally, the set of words of the description after

the synonyms were added is compared to the set of

words of the pattern. Those words that are elements

of both sets are detected, if the number of these words

exceeds a ﬁxed threshold, the considered activity is

classiﬁed as security relevant. The classiﬁed activities

are currently listed in a report. Visualization such as

coloring the tasks in the BPMN diagram according to

the severity would be possible.

4 COMPLIANCE ANALYSIS

Once the decision is made and the business process

(or parts of it) is outsourced into the cloud, the process

often requires some adaption to the new environment.

I.e. tasks are distributed to different actors or ordering

is rearranged for a more smoothly execution.

The second pillar of our approach is a compliance

check that veriﬁes whether the legal regulations (e.g.

binding of duty) are still kept. Therefore, we cur-

rently develop a catalog of compliance rules that can

be checked on a business process model.

Simple rules can easily be expressed as OCL con-

straints. An example is the binding of duty constraint,

which ensures that two tasks are performed by the

same actor (or entity):

context TaskSet inv: self.selectedTasks

→ forAll(x,y|x <> y implies x.performer

→ forAll(z|y.performer → includes(z) ) )

In order to formulate such constraints, the meta model

of the business process model requires some exten-

sions. In case of the above-mentioned binding of duty,

we must be able to deﬁne the set of tasks that are

bound (i.e. TaskSet). We have developed an exten-

sion model for BPMN. It allows to deﬁne additional

information such as role bindings, tasks set, etc. and

can be weaved into an BPMN model.

More complex rules, especially those containing

SECURINGPROCESSESFOROUTSOURCINGINTOTHECLOUD

677

ﬂow characteristics such as ’Task A has to be per-

formed before Task B’, can hardly be expressed in

OCL. Therefore we propose to deﬁne process frag-

ments and rule sets that can be compared to the pro-

cess. A fragment is basically a snippet of a pro-

cess necessary to express a certain rule. The compli-

ance rules can be checked by analyzing whether the

structure of a given process fragment is contained in

the business process, similar to a graph isomorphism

check. However, it is not a real isomorphism since the

business processes may contain additional tasks and

the same process can be modeled in different ways.

For the ﬁrst prototype of the compliance anal-

ysis, we have implemented the Minimum Require-

ments for Risk Management for Insurance Undertak-

ings (MaRisk VA) published by the German Federal

Financial Supervisory Authority (BaFin) with regards

to the Solvency II ordinance. They deﬁne for instance

that the executive board of an enterprise has to be

informed if signiﬁcant problems are discovered dur-

ing an audit. We systematically collected the process

requirements deﬁned in MaRisk and formulated nine

process fragments and 40 rules out of that.

Each check analyzes the existence of the signiﬁ-

cant tasks of a process fragment in the business pro-

cess that is analyzed. The rules inspect certain proper-

ties such as existence of paths between certain tasks,

ordering of tasks, or boundary events. The mapping

between tasks of the process fragment and tasks of the

analyzed process is still a manual task. However, the

manual effort is reduced to locating certain tasks, the

analysis of the relationships and interactions can be

automatized.

5 SECURITY ANALYSIS

The third pillar of our approach is the automated

analysis of security properties. The goal is to inte-

grate process models and UML deployment diagrams

within the analysis process. This enables the security

analysis of the (physical) distribution of a process and

of the communication between different entities.

Deployment diagrams can be used to model the

cloud environment, i.e. the different virtual (and real)

machines, the provided services, and so on. There-

fore we currently develop a UML proﬁle that pro-

vides stereotypes to classify the different components,

e.g. <<IaaS>>, <<PaaS>>, or <<public cloud>>.

Tagged values can be used to assign additional infor-

mation to the entities, such as geographical location

of a server. By combining the business process model

and the deployment model we are able to determine

which parts of the analyzed business process will be

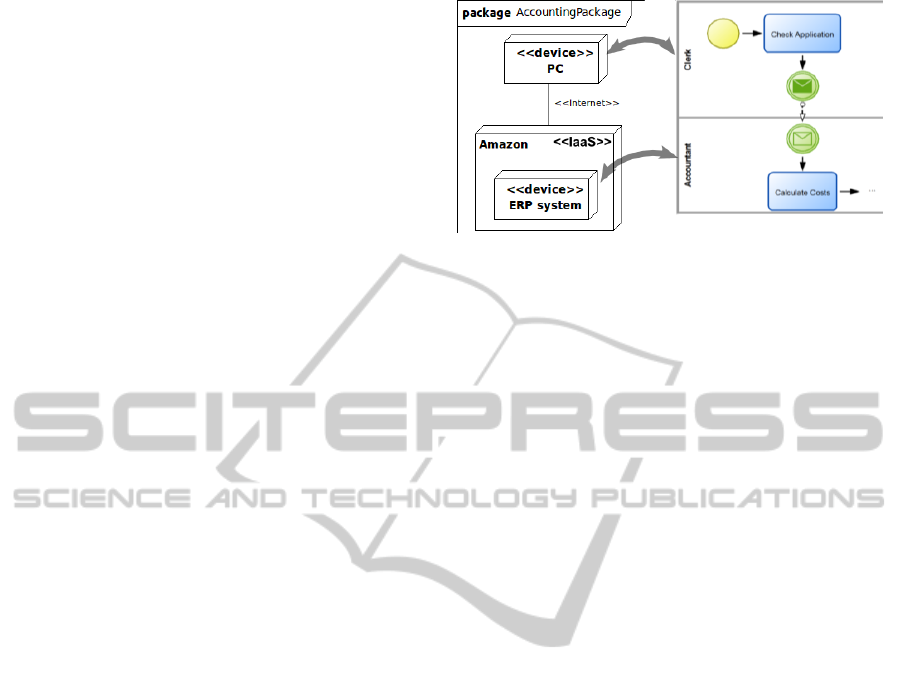

Figure 1: Distribution of processes onto system nodes.

deployed into the cloud and how (i.e. which service

levels are used etc.). Therefore we need to map the el-

ements of the process model onto the elements of the

deployment model. The mapping can be performed

by the system designer. An example is illustrated in

Figure 1. The mapping allows us to classify parts of

the business processes into groups with different se-

curity needs, e.g. tasks processing conﬁdential data

that are delegated to a service provider. According to

the security need, the different parts of the processes

can be proposed to the user for further inspection.

Besides that, it enables the automatic inspection

in form of model-based security analysis. An ex-

ample is the data protection prescribed by the Ger-

man data protection law, Bundesdatenschutzgesetz

(BDSG), §4b. It says that personal data must not

be stored or processed outside the European Union.

Hence, if a task processes personal data such as the

social security number, we have to ensure that the ma-

chine which hosts this tasks is located within the EU.

Given the integrated process and deployment model

such properties can be checked easily, because the

mapping between processes and deployments shows

us, which tasks are executed on which system node.

Another aspect of our approach is to inspect the

communication between the parts of the business pro-

cess. Especially the communication between parts

hosted in the cloud and the other are of interest. This

information can also be extracted from the deploy-

ment diagram. Using UML deployment diagrams has

the advantage that it can be annotated with UMLsec

urjens, 2005) stereotypes to emphasize security re-

lated connections. UMLsec is an extension for UML

that allows us to annotate models with security related

properties, e.g. a communication link between two

computers can be marked with <<encrypted>>, to

denote that the link if established has to be encrypted.

Another possible idea is to annotate the business pro-

cess model with security related information. This

way security checks can be accomplished directly on

the business process level and no mapping would be

necessary as a preliminary step.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

678

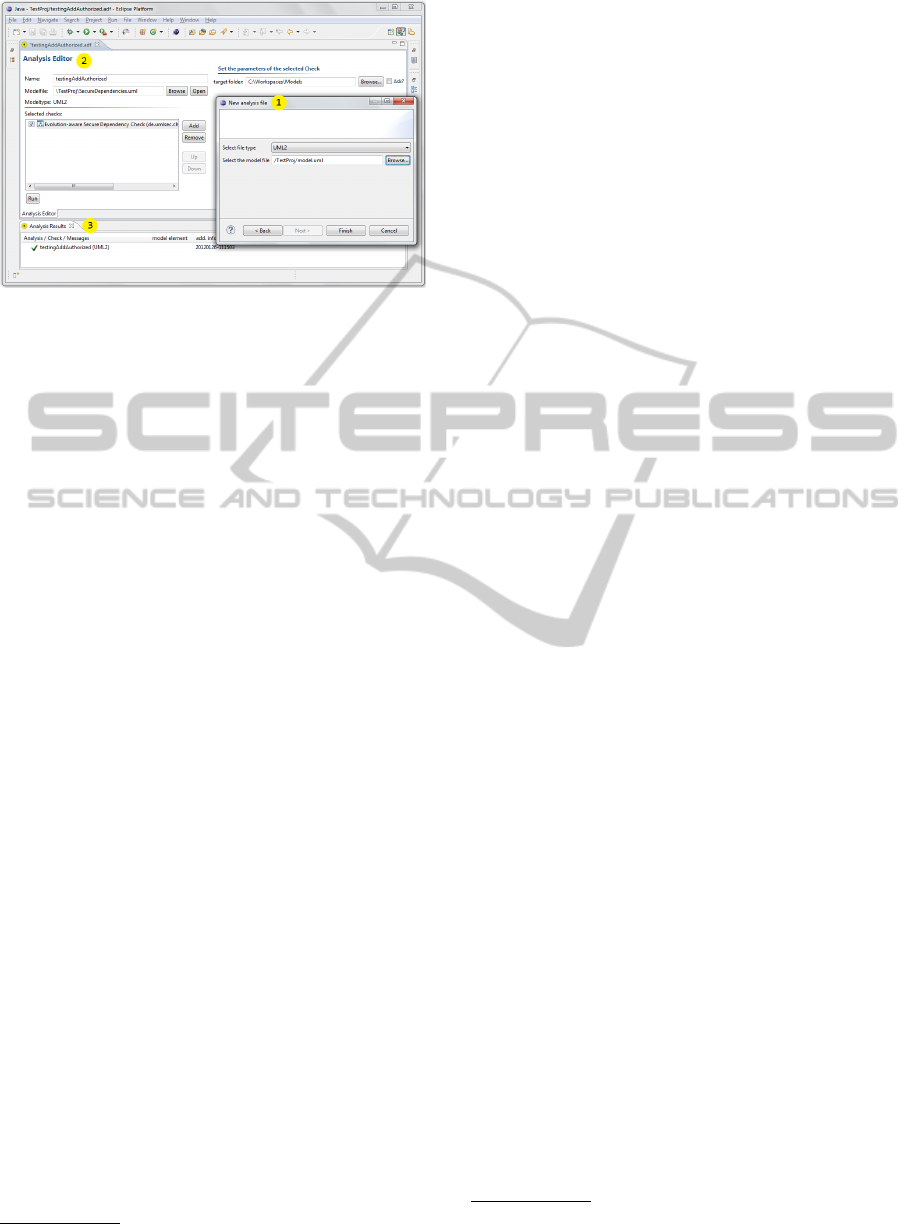

Figure 2: The toolset user interface.

6 TOOL SUPPORT

We have implemented the risk analysis and the com-

pliance checks as plugins for the CARiSMA frame-

work

. It is fully integrated into the Eclipse GUI (see

Figure 2). CARiSMA provides an analysis wizard (1)

for the deﬁnition of a model analysis. The user can

select the model(s) he wants to analyze and adjust pa-

rameters of the different checks (e.g. which ontolo-

gies to use). The analysis editor (2) allows the user to

modify the settings of existing analyses. The results

of an executed analysis are displayed in the analysis

results view (3). Different icons indicate whether a

model contains risks or compliance violations.

The back-end of CARiSMA is build on top of

the Eclipse Modeling Framework, which implements

the OMG Meta Object Facility (MOF) speciﬁcation.

For UML models, the Eclipse UML2 implementa-

tion and the UMLsec proﬁle (J

urjens, 2005) is used.

For BPMN models we use the Eclipse BPMN project

which we have extended by additional classes for in-

serting security related information such as role as-

signments (Michel, 2011).

The risk analysis and the compliance analysis

have been implemented as different plugins (i.e.

checks) for CARiSMA. The security analysis will be

implemented in the same manner. The risk analy-

sis contains of four major components: An extractor

extracts the vocabulary of a process model. A nor-

malizer cleans the extracted information and elimi-

nates the different ﬂections of words. An expander

extends the normalized information, e.g. with syn-

onyms, based on powerful ontologies. The analyzer

searches for the different security and risk patterns in

the normalized and extended texts. It can use differ-

ent pattern repositories we have implemented such

as the BSI basic protection catalog (BSI, 2006) or

http://carisma.umlsec.de

ISO 27000. Different normalizer implementations

can extract from different sources and decouple our

approach from certain modeling languages. For each

language a certain normalizer can be implemented.

Different expanders allow us to include certain on-

tologies to ﬁnd synonyms etc. The current implemen-

tation uses standard language libraries such as Word-

net

. Custom security- and cloud-related ontologies

are currently developed.

The compliance analysis is basically realized as

a set of checks, each implementing a certain rule.

A general check using the OCL interpreter of the

Eclipse project, even enables the quick deﬁnition of

new constraints. So far UML activity diagrams and

BPMN models are supported. The compliance analy-

sis based on process fragments (i.e. the MaRisk rules

from Section 4) is currently limited to BPMN models.

The security analysis exists so far only on con-

ceptual level. However, since CARiSMA is the suc-

cessor of the UMLsec tool, a broad range of UML-

based security checks is available. The security anal-

ysis for UMLsec models can be easily adapted to

the cloud-speciﬁc analysis proposed in Section 5,

especially because basic functionality such as the

<<secure links>> check are already given.

7 RELATED WORK

Cloud computing is still on the peak of Gartner’s

technology hype cycle (Dixon and Jones, 2011). Es-

pecially the economic potential of cloud computing

for small and medium-sized enterprises has been dis-

cussed for quite a while now (BITKOM, 2009). How-

ever, if it comes to conﬁdential information such as

enterprise data and other security-related issues, the

majority of SMEs is still doubting.

A project related to our approach and the project

SecureClouds is CloudCycle

. It focuses on cloud

providers and offers services that allow them to guar-

antee their customers that they are compliant with se-

curity policies and further regulations. The approach

of CloudCycle is a suitable complement for our ap-

proach. Once business processes are successful out-

sourced into the cloud their security and compliance

can be monitored.

Ontologies for cloud computing and cloud secu-

rity have been presented by (Gr

auler et al., 2011).

They analyzed the different sources of risks within

cloud computing environments and manifested them

in an ontology. Based on that ontology, they pro-

vide a database of cloud providers that allows users

http://wordnet.princeton.edu/

http://www.cloudcycle.org

SECURINGPROCESSESFOROUTSOURCINGINTOTHECLOUD

679

to select a providers based on certain security proper-

ties. This is especially interesting for ﬁnding a suit-

able cloud provider after potential risks of a business

process have been revealed by our approach.

Further work on general IT risk analysis exists.

(Peschke et al., 2011) present the RiskFinder which

is a precursor of our risk analysis component. It

analyses UML models with respect to security rele-

vant vocabulary. Schneider et. al. propose a heuris-

tic search based on Bayesian ﬁlters (Schneider et al.,

2011). HeRA realizes a feedback-driven approach

for security analysis during requirements engineering

(Knauss et al., 2009). These approaches provide pow-

erful rules, however, they work only on single words

and do not consider language databases.

An approach to encode and check security re-

quirements in BPMN models has been presented in

(Wolter et al., 2008). However, these requirement fo-

cus only on closed systems and are not eligible for

open processes which are meant to be executed in

cloud environments. Security requirements on ser-

vice orchestration level have been discussed in (Men-

zel et al., 2009).

8 CONCLUSIONS & OUTLOOK

In this paper we have presented our research project

SecureClouds which develops an approach to as-

sist small and medium-sized enterprises for deciding

which of their business processes are eligible to be

outsourced into a cloud computing environment. The

approach is based on three pillars. Firstly, risk anal-

ysis is used to unfold potential risks of business pro-

cesses that are to be outsourced into a cloud environ-

ment. Secondly, compliance analysis allows the en-

terprises to check whether the processes are still com-

pliant after adapting them to cloud environments. Fi-

nally, a security analysis enables the validation of se-

curity properties of cloud-based business processes.

The approach is currently being implemented in a

toolset based on the CARiSMA analysis tool environ-

ment which is a framework to provide a broad collec-

tion of different model-based security analyses.

While the approach presented here only focuses

on the perspective of the users of cloud environments,

it would be interesting to inspect also the business

processes within the cloud provider’s domain. Fur-

thermore, the analysis of cloud environment them-

selves might be interesting for inspecting the inﬂu-

ence of cloud architectures on security properties.

The approach presented here is still in an early

stage of development. It is the result of the ﬁrst year

of the project SecureClouds. For the second year of

that project, we plan to deepen our research in differ-

ent ways. One major aspect will be the further devel-

opment of the ontologies that we use for risk analysis.

Additional compliance and security checks are also

planned to be implemented. Last but not least, the

most important step we achieve is the evaluation of

our approach in real case study in the logistics domain

together with the enterprise partners of the project.

REFERENCES

BITKOM (2009). Cloud-Computing - Evolution in der

Technik. Technical report, BITKOM.

BSI (2006). IT Basic Protection Catalog. Online: http://

www.bsi.bund.de.

Dixon, J. and Jones, T. (2011). Hype cycle for business

process management. Technical report, Gartner Study.

auler, M., Martens, and B.; Teuteberg, F. (2011). IT-

Sicherheitsmanagement im Cloud Computing. In Pro-

ceedings INFORMATIK 2011, Germany.

urjens, J. (2005). Secure Systems Development with UML.

Springer, 1. edition.

urjens, J. and Shabalin, P. (2007). Tools for secure systems

development with UML. In International Journal on

Software Tools for Technology Transfer (STTT), Vol-

ume 9 (5-6): 527-544.

Knauss, E., Lubke, D., and Meyer, S. (2009). Feedback-

driven requirements engineering: The Heuristic Re-

quirements Assistant. In ICSE’09, Washington, DC.

Mell, P. and Grance, T. (2009). Effectively and Securely

Using the Cloud Computing Paradigm.

Menzel, M., Thomas, I., and Meinel, C. (2009). Security re-

quirements speciﬁcation in service-oriented business

process management. In ARES.

Michel, M. (2011). Konzeption und Umsetzung eines

UMLsecTool-Plugins zur Pr

ufung von Authoriza-

tion Constraints f

ur die Prozessmodellierungssprache

BPMN 2.0. Bachelor thesis, TU Dortmund, Germany.

Peschke, M., Hirsch, M., J

urjens, J., and Braun, S.

(2011). Werkzeuggest

utzte Identiﬁkation von IT-

Sicherheitsrisiken.

Runeson, P., Alexandersson, M., and Nyholm, O. (2007).

Detection of duplicate defect reports using natural lan-

guage processing. In ICSE’07, Washington, DC.

Schneider, K., Knauss, E., Houmb, S., Islam, S., and

urjens, J. (2011). Enhancing security requirements

engineering by organizational learning. Requirements

Engineering, pages 1–22.

W. van der Aalst, H. Reijers, A. Weijters, F. van Dongen,

M. Song, H. Verbeck. (2007). Business process min-

ing: An industrial application. Information Systems,

Vol. 32, No. 5.

Wolter, C., Menzel, M., and Meinel, C. (2008). Modelling

security goals in business processes. In Modellierung

2008, Germany.

CLOSER2012-2ndInternationalConferenceonCloudComputingandServicesScience

680
