A Survey of Infeasible Path Detection

Sun Ding, Hee

Beng Kuan Tan and Kai Ping Liu

Division of Information Engineering, Block S2, School of Electrical & Electronic Engineering,

Nanyang Technological University, Nanyang Avenue, 639798, Singapore, Singapore

Keywords: Survey, Path Infeasibility, Symbolic Evaluation, Program Analysis, Software Testing.

Abstract: A program has many and usually an infinite number of logic paths from its entry point to its exit point. Each

execution of the program follows one of its logic paths. Regardless of the quality of the program and the

programming language used to develop it, in general, a sizable number of these paths are infeasible — that

is no input can exercise them. Detection of these infeasible paths has a key impact in many software

engineering activities including code optimization, testing and even software security. This article reviews

methods for detecting infeasible paths and proposes to revisit this important problem by considering also

empirical aspect in conjunction to program analysis.

1 INTRODUCTION

Control flow graph (CFG) is the standard model to

represent the execution flow between statements in a

program. In the CFG of a program, each statement is

represented by a node and each execution flow from

one node to another is represented by a directed

edge, where this edge is out-edge of the former node

and the in-edge of the latter node. Each path through

the CFG from the entry node to the exit node is a

logic path in the program. In order for an execution

to follow a path in the CFG, the input submitted to

the program must satisfy the constraint imposed by

all the branches that the path follows. An infeasible

path is a path in the CFG of a program that cannot

be exercised by any input values. Figure 1 shows an

infeasible path p = (entry, 1, 2, 3, 4, 5, 6, exit) in a

CFG. This is because we cannot find any input x

satisfying x ≥ 0 and x < 0 jointly.

The existence of infeasible paths has major

impact to many software engineering activities.

Code can certainly be optimized further if more

infeasible paths can be detected during the process

of optimization. In software testing, the structural

test coverage can be much accurately computed if

infeasible paths can be detected more accurately. In

the automated generation of structured test cases,

much time can be saved if more infeasible paths can

be detected. In code protection, it can also help in

code deobfuscation to identify spurious paths

inserted during obfuscation. In software verification,

detecting and eliminating infeasible paths will help

to enhance the verification precision and speed.

There are many more areas like security analysis

(Padmanabhuni and Tan, 2011), web application

verification (Liu and Tan, 2008, 2009), database

application design (Ngo and Tan, 2008) that can be

helped by the detection of infeasible paths.

To detect infeasible paths in real programs, one

needs to deal with complex data structures and

dependency. Additional effort is required to formally

present them in symbolic expressions or constraints

for further verification by heuristics, predefined

rules or even standard theorem provers. If the

verification returns negative results (e.g.: “Invalid”

answer from theorem provers), the path is then

considered as infeasible. Such verification model is

undecidable in general. But it is still possible to have

practical approaches that are not theoretically

complete to detect infeasible paths.

The purpose of this article is to familiarize the

reader with the recent advances in infeasible paths

detections and its related applications. Concepts and

approaches will be introduced informally, with

citations to original papers for those readers who

preferring more details. Information about tools and

implementation is also introduced. The paper is

organized as below: the literals for infeasible paths

detection is reviewed in section2. Information of

tool implementation is introduced in section 3. We

discussed remaining problems and future challenges

in section4. Section 5 summarizes the entire paper.

Ding S., Beng Kuan Tan H. and Ping Liu K..

A Survey of Infeasible Path Detection.

DOI: 10.5220/0003986400430052

In Proceedings of the 7th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2012), pages 43-52

ISBN: 978-989-8565-13-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

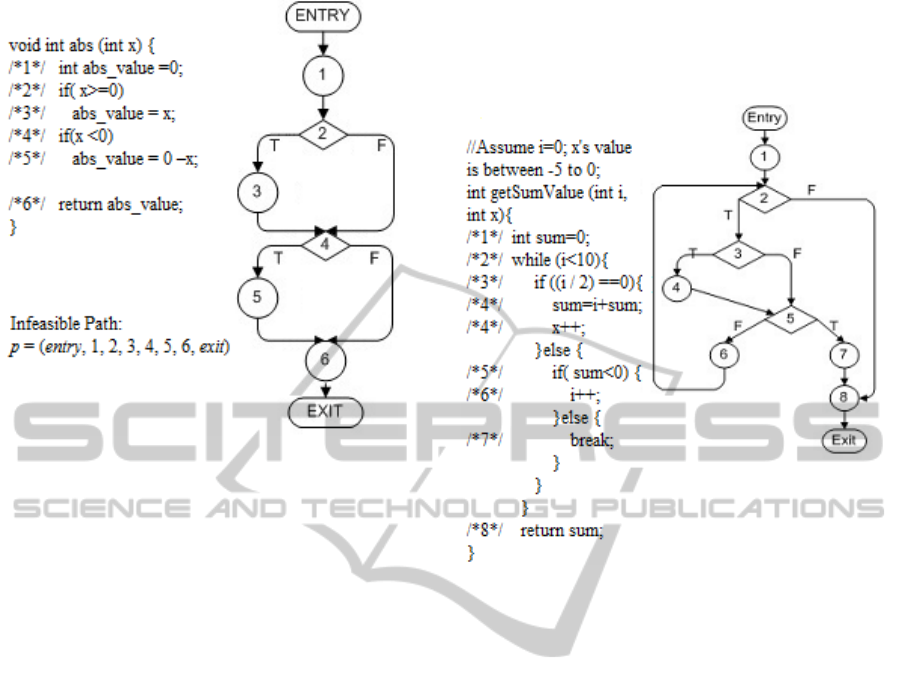

Figure 1: An infeasible path.

2 DETECTION OF INFEASIBLE

PATH

During software developing or testing, infeasible

path detection usually appears as an essential step

for the final project goal. A variety of methods have

been proposed. Based on the ways that they detect

infeasible paths, we classify them into six types: (1)

data flow analysis; (2) path-based constraint

propagation; (3) property sensitive data flow

analysis; (4) syntax-based approach; (5) infeasibility

estimation; (6) generalization of infeasible paths.

These methods differ in their detection precision,

computational cost and relevantly suitable

applications. We review these methods by

introducing their main features, strength and

weaknesses and the related applications.

2.1 Data Flow Analysis

Classic Data flow analysis is a technique over CFG

to calculate and gather a list of mappings, which

maps program variables to values at required

locations in CFG. Such list of mappings is called

flow fact. A node with multiple in-edges is defined

as a merge location, where flow facts from all of its

predecessor nodes are joined together. Due to the

joining operation, a variable may be mapped to a set

of values instead of a single value. If a node has

multiple out-edges (predicate node), each of these

out-edges is defined as a control location. Flow fact

is split and traversed to the successor nodes at

control locations. Due to the splitting operation, a

variable may be mapped to an empty set of values

(Khedker et al., 2009).

Figure 2: Infeasible path detection with data flow analysis.

Data flow analysis is a common approach for

detecting infeasible paths. In this type of approach,

each control location would be checked when they

are traversed. An infeasible path is detected when

any variable is mapped to an empty set of values at a

control location. In Figure 2, suppose we only

consider the flow fact about variable sum. Here sum

is an integer variable initialized as 0. Therefore the

flow fact is initialized as [0, 0] after node1. The

flow fact is traversed transparently through node2,

node3 and reaching node5, after which it is split as

two: one as [0, 0] flowing to node6 and the other as

an empty set flowing to node7. It is then concluded

that any path passing through (1, 2, 3, 5, 7) is

infeasible. Approaches based on data flow analysis

are often useful for finding a wide variety of

infeasible paths. In the above example, the checking

at node5 can detect a family of infeasible paths,

which all containing the sub part (1, 2, 3, 5, 7).

However, classic data flow analysis scarifies the

detection precision, which causes some infeasible

paths wrongly identified as feasible. It is important

to note that the flow fact computed at a control

location L is essentially an invariant property ― a

property that holds for every visit to L. Therefore

two things will cause the loss of the detection

precision: First, the correlated branches are ignored

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

and flow facts are propagated across infeasible

paths. Second, by the joining operation at merging

location, flow facts from different paths are joined,

leading to further over-approximation (Fischer et al.,

2005). To explain this point, consider the example

program shown in Figure 2. The flow fact of

variable i is initialized as [0, 0]. After passing

node3, it is split as two: one as [0, 0] on the TRUE

branch and the other as an empty set on the FALSE

branch. However by simply keeping track of all

possible variable values at node5, the two different

flow facts are joined. The flow fact from node5

flowing to node6 is over-approximated as [0, 0].

Hence we cannot directly infer that node4 cannot be

executed in consecutive iterations of the loop.

Therefore path such as (entry, 1, 2, 3, 4, 5, 6, 2, 3, 4)

cannot be inferred as infeasible, which actually is.

The most typical and well cited method for detecting

infeasible paths based on data flow analysis is from

Gustafsson et al. (2000, 2002, and 2006).

Approaches based on data flow analysis are path

insensitive.

Other similar methods include work from

Altenbernd (1996), detecting infeasible paths by

searching for predicates with conflict value range

while traversing CFG in an up-bottom style. This

method depends on knowing execution time of each

basic block in advance. The basic block refers to a

piece of continuing nodes except predicate nodes. At

each merge location, only the in-edge with longest

execution time will be remained for further

consideration. All flow facts will be checked at each

control location. Those branches that with variables

mapped to an empty value set will be detected as

infeasible and excluded for further consideration.

Dwyer et al. (2004) proposed to adopt data flow

analysis approach to check consistency violation in

concurrent systems. They construct a Trace-Flow

Graph (TFG), which is a modified version of CFG

for concurrent systems. Variables in TFG are

mapping to a set of possible system properties like

sequence of event calling, synchronization of critical

section. A consistency violation is found when a

corresponding path is identified as infeasible in the

TFG.

Approaches based on data flow analysis do not

require providing a prepared set of paths. It searches

for infeasible paths directly based on CFG. So they

are often applied to estimate the maximum execution

time for a procedure, called WCET: worst-case

execution time (Ermedahl, 2003) which is essential

in designing real time systems. Firstly they help

tighten the estimated result of WCET analysis by

removing the influences from infeasible paths in the

case that these paths are the longest ones. Secondly,

they are useful in deriving loop upper bound in

WCET analysis.

2.2 Path-based Constraint Propagation

Path-based propagation approaches apply symbolic

evaluation to a path to determine its feasibility.

These methods carry a path sensitive analysis for

each individual path in a given path set by

comparing with approaches based on data flow

analysis. Through symbolic evaluation, they

propagate the constraint that a path must satisfy and

apply theorem prover to determine the solvability of

the constraint. If the constraint is unsolvable, the

path is then concluded as infeasible. These methods

have high precision of detection but with heavy

overhead. They are usually applied in code

optimization and test case generation in which

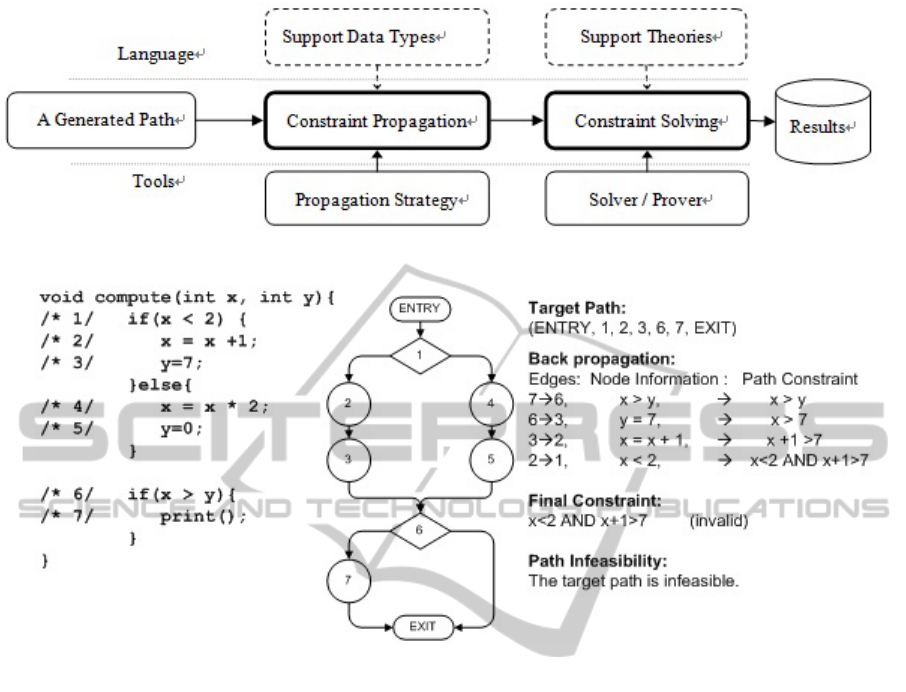

accuracy is essential. Figure 3 gives a general

overview of these methods.

In propagating constraint along a given path,

either backward propagation (Balakrishnan, 2008) or

forward propagation strategy (Ball and Rajamani,

2002) could be adopted to extract the path constraint

under the supported data types. Forward propagation

traverses the path from entry to exit and performs

symbolic execution on every executable statement.

Intermediate symbolic values are stored for

subsequent use. It can detect infeasible paths early

by detecting contradicting constraints early. It is also

more straight forward and thus easier to implement,

especially in the case of dealing with arrays or

containers like List and HashMap. (Tahbildar and

Kalita, 2011). However the storage of intermediate

values may grow very fast and cause this strategy

not scalable for large program. Backward strategy

applies a bottom-up traversing manner by collect

path constraint first and later only search for values

correlated with path constraint. The space of the

intermediate storage is largely reduced.

Based on the underlying domain theories of the

constraint solver or theorem prover (Robinson and

Voronkov, 2001), constraint solving determines the

solvability of the propagated constraint. The power

and precision of path-based constraint propagation

methods depend on the power of constraint solver.

Hence, they are sound except on those cases in

which existing constraint solvers have problems

(e.g., floating point problems).

As mentioned by Williams (2010) recently,

though constraint resolution is very efficient most of

the time, it is actually NP-complete and it is

undecidable to know which kind of constraint will

ASurveyofInfeasiblePathDetection

Figure 3: An overview of path-based constraint propagation method.

Figure 4: An illustration of the path-based constraint propagation method.

take “too long” to be solved. Therefore it is not

always possible for these methods to determine the

feasibility of a path automatically. Furthermore

every time execution the constraint solver, there is a

risk of causing the timeout exception.

Figure 4 illustrates an example of path-based

constraint propagation methods in general. Consider

the target path p = (entry, 1, 2, 3, 6, 7, exits). After

propagation along the path using backward

propagation strategy, the constraint finally becomes

((x<2) AND (x+1)>7). The resulting constraint is

submitted to a constraint solver for evaluation. As

the result is unsolvable, therefore, this path is

identified as infeasible.

Among the path-based constraint propagation

methods, Bodik et al. (1997) observed that many

infeasible paths were caused by branch correlation

and data flow analysis based approaches are overly

conservative to handle them. Starting from a

predicate node, they address this problem by

backward propagation along a path to accumulate

path constraint and consecutively evaluating the

constraint with predefined rules. The path traversed

is identified as infeasible if the associated constraint

is determined by the predefined rules as unsolvable.

If the constraint is determined by the predefined

rules as solvable, the path is identified as feasible. If

the solvability of the constraint cannot be

determined by the predefined rules, the feasibility of

the path is therefore undetermined. Goldbeg et al.

(1994) approached the problem with proposed a

more general model. For each targeting path, its

infeasibility is determined by the corresponding path

constraint. The path constraint is the conjunction of

each branch condition along the path after

substituting every referenced variable’s definition.

An independent constraint solver named KITP is

invoked to evaluate the path constraint. If the path

constraint is evaluated as unsolvable, then the path is

identified as infeasible. Goldbeg et al. explicitly

specified a domain, on which that constraint solver

KITP could work. The domain limits the considered

data types as Integer and Real and limits the

constraint type as linear.

By equipping different constraint solvers, other

approaches are able to detect infeasible paths with

constraints over other domains. Ball and Rajamani

(2001) used a binary decision diagram (BDD) as the

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

prover to identify infeasible paths for Boolean

programs. Zhang and Wang (2001) used an ad-hoc

SMT solver to detect infeasible paths with path

constraints over both Boolean and numerical linear

domains. Bjørner et al. (2009) detected infeasible

paths over the domain of String by using a SMT

solver called Z3 (2008) which is able to manipulate

and process those string functions in path

constraints.

The advantage of the path-based constraint

propagation approaches is the precision with which

we can detect infeasible program paths. The

difficulty in using full-fledged path-sensitive

approaches to detect infeasible paths is the huge

number of program paths to consider. In summary,

even though path-based constraint propagation

methods are more accurate for infeasible path

detection, they suffer from a huge complexity.

Constraint propagation methods are often used in

areas requiring high accuracy like test case

generation and code optimization. In test case

generation, paths will be firstly evaluated their

infeasibility. Infeasible paths will be filtered away

from test data generation to save resources and time.

For example, Korel (1996) checked the path

infeasibility before generating test case at the last

predicate to avoid unnecessary computation. Other

similar examples are like work from Botella et al.

(2009), and work from Prather and Myers (1987). In

code optimization, def-use pairs along those

infeasible paths are eliminated for enhancing the

efficiency of code (Bodik, 1997).

2.3 Property Sensitive Data Flow

Analysis Approach

Both data flow analysis and constraint propagation

approach have strength and weakness. This section

introduces the hybrid approach that combine both of

them together under the framework of partial

verification. The latter refers to the verification

against a list of given properties to check instead of

verifying all system properties. Property is an

abstract term covering variables, functions or special

data structures like pointer in C/C++.

With a given list of properties, methods of this

type have similar routine with approaches using

classic data flow analysis except two modifications.

First the flow fact is updated at location L only when

L contains properties correlated operations. Second

at merge locations, equal values for the same

property from different flow facts will be merged as

one; but different values for the same property from

different flow facts will be separately recorded

instead of joining them together. Same with

approaches using classic data flow analysis,

infeasible paths would be detected if any property is

mapped to an empty value set at a control location.

To illustrate this, let us go back to the example in

Figure 2. Suppose variable sum and i are specified as

the two properties. At the TRUE branch of node5,

sum is mapped to an empty set. A family of

infeasible paths containing (1, 2, 3, 5, 7) are detected

as efficient as using classic data flow analysis.

However at node5, the flow facts for i will be

recorded separately: f

node3

and f

node4

.Therefore, this

time, we are able to detect infeasible paths such as

(entry, 1, 2, 3, 4, 5, 6, 2, 3, 4) because only f

node4

will be considered in the consecutive iterations of

the loop.

Among this type of approaches, one well cited

work is from Das et al. (2002). They proposed a

method called ESP, whose main idea is introduced

in the last paragraph, to enhance the precision of

data flow analysis while also guaranteeing the

verification could be controlled in polynomial time.

They later extended ESP to a more abstract and

general model. Work from Dor et al. (2004)

extended ESP for better performance over C/C++,

especially for better cooperating with pointer and

heap. Other similar work may include work from

Fischer et al. (2005) and Cobleigh et al. (2001).

The advantage here is that this type of methods

achieves a good balance between precision and

scalability. However, it brings difficulty in

specifying properties accurately. There is also a risk

of detection failure because of losing a precise

tracking of some properties, which having complex

data structures.

2.4 Syntax-based Approach

Many infeasible paths are caused by the conflicts

that can be identified from using solely syntax

analysis. Syntax-based approaches take advantage

from these characteristics. They define syntax for

such conflicts as patterns or rules. Syntax analysis is

applied to detect infeasible paths through using rules

or recognizing patterns.

The more noticeable recent method is proposed

by Ngo and Tan (2007, 2008). They identified the

four syntactic patterns, identical/complement-

decision pattern, mutually-exclusive-decision

pattern, check-then-do pattern, looping-by-flag

pattern. These patterns model the obvious conflicts

between the value of a variable set and the value of

the same variable asserted by the predicate of a

branch or between predicates of branches, in a path.

ASurveyofInfeasiblePathDetection

For example, the predicates at branches (2, 3) and

(4, 5) in Figure 1 are x ≥ 0 and x < 0 respectively.

These two predicates have obvious conflict and can

be detected from syntax analysis. Hence, the path p

= (entry, 1, 2, 3, 4, 5, 6, exit) in Figure 1 is clearly

infeasible. Based on the four patterns identified, they

developed a method to detect infeasible paths from

any given set of paths. Through the use of these

patterns, the method can avoid the expensive

symbolic evaluation by just using solely syntax

analysis to detect infeasible paths through

recognizing these patterns. In opposing to other

methods, their methods were proposed as an

independent method. They have also conducted an

experiment on code from open-source systems and

found their method can detect a large proportion of

infeasible paths.

Among those earlier syntax-based approaches,

one well cited work is from Hedley and Hennell

(1985). They proposed to use heuristics rules to

detect four types of infeasible paths: infeasible paths

caused by consecutive conditions, infeasible paths

caused by inconsistency between test and definition,

infeasible paths caused by constant loop control

variable, and infeasible paths caused by constant

loop times. These rules are quite efficient as they

solely based on syntax analysis. Later experiment

from Vergilio et al. (1996) showed that by a fast

scan, Hedley and Hennell’s rules were able to

correctly identify nearly half paths as infeasible in a

path set with 880 sample paths.

The advantage of syntax-based approaches is that

they can avoid the expensive symbolic evaluation by

applying solely syntax analysis to achieve some

efficiency. However, these methods may report a

small number of infeasible paths that are actually

feasible as they just based on syntax analysis alone.

That is, they suffer from the possibility of reporting

false-positive results.

Syntax-based approaches detect infeasible paths

from a set of paths, so they rely on well-constructed

paths set. They are often used for a fast scan during

the early testing stage. They are also used as the first

step for code optimization or coverage estimation to

avoid the influence of infeasible paths during the

later analysis.

2.5 Infeasibility Estimation Approach

Early researchers have found the problems caused

by infeasible paths and it was very hard to achieve a

satisfied detecting result. Therefore they managed to

build statistical metrics to estimate the number of

infeasible paths in a given procedure based on

certain static code attributes. The most famous work

is from Malevris et al. (1990). They stated that “the

number of predicates involved in a path being a

good heuristic for assessing a path’s feasibility”. The

greater the number of predicates exist in a path, the

greater the probability for the path being infeasible.

They further concluded a regression function f

=Ke

–

λ q

to represent the above relationship, in which K

and λ are two constants,

q stands for the number of

predicate nodes involved in a given path, while f

stands for the possibility of this path being feasible.

Later, Vergilio et al. (1996) validated the above

results over a broader selection of programs and

extended the work to involve in more static code

attributes, such as: number of nodes, number of

variables and number of definitions.

The advantage of such metrics is that they are

easy to implement and provide a fast way to predict

path infeasibility within a confidence level (Vergilio

et al., 1996). However, it is a method of rough

estimation rather than accurate detection. The

accuracy of the regression function also biased over

different test programs and different programming

language.

2.6 Generalization of Infeasible Paths

Approach

When a path is infeasible in a CFG, all other paths

that contain the path are also clearly infeasible.

Based on this simple concept, Delahaye proposed to

generate all infeasible paths from a given set of seed

infeasible paths (Delahaye et al, 2010). It provides a

convenient way to generate error seeded models for

further testing, especially for legacy programs or

combined as a component in regression testing.

3 TOOLS IMPLEMENTATION

In most program optimization, software analysis and

testing tools, infeasible path detection usually

appears as an important component. Best to our

knowledge, there is no independent tool particularly

designed for it. In this section, we introduce related

existing tools based on above approaches. We also

brief the implementation details of the methods

described in last section to help those who want to

detect infeasible paths in their own applications.

We select 14 relevant tools and analysze them in

this section. These tools are summarized in Table 1.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Table 1: Useful Tools for Implementation.

Name Description Link Supported Language

Code analysis and optimization

Soot A Java Optimization

Framework.

http://www.sable.mcgill.ca/soot/ Java

CodeSufer Code analyser www.grammatech.com/products/codesurfer/ C/C++

Pixy Code and security analyser for

PHP

http://pixybox.seclab.tuwien.ac.at/pixy/ PHP

Automated Test Case Generation

CUTE Test case generation for C/C++ http://cute-test.com/wiki/cute/ C/C++

jCute Test case generation for JAVA http://cute-test.com/wiki/jcute/ JAVA

CREST Test case generation for C http://code.google.com/p/crest/ C

Pex Structural testing framework for

.Net

http://research.microsoft.com/en-us/projects/pex/ C#, C++, VB.net

eToc Path selection with genetic

algorithm and test case

generation for C/C++, Java

http://www.informatik.hu-

berlin.de/forschung/gebiete/sam/Forschung%20und

%20Projekte/aktuelle-forschung-und-

projekte/softwarekomponenten-entwicklung/eodl-

projects/etoc/etoc

Java, C/C++

Theorem Prover

Z3 SMT prover http://research.microsoft.com/en-

us/um/redmond/projects/z3/

C/C++

Lp_Solver Linear constraint solver http://lpsolve.sourceforge.net/5.5/ C/C++, JAVA, PHP,

Matlab

BLAST Lazy abstraction software

verification

http://mtc.epfl.ch/software-tools/blast/index-epfl.php C

Verification and Error detection

ESC-Java Error checking for annotated

Java program

http://secure.ucd.ie/products/opensource/ESCJava2/ Java

SLAM Verify critical properties for

C/C++

http://research.microsoft.com/en-us/projects/slam/ C/C++

LCLint Static analysis for C/C++ http://www.splint.org/guide/sec1.html C/C++

3.1 Data Flow Analysis Approach

The most completed work is from Gustafsson et al.

(2000, 2002, and 2006). In order to detect infeasible

paths over complex programs, they decompose a

program into several linked scopes. The latter is a

set of program statements within a call of one

procedure or an execution of a loop iteration. It is

statically created so that calls to a function or a loop

at different call sites will be marked and analyzed

separately. This brings in higher precision but more

expensive computation cost. The scope graph is

hierarchical representation of the structure of a

program which is used to describe the interaction

relationships between scopes. Data flow analysis

based on abstract interpretation will be performed

over each scope separately to compute the live

variables set. A recorder is created to store the

infeasible paths detected within each scope. Among

the work of Gustafsson et al., only primary data

types are mentioned. There has been no

corresponding open source toolkit published. For

readers planning to code based on this type of

approach, they could utilize existing data flow

analysis framework to find out variables mapped to

an empty value set at certain control locations and

detect infeasible paths accordingly. For example, the

sub package Spark in Soot can perform intra or inter

data flow analysis over Java procedures. Other

available toolkits are, for example, CodeSufer for

C/C++, Pixy for PHP.

3.2 Path-based Constraint Propagation

Approach

Approaches based on constraint propagation and

solving often appear in tools of automated test case

generation. The typical example is concolic testing

(Sen et al., 2005). Before test data is generated, the

target path will be tested its infeasibility by

submitting the path constraint to theorem prover. If

it is infeasible, the last predicate condition will be

reversed to stand for a new path containing the

opposite branch. The details could be found in the

following tools: CUTE and jCUTE which are

available as binaries under a research-use only

license by Urbana-Champaign for C and JAVA;

ASurveyofInfeasiblePathDetection

CREST, which is an open-source solution for C

comparable to CUTE; Microsoft Pex, which is

publicly available as a Microsoft Visual Studio 2010

Power Tool for the NET Framework.

Readers, who are interested in implementing this

type of approaches in their own application, can first

apply those data flow analysis tools to propagate

along a path and generate path constraint in

symbolic expressions. Later the constraint could be

submitted to theorem provers. Available tools of the

latter include Z3, which is a SMT solver from

Microsoft; Lp_Solver, which is an open source

linear constraint solver under GNU license; BLAST,

which is a prover often used to verify abstract

program.

3.3 Property Sensitive Data Flow

Analysis Approach

Das et al. (2002) proposed a tool called ESP, which

is a research project for partial verification under

Microsoft. ESP is able to construct CFG and

perform property sensitive analysis in either intra-

procedure or inter-procedure mode. The verification

for given properties at control location is handled by

its build-in rules for primary data types in C/C++.

But the tool provides interface to replace the build-in

rules with standard theorem provers for more

complex analysis. There are also several other tools

based on this type of approaches, which are like

ESC-Java, SLAM, LCLint.

3.4 Syntax-based Approach

Syntax-based approach is easy to implement because

the heuristics are concluded from code and

expressed in a straight forward style for

implementation. Ngo and Tan (2007) implemented

an automated test case generation system called

jTGEN for automated test data generation for Java.

The system consists of an infeasible path detector

that based on heuristic code-patterns, a code parser

based on Soot, a path selector and a test case

generator based on eToc. The system uses a genetic

algorithm to select a set of paths. These paths are

checked against heuristic code patterns and only

feasible paths will be remained for test case

generation.

4 LIMITATION OF CURRENT

SOLUTIONS

Software grows fast in both size and complexity in

current trend, more paths and constraints are

encountered in the detection of infeasible paths,

therefore using traditional symbolic evaluation based

approaches for infeasible path detection encounter

scalability issue. For methods of path sensitive

analysis, there is a need to limit the number of the

targeting paths. The simplest way is to set an upper

bound to limit the paths number. Possible effort

could be applying intelligent method like genetic

algorithm to guide the path selection (Xie et al.,

2009): by choosing proper fitness function, only

paths with high suspicion of infeasibility would be

remained for further processing. Another attempt is

from Forgács and Bertolino (1997) who utilized

program slicing: By reducing a program to a slice of

the variables and statement concerned, the detection

of infeasible paths is therefore made simpler.

Theoretically, it is believed that program

complexity will highly raise the difficulty of

detecting infeasible path. Because the path may

contains long data dependency, complex data types,

side-effect functions, and non-linear operators. It

will be with high cost to develop a general model to

cover them. It is also not possible to determine the

infeasibility of all cases. As infeasible path detection

could be viewed as a type of model abstraction and

verification. Snifakis recently suggested (Edmund et

al. 2009) that general verification theory would be of

theoretical interest only. By contrast, a

compositional study for particular classes of

properties or systems would be highly attractable.

5 POTENTIAL PRATICAL

SOLUTION

Detection of infeasible paths remains an important

problem in software engineering. Current methods

are still far to serve this important need effectively.

Most of the current methods do not put much

emphasis on the characteristics of infeasible paths in

real system code. We propose a revisiting of this

problem by examining, identifying and taking

advantages of these characteristics as much as

possible.

Theoretically, constraints imposed by branches

that a path follows can be in any form. Therefore, it

is unsolvable to determine the infeasibility of a path

in general. However, theoretical limitation does not

always imply practical limitation. Despite the

theoretical limitation, one might still develop a good

practical solution if there are useful practical

characteristics one can take advantage.

More specifically, we propose to investigate the

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

characteristics of constraints imposed by the

branches that may lead a path in real system code to

be infeasible. If one can empirically identify

interesting characteristics that majority of these

constraints are possessing, one might be able to take

advantage from them to establish good practical

methods to improve on both the precision and the

proportion of infeasible paths that can be detected by

current methods. Clearly, systematic experiment

instrumented with both automated and manual

evaluation to examine the proportion of infeasible

paths that a method can detect is very difficult.

However, researchers should still consider spending

effort on this to provide the lacking empirical

quantitative information on the proportion of

infeasible paths that a method can detect.

If these practical methods can be invented and

implemented to detect majority of the infeasible

paths, it will provide major benefit to many related

important applications such as code optimization,

structural testing and coverage analysis.

6 CONCLUSIONS

We have reviewed existing methods for the

detection of infeasible paths. We have also discussed

the strengths and limitations of current methods.

Noticeably, all the existing methods cannot detect

majority of the infeasible paths efficiently. Most of

the existing methods were proposed under other

approaches to solve another problem such as code

optimization or test case generation, in which the

detection of infeasible paths has great impact.

REFERENCES

Altenbernd, P., 1996. On the False Path Problem in Hard

Real-Time Programs. In Real-Time Systems,

Euromicro Conference, pp. 0102-0102.

Balakrishnan, G., Sankaranarayanan, S., Ivančić, F., Wei,

O. and A. Gupta, 2008. SLR: Path-Sensitive Analysis

through Infeasible-Path Detection and Syntactic

Language Refinement. In Static Analysis, vol. 5079,

pp. 238-254.

Ball, T. and Rajamani, S. K., 2002. The SLAM project:

debugging system software via static analysis.

SIGPLAN Not., vol. 37, pp. 1-3.

Ball, T., and Rajamani, S. K., 2001. Bebop: a path-

sensitive interprocedural dataflow engine. Presented at

the Proceedings of the 2001 ACM SIGPLAN-

SIGSOFT workshop on Program analysis for software

tools and engineering, Snowbird, Utah, United States.

Bodik, R., Gupta, R. and Soffa, M. L., 1997. Refining data

flow information using infeasible paths. SIGSOFT

Softw. Eng. Notes, vol. 22, pp. 361-377.

Bjørner, N., Tillmann, N. and Voronkov, A., 2009. Path

Feasibility Analysis for String-Manipulating

Programs. Presented at the Proceedings of the 15th

International Conference on Tools and Algorithms for

the Construction and Analysis of Systems: Held as

Part of the Joint European Conferences on Theory

and Practice of Software, York, UK.

Botella, B., Delahaye, M., Hong-Tuan-Ha, S., Kosmatov,

N., Mouy, P., Roger, M. and Williams, N., 2009.

Automating structural testing of C programs:

Experience with PathCrawler, in Automation of

Software Test, ICSE Workshop, pp. 70-78.

Cobleigh, J. M., Clarke, L. A. and Ostenveil, L. J., 2001.

The right algorithm at the right time: comparing data

flow analysis algorithms for finite state verification.

Presented at the Proceedings of the 23rd International

Conference on Software Engineering, Toronto,

Ontario, Canada.

Concolic testing. Retrieved from: http://en.wikipedia.org/

wiki/Concolic_testing

Edmund, M., Clarke, E., Allen, E. and Joseph, S., 2009.

Model Checking: Algorithmic Verification and

Debugging. In Communications of the ACM, Vol. 52,

pp. 74-84.

Das, M., Lerner S., Seigle, M., 2002. ESP: path-sensitive

program verification in polynomial time. SIGPLAN

Not., vol. 37, pp. 57-68.

Delahaye, M., Botella, B. and Gotlieb, A., 2010.

Explanation-Based Generalization of Infeasible Path.

Presented at the Proceedings of the 2010 Third

International Conference on Software Testing,

Verification and Validation.

Dor, N., Adams, S., Das M. and Yang. Z., 2004. Software

validation via scalable path-sensitive value flow

analysis. SIGSOFT Softw. Eng. Notes, vol. 29, pp. 12-

22.

Dwyer, M. B., Clarke, L. A., Cobleigh, J. M. and

Naumovich, G., 2004. Flow analysis for verifying

properties of concurrent software systems. ACM

Trans. Softw. Eng. Methodol., vol. 13, pp. 359-430.

Ermedahl, A., June, 2003. A modular tool architecture for

worst-Case execution time Analysis. PHD thesis,

Uppsala University, Dept. of Information Technology,

Uppsala University, Sweden.

Fischer, J., Jhala, R. and Majumdar, R., 2005. Joining

dataflow with predicates. SIGSOFT Softw. Eng. Notes

30, vol. 5, pp. 227-236.

Forgács, I. and Bertolino, A., 1997. Feasible test path

selection by principal slicing. SIGSOFT Softw. Eng.

Notes, vol. 22, pp. 378-394.

Goldberg, A., Wang, T. C. and Zimmerman, D., 1994.

Applications of feasible path analysis to program

testing, presented at the Proceedings of the 1994 ACM

SIGSOFT international symposium on Software

testing and analysis, Seattle, Washington, United

States.

Gustafsson, J., 2002. Worst case execution time analysis

of Object-Oriented programs. In the proceedings of

Proceedings of the Seventh International Workshop on

ASurveyofInfeasiblePathDetection

Object-Oriented Real-Time Dependable Systems, San

Diego, CA , USA, pp. 0071-0071.

Gustafsson, J., Ermedahl, A., Sandberg, C. and Lisper, B.,

2006. Automatic derivation of loop bounds and

infeasible paths for WCET analysis using abstract

execution. Presented at the Proceedings of the 27th

IEEE International Real-Time Systems Symposium.

Gustafsson, J., 2000. Analyzing execution-time of Object-

Oriented programs using abstract interpretation. PhD

thesis, Department of Computer Systems, Information

Technology, Uppsala University.

Gustafsson, J., Ermedahl, A. and Lisper, B., 2006.

Algorithms for Infeasible Path Calculation. Sixth

International Workshop on Worst-Case Execution

Time Analysis, Dresden, Germany.

Hampapuram, H., Yang, Y. and Das, M., 2005. Symbolic

path simulation in path-sensitive dataflow analysis.

SIGSOFT Softw. Eng. Notes, vol. 31, pp. 52-58.

Hedley, D. and Hennell, M. A., 1985. The cause and

effects of infeasible paths in computer programs.

Presented at the Proceedings of the 8

International

Conference on Software Engineering, London,

England.

Khedker, U., Sanyal, A., Karkare, B., 2009. Data flow

analysis: theory and practice. Taylor and Francis.

Korel, B., 1996. Automated test data generation for

programs with procedures, SIGSOFT Softw. Eng.

Notes, vol. 21, pp. 209-215.

Liu, H. and Tan, H. B. K., 2009. Covering code behavior

on input validation in functional testing. In

Information and Software Technology, vol. 51(2), pp

546-553, 2009.

Liu, H. and Tan, H. B. K., 2008. Testing input validation

in web applications through automated model

recovery. In Journal of Systems and Software, vol.

81(2), pp. 222-233.

Malevris, N., Yates, D. F. and Veevers, A., 1990.

Predictive metric for likely feasibility of program

paths. Information and Software Technology, vol. 32,

pp. 115-118.

McMinn, P., 2004. Search-based software test data

generation: a survey: Research Articles. Softw. Test.

Verif. Reliab., vol. 14, pp. 105-156.

Moura, L. D. and Bjorner, N., 2008. Z3: an efficient SMT

solver. Presented at the Proceedings of the Theory and

practice of software, 14th international conference on

Tools and algorithms for the construction and analysis

of systems, Budapest, Hungary.

Ngo, M. N. and Tan, H. B. K., 2008. Applying static

analysis for automated extraction of database

interactions in web applications. In Information and

Software Technology, vol. 50(3), pp 160-175.

Ngo, M. N. and Tan, H. B. K., 2008. Heuristics-based

infeasible path detection for dynamic test data

generation. Inf. Softw. Technol., vol. 50, pp. 641-655.

Ngo, M. N. and Tan, H. B. K., 2007. Detecting Large

Number of Infeasible Paths through Recognizing their

Patterns. In Proceedings ESEC-FSE'07, Joint

European Software Engineering Conference and ACM

SIGSOFT Symposium on the Foundations of Software

Engineering, ACM Press, pp. 215-224.

Padmanabhuni, B. and Tan, H. B. K., 2011. Defending

against Buffer-Overflow Vulnerabilities. In IEEE

Computer, vol. 44 (11), pp 53-60.

Prather, R. E. and Myers, J. P., 1987. The Path Prefix

Software Engineering. IEEE Trans on Software

Engineering.

Robinson, A. J. A. and Voronkov, A., 2001. Handbook of

Automated Reasoning vol. II: North Holland.

Sen, K., Marinov, D. and Agha, G., 2005. CUTE: a

concolic unit testing engine for C. SIGSOFT Softw.

Eng. Notes, vol. 30, pp. 263-272.

Tahbildar, H. and Kalita, B., 2011. Automated Software

Test Data Generation: Direction of Research.

International Journal of Computer Science and

Engineering Survey, vol. 2, pp. 99-120.

Vergilio, S., Maldonado, J. and Jino, M., 1996. Infeasible

paths within the context of data flow based criteria. In

the VI International Conference on Software Quality,

Ottawa, Canada, pp.310–321.

Williams, N., 2010. Abstract path testing with

PathCrawler. Presented at the Proceedings of the 5th

Workshop on Automation of Software Test, Cape

Town, South Africa.

Wilhelm, R., Engblom, J., Ermedahl, A., Holsti, N.,

Thesing, S., Whalley, D., Bernat, G., Ferdinand, C.,

Heckmann, R., Mitra, T., Mueller, F., Puaut, I.,

Puschner, P., Staschulat, J. and Stenstrom, P., 2008.

The worst-case execution-time problem--overview of

methods and survey of tools. ACM Trans. Embed.

Comput. Syst., vol. 7, pp. 1-53.

Xie, T., Tillmann, N., Halleux, P. D. and Schulte, W.,

2009. Fitness-Guided Path Exploration in Dynamic

Symbolic Execution. Presented at the IEEE/IFIP

International Conference on Dependable Systems &

Networks, Lisbon.

Zhang, J. and Wang, X., 2001. A constraint solver and its

application to path feasibility analysis. International

Journal of Software Engineering and Knowledge

Engineering, vol. 11, pp. 139-156.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering
