Dynamic Localisation and Automatic Correction of Software Faults

using Evolutionary Mutation Testing

Pantelis Stylianos Yiasemis and Andreas S. Andreou

Department of Computer Engineering and Informatics, Cyprus University of Technology,

31 Archbishop Kyprianou ave., Limassol, Cyprus

Keywords: Mutation Testing, Fault Localization and Correction, Genetic Algorithms.

Abstract: Software testing has recently turned to more “sophisticated” techniques, like automatic, self-adaptive

mutation testing, aiming at improving the effectiveness of the testing process and handling the associated

complexity that increases the level of time and effort spent. Mutation testing refers to the application of

mutation operators on correctly functioning programs so as to induce common programming errors and then

assess the ability of a set of test cases to reveal them. In the above context the present paper introduces a

novel methodology for identifying and correcting faults in Java source code using dynamic slicing coupled

with mutation testing and enhanced by Genetic Algorithms. A series of experiments was conducted to

assess the effectiveness of the proposed approach, using different types of errors and sample programs. The

results were quite encouraging as regards the ability of the approach to localise the faults, as well as to

suggest the appropriate correction(s) to eliminate them.

1 INTRODUCTION

A significant research topic in the area of Software

Engineering is how to increase the productivity and

quality of the software products. A major factor that

affects negatively the aforementioned issues is the

presence of faults. Faults are the source of erroneous

behavior on behalf of a system known as failure.

According to the IEEE standard Glossary of

Software Engineering Terminology failure is defined

as the inability of a system or component to

correctly execute the functions defined by the

required specifications. Fault is an incorrect step,

procedure or data definition in a program, which

summed they lead to failure. They are sometimes

called as problems, errors, anomalies,

inconsistencies or bugs (Patton, 2006).

There are cases in literature where the existence

of faults in software systems of great importance and

cost made the headlines of newspapers. Some

examples of such significant failures include

Disney’s Lion King in 1994-1995, Intel’s Pentium

Floating-Point Division Bug in 1994, NASA’s Mars

Polar Lander in 1999, Patriot Missile Defense

System in 1991, Y2K (Year 2000) Bug originated

decades back - circa 1974 and the Dangerous

Viewing Ahead in 2004 (Patton, 2006).

The software testing process may be divided into

two sub-processes; failure detection, which is

performed during the execution of a program and

debugging, where faults that lead to failure are being

identified and corrected. Most of the developing

firms spend around 50% to 80% of the total

development time in software testing activities,

trying to reduce the number of faults in their source

code. Furthermore, the testing process may be

considered as one of the most demanding, hard and

frustrating set of activities in software development.

The process of actually detecting faults in a software

system takes up to 95% of the whole code

debugging sub-process (Myers, 1979). It is obvious,

therefore, that there is a need to develop highly

effective fault detection methods to improve the

effectiveness and ease the code testing process. This

will subsequently reduce the amount of time code

testing requires, increasing the quality of the code

and the productivity of software developers.

In this study an innovative method is proposed

for detecting and correcting faults in Java code by

combining: Dynamic Code Slicing, Mutation

Testing and Genetic Algorithms (GA). Specifically,

the aim of the paper is to utilize the benefits of

dynamic slicing so as to change the execution flow

of an erroneously behaving program by replacing

Stylianos Yiasemis P. and S. Andreou A..

Dynamic Localisation and Automatic Correction of Software Faults using Evolutionary Mutation Testing.

DOI: 10.5220/0003992000150026

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 15-26

ISBN: 978-989-8565-11-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

parts in the particular slice of code that contains one

or more faults. The process of finding the erroneous

line(s) and selecting the correct replacement(s) for

eliminating the faults is a difficult problem with a

large solution space. GA may successfully tackle

this problem by reducing it to a search optimization

problem.

The rest of the paper is organized as follows:

Section 2 presents a short literature overview on

fault localization and mutation testing; this section

also outlines some Computational Intelligence

techniques utilized in this area. Section 3 describes

the technical background behind the algorithms

adopted in the proposed solution. Furthermore, the

basic principles behind Mutation Testing are

introduced along with mutation operations and the

MU Java system. Section 4 describes the aspects of

the proposed methodology, while in section 5, the

application prototype and the experimental results

are presented. This section also demonstrates the

design of the experiments and discusses the

corresponding results. Section 6 provides a critical

stand towards possible limitations of the proposed

approach. Finally, section 7 draws our conclusions

and outlines future research steps.

2 LITERATURE OVERVIEW

Code testing is a time and effort consuming process,

therefore there is a strong need to improve its

effectiveness and reduce the cost associated with

completing its tasks. This led to studies trying to

develop automated code testing methods or/and

tools, which introduce novel algorithmic tasks that

take advantage of computers’ processing power to

reduce human effort. In this context various methods

have been suggested in literature, introducing Delta

debugging, variations of dynamic programming,

failure inducing chops and predicate switching.

Below, we describe a few of these methods that lie

within the area of fault localization and/or program

slicing, as the latter constitutes a very promising

approach that may assist in identifying and isolating

faulty statements.

Fault Localization (FL) is the process of

identifying suspicious code that may contain faults in

the program and then examine it to decide if the

identified code actually contains faults. FL is a

heuristic method using dataflow tests, which supports

execution slicing and dicing based on test cases

(Agrawal, et al., 1995). Agrawal and Horgan (1990)

observed that a fault is located in a slice that

corresponds to a test case which failed during

execution. The search for the fault may then

concentrate on that slice only (dice) and the rest of

the program may be ignored. The results showed that

this method was able to detect some but not every

fault inserted by independent observers, while in

some cases the faults were not even included in the

slices selected. Black et al. (2005) studied the

characteristics of a program’s slices in an attempt to

identify those components that could contain faults.

A slicing profile was formed with slicing metrics and

dependence clusters to investigate if a reliable tool

could be developed so as to identify the more fault

prone components, yielding encouraging preliminary

results. An experimental evaluation using dynamic

slices for fault localization was performed by Zhang

et al. (2005), who proposed a framework for dynamic

slicing of programs with a long execution path. Three

different dynamic slicing algorithms were

implemented and compared, namely data slicing, full

slicing and relevant slicing. The results concluded

that the slices created with data slicing were smaller

than the other two algorithms but they contained on

average less faults. The full slices were larger than

data slices and contained more faults, but were a bit

smaller than the relevant slices which contained even

more faults. Speed-wise data slicing was the fastest

of the three, while relevant slicing the slowest.

Delta debugging is the process of defining the

causes that specify how a program acts by focusing

on the differences (deltas) between the current and

the previous version of that program, as stated by

Gupta in Gupta et al. (2005). Continuing, the method

simplifies and isolates the input that causes the

failure. For isolating and investigating the behavior

of a certain input, delta debugging searches for the

smallest test case scenario that becomes successful

when this input is deleted from the test case. By

utilizing the delta debugging dynamic algorithm, a

method was introduced using the minimal failure

inducing input that delta debugging identifies, to

compute a forward dynamic slice and afterwards

intersect the forward slice with the statements in the

backward slice of the erroneous output to create a

failure-inducing chop, Zhang et al. (2005). The

results showed that these failure-inducing chops may

aid in reducing the size of the search space without

losing the ability to locate the erroneous code.

Mutation Testing (MT) is another technique that

is based on the insertion of faults in a program and

was first introduced in the late 70s by Hamlet (1977)

and Demillo et al. (1978), while nowadays it is

reported in various research studies dealing with

software testing.(e.g. Nica et al. and Harman et al.).

The general idea of MT is that faults commonly

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

made by programmers are induced in the initial

programs to create a set of erroneous programs called

mutants, each of them containing a specific change-

fault. The mutants are executed with a set of test

cases and the quality of the set is assessed by

measuring how many faults are detected. Quality is

evaluated using an adequacy score known as

Mutation Score (MS), which is defined as the

number of “killed” mutants (revealed faults) to the

number of the non-equivalent mutants (undetected

faults). Mutation analysis targets at increasing the

mutation score, bringing it closer to 1, so that the set

of test cases used are adequate to detect all the faults

included in the mutants. MT has high computational

costs, as it needs to execute all the test cases on every

mutant, and requires substantial effort on behalf of

the programmers.

Genetic Algorithms (GA) are search algorithms

based on the principles of natural selection and

genetic reproduction (Goldberg, 1989); (Jiang et al.,

2008). Essentially, GA constitute a special class of

optimization techniques that maintain a population of

individuals each of which represents a possible

solution to the problem in hand. The population is

evolved using genetic operators that cross-over and

mutate individuals trying to reach to better solutions

in each generation. The fitness of each individual is

evaluated using a dedicated function. Despite the fact

that GA and program slicing algorithms have been

extensively used in literature, no work has been

reported thus far that combines the two for fault

localization and correction. The work of Jiang et al.

(2008) which describes how software faults may be

localized based on a set of testing requirements and

program slicing inspired the present paper as regards

the encoding of the GA population. The authors

presented an approach to identify dependence

structures in a program that searches a superset of all

possible slices to identify the set of slices that

achieves maximum coverage. The framework yielded

accurate results, showing in practice that it is possible

to express problems of dependency analysis as search

problems and that good solutions can be achieved in

a reasonable time frame by using this technique.

Arcuri and Yao (2008) proposed a framework for

automatic software bug fixing which used co-

evolution where both programs and test cases co-

evolve, aiming at fixing bugs in programs by

influencing each other. The framework requires as

input the faulty program and its formal specification.

The work included some preliminary experiments

that showed its potential applicability for any

implementable program; essentially, it attempts to

evolve the whole program tree, something which

may prove costly and not efficient for large scale

programs. Also, formal specifications are not always

provided, a fact that makes the framework unusable

in these cases.

Genetic Programming (GP) and program analysis

were used by Weimer et al. (2010) in order to repair

off the shelf legacy systems. The GP takes as input

the source code to be repaired, the negative test cases

that exercise the fault as well as several positive test

cases that result in the correct behavior of the system.

It then evolves a modified candidate repair that does

not fail the negative test cases and still passes the

positive test cases. The first candidate that passes all

the negative and positive test cases is called the

primary repair, which is reduced to the minimized

repair after the use of program analysis to get rid of

the irrelevant changes. Using bugs that already

existed in the systems and were not manually

injected provided better conclusions and the study

was the first to work on real programs with real

faults.

3 TECHNICAL BACKGROUND

3.1 Mutation Testing (MT)

As previously mentioned, the general idea behind

MT is that the faults introduced by mutation are

similar to common programming errors. MT is

proven effective in finding a satisfying number of

test cases, which can be used to identify real faults

made by programmers (Hamlet, 1977). The number

of possible faults is quite large, thus traditional MT

targets only those groups of faults which are closer

to the original code. This theory is based on two

hypotheses: Competent Programmer Hypothesis

(CPH) and Coupling Effect (CE). CPH states that

programmers tend to write nearly correct code,

while CE states that test data used to identify simple

faults is sensitive enough to identify complex errors

as well (Offut, 1989). Although there are some

recent studies in literature that deal with high order

mutations, like Harman et al. (2011) and Fraser and

Zeller (2011), this paper focuses only on first order

mutants as these may be considered good enough for

performing adequate testing of program code:

Simple faults may be represented with simple

mutations created with syntactic changes, while

complex faults are being represented with more

complex mutations consisting of more than a single

change in the code.

Traditional MT states that from a program P we

get a set of faulty programs (mutants) after applying

DynamicLocalisationandAutomaticCorrectionofSoftwareFaultsusingEvolutionaryMutationTesting

some single syntactic changes on the original code.

The transformation rule that generates a mutant of

the original program is called Mutation or Mutant

Operator (MO). MOs are designed to modify

variables and expressions by replacement, insertion

or deletion (Offutt and Untch, 2001). Before starting

mutation analysis, the original program must be

executed with the test cases to check if it is executed

correctly. Afterwards the set of test cases will be

used to check all the mutants created. If the

execution results of a mutant are different compared

to those of the original program then we may say

that the mutant has been killed, otherwise we say

that it has survived. After execution of all test cases

some mutants may survive, so we need to provide

some additional test data to kill those as well. In the

end, after these additional executions, some mutants

may still have survived as they keep returning the

same results as the original program. These are

called Equivalent Mutants and while they are

syntactically different from the original program

they provide the same functionality.

Testing with mutation methods is completed

with calculating the adequacy score, known also as

Mutation Score (MS), which defines the quality of

the set of test cases given as input to the program.

MS is the analogy of the number of “killed” mutants

against the number of the non-equivalent mutants.

The purpose of mutation analysis is to increase the

mutation score, bringing it closer to 1, which means

that the set of test cases is adequate for detecting all

the faults included in the mutants.

3.2 MuJava and Mutation Operators

A variety of different tools for MT have been

suggested: Mothra (King and Offutt, 1991) is a

versatile environment for FORTRAN, which is the

first full MT software tool. Jester is a simple open

source tool for Java code MT (Binkley et al., 2006)

that is integrated with JUnit, a well-known code

testing environment. Jester does not use any

sophisticated algorithm to accelerate the mutation

process thus resulting in slow performance, while

the number of MO supported is restricted. These

limitations make the use of Jester ineffective and

non-practical for large programs. MuJava (Offutt et

al., 2005) is another system for MT of Java

programs. Its primary objective is to study MO

relevant to Object Oriented programming languages.

At present it is regarded as one of the most complete

tools in terms of MO supported. It offers mutations

for traditional testing, but also for testing at the class

level, by combining two basic technologies, Mutant

Schemata Generation (MSG) and byte-code

translation. Using MSG it creates “meta-mutants” of

the program in at source code level that integrate a

number of mutations. Working directly on the byte-

code means that only two compilations are needed,

the one of the original program and the one of the

meta-mutants that MSG created. This improves the

performance of the tool over other mutation testing

tools that compile all the mutants. Based on the

above useful characteristics, we decided to utilize

MuJava in our study; therefore we outline its basic

features below.

MuJava uses two kinds of MOs, method-level

(Seung and Offutt, 2005) and class-level operators

(Wang and Roychoudhury, 2004). Method-level

operators change the source code by replacing,

deleting and inserting primitive operators. There are

six different primitive operators: arithmetic,

relational, conditional, shift, logical and assignment

operators. Some of these operators consist of a

number of other sub-operators (e.g. binary

arithmetic and shortcuts.

The class mutation operators MuJava uses are

categorized in four different sets based on the

characteristics of the programming language they

affect. These are Encapsulation, Inheritance,

Polymorphism and Java-Specific features.

4 AUTOMATIC,

EVOLUTIONARY MUTATION

TESTING

The goal of the proposed approach is to offer an

efficient, automatic way to define the specific line or

the smaller possible set of lines responsible for a

fault present in a Java program. More to that, the

approach aims at suggesting the necessary

correction(s) that remove the fault. The use of

dynamic slicing enables isolating those lines of a

program that affect a variable at a given point of

interest for certain executions using specific input

values. We set manually the slicing criterion in an

input file which contains the source code file’s name

and the line with the criterion for the creation of the

slice. Also, the normalized version of the initial

source code is fed as input to the dynamic slicing

algorithm. The number of possible corrections,

though, to be performed on the slice for removing a

fault is usually large thus making its manual

processing hard and time consuming. Mutation

testing techniques applied to the code contained in

the slice may be considered as the answer removing

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

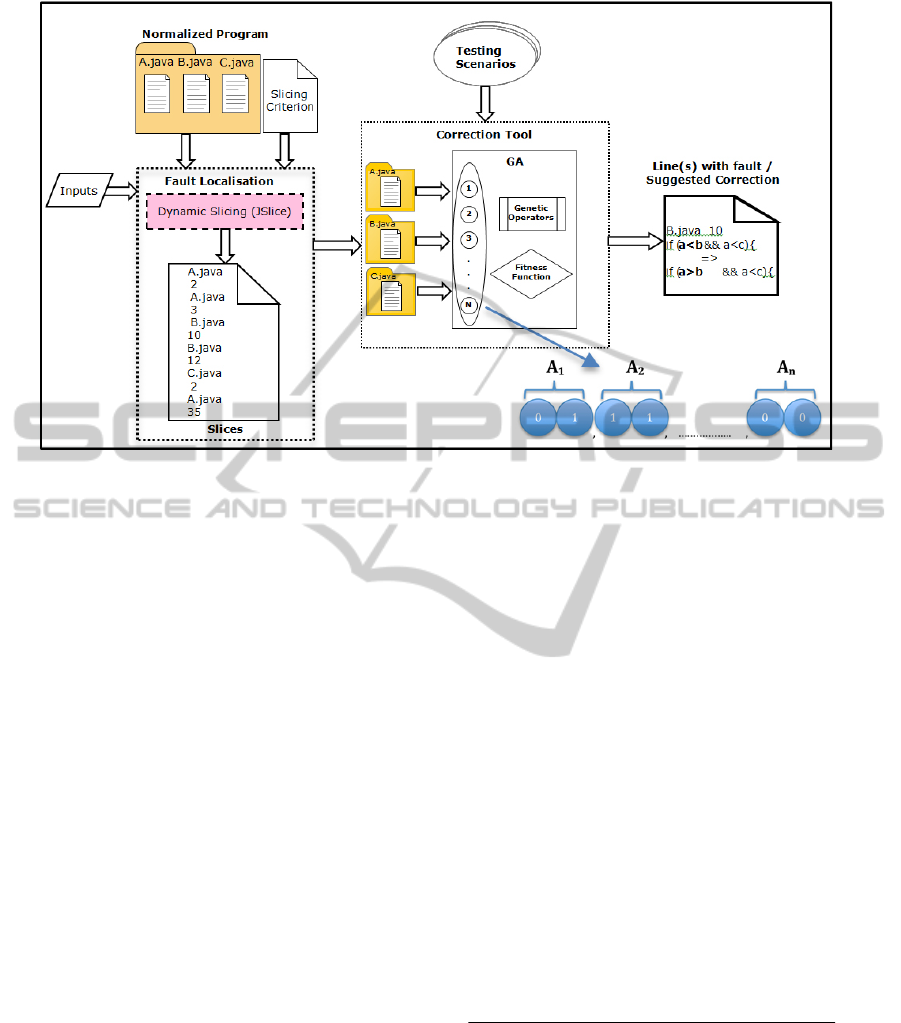

Figure 1: The proposed hybrid approach for fault localization and correction combining dynamic slicing, mutation testing

and Genetic Algorithms.

a fault is usually large thus making its manual

processing hard and time consuming. Mutation

testing techniques applied to the code contained in

the slice may be considered as the answer to this

problem. Therefore, the proposed approach

combines dynamic slicing with mutation testing,

with the two being further enhanced by the use of

genetic algorithms to evolve mutant solutions for

fault correction (see Fig. 1).

Every possible solution to our problem is

represented as a chromosome of size N, where N is

the number of lines contained in a slice. Each line in

the slice is represented as a gene that may take any

value in the domain [0, K]. K is the maximum

number of supported mutation operators. Any value

different than zero, corresponds to a specific

mutation operation that is applied to that line. The

search space of the genetic algorithm based on our

encoding scheme for a dynamic slice of size N is:

+1) * (A

+ 1) *….* (A

+1) (1)

where A

is the number of replacements for line x in

the slice. As the case of no replacements is valid as

well, it is necessary to add 1 to each number of

replacements for each line so that the minimum size

of the search space is 1 (i.e. no mutations are applied

on any line).

To drive the algorithm to the best possible

solution we use a Fitness Function that takes into

account the results of the execution of each of the

mutated programs, using a number of predefined

successful and faulty test cases, that is, test scenarios

that execute correctly or not respectively on the

original unmodified program. Then the algorithm

assesses a specific replacement based on two

elements:

• The number of successful test cases that remain

successful after the replacement

• The number of faulty test case scenarios that

become successful after the replacement has taken

place.

The probability of a line to include a fault increases

proportionally to the fitness of its “best”

replacement. A specific solution suggests one or

more lines that contain a fault. The number of lines

contained in each solution affects the fitness of that

specific solution. Specifically, each suggested

solution (chromosome) is evaluated using the

following formula:

()

FSCFWFSSSCSWSS

nknn

njnn

⋅

⎟

⎠

⎞

⎜

⎝

⎛

⋅+⋅

∑∑∑

(2)

where:

and FS

are the numbers of successful test case

scenarios that remained successful, and of faulty

scenarios that turned to successful respectively after

replacement n,

and FW

are weights defining the significance

of the successful and faulty test case scenarios

respectively,

DynamicLocalisationandAutomaticCorrectionofSoftwareFaultsusingEvolutionaryMutationTesting

Table 1: Mutation Operators used in our algorithm.

Method Level Mutation Operators

AOR - Arithmetic Operator Replacement

AOI - Arithmetic Operator Insertion

AOD - Arithmetic Operator Deletion

ROR - Relational Operator Replacement

COR - Conditional Operator Replacement

COI - Conditional Operator Insertion

COD - Conditional Operator Deletion

SOR - Shift Operator Replacement

LOR - Logical Operator Replacement

LOI - Logical Operator Insertion

LOD - Logical Operator Deletion

Class Level Mutation Operators

IHD - Hiding variable deletion

IOP - Overriding method calling position change

ISI - super keyword insertion

ISD - super keyword deletion

IPC - Explicit call to a parent's constructor deletion

PNC - new method call with child class type

PMD - Member variable declaration with parent class type

PPD - Parameter variable declaration with child class type

PCI - Type cast operator insertion

Polymorphism PCC Cast type change

PCD - Type cast operator deletion

PCC - Cast type change

PRV - Reference assignment with other comparable variable

OAC - Arguments of overloading method call change

JTI - this keyword insertion

JTD - this keyword deletion

JSI - static modifier insertion

JSD - static modifier deletion

JID - Member variable initialization deletion

EOA - Reference assignment and content assignment replacement

EOC - Reference comparison and content comparison replacement

EAM - Acessor method change

EMM - Modifier method change

SSC

j,n

is a constant score for a specific successful

test case scenario j after replacement n (in case we

want to give a specific successful scenario higher

importance over the others)

FSC

j,n

is a constant score for a specific faulty test

case scenario j after replacement n (in case we want

to give a specific faulty scenario higher importance

over the others)

SLW is a weight that reflects the importance of the

slice size,

L is the number of lines contained in the proposed

solution, i.e. the number of genes that were graded

with a value different of 0,

S and F are the number of successful and faulty test

scenarios respectively, and N the slice size.

The algorithm terminates if: (i) The predefined

maximum number of generations has been reached,

or, (ii) A chromosome has been evolved that yields

the highest possible fitness score as expressed by

eq.(2) - this is achieved when the chromosome

involves only one line that contains the fault and the

proposed replacement converts all faulty test cases

to successful, or (iii) For the last M generations the

fitness of the best chromosome becomes equal or

lower compared to that of the previous generation

and M exceeds the 25% of the total number of

generations set.

4.1 Application Issues

A dedicated software tool was developed to support

the proposed approach (screenshots are provided in

Fig. 2). First, the user defines the folder that contains

the source files and packages of the Java code under

testing, as well as the mutation operators to be

applied. The operators supported are part of those

provided by the MuJava tool, specifically those that

fit the purposes of this work (see Table 1).

The tool applies the mutation operators on the

selected program and creates a new copy of the

original file for each mutation. When the production

of all code mutation cases is completed, the user sets

the slicing criterion according to which the dynamic

slice will be created, which is basically the line

where a “faulty” result or an erroneous value of a

certain variable is observed. The dynamic slice of

the program is produced through a call to the JSlice

tool (jslice.sourceforge.net). Continuing, the user

executes the algorithm by defining the test cases

files that contain the successful and faulty testing

scenarios to be used, as well as the weights that

involve three decimal numbers defining the grading

weights for the mutations. Next, the definition of the

initial values for the parameters of the Genetic

Algorithm takes place, with the domain value for

each gene being based on the maximum allowable

number of mutations for the line it represents.

5 EXPERIMENTAL RESULTS

This section reports on the results of the

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

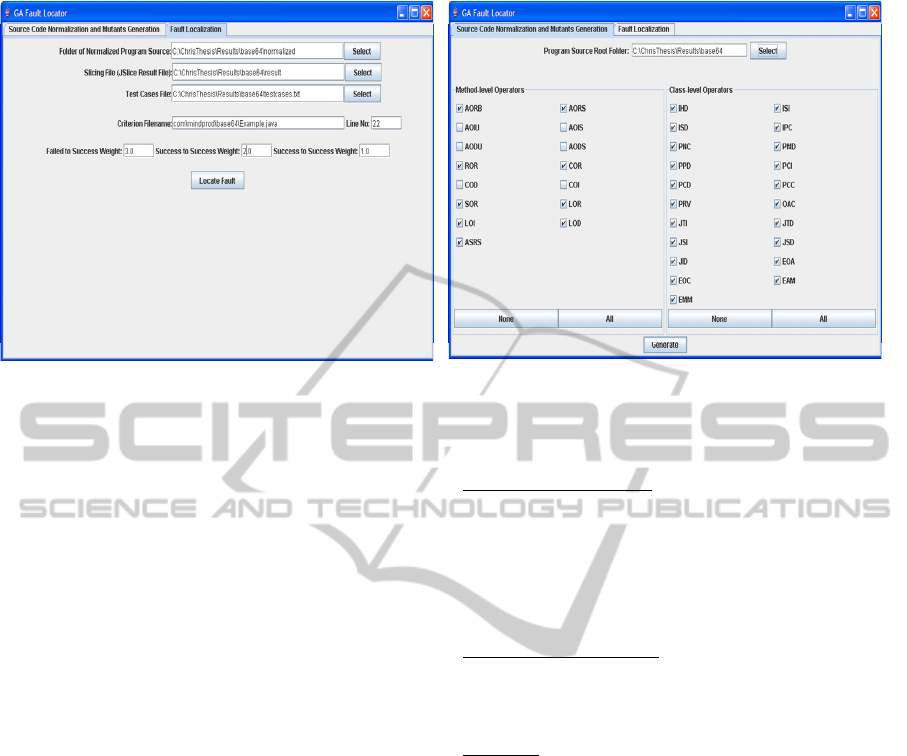

Figure 2: Screenshots of the supporting software tool.

experimental process. Three series of experiments

were conducted: Category A includes mutant

programs with errors at the level of methods, while

category B involves errors induced at the level of

classes. Category C evaluates the scalability of the

proposed approach on large real-world programs. It

is worth noting that the experiments were performed

on a Dell Inspiron I6000 machine with Intel Pentium

M processor at 1.73GHz and 2.00 GB of RAM.

The initial settings of the GA and its fitness

function were as follows: For every slice FW=3.0,

SW=1.0 and the slice size weight SLW=1.0. The

number of generations was set equal to 200, thus

calculating M to 50. Mutation and crossover

probabilities were set to 0.01 and 0.3 respectively,

while roulette wheel was used as the selection

mechanism. Finally, equal importance was given to

all scenarios, with SSC and FSC being set to the

constant value of 10 for every scenario. The

experimental results reported below for the former

two categories are the average of 25 GA runs.

5.1 Experiment Series A’

This group corresponds to mutations performed at

the method level. More specifically, single errors

producing first order mutations have been induced

for the following operator categories: (i) Arithmetic,

(ii) Relational, (iii) Conditional, (iv) Logical and (v)

Assignment. The latter was performed via a shift

operation thus covering also this specific category of

mutation operators.

The sample programs used in the experiments

correspond to programming solutions to well-known

problems that are usually treated as benchmarks;

these programs are available at http://www.cut.

ac.cy/staff/%20andreas.andreou/files and are briefly

described below.

Credit Card Validation:

This sample program reads a

credit card number of x digits and returns its vendor,

which may be one of the following: Visa, AMEX,

Diners/Carte Blanche, JCB and MasterCard (or none

of these). The program may also check the digits of

the card using an algorithm that is suitable for that

particular vendor so as to validate the card number.

Triangle Classification:

This program, given the

three sides (lengths) of a triangle, performs

classification in certain categories (e.g. equilateral,

isosceles, scalene etc.).

Base 64:

This program receives an input string,

encodes it using a 64-character set representation

and finally decodes it back to string, which returns it

as output.

Table 2 lists the results: the sample program, the

mutation performed and the line where the error was

located are indicated in the first column, while the

subsequent columns include the exact statement(s)

with the proposed correction and the number of

testing scenarios, both successful and unsuccessful,

that were used to guide the evolutionary process.

The selection of these scenarios was performed

automatically by a search-based module of the

supporting tool that parsed the program under test

and recognized the different cases that should be

described through scenarios (success/fail) in order

for the algorithm to identify the correct functioning.

An example of testing scenarios is given in Table 3

for the Credit Card Validation program. Finally, the

last column of Table 2 indicates the time for

execution.

It is worth noting that in all cases the error pre-



DynamicLocalisationandAutomaticCorrectionofSoftwareFaultsusingEvolutionaryMutationTesting

Table 2: Results obtained using mutations performed at the method level.

Sample Program Initial Statement Vs Mutated Statement

Testing

Scenarios

Time

(sec)

Credit Card

Validation

MO: AOD

LOC: 57

cachedLastFind=i

<vs>

cachedLastFind=i++

2 Success

6 Fail

337

Triangle Classification

MO: ROR

LOC: 30

if ((i + j <= k) || (j + k <= i) || (i + k <= j))

<vs>

if ((i + j == k) || (j + k <= i) || (i + k <= j))

5 Success

1 Fail

136

Credit Card

Validation

MO: COR

LOC: 56

if (ranges[i].low<= creditCardNumber && creditCardNumber<= ranges[i].high)

<vs>

if(ranges[i].low<= creditCardNumber || creditCardNumber<= ranges[i].high)

7 Success

2 Fail

696

Base64

MO: LOR

LOC: 147

combined |= b[i + 2] & 0xff

<vs>

combined |= b[i + 2] | 0xff

2 Success

1 Fail

448

Base64

MO: ASR

LOC: 144

combined <<= 8

<vs>

combined >>= 8

2 Success

3 Fail

191

Table 3: Sample of the testing scenarios used for the Credit Card Validation sample program.

\mindprod\creditcard\ValidateCreditCard.java 1

F;379999999999999;vendor_name.equals("AMEX")

S;4000000000000;vendor_name.equals("Visa")

S;4999999999998;vendor_name.equals("Visa")

S;0;vendor_name.equals("Err:no enough digits”)

F;6011222233334444;vendor_name.equals("AMEX")

sent was successfully detected and corrected, with

the time-frame of execution ranging from less than

2,5 to almost 12 minutes, depending on how difficult

the error was for the algorithm to locate and provide

the proper correction.

5.2 Experiment Series B’

This group includes programs that were fed with

single errors corresponding to mutations at the class

level. More specifically, the errors induced relate to

special features of the Java programming language

and also to inheritance.

The sample programs used (available at

http://www.cut.ac.cy/staff/%20andreas.andreou/files

) were the following:

Person Sorted List:

This program receives a set of

numbers corresponding to the identity card numbers

of persons and sorts them in a list. An object of type

Person

is inserted in the list if its ID is not already

part of it. Finally, it returns the number of persons in

the list. The program uses inheritance for different

types of persons like for example employee and

student. This program was modified in line 12 of the

file “Student.java”, using the IHD mutation operator,

which inserted variable id in child class Student

as to hide the corresponding variable in the parent

class Person

. Also, this program was used in another

experiment where line 83 of the file “Person.java”

was modified using operator EOC so as to replace

method equals with the “==” operand thus providing

comparison at the level of reference instead of

content.

Shapes:

It is a simple program that receives four

input parameters (numbers) that correspond to the

dimensions of a circle (first parameter – radius), a

square (second parameter – side) and a rectangle

(third and fourth parameters –sides A and B). The

program calculates the area of each shape based on

the input parameters and then it sorts the shapes

using a Splay Tree according to their area. Finally, it

returns the name of the shape with the maximum

area. The “Circle.java” file was modified using the

IOP operator and more specifically, lines 19 and 20

were interchanged so as to call the method that

calculates the area of the shape prior to assigning

values to variables x1 and y1 which correspond to

the sides of the shape.

Graph-Shortest Path:

This program receives a file as

input which includes the description of a graph,

along with the cost of each edge. More specifically,

the program requires three input parameters, the first

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

Table 4: Results obtained using mutations performed at the class level.

Sample

Program

Initial Statement

Mutated Statement

Testing

Scenarios

Time

(sec)

Person Sorted

List

MO: IHD

LOC: 12

public Student( java.lang.Integer id, java.lang.String n, int

ag, java.lang.String ad,java.lang.String p, double g)

<vs>

public java.lang.Integer id = new java.lang.Integer(0);

public Student( java.lang.Integer id, java.lang.String n, int

ag, java.lang.String ad, java.lang.String p, double g)

<<LINE 12 DELETED>>

3 Success

2 Fail

Shapes

MO: IOP

LOC: 19, 20

super.setValues(x1,y1);

Area();

<vs>

Area();

super.setValues(x1,y1);

4 Success

3 Fail

677

Graph

Shortest Path

MO: JTI

LOC: 17

this.cost=cost;

<vs>

cost=cost;

3 Success

2 Fail

392

Graph

Shortest Path

MO: JSD

LOC: 24

public int scratch=0

<vs>

public static int scratch=0

5 Success

3 Fail

778

Person Sorted

List

MO: EOC

LOC: 83

boolean equals = otherId.equals(thisId)

<vs>

boolean equals = otherId == thisId

4 Success

3 Fail

Order Set

MO: EAM

LOC: 260

int size2 = s2.getSetLast() + 1;

<vs>

int size2 = s2.getActualSize() + 1;

1 Success

2 Fail

two corresponding to the start and end of a certain

route respectively and the third defining the

algorithm which will be used to calculate the

shortest path and its corresponding cost. The

program returns the sequence of nodes which

constitute the shortest path and the cost of that path

according to the input values. The program was

modified in line 17 of the “Edge.java” file so as to

include an error caused by the use of the JTI

mutation operator. More specifically, the keyword

“this” was removed during the assignment of the

local variable cost. Therefore, the value of cost was

assigned to the variable itself instead of the local

variable cost. Also, this program was used in another

experiment, where line 24 of the file “Vertex.java”

was modified using operator JSD so as to insert the

keyword “static” in the definition of variable

scratch, thus causing all instances (objects) of class

Vertex

to have the same value for that variable.

Order Set:

This program receives two sorted arrays

as inputs and returns a new array which contains

only the elements that are common between the

input arrays (line 260 in file “OrderSet.java” was

modified with the EAM operator by substituting the

call to method getSetLast() with the call to method

getActualSize()).

Table 4 presents the results of the second category of

experiments. Again the number of replacements

(lines) suggested by the GA was always of size 1,

while in all cases the error present was successfully

detected and corrected. The time of execution

ranged from less than 1 to almost 13 minutes, again

depending on the type of the error.

Concluding, the two series of experiments

provided strong indications that the proposed

approach works quite satisfactory, covering a

relatively wide variety of errors, both in terms of

type and complexity, locating and successfully

correcting the erroneous statement in 100% of the

benchmark cases.

5.3 Experiment Series C’

The last series of experiments involved programs

implemented as assignments by a group of

undergraduate students at the University <blinded

for review purposes> enrolled in an Object Oriented

Programming course using Java. The general idea

here was to evaluate the proposed approach with

large, real-world code with actual, not hand-seeded,

faults that are accidentally made while

programming.

Two projects with different functional targets

DynamicLocalisationandAutomaticCorrectionofSoftwareFaultsusingEvolutionaryMutationTesting

were assigned to two classes of students; the first

numbered 43 students and the second 38. Therefore,

a total of 81 programs were used in the experiments;

the programs ranged in size from 160 to 1400 lines

of code.

The first project assignment required the

development of a simple library system, which

would allow the user to store, borrow and delete

books. The library was to be implemented using an

array of Book

objects. The user would be able to

insert a new book from the main menu by entering

relevant book details. In case the user wanted to

borrow a book, the attribute Free

of that Book object

would be changed to false. The deletion of a book

would remove the object from the Library array.

Both Deletion and Borrowing required the book’s

ISBN number.

The second assignment was about a text-based

labyrinth game. Each time the game would start with

a random labyrinth of NxN size, where N was a

user-defined variable entered at the start of the game

execution. The labyrinth structure would be created

as an array of NxN random rooms from the

predefined Room

objects, with each room containing

traps that would affect the player when entering that

room. The user would try to escape from the

labyrinth by choosing which door in each room

he/she should enter. The player would win the game

when he/she would reach the exit.

The algorithm was executed on the first version

of each student’s code, i.e. after the first level of

debugging and prior to final testing (proofing). We

observed that the algorithm fixed approximately

80% of the errors present in the programs (an

average of 3 errors in the first assignment and 5 in

the second). For these faults the algorithm correctly

evolved and eventually proposed the correct

repair(s). What differed from the results of the

previous two experiment series was the size of the

resulting slices which was larger in this case. This

was expected due to the fact that, contrary to the

previous experiments where there was only a single

hand-seeded fault in the sample programs, this series

of programs contained more complicated faults

affecting an increased number of lines of code.

The rest 20% of the faults that remained

“uncorrected” were actually not addressed at all by

the tool as they resided in statements that could not

be handled by the parsing module of the supporting

tool, or did not fall in the categories of operators that

MuJava supports. In addition, some of the faults

required repairs in lines that were previously

changed when repairing a former fault in top-down

sequence. This fact is not currently handled by our

approach so the faults remained intact (see next

section for more details). Therefore, in all of the

aforementioned cases we had to skip those particular

faults as practically no input could be fed to the

algorithm, or its execution would have resulted in

regression faults.

Further analysis of the type of errors found and

the repairs applied was not among the targets of this

experimental series as our goal was just to show how

the algorithm scales up with programs of larger size

that contain “real” faults made by the programmers.

In this context the algorithm performed well as it

covered a large amount of the errors and yielded a

reasonable size of slice where the appropriate

corrections were successfully suggested

irrespectively of the total size of the program under

investigation.

6 DISCUSSION ON POSSIBLE

THREATS TO VALIDITY

This section briefly presents and discusses some

considerations:

(i) The programs used in the two first experiment

series were small and contained seeded, not real

faults, and therefore one may argue that this may

affect the validity of the results in some way. This,

actually, does not constitute a threat to the validity

of the proposed approach as: (a) The programs used

in series A and B were of the order of some

hundreds of LOC, which are lower than some

studies reported in the literature (e.g. Harman et al.;

Fraser and Zeller). This size, though, is among the

acceptable average sizes for classes and methods

within classes. Our approach works at the level of

units, therefore the overall size of the program is not

so important, as the proposed algorithm will

concentrate on the smaller, independent parts of the

source code each time. This was exactly the process

followed for the larger programs of series C,

therefore we consider the proposed approach able to

cope with practically any size of code. Additionally,

the faults induced simulate the actual omissions or

mistakes made by programmers, thus we believe that

the impact of the “fakeness” of the errors used in

this study is minimal. (b) A set of programs with

“real” faults was also used in the experimentation

which were implemented by university students at

their final stage before graduating; thus, these

subjects may be considered very close or similar in

skills with young programmers recruited by SMEs in

the software industry and consequently their faults

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

may be considered identical to those of professional

programmers.

(ii) As stated above the faults were hand-seeded so it

was easy to know what affected the normal

operation of the program so as to set as the slicing

criterion. Under normal circumstances this would be

hard as the users would have to understand what

could possibly create the fault to include it in the

slicing criterion. This was true for experiment series

A and B. With series C, though, it became evident

that this aspect depends only on the programming

(debugging) skills of developers rather than the

method used. Therefore, this does not threaten the

validity of our results.

(iii) The selection of the testing scenarios was

performed manually, based on the type of the

program and the relevant functional specifications.

The test cases were chosen so as to cover the largest

possible number of different paths of execution and

this is an issue that deserves research in its own

merit; tools that are able assess the quality of the test

cases against the specifications of a program could

be used in order to select the best possible set of test

data automatically, and this is something we plan to

pursue in the future.

(iv) One of our concerns was the fact that a change

being made to a part of the code could influence

other areas of the program possibly creating new

(regression) faults. In this case we may identify two

different scenarios: (a) In the case where the fault

repaired affects a line of code that is below the

changed statements as we move from top to bottom

in sequence of execution then this would not really

be considered a problem as the new fault would be

identified at a subsequent stage in a new slice. (b) If

the algorithm attempted to change a previously

repaired statement that removed a formerly

addressed fault then this would have gone

undetected by the algorithm. At the moment what

we do to handle this problem is that we create a log-

file that contains all previous changes (repairs) made

in the code; a controller module consults this log-file

prior to exercising mutations and prevents the

algorithm from attempting to make any changes to

repaired statements. In this case the algorithm skips

the error, puts it in a separate file with “uncorrected”

faults and continues with the next fault with proper

notification of the user.

7 CONCLUSIONS

Software development suffers from low product

quality and high percentage of project failure. The

presence of faults is one of the major factors

affecting the quality of delivered products; that is

why a high percentage of development time is

devoted to testing. Most of the time spend in

software testing is devoted on actually locating the

faults in the source code instead of correcting them.

It is obvious that there is a strong need to develop a

highly effective method for fault detection so as to

reduce the time required by the testing process and

assist in increasing the quality of the code and the

productivity of software developers.

In this paper we proposed a novel approach that

is able to automatically detect and correct faults in

Java code. The approach utilizes dynamic code

slicing for localising a fault and suggests possible

corrections with the use of Mutation Testing. Jslice

was used for creating the slices, while MuJava was

the tool adopted for applying different mutation

operators selected by the user, both at method, as

well as at class level. The process of fault detection

and correction through statement replacement is a

problem difficult to tackle, with a large solution

space; thus, we resorted in using Genetic Algorithms

so as to reduce it to a search optimization problem.

The GA evolved a number of candidate solutions-

replacements of statements that were assessed by a

dedicated fitness function.

Two series of experiments with hand-seeded

errors were conducted using sample programs

corresponding to well-known problems that are

normally used as benchmarks for testing. Series A’

involved programs with method-level errors,

specifically arithmetical, relational, conditional,

logical and assignment errors, while series B’

included programs containing class-level errors

related to Java features and inheritance. The results

suggested that the proposed approach works quite

satisfactory, covering a wide range of errors, both in

terms of type and complexity, while it always yields

the smallest possible slice containing the error and

suggests the correct replacement that removes the

fault.

A third series of experiments was also

conducted, using two different programming

assignments of undergraduate students delivered in

the context of an O-O Programming course. The

algorithm was applied on the first version of the

code after the first level of debugging and the results

were really encouraging as they showed that the

algorithm scaled up nicely with large programs

containing “real” faults made by programmers and

not hand-seeded ones.

There are quite a few research steps that may be

performed based on the present work: First, we will

DynamicLocalisationandAutomaticCorrectionofSoftwareFaultsusingEvolutionaryMutationTesting

attempt to collect more real case examples of

programs so as to have a richer close-to-reality set of

results. Second, a better analysis of the time, results

and performance of the students’ assignments will

be made, as well as assessment of the performance

of the algorithm with respect to different types of

faults, their number per slice and their average

complexity. Third, we plan to investigate the

potentials of integrating a supporting module to the

existing tool that will enable a more “sophisticated”

way for selecting the appropriate test case scenarios

automatically based on pre- and post- conditions that

express the functional specifications of a program.

Fourth, we will address the problem of regression

faults by attempting to provide simultaneous repairs

to more than one fault. To this end we will modify

our Genetic Algorithm so as to support multi-

objective optimization through multithreading and

parallel processing. Fifth, the tool will be upgraded

to include the statements of Java that our current

implementation of the parser does not support so as

to cover an even larger number of errors. Finally,

our future research plans also involve increasing the

set of mutation operators supported, with the

inclusion of more complicated replacement

operators.

REFERENCES

Agrawal, H., Horgan, J.R., 1990. Dynamic program

slicing. In ACM SIGPLAN Conference on

programming Language Design and Implementation,

White Plains, New York, U.S.A., ACM Press, pp.

246-256.

Agrawal, H., Horgan, J. R., London, S., Wong, W. E.,

1995. Fault Localization Using Execution Slices and

Dataflow Tests. In Sixth International Symposium on

Software Reliability Engineering, Volume-Issue: 24-

27, pp. 143 – 151.

Arcuri, A., Yao, X., 2008. A novel co-evolutionary

approach to automatic software bug fixing. In IEEE

Congress on Evolutionary Computation IEEE World

Congress on Computational Intelligence, pp. 162-168

Binkley, D., Danicic, S., Gyimothy, T., Harman, M., Kiss,

A., Korel, B., 2006. Theoretical foundations of

dynamic program slicing. Theoretical Computer

Science, pp.23-41.

Black, S., Counsell, S., Hall, T., Wernick, P., 2005. Using

Program Slicing to identify Faults in Software.

Dagstuhl, Seminar Nº 05451.

DeMillo, R. A., Lipton, R. J., Sayward, F. G., 1978. Hints

on Test Data Selection: Help for the Practicing

Programmer. IEEE Computer 11(4), pp. 34-41.

Fraser, G., Zeller, A., 2011. Generating Parameterized

Unit Tests. In International Symposium on Software

Testing and Analysis (ISSTA’11), July 17-21, Toronto,

Canada.

Goldberg, D. E., 1989. Genetic Algorithms in Search,

Optimization and Machine Learning. Addison-

Wesley.

Gupta, N., He, H., Zhang, X., Gupta, R., 2005. Locating

Faulty Code Using Failure-Inducing Chops. In

IEEE/ACM International Conference On Automated

Software Engineering, Long Beach, CA.

Hamlet, R. G., 1977. Testing Programs with the Aid of a

Compiler. IEEE Transactions on Software

Engineering, 3(4), pp. 279-290.

Harman, M., Jia, Y., Langdon, W. B., 2011. Strong Higher

Order Mutation-Base Test Data Generation. In

ESEC/FSE’11, September 5-9, Szeged, Hungary.

Jiang, T., Gold, N., Harman, M., Li, Z., 2008. Locating

Dependence Structures Using Search Based Slicing.

Journal of Information and Software Technology,

Volume 50, No.12, pp. 1189-1209.

King, K. N., Offutt, J., 1991. A Fortran Language System

for Mutation-Based Software Testing. Software

Practice and Experience, 21(7), pp. 686-718.

Ma, Y.S., Offutt, J., 2005. Description of Method-level

Mutation Operators for Java. http://cs.gmu.edu

/~offutt/ mujava/mutopsMethod.pdf.

Myers, G. J., 1979. The Art of Software Testing. Wiley-

Interscience.

Nica, M., Nica, S., Wotawa, F., 2012. On the use of

mutations and testing for debugging. Software-

Practice and Experience, Article published online.

Offutt, A. J., 1989. The Coupling Effect: Fact or Fiction.

In ACM SIGSOFT '89 - Third symposium on Software

testing, analysis, and verification ACM New York,

NY, USA ACM.

Offutt, A. J., Untch, R. H., 2001. Mutation 2000: Uniting

the Orthogonal. In 1st Workshop on Mutation Analysis

(MUTATION'00), San Jose, California, pp.34-44.

Offutt, J., Ma, Y. S., Kwon, Y. R., 2005. MuJava : An

Automated Class Mutation System. Software Testing,

Verification and Reliability, vol. 15, pp. 97-133.

Patton, R., 2006. Software Testing, Sams Publishing, 2

edition.

Wang, T., Roychoudhury, A., 2004. Using compressed

bytecode traces for slicing Java programs. In

ACM/IEEE International Conference on Software

Engineering (ICSE), pp. 512-521.

Weimer, W., Forrest, S., Le Goues, C., Nguyen, T., 2010.

Automatic program repair with evolutionary

computation. Communications of the ACM Research

Highlight 53:5 pp. 109-116.

Zhang, X., He, H., Gupta, N., Gupta, R., 2005.

Experimental Evaluation of Using Dynamic Slices for

Fault Location. In Sixth International Symposium on

Automated and Analysis-Driven Debugging,

Monterey, California.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems
