Improving Browser History using Semantic Information

Jos

e Sousa, Marco Pereira and Joaquim Arnaldo Martins

DETI - Department of Electronics, Telecommunications and Informatics, University of Aveiro,

Campus Universit

ario de Santiago, 3810-193 Aveiro, Portugal

IEETA - Institute of Electronics and Telematics Engineering of Aveiro, University of Aveiro,

Campus Universit

ario de Santiago, 3810-193 Aveiro, Portugal

Keywords:

Web Browser, Web History, Semantic Web.

Abstract:

Revisiting web pages is part of the routine of web browser users, yet the use of tools designed speciﬁcally

for this function is not widespread. In this paper we describe a browser extension called ”Rdfa History” that

attempts to improve the usefulness of the browser’s history list by enhancing it with semantic information (in

RDFa format) gathered from previously visited pages. The collected semantic information provides a richer

pool of information than the traditional time/url/title ﬁelds provided by browsers, allowing users to perform

queries not only by keywords but also by particular topics or entities that appear on previously visited pages.

This extension brings to user’s attention the usually invisible semantic web, and can be used both as tool that

aids to revisit pages as well as a tool that helps to discover new pages related with the ones previously visited.

It can also be used as a digital preservation tool that users can conﬁgure to collect and store history lists in

a personal digital repository in order to access them from different browsers or devices, as well as use the

history list as context provider for other documents that they might collect.

1 INTRODUCTION

For the majority of the population, using the In-

ternet is a synonym of web browsing. It is not a

stretch to claim that web browsing (for various pur-

poses) is the most common activity performed when

using a computer, both in number of browsing ses-

sions as in time spent. Multiple studies (Tauscher and

Greenberg, 1997), (Cockburn and Mckenzie, 2001),

(Herder, 2005) have shown that an important part of

the time spent browsing the web is not spent vis-

iting newly discovered pages but instead revisiting

those previously visited. There are several factors

that inﬂuence why a given page is revisited (Oben-

dorf et al., 2007), (Adar et al., 2009), (Kumar and

Tomkins, 2010): from the type of page to the expecta-

tion to ﬁnd new content on the page or to the particular

navigation habits developed by each user.

With so many pages being revisited it would be

reasonable to expect that the tools browsers provide

to assist page revisits would be used often, yet as

another study found out, the browser history list is

hardly used, having originated only 0.2% of all page

requests (Weinreich et al., 2008). Furthermore, when

revisiting a web page users appear to either know the

URL, thus implying familiarity with the page itself

and being able to use another of the modern browser

page revisit helper, the URL auto-complete feature, or

to simply attempt to retrace the steps that lead them

to the intended page. This last scenario can result in

frustration if the user is unable to recall another page

to start the revisit process, or is unable to input (a rea-

sonably close to) the original query in the search en-

gine. This last scenario can result in frustration if the

user is unable to recall another page to start the revisit

process, or is unable to input (a reasonably close to)

the original query in the search engine.

The low use of browser’s history list can be at-

tributed to a combination of factors: the relative low

visibility of this feature contributes for some users not

being aware of its existence at all, and those who ac-

tually use it think of it as a tool of last resort that they

only use it if they are certain it will lead them to the

web page they wish to revisit (Obendorf et al., 2007).

Once the habit of not using in the history list settles

in, it is maintained even if the users switch browsers

and regardless of the history list features. If initially

history lists in browsers provided little more than a

linear list of visited pages (JasonSmith and Cockburn,

2003) sorted by access date (sometimes with precise

305

Sousa J., Pereira M. and Arnaldo Martins J..

Improving Browser History using Semantic Information.

DOI: 10.5220/0003996603050311

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 305-311

ISBN: 978-989-8565-11-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Table 1: Comparison of browser’s history list features.

Full-text

URL

Title

Other

[1] [2]

Sorting/Grouping

Date/Time

Date/URL

Date/Title

Only Date

Only URL

Only Title

Other

[2]

[1]

Frequently visited URLs

[2]

User deﬁned tags.

time discarded) and page title or URL, nowadays they

are much more powerful, with default implementa-

tion on some browsers offering full text search of the

visited page’s contents, as summarised in 1. Being

able to perform full text searches in the contents of a

previously visited web page is an important step for-

ward to increase the odds a user has to ﬁnd a speciﬁc

page, yet there are scenarios where it might fail to ﬁl-

ter enough previously visited pages to be of any use.

Full text search might not even be helpful in scenarios

where the user remembers the topic of the page (or of

something in the page) he wishes to revisit, but not

any exact word contained in the page. To deal with

these scenarios we propose to enhance the history

list using semantic metadata in the RDF-in-attributes

(RDFa) format (Adida and Birbeck, 2008) collected

from the visited pages, a proposal implemented as an

extension to the Chrome web browser. We also pro-

pose to use this extension as an entry point to long

term browser history list preservation, using an hy-

brid local/cloud based personal digital repository that

extends the amount of browsing information stored

without affecting browser performance.

2 RELATED WORK

Supporting web page re-visitation is a research topic

that throughout the years has been approached from

two complementary perspectives: one attempted

to study browser user’s habits and create new re-

visitation tools to support their habits, while the other

attempted to improve the visibility and usefulness of

existing re-visitation tools. The work of (Kawase

et al., 2011) follows the ﬁrst approach and introduces

PivotBar, a Firefox based toolbar that provides dy-

namic contextual recommendations. These recom-

mendations attempt to remind the user about previ-

ously visited pages (supplied by Firefox’s history list)

that might be related with the page currently being

visited and are selected using an algorithm derived

from the study of a set of browser users habits.

The work of (Shirai et al., 2006) introduces the

concept of history-centric browsing, which is sup-

ported by a tool (demonstrated in Internet Explorer)

that allows the user to obtain information about pre-

viously visited pages related with the current page.

Initially it displays an overlay near the top of the page

with three controls that can be used to obtain infor-

mation about previous visited pages using a temporal

criterion (like the one used in traditional browser his-

tory list), a url proximity criterion (that allows to track

down navigation within a given site) or a content simi-

larity criterion (based on similarity between the words

in the page title). Once the user chooses one of these

criteria a semi-transparent overlay is used to display

further informations, including thumbnail versions of

the previously visited pages. The use of page thumb-

nails is also proposed in the work of (Won et al., 2009)

as a way to improve the usefulness of traditional his-

tory lists. The work focused on increasing the visibil-

ity of the browser’s history list with the produced pro-

totypes being effectively an alternative implementa-

tion of this feature in the Firefox browser. One of the

prototypes addresses the scenario where users attempt

to retrace their steps using a search engine by display-

ing links to previously visited pages (along with their

thumbnails) near the top of the search engine results

page.

3 RDFa HISTORY EXTENSION

Semantic markup in its various forms (be it RDFa,

microformats (Khare and C¸ elik, 2006) or industry ini-

tiatives

) appears to have a slow yet steady increase

adoption rate, driven primarily by the need to op-

timise web pages for search engines’ ranking algo-

rithms (Davis, 2006), (Yu, 2011). When used, se-

mantic markup is an intrinsic part of a page’s un-

derlying code that is transferred to a user’s browser.

While some forms of semantic markup (such as the

correct use of header tags) have a direct visual im-

pact on the page’s presentation, most forms of seman-

tic markup are not directly used by web browsers.

These forms are silently ignored, and users are not

aware of the presence of extra information in the vis-

ited pages. We propose that instead of discarding

this extra information, a browser can use it to help

http://schema.org/

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

306









 















 

 

Figure 1: RDFa history extension architecture.

users revisit pages by making it accessible in the con-

text of the browser’s history list. This has the ef-

fect of giving access to users to one of the criterion

search engines can use to discover web pages and to

allow users to actually discover related information

that they might have missed when a given page was

visited for the ﬁrst time. In order to gather and ex-

pose semantic information we have created an exten-

sion for the Chrome web browser (whose architecture

can be seen in 1). Chrome extensions are bundles that

contain web pages, images and JavaScript code that

can be used to alter the behaviour of the browser and

have access to both browser speciﬁc and standard web

APIs. While Chrome extensions can use native code

(using NPAPI), the created extension avoids its use

in order to be a cross-platform extension. It should

also be noted that the created extension respects the

browser’s private mode (incognito mode) and does not

collect any information when the browser is used in

this mode. The extension also supports disabling his-

tory collection from local ﬁles, secure http addresses

or even individual pages.

To gather semantic information from visited pages

the extension injects in each page a content script to

access the page’s DOM. The content script uses a

modiﬁed version of W3C’s RDFa in Javascript library

(Adida et al., 2007) to extract semantic information in

the RDFa format. The extracted information is sent

to a background process (a background HTML page

that is never displayed to the user) that acts as a me-

diator and serialises requests from the content script

and user interface to an underlying indexed database

(Mehta et al., 2011). Using an indexed database

to store semantic information instead of a dedicated

triple store helps the extension to be self contained

by avoiding the need to use native code to communi-

cate with an external database, yet it also prevents the

extension from perform any reasoning over the col-

lected semantic data or the use of a semantic query

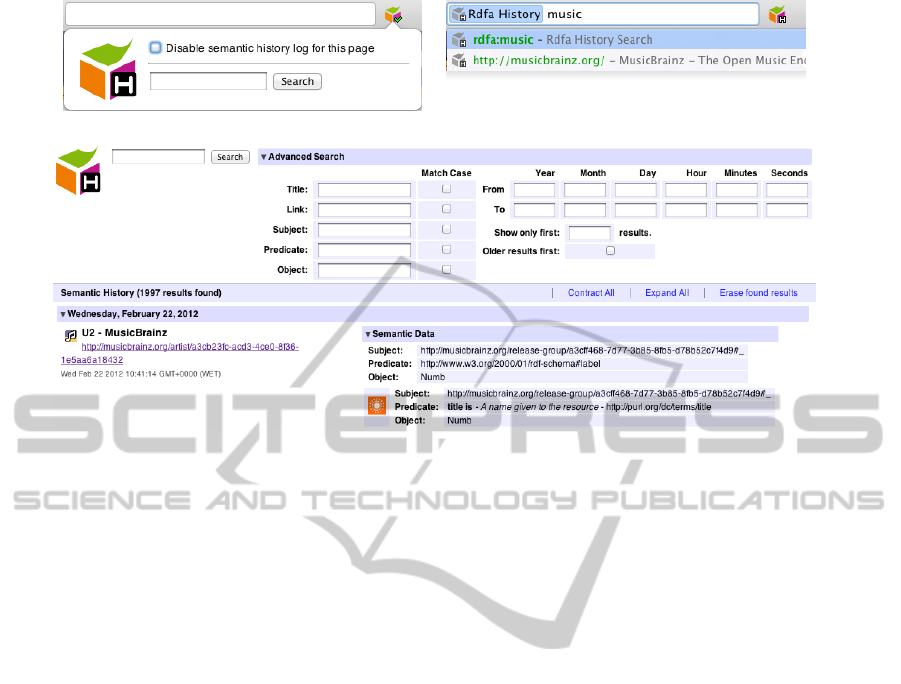

language such as SPARQL. The user interface has

four components: a button placed on Chrome’s main

user interface (2a), an omnibar (Chrome’s address

and search bar) integration module (2b), an options

page for extension conﬁguration and the semantic his-

tory list page itself (2c). The button placed on the

user interface acts both as a non-intrusive indicator

that reports if the current page contains valid RDFa

(the number of statements found is shown in the but-

ton’s tooltip) and the status of the parsing/storage

of those statements in the indexed database; when

pressed it allows the user to perform quick searches.

The omnibar module is an alternative search method

that is activated (or suggested to the user) by typing

the string ”rdfa” in the address bar. This module is

able to provide suggestions (from the semantic his-

tory list) to users as they type, thus providing a more

”guided” approach to history search. The semantic

history list page is designed to mimic Chrome’s na-

tive history list while offering more focused query

options. While Chrome’s native history list is able

to perform a full text search and displays the results

sorted by date/time, forcing users that know the ap-

proximated time the page they want to revisit was ac-

cessed to manually search within the results, the ex-

tension’s history list allows users to specify the date

range where the search should be performed, as well

as fragments of the triples that might have been col-

lected. This means that a user can search for pages

that mention the title of a song without knowing the

exact song title or the artist that performs it, and ob-

tain as results pages containing song titles instead of

pages that have the word title in it.

When displaying results the extension attempts to

represent the vocabularies used in a human friendly

form. The vocabulary to which a term belongs is iden-

tiﬁed by an icon, the term description is highlighted

while the actual URI that identiﬁes the term is down-

played (as seen in 2c). This representation is applied

to recognised vocabularies (currently only FOAF

Dublin Core

, Open Graph Protocol

and Creative

Commons

). Each recognised vocabulary is imple-

mented as a module, and might have vocabulary-

speciﬁc actions (accessed by clicking on the vocab-

ulary icon), such as displaying the licences under

which a resource falls in the Creative Commons vo-

cabulary, showing other related information like use

guidelines and other associated licensing details.

4 IMPACT ON THE BROWSER

As was described in the previous section, each time a

page is loaded by the browser, the extension injects in

http://xmlns.com/foaf/spec/

http://dublincore.org/documents/dces/

http://ogp.me

http://wiki.creativecommons.org/RDFa

ImprovingBrowserHistoryusingSemanticInformation

307

(a) Main interface button. (b) Omnibar module.

Figure 2: Interface elements.

it a content script, that is responsible for parsing and

extracting semantic information from the page. The

extracted semantic information is then relayed to the

background page that manages the actual creation and

storage of an history list entry in the indexed database.

Content scripts are executed in the visited page’s ren-

der process, and therefore can affect user’s perception

of how responsive the page (and the browser) is when

using an extension. This extension’s content scripts

are injected (but not executed) by the browser imme-

diately after the page’s CSS ﬁle but before the DOM

is constructed or any of the page’s own scripts are ex-

ecuted. As such the extension introduces an increase

in page loading time, yet since this increase is related

to script initialisation and happens while other page

scripts and elements are still being transferred to the

browser its impact can be said to be negligible. The

content scripts are executed in response to two DOM

events, DOMContentLoaded and DOMSubtreeModi-

ﬁed, that correspond respectively to when the visited

page DOM has ﬁnished loading (but other elements

such as images might still be loading) and when part

of the DOM is modiﬁed. Since content scripts are

executed in the same thread responsible for perform-

ing rendering actions needed by the page and to exe-

cute the page’s own scripts, they might have a visible

impact on user perception of browse responsiveness.

The history list entry creation, although performed by

the background page in another process, can also have

an indirect impact in browser responsiveness percep-

tion, since each time an history list entry needs to be

saved there is a temporary increase in CPU and mem-

ory usage.

To assess the impact of the of the content script

and of the background page entry creation, we have

measured the time taken by each of these operations

when visiting a set of pages. The test was repeated

10 times for each page, with the average results dis-

played in 2. Looking at the time taken to parse a page

we can see that the number of statements present in

the page, while important, is not the decisive factor

that increases parse time. Instead parse time increases

with the complexity of the page’s (X)HTML code,

which means that complex pages such as Amazon

or DeviantArt will require more time to parse even

though they yield relatively few statements. Since

(depending on the actual page) the content script will

run while any images present are still being loaded

the impact of the extension is masked by image load-

ing time, with pages with multiple images or a single

large image increasing this effect. As such although

some of the parsing times are high we consider them

to be acceptable and not overly intrusive. Regarding

the entry creation time we can see that the time taken

to create an entry scales near linearly with the num-

ber of statements extracted from the visited page, with

entries for MusicBrainz taking nearly 1 second to be

created. This operation is performed in its own back-

ground process and as such the user will not be di-

rectly aware of these processing times, yet if for some

reason the browser is closed, any pending entry cre-

ation operations will be aborted and there will be a

corresponding loss of information. Since history list

entry creation operations are serialised by the back-

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

308

Table 2: Time taken to parse a web page and to store se-

mantic information in the indexed database.

Number of

statements

Parse

(ms)

Storage

(ms)

Shopforia 3 51,3 67,2

Amazon 10 667,5 156,7

DeviantArt 10 439,9 123,2

Popular

Mechanics

15 272,3 141,1

BBC 32 186,8 266,8

MusicBrainz 217 130,3 1024,8

ground page this issue can affect multiple pages at the

same time if the user opens in quick succession multi-

ple tabs with distinct pages that possess a large num-

ber of statements and then close the browser. A possi-

ble solution would be to have the extension listen to a

browser close event and at least write a minimum his-

tory entry on that case, yet Chrome does not provide

such an event in spite of being a common request

5 LONG TERM HISTORY

In order to prevent performance issues browsers limit

the number of entries held by the history list. Opera

keeps the last 1000 visited pages, Firefox determines

the number of entries to keep based on computer spec-

iﬁcations

and Chrome keeps an unlimited number of

entries, yet it removes them automatically 10 weeks

after the visit date. While this makes sense from a

performance perspective it discards part of the user’s

on-line interactions, and can prevent the history list

from helping users revisit a page if they are trying to

look for a page visited either a long time ago or if the

users happen to visit a large number of pages each

day. Additionally since each page a user visits has the

potential to provide a clue about that particular user’s

interests at a given point in time, letting this infor-

mation disappear can contribute to user’s ”personal

digital dark age”.

Instead of letting entries in the history list fade

away with time (or sheer number of visited pages)

we propose an hybrid solution: store older entries in

online personal digital repositories and when an ex-

plicit query is issued by the user include in the re-

sults relevant entries from both the local history and

those stored in the personal digital repository. This

approach has the advantage of preserving the entire

history list for future use while still being compatible

with browser’s performance oriented policies. If this

http://code.google.com/p/chromium/issues/detail?id=3

0885

https://bugzilla.mozilla.org/show bug.cgi?id=674210

extension is implemented in other browsers, users will

gain access to their history list in a different browser

or device. Furthermore in a personal digital reposi-

tory the history entries can be associated with other

types of information, for example documents, photos,

music or emails, allowing users to construct a more

precise image of why they visited a given page at that

particular time. The downside of this approach is that

the extension is no longer completely self-contained

(since it requires access to an external server). To

counter this downside the extension makes this func-

tionality completely optional and requires users to ac-

tivate and conﬁgure it (opt-in).

After conﬁguring the extension to act as a long

term preservation tool, the extension’s conﬁguration

page can be used to manually export the entire (or part

of the) local history to the personal digital repository.

The extension can also be conﬁgured to automatically

export the history list entries that are older than a

given temporal criterion (by default one month). Con-

versely users can manually import part (or the entire)

remote history list, or conﬁgure the extension to auto-

matically import to local history either a set number

of entries or any number of entries based on a tem-

poral criterion (by default pages visited in the last

month). When exporting the local history list it is

the personal digital repository’s responsibility to en-

sure that no duplicate entries are added to the cloud

based history list, while when importing it is the ex-

tension’s responsibility to deal with any duplicates it

might receive. When the personal digital repository

receives an export message it parses it and store both

the semantic information as well as actual history en-

tries in a triple store, enabling the use of reasoners to

derive additional information and of SPARQL to per-

form complex queries. Queries to the personal dig-

ital repository can take the form of import requests

or search requests: in an import query the extension

merges entries received from the repository with the

local history while on a search request the extension

merges entries received from the repository with local

search results to create a uniﬁed history list page.

6 CONCLUSIONS

In this paper we described the Rdfa History extension

to Chrome web browser, an extension that aims to in-

crease the visibility and usefulness of the browser’s

history list by enhancing it with the semantic infor-

mation collected from visited web pages and by pro-

viding a tool that when coupled with a personal dig-

ital repository can serve as a gateway to long term

history preservation. The extension is self-contained

ImprovingBrowserHistoryusingSemanticInformation

309

and created using only standard (or working drafts)

of interfaces available in HTML and Javascript. It al-

ters Chrome’s default interface by placing a button on

the browser’s main interface that serves the dual pur-

pose of increasing the visibility of the history list and

notiﬁes users that the page they are currently visit-

ing has semantic information available. It also inte-

grates with the browser’s address bar in order to pro-

vide users the opportunity to search in the history list

as if they were navigating to a web page. Both of

these interface modiﬁcations allow the user to per-

form quick searches that attempt to match the expres-

sion in any available ﬁelds, and display the results in

a new browser tab. Results are presented to users fol-

lowing a layout as close as possible to the default lay-

out of Chrome’s native history list. Accessing the se-

mantic history page allows users to perform advanced

searches where they are able to construct queries that

can limit the results by a speciﬁc triple pattern in ad-

dition to traditional date/time and title ﬁelds. The ex-

tension can be conﬁgured to act as a digital preser-

vation tool by storing entries of the history list that

would marked by the browser as expired and removed

from local history list in a personal digital repository.

These entries can then be taken into account in any

future queries performed by users, even though they

are not part of the local browser history list. It should

be noted that this feature is experimental and not en-

abled by default. Users must choose to use it, and by

choosing to use it they have the option to send the en-

tire (or part of the) local history list to the personal

digital repository, or to import to the local history list

part (or the entire) list from the personal digital repos-

itory using the extension’s conﬁguration page.

The Rdfa History extension is still an early pro-

totype and as such there are improvements that can

be made. One possible improvement is the inclusion

of a thumbnail of each visited page in the history list

page. Previous works (Won et al., 2009), (Aula et al.,

2010) have shown that combining visual with textual

clues provides better results than using any of those

by themselves and can offer the visual context (at the

epoch it was captured) when dealing with entries in

the long term history list. Yet adding a thumbnail

will result in a more pronounced visual distinction

between the extension’s history list implementation

and the browser’s default implementation, and will in-

crease storage requirements. Early tests show that the

impact of having to re-parse the entire visited page

to extract semantic information appears to be lim-

ited by performing this task while loading other pages

components, and since storage of history entries is

done in a background process the impact of having

to store a variable amount of information per visited

page does not have a direct impact on the perception

of browser’s responsiveness. While being able to en-

hance history list entries with semantic information

without having a major impact on the browsing ex-

perience is important, usability tests are required in

order to determine if the functionalities this extension

introduces provide additional support for users trying

to re-visit pages or even if it encourages users to in-

crease their usage of the browser history feature.

ACKNOWLEDGEMENTS

This work was funded in part by the Portuguese

Foundation for Science and Technology grant

SFRH/BD/62554/2009

REFERENCES

Adar, E., Teevan, J., and Dumais, S. T. (2009). Resonance

on the web: web dynamics and revisitation patterns.

In Proceedings of the 27th international conference on

Human factors in computing systems, CHI ’09, pages

1381–1390, New York, NY, USA. ACM.

Adida, B. and Birbeck, M. (2008). RDFa Primer:

Bridging the Human and Data Webs. W3C.

http://www.w3.org/TR/xhtml-rdfa-primer/.

Adida, B., Yergler, N., and Tennison, J.

(2007). RDFA in Javascript. W3C.

http://www.w3.org/2006/07/SWD/RDFa/impl/js/.

Aula, A., Khan, R. M., Guan, Z., Fontes, P., and Hong,

P. (2010). A comparison of visual and textual page

previews in judging the helpfulness of web pages. In

Proceedings of the 19th international conference on

World wide web, WWW ’10, pages 51–60, New York,

NY, USA. ACM.

Cockburn, A. and Mckenzie, B. (2001). What do web users

do? an empirical analysis of web use. Int. J. Hum.-

Comput. Stud., 54:903–922.

Davis, H. (2006). Search engine optimization: building

trafﬁc and making money with seo. O’Reilly, ﬁrst edi-

tion.

Herder, E. (2005). Characterizations of user web revisit

behavior. In LWA 2005, Lernen Wissensentdeck-

ung Adaptivit

at, pages 32–37, Saarland University,

Saarbr

ucken, Germany. German Research Center for

Artiﬁcial Intelligence (DFKI).

JasonSmith, M. and Cockburn, A. (2003). Get a way back:

evaluating retrieval from history lists. In Proceedings

of the Fourth Australasian user interface conference

on User interfaces 2003 - Volume 18, AUIC ’03, pages

33–38, Darlinghurst, Australia, Australia. Australian

Computer Society, Inc.

Kawase, R., Papadakis, G., Herder, E., and Nejdl, W.

(2011). Beyond the usual suspects: context-aware re-

visitation support. In Proceedings of the 22nd ACM

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

310

conference on Hypertext and hypermedia, HT ’11,

pages 27–36, New York, NY, USA. ACM.

Khare, R. and C¸ elik, T. (2006). Microformats: a pragmatic

path to the semantic web. In Proceedings of the 15th

international conference on World Wide Web, WWW

’06, pages 865–866, New York, NY, USA. ACM.

Kumar, R. and Tomkins, A. (2010). A characterization of

online browsing behavior. In Proceedings of the 19th

international conference on World wide web, WWW

’10, pages 561–570, New York, NY, USA. ACM.

Mehta, N., Sicking, J., Graff, E., Popescu, A., and Or-

low, J. (2011). Indexed Database API. W3C.

http://www.w3.org/TR/IndexedDB/.

Obendorf, H., Weinreich, H., Herder, E., and Mayer, M.

(2007). Web page revisitation revisited: implications

of a long-term click-stream study of browser usage.

In Proceedings of the SIGCHI conference on Human

factors in computing systems, CHI ’07, pages 597–

606, New York, NY, USA. ACM.

Shirai, Y., Yamamoto, Y., and Nakakoji, K. (2006). A

history-centric approach for enhancing web browsing

experiences. In CHI ’06 extended abstracts on Hu-

man factors in computing systems, CHI EA ’06, pages

1319–1324, New York, NY, USA. ACM.

Tauscher, L. and Greenberg, S. (1997). How people revisit

web pages: empirical ﬁndings and implications for the

design of history systems. Int. J. Hum.-Comput. Stud.,

47:97–137.

Weinreich, H., Obendorf, H., Herder, E., and Mayer, M.

(2008). Not quite the average: An empirical study of

web use. ACM Trans. Web, 2:5:1–5:31.

Won, S. S., Jin, J., and Hong, J. I. (2009). Contextual web

history: using visual and contextual cues to improve

web browser history. In Proceedings of the 27th inter-

national conference on Human factors in computing

systems, CHI ’09, pages 1457–1466, New York, NY,

USA. ACM.

Yu, L. (2011). A Developers Guide to the Semantic Web.

Springer Publishing Company, Incorporated, 1st edi-

tion.

ImprovingBrowserHistoryusingSemanticInformation

311
