A Semantic Formalization for Use Case Modeling

Marinos G. Georgiades and Andreas S. Andreou

Department of Electrical Engineering and Information Technologies, Cyprus University of Technology,

30 Archbishop Kyprianos Str., Limassol, Cyprus

Keywords: Use Cases, Formalization, Software Requirements, Semantics.

Abstract: It has been recognized that a certain level of formalization is needed to produce precise and well-defined use

case models, thus tackling problematic issues such as the lack of a specific, semantic classification of use

cases, the vagueness of the use case specifications written in free natural language (NL), and the limited tool

support that makes use case driven analysis a time-consuming and error-prone activity. This paper presents

a formal semantics for the basic use case model elements, including specific semantic types of use cases,

specific types of basic and alternative flow actions, and specific functional roles actors can play. To

maintain a high-degree of readability and understandability and to minimize ambiguity, the proposed

approach provides a semi-formal, NL-based specification syntax, tailored to each semantic use case type,

with a specific sequence of basic and alternative flow actions. The formalization is facilitated by utilizing

elements of a novel methodology named Natural Language Syntax and Semantics Requirements

Engineering.

1 INTRODUCTION

Use case driven analysis (UCDA) is very popular

among the many methods in requirements

engineering, due to the fact that it allows functional

requirements to be represented in an easy-to-use and

attractive style for both users and analysts (Dias et

al., 2008). UCDA helps to cope with the complexity

of the requirements analysis process; by identifying

and then independently analysing different use

cases, the analysts may focus on one narrow aspect

of the system usage at a time (Kim et al., 2004).

It has been admitted that a certain level of

formalization is needed to produce precise and

understandable use case models (Somé, 2005). This

paper presents a formalization approach, designed

for information systems (ISs) in general and with

particular focus on transactional business systems

(TBSs) which are ISs that maintain data, have

reporting capabilities, and use business rules to carry

the everyday transactions of a business/organisation.

A Hospital IS or a Library IS are examples of ISs

that could contain TBSs such as a billing IS, a salary

payment IS, and others. The proposed approach is

intended to provide use case formalization with (i) a

formal semantics for the basic use case model

elements, including specific semantic types of use

cases, specific types of basic and alternative flow

actions, and specific functional roles actors can play;

and (ii) a semi-formal, NL-based specification

syntax tailored to each semantic use case type,

including a specific sequence of basic and

alternative flow actions.

The rest of this paper is structured as follows:

Section 2 outlines related work, while section 3

describes the proposed formalization of the use case

model. Section 4 provides conclusions and

recommendations for future work.

2 RELATED WORK

A number of approaches and guidelines have been

proposed to provide some degree of formalization to

textual use cases, such as the CREWS Guidelines

(Salinesi, 2004) and the CS Rules (Cox and Phalp,

2003). However, the focus of these approaches is on

providing some NL semantic and syntactic

guidelines on specifying actions, but their guidelines

are too general and not linked to any semantic use

case types at a higher level, contrary to our approach

that provides a specific semantic classification of use

case types, each of which contains specific types and

sequence of actions.

172

G. Georgiades M. and S. Andreou A..

A Semantic Formalization for Use Case Modeling.

DOI: 10.5220/0004001301720175

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 172-175

ISBN: 978-989-8565-11-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

A number of structured techniques for the

description of use cases have been proposed. In

Eriksson et al.’s work (2004), a tabular

representation is used, and in Leite et al.’s (1997), a

structured natural language is presented to describe

the use cases. These structured representations

provide a generic formalization of the use case (UC)

specification template, hence not a clear formalism

of the use case specification elements, and especially

the basic and alternative flow actions. Ochodek and

Nawrocki (2007) provide a semi-formal NL

representation of use case actions, however this

formalism is still generic, lacks several types of flow

actions as well as the use case elements (e.g., actors)

involved in each action.

Within the context of transactional business

systems, Chalin et al. (2008) make a general

reference to three categories of use cases, including

transactional use cases – those associated with the

realization of the core business events/ business

rules; support use cases – those usually associated

with data maintenance (typical CRUD functions) or

system configuration; data extraction use cases –

those that do not modify the state of the system, and

are usually associated with reporting capabilities.

In contrast, our approach provides detailed

formal semantics for use case modeling of

transactional business systems, through a semantic

classification of use cases for creating, processing

and presenting/ reporting information, through

specific types of actors to identify business roles for

each type of use case, and through the definition of

actions for each use case type. The proposed

formalization builds upon work done by Georgiades

and Andreou (2010).

3 USE CASE FORMALIZATION

To provide formalization of the TBS use case model,

we utilize specific elements from the NLSSRE

methodology (Georgiades and Andreou, 2005,

2010). NLSSRE offers the means to engineer user

requirements concerned with the operational aspect

of an IS, that is a TBS, and building these

requirements with the use of the following IS

elements: people (usually end-users, clients and

trusted external users), processes related to the

creation, modification, transmission, storage and

presentation of information along with the

circumstances within which these processes are

performed, as well as data, constraints, and business

rules. In particular, NLSSRE focuses on formalizing

and automating the discovery, analysis and

specification of user requirements for the

development of TBSs. NLSSRE is designed so that

the analyst is guided in advance, through a step-by-

step approach, what specific types of data, functions,

business rules and functional conditions to use and

search for, what questions to ask, in what specific

way to analyse the answers to the questions, and

how to write them using formalized sentential

requirement patterns. The formalized requirements

are then easily transformed, with the use of specific

rules, into diagrammatic notations, including class

diagrams, data flow diagrams and use-case

diagrams. The formalization of NLSSRE is achieved

with the aid of NL elements such as verbs, nouns,

genitive case, adjectives and adverbials.

Two of the major elements of NLSSRE, which

we utilize in our use case approach, are the

Information Object (IO) and the CAREN functions.

According to NLSSRE, an IO is a digital

representation of a tangible or intangible entity —

described by a set of attributes — which the users

need to manage through Creating, Altering,

Reading, and Erasing its instances, and be Notified

by the messages each instance (IOi) can trigger (an

IO is conceived and processed at an abstraction

level, while an IOi is conceived and processed at a

factual level; instances of the same IO differ only in

the values of their attributes). In NLSSRE, the

Create, Alter, Read, Erase and Notify functions are

called CAREN functions.

In the proposed approach, use cases are derived

from the CAREN functions, therefore we call them

CAREN Use Cases (CUCs). CUCs are system use

cases, not business use cases. The formalization

concept is more easily applicable to the system use

cases, because they are applied on electronic

information, while it is hardly applicable to the

business level use cases, due to the complexity of

the business environment, in both size and

terminology. For example, Enroll in Seminar may be

represented and implemented as a business or a

system use case by conventional approaches (e.g.,

Cockburn, 2000), while in the proposed approach it

is represented through the CUCs under the IOs

Enrolment and Seminar. For the IO Enrolment, we

have the system use cases Create, Alter,

Cancel,

Erase and Read Enrolment, and for the IO Seminar,

we have the system use cases Create, Alter, Cancel,

Erase and Read Seminar (often we consider that

Notify is contained as a set of main flow actions in

each of the rest CUCs–we will discuss this point

later). For an enrolment to be created, a seminar

needs to be already created, therefore the CUC

Create Enrolment is extended by the CUC Create

ASemanticFormalizationforUseCaseModeling

173

Table 1: Part of the use case specification template for the CUC Create IO.

Basic flow 1. <Creator> selects create <IO>.

2. System displays new <IO> creation form, including required and optional fields.

3. <Creator>, <Accompaniment> enter(s) <IO><IO.attribute.value>.

4. System must check <IO><IO.attribute.value>.

5. <Creator> selects to submit the new <IO>.

6. System saves the new <IO> in the database.

7. System notifies <Creator>, <Accompaniment(s)>, <Intended Recipient(s)> that <IO> is created

via UC <UC

.ID>.

Alternative

flow

If <IO> <IO.attribute> is incorrect, then system returns: “Invalid <IO><IO.attribute>. <IO> cannot be

saved”.

Table 2: Part of the use case specification for the CUC Create Prescription.

Basic flow 1. Doctor selects create Prescription by clicking on ‘create prescription’ button.

2. System displays new prescription creation form, including required and optional fields.

3. Doctor, Patient enter(s) Patient ID.

3.1. The System checks Patient ID.

12. The System notifies the Doctor, Pharmacist, and Patient that Prescription is created via UC 15.

Alternative

flow

3.1. If patient ID is incorrect, then system returns: “Invalid Patient ID. Prescription cannot be saved”.

Includes UC 15: Send Notification

Seminar, and it also includes the CUC Read Seminar

(fig. 1).

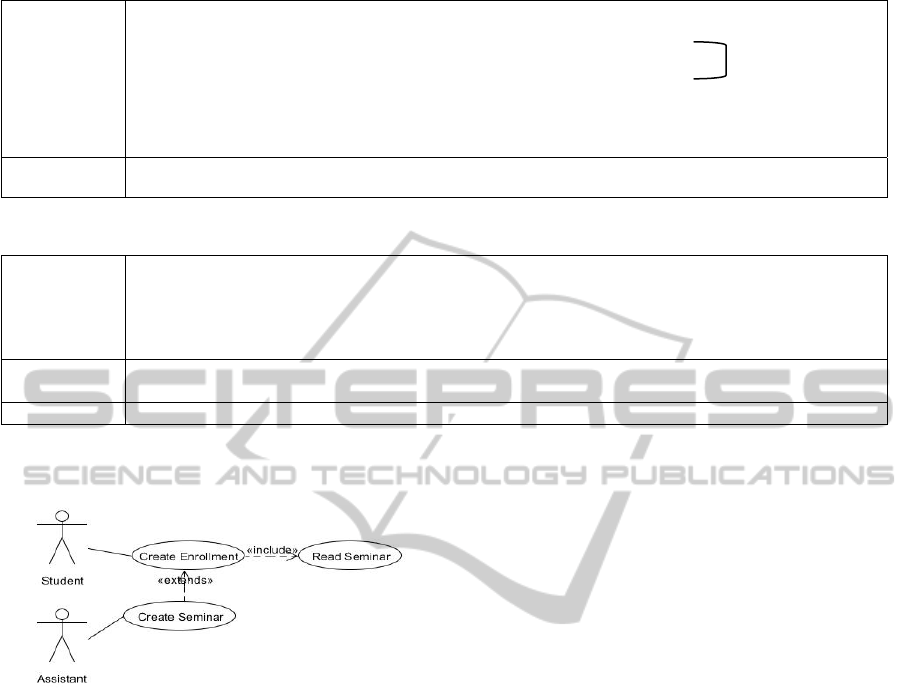

Figure 1: Conceptual representation of use cases through

the proposed approach.

A typical use case is essentially described as a

sequence of actions. To maintain a high-degree of

readability and understandability and to minimize

ambiguity, our approach formalizes the use case

actions by providing specific types of actions,

written in a structured form of NL. Apart from

making expression of requirements more

disciplined, understandable and organized, a

structured form of specification also facilitates the

automation procedures for building the use case

specification per se, and also for later

transformations into diagrammatic notations. The

formalization is facilitated by utilizing elements of

NLSSRE, such as the sub-functions of each CAREN

function (Georgiades and Andreou, 2010).

Table 1 presents a part of the template that

formalizes the actions of the CUC Create IO, and

table 2 gives a relevant example.

For all CUC types, actions are either of request

or response type. Normally, request actions are

executed by an actor, and respond actions are

executed by the system. Usually an actor’s action is

followed by a system’s action. Exception conditions,

which are part of the alternative flow of actions, are

easily defined by the use of data constraints.

To identify the actors involved in each use case,

we utilize the functional roles actor can play

provided by the NLSSRE methodology. By making

questions regarding the functional roles, we can

identify the actors. Indicatively, a Create use case

involves the functional roles Creator,

Accompaniment, Intended Recipient, and Notifiee.

The following are indicative question patterns for

identifying (i) the Creator: Who should create an

<IO> ?; and (ii) the Accompaniment: Who should

assist the <Creator> to create an <IO>?

4 CONCLUSIONS

This paper presented an approach to formalize the

use case model. The main motivation behind this

endeavour is that existing use case driven analysis

(UCDA) approaches often result in poorly defined

use case models due to: (i) lack of specific support

in identifying the basic use case elements, including

use cases, actors, and use actions (ii) use of generic

use case specification templates that do not guide the

analyst clearly how to identify each element of the

template; (iii) use of free natural language to

describe the UC specifications, which, often results

to inconsistencies and ambiguities in the use case

model.

Repeat 3,4

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

174

To address these weaknesses, we proposed (i) a

formal semantics of the use case model, including

the CAREN use cases, specific semantic/functional

roles actors can play, specific types of basic and

alternative flow actions for each CAREN use case,

and specific question patterns to identify the actors;

(ii) a semi-formal, NL-based syntax of the UC

specification including a specific sequence of

actions, for the basic and alternative flows of the

CAREN use case specifications.

To evaluate the effectiveness and efficiency of

the proposed formalization, we performed a short-

scale empirical study through which we compared it

to the classical UCDA approach, as described by

Cockburn (2000), by applying both of them during

the development of a subsystem of the Library

Information System (LIS) of the University of

Cyprus. Our evaluation tested the quality of the use

case model (that is, use case specifications and use

case diagrams) produced by the application of both

approaches. The results showed that in general the

proposed formalization performed much better than

the classical approach in the various objective

quality assessment metrics used, such as

completeness, correctness and consistency.

A detailed description of this comparative empirical

study may be found in Georgiades and Andreou’s

work (2011).

Future work will involve the extension of the

approach and the CASE tool in order to support the

requirements design phase, with the creation of

sequence, collaboration and state diagrams. The

construction of such diagrams may be facilitated

with the application of specific rules on the use case

elements, such as the use case actions. Furthermore,

we will work towards the enhancement of current

types of actions (e.g., study of the circumstances

within an action is performed) and identification and

formalization of new ones. Additionally, alternative

flow types of actions will be thoroughly explored, in

addition to the exception condition types which are

currently formalized. Moreover, although the

proposed approach produced encouraging empirical

results, it remains to be tested on real-world projects

of a larger scale.

REFERENCES

Chalin, P., Sinnig, D., Torkzadeh, K. 2008. Capturing

Business Transaction Requirements in Use Case

Models. In Proceedings of ACM Symposium on

Applied Computing, pp. 602-606.

Cockburn, A. 2000. Writing Effective Use Cases. Reading,

Massachusetts: Addison Wesley.

Cox, K., Phalp, K. 2003. Exploiting Use Case

Descriptions for Specifications and Design. In

Proceedings of EASE, UK.

Dias, G., Schmitz, A., Campos, M. Correa, A., Alencar, A.

2008. Elaboration of use case specifications: an

approach based on use case fragments. In ACM

Symposium on Applied Computing (SAC), Fortaleza,

Ceara, Brazil, pp. 614-618.

Eriksson, M., Börstler, K., Borg, K. 2004. Marrying

Features and Use Cases for Product Line

Requirements Modeling of Embedded Systems. In

Proceedings of the Fourth Conference on Software

Engineering Research and Practice (SERPS'04),

Sweden, pp.73-82.

Georgiades, M., Andreou A., Pattichis, C. 2005. A

Requirements Engineering Methodology Based On

Natural Language Syntax and Semantics. In

Proceedings of the 13th IEEE International

Conference on Requirements Engineering (RE'05),

Paris, France. IEEE Computer Society, Washington,

pp.73-74.

Georgiades, M., Andreou, A. 2010. A Novel Methodology

to Formalize the Requirements Engineering Process

with the Use of Natural Language. In Proceedings of

the IADIS Conference on Applied Computing,

Timisoara, Romania. IADIS Digital Library, pp.11-18.

Georgiades, M., Andreou, A. 2011. Formalizing and

Automating Use Case Model Development, The Open

Software Engineering Journal. Accepted.

Kim, J., Sooyong, P., Vijayan, S. 2004. A Linguistics-

Based Approach for Use Case Driven Analysis Using

Goal and Scenario Authoring. In Proceedings of

Applications of Natural Language to Data Bases, pp.

159-170.

Leite, J., Rossi, G., Balaguer, M., Kaplan, G., Hadad, G.,

Oliveros, A. 1997. Enhancing a Requirements

Baseline with Scenarios. In Proceedings of

Requirements Engineering, Annapolis, USA.

Ochodek, M., Nawrocki, J. 2007. Automatic Transactions

Identification in Use Cases. In Second IFIP TC 2

Central and East European Conference on Software

Engineering Techniques, CEE-SET 2007, Poznan,

Poland, October 2007, pp. 55-68.

Pooley, R., Stevens, P. 1999. Using UML - Software

Engineering with Objects and Components, Harlow:

Addison Wesley Longman.

Salinesi, C. 2004. Authoring Use Cases. Chapter in

Scenarios, Stories, Use Cases: I. Alexander and N.

Maiden, John Wiley.

Somé, S. 2007. Petri Nets Based Formalization of Textual

Use Cases, Tech. Report in SITE, TR2007-11, Uni. of

Ottawa.

Sybase, 2002.

PowerDesigner. Object Oriented User's

Guide. Sybase.

ASemanticFormalizationforUseCaseModeling

175
