Service based Approach for Adaptability of Workflow Models

The Subcontracting Architecture

Saida Boukhedouma

1, 2

, Mourad Oussalah

, Zaia Alimazighi

and Dalila Tamzalit

USTHB- FEI- Department of Computer Science- LSI Laboratory – ISI Team,

El Alia BP n°32, Bab Ezzouar, Algiers, Algeria

University of Nantes - LINA Laboratory - MODAL Team

2, Rue de la Houssinière, BP 92208, 44322 Nantes, Cedex 3, France

Keywords: IOWF, Service, Cooperation Pattern, Subcontracting, Orchestration Function, Adaptability, Evolutivity.

Abstract: The environment of businesses is naturally unstable and dynamic due to increasing market constraints and

events. Thus business processes are frequently subject to changes which must be supported by process

models and systems that implement them. This paper deals with adaptation of IOWF (Inter-Organizational

Workflow) process models based on services. It states conceptually, the most frequent adaptations that can

be operated on IOWF models described through the concept of orchestration function which abstracts the

control flow of the process. Thus, operations of adaptation turn to modification of services and

transformation of the orchestration function describing the model. We particularly distinguish evolutive

adaptation leading to expansion of the cooperation and/or the global functionality of the process.

1 INTRODUCTION

In our research works, we are interested in structured

cooperation supported by concepts and tools of

Inter-Organizational workflow (IOWF) (Aalst, 99).

In structured cooperation, the steps of the business

process and interactions between business partners

are well defined resulting in an IOWF model clearly

defined; so all process instances follow the same

IOWF model implemented. In (Aalst, 99), generic

architectures of IOWF have been defined. These are

the capacity sharing, the chained execution, the

subcontracting, the case transfer, the extended case

transfer and the loosely coupled WF. We consider

these architectures as basis of our research work

because they cover a wide range of business

processes since they express the different ways in

which businesses can cooperate together. However,

in their initial form these architectures were subject

to criticisms (Chebbi, 2007) because of their rigidity

and the difficulty to adapt business processes.

This paper deals with adaptability of IOWF

process models. An adaptation is due to various

reasons such as the improvement of the process, the

occurrence of new constraints imposed by the

environment or the correction of errors in the

process model. Another reason of adaptation can be

the evolution of process models called evolutive

adaptation that we perceive through two

perspectives: expansion of process functionalities

and expansion of cooperation; we globally talk

about evolutivity of process models.

For that, we propose cooperation patterns based

on services corresponding to the basic architectures

defined in (Aalst, 99), using a SOA based approach

because services are loosely coupled components,

easily invoked through their interfaces, business

oriented and platform independent and SOA

paradigm supports integration, reuse and

composition of services. We state that the basic

architectures considered can be implemented as

global orchestration or distributed local

orchestrations of services, according to constraints

relative to each architecture.

This paper focuses on the subcontracting; it

states conceptually, the most frequent adaptations

and evolutions to be done on IOWF process models

based on services and describes some basic

operations applied. The orchestration function

abstracts the structure (control flow) of the IOWF

process; it orchestrates internal and external services

using basic operators of control flow.

In the following, Section 2 presents some related

works and explains the motivation of our work.

224

Boukhedouma S., Oussalah M., Alimazighi Z. and Tamzalit D..

Service based Approach for Adaptability of Workﬂow Models - The Subcontracting Architecture .

DOI: 10.5220/0004008702240231

In Proceedings of the 14th International Conference on Enterprise Information Systems (ICEIS-2012), pages 224-231

ISBN: 978-989-8565-12-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Section 3 synthesizes the necessary background to

understand the paper. Section 4 describes the

cooperation pattern suitable to the subcontracting

architecture and illustrates the concept of

orchestration function. Sections 5 and 6 describe

respectively the different operations of adaptation

and evolution of IOWF process models. Section 7

concludes the paper and talks about future works.

2 RELATED WORKS AND

MOTIVATION

The use of WF technology and SOA paradigm had a

great impact in the promotion of the B2B

cooperation. Hence, several approaches such as

CoopFlow (Chebbi, 2007), CrossFlow (Grefen and

al, 2001), CrossWork (Mehandjiev et al., 2005),

Pyros (Belhajjame et al., 2005), e-Flow (Casati et

al., 2001) have been proposed.

Also, flexibility is an important propriety to be

satisfied by business processes and their systems

allowing them to support changes. Even if some

approaches like CoopFlow, Pyros and e-Flow

provide internal adaptation of workflows without

compromising the coherence of the global process, a

large number of the proposed solutions are not

flexible enough because they are closely coupled

with the platforms. Otherwise, WF flexibility is

perceived at two complementary levels: (i) At the

system level, the flexibility defines the ability of

WFMS (WF management system) to face

unexpected and erroneous situations (Sadiq et al.,

2001). (ii) At the level of process models that defines

the ability of a process model to be adaptable,

evolvable and reusable;

many research works have

been proposed describing different techniques such

as adaptation patterns (He et al., 2008), (Döhring et

al., 2011), (Tragatcshnig et al., 2011), rule-based

adaptation patterns (Döhring et al., 2010) and

constraint-based modeling (Pesic et al., 2007).

The goal of this paper is to deal with adaptability

of IOWF process models based on services

especially obeying to the subcontracting

architecture. First, we introduce the concept of

cooperation pattern. Then, we express this

cooperation pattern using SOA approach in order to

deal with IOWF models easily adaptable and

evolvable. The cooperation pattern based on services

is defined using the concept of orchestration

function that abstracts the structure of the process;

thus, all adaptations and evolutions turn to

modification of this function.

3 BASIC DEFINITIONS AND

CONCEPTS

3.1 Definition and Dimensions of

IOWF

An IOWF can be defined as a manager of activities

involving two or more workflows autonomous,

possibly heterogeneous and interoperable in order to

achieve a common business goal.

In (Aalst, 99), generic architectures of IOWF

have been defined. These architectures are

characterized according to two main dimensions: the

partitioning of the process and the control of

execution. Regarding to the first dimension, two

types of partitioning are distinguished: process

schema partitioning and instance partitioning.

Process schema partitioning means that the IOWF

process model is implemented as fragments at the

partner’s sites. Instance partitioning means that the

execution of a process instance is distributed among

the different sites in a disjoint manner (at each

moment, an instance is located at one site).

For the second dimension, the control is

centralized if the execution of process instances is

delegated to one system that also manages all

interactions between the systems of partners. The

control is decentralized if the execution of instances

is distributed among the systems of all partners and

each system manages itself its interactions with the

other systems. We say that a control is hierarchized

if each system manages its own WF and there is one

principal system that controls interactions with other

secondary systems.

3.2 IOWF Meta-model, Adaptability

and Evolutivity

An IOWF process model is defined by a set of WFs

and a cooperation pattern that links two or more

WFs through a set of interaction points. Each WF is

attached to a partner, manipulates data and is

submitted to a condition (see Figure 1). A

cooperation pattern is defined through the two

dimensions of IOWF: the partitioning of the process

and the control of execution. We can affirm that the

constraints of flexibility in IOWF model are not

limited to one axis, but cover all axes that define it

(process, organization, data and interaction). We

focus on flexibility reflected at the process and

interaction axes.

ServicebasedApproachforAdaptabilityofWorkflowModels-TheSubcontractingArchitecture

225



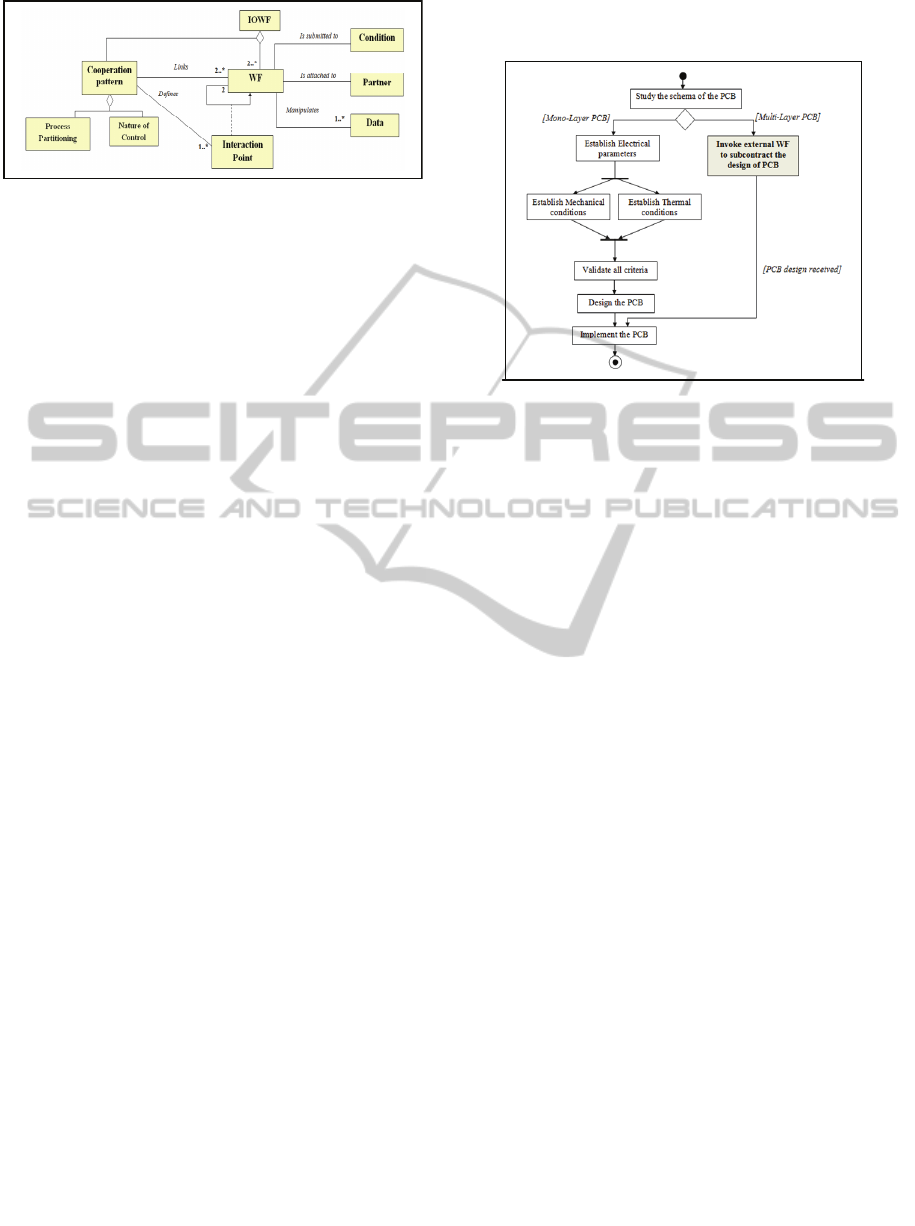

Figure 1: Generic meta-model of IOWF.

An IOWF model is adaptable if one or more of

the entities -WF, conditions, data and interaction

points - composing it can be modified without

affecting the global functionality and the

cooperation.

The evolutivity (evolutive adaptability) of a

process model defines its capacity to accept

expansion of its functionalities and/or cooperation

(additional business partners and so additional WF

fragments) where maintaining the coherence of the

process.

3.3 The Subcontracting Architecture

The subcontracting architecture supports a model of

cooperation that connects two or more business

partners, each of which implements its own

workflow process. There is one main workflow

attached to the main partner which subcontracts

some activities not implemented locally to one or

more secondary workflows. The UML activity

diagram of Figure 2 describes an IOWF process

related to the design and realization of integrated

circuits (PCB) to potential customers; the process

involves a main partner and a secondary partner.

When the customer’s order is received, the main

partner studies the schema of PCB, if it is a mono-

layer PCB, it is entirely designed and implemented

locally; otherwise in case of multi-layer PCB, its

design is subcontracted to an external partner

because the main partner has not enough

competencies and resources to design multi-layer

PCB. The result of processing (the design of multi-

layer PCB) is returned to the main partner. Figure 2

shows the most important phases of the process;

after studying the schema of the process, electrical

parameters are fixed, then mechanical and thermal

conditions are established simultaneously. After that,

all criteria established are validated according to

specified norms. Then, the PCB is designed and

implemented. The WF of the secondary partner

seems to be atomic from the main partner but in

reality it is complex and contains several phases.

In the next section, we define the subcontracting

pattern based on services and we introduce the

concept of orchestration function.



Figure 2: Example of IOWF process “Realization of PCB”

- The subcontracting architecture.

4 BASIS OF OUR APPROACH

The question is to decide which parts of the global

WF process should be encapsulated within services

in order to abstract them and to invoke them from

outside. Specifically, it is to encapsulate a WF

process or a sub-process in a service where

maintaining interaction points in the initial IOWF

(Boukhedouma et al., 2011).

4.1 The ″Subcontracting″ Pattern

based on Services

For this architecture, we propose to entirely

encapsulate each secondary WF within a service. On

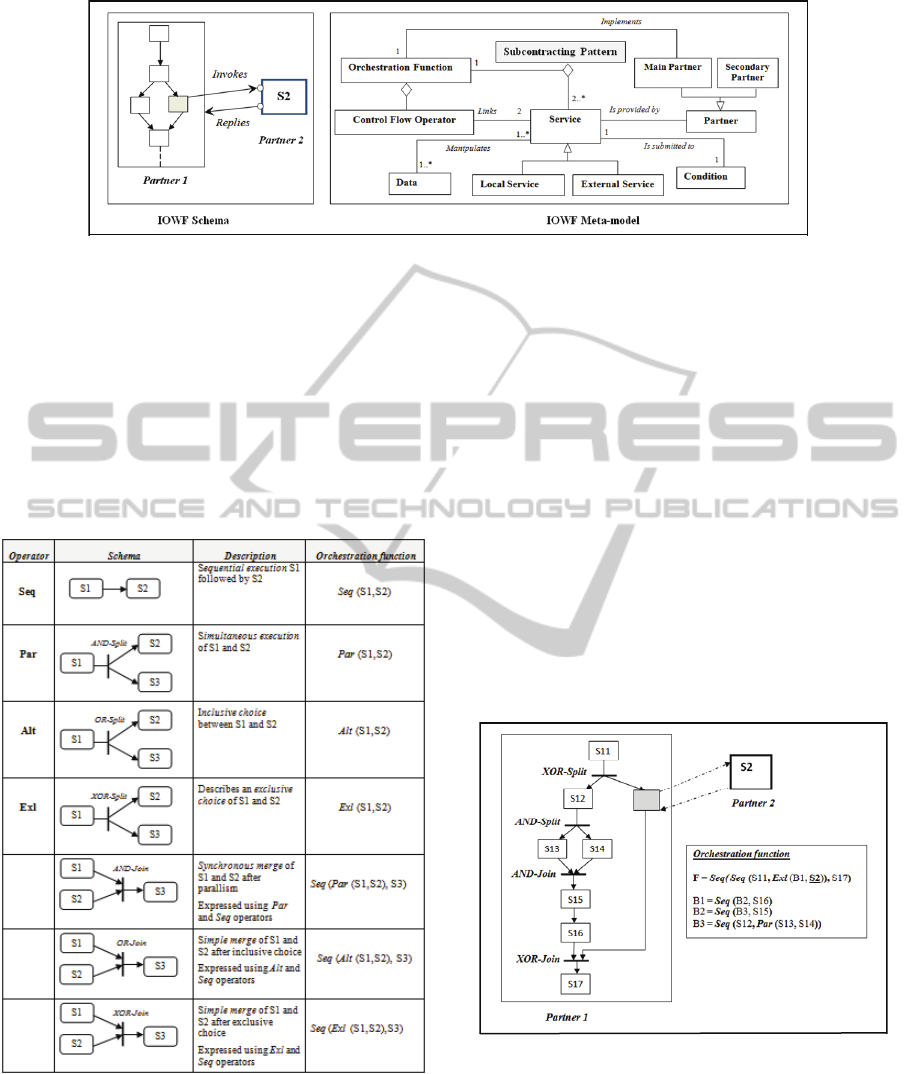

Figure 3, partner 1 hosts the main WF and partner 2

provides his secondary WF as a global service S2.

Thus, Partner 1 invokes the service of partner 2 for

subcontracting. To obtain an IOWF entirely based

on services, the whole WF can be implemented as an

orchestration of local services encapsulating sub-

processes or activities of the main WF and external

services provided by secondary partners. In the

subcontracting architecture, the control of execution

is hierarchized because the main WF manages the

control of the whole process and controls invocation

of external services. The subcontracting pattern is

described through the meta-model of Figure 3; given

a set of local and external services attached to

several partners and an orchestration function

implemented by the main partner, we can define the

IOWF obeying to this pattern.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

226



Figure 3: Schema and meta-model of the subcontracting pattern.

4.2 Orchestration Function and

Control Flow

The orchestration function is defined using basic

control flow operators. In table 1, we introduce these

basic operators that we express using a general

notation independently from any language or

platform.

Table 1: Basic operators of control flow.

To describe multi-choice – respectively multi-

parallel - (more than two edges), we can decompose

on several simple choices – respectively several

simple parallel blocs. For example, Alt (S1, S2, S3)

is expressed as Alt (Alt (S1, S2), S3) or Alt (S1, Alt

(S2, S3)).

To illustrate the concept of orchestration

function, let’s consider the example of the IOWF

process “Realization of PCB” described on Figure 2.

If we consider that local activities “study the schema

of PCB”, “establish electrical parameters”,

“establish mechanical conditions”, “validate

criteria”, “design PCB” and “implement PCB” are

implemented as local services named respectively

S11, S12, S13, S14, S15, S16 and S17 and the

secondary WF is implemented as external service

S2, the schema of the IOWF process and the

corresponding orchestration function are described

like shown on Figure 4.

For more readability and in order to reduce the

complexity of the orchestration function, we can

structure the process into blocs (expressing

composite services) of sequential, parallel or

alternative services. In a hierarchical manner, a bloc

can be expressed using other blocs.



Figure 4: IOWF Schema and Orchestration function of the

process “Realization of PCB”.

4.3 Formal Definition of IOWF

An IOWF is defined by a pair <S, F> where S is a

set of local and external services Sij. Local services

are attached to a main partner and external services

are attached to one or more secondary partners. F is

ServicebasedApproachforAdaptabilityofWorkflowModels-TheSubcontractingArchitecture

227

an orchestration function where

F (Si1, Si2, … , Sin) = Si1 op1 Si2 op2…opn-1 Sin

op1, op2, … opn-1 are operators of control flow.

5 ADAPTABILITY OF IOWF

MODELS

According to the previous definition, adaptation of

process models turns to modifications of the entities

composing it that means the services or the

orchestration function. A modification of a service

can be adding, removing, replacing, merging of two

services and decomposing a service into a bloc of

two services expressing sequential, parallel or

alternative execution. Adaptation of a service

usually induces modification on the orchestration

function using it or a modification of closely

attached attributes like condition or data (see Figure

3). Also, other operations of adaptation can affect

only the control flow in the process that means the

orchestration function.

5.1 Adding, Removing, Substituting of

Services

For adding or removing of services, it is to

distinguish adding or removing of a service on one

edge composed by sequential services or in a bloc

composed by two edges expressing parallel or

alternative execution. The part on the top of Figure 5

describes the basic operations of adding of services

illustrated by generic schemas, the corresponding

orchestration functions and the sequence of

operations allowing the transformation of the

orchestration function. The adding of a service in an

exclusive choice (or parallel) bloc is not represented

in the figure because it is done in the same manner

as in a bloc of inclusive choice.

Adding a service is done in order to insert

additional steps in the process. If we consider the

example “Realization of PCB” (Figure 4), the

designer of the IOWF process can decide to add a

service “validate electrical parameters” named S’

after service S12 in order to add a step of validation

that can be necessary for the design of complex

PCB; then we obtain the schema shown on Figure 6

(Adding Service S’). The reverse operation of

adding is the removing of services, it is also to

distinguish the removing of a service from one edge

composed by sequential services or from a bloc

composed by two edges according to parallel or

alternative execution. The part on the bottom of

Figure 5 shows typical operations of removing of

services (service S2 for example). Let’s notice that

two configurations are possible when removing a

service S from a bloc with two edges: (i) service S is

in sequence with other services, (ii) service S is

alone on the edge; this results on two different

scenarios for operations done like shown on Figure

5. Another basic operation of adaptability concerns

the substitution (replacing) of services. This is

typically a removing followed by an adding of

services.

5.2 Fusion and Decomposition of

Services

The operation of fusion can concern two services

linked by a sequence, an alternative or a parallel

execution, in order to simplify the process model. If

the services to merge are in the same bloc, the

operation of fusion becomes easy since it consists to

replace the bloc that is considered as a single

composite service. More elaborated operations of

fusion concern configurations such as services to

merge are not in the same bloc. For example in a

model described by the orchestration function

Seq(Seq(S1, Par(S2,S3)), S4), the operation of

merging S1 and S2 cannot be done directly since we

must know if we maintain the parallelism or we

don’t maintain it; this information should be

provided as an additional parameter. In both cases,

this must be decomposed into elementary operations

of adding and removing.

The reverse operation of fusion is the

decomposition of a service to obtain a bloc of two

services that can be sequential, parallel or alternative

bloc. The decomposition of services can be done to

improve the parallelism in the process

(parallelization of services) or to add condition

(inclusive/exclusive choice) due to new constraints

or to have more control on process execution

(sequence of services). The decomposition of a

service consists to remove a single service and to

add a bloc composed by two services.

5.3 Adapting the Control Flow

Another category of adaptation on IOWF models

concerns modification of the orchestration function

without modifying services, this is typically a

replacing of an operator of control flow by another;

we can replace for example a sequence operator

(seq) by parallel operator (par) to improve the

execution time of process instances, or vice versa if

an execution of a service becomes dependant from

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

228



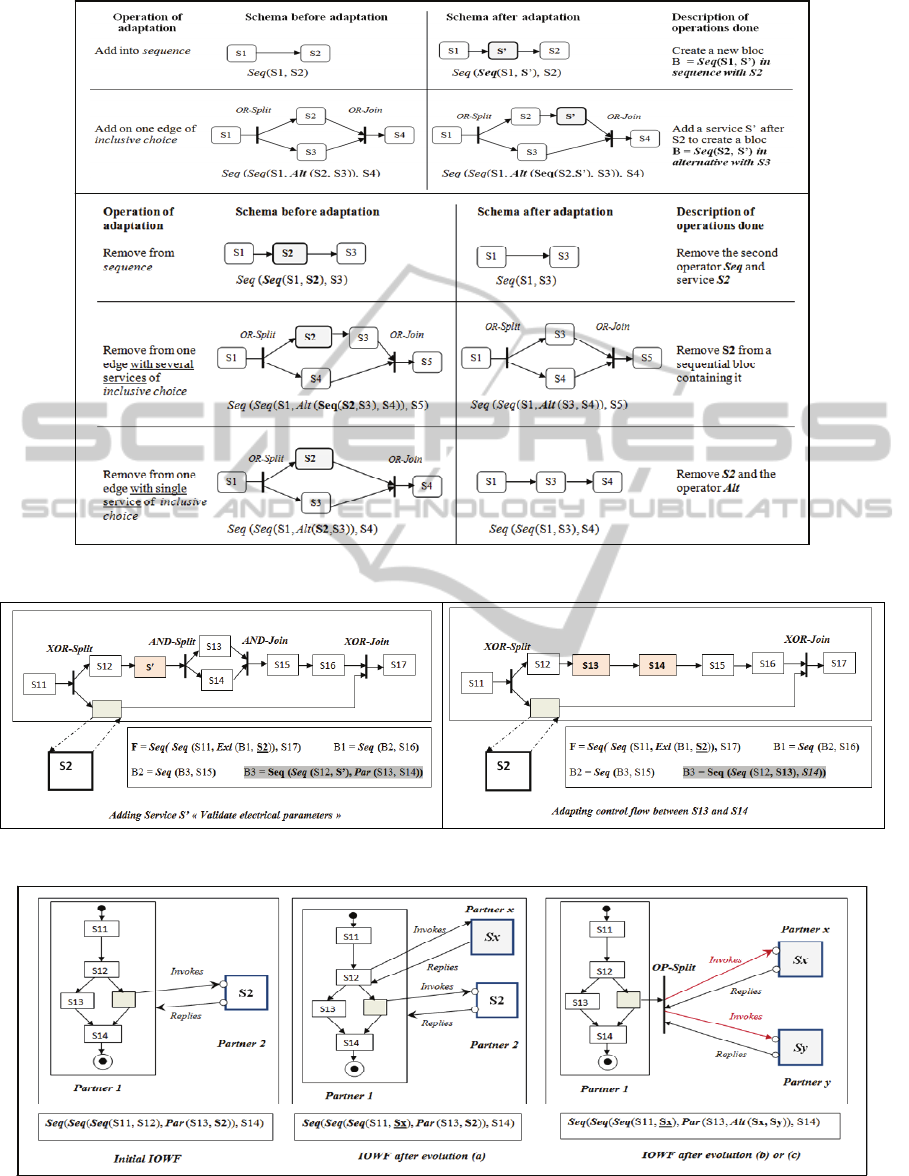

Figure 5: Adding and removing of services.

Figure 6: Examples of adaptation on the IOWF process “Realization of PCB”.



Figure 7: Expansion of the subcontracting.

ServicebasedApproachforAdaptabilityofWorkflowModels-TheSubcontractingArchitecture

229

another service.

Let’s consider our example of the process

“Realization of PCB”, the designer can decide to

reorganize the control flow in the process by

restructuring services S13 and S14 in sequence

instead of parallel because he notices that in some

cases there is a dependence between mechanical

conditions and thermal conditions of the circuit. This

adaptation and the corresponding orchestration

function are shown on Figure 6 (Adapting control

flow between S13 and S14).

When services to be reorganized (restructured)

are in the same bloc, the operation of adaptation can

be easily done by substituting operators. For

example, in the orchestration function seq (seq

(S1,S2), S3), if we want to link services S1 and S2

by parallel operator, we just replace the operator seq

by the operator par to obtain the transformed

function seq (par(S1,S2), S3). By contrary, if

services to be restructured are not in the same bloc,

operations of adaptation are less evident; for

example in the orchestration function seq (seq (seq

(S1,S2), S3), S4), if we want to link (S2,S3) by

parallel operator, we cannot do this by direct

substitution of operator seq but we must remove S2

to obtain seq (seq (S1, S3), S4), then remove S3 to

obtain seq (S1, S4), and finally add a bloc par

(S2,S3) between S1 and S4 to obtain the function

seq (seq (S1, par (S2, S3)), S4).

6 EVOLUTIVITY OF IOWF

MODELS

The evolutivity of IOWF process models is reflected

at two perspectives: the global functionality and the

cooperation of the IOWF. Hence, an IOWF model

evolves if it can be extended to additional

functionalities or if it allows expansion to more

partners and more external services. The two

perspectives are not exclusive.

6.1 Expanding Functionalities

Expansion of functionalities in the IOWF can be

done by adding internal services Sij (resp. blocs)

with novel functionalities into the WF of one or

more partner(s) or by replacing a service (resp.bloc)

by another that covers more functionality. To do

that, we can refer to operations described in section

5.1, the only difference is that the new services

implement additional functionalities. At external

level, the expansion of functionalities can be

realized by replacing an external service Si

encapsulating a WF fragment by another external

service that covers additional functionalities.

6.2 Expanding Cooperation

According to the cooperation perspective, it is the

capacity to open the IOWF to more partners. This

can occur when the main partner subcontracts other

activities to external partners, this is what we call

“expanding the subcontracting” or when a

secondary partner in turn subcontracts part of its WF

to other partners, this results in what we call “multi-

level subcontracting”.

6.2.1 Expanding the Subcontracting

Expansion of subcontracting can be done according

to one of these configurations (Fig. 7):

a) Replacing an internal service of the main WF by

an external service. b) Replacing an external service

by an alternative branch composed by two external

services Sx and Sy provided by two partners where

for some cases (according to a condition) , Sx is

invoked and for other cases Sy is invoked. c)

Replacing an external service by a parallel branch

composed by two external services Sx and Sy

provided by two partners; Sx and Sy are executed

simultaneously. Changes obviously described can be

expressed through operations of substitution and

decomposition explained in section5.The only

difference is that evolutivity concerns external

services. In our example of the process “Realization

of PCB”, the main partner can subcontract the task

“validate all criteria” to another partner which

provides it as external service S3; then evolution

consists to substitute the internal service S15 by the

external service S3.

6.2.2 Multi-level Subcontracting

The configuration of multi-level subcontracting is

obtained when the main WF invokes a secondary

WF through the external service provided, and the

secondary partner in turn operates changes to

subcontract part of its own WF to another partner;

this is invisible for the main WF but the overall

IOWF implies additional partners at different levels.

Changes relative to this configuration are done at

the secondary partner by substituting one or more of

its local services by external services.

ICEIS2012-14thInternationalConferenceonEnterpriseInformationSystems

230

7 CONCLUSIONS AND FUTURE

WORKS

This paper deal with adaptability of IOWF process

models suitable to structured cooperation. To

explain our approach, we have focused on process

models obeying to the subcontracting architecture

which describes a model of cooperation fairly

common in B2B relationship. In order to deal with

process models flexible enough, we have proposed a

cooperation pattern based on services to implement

IOWF obeying to the architecture considered; then,

we introduce the concept of orchestration function

that abstracts the structure of the process in terms of

control flow. Also, we distinguish operations of

adaptation from operations of evolution basis on two

perspectives the overall functionality of the IOWF

process and the cooperation. The operations of

adaptation and evolution of process models are

described at a conceptual level and turn to changes

operated on the orchestration function.

We are currently working to implement these

operations of adaptation and evolution as generic

adaptation patterns using a specific language of

business process definition like BPEL or jPDL.

Furthermore, we must provide mechanisms to check

the correctness of models after adaptation.

After that, we intend to deal with reusability of

IOWF process models which is another aspect of

flexibility allowing the combination of several

IOWF in order to build more complex business

processes based on existing ones. In our view, this is

possible because integration, composition and reuse

are well supported in SOA paradigm.

REFERENCES

Aalst, W. V. D., 1999.Process oriented architectures for

electronic commerce and interogranizational

workflow, Journal of Information systems, volume 24

issue 9.

Belhajjame K., Vargas G. Solar, Collet C.: Pyros 2005- an

environment for building and orchestrating open

services. In Proceedings of the 2005 IEEE

International Conference on Services Computing,

pages 155–164, Washington, DC, USA,. IEEE

Computer Society.

Boukhedouma S., Alimazighi Z., Oussalah M., Tamzalit

D., 2011, SOA basedapproach for interconnecting

workflows according to the subcontracting

architecture. In proceedings of MCCSIS- IADIS’

International Conference, CT’2011. Italy. Pp 3-12.

ISBN: 978-972-8939-40-3

Casati F., Shan M., 2001.Dynamic and adaptive

composition of e-services. Information Systems, 26(3)

:143–163

Chebbi I., 2007, CoopFlow: an approach for ascendant

cooperation of workflows in virtual enterprises. Phd

Thesis, National Institute of Telecom, France.

Döhring M., Zimmermann B., Godehardt E., 2010.

Extended workflow flexibility using rule-based

adapatation patterns with eventing semantics. In

proceedings. of INFORMATIK’10, pp. 216,226.

Döhring M., Zimmermann B., Karg L., 2011. Flexible

Workows at design- and Runtime using BPMN2

Adaptation Patterns. In proceedings of BIS’2011.

Grefen P., Aberer K., Hoffer Y., Ludwig H. , 2001.

Crossflow: Cross-organizational workflow

management for service outsourcing in dynamic

virtual enterprises. IEEE Data Engineering Bulletin,

24(1):52–57.

He Q., Yan Y., Jin H., 2008, Adaptation of web service

composition based on WF patterns. In proceedings of

Service Oriented Computing, ICSOC’08.

Mehandjiev N., Stalker I., Fessl K., Weichhart G. 2005,

Interoperability contributions of crosswork. In invited

short paper to Proceedings of INTEROP-ESA’05

Conference, Geneva, February 2005. Springer-Verlag.

Papazoglou M. P., Heuvel W. J. van den, 2007, Service

Oriented Architectures: approaches, technologies and

research issues, the VLDB Journal, vol.16, pp 389-

415.

Pesic M., Schonenberg M. H., Sidorova N., Aalst W. V.

D, 2007. Constraint-based workflow models: Change

made easy. In Proceedings of the OTM Conference

CoopIS’07. In vol 4803 of Lecture Notes in Computer

Science, pp 77–94.Springer-Verlag, Berlin

Sadiq S. W., Orlowska M. E., 2001. On capturing

Exceptions in workflow process models. In

Proceedings of ER’2001.

Tragatschnig S., Zdun U., 2011. Runtime business

adaptation for BPEL Process execution engines. In the

IEEE international enterprise object computing

conference workshops.

ServicebasedApproachforAdaptabilityofWorkflowModels-TheSubcontractingArchitecture

231
