Quality of Experience Evaluation for Data Services over Cellular

Networks

Gerardo Gómez

, Esther de Torres

, Javier Lorca

, Raquel García

, Quiliano Pérez

and Estefanía Arias

Department of Communications Engineering, University of Malaga, 29071 Malaga, Spain

Telefonica I+D, 28006 Madrid, Spain

Keywords: Quality of Experience, MOS, Performance Evaluation, Quality of Service.

Abstract: This paper presents an end-to-end service performance evaluation method that is able to estimate both the

Quality of Service (QoS) and Quality of Experience (QoE) associated to different data services over cellular

networks. A set of performance indicators are evaluated at each layer of the terminal’s protocol stack

following a bottom-up process from the physical layer up to the application layer. Then, specific utility

functions for each data service are used to map QoS into QoE in terms of Mean Opinion Score (MOS).

Three different data services (web browsing, video YouTube and Skype-based voice over IP) have been

evaluated in this paper under different network and terminal configurations. Performance results show that

the MOS associated to a particular data service is largely affected by the radio level performance (error rate,

throughput and delay), so proper protocols’ configuration is a key issue to maximize the QoE.

1 INTRODUCTION

Next generation mobile communication systems will

support diverse types of services across different

types of wired/wireless access technologies. The

end-to-end Quality of Service (QoS) provision in

such a heterogeneous scenario is one of the main

topics in networks research nowadays.

The estimation of the service performance and

Quality of Experience (QoE) perceived by the user

plays a very important role in wireless networks, as

it can be a very valuable input for network design,

dimensioning, planning, optimization, configuration

or upgrade. However, the assessment of the QoE

requires analyzing the performance of the whole

network (from user equipment to application server

or remote user equipment), which includes the

following aspects: individual performance figures

for each network element, interfaces and interactions

between them, protocols behavior, and how the end-

user perception is affected by network-related

degradations. In addition, the end-user reacts in a

different manner to degradations for different

services, e.g., the end-user perception is highly

affected by the end-to-end delay in conversational

services whereas it has a lower impact on

background services such as files transfer.

A common issue from network operators’

viewpoint is the process of assessing and managing

the QoS of their new services as well as evaluating

the quality experienced by the end user.

Traditionally, network metrics like accessibility,

retainability and quality were sufficient to evaluate

the user experience for voice services. However, for

data services, the correlation between network

performance indicators and application performance

indicators is not so straightforward due to the

following reasons: firstly, data systems have several

protocol layers; and secondly, radio data bearers are

typically shared among different services and

applications. In these conditions, data service

performance assessment is usually performed

through active terminal monitoring over real

networks. Obviously, if the operator wants to collect

statistics on a reasonable number of terminals,

applications and locations, this process is very

expensive and time consuming.

In some cases, the service and/or specific

network to be evaluated are not available or cannot

be tested and configured easily. In other cases, the

service or specific network is available, but it is

needed to estimate their performance under specific

configurations, scenarios or network conditions that

cannot be easily reproduced. Additionally, the

387

Gómez G., de Torres E., Lorca J., García R., Pérez Q. and Arias E..

Quality of Experience Evaluation for Data Services over Cellular Networks.

DOI: 10.5220/0004009703870396

In Proceedings of the International Conference on Signal Processing and Multimedia Applications and Wireless Information Networks and Systems

(WINSYS-2012), pages 387-396

ISBN: 978-989-8565-25-9

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

performance subjectively perceived by the end user,

i.e. in terms of Mean Opinion Score (MOS), cannot

be directly obtained based on network performance

metrics. This is due to the behavior of different

protocols and mechanisms along the network

elements and their protocol stack, as well as the

complex translation of QoS metrics to QoE

perceived by the user, which is very service

dependent. Typically, the QoE has been measured

by performing subjective tests to a wide set of users

in order to know their satisfaction degree through a

MOS indicator, which can range from 1 (bad) to 5

(excellent); this type of methods is obviously costly

and time-consuming for both the subscribers and the

operator.

A particular application of this type of solution

(i.e. mapping network into application performance

indicators and MOS) for determining the quality of

experience for on-line gaming traffic is described by

Gustafsson et al. (2010), with the peculiarity of

using a modeling unit to map game and transport

level measurements into MOS values. However, this

work is only applicable to online-gaming services as

the model is just based on game and transport

parameters, with no possibility of using performance

indicators from lower layers (e.g. radio protocols in

a 3G cellular network like MAC, RLC or PDCP).

This means that the network element in charge of

monitoring the game and transport performance

parameters must have access to the application and

transport levels.

Other works have focused on the design and/or

configuration of lower layers to optimize upper

layers’ performance (Luo et al., 2000); (De May et

al., 2005); (Lassila and Kuusela, 2008), propose new

radio resource management techniques which are

adaptive to the QoS or QoE (Piamrat et al., 2010) or

focus on particular algorithms to enhance objective

quality evaluation of a specific service like voice

(Lee et al., 2009). However, none of the previous

works provides a method to easily evaluate the

application layer performance or the QoE for

different packet data services over any network

configuration.

In this paper we present an end-to-end evaluation

method that is able to assess the QoS and QoE for

different multimedia applications like video, voice

over IP (VoIP) and web-browsing. The proposed

framework provides a set of performance indicators

like throughput, delay, and loss rate at different

points of the whole protocol stack. This approach

may be used for different purposes like e.g.

estimation of the QoE for new data services over a

specific wireless network (this process can help on

the design and optimization of new services in order

to improve the QoE). In addition, it provides a good

understanding of how the application performance is

affected by the end-to-end network behavior and a

way to find the most critical layer in the protocol

stack without the need of real networks monitoring.

The remainder of this paper is organized as

follows. The proposed methodology to evaluate the

QoS and QoE associated to any data service is

described in section 2. Section 3 presents a set of

performance results for three different data services

(web browsing, video YouTube and Skype-based

VoIP) under different network and terminal

configurations. Finally, some concluding comments

are given in section 4.

2 QUALITY EVALUATION

METHODOLOGY

Packet data services performance and end-user’s

experience can be characterized considering the

cumulative performance degradation along the

different network elements and protocol stacks plus

the effect of the subjectivity and the perception of

the end-user. Generally, such performance is

assessed through indicators that are very service

dependant, such as response time in web browsing

or average throughput when downloading a file.

We propose a new methodology for estimating

the QoS and QoE perceived by the user for different

packet data services over wireless networks. The

proposed methodology is based on network and

protocol models, service-related parameters and

utility functions that map QoS objective metrics into

the subjective experienced quality as perceived by

the end-user. Such approach allows easily predicting

the performance of different services under specific

wireless environments (GPRS, UMTS, LTE, etc.)

without the need of running, capturing and analyzing

the traffic generated from a real scenario. However,

the models can be optionally fed from radio and

network performance indicators obtained from

different sources: a) Network Operation and Support

Subsystem (OSS), b) real measurements obtained at

the network or the terminal side (if available), or c)

simulation results.

The method herein described is based on

theoretical models, including the impact of the:

 network elements along the end-to-end path (e.g.

user equipment, base station, gateways, server, etc.),

protocols and interfaces;

 particular service under analysis, including

WINSYS2012-InternationalConferenceonWirelessInformationNetworksandSystems

388

aspects like content sizes (e.g. in a web browsing

service: web page text size, number of embedded

objects, object sizes), protocols and signaling, and

specific application performance indicators (APIs);

 end-user perception, which includes how the

subjective experienced quality is affected by APIs

(e.g. initial delay, total response time) and

perception (e.g. resolution).

2.1 Quality of Service Evaluation

The model herein proposed offers a methodology of

analysis and evaluation of the QoS based on layers.

Each layer is modeled and evaluated based on a set

of performance indicators. The goal of the proposed

methodology is to provide a performance indicator

for different services based on the network

performance indicators as well as on their own

service parameters. The simulations focus on a

hypothetical user which experiences a given set of

MAC-level radio access performance parameters,

from which the model is able to derive application-

level QoS indicators after modeling all the

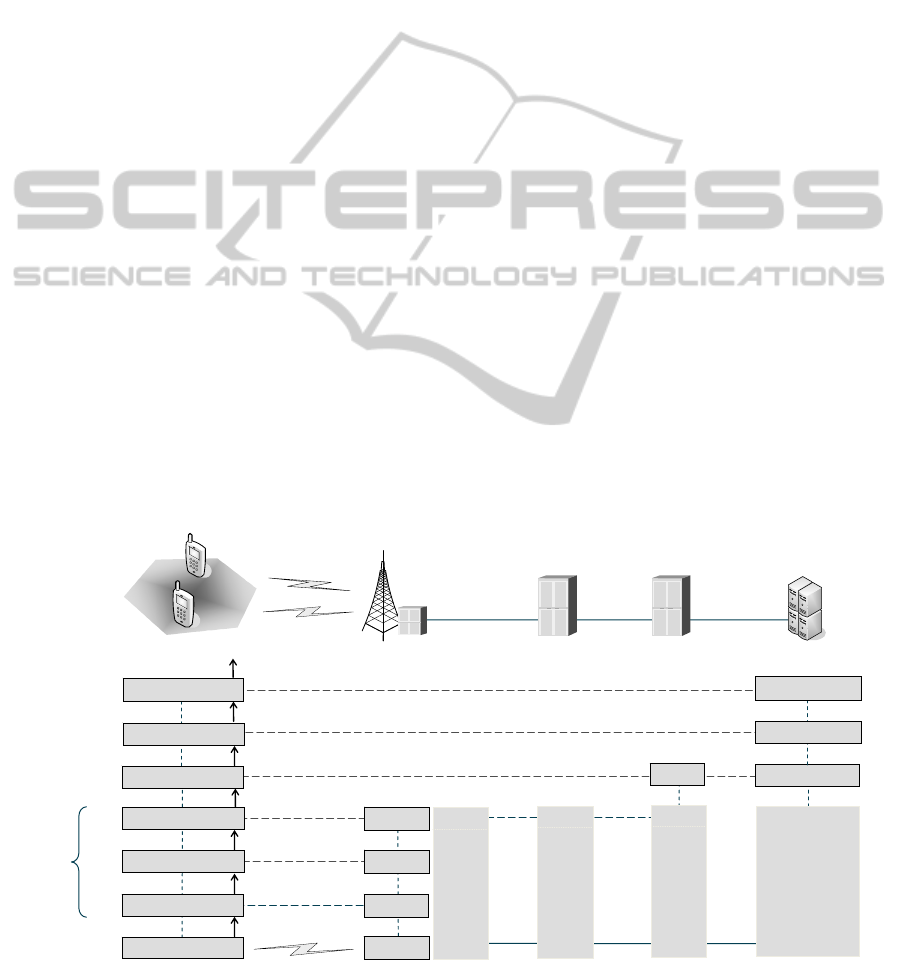

intermediate layers. For the topic at hand, a general

LTE network architecture has been considered (see

Figure 1). In the proposed methodology each layer is

modeled and evaluated based on a set of

performance indicators. Note that depending on the

particular layer, the scope of each performance

indicator may include the end-to-end network (for

application, transport and network layers) or just the

radio interface (for radio specific layers).

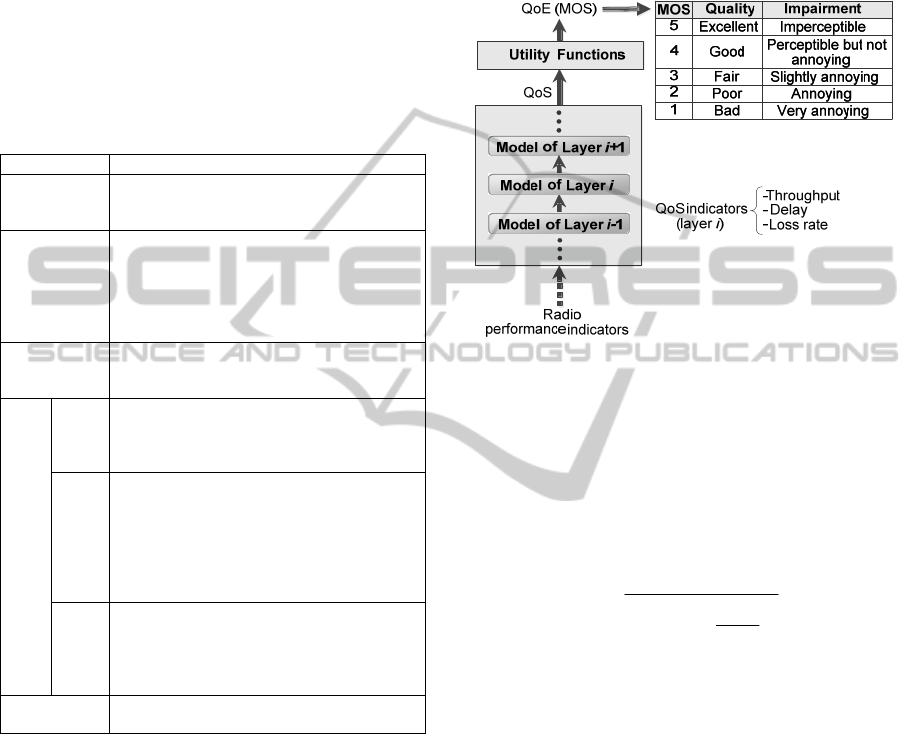

The modeling methodology follows a bottom-up

approach, from the physical up to the application

layer, taking into account the effects with a higher

impact on the overall QoS. Therefore, layer i (Li)

provides a set of performance indicators to the layer

above (i + 1), and successively, up to the application

layer (see Figure 1).

Without loss of generality, the following

performance indicators are considered as the most

relevant and are provided at each protocol layer:

 Transmission rate (R

): defines the amount of

data correctly transferred at layer i in a given time

(in bits per second). The transmission rate will vary

at each layer due to different factors, such as

protocol headers, packet loss rate, number of

retransmissions, etc.

 Delay (D

): represents the average time (in

seconds) that a data unit (at layer i) takes to be

transported from peer to peer. The delay is a very

important indicator for real-time services and also

for those services that use reliable and congestion-

aware protocols like Transmission Control Protocol

(TCP).

 Loss rate (P

): represents the loss rate of data

units at layer i. This loss rate may be due to errors at

the radio interface or data losses at network queues.

In general, the impact of data losses can be

minimized by applying correction techniques and/or

retransmissions at different levels. However, a high

loss rate will produce a large number of

retransmissions, which reduces the effective

information transmission rate.

eNodeB

Server

eNodeB

L2/L1

L2a

L2b

L2c

{R,D,P}

L2b

{R,D,P}

L2c

Application -

Transport -

Network -

Link

Physical -

MAC

RLC

PHY

S-GW

P-GW

-GW

L2/L1

GTP-U

L2/L1

GTP-U

P-GW

{R,D,P}

L2a

{R,D,P}

TCP / UDP

PHY

RLC

MAC

PDCP

HTTP, etc.

Server

L2/L1

TCP / UDP

HTTP, etc.

PDCP

Figure 1: Scenario and protocol stack under analysis.

QualityofExperienceEvaluationforDataServicesoverCellularNetworks

389

The final model is composed of a set of

deterministic equations starting from the RLC level

up to the application level, where performance

indicators at layer i are analytically derived as a

function of the performance indicators at layer i-1.

The specific equations that model each layer along

the protocol stack is out of the scope of this paper,

although further details can be found in a previous

work from one of the authors (Gómez et al., 2010b),

and a brief summary of the main aspects affecting

the QoS at each layer is described in Table 1.

Table 1: Summary of the main aspects affecting the QoS.

Layer Impact on QoS

Application The application layer mainly includes the

signaling or request/response messages

associated to each particular data service.

Transport The most problematic transport protocol over

wireless networks is TCP. Congestion and flow

control mechanisms included by TCP have a

very negative impact on the throughput and

delay, especially for high Round Trip Times

(RTTs) and loss rate.

Network The main aspects affecting the QoS are related

to the network RTT and packet loss rate along

the end-to-end path.

Link PDCP The main impact of PDCP layer on the QoS is

due to the use of robust header compression

(ROHC), whose gain will be higher as the

packet size decreases.

RLC It is responsible for the segmentation and

reassembly of upper layer data units and,

additionally, for performing optional selective

retransmissions. Thus, the error rate can be

lowered by means of retransmissions at the

expense of decreasing the throughput and

increasing the average delay and jitter.

MAC The MAC layer at the access node allocates

channels to users on a subframe basis; that is,

for each new subframe, the system assigns

available physical channels to users according

to a scheduling policy.

Physical

(PHY)

Defines the physical channels structure through

which the information will be transported.

In this paper we use PHY/MAC link level

simulations associated to a LTE network to obtain

MAC level performance results under specific

configuration (as described in section 3). Such

results at the MAC layer are then mapped into

performance results at each layer above up to the

application layer. Anyhow, MAC layer results from

simulations could be replaced by network operator

statistics generally available at their OSS database.

2.2 Quality of Experience Evaluation

The final goal of this end-to-end model is to evaluate

the application level QoS, which will be later

mapped into QoE (in terms of MOS value), as

shown in Figure 2. This last process is proposed to

be performed by means of utility functions

associated to each particular service. The goal of the

utility functions is to map objective measurements

(in terms of QoS) into subjective metrics (in terms of

QoE perceived by the user).

Figure 2: Bottom-up approach to evaluate the QoE.

This mapping process shall consider the specific

characteristics of each data service:

 Web browsing: the most important objective

parameter to estimate the MOS in a web browsing

session is the service response time D

. The utility

function that estimates the MOS as a function of D

(in seconds) is given by (Ameigerias, 2010):

578

MOS 5

22.61

1 11.77

=−

⎛⎞

⎜⎟

⎝⎠

(1)

 Video YouTube: among the various works

devoted to estimate the MOS for video services

(Mok et al., 2011); (Porter and Peng, 2010); (Ketykó

et al., 2010), the analysis presented by Mok et al.

(2011) provides a utility function for HTTP video

streaming as a function of three application

performance metrics: initial buffering time T

init

(time

elapsed until certain buffer occupancy threshold has

been reached so the playback can start, measured in

seconds), mean rebuffering time T

rebuf

(average

duration of a rebuffering event, measured in

seconds) and re-buffering frequency f

rebuf

(frequency

of interruption events during the playback, measured

in seconds

-1

). The final MOS expression is given by:

MOS 4.23 0.0672 0.742 0.106

init rebuf rebuf

Tf T

−−−

(2)

Note that these application layer metrics (T

init

, T

rebuf

) can be estimated (at the receiver) from

WINSYS2012-InternationalConferenceonWirelessInformationNetworksandSystems

390

performance indicators at lower layers (like the TCP

throughput) provided by the end-to-end model

(described in section 2.1) as well as other

configuration parameters like video coding rate or

buffer size at the receiver.

 Skype-based VoIP: in this case the MOS

formula just maps the result given by an

intermediate model into normalized MOS values.

This intermediate model, known as the E model, is

specified in ITU-T G.107 (2009) and it provides a

numerical estimation R∈[0, 100] of the voice quality

from a set of network impairment factors related

with the Signal to Noise Ratio (SNR) of the

transmission channel, delay, distortions introduced

by the coding/decoding algorithms, packet losses,

etc. Cole and Rosenbluth (2001) provides a

simplification of the E-model, particularizing it for

VoIP communications, where the voice quality R is:

(

)

94.2 0.024 0.11 177.3 ( 177.3)

eeff

dd Hd IA

−

=− ⋅−⋅− ⋅− −+

being

d the end-to-end delay in milliseconds, I

e-eff

the

effective equipment impairment factor, H(x) the unit

step function, and A the correcting factor, which

takes into account the environment where the

communication takes place. Besides, ITU-T G.113

(2007) provides a formula to translate the R value

into MOS:

(

)

(

)

MOS 1 0.035 60 100 7 10RRR R

−

=+ ⋅ + ⋅ − ⋅ − ⋅⋅

(3)

The impairment factors, in turn, depend on the

specific codec used for the VoIP communication; the

values of these factors for a number of codecs are

tabulated in ITU-T G.113 (2007) and its amendment

1 (2009).

3 PERFORMANCE RESULTS

In this section, a set of performance figures are

shown for web browsing, video YouTube and

Skype-based VoIP over a LTE cellular network.

Radio performance indicators (at PHY/MAC layers)

have been obtained from a dynamic link level LTE

simulator (Gómez et al., 2010a), whose main

configuration parameters are listed in Table 2.

Average throughput results (per user) at the

MAC layer as a function of the received average

SNR are shown in Figure 3. Assuming an average

SNR of 20 dB, a user would be able to achieve

around 4 Mbps considering that the radio resources

are shared among 10 users. Regarding the BLER and

delay at the MAC layer (not shown in the figure),

they have been also obtained from simulations,

whose values are: BLER ≈ 5%, delay

MAC

≈ 15 ms.

The following sections will use MAC layer results

as a baseline for upper layer performance estimation.

Table 2: PHY/MAC configuration parameters.

Parameter Value

Carrier frequency 2 GHz

System bandwidth 20 MHz

Duplexing scheme FDD

Resource block (RB) BW 180 KHz

Subcarriers per RB 12

Sub-frame duration 1 ms

Antenna configuration 1-layer MIMO 2x2

Precoding LTE 4-words codebook

Power delay profile Extended pedestrian A channel

UE speed 4 km/h

Channel estimation Zero-Forcing

MIMO Detection MMSE

Target BLER 10%

Control channel overhead From 1 to 3 OFDM symbols

Modulation / coding rate 16 CQI table (4bits)

Coding scheme Turbo codes + SOVA

CQI & PMI delay 1 ms

CQI reporting period 1 ms

HARQ model Incremental Redundancy + Chase

Combining

# stop and wait processes 8

Scheduling method Proportional Fair

Averaging window size 500 ms

Number of users 10

Source model Full buffer

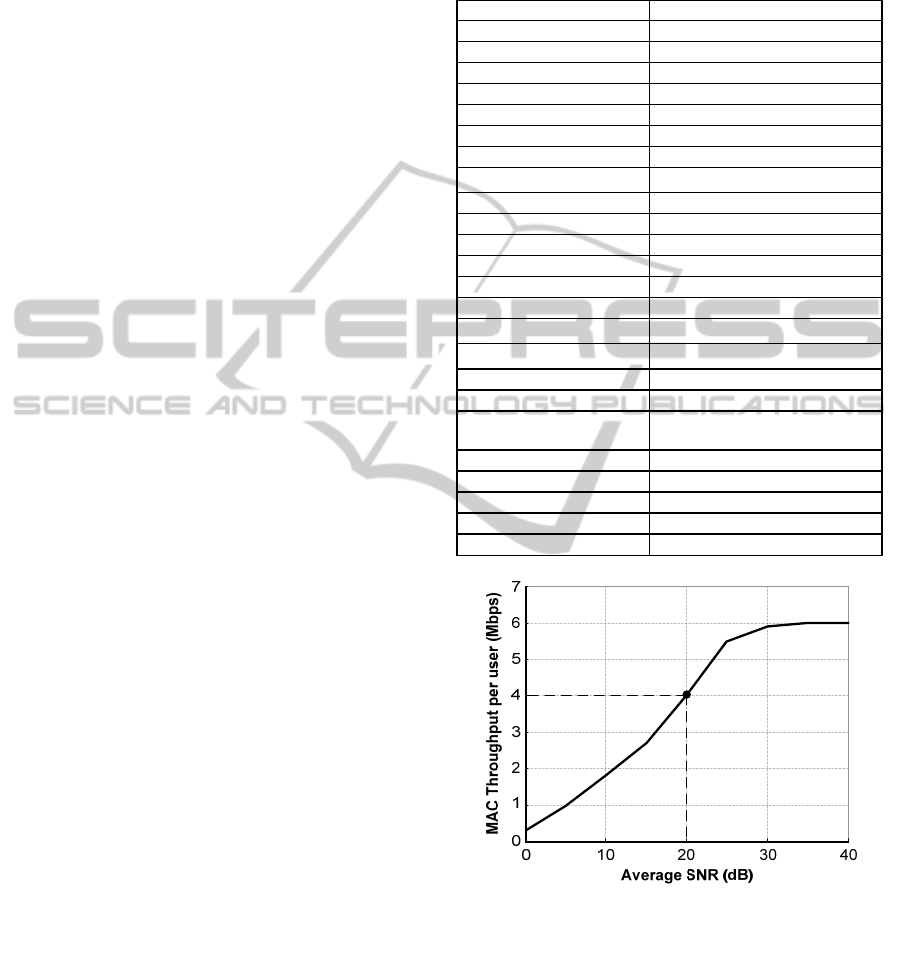

Figure 3: Average throughput at the MAC layer vs SNR.

3.1 Web Browsing

The Web service architecture uses a client-server

approach in which the exchange of information is

done via HTTP/TCP. HTTP version 1.1 has been

assumed in the analysis. This version includes the

persistent connection feature, which makes it

possible to reuse the same TCP connection for

downloading subsequent objects. The pipelining

QualityofExperienceEvaluationforDataServicesoverCellularNetworks

391

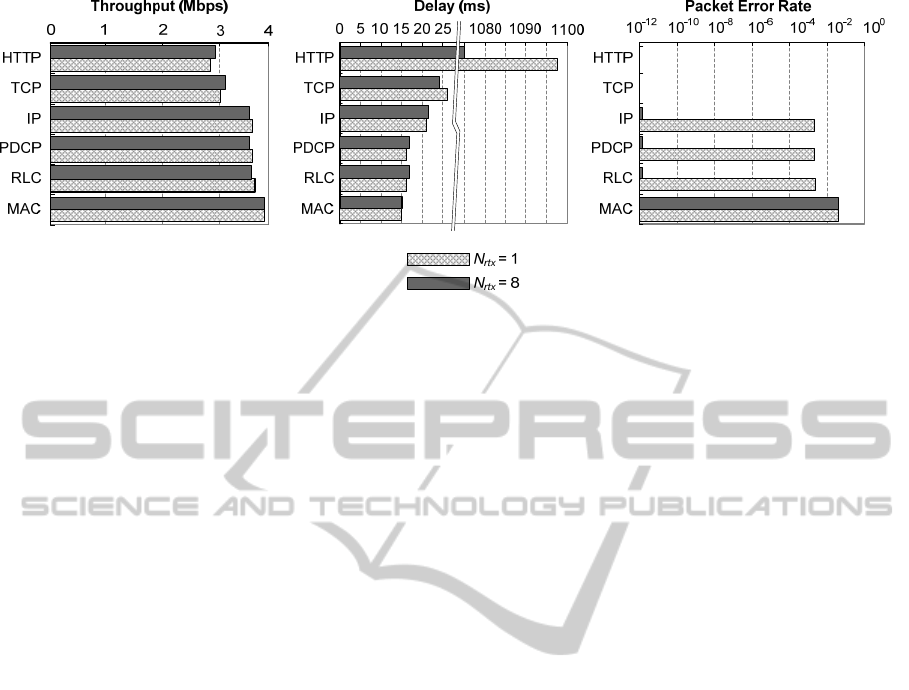

Figure 4: Performance evaluation at each protocol layer (web browsing).

feature have been also assumed, thus allowing a

number of object requests to be sent without waiting

for the reception of the previous object.

Figure 4 shows a performance analysis at each

protocol layer of the web browsing service, starting

from the MAC layer results described in previous

section. A web page consisting of 100kB text and 15

secondary objects whose individual average size is

20kB has been considered (400kB page size). It is

assumed that all the objects and text are located in

the same web server, so that all the data transfers

will run on top of the same TCP connection.

Regarding TCP configuration, the following

settings have been used: maximum segment size

MSS = 1460 bytes, initial congestion window

init

= 1 segment, advertised window from the

receiver AWND = 32 kbytes, number of ACKs per

transmitted segment b = 1, and SYN timeout T

= 3s.

Results shown in Figure 4 provide a detailed

analysis of the performance achieved at each

protocol layer (in terms of throughput, delay and

loss rate). Let us analyze the performance in a

bottom-up approach, starting from the MAC layer

(obtained from simulations) up to the application:

 MAC error rate can be lowered by means of

RLC level retransmissions (ARQ protocol). The

graph shows the results for two different values of

the maximum number of RLC retransmissions (N

rtx

1 and 8. Results show that higher N

rtx

values make it

possible to reduce the error rate at the expense of

decreasing the effective throughput and increasing

the delay at RLC layer. However, when TCP is used

at transport layer, it is highly recommended to

decrease the error rate at lower layers so that end-to-

end retransmissions are avoided.

 PDCP layer does not apply header compression

in this scenario, so its impact on the performance

indicators only comes from the PDCP header

overhead.

 At the IP layer, the delay from the base station to

the web server is assumed to be 5ms whereas the

packet loss rate is negligible compared to the radio

interface (the main focus of the analysis is given to

the impact of the radio interface on upper layers).

 TCP behavior is very sensitive to IP loss rate, as

its congestion control protocol tries to adapt the

instantaneous transmission rate to the network

characteristics in order to provide reliability, i.e. loss

rate zero. In that sense, if IP loss rate is minimized at

the radio interface by means of a higher number of

local retransmissions (e.g. N

rtx

= 8), TCP will be able

to achieve higher average sending rates;

additionally, in that situation, average TCP delay is

also reduced as the number of end-to-end TCP

retransmissions is decreased.

 At application layer, HTTP delay results

represent the complete “click-to-download” time of

the whole web page, including: DNS query, TCP

connection establishment, text and secondary objects

request and download.

From previous analysis, it is important to highlight

the impact of the loss rate on TCP performance. For

that reason, the reliability of lower layers is an issue

when the radio conditions are poor.

The results associated to the web page

downloading time (D

) and MOS, computed from

Eq. (1), for different MAC error rate values are

shown in Figures 5 and 6. Three different RLC

configurations have been evaluated:

Unacknowledged Mode (UM), which does not

perform any retransmissions, and Acknowledged

Mode (AM) with 1 and 8 as maximum number of

retransmissions (N

rtx

). As shown, the difference

between RLC transmission modes increases for

higher error rates, being AM with N

rtx

= 8 the best

performing configuration since it provides a MOS >

4 (Good) up to 20% of MAC error rate .

WINSYS2012-InternationalConferenceonWirelessInformationNetworksandSystems

392

Web page downloading time (s)

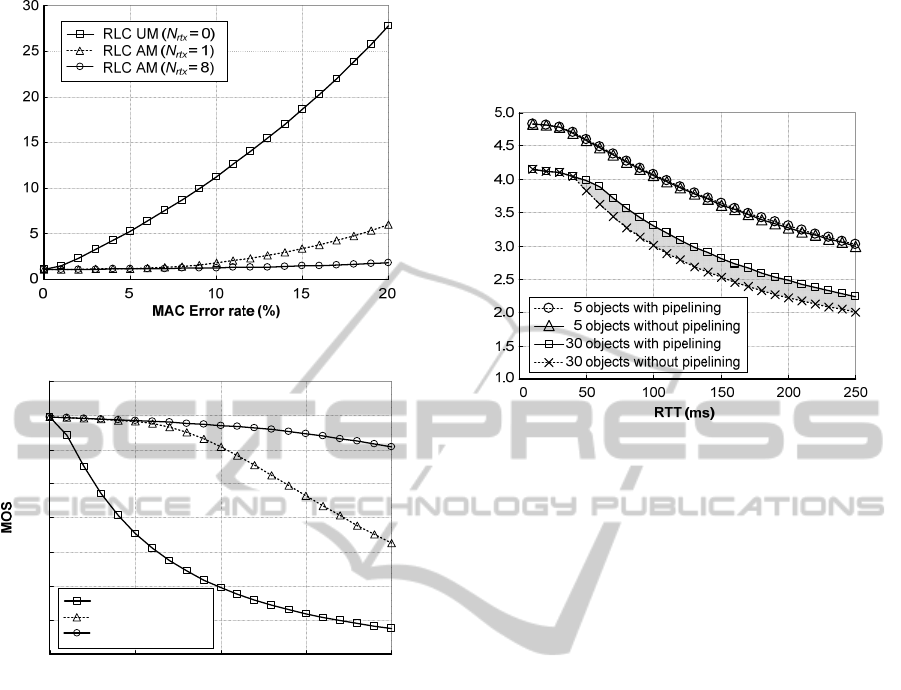

Figure 5: Web page downloading time and MOS.

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

0 5 10 15 20

MAC Error Rate (%)

RLC UM (N

rtx

= 0)

RLC AM (N

rtx

= 1)

RLC AM (N

rtx

= 8)

Figure 6: MOS results for web browsing service.

Figure 7 shows the MOS results for different

network RTTs and different number of secondary

objects in the web page. Firstly, long RTTs lead to a

worse TCP performance (in terms of throughput) as

a consequence of its inherent congestion control

mechanisms based on a transmission window (both

during slow start and steady state phases). Such

throughput reduction has a direct impact on the web

page downloading time and MOS. Secondly, a

higher number of objects in the web page (assuming

equal sizes) leads to longer downloading times. This

behavior may be enhanced by using pipelining

feature, which provides higher gains as the number

of objects is increased. Pipelining can be achieved to

different extents depending on how the request-

sending is scheduled on the client’s browser. In the

figure, a totally pipelined scenario is assumed, i.e.

all the object requests are sent in parallel. If a lower

number of parallel requests is configured at the

browser, the results would be located between both

curves (shadowed area in the graph). If we compare

the results between 5 and 30 secondary objects (i.e.

200kB and 700kB including the text), it can be

concluded that much shorter RTTs are required to

keep the same MOS (e.g. 110ms and 40ms,

respectively to achieve good performance: MOS=4).

MOS

Figure 7: MOS (web browsing) for different RTT.

3.2 Youtube

YouTube service is based on progressive download

technique, as explained by Gill et al. (2007), which

enables the video playback before the content

download is completely finished. As data is being

downloaded, the video content is temporarily stored

in a buffer at the client side, thus enabling the video

playback before having the complete video file. This

technique is based on HTTP/TCP, i.e. the client

sends an HTTP request and, as a consequence, the

YouTube multimedia server delivers the requested

video through an HTTP response over TCP. The

process of downloading the video content from

YouTube multimedia server consists of two phases:

initial burst (in which data are sent as fast as

possible using the whole available bandwidth) and

throttling algorithm (in which data are sent at a

constant rate related with the video coding rate).

Once the video playback has started (which implies

that the buffer has certain data to be consumed), if a

network congestion episode takes place, the data that

are not able to be delivered (from the server) at this

constant rate will be later transmitted at the

maximum available bandwidth as soon as the

congestion is alleviated. This circumstance could

trigger a rebuffering event if the client buffer runs

out of data. In this case the video playback will be

paused until the data buffer is restored. Otherwise,

the rebuffering event will be avoided and the

congestion will be seamlessly elapsed to the user.

Figure 8 depicts the results of the application

performance metrics for YouTube (defined in

QualityofExperienceEvaluationforDataServicesoverCellularNetworks

393

section 2.2) as a function of the network RTT for a

particular RLC transmission mode (AM with N

rtx

= 8

retransmissions). The following application settings

have been used: video length = 250s, client data

buffer necessary to start the playback B

full

= 32s,

buffer threshold that triggers a rebuffering event

empty

= 2s, and video coding rate = 512kbps.

Regarding TCP settings, the same configuration as

defined for web browsing have been considered.

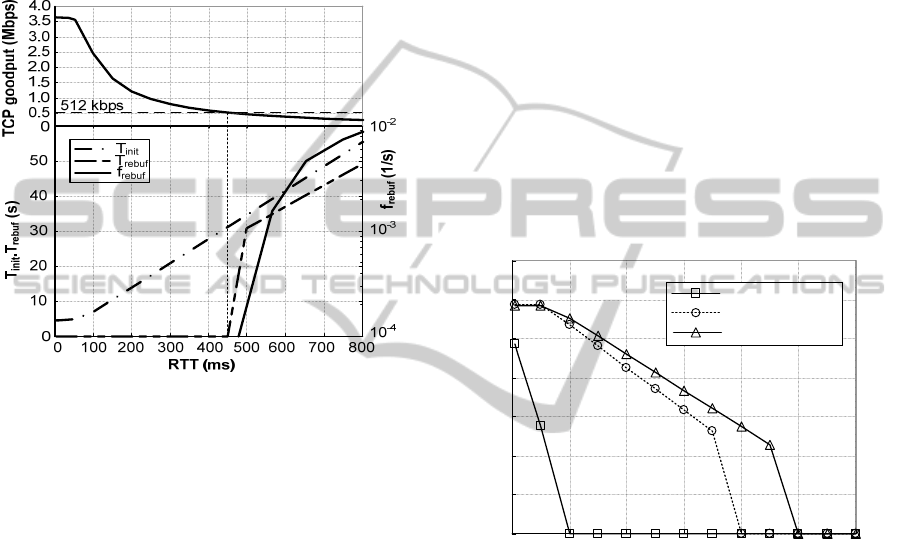

Figure 8: Application Performance Metrics for YouTube

as a function of RTT (RLC AM, N

rtx

=8).

The upper graph in Figure 8 represents the

achievable average TCP goodput (Padhye et al.,

1998) for the specified TCP configuration, network

RTT and loss rate (≈2·10

-12

as shown in Figure for

web browsing). So if the average TCP goodput is

higher than the video coding rate (512kbps), then no

rebuffering events will take place. As the RTT is

increased, the TCP goodput is decreased until it

becomes lower than the video coding rate at certain

RTT value; from this RTT value and above, the

parameters related to the rebuffering events (T

rebuf

and f

rebuf

) are higher than zero (as shown in the lower

graph). The initial buffering time (T

init

) is also

increased for higher RTTs since lower TCP goodput

values lead to longer delays to reach the minimum

buffer occupancy (B

full

). The rebuffering time (T

rebuf

)

has the same behavior, although it is null as long as

TCP goodput is above the video coding rate (i.e. no

rebufferings occur). Besides, it can be seen that

rebuf

< T

init

for the same RTT value due to the

following reasons: 1) the amount of data needed to

be filled (B

full

) for the computation of T

init

is greater

than the amount of data (B

full

- B

empty

) required for

the computation T

rebuf

; and 2) the computation of T

init

assumes that TCP data transfer start with a slow start

phase whereas the computation of T

rebuf

considers

the TCP steady state to be reached (being the TCP

goodput higher in this second phase).

Figure 9 shows the MOS results, from Eq. (2),

for different RTTs and RLC transmission modes. As

mentioned above, for low RTT values (which

achieve TCP goodput values higher than the video

coding rate), the initial buffering time is the only

metric affecting the MOS (the higher the T

init

, the

lower the MOS). When the rebuffering events start

to take effect over the MOS, its value is rapidly

decreased, since interruptions over the playback are

annoying for the users. As shown in Figure 8, MOS

results could be improved by selecting a proper RLC

transmission mode: MOS values are higher for RLC

AM mode than for UM mode. It can also be seen

that the minimum RTT value that triggers

rebuffering events is higher when the AM mode is

selected, and even further for a larger number of

RLC retransmissions.

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

0 100 200 300 400 500 600

RTT (ms)

MOS

RLC UM (N

rtx

= 0)

RLC AM (N

rtx

= 1)

RLC AM (N

rtx

= 8)

Figure 9: YouTube MOS results for different RTTs and

RLC transmission modes.

3.3 Skype

In this section, the performance of a Voice over IP

(VoIP) service using Skype is analyzed. Skype

usually relies on UDP as transport layer, unless the

UDP communication is unfeasible, in which case

Skype would fall back to TCP. We will focus on the

usual Skype behavior over UDP. This section is

focused on the E2E communication (i.e. between

two Skype clients). The codec used by the software

has a big impact on the service performance, being

SILK the codec currently supported for E2E

communications (since version 4.0). This codec has

a set of coding rates from 6kbps to 40kbps. Due to

the low data rates that a VoIP flow usually needs,

throughput requirements at the network side are not

WINSYS2012-InternationalConferenceonWirelessInformationNetworksandSystems

394

usually an issue for Skype service. Instead, the

network performance indicators mostly affecting the

service quality are: loss rate and end-to-end delay.

The following MOS results have been obtained,

from Eq (3), for medium and low voice coding rates,

considering an A factor value according to a cellular

communication inside a building (see section 2.2).

The impairment factor associated to this scenario has

been obtained from ITU-T G.113 (2007) for the

selected voice codecs. Taking into account the

characteristics of the VoIP traffic, a Robust Header

Compression (RoHC) mechanism has been applied

at the PDCP layer. In addition, the RLC UM mode

has been selected in order to minimize the end-to-

end delay, which is the application layer metric that

mostly affects the MOS.

Figure 10 shows the MOS results (for different

voice coding rates) as a function of the MAC error

rate at the radio interface. As the RLC UM mode has

been assumed in this case, potential data errors have

a very negative impact on the voice quality.

Concretely, fair quality (MOS > 3) is achieved for

MAC error rate below 2.5% (for 23.85 kbps) and 1%

(for 8.85 kbps). In order to solve this problem,

stricter target BLER values are recommended to be

configured at the physical layer so that more robust

coding schemes are applied.

MOS

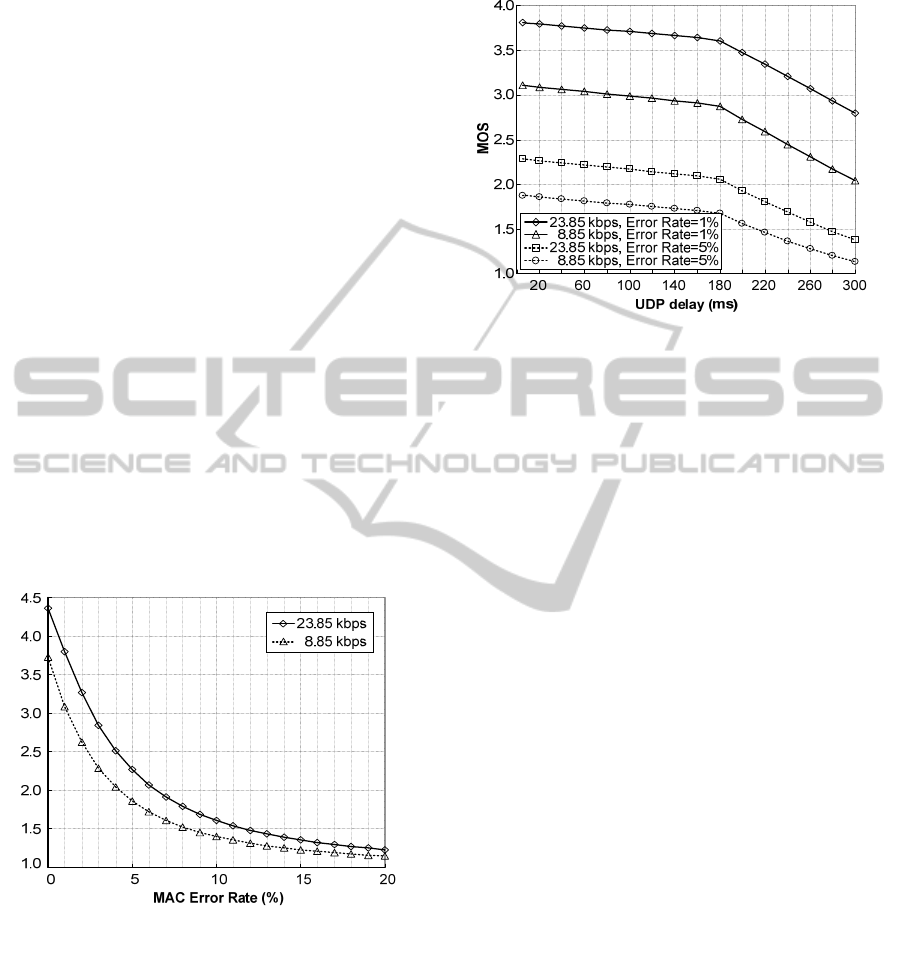

Figure 10: MOS for Skype for different MAC error rates.

Figure 11 shows the MOS results as a function of

the end-to-end UDP delay, which has a lower impact

on the MOS (for the range of typical delay values)

than the error rate. Furthermore, it can be observed

that when using default MAC error rate results (5%),

MOS results are always poor (i.e. below 3) even for

negligible end-to-end delays. If 1% error rate is

considered at the MAC layer, maximum end-to-end

delays that makes it possible to obtain a fair quality

are around 100 ms (for 8.85kbps) and 270 ms (for

23.85kbps).

Figure 11: MOS for Skype depending on the UDP delay.

4 CONCLUSIONS

This paper presents a QoS and QoE performance

evaluation method for data services over cellular

networks. In particular, a bottom-up performance

analysis have been proposed for evaluating the

application layer metrics whereas a set of service-

specific utility functions have been used to estimate

the MOS for web browsing, video YouTube and

VoIP-based on Skype. The methodology here

proposed makes it possible to identify the sources of

performance degradation along different elements

and protocols in addition to the end-users’

experienced quality. Additionally, this approach

provides the following advantages: 1) it makes it

possible to predict the QoE when measurements in

real network are not available; 2) it is applicable to

any service and wireless network, simply by

providing appropriate models; 3) services and

networks under analysis do not necessarily require

being up and running.

Performance results for web browsing show the

great impact of the network loss rate on TCP

performance, thus a proper configuration at the radio

protocols is a key issue to improve the QoE;

additionally, the network RTT is also a critical

performance indicator, which subtracts ≈1 point

from the MOS scale with each additional 100ms. In

the case of YouTube, results are very dependent on

the video coding rate and network metrics (RTT and

loss rate); our performance estimations show that

fair quality (MOS > 3) can be obtained for RTTs

below 200ms when an RLC AM is configured.

Finally, Skype results show the great influence of

the voice coding rate and error rate on the MOS as

QualityofExperienceEvaluationforDataServicesoverCellularNetworks

395

the RLC UM is usually configured for VoIP. End-to-

end delay also plays an important role in Skype

performance, whose maximum admissible value

depends on the coding rate and error rate in the

network (as an example, a maximum delay of 100ms

is admissible for 8.85kbps and 1% MAC error rate).

ACKNOWLEDGEMENTS

This work has been partially supported by the Junta

de Andalucía (Proyectos de Excelencia P07-TIC-

03226 and TIC-06897) and by the Spanish

Government (TEC2010-18451).

REFERENCES

Ameigeiras, P., Ramos-Munoz, J.J., Navarro-Ortiz, J.,

Mogensen, P., Lopez-Soler, J.M. (2010). QoE oriented

cross-layer design of a resource allocation algorithm in

Beyond 3G systems. Computer Communications,

33(5), 571-582. doi: 10.1016/j.comcom.2009.10.016.

Cole, R. G., Rosenbluth, J. H. (2001). Voice over IP

performance monitoring. ACM SIGCOMM Computer

Communication Review, 31(2). doi:

10.1145/505666.505669.

De May, O., Schumacher, L., Dubois, X. (2005).

Optimum Number of RLC Retransmissions for Best

TCP Performance in UTRAN. IEEE 16th

International Symposium on Personal, Indoor and

Mobile Radio Communications (PIMRC). 1545-1549.

doi: 10.1109/PIMRC.2005.1651703.

Gill, P., Arlitt, M., Li, Z., Mahanti, A. (2007). YouTube

Traffic Characterization: A View From the Edge. 7th

ACM SIGCOMM conference on Internet

measurement. doi: 10.1145/1298306.1298310.

Gómez, G., Morales-Jiménez, D., Sánchez-Sánchez, J.J.,

Entrambasaguas, J.T. (2010a). A Next Generation

Wireless Simulator Based on MIMO-OFDM: LTE

Case Study. EURASIP Journal on Wireless

Communications and Networking. doi:

10.1155/2010/161642.

Gómez, G., Poncela González, J., Aguayo-Torres, M.C.,

Entrambasaguas Muñoz, J.T. (2010b). QoS Modeling

for End-to-End Performance Evaluation over

Networks with Wireless Access. EURASIP Journal on

Wireless Communications and Networking; Article ID

831707. doi: 10.1155/2010/831707.

Gustafsson, J., Heikkila, G., Sandberg, P. (2010). Method

of determining Quality of Service for on-line gaming

in a network. Patent Application, Publication number:

US 2010/0273558 A1.

Luo, H., Ci, S., Wu, D., Wu, J., Tang, H. (2010). Quality-

driven cross-layer optimized video delivery over LTE.

IEEE Communications Magazine, 48(2), 102-109. doi:

10.1109/MCOM.2010.5402671.

ITU-T amendment 1 for recommendation G.113. (2009).

Amendment 1: revised appendix IV – provisional

planning values for the wideband equipment

impairment factor and the wideband packet loss

robustness factor.

ITU-T recommendation G.107 (2009). The E-model, a

computational model for use in transmission planning.

ITU-T recommendation G.113. (2007). General

recommendations on the transmission quality for an

entire international telephone connection.

Ketykó, I., Moor, K., Pessemier, T., Verdejo, A.,

Vanhecke, K., Joseph, W., Martens, L., Marez, L.

(2010). QoE measurements of Mobile YouTube video

streaming. 3rd Workshop on Mobile Video Delivery

(MoViD’10). doi: 10.1145/1878022.1878030.

Lassila, P., Kuusela, P. (2008). Performance of TCP on

low-bandwidth wireless links with delay spikes.

European Transactions on Telecommunications, 19,

653-667. doi: 10.1002/ett.1207.

Lee, W., Lee, M., McGowan, J. (2009). Enhancing

objective evaluation of speech quality algorithm:

current efforts, limitations and future directions.

European Transactions on Telecommunications, 20,

594-603. doi: 10.1002/ett.1334

Mok, R.K.P., Chan, E.W.W., Chang, R.K.C. (2011).

Measuring the Quality of Experience of HTTP video

streaming.

12th IFIP/IEEE International Symposium

on Integrated Network Management (IFIP/IEEE IM).

Padhye, J., Firoiu, V., Towsley, D., Kurose, J. (1998).

Modeling TCP Throughput: A Simple Model and its

Empirical Validation. ACM SIGCOMM Computer

Communication Review, 28(4), 303-314.

Piamrat, K., Singh, K.D., Ksentini, A., Viho, C., Bonnin,

J.M. (2010). QoE-Aware Scheduling for Video-

Streaming in High Speed Downlink Packet Access.

IEEE Wireless Communications and Networking

Conference (WCNC). doi:

10.1109/WCNC.2010.5506102.

Porter, T., Peng, X. (2011). An objective approach to

measuring video playback quality in lossy networks

using TCP. IEEE Communications Letters, 15(1), 76-

78. doi: 10.1109/LCOMM.2010.110310.101642.

WINSYS2012-InternationalConferenceonWirelessInformationNetworksandSystems

396
