Two Dragons

A Family of Fast Word-based Stream Ciphers

Matt Henricksen

Institute of Infocomm Research, A*STAR, Singapore, Singapore

Keywords:

Dragon, Stream Ciphers, AES-NI, Cryptology.

Abstract:

The EU eSTREAM competition selected two portfolios of stream ciphers, from among thirty-four candidates,

with members that were either fast in software or compact in hardware. Dragon was among the eight ﬁnalists

in the software category. While meeting the performance requirement of being faster than the Advanced

Encryption Standard (AES) on many platforms, it was less efﬁcient than the four ciphers selected for the

portfolio. Cryptanalysis revealed some less-than-ideal properties. In this paper, we provide some new insights

into Dragon, and propose two modiﬁcations: Black Dragon, which is tailored for efﬁcient implementation in

modern SIMD architectures; and Yellow Dragon, which utilizes recent developments in Chinese block ciphers.

We show the improved security and performance of these two variants.

1 INTRODUCTION

Symmetric ciphers are primitives that form the back-

bone of information security by providing an efﬁcient

way to encrypt and authenticate data. They comprise

stream ciphers, which process a secret state, and state-

less block ciphers. Stream ciphers can be faster and

more compact than block ciphers.

The most famous symmetric cipher is the Ad-

vanced Encryption Standard (AES) (Daemen and Ri-

jmen, 2002), ratiﬁed by the US’ National Institute of

Standards in 2001 after a competition that saw crypt-

analysts evaluatingﬁfteen block ciphers. The winning

candidate, Rijndael, has high efﬁciency, provable se-

curity against common attacks, and an elegant design.

Following the model of the AES competition, the

EU ECRYPT node of excellence held several compe-

titions for new stream ciphers. The ﬁrst competition

failed to ﬁnd candidates with sufﬁcient security. The

second, the ECRYPT eSTREAM project, had more

success in identifying stream ciphers at least as secure

as the AES when used with a 128-bit key, but faster in

software; or smaller than the AES in hardware, while

achieving at least 80 bits of security. The competition

yielded two portfolios: one for hardware, with three

members, and one for software, with four members.

There were many ﬁnalists that were not selected

for various reasons. The ﬁnal report on the eS-

TREAM ﬁnalists said:

Dragon cipher appears to be of solid con-

struction. The downside to the current de-

sign of Dragon, is that while its performance

is competitive with the AES, it does not com-

pare too well to the other submissions in the

ﬁnal phase. It would certainly be interest-

ing if a future version of the cipher were

able to maintain some of the successful de-

sign ideas while delivering even better perfor-

mance“ (eSTREAM, 2008)

Delivering better performancefor equivalentsecu-

rity is the motivation for this paper. It is made timely

by the delivery of a ubiquitous and very fast imple-

mentation of a 32×32 non-linear mapping that can be

used to replace the weakest component of Dragon

In Section 2, we discuss the original design of

Dragon, as presented to eSTREAM, and in Section 3,

the problems with the cipher. In Section 4, we present

two new Dragons: Black Dragon, which makes use of

the new AES-NI instruction set, and Yellow Dragon,

which utilizes the structure of the SMS-4. In Section

5, we indicate our reasons for these designs. In Sec-

tion 6, we give an analysis of their security, and in

Section 7, performance benchmarks and implementa-

tion notes. We conclude in Section 8.

On a light note, the timing is also impeccable as 2012

is the year of the Dragon

Henricksen M..

Two Dragons - A Family of Fast Word-based Stream Ciphers.

DOI: 10.5220/0004014000350044

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 35-44

ISBN: 978-989-8565-24-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 THE DRAGON CIPHER

Dragon (Chen et al., 2004) is a stream cipher with

a conservative design. It is based on a 1,024-bit

NLFSR, with an additional 64-bit register intended to

give assurances about the cipher period. A 192×192-

bit function F serves both as the update function on

the state, and the output ﬁlter. The state is initialized

by a 128- or 256-bit key, using slightly differentmeth-

ods, both of which use F.

2.1 The F function

The F function is shown in Figure 1. It has three lay-

ers. The ﬁrst and third layers perform word-based dif-

fusion, using binary addition (⊕) and addition mod-

ulo 2

(⊞) while the second introduces strong non-

linearity through the G and H functions.

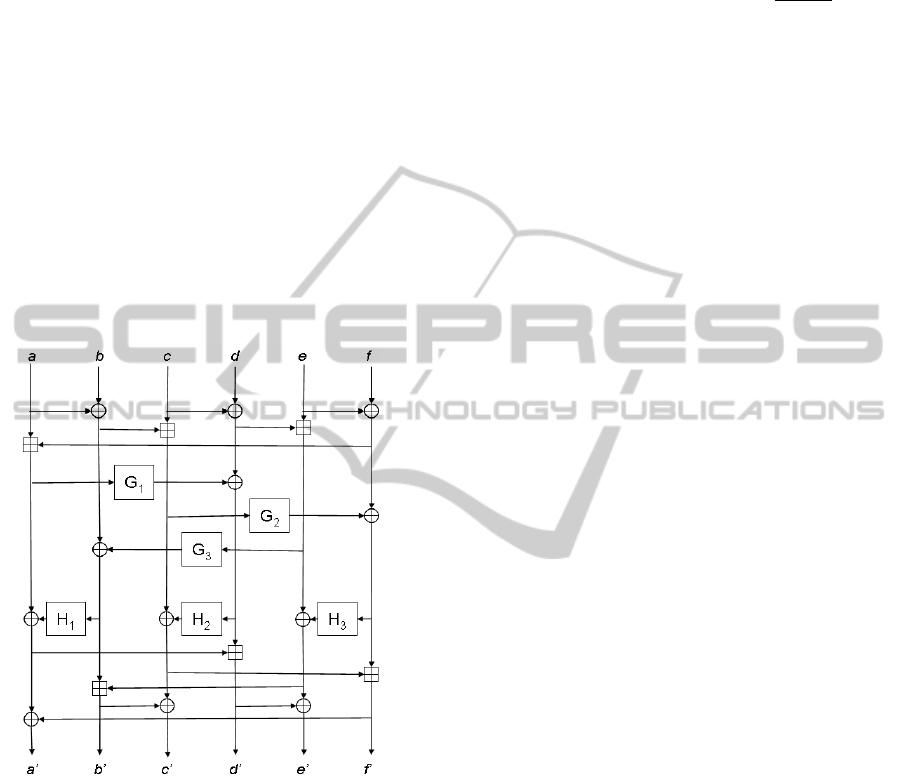

Figure 1: Schematic of Dragon’s F Function.

The G and H functions are 32× 32-bit mappings

based on a set of heuristically designed 8× 32-bit s-

boxes S

and S

. The construction of the functions

is simple. For x = x

, G/H(x) = S

) ⊕

)⊕ S

), where each S represents one

of two s-boxes S

or S

. In each of the six functions

G/H, either of the s-boxes is used three times, and the

other once. This asymmetry prevents cancellation in

a byte-symmetric input word.

2.2 Key Initialization Algorithm

Due to a historical quirk, Dragon has different key

initialization algorithms for its two key sizes of 128-

and 256-bits. During key initialization, the 1,024 bit

NLFSR state W is divided into eight 128-bit words.

For the 256-bit master key, the state is ﬁlled by con-

catenating K and IV with their bitwise sum and com-

plement such that W = K k K ⊕ IV k K ⊕ IV k IV,

with the over-score representing complementation.

For the 128-bit master key, the state is ﬁlled by

(K||K

′

⊕ IV

′

||IV||K ⊕ IV

′

||K

′

||K ⊕ IV||IV

′

||K

′

⊕ IV)

where x

′

denotes swapping of the upper and lower

halves of the 128-bit quantity x. The 64-bit register

is ﬁlled with a constant representing the ASCII repre-

sentation of ‘Dragon’.

The cipher is clocked sixteen times. During each

clock, the the six input words to the F function are

chosen as 128-bit quantity (W

⊕W

) and 64-bit

quantity M. Every word in the NLFSR is shifted one

place to the right, the topmost word being discarded.

The void at the bottom-most position in the NLFSR is

ﬁlled by four of the six 32-bit output words of F. The

remaining two words overwrites the contents of M.

The phase completes when every stage of the NLFSR

has been overwritten twice.

2.3 Keystream Generation Algorithm

Each clock of the cipher during keystream genera-

tion mode produces a 64-bit keystream word, which

is chosen as the concatentation of the F output a

′

||e

′

The output b

′

||c

′

is used as feedback to the NLFSR.

Outputs d and f are discarded (so in the keystream

generation mode, the function F can be modelled as

a 192 → 128-bit function). During each clock, the

memory M is incremented by 1.

Fortunately, the designers of Dragon stipulated

that after 2

bits of keystream have been generated

under a single key-IV pair, the key initialization algo-

rithm must be executed with a new key-IV pair.

3 WHAT'S WRONG WITH

DRAGON?

The straight answer to the question ‘What’s wrong

with Dragon?’ is ‘nothing really’, except that it

doesn’t do anything better than its competitors. It was

scrutinized for a long time by cryptanalysts during the

eSTREAM competition, with only a theoretical dis-

tinguishing attack, which could not occur under the

correct usage model, being noted.

But in order that anyone other than its designers

use it, however,improvements need to be made in two

areas - performance, and security.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

Table 1: Number of s-box lookups per 32-bit word of

keystream.

Cipher S-box size Number lookups

Dragon 8× 32 12

SNOW 2.0 8× 8 4

HC-128 9× 32 8

Rabbit None 0

Sosemanuk Bitsliced 0

Salsa-20 None 0

3.1 Performance

In the context of the eSTREAM competition, Dragon

has two problems with performance. The ﬁrst is that

it is a cipher designed for a 256-bit key, but retroﬁtted

with a key initialization algorithm for a 128-bit key. If

it competes with a cipher designed for a 128-bit key

(eg. eSTREAM ﬁnalists HC (Wu, 2008) or SOSE-

MANUK (Berbain et al., 2008)

), it is unsurprising

it will be slower.

The second problem is the design of its G and H

functions, which provide most of the strength in the

cipher while also being quite slow.

3.1.1 S-boxes

On most architectures, look-up tables are not

atomic operations like additions, multiplications or

exclusive-ors. They are usually composed from three

or four instructions, including retrieving data from

memory, which incurs a penalty if the data is not al-

ready in the cache.

Table 1 compares the number of s-box lookups,

among Dragon and the eSTREAM software portfo-

lio members, per 32-bit word of keystream. Dragon

uses the largest number of s-boxes. Most of the port-

folio members do not use s-boxes, or provide ways in

which to implement them using logical operations.

It is not only the number of s-boxes that is impor-

tant, but also whether they can be parallelized, to alle-

viate some of the stress on the execution ports respon-

sible for retrieving data from memory. In Dragon, all

of the s-box lookups are localized to the middle ’S-

box’ layer of F. Contemporary super-scalar architec-

tures can execute multiple additions or exclusive-ors

in a single cycle, but only one s-box at a time. The

middle layer of F is the bottleneck.

One way to ﬁx this problem is to reduce the num-

ber of s-boxes, but a better solution is to properly im-

SOSEMANUK accepts a 128-bit key or a 256-bit key

but is vulnerable to guess and determine attacks with com-

plexity O(2

176

) (Feng et al., 2010), indicating it is only suit-

able for use with 128-bit keys

plement a sufﬁcient number of s-boxes to provide a

good amount of security.

3.1.2 State Size

Dragon was originally designed for a 256-bit key. The

state size of 1,088 reﬂects this, being just a bit larger

than double the combined length of key and IV, to

protect against time-memory-data tradeoff attacks.

The 128-bit key initialization scheme was retroac-

tively ﬁtted to the cipher in order to meet eSTREAM

requirements. The state size should have been re-

duced accordingly, but was not. So the state is very

large, and uses many gates in hardware unnecessarily.

The key agility of Dragon for a 128-bit key also

suffers, since the design principle states that every

stage of the NLFSR must be modiﬁed twice dur-

ing key initialization. Since there are twice as many

stages as necessary, the key agility of Dragon with a

128-bit key is unnecessarily halved.

3.2 Security

3.2.1 S-boxes and Linear Cryptanalysis

The s-boxes for Dragon were designed by experts in

with expertise in boolean functions and genetic algo-

rithms. They used genetic algorithms to optimize the

s-boxes, with respect to non-linearity (116), algebraic

degree (6 or 7), and a range of other properties. One

thing they did not optimize for was resistance to linear

cryptanalysis.

Cho (Cho, 2008) points out that for input mask 0

and output mask 0x61300000, the number of masked

inputs to s-box S

that have the same parity as the

masked outputs is only 92. In other words, the bias

of the s-box is 2

−1.83

. The same bias occurs for S

with output mask 0x60020300. Compare this to the

maximum bias of the AES 8 × 8 s-box, which is 2

−3

The resistance of the Dragon s-boxes to linear crypt-

analysis, despite the sophisticated design techniques,

is terrible.

Englund and Maximov (Englund and Maximov,

2005) note that G and H, although being Z

→ Z

functions, cannot be bijective because of the way that

they are constructed using Z

→ Z

sub-functions

(the S

and S

s-boxes). Our own experiments show

that only 37% of the possible outputs are reached

through each G and H function.

The best attack on Dragon (Cho, 2008) utilizes

both of these points, along with newly developed

analysis of adjacent modular additions. Given 2

133

words of keystream generated under a single key-IV

pair, the attacker can use the bias of about 2

−36

in F

TwoDragons-AFamilyofFastWord-basedStreamCiphers

to distinguish the keystream from random. It is a the-

oretical attack. If the attacker adheres to the usage

model of Dragon, he can never obtain this amount of

keystream. If he abuses the usage model, he is able to

distinguish Dragon from random, but not to recover

the key or predict keystream. Such an attack is of lim-

ited usefulness, other than for highlighting the weak

points of Dragon, ie. the s-boxes.

The technique uses two types of approximations,

including applying ‘bypassing’ by approximating s-

boxes that are not inﬂuenced by other s-boxes, and

’cutting’ by setting the input masks of s-boxes inﬂu-

enced by other s-boxes to zero. This means that the

contribution of the other s-boxes to the ‘cut’ s-boxes

can be ignored. If the s-boxes are bijective, cutting

does not work, since setting the input mask to zero

gives a bias of zero on any output mask

3.3 Elegance

3.3.1 Key Initialization Algorithm

The initial population of state using combinations of

key and initialization vector differs quite arbitrarily

according to the size of the master key. The design-

ers of Dragon (Chen et al., 2004) state that this is so

to avoid 256-bit key/IV pairs mapping to 128-bit key/

IV pairs, leading to a reduction of the key space. The

solution is inelegant. It is easy to achieve the same

ends more naturally by incorporating the length of the

key into the initial state. Having a uniﬁed key initial-

ization algorithm also allows simpler code, reduced

space in hardware, and scalability to other key sizes.

3.3.2 The Memory

Unlike ciphers based on LFSRs with primitive feed-

back polynomials, n-bit NFLSRs do not give guaran-

tees on lower bounds of period, but instead provide

expected periods of 2

n/2

The designers of Dragon indicate that the 64-bit

counter M used during keystream generation gives a

lower bound to Dragon’s period of 2

. This is a

heuristic argumentthat holds limited usefulness, since

it doesn’t combine the properties of the counter suc-

cessfully with the properties of the remaining parts of

the cipher.

As Englund and Maximov indicate (Englund and

Maximov, 2005), the left half of the counter, which

changes very slowly with time, shifts the distribution

of samples made during linear cryptanalysis attacks,

but does not change the bias. It is better that M retains

its use as an unpredictable counter during keystream

generation. Even without the counter, it is unlikely

that a 1024-bit NLFSR with a bijective feedback func-

tion has short cycles.

4 TWO DRAGONS

The term Dragon-2 encompasses the family of stream

ciphers that we are about to describe here. We present

six variants that vary in the size of the key and non-

linear function.

The Dragon-2 state comprises an NLFSR W and

a 128-bit memory M. A series of algorithms operates

on the state. The key initialization algorithm uses a

key and initialization vector (IV) to populate and mix

the state. The key can be 80-, 128- or 256-bits. The

IV must be the same length as the key. We refer to

versions of Dragon-2 with 80-bit, 128-bit and 256-

bit keys respectively as Dragon-80, Dragon-128, and

Dragon-256.

The size of the NLFSR is proportional to the size

of the key. Respectively, for 80-bit, 128-bit and 256-

bit keys, the size s of the NLFSR is three quadwords

(384 bits), four quadwords (512 bits) and eight quad-

words(1024 bits).

The keystream generation algorithms produce a

128-bit blocks of keystream. These algorithms in-

clude a feedback function, which modiﬁes part of the

state, and an output ﬁlter which processes part of the

state in a non-invertible way to produce the block of

keystream. The feedback function and output ﬁlter

are more decoupled than in Dragon-1.

Both the key initialization and keystream genera-

tion algorithms make use of a 256× 256-bit function

F, which is described in Section 4.3, along with its

sub-functions F

and F

4.1 Key Initialization Algorithm

Dragon-2 has a two-phase initialization process. The

ﬁrst phase adds the key to the state, which it mixes.

The second phase adds the IV to the state, and again

mixes. Separating the addition of key and IV to the

state means that IV-only rekeying can be made much

more efﬁcient.

To permit a single procedure irrespective of key

size, extended keys and IVs are created. Extended key

EK is generated from the supplied key K as as EK =

K||K ≪ 32||K ≪ 64||K ≪ 96 (where ≪ is bitwise

rotation) then truncated to s quadwords. Likewise,

the extended IV is generated as EIV = IV||(IV ≪

32) ⊞ 1||(IV ≪ 64) −1||(IV ≪ 96) ⊞ 2

127

− 1, then

truncated to s quadwords.

The key initialization algorithm, using key K of

length len, is shown in Table 2.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

Table 2: Dragon-2 two-phase key initialization algorithm.

Input: EK,EIV

Phase 1: Key Injection

1. W

= EK

⊕ len W

= EK

,1 ≤ i ≤ s− 1

2. M = 0

Perform steps 3-5 (s) times

3. O

= F

(W); O

= F

(W, M)

4. W

= O

; W

= W

i−1

,1 ≤ i ≤ s− 1

5. M = O

Phase 2: IV Injection

6. W

= W

⊕ EIV

0 ≤ i ≤ s− 1

Perform steps 3-5 (s) times

Output: W,M

Table 3: Dragon-2 keystream generation algorithm.

Input: W, M

1. O

= F

(W) z = F

(W, M)

2. M = M ⊞ W

s−1

3. W

= O

; W

= W

i−1

,1 ≤ i ≤ s− 1

Output: W,M, z

4.2 Keystream Generation Algorithm

After the key initialization mode has ﬁnished, the

keystream generation algorithm can be invoked. Each

time it is invoked, it produces a 128-bit keystream

block z. The procedure for generating the keystream

is shown in Table 3.

Since the attacker uses keystream z as a window

into the state, the client is free to mask out part of z to

improve security at the expense of throughput.

Rekeying, using at least a fresh IV, must be carried

out after at most min(2

len

) bits of input have been

generated for any key-IV pair.

4.3 The F function

The function F comprises two sub-functions, the

128 × 128−bit feedback function F

, and the 256 ×

128-bit output ﬁlter F

. In these function, as per

Dragon-1, diffusion is provided by a network of mod-

ular and binary additions, denoted by ⊞ (mod 2

)

and ⊕ respectively; and confusion is provided by G.

In later sections, we specify two Dragons, Black and

Yellow, using two well-known functions for G.

The feedback function F

is shown in Table 4.

This function is independent of the feedback func-

tion F

. For Dragon-80, the input I

is formulated

as W

⊕W

; for the other variants, it is formulated as

⊕W

(s/2−1)

⊕W

(s−1)

. The G function takes the all-

zero string as its second parameter.

The output ﬁlter F

is shown in Table 5. This func-

tion uses the output of the feedback function, O

, as

Table 4: The feedback function F

Input: I

= {a, b,c, d}

S-box Layer:

1. (g

) = G(a||b||c||d,0);

Mixing Layer:

2. b = b ⊕ a; d = d ⊕ c;

3. c = c⊞ b; a = a⊞ d;

4. a = a ⊕ g

; b = b⊕ g

;

c = c⊕ g

; d = d ⊕ g

;

Output O

= {a

′

}

Table 5: The output ﬁlter F

Input: I

= {e, f, g,h}, M = {M

||M

},K

Mixing Layer:

1. e = e⊕ M

; f = f ⊕ M

;

g = g ⊕ M

; h = h⊕ M

;

2. f = f ⊕ e; h = h ⊕ g;

3. g = g ⊞ f; e = e⊞ h;

4. f = f ⊕ e; h = h ⊕ g;

5. g = g ⊞ f; e = e⊞ h;

S-box Layer:

6. (e

′

, f

′

) = (e, f,g,h) ⊕ G(a||b||c||d, K);

Output: O

= {e

′

, f

′

}

input parameter K. Other inputs include memory M,

and I

, which is formulated as W

⌊s/2⌋

The combination of sub-functions F

and F

into

F is shown in Figure 2.

4.4 黑黑黑龙龙龙 Black Dragon

Black Dragon is deﬁned as a version of Dragon-2 that

uses the AES round function for G.

This round function consists of four opera-

tions: ByteSub, which applies sixteen 8× 8 s-boxes

to the 128-bit input, followed by ShiftRows and

MixColumn which diffuse bytes within four groups,

followed by AddKey, which exclusive-ors the result

with another 128-bit quantity (the key) to produce the

128-bit output.

Please refer to (Daemen and Rijmen, 2002) for de-

tails on how to implement G for Black Dragon.

4.5 黄黄黄龙龙龙 Yellow Dragon

Yellow Dragon is deﬁned as a version of Dragon-2

that uses the SMS-4 round function within G.

SMS-4 is the block cipher used in the Chinese

National Standard for Wireless Local Area Networks

(WLANs) Wired Authentication and Privacy Infras-

TwoDragons-AFamilyofFastWord-basedStreamCiphers

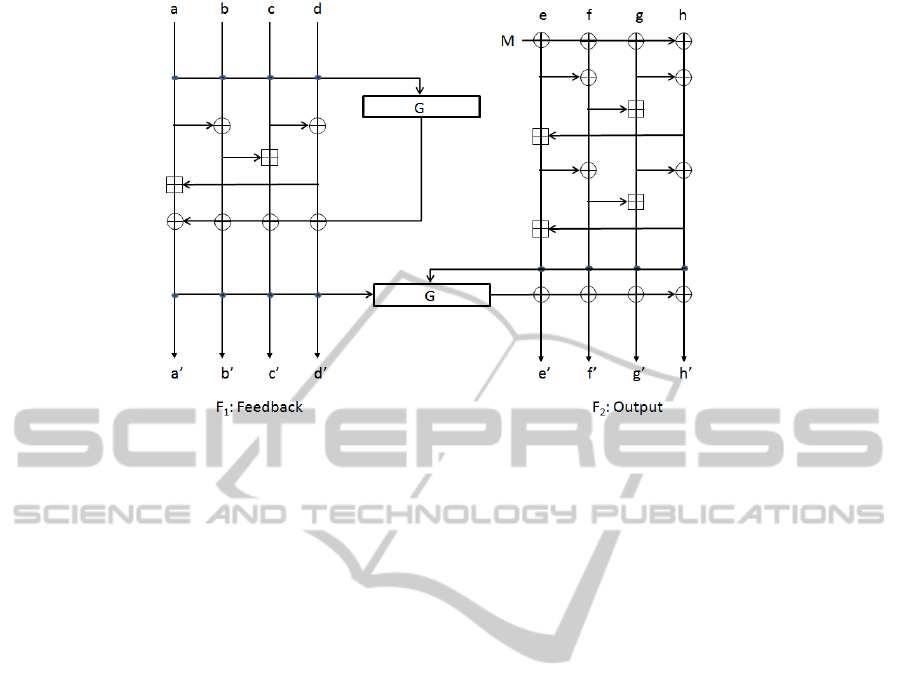

Figure 2: Schematic of Dragon-2’s F Function.

tructure (WAPI) as an alternative to the American rat-

iﬁed AES.

In SMS-4, the round function comprises four lay-

ers. The ﬁrst compresses the 96-bit source into a

32-bit word using exclusive-or. In the second, a 32-

bit round key is added. In the third layer, a row of

parallel 8 × 8 s-boxes, different to the AES s-box,

but designed using a similar methodology, adds non-

linearity. The fourth is the linear 32 × 32-bit sub-

function L(x) = x ⊕ (x ≪ 2) ⊕ (x ≪ 10) ⊕ (x ≪

18) ⊕ (x ≪ 24).

In Yellow Dragon, the round function is iterated

four times within the G function, using the same un-

balanced Feistel sub-structure, with 96-bit source and

32-bit target, as does SMS-4. The 128-bit key is di-

vided naturally between the four invocations of the

round function.

Please refer to the SMS-4 speciﬁcation document

(People’s Republic of China Ofﬁce of State Commer-

cial Cryptography Administration, 2006) for details

on how to implement G for Yellow Dragon.

5 DESIGN PRINCIPLES

The design of Dragon-2 is strongly inﬂuenced by

what we perceive to be weak about Dragon-1, and

also for easy of implementation in software. The

guiding principle is that it can implemented on mod-

ern SIMD architectures, such as the Intel x86. The i7

we used for development has sixteen 128-bit XMM

registers, and hundreds of operations that apply to

them, including the AES-NI, which implement an

AES round instruction with latency of eight cycles,

and throughput of four cycles (Fog, 2011). This pro-

vides a safe and efﬁcient way to use good s-boxes,

circumventing most of the problems with Dragon-1.

5.1 State

5.1.1 NLFSR

We don’t like that the state size of the NLFSR in

Dragon-1 remains the same for different sized keys,

but the algorithm changes. In hardware, a 1024-bit

state is very large, and is only justiﬁed by a large sized

key. There is no security reason for having a 1024-bit

state for a 128-bit key. Time-memory-data tradeoff

attacks suggest that 512-bits is the sweet spot. Con-

sequently, in Dragon-2, the size of the state varies ap-

propriately with the size of the key.

The size of the NLFSR is the lowest multiple of

128 bits that is equal to or greater than four times

the size of the key. This permits the cipher to resist

time-data-memory trade-off attacks, and to be imple-

mented easily in 128-bit registers.

All of the operations that apply to the NLFSR,

with the exception of the G function in Yellow

Dragon, are designed for implementation on the In-

tel x86-64 SIMD architectures. However, there are

no operations that cannot be implemented efﬁciently

using general purpose 32-bit registers.

When the NLFSR is divided into quadwords, the

choice of words to use as input into the F function be-

comes quite constrained. This is different to Dragon-

1, in which the choice of 32-bit words is according to

a full positive difference set, to maximize resistance

against guess and determine attacks. But in the latter

SECRYPT2012-InternationalConferenceonSecurityandCryptography

approach, many different words need to be marshalled

and prepared for input into F. In the Dragon-2 ap-

proach, no such manipulation is required. The words

are present in XMM registers, or in hardware, to be

presented to the F function at no additional cost.

5.1.2 Memory

The behaviour of the memory M is different in key

generation than it was in Dragon-1. In Dragon-1, the

memory behaved as a counter. As illustrated in Sec-

tion 3, it is better for it to behave pseudo-randomly.

One reason is that in Dragon-2, the attacker needs

to guess 128 bits (the contribution of the feedback

function to the output ﬁlter) in order to derive 256

bits of state. Of this, 128 bits is combined NLFSR-

memory material. If the memory acts as a counter,

then the attacker can repeat the guess at a known

time, in order to derive a further 256 bits of material,

then untangle the 512 bits of NLFSR material from

the 256 bits of counter material. Although he has

guessed equivalent amounts of material as the mas-

ter key, one of our principles is to limit the amount of

material gained in this way. Implementing M as a un-

predictable memory rather than a counter means that,

using this method, the attacker has to guess x bits of

material in order to gain x bits of state, where x is a

multiple of 128 bits.

5.2 The Key Initialization Algorithm

In Dragon-2, the key initialization algorithm is uniﬁed

across key sizes, rather than arbitrarily different, as in

Dragon-1. We use byte shufﬂing rather than comple-

mentation to pad the key, since this is easier to im-

plement in hardware. So long as the key and IV are

loaded across the state in subtly different ways, the

choice of operations is not very important. The aim

is to spread every bit of the key into every bit of the

state as quickly as possible.

We also changed the algorithm to be two phase to

enable quicker IV-refreshing. Quick diffusion in key

initialization is enabled by choosing multiple NLFSR

words, which are combined using exclusive-or, as in-

put into the feedback function.

5.3 The Keystream Generation

Algorithm

In Dragon-1, the key initialization algorithm and

keystream generation algorithm both use the F func-

tion, but otherwise they are both quite different. This

wastes space in hardware, and makes the cipher more

difﬁcult to program. The division of the NLFSR into

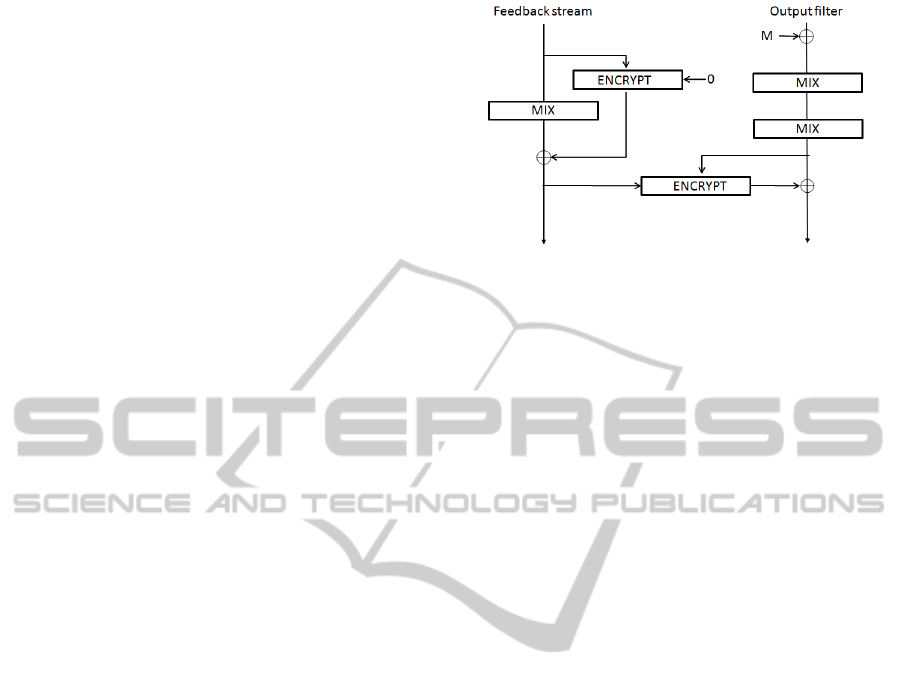

Figure 3: Abstract view of Dragon-2’s F function.

different quantities - either 32-bit or 128-bit, depend-

ing on mode, is also awkward.

In Dragon-2, the key initialization algorithm and

keystream generation algorithm are almost but not ex-

actly the same, in order to save hardware space, but

avoid slide-like attacks.

5.4 The F Function

In Dragon-1, the F function separates parts of the out-

put of a monolithic 192 × 192 function for feedback

and keystream. There is no separate output ﬁlter. A

192-bit block is unnatural to deal with. With advent

of SSE, it is easier to deal with 2

-bit blocks.

In Dragon-2, we made the decision to decouple

the feedback and output ﬁlter modules. An abstract

of the design is shown in abstract in Figure 3, The

feedback function is bijective. The output function

is deliberately non-invertible, due to the addition of

whitening material from the feedback function.

While the output ﬁlter is post-whitened using ma-

terial from the feedback function, the output ﬁlter has

no direct inﬂuence on the feedback function. This is

to reduce the ability of the attacker to guess parts of

the internal state.

During one clock of the F, thirty-two 8 × 8 s-

boxes are invoked, compared to twenty-four invoca-

tions of 8×32 s-boxes in the original Dragon. In both

Black Dragon and Yellow Dragon, the s-boxes are bi-

jective, and of much better quality.

5.4.1 The F

Function

The F

function does not provide full diffusion. By

the time its material is exposed to an attacker, it has

been further processed by F

, which does provide full

diffusion. This enables the function to remain efﬁ-

cient.

The feedback function must be a bijection in order

to avoid loss of entropy. Provided that G is a bijection,

then the feedback function will also be a bijection.

For this reason, G is keyed with a null key.

TwoDragons-AFamilyofFastWord-basedStreamCiphers

There is no difference in choosing the contribution

to F

from the start or end of the function, since the

material at the end of one function is the same as at

the start of another.

5.4.2 The F

Function

By including two mix modules, and one G module,

the F

function provides full diffusion.

It is not possible to use a ﬁxed key with G if it

is the last operation in the output ﬁlter, since the en-

tire sub-function could be inverted. By using pseudo-

random material from the feedback function as the

key, the attacker has to guess a large amount of mate-

rial from the state to invert the function.

For Black Dragon, which uses the AES round, this

material is exclusive-ored as the last operation. The

attacker is forced to guess the 128 bits of state used

as input into the feedback ﬁlter in order to utilize the

128 bits of output to unravel to the 128 bits of state

and 128 bits of memory used as input to the ﬁlter.

6 ANALYSIS

6.1 Time-Memory-Data Tradeoff

Attacks

Time-Memory-Data Tradeoff (TMDT) attacks use a

pre-computation to compute tables that, in an on-line

phase, reduce the time needed to identify the key

or contents of the cipher state, by using keystream

sequences as an index. Generally, a tradeoff can

be made by varying the parameters in the equation

= TM

where T ≥ D

(Biryukov and Shamir,

2000), N is the size of the combinedkey-IV or the size

of the state, T is the amount of time used to identify

the key/state, M is the amount of memory required,

and D is the number of data points. Clearly, increas-

ing the size of N also increases the value of at least

one of the parameters.

The rules-of-thumb for defending against TMD

attacks is to use an IV equal in length to the key, and

a state at least twice the size of the combined key-IV.

As the NLFSR size of Dragon-2 was chosen speciﬁ-

cally in relation to the size of the key, with the 128-bit

memory providing an additional margin, the cipher is

not vulnerable to this kind of attack.

6.2 Related-key Attacks

Dragon-2 uses the optimal branch number of the

diffusion components in G to resist related-key and

related-IV attacks. When analysing the effect of

related-keys and IVs, we can ignore the output ﬁlter

since it does not effect the NLFSR. When the NLFSR

is thoroughly mixed, the attacker loses control over

manipulating the keystream.

The simplest differential through F is

(0,0,0,0, ∆,0,0,0), where ∆ = 0x8000. For a

difference in which only the most signiﬁcant bit is

set, additions behave like exclusive-ors, and it is

easy to cancel like differences. The output difference

for this differential is (0,0, 0,0,0,∆

,∆

), with

two s-boxes activated (ie. a maximum probability

of 2

−12

). This differential would permit a zero

difference to be maintained in the NLFSR throughout

key initialization. However, this high probability

differential cannot be used, because of the way in

which the initialization vector is set into state, and

the high diffusion of the NLFSR.

Assume that ∆K = 0 and ∆IV = ∆ << 96. Also

assume the simpliﬁcation that no constants are added

to the IV during step 6 of Table 2. The state is set as

(∆IV,∆IV,∆IV,∆IV). The input I

to sub-function F

is (∆,0,0,0). F

provides incomplete diffusion, but its

output at time t forms part of its input at time t +1. So

the difference introduced has been modiﬁed by two

invocations of the G function by time t + 2. Two ad-

jacent rounds of G propagate a single byte difference

into all positions into the quadword. Subsequently all

sixteen s-boxes are likely to be activated, with a max-

imum probability 2

−21×6

. Four adjacent rounds ac-

tivate at least twenty-ﬁve s-boxes, which is sufﬁcient

to defeat differential cryptanalysis for Dragon-80 and

Dragon-128. As Dragon-256 invokes sixteen rounds

during key mixing state, we would expect activation

of at least seventy-ﬁve boxes to inﬂuence all positions

in the NLFSR, meaning any differential would have

a maximum probability of 2

−6×75

, well below a suc-

cessful probability of 2

−256

The addition of constants during the IV-keying

phase, to disrupt the attacker’s ability to cancel parts

of the IV difference within the diffusion network, and

the weak non-linearity of the modular additions in the

F function are expected to further weaken the proba-

bility of any differential.

6.3 Linear Cryptanalysis

Linear cryptanalysis has been the most effective at-

tack on the Dragon structure, due in part to poor s-

boxes with a maximum bias of 2

−1.83

. In order to at-

tack Dragon with linear cryptanalysis using the same

techniques of Cho (Cho, 2008) under the correct us-

age model, the F function must have a bias of greater

than 2

−16

. As each s-box has a maximum bias of

SECRYPT2012-InternationalConferenceonSecurityandCryptography

−3

, no more than ﬁve s-boxes of the thirty-two s-

boxes can be activated in any successful approxima-

tion. The branch number of the linear components in

the G functions is ﬁve, meaning that the sum of active

input and output bytes for each G is at least ﬁve. The

mandatory incorporation of two G functions in the F

function means that a maximum bias of 2

−16

is not

achievable.

6.4 Guess and Determine Attacks

Analysing Dragon-2 against guess-and-determine at-

tacks is uncomplicated because of its large word size,

and the diffusion network that means guessing bytes

or 32-bit words quickly involves guessing as much

material as in a quadword. For Dragon-80 or Dragon-

128, guessing quadwords is unproductive.

For Dragon-256, the best case for the attacker is

to guess the combination of input and memory to the

output ﬁlter at time t. As he does not know the value

of the memory, this does not immediately give in-

sight into the NLFSR state. But in conjunction with

the keystream, it allows him to calculate the input

and output to the feedback function, permitting him

to know the ﬁrst word of the NLFSR at time t + 1.

As both the feedback function and output ﬁlter use

multiple words to construct inputs, he cannot use this

knowledge unless he guesses another word, by which

time his cumulative guessing is equal to the effort of

guessing the master key.

6.5 Algebraic Attacks

Both Black Dragon and Yellow Dragon use s-boxes

constructed algebraically, so they might seem to be

good candidates for algebraic analysis, by construct-

ing a system of equations that can be solved to recover

the internal state.

However, the G functions are embedded in a net-

work containing many 32-bit modular additions. As

shown in analysis of SNOW 2.0 (Billet and Gilbert,

2005), which like Black Dragon also uses the AES

round function, the proliﬁc use of additions is an ef-

fective deterrent to algebraic attacks, since they cause

the degree of the collected equations to increase very

quickly. Coupled with the need to refresh the key-IV

pair every 2

bits, and the poor success rate of al-

gebraic analysis to word-based ciphers, it seems very

unlikely that Dragon-2 will be vulnerable.

6.6 Cache-timing Attacks

When implemented using AES-NI, Black Dragon

does not perform any memory lookups in conjunc-

Table 6: Speed of stream ciphers on the Intel i7 (cy-

cles/byte).

Cipher Long message 4,096 bit message

Black Dragon 3.6 3.8

Dragon 8.8 9.2

HC-128 2.2 7.2

Rabbit 4.8 5.1

Salsa-20 1.8 1.8

SNOW 2.0 3.7 3.8

Sosemanuk 2.5 3.2

tion with s-boxes so cache-timing attacks cannot ap-

ply. Yellow Dragon is intended to be used with sim-

ilar hardware support for the SMS-4 round function,

so similar reasoning applies.

Even without hardware support, the F network

provides some mitigation against cache-timing at-

tacks by ensuring that the output of the G function,

which is the only place that might contain s-boxes,

never overwrites any values, but is combined to them

using exclusive-or. If an attacker learns half the bits

in n-bit value X, he will need to guess the equivalent

amount of bits in a n-bit value Y to learn the corre-

sponding portion of Z = X ⊕ Y. He has obtained no

advantage over directly guessing the bits in Z.

7 IMPLEMENTATION

The current speeds of Dragon-2, eSTREAM soft-

ware portofolio members and benchmark cipher

SNOW 2.0 are shown in Table 6 for the Intel

i7. Figures for the ciphers, excluding Dragon and

Black Dragon, come from the Vampire benchmark-

ing site(VAMPIRE - Virtual Applications and Imple-

mentations Research Lab, 2012). We note that Black

Dragon is faster than the benchmark cipher SNOW

2.0, and signiﬁcantly faster than Rabbit and Dragon.

It is also worth noting that much effort has gone into

optimizing the relatively mature eSTREAM ciphers,

compared to Dragon-2, and we would expect the most

improvement in future optimization to occur in our ci-

pher.

It is very likely that the core function of SMS-4

will be implemented in hardware and as native in-

structions on Chinese-built processors in the future.

This will providesimilar advantages to the implemen-

tation of Yellow Dragon, as for Black Dragon.

It is interesting to note that of the ciphers listed

here, the AES-NI only provides beneﬁts to SNOW 2.0

and Black Dragon. Where AES-NI is not available,

Black Dragon can be implemented in software using

the efﬁcient tabular approach of the AES.

TwoDragons-AFamilyofFastWord-basedStreamCiphers

8 DISCUSSION

In this paper, we have documented improvements to

the Dragon cipher, and presented them as Dragon-

2. Users of Dragon-2 have a choice to use the AES

round function within the cipher, gaining the beneﬁt

of the recent AES-NI set, which provides blisteringly

fast encryption support. This version of the cipher

is called Black Dragon. Alternatively, the user can

specify four iterations of the SMS-4 round function,

in which case the cipher is called Yellow Dragon.

Dragon-2 represents a relatively conservative de-

sign that beneﬁts from good hardware support. In the

future, once more widespread analysis has been con-

ducted, it might be considered a viable alternative to

the eSTREAM software portfolio members.

For example, HC-128 is very fast for long mes-

sages, but its much larger state requires a long time

for rekeying, and so it is not as agile as Dragon-2. De-

pending on the application, Dragon-2 might be prefer-

able.

Salsa-20 relies on the iterated weak non-linearity

of addition, compared to the provenhighnon-linearity

of the AES and SMS-4 s-boxes. Relying on the prop-

erties of a single operation does not provide robust-

ness. Advances in differential cryptanalysis are likely

to weaken Salsa-20. Dragon-2 is a more conservative

and equally efﬁcient choice.

Sosemanuk has been shown to be unable to pro-

vide 256 bits of security; it is not termed broken only

because its designers speciﬁed 128 bits of security

even for the larger key. Rabbit appears to be strong,

but only accepts a 128-bit key (Robshaw and Billet,

2008). In either case, if Dragon-2 withstands crypt-

analysis, it is a stronger choice.

There is still much work to do on Dragon-2. We

continue to cryptanalyse it, but it must be scrutinized

by impartial cryptographers. We have met the remark

made in the eSTREAM report, as presented in the ﬁrst

section of this paper. Due to space limitations in this

paper, test vectors are available upon request.

REFERENCES

Berbain, C., Billet, O., Canteaut, A., Courtois, N., Gilbert,

H., Goubin, L., Gouget, A., Granboulan, L., Lau-

radoux, C., Minier, M., Pornin, T., and Sibert, H.

(2008). SOSEMANUK, a Fast Software-Oriented

Stream Cipher. In (Robshaw and Billet, 2008), pages

98–118.

Billet, O. and Gilbert, H. (2005). Resistance of SNOW 2.0

against algebraic attacks. In Menezes, A. J., editor,

Topics in Cryptology - CT-RSA 2005, The Cryptog-

raphers' Track at the RSA Conference 2005, volume

3376 of Lecture Notes in Computer Science, pages

19–28. Springer.

Biryukov, A. and Shamir, A. (2000). Cryptanalytic

time/memory/data tradeoffs for stream ciphers. In

Okamoto, T., editor, Advances in Cryptology - Pro-

ceedings of Asiacrypt 2000, volume 1976 of Lecture

Notes in Computer Science, pages 1–13. Springer.

Chen, K., Henricksen, M., Millan, W., Fuller, J., Simpson,

L. R., Dawson, E., Lee, H., and Moon, S. (2004).

Dragon: A fast word based stream cipher. In Park, C.

and Chee, S., editors, ICISC, volume 3506 of Lecture

Notes in Computer Science, pages 33–50. Springer.

Cho, J. Y. (2008). An improved estimate of the correlation

of distinguisher for Dragon. In SASC2008, pages 11–

20, Lausanne, Switzerland. Special Workshop hosted

by the ECRYPT Network of Excellence. Proceedings

available at http://www.ecrypt.eu.org/stvl/sasc2008/.

Daemen, J. and Rijmen, V. (2002). The Design of Rijndael:

AES - The Advanced Encryption Standard. Springer.

Englund, H. and Maximov, A. (2005). Attack the dragon.

In Maitra, S., Madhavan, C. E. V., and Venkatesan, R.,

editors, INDOCRYPT, volume 3797 of Lecture Notes

in Computer Science, pages 130–142. Springer.

eSTREAM (2008). Third phase report. At

http://www.ecrypt.eu.org/stream/index.html.

Feng, X., Liu, J., Zhou, Z., Wu, C., and Feng, D. (2010).

A Byte-Based Guess and Determine Attack on SOSE-

MANUK. In ASIACRYPT'10, pages 146–157.

Fog, A. (2011). Instruction tables. Lists of instruc-

tion latencies, throughputs and microoperation break-

downs for Intel, AMD and VIA CPUs. At

www.agner.org/assem/.

People’s Republic of China Ofﬁce of State Com-

mercial Cryptography Administration (2006).

The SMS4 Block Cipher. Archive available at

http://www.oscca.gov.cn/UpFile/20062101642319799

0.pdf (in Chinese).

Robshaw, M. and Billet, O., editors (2008). New Stream

Cipher Designs: The eSTREAM Finalists. Number

4986 in Lecture Notes in Computer Science. Springer.

VAMPIRE - Virtual Applications and Implementa-

tions Research Lab (2012). eBACS: ECRYPT

Benchmarking of Cryptographic Systems.

http://bench.cr.yp.to/results-stream.html.

Wu, H. (2008). The stream cipher HC-128. In (Robshaw

and Billet, 2008), pages 39–47.

SECRYPT2012-InternationalConferenceonSecurityandCryptography
