Privacy-preserving Targeted Advertising Scheme for IPTV using the

Cloud

Leyli Javid Khayati

, Erkay Savas¸

, Berkant Ustao˘glu

and Cengiz

Orencik

Faculty of Engineering & Natural Sciences, Sabancı University, 34956, Istanbul, Turkey

Faculty of Science, Izmir Institute of Technology, 35430, Izmir, Turkey

Keywords:

IPTV, Targeted Advertising, Privacy, Cryptography, Cloud Server.

Abstract:

In this paper, we present a privacy-preserving scheme for targeted advertising via the Internet Protocol TV

(IPTV). The scheme uses a communication model involving a collection of viewers/subscribers, a content

provider (IPTV), an advertiser, and a cloud server. To provide high quality directed advertising service, the

advertiser can utilize not only demographic information of subscribers, but also their watching habits. The

latter includes watching history, preferences for IPTV content and watching rate, which are published on the

cloud server periodically (e.g. weekly) along with anonymized demographics. Since the published data may

leak sensitive information about subscribers, it is safeguarded using cryptographic techniques in addition to

the anonymization of demographics. The techniques used by the advertiser, which can be manifested in its

queries to the cloud, are considered (trade) secrets and therefore are protected as well. The cloud is oblivious

to the published data, the queries of the advertiser as well as its own responses to these queries. Only a

legitimate advertiser, endorsed with a so-called trapdoor by the IPTV, can query the cloud and utilize the

query results. The performance of the proposed scheme is evaluated with experiments, which show that the

scheme is suitable for practical usage.

1 INTRODUCTION

Literature suggests (Kodialam et al., 2010) that con-

tent targeting (e.g. advertisement to customers) is po-

tentially a huge and lucrative business. Traditional

media such as TV, radio, or newspaper can do only a

little to customize advertisements of products or ser-

vices for their customers. It is claimed (Min and

Cheong, 2009) that sponsors are more interested in

sending advertisements of their products to prospec-

tive customers with high accuracy. Online media of-

fers better opportunities for targeting prospective cus-

tomers by utilizing customers online history, observed

behavior, and demographics. Therefore advertisem-

nets selcted on the basis of online traits and demo-

graphics of individuals are preferred by advertising

agencies aiming to increase the beneﬁt from adver-

tisement. However, a major issue is the potential vio-

lation of the privacy of individuals.

It appears as if IPTV is becoming a preferred on-

line media with potentially millions of subscribers.

Thus, IPTV is a hot spot for advertising agencies that

have the incentives to utilize the data that IPTV col-

lects about its subscribers. As in many other areas

the data collected by IPTV is accumulating over time

and therefore there is a motivation to outsource data

warehousing to a cloud service. Such outsourcing can

decrease cost by mitigating the burdens of storage,

service management and expenditure on hardware or

software (Armbrust et al., 2009).

The media attention given to cloud computing

suggests that it is gaining a considerable attention

in business environments allowing their customers to

store and access data remotely. Sensitive data such

as personal health records, private videos and pho-

tos, email etc. can also be stored on cloud servers.

It is suggested to encrypt data before outsourcing

to protect the privacy of data and prevent unautho-

rized access to data in the cloud (Kamara and Lauter,

2010). However, by encrypting data, one of the key

functionalities of database systems, i.e. keyword-

based search operation, becomes a challenging is-

sue. Remote querying of encrypted databases on ex-

ternal servers is proposed by (Ceselli et al., 2005).

Their approach is based on the use of indexing infor-

mation which is attached to the encrypted database.

Many searchable encryption schemes such as (Boneh

et al., 2004), (Wang et al., 2010) lack query ﬂexibil-

Javid Khayati L., Sava¸s E., Ustao

glu B. and Örencik C..

Privacy-preserving Targeted Advertising Scheme for IPTV using the Cloud.

DOI: 10.5220/0004021900740083

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 74-83

ISBN: 978-989-8565-24-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

ity and/or use complicated cryptographic algorithms

which require high computational power. The high

computational cost may render outsourcing the data

collected by IPTV as an ineffective solution.

In our setting the advertiser performs queries on

a remote database of subscribers data (outsourced to

cloud server by IPTV) to ﬁnd records matching with

the keywords in its queries. Using the responses to its

queries as input to its private strategy, the advertiser’s

goal to match viewers with relevant advertisements.

Keywords (conjunctive and otherwise) in queries are

needed to be encrypted to prevent the disclosure of

private strategy of advertiser to the cloud server, to

other advertisers and perhaps to IPTV itself. Thus,

the advertiser needs to query an encrypted database

using encrypted keywords. The core challenge we

address in this paper is to facilitate this efﬁciently in

the context of a practical privacy-preserving scheme,

whereby authorized advertisers can send personalized

advertisements to subscribers.

The proposed scheme is different from the previ-

ous works on the same subject, in which the IPTV op-

erator (i.e. the owner of the database) is also in charge

of processing the data and selecting the best adver-

tisements for the subscribers. Naturally, in that set-

ting the privacy of the subscribers is not a major con-

cern. However, in our case the data is outsourced to

the cloud which is honest but curious (i.e. the server

does not modify the message content and ﬂow, but

may analyze them to infer additional information);

consequently the privacy of users must be protected.

The beneﬁts of the proposed scheme are multifold: i)

the IPTV is partially relievedof management cost and

processing of data, ii) advertiser’s mining techniques

are not exposed to the cloud server, iii) data mining

required for targeted advertising can be performed by

advertising agencies, which have the relevant exper-

tise and tools, and iv) the IPTV can generate addi-

tional revenue from subscribers’ data by ensuring suf-

ﬁcient data-protection safeguards in comply with rel-

evant legislations

. The scheme is also useful when

the advertiser is a division within the IPTV (e.g., pri-

vate cloud). In this case, the IPTV has robust data

protection practices in accordance with the relevant

legislations. That is, the IPTV keeps sensitive data

in encrypted form; data used for targeted advertise-

ment includes only necessary, anonymized informa-

tion about the subscribers; and access control to data

can be exercised in a ﬁne-grained manner.

Current legislations usually stipulate users’consent and

proper data protection techniques such as encryption and

anonymization before disclosure and/or processing.

2 RELATED WORK

As mentioned in the previous section, sensitive data

has to be encrypted before outsourcing it to protect

data privacy. However, data encryption hinders tradi-

tional data utilization techniques based on plaintext

keyword search. Considering the large number of

users and documents in the cloud server, it is crucial

for the search service to facilitate fast and efﬁcient

multi-keyword queries

. Many searchable encryption

schemes focus on a single keyword search. Wang et

al. (Wang et al., 2010) provide ranked keyword search

over encrypted cloud data. In their method the server

knows the relevance order of documents containing

speciﬁc keyword; however, it is limited to single key-

word search queries. In the public key setting, Boneh

et al. (Boneh et al., 2004) present the ﬁrst searchable

encryption construction using public key cryptosys-

tem to perform search on encrypted data. Several

works on multi-keyword search were proposed (Cao

et al., 2011), (Boneh and Waters, 2007), (Ballard

et al., 2005), (Shen et al., 2009) that enable conjunc-

tive and disjunctive search options, but these schemes

incur large overhead in computation and/or commu-

nication costs.

An efﬁcient scheme for conjunctive keyword-

based search is proposed by Wang et al. (Wang et al.,

2009). A searchable index is generated for each doc-

ument, which contains all the keywords in the docu-

ment. They use cryptographic hash function to obtain

indexes and trapdoors that allow secure searching for

keywords in indexes.

In our solution we adopt the scheme by Wang et

al. (Wang et al., 2009) utilizing a keyed hash func-

tion (HMAC) to map keywords in a subscriber’s data

to a sequence of r-bit index using a secret key known

only to the data owner. A similar approach is used in

(

Orencik and Savas¸, 2012) for multi-keyword search

on encrypted data. Advertisers must, in advance, ob-

tain so-called secure trapdoors from the data owner

which enable to search for corresponding keywords

in subscribers data. Since those trapdoors are gener-

ated using the data owner’s secret key, the server is

not able to learn any information about the keywords

in the advertiser query.

In our scenario, the cloud server is in charge of

processing queries and sending results back to the

advertiser. The proposed solution is unique in the

sense that it protects the privacy of both subscribers

and advertisers as well as the IPTV business interests.

The proposed solution addresses the relevant security

Multi-keyword (or multi-predicate) queries are essen-

tial to ﬁnd database entries that are relevant to all keywords

in the query.

Privacy-preservingTargetedAdvertisingSchemeforIPTVusingtheCloud

and privacy requirements of interactive TV (el Diehn

et al., 2011) which are also applicable in our scenario.

In the following section we provide the motivation for

the adopted model.

3 MOTIVATION

Since we aim to place subscribers’ data on a cloud

we need to anonymize it. One particular anonymiza-

tion technique would cluster the subscribers having

sufﬁciently close demographics and watching traits.

Then cluster representatives would be placed in the

cloud, whereby the advertisers utilized this summary

data to match the relevant subscribers with their ad-

vertisement portfolio. This technique is similar to the

k-anonymity (Sweeney, 2002) algorithm, but not the

best in our application scenario for the following rea-

sons: i) clustering leaks the information of some sub-

scribers, ii) the advertisers have to use static clusters

formed by the IPTV, iii) IPTV cannot control who ac-

cess/utilize the data, and iv) loss of accuracy. Since

leaking subscribers information is the most damaging

problem from privacy perspective, more robust solu-

tions are needed. We propose one such solution in the

remainder of this work.

4 THE PROBLEM STATEMENT

The goal is to send targeted advertisements to view-

ers. We begin by describing the entities in our system

and their goal and knowledge.

4.1 Entities

There are three entities in our system:

Data Owner.

Data owner also called IPTV, is an

entity that provides content to viewers. It collects in-

formation about viewers’ demographics and weekly

watching habits, which is stored in a database. Each

individualized entry, called viewer proﬁle, is consid-

ered private information. However, statistical aggre-

gation of viewer proﬁles can be released as long as in-

dividual entries cannot be recovered from the released

information. To increase proﬁt the data owner is will-

ing to sell any type of information which does not vi-

olate the privacy of individual viewers. Furthermore,

the data owner aims to reduce management costs by

outsourcing to third parties database storage, backup

In fact, the regulations state that the owner of an entry

is the person whom the entry is about. We use the term data

owner for IPTV in the sense it is the owner of the database.

and maintenance. Outsourcing is considered informa-

tion release and therefore should conform to privacy

restriction.

Advertiser (ADV). Advertisers are entities that gen-

erate targeted advertisements based on viewer demo-

graphics and watching habits. Advertisements are

generated based on a private advertiser strategy (e.g.,

data mining rules/techniques) that requires as input

information about target viewers. Therefore, the ad-

vertiser is willing to purchase access to any database

containing viewer proﬁles such as a database gener-

ated by the IPTV. Since mining rules can reveal infor-

mation about advertiser strategy, the advertiser wants

to keep those rules secret.

Server. A server is a professional entity (e.g. cloud

server, CS for short) that offers computing and stor-

age services to any party according to speciﬁcations

provided by said party. The CS does not deviate from

the provided speciﬁcation but curious to infer any in-

formation from the use of its services. We assume that

it is against the business interest of the CS to collude

with any entity against other entities. As such the CS

is what is known as “honest but curious” entity.

4.2 Framework of Interaction

The general framework is illustrated in Figure 1.

The IPTV provides personalized program contents to

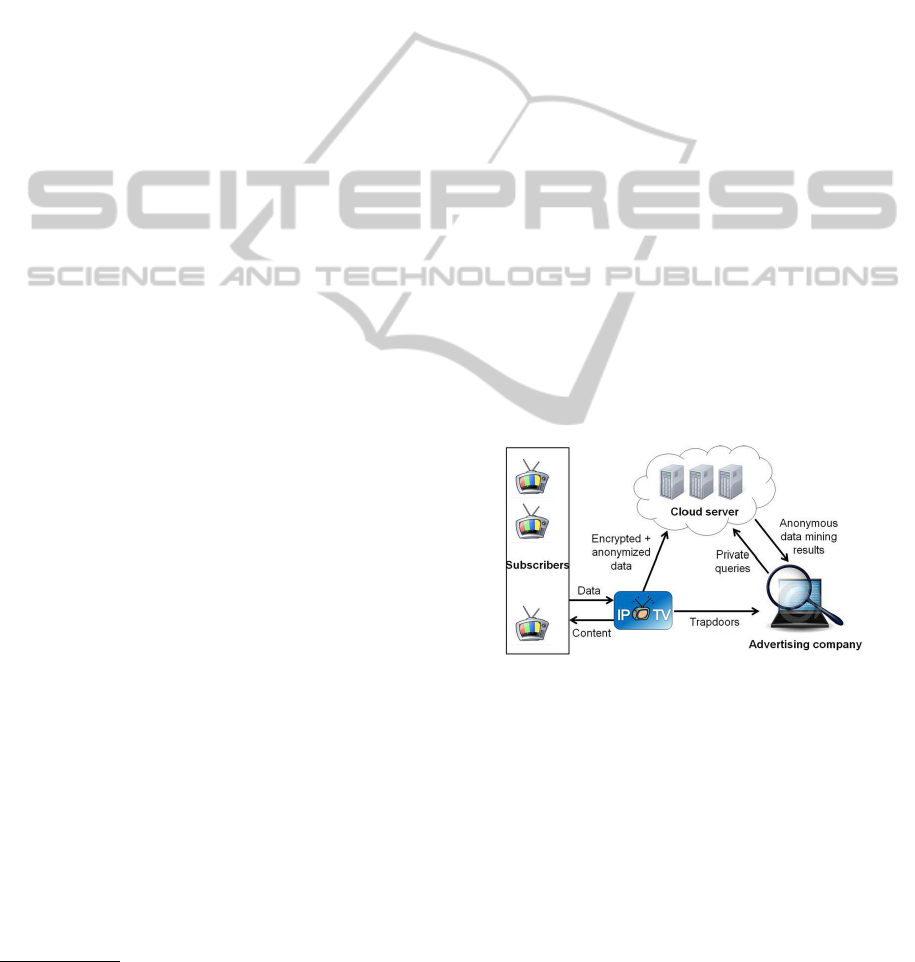

Figure 1: General framework of directed advertising ser-

vice.

viewers and collects their information. To reduce

costs the IPTV is outsourcing its database manage-

ment to a cloud server. Since the cloud server is an

external entity, the database can only be outsourced

in a form which does not violate the privacy of in-

dividual viewers, for example after encryption. Fur-

thermore, the cloud server should not be able to per-

form useful mining queries without IPTV assistance

and permission. Any prior IPTV assistance should be

useful only to the designated entities. Furthermore,

designated entities (advertisers) should not be able to

combine responses to queries to infer any informa-

tion that identiﬁes individuals or link them to another

SECRYPT2012-InternationalConferenceonSecurityandCryptography

database. This necessitates applying anonymization

and generalization to the database before encryption.

The advertiser purchases access to the database

stored on the cloud server. To perform mining the ad-

vertiser may require assistance from the IPTV. In our

solution the database is stored encrypted on the cloud

server and therefore the advertiser needs in advance

certain trapdoor information generated by the IPTV;

the trapdoor information should not be transferable.

In addition, since the advertiser considers its mining

rules trades secret, the cloud server should not be able

to infer any information about advertiser’s queries.

The cloud server in advanceobtains protocol spec-

iﬁcation from the IPTV and according to them ser-

vices requests from authorized entities. Throughout

these interactions the CS does not collude with any

entity to violate another entity’s secret or private in-

formation. Furthermore, it does not deviate from the

provided speciﬁcations.

5 CONSTRUCTION

In this section, we provide details of our solution.

5.1 Data Model

We consider a scenario where the proﬁle of each sub-

scriber consists of seven demographic features and

eleven watching preferences without loss of gener-

ality. The demographic features are age, gender,

marital status, education, occupation, city, and loca-

tion, whose values are the keywords in our scheme.

Morning watching preferences are marriage, news,

and health programs. Similarly afternoon watching

preferences are marriage, TV series, and sport pro-

grams, while prime-time watching preferences are

news, competition, series, talk show, and sport pro-

grams

. Each watching preference is also taken as a

keyword in the proposed solution.

Our synthetic demographic proﬁles are assigned

randomly within the predeﬁned categories (e.g. mar-

ried, single, widow, or divorced for ”marital status”)

and watching habits are calculated according to these

demographic features. The value for a watched pro-

gram is a real number in [0, 1] indicating the rate of

time the subscriber spends on watching the program

during a week; the sum of these numbers for each

week and for each viewer must not exceed one. To

provide ranked search, i.e., how much the retrieved

proﬁles are relevant to the query, we use the relation

Afternoon sport and prime time sport programs are in-

dependent ﬁelds.

Table 1: Rate table for watching habit features.

Rate of watch Rank Level

0 not watched 0

> 0 Seldom 1

>= 0.15 Average 2

>= 0.30 Frequent 3

described in Table 1. For example the value 0.5 that

appears in a viewer proﬁle under prime time news im-

plies that the viewer under consideration is frequently

watching such program.

We also speculate that watching habits of indi-

viduals are correlated to their demographic features.

Therefore, any synthetic data should take into account

such dependencies. We use our custom-made data

generator which uses probabilistic selection process.

The process conforms to some simple expectations

about the types of correlations that exist between de-

mographic features and watching preferences. These

rules are not rigid and do not impose any restriction on

our proposed solution. Furthermore, the demographic

features and watching preferences can be modiﬁed

and extended to real world scenarios.

5.2 Index Generation

The actual solution is based on the construction pro-

posed by Wang et al. (Wang et al., 2009). The main

idea is to represent each database record as a binary

string referred as index. To accommodate n-ranked

search each record is expanded to n indexes. Without

loss of generality following Table 1 there are three

ranks “seldom”, “average”, and “frequent” according

to the rate given to each program per week.

Subsequently index for each database record is

cloned three times, once for each level. Each clone

contains the same demographic information but in-

cludes a given program ﬁeld only if the corresponding

numerical value in the original record is non zero and

exceed the rate of watch lower bound as in Table 1.

We will describe how to generate the indexes cor-

responding to rank one, others are generated in an

analogous way. Firstly, the IPTV selects an HMAC

(Hash-based Message Authentication Code) key. This

key is updated for each novel data sent to the cloud

server. With m we bound the maximum number of

ﬁelds in each proﬁle, from now on we call these ﬁelds

keywords and each database record a proﬁle. A pro-

ﬁle may have less that m keywords.

Suppose a given proﬁle at a given rank contains

keywords {w

, . . . , w

}, where n ≤ m. To generate

the corresponding rank binary string (index) the IPTV

computes the l-bit HMAC h

of each keyword w

(HMAC: {0, 1}

∗

→ {0, 1}

). Let

Privacy-preservingTargetedAdvertisingSchemeforIPTVusingtheCloud

= h

r−1

, . . . , h

, h

(1)

be the base 2

representation of h

(l = rd). From h

for each keyword w

IPTV computes a binary string

(keyword trapdoor) I

= (I

r−1

, . . . , I

, I

), (2)

where



0 if h

= 0

1 otherwise

(3)

the index for the given proﬁle at the given rank is

I = ⊙

i=1

, (4)

where ⊙ denotes bitwise product.

The IPTV sends to the cloud server records which

have the form

, I

seldom

, I

average

, I

frequent

where I

rank

is the index of the viewer proﬁle at rank

rank and p

is an anonymized pseudonym for a

viewer.

5.3 Query Index Generation and

Oblivious Search on the Database

An advertiser can purchase from the IPTV any sub-

set of keywords associated with database entries and

corresponding trapdoors. In the selected index gener-

ation scheme, multi-keyword (a.k.a. conjunctive key-

words) queries can be efﬁciently constructed, result-

ing in an r-bit binary sequence independent of the

number of keywords in the query. A multi-keyword

query index of keywords, w

, . . . , w

, is the bitwise

product of the corresponding trapdoors

= ⊙

i=1

= q

r−1

. . . q

A query from the advertiser to the cloud server is

such r-bit binary sequence known as query index and

search is done only by r-bit comparisons. The server

response is a list of p

such that each p

’s ﬁeld in

the response I matches the query index I

. We say

that I = j

r−1

. . . j

matches I

= q

r−1

. . . q

∀i ∈ [0, . . . , r− 1], q

= 0 ⇒ j

= 0. (5)

In case of disjunctive query separate response is

generated for each keyword in the query, which needs

to be combined with others by appropriate operations

such as union, subtraction, etc.

Responses are returned rank wise for the records,

that is for seldom, average, and frequent ranks, the

cloud server returns separate anonymized id list.

To prevent an advertiser from selling its trapdoors

to other parties (or using other parties trapdoors in its

0 18 28 38 48

# of keywords per profile

FAR (%)

FAR (d=5, index=480)

1 keyword in a query

2 keywords in a query

3 keywords in a query

4 keywords in a query

5 keywords in a query

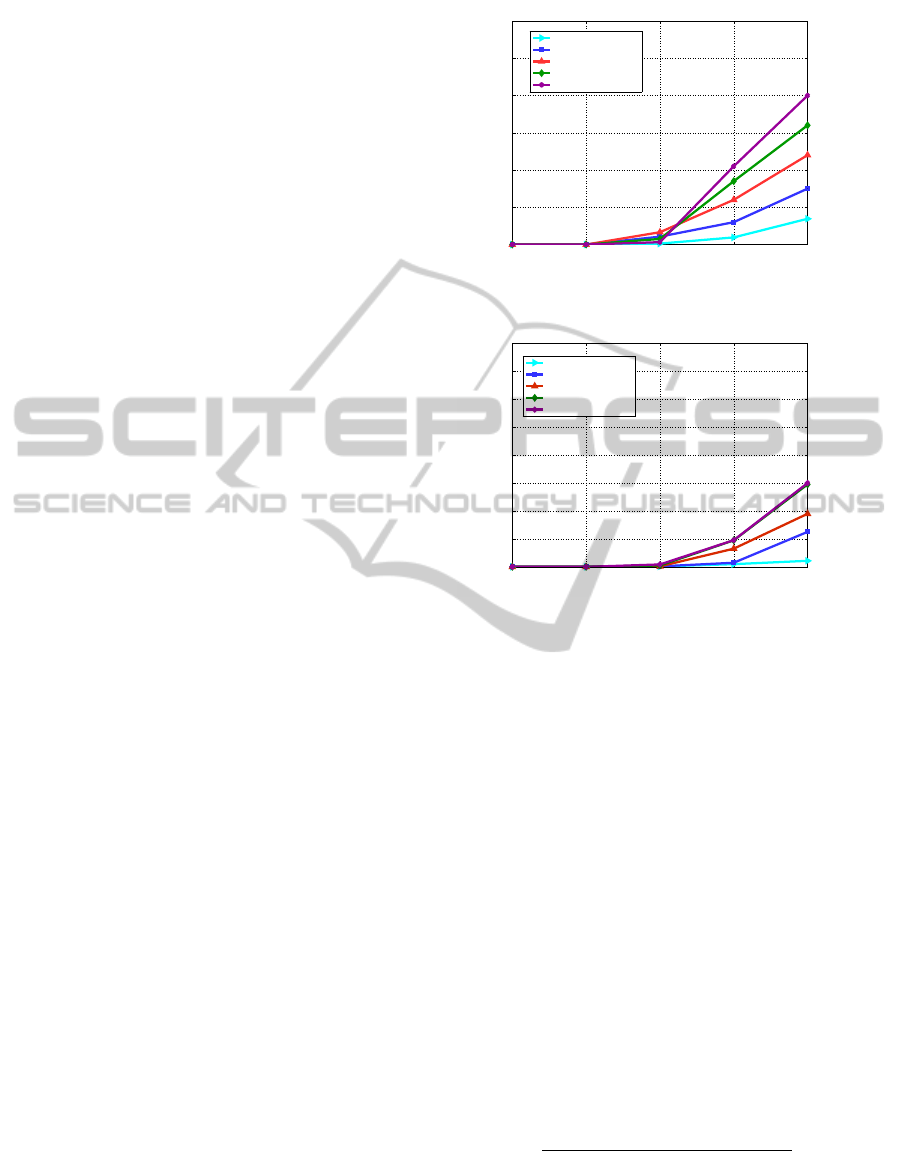

Figure 2: False Accept Rates(d=5, index=448 bits).

0 18 28 38 48

# of keywords per profile

FAR (%)

FAR (d=6, index=784)

1 keyword in a query

2 keywords in a query

3 keywords in a query

4 keywords in a query

5 keywords in a query

Figure 3: False Accept Rates(d=6, index=784 bits).

queries), trapdoor non-transferability protocol, given

in Appendix is designed. This protocol stipulates that

the advertiser submit a proof of ownership for the

trapdoors in its queries. Although relatively expen-

sive, the signature veriﬁcation part of this protocol,

which dominates its timing, is executed once after the

purchase of trapdoors.

5.4 False Accept Rates

The indexing method that we employ coversall the in-

formation on keywords in a single r-bit index ﬁle. In-

dependent from the hash function, after reduction and

bitwise product operation there is a possibility that in-

dex of a query may wrongly match with an irrelevant

proﬁle, which is called False Accept Rate (FAR for

short). The system is free from false rejects, meaning

if a proﬁle contains all of the keywords in the query,

that proﬁle will deﬁnitely be a match to the query. The

FAR is calculated as:

number of incorrect matches

number of all matches

In Figure 2 we compare the false accept rates of

queries containing two, three, four, and ﬁve keywords

for the proﬁles having 18, 28,... , 48 keywords where

SECRYPT2012-InternationalConferenceonSecurityandCryptography

0 18 28 38 48

# of keywords per profile

FAR (%)

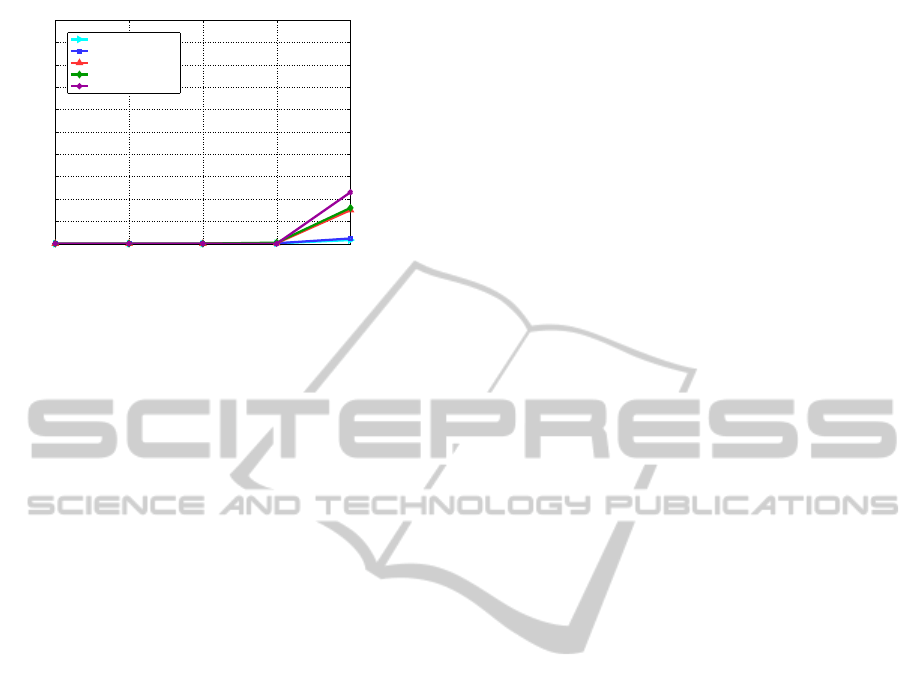

FAR (d=6, index=1040)

1 keyword in a query

2 keywords in a query

3 keywords in a query

4 keywords in a query

5 keywords in a query

Figure 4: False Accept Rates(d=6, index=1040 bits).

index size (r) is 480 bits. The false accept rates in-

crease rapidly after 38 keywords per proﬁle since the

number of zeros in the index ﬁle increase.

To obtain a better intuition we extend our experi-

ment to test the relationship between the parameters.

If more keywords are required per proﬁle, false ac-

cept rates can be reduced by increasing the index size

(i.e. choosing a longer HMAC function) and choosing

larger base 2

. The false accept rates given in Figure

3 and 4 are calculated for 784-bit and 1040-bit index

lengths when d = 6. We observe that the false accept

rates decrease signiﬁcantly in comparison to the rates

in Figure 2.

Having 1040-bit index and d = 6 leads to the low-

est false accept rate as illustrated in Figure 4. More

keywords in proﬁles leads to more zeros in the in-

dex for proﬁles, thereforea higher chance of matching

these proﬁles incorrectly. We observe a similar trend

for the multi-keyword queries, where more trapdoors

in a query tend to increase the false accept rates. In

any case, acceptably low false accept rates can always

be achieved by increasing the index length and using

larger base 2

In our system the possibility of false accept and

false reject rates are zero due to the number of key-

words per proﬁle is low.

6 PRIVACY ARGUMENTS

In this section, we show how the proposed scheme

addresses the privacy requirements in our setting. We

assume that the database schema (i.e. keywords and

their values) is known information and that the ad-

versary does not know the mapping between the key-

words and trapdoors. We further assume that the sta-

tistical model of the database is initially known only

by the data owner.

6.1 Data and Query Privacy

We argue that the encrypted index does not leak use-

ful information about subscribers proﬁle. Our scheme

substitute the hash function of Wang et al. (Wang

et al., 2009) with a keyed HMAC function. Follow-

ing (Wang et al., 2009, Theorem 1) a polynomially

bounded adversary can only learn trivial information

about the data entries from the index published on the

cloud server.

The underlying HMAC function protects the

users’ proﬁles against unauthorized access. To re-

cover the complete information given only an index

value a polynomial time adversary A needs to per-

form an exhaustive search on all possible HMAC

keys. This is true both for database and query indexes.

With the current technology for 128-bit random key

no adversary can reconstruct the user proﬁle.

6.2 Unlinkability

A privacy-preserving targeted advertising scheme is

said to provide unlinkability for queries if it prevents

an adversary from linking two queries consisting of

identical set of keywords.

We argue that an advertiser has hardly any reason

to send the same query twice to the same database.

Given HMAC tags for two different messages (key-

words) that are not related an adversarycan only learn

that a set of keywords in a given query are the subset

of the keywords in another query by comparing the

position of zeros similar to Equation 5.

Updating the HMAC key for each novel data sent

to the CS causes trapdoors and all the records in the

cloud to be changed. Unless there is a weakness in

HMAC key whereby, given two HMAC outputs for

the same messages under different keys are related,

queries to different databases cannot be linked. Sim-

ilarly the values contained in different databases can-

not be associated with each others.

6.3 Preventing Unauthorized Access

The trapdoor non-transferability protocol in Ap-

pendix prevents advertisers utilizing unauthorized

trapdoors in their queries. The index in IPTV sig-

nature allows the CS to identify if the keywords in

a given query were indeed purchased by the adver-

tiser. This prevents an advertiser from querying the

database with the keyword s/he did not purchase. Fur-

thermore, the advertiser id in the IPTV signature al-

lows the CS to identify which advertiser purchased

the access to the database. The encryption the CS uses

Privacy-preservingTargetedAdvertisingSchemeforIPTVusingtheCloud

Table 2: Notations.

N number of proﬁles

n number of keywords in each proﬁle for the given rank

t number of purchased keywords by an advertiser

δ number of keywords in a (multi-keyword) query

β number of proﬁles matched with the query

α number of nominated ids for a speciﬁc advertisement

r size of an index

h hash digest length

η number of rank levels

l hash digest length

prevents an advertiser A from selling keywords to an-

other advertiser B. Indeed if advertiser B purchases

keywords from the advertiser A rather than the IPTV

then either advertiser B has to reveal its query to ad-

vertiser A or advertiser A has to give its private key to

advertiser B. In either case one of the advertisers may

be leaking some non-trivial information about their

advertising strategies via their queries to a competitor.

Thus advertisers have no incentives to collude against

the IPTV.

Since the CS’s response is encrypted using the

advertiser’s public key only the designated adver-

tiser learns the information transfered. Therefore the

strategies used by various advertisers are hidden from

each other.

7 COMPLEXITY

In this section, we evaluate the complexity of the pro-

posed technique. The communication and compu-

tational costs are analyzed separately. We give the

adopted notation in the Table 2. The parameter values

should be selected based on real data, which at the

present is not available to us. The performance eval-

uation presented here only serves to provide intuition

for the possible incurred cost.

7.1 Communication Costs

Communication costs are given on basis of interac-

tions between the participants in Table 3. Values in-

side the brackets should be taken into account when

the trapdoor non-transferability protocol in Appendix

is used where the RSA modulus is 1024 bits.

• Data Owner-Server Communication. The data

owner sends proﬁle indexes to the server periodi-

cally (e.g. weekly), which is Nr bits or Nrη bits

in case η levels are used for ranking.

• Data Owner-Advertiser Communication.

The data owner sends the trapdoors for the pur-

chased keywords to the advertiser. This commu-

Table 3: Communication costs incurred by each party in the

proposed system.

Communication cost (bit)

Data owner-server Nr

Nrη (η ranking)

Data owner-advertiser tr+ [1024+r]

Advertiser-data owner 32α + advertisement

Advertiser-server r+ [1024+ r]

Server-advertiser response+[1024]

nication is performed again if the advertiser pur-

chases a new keyword or if the secret key of the

data owner is changed.

The advertiser sends nominated ids and advertise-

ment to the data owner. Therefore, the advertiser

sends 32α bits to the data owner assuming that

each id is a 32-bit integer, plus the content of the

advertisement.

• Advertiser-Server Communication. The adver-

tiser sends an r-bit query index to the server. The

server sends only an anonymized id list as a re-

sponse to the advertiser. When ranking is used η

lists are sent.

7.2 Computational Costs

Following are the computational costs for each party

in the system.

• Data Owner. Creates proﬁle indexes periodically.

• Advertiser. Only prepares an index for a query

which involves bitwise product of trapdoors cor-

responding to keywords in a conjunctive query.

• Server. Performs search operation, which is basi-

cally r-bit binary comparisons of query indexes

with the database entries. If ranking is used,

the server performs at most η-1 additional binary

comparisons for each matching proﬁle.

Computational costs are summarized in Table 4. Val-

ues inside the brackets should be taken into account

when the trapdoor non-transferability protocol in Ap-

pendix is used where the RSA modulus is 1024 bits..

7.3 Timing Results for Simple

Multi-keyword Queries

In this section, we perform experiments for the

scenario where the advertiser sends multi-keyword

queries to ﬁnd subscribers of matching proﬁles for an

advertisement.

The proposed system is implemented and tested

on a Windows 7 machine with Intel Xeon 6 Core

running at 3.2 GHz. Our experiments are carried on

SECRYPT2012-InternationalConferenceonSecurityandCryptography

Table 4: Computational costs incurred by each party in the

proposed system.

Computational costs (bit)

Data Owner

∑

j=N

j=1

∑

i=η

i=1

(n×h-bit hash+n bitwise product of

r-bit string).

[for each advertiser:

t×(h-bit hash)+t bitwise products of r-bit trapdoors.

1024-bit RSA signature.]

Advertiser r bitwise products of δ trapdoors (conjunctive query)

[1024-bit RSA signature veriﬁcation.

To get response:

RSA decryption of the symmetric key and

symmetric decryption of the response.]

[1024-bit RSA signature veriﬁcation.

r binary comparisons.]

(without ranking)

N × r binary comparisons.

Server (with ranking)

N × r+ (η− 1) ×β × r binary comparisons.

One RSA Encryption of responses.

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8

x 10

100

150

Index Generation Time (s)

# of profiles

Time (s)

Without ranking

With ranking (3 levels)

Without ranking−parallel

With ranking (3 levels)−parallel

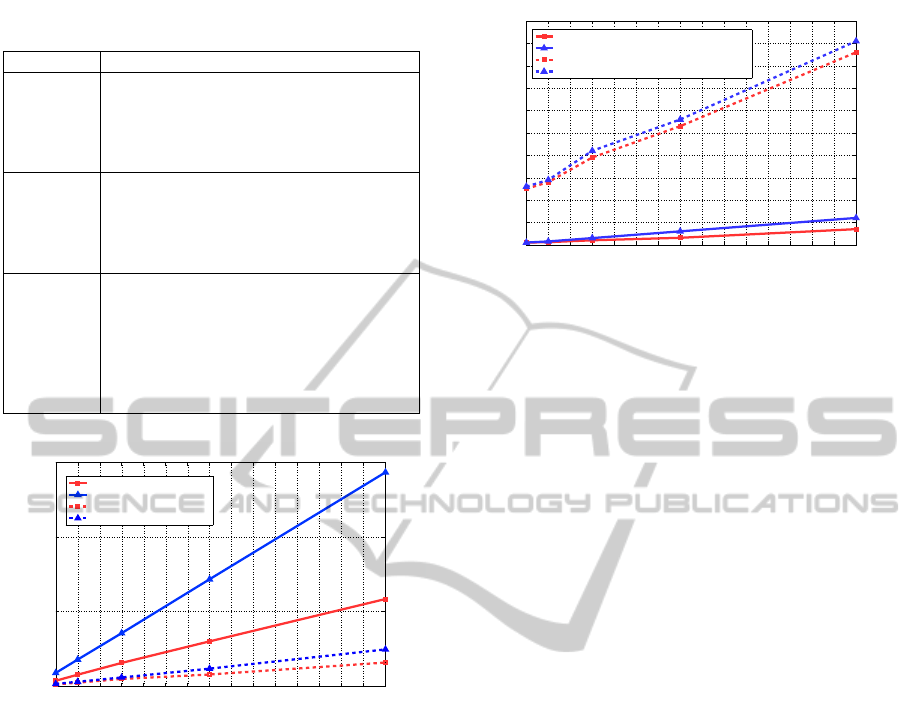

Figure 5: Timings for index construction with 18 keywords

per proﬁle (on data owner side).

custom-made synthetic database. In the experiments,

the HMACfunction produces 300 bytes output, which

is generated by concatenating different length SHA2-

based HMAC functions. We choose d = 5, so after

reduction the index size (r) is 60 bytes (480 bits). The

database has different number of subscribers varying

from 5, 000 to 80, 000 with each proﬁle having at most

18 keywords.

Timing results for operations on data owner side

are presented in Figure 5. Since these operations are

performed periodically (e.g. weekly) and index cal-

culation can be parallelized, the presented technique

is practical and efﬁcient from the data owner perspec-

tive. Timing results for index generation with par-

allelization utilizing all six-cores in the platform are

illustrated by dashed lines in Figure 5.

Timing results on the server side for the search

operation with and without ranking indicate relatively

low latency as shown in Figure 6. Timings for query

search when using the trapdoor non-transferability

0.5 1 1.5 2 2.5 3 3.5 4 4.5 5 5.5 6 6.5 7 7.5 8

x 10

100

# of profiles

Time (ms)

Query Search Time (ms)

Without ranking

With ranking (3 levels)

Without ranking using non−transferability protocol

With ranking (3 levels) using non−transferability protocol

Figure 6: Timings for query search with and without rank-

ing (on the cloud server side).

protocol are also illustrated by dashed lines in Fig-

ure 6, which is again relatively low. Note that the sig-

nature veriﬁcation in the protocol, which dominates

the timing, does not have to be performed every time.

Therefore, the scheme is efﬁcient from cloud server

perspective. Query construct by the advertiser takes

negligible amount of time and therefore omitted here.

7.4 Timing Results for Data Mining

Algorithms

We performed two experiments to demonstrate the ef-

ﬁciency of the two most common data mining algo-

rithms in our setting, namely clustering and content-

based ﬁltering. The same implementation on the same

platform as in Section 7.3 are used in these experi-

ments.

7.4.1 Experiment 1: Clustering

Advertising agencies can use demographic ﬁlter-

ing (A¨ımeur et al., 2008) to categorize subscribers

based on their demographics and send advertisements

accordingly. Since there are seven demographic fea-

tures in our data model and total number of keywords

pertaining to the demographic features is 42 the ad-

vertising agency sends a total of 42 different (single-

keyword) queries to obtain information about view-

ers’ demographics. Then the agency can utilize the

results of queries to generate a relevant viewers’ seg-

mentation for his advertising purpose. This experi-

ment is implemented using reliable socket communi-

cation (i.e. TCP) in the same computer.

The timing results are enumerated in Table 5 for

different number of subscribers, where the second

column lists the total elapsed time for the advertiser

while the third column indicates the time cloud server

spends during the entire process. The last column

shows the time spent on the communication. Note

Privacy-preservingTargetedAdvertisingSchemeforIPTVusingtheCloud

Table 5: Timing results for obtaining the entire demo-

graphic data used in clustering based on demographics.

Number of Advertiser Cloud Server - Communication

proﬁles total time Query search time (ms)

(ms) time (ms)

5,000 164 58 106

10,000 422 112 310

20,000 656 219 437

40,000 1,345 451 894

80,000 2.639 1,185 1,454

that the time spent for actual clustering algorithm is

not reported here.

7.4.2 Experiment 2: Content-based Filtering

The advertising agency can use content-based ﬁlter-

ing (A¨ımeur et al., 2008) to send its advertisements

to related subscribers. Each advertisement can be de-

scribed by some attributes or characteristics. Adver-

tiser uses a similarity metric between the advertise-

ment attributes and viewers demographics and watch-

ing habits to predict viewers’ potential interests in a

speciﬁc advertisement. The similarity S can be de-

ﬁned as a number in the interval [0, 1]. If the ad-

vertisement c has non-zero similarity to viewers de-

mographics and watching habits (a

, a

, . . . , a

), i.e.

S (a

, c) 6= 0, then the prediction for the interest of a

subscriber s on advertisement c is computed as

c,s

∑

i=1

s,a

· S (a

, c)

∑

i=1

S (a

, c)

, (6)

where v

s,a

is the relevancy score of the subscriber s

to the query containing attribute a

. If the subscriber

is not a match for a query, then his score will be zero.

As an example, suppose that an advertisement

for a shaving blade brand will be sent to viewers

who are male, leading active life styles and inter-

ested in sports. We can deﬁne non-zero similarities

of the advertisement to the following demographics

and watching habits: (male, news-morning, news-

primetime, sport-afternoon, sport-primetime). The

advertiser can send ﬁve different queries to the cloud

server and calculate a prediction for matching sub-

scribers using the rates showing the relevancy scores

of the subscribers (i.e. v

s,a

) to the query. The adver-

tiser can specify a threshold τ for the advertisement,

whereby a subscriber will become a nominate (target)

for the advertisement if the prediction for the sub-

scriber is greater than τ. Timings for the advertiser to

compute predictions for the advertisement described

by ﬁve attributes are 15 ms, 40 ms, 207 ms, 599 ms,

2,249 ms for number of proﬁles 5000, 10000, 20000,

40000, 80000, respectively.

8 CONCLUSIONS AND FUTURE

WORK

We propose a practical solution for secure and

privacy-preserving targeted advertising service for

IPTV subscribers utilizing cloud computing. While

the privacy of subscribers is protected, the advertiser

agencies can target their advertisements to prospec-

tive customers with high precision since the false ac-

cept and reject rates can be made practically zero.

Also by utilizing the rating mechanism adopted in our

solution, the advertiser can select only viewers who

demonstrate desired relevance to its queries. Further-

more, advertising agencies have another incentive to

use the proposed system due to the fact that their pri-

vate strategies in reaching potential customers are not

exposed to cloud server and other advertisers.

From the IPTV’s perspective, the proposed system

has many advantages. It allows outsourcing all the

services pertaining to advertisement without any ad-

verse effect on security and privacy issues concerning

its subscribers. Furthermore, advertisers (or any other

party who has access to the database on the cloud)

can utilize the data only if they are authorized to do

so. The IPTV can control the access to the database

in ﬁne grained manner in the sense that the advertiser

can only access to the part of the database related to

keywords, for which it holds trapdoors.

The proposed method supports efﬁcient conjunc-

tive queries and single-keyword queries. As future

work, we will developan efﬁcientsystem that acceler-

ates complex queries, which combine many keywords

in different forms such as (keyword

OR keyword

NOT keyword

). Also, the proposed system consid-

ers the entire household as single individual while, in

reality it usually consists of individuals with different

proﬁles (e.g. children, young individuals, adults). A

future system should represent a household with more

than one proﬁle to send relevant advertisements at the

right time, which is necessary to ﬁnd the best targets

for an advertisement.

We will strengthen the security and privacy of the

proposed system to prevent leakage for the applica-

tions where cloud server has some knowledge about

the statistical model of the database. This is espe-

cially important where the responses to given queries

conform to the statistical model.

As a ﬁrst step before extending this work we plan

to introduce formal deﬁnitions and arguments that

justify the soundness of our solutions.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

ACKNOWLEDGEMENTS

This work was supported by Turk Telekom under

Grant Number 3014-02.

REFERENCES

A¨ımeur, E., Brassard, G., Fernandez, J., and Mani (2008).

Alambic : a privacy-preserving recommender system

for electronic commerce. International Journal of In-

formation Security, 7(5):307–334.

Armbrust, M., Fox, A., Grifﬁth, R., Joseph, A. D., Katz,

R. H., Konwinski, A., Lee, G., Patterson, D. A.,

Rabkin, A., Stoica, I., and Zaharia, M. (2009). Above

the clouds: A berkeley view of cloud computing.

Technical Report UCB/EECS-2009-28, EECS De-

partment, University of California, Berkeley.

Ballard, L., Kamara, S., and Monrose, F. (2005). Achieving

efﬁcient conjunctive keyword searches over encrypted

data. Springer, 3873:414–426.

Boneh, D., Crescenzo, G. D., Ostrovsky, R., and Per-

siano, G. (2004). Public key encryption with keyword

searchs. In proceedings of Eurocrypt 2004, LNCS

3027, pages 506–522.

Boneh, D. and Waters, B. (2007). Conjunctive, Subset, and

Range Queries on Encrypted Data. In Theory of Cryp-

tography, volume 4392 of Lecture Notes in Computer

Science, pages 535–554. Springer Berlin / Heidelberg.

Cao, N., Wang, C., Li, M., Ren, K., and Lou, W. (2011).

Privacy-preserving multi-keyword ranked search over

encrypted cloud data. In IEEE INFOCOM.

Ceselli, A., Damiani, E., Vimercati, S. D. C. D., Jajodia, S.,

Paraboschi, S., and Samarati, P. (2005). Modeling and

assessing inference exposure in encrypted databases.

ACM Trans. Inf. Syst. Secur., 8:119–152.

el Diehn, D., Abou-Tair, I., K¨oster, I., and H¨ofke, K. (2011).

Security and privacy requirements in interactive tv.

Multimedia Systems, 17:393–408.

Kamara, S. and Lauter, K. (2010). Cryptographic cloud

storage. In Proceedings of the 14th international con-

ference on Financial cryptography and data security,

FC’10, pages 136–149. Springer-Verlag.

Kodialam, M., Lakshman, T., Mukherjee, S., and Wang, L.

(2010). Online scheduling of targeted advertisements

for iptv. INFOCOM, 2010 Proceedings IEE, pages 1–

Min, W. H. and Cheong, Y. G. (2009). An interactive-

content technique based approach to generating per-

sonalized advertisement for privacy protection. In

HCI (9), pages 185–191.

Orencik, C. and Savas¸, E. (2012). Efﬁcient and se-

cure ranked multi-keyword search on encrypted cloud

data. http://www.edbt.org/Proceedings/2012-Berlin/

papers/workshops/pais2012/a5-orencik.pdf. retrieved

on May 14, 2012.

Shen, E., Shi, E., and Waters, B. (2009). Predicate Privacy

in Encryption Systems. In TCC ’09: Proceedings of

the 6th Theory of Cryptography Conference on Theory

of Cryptography, pages 457–473. Springer-Verlag.

Sweeney, L. (2002). K-Anonymity: a model for protect-

ing privacy. Int. J. Uncertain. Fuzziness Knowl.-Based

Syst, 10:557–570.

Wang, C., Cao, N., Li, J., Ren, K., and Lou, W. (2010).

Secure ranked keyword search over encrypted cloud

data. In ICDCS’10, pages 253–262.

Wang, P., Wang, H., and Pieprzyk, J. (2009). An efﬁ-

cient scheme of common secure indices for conjunc-

tive keyword-based retrieval on encrypted data. In

Chung, K.-I., Sohn, K., and Yung, M., editors, Infor-

mation Security Applications, volume 5379 of LNCS,

pages 145–159. Springer Berlin / Heidelberg.

APPENDIX

Trapdoor Non-transferability Protocol

This protocol is designed to prevent authorized adver-

tisers selling their trapdoorsto each other. Public keys

of the participants:

- public key of the party X

- private key of the party X

Assume that an advertiser (ADV) purchases the fol-

lowing trapdoors (I

, I

, . . . , I

) corresponding to the

keywords (w

, w

, . . . , w

)

IPTV performs the following steps:

1. Computes I = ⊙

i=1

2. Generates the signature for the sold trapdoors

S = SIGN

IPTV

(I, PU

ADV

) .

3. Sends (S, I) to ADV.

The ADV validates the signature S. For a query that

involves the keywords {w

, w

, . . . , w

}, the ADV and

the CS execute the following protocol steps:

1. ADV compute I

= ⊙

i=1

2. ADV sends (I, S), and I

to CS.

3. CS continues if the signature is veriﬁed.

4. For I = j

r−1

. . . j

and I

= q

r−1

. . . q

CS checks

∀i ∈ [0, . . . , r− 1], q

= 0 ⇒ j

= 0.

If I

matches with I, meaning that ADV is autho-

rized to ask such query, otherwise it aborts.

5. CS performs the query and generates a response

R, which includes the list of ids matching the

predicates in the query.

6. CS selects a symmetric key k and performs

the following encryptions ENC

ADV

(k) and

ENC

(R). Next he sends ciphertexts to ADV.

7. ADV decrypts ENC

ADV

(k) with its private key

and obtains k. Knowing the symmetric key, the

advertiser can obtain the response.

Privacy-preservingTargetedAdvertisingSchemeforIPTVusingtheCloud
