Operating System Core as Template for Embedded System Software

Development

Leonardo Jelenkovic and Domagoj Jakobovic

University of Zagreb, Faculty of Electrical Engineering and Computing, Unska 3, Zagreb, Croatia

Keywords:

Operating System Core, Embedded System, Software Development.

Abstract:

Software development for embedded systems is a fast growing industry. Development for a mid-range com-

plexity embedded system is usually based on custom built templates and tools, or on commercially developed

solutions with an operating system as a base. This paper presents possibilities for building customized tem-

plates that are operating system primitives. Since many embedded systems require only a few subsystems,

and only basic operations from them, such subsystems could be built fast and then used as a base for new

systems. Based on our experience while creating an educational operating system for embedded systems, we

propose operating system primitives that can be created and then used as templates for creating new embedded

systems.

1 INTRODUCTION

Demands for embedded computer systems are rapidly

increasing as we realize the beneﬁts they can pro-

vide. Many embedded systems are very simple,

which a simple processor or controller with control

(program) loop as software component can satisfy.

Program loop might be a sufﬁcient control mecha-

nism even for mid-range complexity systems that pro-

vide more than a few simple operations. Other sys-

tems might require additional mechanisms besides

program loop, such as event based control and timed

delays and programmed future actions (alarms). Con-

trolling more activities might require multitasking

ability (also called multithreading) of the underlying

system, or even more demanding features like task

separations and protection.

Software development for embedded systems may

rely on an existing operating system as a base on

which programs are created. This, most used option

has its advantages and disadvantages, from depend-

ability and support to increased hardware require-

ment. Many systems come with abundance of mem-

ory since their primary tasks require it. The over-

head that an operating system imposes on such sys-

tems is mostly acceptable, and choosing a complete

operating system as a base is probably the best option.

On the other hand, there are many systems with very

limited resources, and most operating systems would

not ﬁt in. There are some operating systems, highly

optimized for embedded computers that require very

small footprint. For example, µC/OS-II (Labrosee,

2002) can be optimized to require from 5 Kbytes to

24 Kbytes of memory. However, such systems are not

free and a license must be paid. Still, using commer-

cial off-the-shelf (COTS) systems often presents the

best choice, despite its ”high” licensing prices. They

are highly reliable, come with development tools and

technical support. Operating systems that are freely

available (e.g. Linux and µClinux) have hidden costs

- their reliability might be questionable, technical sup-

port non-existent, development tools not advanced as

commercial ones. An operating system or just the

required components might be built from scratch (as

suggested in this paper). However, this takes valuable

development time, and reliability of created systems

might not be comparable with COTS ones, since they

are not tested throughly as commercial ones are.

In this paper, based on our operating system

created for educational purposes - Operating Sys-

tem Increments for Education and Research (OSIER)

(Jelenkovic, 2011), we target the last alternative -

building an operating system core components from

scratch and using it instead of a full operating sys-

tem in embedded system development. Assuming tar-

geted systems are embedded systems with mid-range

complexity and limited hardware resources, we per-

ceive that the proposed methodology will hasten de-

velopment process and improve reliability of created

systems.

589

Jelenkovic L. and Jakobovic D..

Operating System Core as Template for Embedded System Software Development.

DOI: 10.5220/0004024905890594

In Proceedings of the 9th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2012), pages 589-594

ISBN: 978-989-8565-21-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Creating operating system components as a base

of a new system is not a novel idea. Operating sys-

tem is actually product of such ideas almost from the

era of ﬁrst computers. Operating system principles

deﬁned in ’60 and ’70 are mostly preserved till today

with only performance related optimizations. How-

ever,we think that today the situation has signiﬁcantly

changed. First, today’s technologies enable us to em-

bed computer systems in almost any device and larger

system. Embedded computers growth rate will re-

quire more and more engineers capable of producing

them. Second, abundant amount of available COTS or

free tools and operating system for Real Time embed-

ded systems might convince ”new generations” that

is only way to create new systems (using COTS or

free operating systems). In this paper we try to de-

scribe some basic operating system components and

demonstrate their simplicity or complexity that is sig-

niﬁcantly different(simpler) than correspondingcom-

ponents in ”real” operating systems. Creating such

components and building a system on them is still

a viable option, maybe even more today than in the

past.

This paper is structured as follows. Section 2

brieﬂy presents similar research on this topic. Tem-

plates are introduced in section 3 whith their internals

and deﬁned interfaces. Possibilities for hardware sup-

port implemented in processor, that will simplify tem-

plates and improve speed and predictability of sys-

tems, are discussed in section 4. Conclusion is pre-

sented in section 5.

2 RELATED WORK

The problem of designing an embedded system is a

wide research area, ranging from hardware oriented

analysis and implementation, component (both soft-

ware and hardware) based design, operating system

selection or implementation, development tools and

methodologies (Wolf, 2001). In this section we point

several systems and methodologies that are designed

for embedded computer system development, which

have similar ideas as the ones presented in this paper.

In PURE project (Beuche et al., 1999), the au-

thors present a construction set for developing operat-

ing system elements using object-oriented principles,

where basic operating system operations are provided

by objects (classes in source ﬁles).

TinyOS, its successor T2 (Levis et al., 2005), and

SOS (Han et al., 2005), present operating systems

speciﬁcally designed for sensor networks. Though

those systems don’t include support for multitasking

and are not designed for general embedded system

use, they all present implementation of selected op-

erating system elements, their integration and usage.

Managing reconﬁgurable system-on-chip (SoC)

in runtime requires managing tasks implemented in

software and tasks implemented in hardware. (Nol-

let et al., 2003) presents an approach in designing an

operating system for such environment. Their operat-

ing system OS3RS is based on an existing real time

system - RTAI, which they extend for reconﬁgurable

computing.

In (Coulson et al., 2004) OpenCOM v2, a gen-

eral purpose component based system building tech-

nology is presented. Authors deﬁne a generic run-

time component model for not only application level

software, but also for operating systems, embedded

devices, network processors and alike.

Giotto, a design methodology (with tools) for de-

vising control in embedded and real time systems is

presented in (Henzinger et al., 2001). Giotto pro-

vides an abstract programmer’s model based on time-

triggered paradigm.

3 CORE ELEMENTS FOR

TEMPLATES

Interrupts, including device management, deﬁne

input-output subsystem. Delay and alarm operations

deﬁne time management subsystem. Basic versions

of those subsystems are simple to build, as is shown

in this paper. Multitasking support is more demand-

ing, and moderately increases systems complexity,

but also provides simplicity on a higher layer, when

implementing embedded system control. Other com-

mon operating system components and features, as

protection, networking and ﬁle systems, are far more

complex. Having many components and features will

simplify software development, but at the cost of

hardware requirements (processor’s capabilities and

memory size).

In core elements for embedded system design we

include subsystems for input-output (IO) manage-

ment, time and task management. Various systems

require various combinations of templates: for some

an IO template will sufﬁce, others will also require

a time management template, while some will even

require a multitasking management template.

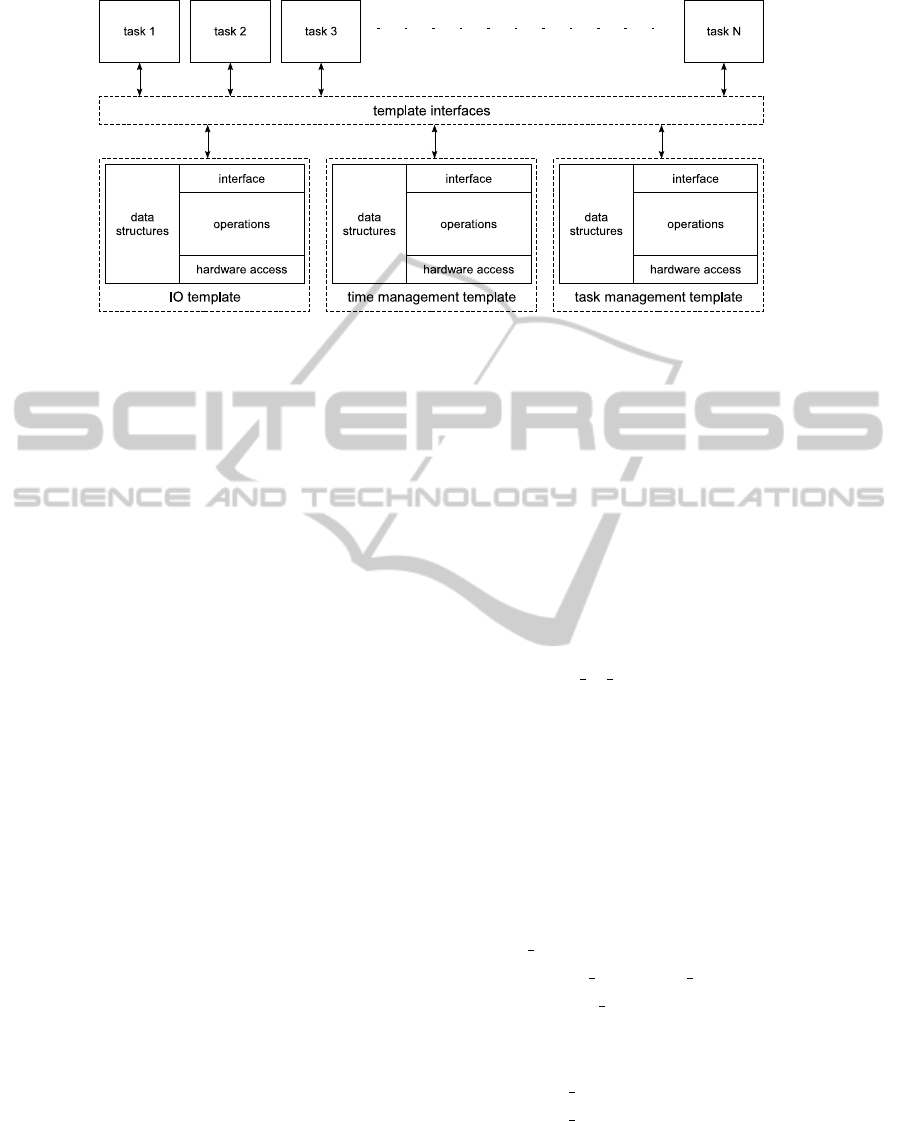

Figure 1 displays architecture of systems that are

built upon proposed templates.

3.1 Input-output Subsystem

Communicating with the environment is the prime

designation of an embedded system. In implemen-

ICINCO2012-9thInternationalConferenceonInformaticsinControl,AutomationandRobotics

590

Figure 1: Architectures of systems created with proposed templates.

tations, communication can be fully integrated in pro-

grams or it can be separated into a subsystem that

provides simpler and uniﬁed interface. In computer

systems the environment is reached by input-output

devices, which are used through device drivers.

A template for IO management must deﬁne and

implement interrupt handling and must deﬁne how to

integrate devices into the system, forming an IO sub-

system.

Operations provided by an IO subsystem template

should include:

• IO subsystem initialization,

• registration of interrupt handling routine with a

particular interrupt, and

• using IO devices through wrappers.

Within IO initialization, interrupt handling data

structures (data that connects interrupts with interrupt

handling routines) must be initialized. Furthermore,

IO subsystem should also initialize device manage-

ment data and initialize startup devices (and register

them with appropriate interrupts).

Registration of a device driver interrupt handler

function with related interrupt number (or other inter-

rupt identiﬁcation method) requires appropriate data

structure and code. Depending on processor and sup-

plement interrupt control devices, the data structure

must be able to deﬁne handler functions for each pos-

sible interrupt source. If more devices use the same

interrupt line (interrupt number), then more handler

functions must be registered for the same interrupt.

For example, we can deﬁne a list for each interrupt,

where each list element contains one handler func-

tion.

Some processor architectures provide mecha-

nisms for connecting interrupt handlers directly to the

interrupt source, meaning that when an interrupt oc-

curs processor will immediately jump to the deﬁned

handler. However, if control is to be integrated con-

sistently, a wrapper should be called ﬁrst instead. We

propose the following interrupt handling system be-

havior that should be enforced by the template:

1. interrupt occurrence;

2. interrupt handling wrapper is called ﬁrst (after

context switch provided by processor);

3. in the wrapper, iterate through registered handlers

for this interrupt and call each handler.

Basic data structure and code that follows the

above principles can be found in OSIER, from incre-

ment

Chapter 05 Devices

(

arch/interrupts.c

)

onward.

To use proposed templates, every device driver

must include operations for device initialization,

sending data to the device, receiving data from the de-

vice, and interrupt identiﬁcation and interrupt handler

function, if the device generates interrupts.

An IO template should therefore at least provide

explicit interface for:

• IO system initialization process and interrupt han-

dling:

–

IO init ()

;

–

;

–

interrupt handler ()

;

• using devices (receiving and sending data and

commands):

–

device send ()

;

–

device receive ()

;

The simplest systems don’t have to use uniform

data structures, interfaces and wrappers, as presented

above, as they may be custom created per problem in-

stead. However, other, not as simple systems, may

beneﬁt from such a template, both in development

OperatingSystemCoreasTemplateforEmbeddedSystemSoftwareDevelopment

591

time and later maintenance and upgrades, if more than

one system is built on the same template. Time and

task management subsystems, detailed in further sub-

sections, require IO subsystem base operations as de-

ﬁned in this section, whether implemented through a

template or otherwise.

3.2 Time Management Subsystem

For implementing the control system with timely co-

ordinated activities, we require time management op-

erations. Time operations, as alarm and delay, may be

coded directly somewhere within a task. For example,

simple delay can be achieved by a program loop with

a previously calculated number of iterations. How-

ever, for simpler and more precise time management,

special timely synchronized counters must be used.

Since such counters are provided on almost every sys-

tem, time operations are built around those counters.

The counter, used by this subsystem, must have

the ability to generate an interrupt signal when the

counter value reaches zero. Within the interrupt han-

dler function, appropriate actions are performed: a

task is awakened or alarm is executed (alarm function

provided by the task).

Expectations of delay and alarm operations might

be easier to understand on a simple example:

task_body() {

...

set_periodic_alarm ( period_x, cnt_x );

set_periodic_alarm ( period_y, cnt_y );

...

control_loop { //control activity Z

some_control_action;

delay_for some_interval; //may vary!

}

...

}

//control activity X

cnt_x () { ... }

//control activity Y

cnt_y () { ... }

In the above example, the task controls three ac-

tivities, marked with X, Y and Z. For X and Y, con-

trol functions (

cnt x

and

cnt y

) must be periodically

invoked with given periods and therefore two peri-

odic alarms are set. Activity Z is controlled with the

program loop that also requires delaying the task for

some interval (that may even vary from iteration to

iteration).

The data structure must include time keeping ele-

ments (system clock) which are regularly updated on

counter interrupts. Every time the counter is reset, the

value that is loaded into the counter must also be pre-

served for keeping accurate time. Building upon ac-

curate time and interrupt mechanism of the counter,

alarms can be implemented with additional sorted list

that contains active alarms. Delays can be regarded

as special alarms, upon whose activation a task is un-

blocked, presuming that the delay operation started

with the task blocking.

Most basic time management operations,

get time

delay for

and

set periodic alarm

along with reaction on counter expiration are detailed

in the following pseudo-code.

get_time () {

cur_time = last_saved_system_time +

( cnt_load_value - cnt_curr_value );

return cur_time

}

delay_for ( interval ) {

create_alarm (interval, UNBLOCK_TASK);

reprogram_counter ();

block_task;

}

set_periodic_alarm ( period, action ) {

create_alarm (period, action, PERIODIC);

reprogram_counter ();

}

counter_expired_interrupt_handler () {

update_system_time;

iterate over active alarms {

if alarm is expired then {

activate alarm or

unblock task;

}

reprogram_counter ();

}

In OSIER, the time subsystem has less than 300

lines of C code (which include much more function-

ality and operations than described above).

The time management template, along with the IO

template may be considered as a simple operating sys-

tem core that may be sufﬁcient for many embedded

systems, and make their implementation easier and

faster.

3.3 Task Management Subsystem

An embedded computer system that must control

many activities with different demands might require

more than IO and time templates. Generally, con-

trol can be achieved much simpler if a separate task

is used per each demanding activity - activity that

can’t be controlled with alarms. However, multitask-

ing must be supported by the system for that to be

possible.

Multitasking support, even in its basic form, con-

sists of dozens of operations for: creating new tasks

and removing ﬁnished ones, scheduling tasks, block-

ing tasks, and task synchronization and communica-

tion.

ICINCO2012-9thInternationalConferenceonInformaticsinControl,AutomationandRobotics

592

Multitasking implementation might require sig-

niﬁcant changes in IO and time subsystems (tem-

plates).

Task control relies on data that contains task de-

scriptors, task queue structures for each task state,

and usually multiple structures for blocked tasks - one

per resource that blocks a task. Task scheduling might

require assigning priorities to tasks so that a more im-

portant task preempts a lower priority one.

Managing tasks requires additional data structures

and memory space that include: task descriptor with

a task id and task priority, task queues for the active

task and ready tasks, task queues included with each

resource that might block a task, and task speciﬁc data

including separate stack per task.

If kernel (operations provided by template) and

programs use same processor mode (privileged if sup-

ported, which we recommend for simpler systems),

than the IO template (interrupt handling part) might

not need any adjustment for multitasking. The device

management part, however, must provide safe envi-

ronment for using devices. On uniprocessor systems

this is achieved by disabling interrupts while execut-

ing a core (template) function. While this was pre-

ferred even in single task systems, in multitasking it

is absolutely required.

In the core of the multitasking template are task

managing operations. Creating a new task requires

creating the task descriptor, reserving stack space and

initialization of both. One way is to ﬁrst create an ini-

tial task context and move the task descriptor to ready

queue. When that task is scheduled, its context is re-

stored and the task is executed. When the task ﬁn-

ishes, it must be removed from the system, at least

from active and ready tasks queues.

For simplifying task management, we propose

that basic operations for manipulating task queues,

such as

task add

and

task remove

are created ﬁrst.

Composite operations should be created next. Task

synchronization mechanisms, such as mutual exclu-

sion, semaphores and monitors, are all easy to create

when task queue management exists. Inter-task com-

munication through messages can be implemented

similarly.

A minimal task management interface should in-

clude the following primitives:

•

create task ( start function, param )

•

task exit ( status )

•

schedule tasks ()

•

block task ( task, queue )

•

release task ( task, queue )

•

monitor lock (m)

monitor unlock (m)

monitor wait (m,q)

monitor signal (m,q)

monitor broadcast (m,q)

Integrating memory protection signiﬁcantly com-

plicates task management template, and we believe

that this component is rarely needed in simpler sys-

tems. For this reason we don’t elaborate on protection

mechanisms and their implementation, although they

are presented in last increments of OSIER.

4 HARDWARE SUPPORT

The processor and the other devices offer signiﬁcant

support for creating operating systems or some of its

components. For example, processor’s interrupt han-

dling provides information about interrupt source by

associating different handlers for different interrupts

on a hardware level. When processor accepts an in-

terrupt, it automatically saves a minimal task context.

Similar hardware support includes counter for time

management. Some processors have support for task

management (e.g. switching between tasks).

Might hardware support be expanded, so that op-

erating system components (e.g. templates in this pa-

per) could be created easily? If a standard (high per-

formance) processor is used, the short answer is ”no”.

Designing such a processor is a very complexprocess,

where optimal performance is, so far, reached with

only reduced instruction set computer design (RISC),

while any operations that will be useful for template

are complex, requiring at least several ”normal” (fast)

instructions. On the other hand, processors for many

embedded systems are custom made. Some of those

processors already have complex instructions for pro-

gram support, created in so called hardware-software

co-design process (Ernst, 1998; Gajski et al., 2009). If

so, they might be designed with a few more complex

instructions, speciﬁcally designed for core operating

system features. Let’s look at some possibilities.

On the IO subsystem, the simplest extension could

include automatically saving full task context when

an interrupt occurs, and similarly, when returning

from the interrupt, full context can be restored with

a single instruction. Interrupt sources might be as-

signed different priorities, allowing higher priority

ones to interrupt the processing of lower priority in-

terrupts. If every different device could have its own

interrupt, interrupt handling could almost completely

be handled by hardware - the IO template will then

consist only of wrappers for IO communication (send

and receive operations).

For the time management, the hardware could

provide precise time measurements through separate

clock for elapsed time tracking (system time) and sep-

arate timer counter. Both counters could simultane-

OperatingSystemCoreasTemplateforEmbeddedSystemSoftwareDevelopment

593

ously be very precise and could provide long inter-

vals. For example, a ”simple” counter with 64 bit

wide word and 1 GHz frequency, can measure time

intervals ranging from 1 ns to 585 years! Such a

clock and counter could reduce the overhead for keep-

ing system time and for tracking activation times for

alarms, directly simplifying the time template. Sim-

pler systems, with bounded number of alarms, could

beneﬁt from multiple counters - each for an alarm.

Those custom made systems would not need the time

template, as it would be provided in hardware.

Multitasking management operations are fairly

complex and can’t be implemented (easily) in hard-

ware. Most that can be done in hardware is task

change, i.e. switching from one running task to an-

other. For that, the instruction

switch task(from,

to)

may be designed. With an appropriate data struc-

ture even

schedule tasks()

might be implemented

in hardware, if priority and FIFO are used as schedul-

ing criteria.

Dynamic memory allocation might be signiﬁ-

cantly simpler and deterministic if hardware support

is implemented. Bit map search, if implemented in

hardware, will ﬁnd an appropriate memory chunk size

with a single instruction, making dynamic memory

management faster, deterministic and efﬁcient.

5 CONCLUSIONS

Operating system is a very complex system. How-

ever, it is a foundation on which almost every com-

puter system is built. Therefore, operating system is a

very important subject for future software engineers.

For teaching operating systems in embedded and real-

time environment, we created an instructional operat-

ing system OSIER. In its development we used the

standard divide-and-conquer principle, dividing oper-

ating system core into subsystems. In this process

we found that some subsystems, i.e. input-output,

time and task management subsystems, can be cre-

ated quickly and easily. That is the reason why we

propose them as a template for embedded system de-

velopment.

Creation of such templates, especially IO and time

management templates, should be straight forward

and completed in a short time period. If intended

systems have slightly different underlying hardware,

it would be a good idea to separate hardware depen-

dent part from the independent one (using a hardware

abstraction layer beneath). Task management tem-

plate is signiﬁcantly complex, harder to implement

than IO and time management templates, but if cre-

ated, it offers unparalleled simplicity on application

design level (for complex control systems).

Embedded systems are frequently custom made.

Even the processor (controller) might be customized.

For such systems, we present a brief overview of pos-

sible hardware implementations that will signiﬁcantly

simplify the templates.

REFERENCES

Beuche, D., Guerrouat, A., Papajewski, H., Schroder-

Preikschat, W., Spinczyk, O., and Spinczyk, U.

(1999). On the development of object-oriented op-

erating systems for deeply embedded systems - the

pure project. In In: Proc. 2nd ECOOP Workshop on

Object-Orientation and Operating Systems, pages 27–

31.

Coulson, G., Blair, G., Grace, P., Joolia, A., Lee, K., and

Ueyama, J. (2004). A component model for building

systems software. In In Proc. IASTED Software Engi-

neering and Applications (SEA’04.

Ernst, R. (1998). Codesign of embedded systems: status

and trends. Design Test of Computers, IEEE, 15(2):45

–54.

Gajski, D. D., Gerstlauer, A., Adbi, S., and Schirner, G.

(2009). Embedded System Design: Modeling, Synthe-

sis, Veriﬁcation. Springer.

Han, C.-C., Kumar, R., Shea, R., Kohler, E., and Srivastava,

M. (2005). A dynamic operating system for sensor

nodes. In Proceedings of the 3rd international confer-

ence on Mobile systems, applications, and services,

MobiSys ’05, pages 163–176, New York, NY, USA.

ACM.

Henzinger, T. A., Horowitz, B., and Kirsch, C. M. (2001).

Embedded control systems development with giotto.

SIGPLAN Not., 36:64–72.

Jelenkovic, L. (2011). Operating System Increments

for Education and Research (OSIER), available at

https://github.com/l30nard0/os4ec.

Labrosee, J. J. (2002). MicroC/OS-II: The Real-Time Kernel

(2nd Edition). CMPBooks, 2nd edition.

Levis, P., Gay, D., Hadzinski, V., hinrich Hauer, J., Green-

stein, B., Turon, M., Hui, J., Klues, K., Sharp, C.,

Szewczyk, R., Polastre, J., Buonadonna, P., Nachman,

L., Tolle, G., Culler, D., and Wolisz, A. (2005). T2: A

second generation os for embedded sensor networks.

Technical report.

Nollet, V., Coene, P., Verkest, D., Vernalde, S., and Lauw-

ereins, R. (2003). Designing an operating system for

a heterogeneous reconﬁgurable soc. In Parallel and

Distributed Processing Symposium, 2003. Proceed-

ings. International, page 7 pp.

Wolf, W. (2001). Computers as Components: principels of

Embedded Computing System Design. Morgan Kauf-

mann Publishers.

ICINCO2012-9thInternationalConferenceonInformaticsinControl,AutomationandRobotics

594
