Facial Expression Recognition based on Facial Feature

and Multi Library Wavelet Neural Network

Nawel Oussaifi, Wajdi Bellil and Chokri Ben Amar

Research Group on Intelligent Machines (REGIM), National Engineering School in Sfax, Sfax University, Sfax, Tunisia

Keywords: Facial Expressions Classification, Wavelet Network, Facial Landmarking.

Abstract: In this paper, we propose a wavelet neural network-based system for automatically classifying facial

expressions. This system is based on Multi Library Wavelet Neural Network (MLWNN) for emotions

classification. Like other methods, our approach relies on facial deformation features. Eyes, mouth and

eyebrows are identified as the critical features and their feature points are extracted to recognize the

emotion. After feature extraction is performed a Multi Library Wavelet Neural Network approach is used to

recognize the emotions contained within the face. This approach differs from existing work in that we

define two classes of expressions: active emotions (smile, surprise and fear) and passive emotions (anger,

disgust and sadness). In order to demonstrate the efficiency of the proposed system for the facial expression

recognition, its performances are compared with other systems.

1 INTRODUCTION

Identifying human facial expressions has become an

important study field because of its inherent

intuitive appeal as well as its possible applications

such as human computer interaction, face image

compression, synthetic face animation and video

facial image queries .This paper describes a method

for facial expression recognition from image

sequences using 2D appearance-based local

approach for the extraction of intransient facial

features, i.e. features such as eyebrows, lips, or

mouth, which are always present in the image, but

may be deformed .

Facial expressions are of great importance, since

they usually provide a comprehensible view of

users’ reactions. Actually, Cohen commented on the

emergence and significance of multimodality, Albeit

in a slightly different human-computer interaction

(HCI) domain, in (Cohen, 1998), while Oviatt

(Oviatt, 1999) proposes that an interaction pattern

constrained to mere “speak-and-point” only makes

up for a very small fraction of all spontaneous

multimodal utterances in everyday HCI (Oviatt,

1997). In the context of HCI, Jaimes in (Jaimes,

2005) defines a multimodal system as one that

“responds to inputs in more than one modality or

communication channel abundance”. Mehrabian

(1968) suggests that facial expressions and vocal

intonations are the main means for someone to

estimate a person’s affective state (Zeng, 2007), with

the face being more accurately judged, or correlating

better with judgments based on full audiovisual

input than on voice input (Pantic, 2003). This fact

led to a number of approaches using video and audio

to tackle emotion recognition in a multimodal

manner (Ioannou, 2005), (De Silva, 2000), while

recently the visual modality has been extended to

include facial, head or body gesturing (Gunes,

2005), (Karpouzis, 2007).

2 WAVELET NEURAL

NETWORK FOR EMOTION

CLASSIFICATION

As it is known, the classic wavelet network CWNN

has a drawback which is the low speed of

convergence. For this reason new network

architecture, called multi-Library wavelet neural

network (MLWNN) was proposed by W. BELLIL

et.al in (Chihaoui, 2010), (Bellil, 2008), (Bellil,

2007). It is similar to the classic network, but with

some slight differences; the classic network uses

dilation and translation versions of only one mother

wavelet, but the new version constructs the network

by the implementation of several mother wavelets in

447

Oussaiﬁ N., Bellil W. and Ben Amar C..

Facial Expression Recognition based on Facial Feature and Multi Library Wavelet Neural Network.

DOI: 10.5220/0004034004470450

In Proceedings of the 9th International Conference on Informatics in Control, Automation and Robotics (ICINCO-2012), pages 447-450

ISBN: 978-989-8565-22-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

the hidden layer. The architecture of MLWNN is

presented in figure 1. The output of MLWNN is

given in equation 1 (Othmani, 2011).

 

 



w i

jip

kkpp

bxaxwxf

1),( 0

)()(

(1)

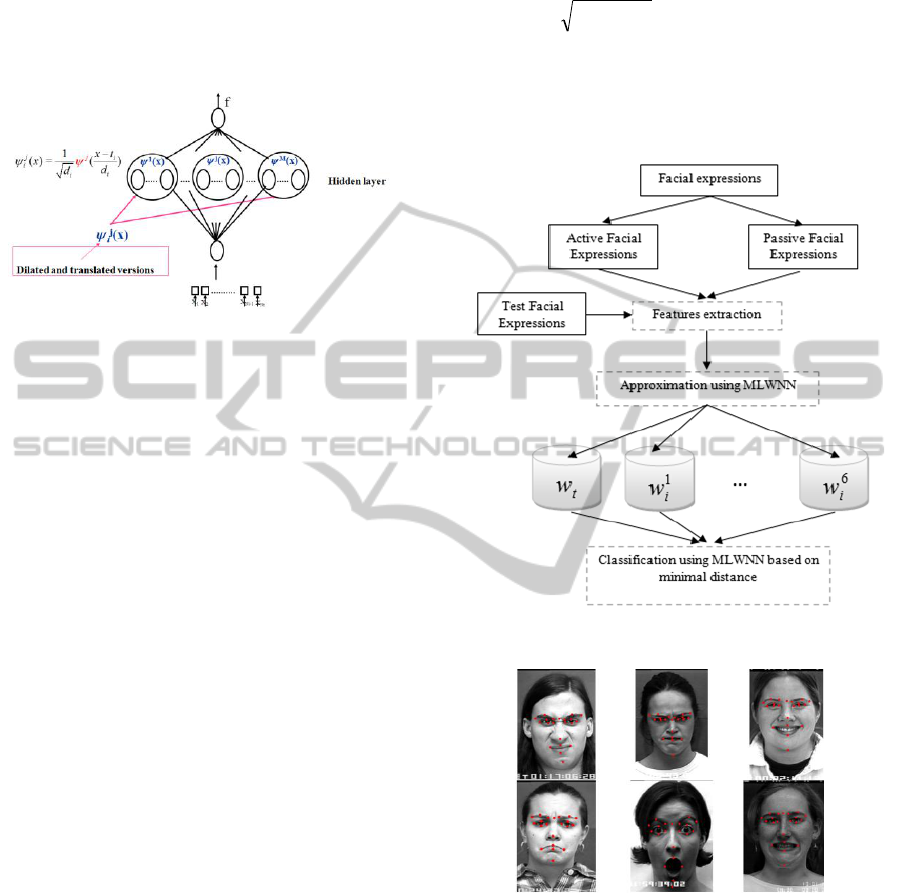

Figure 1: MLWNN architecture.

3 PRESENTATION OF THE

PROPOSED APPROACH

From a physiological perspective, a facial expression

results from the deformations of some facial features

caused by an emotion (Zeng, 2007). Each emotion

corresponds to a typical stimulation of the face

muscles. The aim of our work is to evaluate the

possibility of recognizing the six universal emotions

by only considering the deformations of permanent

facial features such as eyes, eyebrows and mouth.

The proposed algorithm is based on the analysis

of permanent features calculated on the face when

the emotion is product. We defined a model of each

emotion that is based on the facial deformation

characteristics (distance features and feature points).

We propose to define two expression categories:

active emotions (smile, surprise and fear) and

passive emotions (anger, disgust and sadness). 2D

facial emotion recognition occurs in two distinct

stages: the learning phase corresponds to a

representative vector of recording for each emotion

of persons in a data base. The model is built from 97

faces that are essentially extracted from the base

Cohn-Kanade Trade and represent different basic

expressions. 21 landmarks are manually positioned

on these images to generate characteristic vectors.

This phase determin 97 vectors for the six emotions,

then determining an average vector for each

emotion. A Multi Library Wavelet Neural Network

is used to approximate each vector by adjusting

wavelet structural parameters (weights, dilations and

translations). Six classes are generated for each

facial expression. For classification we used

minimum distance as defined in equation (2). Figure

2 shows facial expressions classification process.

 

6,...,1;,...,1)min(

 jNiwwd

(2)

Where: N

is the wavelet number in hidden layer

are the weights of the class j

are the weights of the 2D test face.

Figure 2: Proposed facial expression classification.

Figure 3: Manually landmark for different facial

expressions.

4 FACIAL EXPRESSION

REPRESENTATIONS

Facial expression representation is essentially a

feature extraction process which converts

representation of the face in terms of its landmarks.

A landmark-based representation uses facial

characteristic points which are located around

ICINCO 2012 - 9th International Conference on Informatics in Control, Automation and Robotics

448

specific facial areas, such as edges of eyes, nose,

eyebrows and mouth as shown in figure 3. Since

these areas show significant changes during facial

articulation, we proposed a geometric face model

based on 21 facial characteristic points for the

frontal face view as shown in Figure 4 (a).

Subsequently, thirteen characteristic distances are

defined and estimated in Figure 4 (b). After facial

feature extraction, a feature vector built from feature

measurements, such as the brows distance, mouth

height, mouth width etc., is created.

(a) (b)

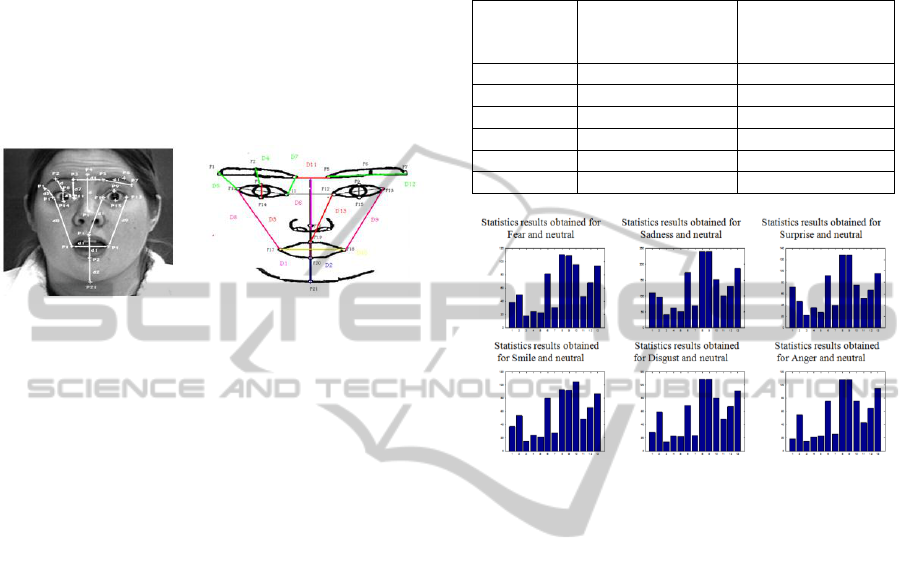

Figure 4: Facial feature points and Geometric measures

between facial feature points. D

shows distances.

5 RESULTS AND DISCUSSION

To evaluate our method, we use Cohn Kanade

expression database as input in our experiments. The

database contains image sequences of over 97

subjects. 65% of them are females, while 35% are

males. The motivation for the selection of this

database originates from its content, i.e, the fact that

image sequences depict the formation of human

facial expressions from the neutral state to the fully

expressive one.

First we considered to work with the same

parameters as the Hammal method, i.e. with the

thirteen characteristic distances shown in Figure 4

(b). To do this, we studied the variation of each

distance comparing to the neutral face for each

person of the database and for each emotion. An

example of the results obtained for distance D1,

D2,…, D13 is shown in Figure 5. From these

distances we used Multi Library Wavelet Neural

Network to classify emotions according to the value

of the states (Table 1).

To demonstrate the suitability of our approach

for facial expression recognition, we compare it with

Hammal method (Marti, 2007). One can see that for

Hammal approach anger, fear and sadness are not

recognized but in the proposed approach only

sadness is not recognized, because facial

deformations between sadness and neutral are very

small. For this reason we propose in future studies to

add some other characteristics for sadness emotion

to perform our approach.

Table 1: Classification rates of Hammal (second column)

and of our method (third column).

EMOTION

% SUCCESS

HAMMAL

METHOD

% SUCCESS

POPOSED

METHOD

Joy

87.26

85.56

Surprise

84.44

97.93

Disgust

51.20

84.53

Anger

not recognized

89.69

Fear

not recognized

80.41

Sadness

not recognized

Figure 5: Statistics results for the 13 characteristic

distances (x axis) obtained for the 6 emotions and neutral

face.

6 CONCLUSIONS AND FUTURE

WORK

We have presented a method based on wavelet

neural network for automatic facial expressions

classification. Simulation results show its simplicity

and produce very significant improvement rates. The

recognition rates for the proposed approach and

Hammal one are respectively 85.56 versus 87.26 for

joy, 97.93 against 84.44 for surprise and 84.53 over

51.20 for disgust. Anger and fear are recognized by

the proposed approach; but both of them do not

recognize sadness emotion. In the future, we hope to

introduce new characteristics in the form of face

distances or angles (for example the angle formed by

the eyebrows). Another noticeable short-term

objective is to track landmarks automatically using

salient point techniques.

ACKNOWLEDGEMENTS

The authors would like to acknowledge the financial

support of this work by grants from General

Facial Expression Recognition based on Facial Feature and Multi Library Wavelet Neural Network

449

Direction of Scientific Research (DGRST). Tunisia

under the ARUB program.

REFERENCES

Cohen P., Johnston M., McGee D., Oviatt S., Clow J.,

Smith I., The efficiency of multimodal interaction: A

case study. in Proceedings of International

Conference on Spoken Language Processing.

ICSLP'98. Australia. 1998.

Oviatt S., Ten myths of multimodal interaction.

Communications of the ACM. Volume 42. Number 11

(1999). Pages 74-81.

Oviatt S., DeAngeli. A, Kuhn K., (1997) Integration and

synchronization of input modes during multimodal

human-computer interaction. In Proceedings of Conf.

Human Factors in Computing Systems CHI'97. ACM

Press. NY. pp. 415 – 422.

Jaimes A., and Sebe N., Multimodal Human Computer

Interaction: A Survey. IEEE International Workshop

on Human Computer Interaction. ICCV 2005. Beijing.

China.

Mehrabian A., Communication without words. Psychology

Today. vol. 2. pp. 53–56. 1968.

Zeng Z., Tu J., Liu M., Huang T. S., Pianfetti B., Roth D.,

Levinson S., Audio-Visual Affect Recognition. (2007)

IEEE Trans. Multimedia. vol. 9. no. 2.

Pantic M., and Rothkrantz L. J. M., Towards an affect-

sensitive multimodal human-computer interaction

(2003). Proc. of the IEEE. vol. 91. no. 9. pp. 1370-

1390.

Ioannou S., Raouzaiou A., Tzouvaras V., Mailis T.,

Karpouzis K., Kollias S., Emotion recognition through

facial expression analysis based on a neurofuzzy

network (2005). Special Issue on Emotion:

Understanding & Recognition Neural Networks.

Elsevier. Volume 18. Issue 4.pp. 423-435.

De Silva L. C., and Ng P. C., Bimodal emotion

recognition (2000). in Proc. Face and Gesture

Recognition Conf. pp. 332-335.

Gunes H., and Piccardi M., Fusing Face and Body Gesture

for Machine Recognition of Emotions (2005). IEEE

International Workshop on Robots and Human

Interactive Communication. pp. 306 – 311.

Karpouzis K., Caridakis G., Kessous L., Amir N.,

Raouzaiou A., Malatesta L., Kollias S., Modeling

naturalistic affective states via facial vocal and bodily

expressions recognition (2007). AI for Human

Computing. LNAI Volume 4451/2007. Springer.

Chihaoui M., Bellil W., and Amar C., (2010): Multimother

wavelet neural network based on genetic algorithm for

1D and 2D functions approximation. In Proceedings

of the International Conference on Fuzzy Computation

and 2nd International Conference on Neural

Computation. pp 429-434.

Bellil W., Othmani M., Ben Amar C., Alimi M. A., (2008)

A new algorithm for initialization and training of beta

multi-library wavelets neural network. Aramburo J.

Ramirez Trevino A Advances in robotics. automation

and control. I-Tech Education and Publishing. pp

199–220.

Bellil.W, Othmani. M, Ben Amar. C., Initialization by

Selection for multi library wavelet neural network

training (2007). Proceeding of the 3rd international

workshop on artificial neural networks and intelligent

information processing ANNIIP07. in conjunction with

4th international conference on informatics in control.

automation and robotics ICINCO. pp.30–37.

Martí J., et al. (Eds.): IbPRIA (2007). Part II. LNCS 4478.

2007.

Othmani M., Bellil W., Ben Amar C., and Alimi M. A., A

novel approach for high dimension 3D object

representation using Multi-Mother Wavelet Network

(2011). International Journal Multimedia Tools and

Applications, MTAP, Springer Netherlands, ISSN

1380-7501, pp. 1-18.

ICINCO 2012 - 9th International Conference on Informatics in Control, Automation and Robotics

450
