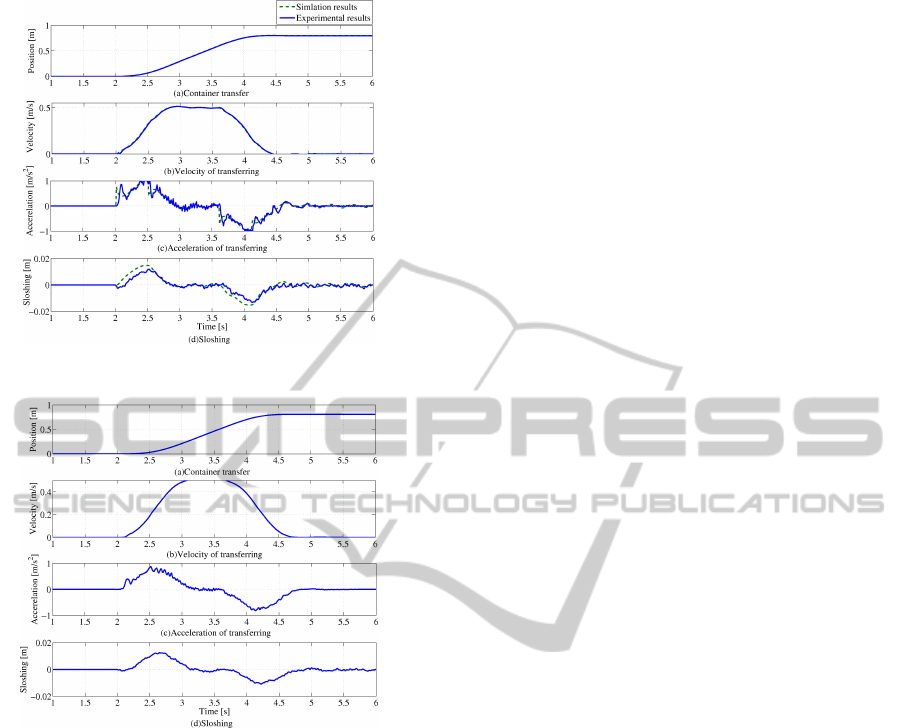

Figure 5: Experimental results (GPC control case).
Figure 6: Experimental results (use of a notch filter).
7 CONCLUSIONS
Using the state-space equation obtained using BEM,
we were able to precisely express the liquid surface
vibration during transfer and tilting of a container.
Moreover, using GPC, we were able to keep the liquid
surface flat during transfer of the container at a con-
stant speed when acceleration is applied in the hori-
zontal direction. In particular, we achieved immedi-
ate suppression of sloshing when the container stops.
Experimental results provide evidence that our con-
trol approach using both the BEM model and MPC
achieves better results than any conventional control
methods such as the notch filter technique and PID
control. Furthermore, useful research based on this
paper was reported (Shibuya et al., 2011)
REFERENCES
Abramson, H. and Chu, W.H.and Kana, D. (1966). Some
studies of non-linear lateral sloshing in rigid contain-
ers. J.Appl. Mechanics, Trans. ASME, 1966, pages
777–784.
Feddema, J., Dohrmann, C., Parker, G., Robinett, R.,
Romero, V., and Schmitt, D. (1997). Control for slosh-
free motion of an open container. IEEE Trans. on Con-
trol Systems Technology, 5(1):29–36.
Hamaguchi, M., Motegi, H., Terashima, K., and Nomura,
N. (1995). Optimal control of transferring a liq-
uid container with boundary element analysis, (in
japanese). Trans. of the Society of Instrument and
Control Engineers (SICE), 31(9):1442–1451.
Hamaguchi, M., Terashima, K., and Nomura, H. (1994).
Optimal control of transferring a liquid container
for several performance specifications, (in japanese).
Trans. of the Japan Society of Mechanical Engineers
(JSME) C, 60(573):1668–1675.
Ibrahim, R. (2005). Liquid Sloshing Dynamics. Cambridge
Univ.
Kimura, K., Takahara, H., and Sakata, M. (1996). Sloshing
in a circular cylindrical tank subjected to pitching ex-
citation (condition for liquid surface remaining plane).
Trans. of the Japan Society of Mechanical Engineers
(JSME), (96-1):1321.
Masuda, S., Shah, S., and Gopaluni, R. (2000). An adap-
tive state-space based gpc with a two-degrees-of free-
dom controller structure. In IFAC Advanced Control
of Chemical Processes.
Nakayama, T. and Washizu, K. (1981). The bound-
ary element method applied to the analysis of two-
dimensional nonlinear sloshing problems. Int. J. for
Numerical Methods in Engineering, 17:1631–1646.
Okatsuka, H., Matsuo, Y., and Inaba, T. (2002). Sloshing-
less manipulation of liquid in open-type containers,
(in japanese). Trans. of Simulation Technology Con-
ference, pages 161–164.
Oshima, M. (2000). Model predictive control (in japanese).
Trans. of the Society of Instrument and Control Engi-
neers (SICE), 39(5):321–325.
Romero, V. and Ingber, M. (1995). A numerical model
for 2-d sloshing of pseudoviscous liquids in horizon-
tally accelerated rectangular containers. Boundary El-
ements XVII, pages 567–583.
Shibuya, R., Okatsuka, H., Noda, Y., and Terashima, K.
(2011). Transferring and tilt motion control of the
liquid container to suprerss slothing by using gpc.
In IEEE/SICE International Symposium, pages 1055–
1060.
Yano, K., Oguro, N., and Terashima, K. (2001). Starting
control with vibration damping by hybrid shaped ap-
proach considering time and frequency specifications,
(in japanese). Trans. of the Society of Instrument and
Control Engineers (SICE), 37(5):403–410.
Yano, K. and Terashima, K. (2001). Robust liquid con-
tainer transfer control for complete sloshing suppres-
sion. IEEE Trans. on Control Systems Technology,
9(3):483–493.
