Towards Process Centered Information Security Management

A Common View for Federated Business Processes and Personal

Data Usage Processes

Erik Neitzel

1,2

and Andreas Witt

1,2

Faculty of Computer Science, Otto-von-Guericke University, Magdeburg, Germany

Department of Business and Management, University of Applied Sciences Brandenburg, Brandenburg, Germany

Keywords:

Security, Privacy, Federated Business Processes, Social Networks, Information Security (IS), Information

Security Management Systems (ISMS).

Abstract:

While comparing the progress of our two research projects of developing an information security management

system (ISMS) for federated business process landscapes and the enhancement of security of social networks,

we discovered a fundamental view congruency concerning the way information security can be handled. This

paper deals with a conceptual framework which uses the ISO 27001 and the German BSI IT-Grundschutz

Framework as a base for determining a methodology for a process based point of view towards information

security management for both federated business processes within business applications and personal data

usage processes within social networks. The proposed layers are (1) process layer, (2) application layer, (3)

network layer, (4) IT systems layer and (5) infrastructure layer.

1 SITUATION

Todays organisations depend on IT systems which

support their business processes in various ways.

Those processes, however, have evolved from a

single-organisation based support net into inter-

organisation based business processes, see ﬁgure 1.

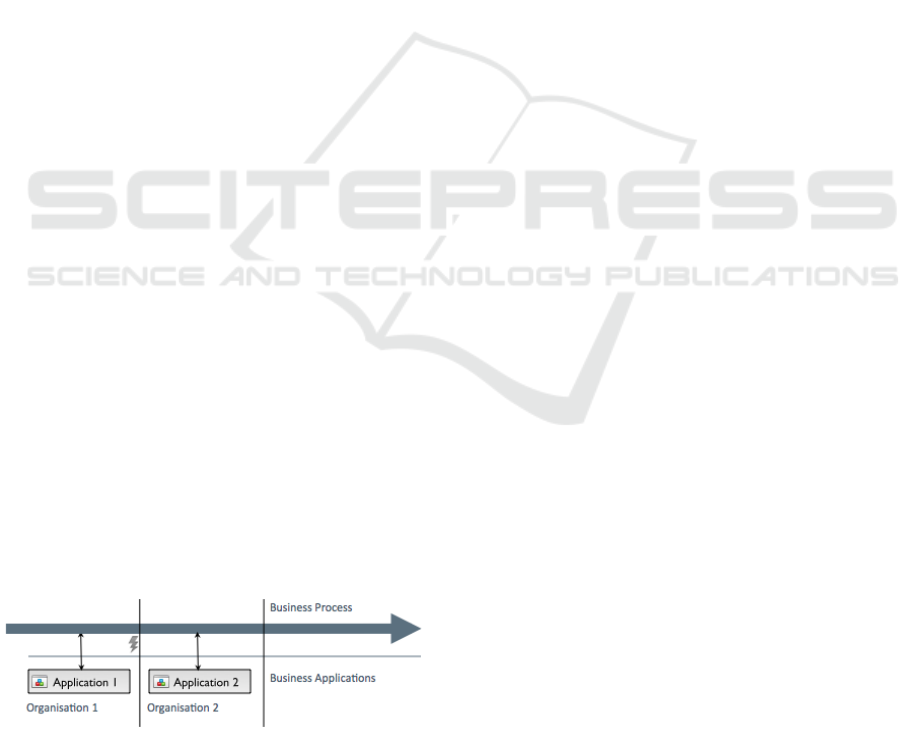

Figure 1: Federated business processes.

Generally, every organisation has to ensure the

value contribution of their IT along the goals of

the organisation. At the same time, the quality of

application systems has to be guaranteed. There

are economic criteria like costs and functional/non-

functional criteria (features, usability, security).

Some of those criteria are complementary. A distin-

guished position takes information security, as it is

not just a quality criterion, but serves the organisa-

tions drive of reaching its goals at the same time.

For the assurance of the above mentioned value

contributions there are both vendor independent

(ITIL, COBIT) as well as proprietary (MOF, ITSM,

ITPM) reference models. They describe goals, tasks,

organisational aspects and concrete results of IT con-

trols (Goeken, 2006). Hence, there are procedures

for implementing general IT governance for organi-

sations – often security aspects are adressed as well.

There are also information security management

systems (ISMS) like the ISO 2700x (ISO/IEC, 2009)

and the German BSI IT-Grundschutz 100-x (BSI,

2009) for the introduction and sustaining support of

the quality criterion and business enhancer informa-

tion security within an organisation. These frame-

works are based on the Demming cycle, which sug-

gests the phases Plan, Do, Check, Act (Walton, 1988).

Within the limits of one organisation there are

ﬁrst approaches for systematic procedure models as

presented by Nowey (Nowey and Sitzberger, 2006),

as well as suggestions for measuring security quality

within business application systems (Dorrhauer and

ockle, 2011). A generic web-based federation of

business application systems (Gaedke and Turowski,

1999) and approaches for their security are proposed

(Armando et al., 2006) (Arsac et al., 2011).

However, none of the mentioned frameworks

adresses the emerging need for governing business

processes across multiple organisations – neither for

189

Neitzel E. and Witt A..

Towards Process Centered Information Security Management - A Common View for Federated Business Processes and Personal Data Usage

Processes.

DOI: 10.5220/0004050301890192

In Proceedings of the International Conference on Data Technologies and Applications (DATA-2012), pages 189-192

ISBN: 978-989-8565-18-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

the general purpose of implementing a consistent

cross-organisation IT governance nor for supporting

information security management.

Analogously to the situation of single-

organisation business processes evolving into

inter-organisation based processes, social networks

experience a similar trend by means of inter-

organisational security issues, see ﬁgure 2. Within

the realm of huge social networks like Facebook, a

common business model is the selling of personal

data to other organisations for advertising. For exam-

ple, Facebooks ad revenues reaches $4.27 Billion in

2011 (Fredricksen, 2011).

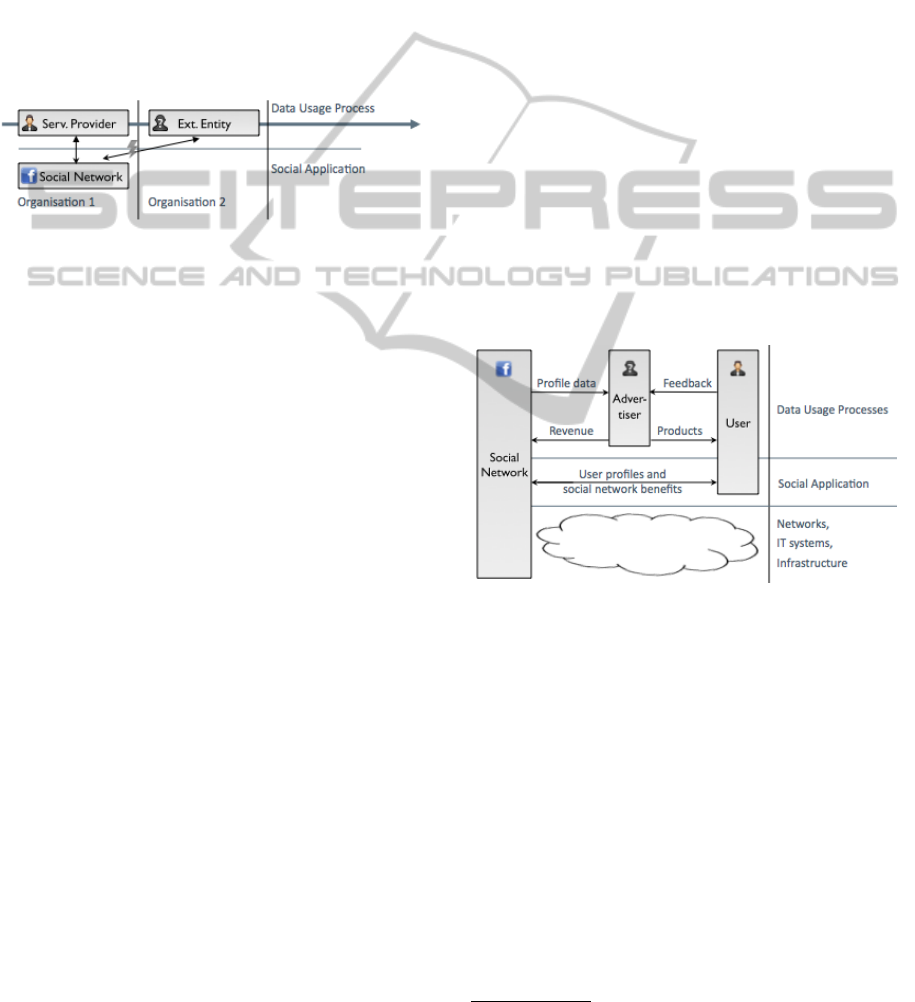

Figure 2: Social networks third party interests.

There are ideas regarding a re-invention of the so-

cial network using semantic P2P systems as presented

in (Schwotzer, 2011). As long as those concepts are

not turned into products, personal data will remain to

be processed by third parties as presented here.

Those personal data usage processes are quite

similar to business processes, as both of them are

spread across multiple IT systems, being carried by

various IT infrastructure components within differ-

ent organisations as many businesses are supported by

cloud based services.

2 PROBLEM

Generally, information security management deals

with the process of sustaining risk reduction regard-

ing various threats against the three main informa-

tion security criteria. Those criteria are conﬁdential-

ity, integrity and availability of information (ISO/IEC,

2009). Those criteria do not change when expanding

processes to multiple organisations – and nor do the

threats against them. The risk, however, rises signiﬁ-

cantly – and so does the need to implement effective

safeguards. As discussed earlier, there is no current

framework supporting information security manage-

ment across multiple organisations.

Regarding social networks, the mentioned risk is

similar. Data protection and privacy is compromised

by the joint network operation itself. In terms of infor-

mation security management, that means an extensive

risk against conﬁdentiality (here the conﬁdentiality of

personal data). Hence, the sustaining need for trans-

parency increases – and so does the need for reporting

on technical and organisatory safeguards being imple-

mented by organisations.

In case of social networks, there are different

points of view regarding security and privacy. The

social network itself has to protect its network against

hackers (Mirror, 2011). At the same time it has to of-

fer personal data of its users for selling. For that, most

social networks use Application Programming Inter-

faces (APIs) like Facebook’s Open Graph. For best

revenue of a social network provider users should re-

veal as much personal information as possible. By

doing so user proﬁles are getting more relevant for

advertisers. As a result users of social networks

could receive an unwanted overﬂow of commercial

information (Bognanni, 2008). Therefore, conﬂicts

arise between commercial use of user proﬁles by so-

cial networks and the user’s willingness towards their

own data and user generated content (M

orl and Groß,

2008). Hence, social networks, users and advertis-

ers are heavily depending on each other. This depen-

dency inﬂuences information security criteria – in-

tegrity, availability and conﬁdentiality, see ﬁgure 3.

Figure 3: Social networks/users/advertisers dependencies.

The above mentioned problems are also relevant

for companies which have their own social network,

e.g. Lego with Rebrick

or companies using social

networks for social commerce or social media mar-

keting campaigns. Social media marketing and social

commerce strategies often make use of fanpages or

own company accounts in different social networks.

Hence, companies that use social networks for their

online strategy have to integrate different IT systems

and external applications within their federated busi-

ness process landscapes.

http://rebrick.lego.com

DATA2012-InternationalConferenceonDataTechnologiesandApplications

190

3 SOLUTION

BSI (the German authority regarding IT security)

(BSI, 2009) suggests a framework compatible to the

requirements of the ISO 27001 in which a layered ap-

proach is used to simplify the problem of referencing

safeguards to categories of information security man-

agement relevant objects. Those layers are (1) inter-

sectoral aspects, (2) infrastructure, (3) IT systems, (4)

networks and (5) applications. The approach starts

with a layer that deals with general security man-

agement requirements for an organisation and is then

followed by layers beginning from physical to logi-

cal object categories. We argue that BSI’s approach

ﬁts single organisations information security needs

but not federated processes, as for that purpose a top

down approach would be necessary which begins at

the level of processes, not at the level of infrastruc-

ture. Generally the layered approach seems appropri-

ate to be pursued towards that problem.

As a conceptual model, we therefore argue that

a layered model shall be used that uses the basis of

the descriptive model presented by BSI but replaces

the intersectoral layer by a process layer and inverts

the order of the other layers. The requirements of

that process layer are the same as the requirements

presented in BSI’s layer 1 (intersectoral aspects), but

refers to the process, not the organisation. Thererfore,

several organisations would have to implement safe-

guards identiﬁed for that process.

We now argue that BSI’s remaining layers shall

be used in opposite order, to receive a top down secu-

rity management approach. In particular, the process

layer (1) shall be followed by applications (2), net-

works (3), IT systems (4) and infrastructure (5), see

ﬁgure 4

Furthermore, due to the same structure of organisa-

tions supporting business processes and organisations

using personal data of a person registered at a social

network; we conclude that a business process and a

personal data usage process are to be handled in the

same way regarding security management.

In addition, we propose that the safeguards that

need to be implemented according to ISO/BSI shall

be extended by the following two constructs:

(1) For the purpose of an individual’s privacy eval-

uation (Heidisch and Pohlmann, 2012) has presented

the idea of a “data letter” where each web entity that

processes personal data (e.g. a social network) regu-

larly has to inform the user about which kind of infor-

mation is stored and processed about him. As a result,

The ﬁgure was developed using Fugu Icons designed

by Yusuke Kamiyamane.

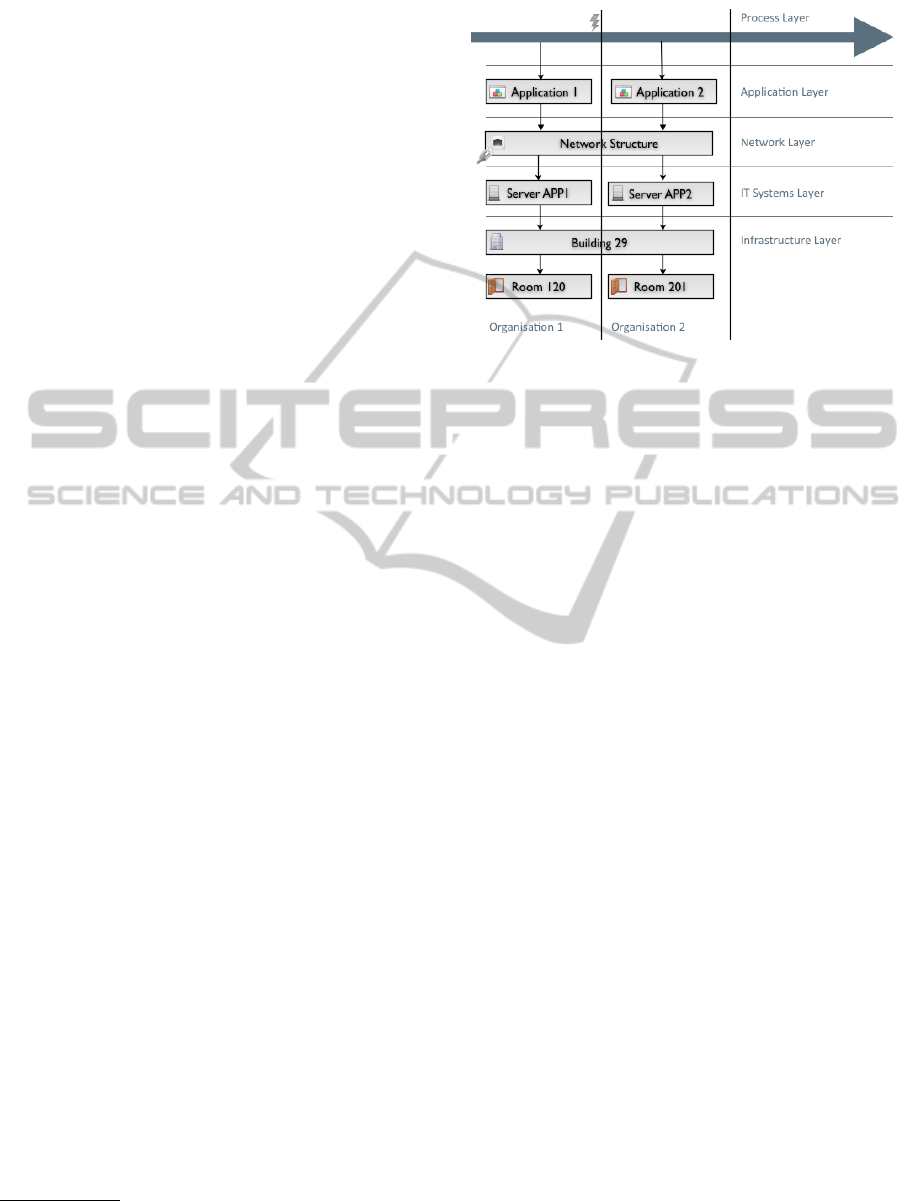

Figure 4: Proposed IS security management layers.

the user may request change and deletion of the infor-

mation presented.

(2) Based on the idea of the data letter, we propose

the introduction of an IT security letter (ITSL) that

informs the user about the actual security measures

that were implemented at the level of a providers (IT)

infrastructure. This ITSL could be voluntary, thereby

serving as a competitive advantage at the market.

The content of the ITSL shall include references

to the implemented safegaurd categories as deﬁned

in the ISO 27001. The broad guidelines deﬁned in

that standard would form both a solid and individu-

ally formable frame of which the user can get an im-

pression of how its stored and processed information

is guarded against attacks and failure.

The actual safeguards to be implemented for those

layers shall stay the same as deﬁned in ISO 2700x

and/or BSI IT-Grundschutz.

Following the proposed model, both federated

business processes and personal data usage processes

are secured towards threats against integrity, avail-

ability and conﬁdentiality – especially those of per-

sonal data within social networks.

4 OUTLOOK

Future research shall both conduct further evidence of

the presented problem and deliver an evualuation of

the effectiveness of the proposed model. The common

view and methodology shall be reﬁned and further

investigation be progressed regarding explicit safe-

guards serving the security of federated business pro-

cessed. In the end, a measurement model shall be de-

veloped to assess both the effectiveness and efﬁciency

of those safeguards.

TowardsProcessCenteredInformationSecurityManagement-ACommonViewforFederatedBusinessProcessesand

PersonalDataUsageProcesses

191

REFERENCES

Armando, A., Giunchiglia, E., Maratea, M., and Ponta, S. E.

(2006). An action-based approach to the formal spec-

iﬁcation and automated analysis of business processes

under authorization constraints. Journal of Computer

and Systems Sciences: Special issue on Knowledge

Representation and Reasoning, to appear.

Arsac, W., Compagna, L., Kaluvuri, S. P., and Ponta, S. E.

(2011). Security validation tool for business pro-

cesses. In Proceedings of the 16th ACM symposium

on Access control models and technologies, SAC-

MAT ’11, pages 143-144, New York, NY, USA. 2011,

ACM.

Bognanni, M. (2008). Mein freund der datenh

andler (daten-

sicherheit in sozialen netzwerken). Retrieved from:

http://www.stern.de/digital/online/datensicherheit-in-

sozialen-netzwerken-mein-freund-der-datenhaendler-

636203.html.

BSI (2009). Bsi-standard 100-1, 100-2, 100-3, 100-4.

Dorrhauer, C. and R

ockle, H. (2011). Messbarkeit der

Sicherheitsqualit

at im Lebenszyklus betrieblicher An-

wendungssysteme. In: Betriebliche Anwendungssys-

teme (Thomas Bartin, Burkhard Erdlenbruch, Frank

Herrmann, Christian M

uller), Proceedings of AKWI

Symposium, Worms.

Fredricksen, C. (2011). Facebook revenues to

reach $4.27 billion in 2011. Retrieved from:

http://www.emarketer.com/PressRelease.aspx?R=100

8601.

Gaedke, M. and Turowski, K. (1999). Generic Web-Based

Federation of Business Application Systems for E-

Commerce Applications. In: Engineering Federated

Information Systems (S. Conrad, W. Hasselbring, G.

Saake), Proceedings of the 2nd Workshop EFIS’99,

uhlungsborn (Germany).

Goeken, M. (2006). Referenzmodelle f

ur Betrieb und En-

twicklung von Anwendungssystemen. In: Vorgehens-

modelle und Projektmanagement - Assessment, Zerti-

ﬁzierung, Akkreditierung (H

ohn, R. et al.), Proceed-

ings of 14th Workshop of WI-VM Symposium GI,

Aachen.

Heidisch, M. and Pohlmann, P. D. N. (January 2012).

Der Elektronische Datenbrief. Institut f

ur Internet-

Sicherheit - if(is), FH Gelsenkirchen.

ISO/IEC (2009). International standard iso/iec 27000 ﬁrst

edition.

Mirror (2011). Facebook hacker admits break-

ing into social network’s servers. Retrieved

from: http://www.mirror.co.uk/news/technology-

science/technology/facebook-hacker-admits-break

ing-into-social-96681.

orl, C. and Groß, M. (2008). Soziale Netzwerke im Inter-

net – Analyse der Monitarisierungsm

oglichkeiten und

Entwicklung eines intergrierten Gesch

aftsmodells.

Verlag Werner H

ulsbusch, Boizenburg.

Nowey, T. and Sitzberger, S. (2006). Lernen vom Busi-

ness Engineering - Ans

atze fuer ein systematisches,

modellgestuetztes Vorgehensmodell zum Sicherheits-

management. In: Multikonferenz Wirtschaftsinfor-

matik 2006 (Lehner, Franz und N

osekabel, Holger

und Kleinschmidt, Peter). Proceedings 2. Gito, Berlin.

Schwotzer, T. (2011). Distributed Context Space (DCS) -

foundation of semantic P2P systems. 3rd International

ICST Conference on IT Revolutions, Cordoba / Spain.

Walton, M. (1988). Deming Management Method. Perigee

Trade.

DATA2012-InternationalConferenceonDataTechnologiesandApplications

192
