Graph-based Campaign Amplification in Telecom Cloud

M. Saravanan

, Sandeep Akhouri

and Loganath Thamizharasu

Ericsson R&D, Ericsson India Global Services, Chennai, India

College of Engineering Guindy, Anna University, Chennai, India

Keywords: Telecom Cloud, Campaign Management, NoSQL Graph Database, Map Reduce Framework.

Abstract: Majority of telecom operators are making a transition from a monolithic, stove-pipe approach of creating

services to a more flexible architecture that provides them agility to rapidly develop and deploy services.

New revenue streams require an ability to rapidly identify and target dynamic shifts in traffic patterns and

subscriber behaviour. As subscriber behaviour morphs with plans, promotions, devices, location and time,

this presents challenges and opportunities for an operator to create and launch targeted campaigns. The

enormous volume of data being generated requires a scalable platform for processing massive xDR (eg. Call

Detail Records). This paper proposes graph databases in a telecom cloud environment for quickly

identifying trends, isolating a targeted subscriber base and rapidly launching campaigns. We also highlight

the limitations of a conventional relational database in terms of capturing complex relationships as

compared to a NoSQL graph database and the benefits of automatic provisioning and deployment in the

cloud environment.

1 INTRODUCTION

As mobile penetration worldwide reaches near

saturation level, telecom operators are looking

beyond net additions of subscribers for revenue

growth. Improvements in operational efficiency

leading to increased consolidation and managed

services will help reduce costs. However, the growth

in revenues will be driven by innovative service

offerings and service differentiation. Tiered data

plans and Quality of Service (QoS) offerings are

steps in this direction. Monetizing new revenue

streams and leveraging partnerships will require

operators to significantly improve subscriber

intelligence.

We explore generating dynamic campaigns that

can be launched in parallel. A BigData platform in a

hybrid cloud environment provides ability to process

large volumes of data while leveraging the

advantages inherent with cloud platform (Zhang et

al., 2010). To enhance the process, we have used

another upcoming technology - graph databases in a

highly scalable Hadoop (Tom, 2009) framework.

Sophisticated queries were efficiently modelled

using a NoSQL graph database for generating

various types of campaigns in a telecom cloud

environment (Leavitt, 2010). We also explored the

graph indices available with the graph database for

generating the node-level summary.

The main contributions of this paper are: (i) a

newly developed software framework for modeling

cloud computing environments (ii) An end-to-end

cloud network architecture that supports the huge

telecom volume and various services and (iii) It

exposes powerful graph-based features that could

easily be extended for modeling custom cloud

computing environments (like automatic campaigns)

and other applications.

2 BACKGROUND

Cloud computing is a promising paradigm for the

provisioning of IT services in any new applications

(Paul and Dan, 2010). Recent advances in cloud

computing, BigData platforms such as Hadoop and

NoSQL technologies present a unique opportunity

for telecom operators to improve upon their

subscriber intelligence. Call Detail Records

(CDRs/xDRs) contains the details of the calls made

by the customers. The data related to the customers

interest added to the existing dataset. This synthetic

data is added for launching targeted campaigns In

this paper, we use HDFS and MapReduce

195

Saravanan M., Akhouri S. and Thamizharasu L..

Graph-based Campaign Ampliﬁcation in Telecom Cloud.

DOI: 10.5220/0004050801950198

In Proceedings of the International Conference on Data Technologies and Applications (DATA-2012), pages 195-198

ISBN: 978-989-8565-18-1

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

framework to develop a reliable and high

performance platform for processing, aggregation

and storage of CDRs. We leverage the automatic

provisioing and utility pay-as-you-use model

provided by a cloud computing (Armbrust et al.,

2010). We experimented with several graph

databases and chose InfiniteGraph (Wood, 2011) for

modeling the inherent call graph structure.

2.1 Telecom Cloud

Majority of telecom operators manage a large

computing infrastructure comprising of a diverse set

of hardware, software and applications. They

operate in a high availability, performance and

secure environment. In this paper, we propose using

a private cloud to offload the batch processing and

storage of xDR. This provides an ability to handle

peak workloads and release excess computing

capacity for other applications. As discussed, the

private cloud environment can be setup internally. In

order to cost efficiently scale the graph databases,

we are using Amazon’s Infrastructure as a Service

(IaaS) (Garfinkei, 2007) for public cloud setup. The

graph database can be exposed as Software as a

Service (SaaS) for a variety of applications,

customers and partners. The proposed model tackles

the pre-processing and batch operations in an on-

premise private cloud. It hosts the graph database in

a public cloud for generating campaigns.

A campaign lifecycle comprises of 3 major

phases – identify the subscribers, launch the

campaign and follow-up. Potential subscribers for a

campaign can be identified based on segmentation

performed on behavioural characteristics e.g. high

spend, low usage etc. Triggers associated with

business rules can also be used to identify a target

set e.g. send international rate plan promotion to

subscribers who make an international call.

With the available information, campaign

computing based on graphs allow us to quickly

identify subscribers with a certain interest e.g.

subscribers who are interested in a major sporting

event can be identified by traversing the graph with

a search criteria. In addition to simply identifying

the subscribers, we can also get detailed

information

on the ‘neighbourhood’ of subscribers who fit these

criteria. We can explore if these people are part of a

smaller network etc.

Campaign Computing allows operators to

perform a deeper level of analysis. It is tightly

integrated with social networking and forms the

basis of more dynamic marketing models. Current

campaign management systems can design rules to

identify subscribers who are travelling to a different

city and send a promotion. However, graph based

systems can allow the operator to send a reference of

another subscribers from the subscribers circle of

friends who is already using this promotion.

2.2 Graph based Analytics

Graph analytics is the study and analysis of data that

is formed as a network (graph) of objects and

relationships (Modani et al., 2010). Unlike

traditional analytics that focuses on summarizing,

grouping and filtering data, Graph analytics

addresses traversing and navigating the network.

The benefit of using graph database is to quickly

find relationships, connections and patterns between

objects (Saravanan et al., 2011).

InfiniteGraph (Wood, 2011) is a java API used

for creating and managing graph database which

provides fast and efficient query by traversal

operation across massive and distributed data stores.

It supports breaking down navigational queries into

subtasks and executing them across clusters. The

federated InfiniteGraph architecture (collection of

distributed databases) allows elastic scalability of

both processing and data in the cloud environment.

Other major graph database alternatives are

AllegroGraph, graphDB, FlockDB and Pregel.

Telecom call graphs can be modeled with edges

to denote voice calls, connections to websites,

relationship between users etc. Edge weights can be

used to denote call duration, call cost etc. Nodes

designate subscribers. Subscriber information such

as demographics, home location etc. can be stored at

the node level. Often, campaigns are launched using

aggregated data attributes e.g. usage for past 3

months > 100 minutes. In order to accommodate

these cases, aggregated and derived data can also be

stored at the node level.

3 TELECOM CLOUD

ENGINEERING

In this section, we discuss building a telecom cloud.

We use open source Eucalyptus (Nurmi et al., 2009)

to build the private cloud. Amazon Web services are

used for public cloud setup. The internal private

cloud provides an operator complete control over the

environment and enforces stringent security

requirements. The public cloud provides scalability

and access to enterprise users, subscribers and

partners. The confidential data and its pre-processing

DATA2012-InternationalConferenceonDataTechnologiesandApplications

196

are maintained in the private cloud and not exposed

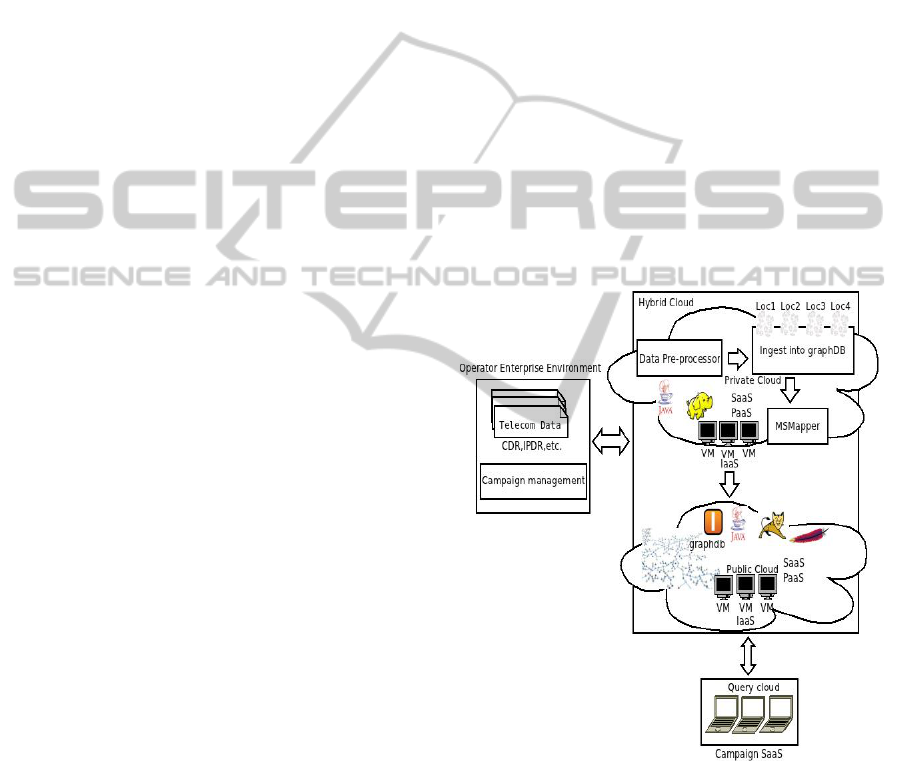

in the public cloud. Fig. 1 describes the proposed
