A Simulation-based Scheduling Strategy for Scientiﬁc Workﬂows

Sergio Hern´andez, Javier Fabra, Pedro

Alvarez and Joaqu´ın Ezpeleta

Arag´on Institute of Engineering Research (I3A), Department of Computer Science and Systems Engineering,

University of Zaragoza, Zaragoza, Spain

Keywords:

Scientiﬁc Workﬂows, Grid Modelling and Simulation, Workloads, Performance Analysis.

Abstract:

Grid computing infrastructures have recently come up as computing environments able to manage hetero-

geneous and geographically distributed resources, being very suitable for the deployment and execution of

scientiﬁc workﬂows. An emerging topic in this discipline is the improvement of the scheduling process and

the overall execution requirements by means of simulation environments. In this work, a simulation compo-

nent based on realistic workload usage is presented and integrated into a framework for the ﬂexible deployment

of scientiﬁc workﬂows in Grid environments. This framework allows researchers to simultaneously work with

different and heterogeneous Grid middlewares in a transparent way and also provides a high level of abstrac-

tion when developing their workﬂows. The approach presented here allows to model and simulate different

computing infrastructures, helping in the scheduling process and improving the deployment and execution

requirements in terms of performance, resource usage, cost, etc. As a use case, the Inspiral analysis workﬂow

is executed on two different computing infrastructures, reducing the overall execution cost.

1 INTRODUCTION

Grid computing emerged as a paradigm for the devel-

opment of computing infrastructures able to share het-

erogeneous and geographically distributed resources

(Foster and Kesselman, 2003). Due to their compu-

tational and networking capabilities, this type of in-

frastructure has turned into execution environments

suitable for scientiﬁc workﬂows, which require inten-

sive computations as well as complex data manage-

ment. Nevertheless, the comparison of existing Grid

workﬂow systems has shown relevant differences in

the building and execution of workﬂows that causes

experiments programmed by scientists and engineers

to be strongly coupled to the underlying system re-

sponsible for their execution (Rahman et al., 2011; Yu

and Buyya, 2005). Therefore, two of the most inter-

esting open challenges in the ﬁeld of scientiﬁc com-

puting are the ability to program scientiﬁc workﬂows

independently of the execution environment and the

ﬂexible integration of heterogeneous execution envi-

ronments to create more powerful computing infras-

tructures for their execution.

This new generation of computing infrastructures

requires new strategies of resource brokering and

scheduling to facilitate the utilization of multiple-

domain resources and the allocation and binding of

workﬂow activities to them. An emerging topic in

this discipline is the use of simulation environments

to help in the scheduling process, improving the over-

all execution requirements in terms of resource us-

age, time and costs. Some approaches such as GMBS

(Kert´esz and Kacsuk, 2010) or SCI-BUS

, for in-

stance, propose the use of simulation tools to evaluate

the best meta-scheduling strategy. Different schedul-

ing policies can be evaluated to decide the most suit-

able allocation of workﬂow activities to resources. On

the other hand, another research focus on the devel-

opment of a novel scheduling algorithm and its ex-

ecution over a simulated environment. The results

are then compared with other similar algorithms in

order to classify the algorithm with respect to some

predeﬁned criteria. Strategies are normally compared

in terms of makespan (Hamscher et al., 2000; Abra-

ham et al., 2006; Yu and Shi, 2007), simulation times

(Ludwig and Moallem, 2011) or queue times (Yu and

Shi, 2007; Ludwig and Moallem, 2011).

Regardless of the problem to be solved, simula-

tion environments may consider execution environ-

ment models and workloads with the purpose of im-

proving scheduling decisions. The ﬁrst provide a

complete speciﬁcation of architectures and conﬁgura-

tions of the execution environment. Flexible mecha-

nisms for the speciﬁcation of these models should be

http://www.sci-bus.eu/

Hernández S., Fabra J., Álvarez P. and Ezpeleta J..

A Simulation-based Scheduling Strategy for Scientiﬁc Workﬂows.

DOI: 10.5220/0004061200610070

In Proceedings of the 2nd International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2012),

pages 61-70

ISBN: 978-989-8565-20-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

provided, specially to model evolving and heteroge-

neous computing infrastructures. Meanwhile, work-

loads are logs of job sets based on historical data or

statistical models representing jobs to be executed in

the environment. The relation between workloads and

scheduling policies turns around the necessity of us-

ing a workload ﬁtting the characteristics of jobs ex-

ecuted in the infrastructure in order to evaluate the

suitability of a concrete scheduling algorithm in real

terms. In (Feitelson, 2002), the beneﬁts of using

workloads as well as how to use them to evaluate a

system are discussed. However, their use is still rather

limited, due mainly to the complexity of its creation,

being the process automation a difﬁcult task. There-

fore, workloads are mainly used just for the analysis

of Grid systems (Iosup and Epema, 2011; Li et al.,

2004). Understanding these real workloads is a must

for the tuning of existing Grids and also for the design

of future Grids and Cloud infrastructures.

In (Fabra et al., 2012), a framework for the deploy-

ment and execution of scientiﬁc workﬂows whose

main features are described in Section 2 was pre-

sented. This framework facilitates the ﬂexible in-

tegration of heterogeneous Grid computing environ-

ments, addressing the challenge of creating more

powerful infrastructures. Besides, its architectural de-

sign guarantees that workﬂow programmers do not

need to be aware of this heterogeneity. In this paper,

we integrate new components into our framework for

the simulation of scientiﬁc workﬂows using realistic

workloads, allowing the improvement and ﬂexibility

of job allocation by means of a meta-scheduler. Un-

like other approaches which are focused on assisting

the researcher, in our proposal simulation results are

internally used to make scheduling decisions transpar-

ently to researchers and their workﬂows. Obviously,

the complexity of this simulation-based scheduling is

increased by the evolving nature of the underlying

computing infrastructure.

The information obtained from the simulator com-

ponent can also be used by the meta-scheduler in or-

der to carry out some optimization process depend-

ing on the parameters to be optimized. For instance,

it is possible to provide a better-execution-time algo-

rithm which schedules the execution of jobs on the

most suitable computing infrastructure depending on

the workload provided at the execution time. It is also

possible to easily minimize resource costs while keep-

ing a deﬁned relation between execution time and in-

volved costs, for instance.

The remainder of this paper is organized as fol-

lows. The main features of the developed framework

in which the presented simulation approach is inte-

grated are described in Section 2. The design and im-

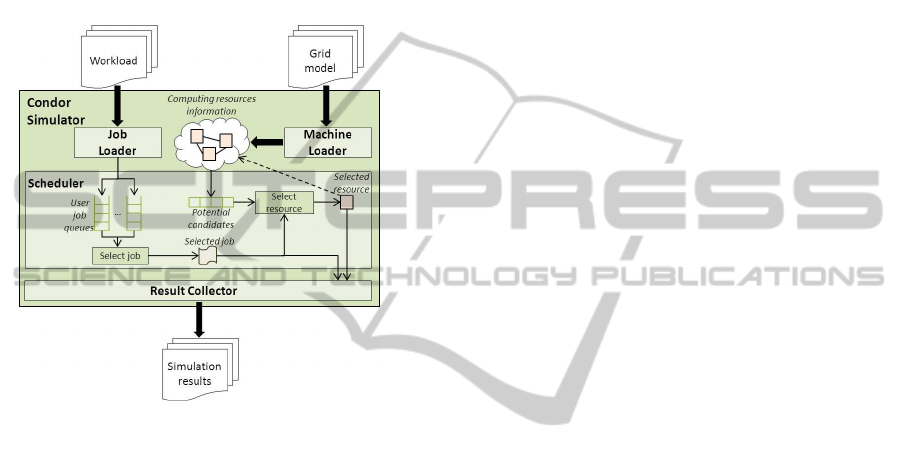

plementation of the simulator is sketched by means of

the application to a real cluster which uses Condor in

Section 3. The ﬂexibility and reuse capabilities of the

component are then depicted in Section 4 by means of

the integration of another real Grid managed by gLite.

Then, the simulation approach integration is applied

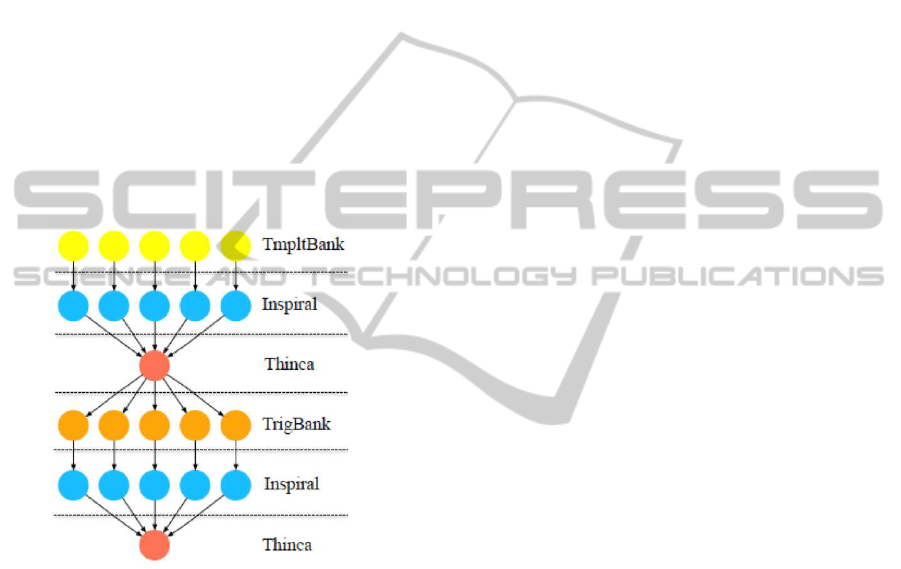

to the development of a real case study, the LIGO In-

spiral analysis workﬂow in Section 5. Finally, Section

6 concludes the paper and addresses future research

directions.

2 EVOLVING TOWARDS THE

ADAPTABLE DEPLOYMENT

OF SCIENTIFIC WORKFLOWS

The proposed Grid-based framework for program-

ming and executing scientiﬁc workﬂows is able to

tackle some of the open challenges in the ﬁeld of Grid

computing. From the programmer’s point of view,

workﬂows can be programmed independently of the

execution environment where the related tasks will be

executed. Different standard languages, widely ac-

cepted by the scientiﬁc community (e.g. Taverna),

can be used for programming this type of abstract

workﬂows. On the other hand, the proposed frame-

work is open and ﬂexible from the computing re-

source integration’s point of view. First, and in ac-

cordance with this feature, it is able to simultaneously

work with different Grid middlewares or middlewares

implemented using other alternatives (e.g. Web ser-

vices). And, secondly, heterogeneous execution en-

vironments can be added, modiﬁed or even removed

without previous announcement and in a ﬂexible and

transparent way. Therefore, the combination of these

features turns our solution into a novel and suitable

proposal in the ﬁeld of scientiﬁc workﬂows (Yu and

Buyya, 2005).

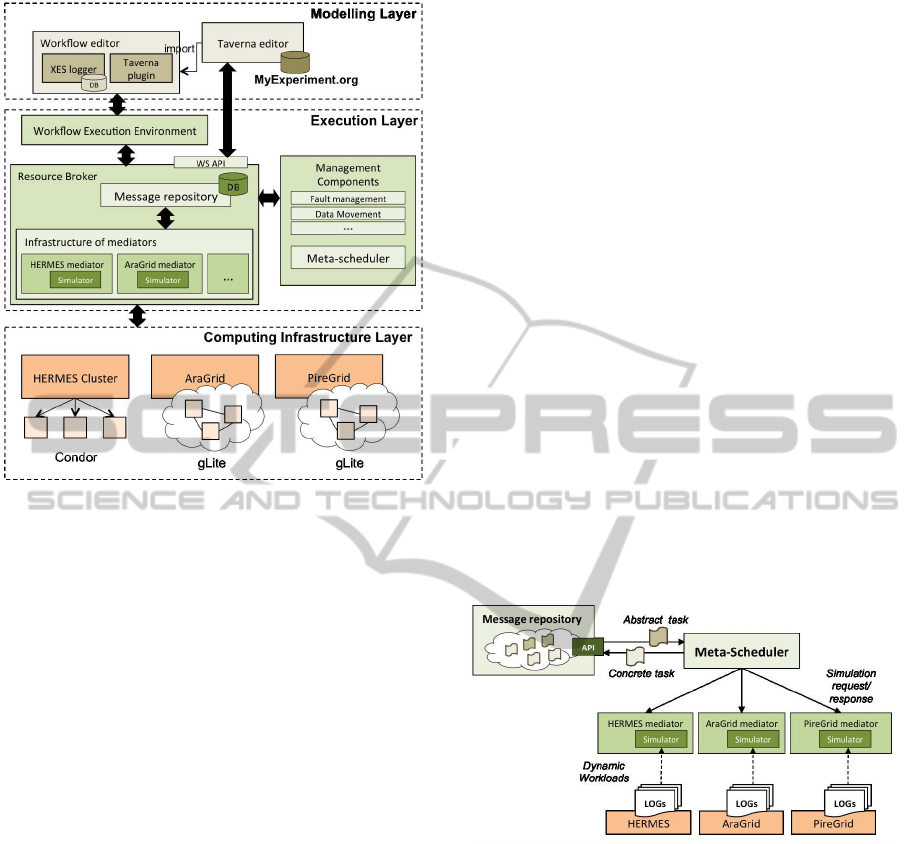

Figure 1 shows the high-level architecture of the

proposed framework. A more detailed description is

outside the scope of this paper. Let us concentrate on

the process of executing workﬂow tasks and the ar-

chitectural components involved in it.

Once a workﬂow has been deployed, the work-

ﬂow execution environment is responsible for control-

ling its execution and submitting tasks to the resource

broker by means of its interface as they must be exe-

cuted. Submitted tasks are then stored into the mes-

sage repository as messages that encapsulate the in-

formation needed for the execution of a task, includ-

ing the application to be executed, the references to

input and output data, a description of the resources

required for its execution (operating system, CPU ar-

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

Figure 1: Architecture of the execution environment.

chitecture and features, memory, network bandwidth,

etc.) and QoS parameters. These messages are de-

scribed using the JSDL standard. Optionally, the tar-

get computing environment responsible for the task

execution can be also included into the message. This

type of tasks is called concrete tasks. Nevertheless,

workﬂowswill be usually programmed independently

of the execution environmentwhere their tasks will be

executed (abstract tasks). This decision tries to take

full advantage of the integration capabilities of rid-

based framework.

An infrastructure of mediators uncouples the re-

source broker from the speciﬁc and technological de-

tails about the Grid-based computing environments

where tasks will be executed. Each computing en-

vironment is represented by a mediator. Internally,

a mediator handles a complete information about the

Grid infrastructure it represents. Subsequently, this

knowledge will be used by the mediator to interact

with the message repository and to ﬁnd at run-time

abstract tasks that could be executed by its middle-

ware. Therefore, mediators are responsible for mak-

ing dispatching decisions related to the execution of

tasks. Obviously, in this dispatching model more

than one mediator could compete for the execution

of a speciﬁc task (the criterion would be that their

corresponding middlewares were able to execute it).

This proposal is an alternative to traditional solutions

based on the use of a centralized task scheduler re-

sponsible for deciding where tasks will be executed.

Finally, each mediator dispatches its tasks to the

middleware managing the infrastructure it represents

for their execution and stores the results of the exe-

cuted tasks into the message repository, as well as the

resulting execution log, which can be used for moni-

toring or analysis purposes. These results will be sub-

sequently recovered by the workﬂow execution envi-

ronment for controlling the execution of the deployed

workﬂow.

2.1 Improving the Scheduling

Capabilities of the Framework

The dispatching strategy of our proposal presents a

set of drawbacks: 1) performance issues related to the

execution of tasks are not considered by mediators

(therefore, a task could be executed by an inappro-

priate computing environment degrading the perfor-

mance of the whole workﬂow); 2) dispatching deci-

sions are locally adopted by each mediator and, con-

sequently, one of them could monopolize the execu-

tion of pending tasks (this could cause unnecessary

overloads on its corresponding computing environ-

ment); and, ﬁnally, 3) the real behaviour of the ex-

isting computing environments and the state of their

resources is also ignored by the mediators.

Figure 2: Architectural components for the simulation-

based scheduling.

In order to solve the previous drawbacks and also

to improve and enhance our infrastructure, a meta-

scheduler based on simulation techniques will be in-

tegrated into the Grid-based framework in this paper.

Figure 2 represents the alternative process of execut-

ing workﬂow tasks using a meta-scheduler. Initially,

pending (abstract) tasks are stored into the message

repository. The meta-scheduler retrieves this type of

tasks for determining where they will be ﬁnally ex-

ecuted. Scheduling decisions are made by simulat-

ing the execution of each task in the existing com-

puting environments and analysing the simulation re-

sults. With these results, the task is made concrete

and then submitted to the message repository, allow-

ing the task to be executed by the selected mediator.

ASimulation-basedSchedulingStrategyforScientificWorkflows

The interface of mediators has been extended to

support this process. Now, each mediator exposes

a set of operations able to simulate the execution of

a task. Internally, a simulator has been integrated

into each mediator for providing the required func-

tionality. More speciﬁcally, the simulator is able

to: 1) model the corresponding computing environ-

ment managed by the mediator (computing resources,

memory, network bandwidth, user and scheduling in-

ternal policies, etc.); 2) select the most suitable work-

load for representing the real behaviour of the com-

puting environment and the state of its resources (ex-

ecution logs are used for creating these workloads);

and, ﬁnally, 3) simulate the execution of tasks mea-

suring parameters such as the execution time, the data

transfer time, the queuing time, the consumed mem-

ory, etc.

In the following, the design and implementation

of the simulator component is depicted. As it will be

shown, this component is ﬂexible enough as to allow

an easy adaptation for different computing infrastruc-

tures with different scheduling policies.

3 SIMULATING WORKFLOW’S

EXECUTION

As stated, the simulator component has been inte-

grated as an internal component in each mediator.

Therefore, each computing infrastructure can han-

dle different and customized simulation capabilities.

Anyway, simulators are accessed through a well de-

ﬁned API, so adding new simulators to the framework

is a guided and easy process. Also, coupling simu-

lation components with mediators allows developers

to introduce new computing infrastructures without

needing to implement them. Obly the corresponding

scheduling policy and the associated simulator must

be considered.

The simulation component receives the Grid

model and the workload as an input, which are stored

as ﬁles accessible from the corresponding mediator.

Then, after a processing cycle, it generates as a re-

sult the execution estimation in terms of time and re-

source usage with respect to the input provided. The

simulator also provides some metrics for analysis pur-

poses such as the average system utilization of each

resource, for instance, which can be used to improve

the process.

In the following, the design and implementation

of the simulation component is sketched by means of

the description of two real use cases: the HERMES

cluster and the AraGrid multi-cluster Grid.

3.1 Overview of the HERMES Cluster

HERMES is a cluster hosted by the Arag´on Institute

of Engineering Research (I3A)

. In general terms,

HERMES consists of 1308 cores and 2.56 TB of

RAM. More speciﬁcally, it consists of 126 heteroge-

neous computing nodes, including 52 nodes with two

2.33 GHz 4-core Intel Nehalem CPUs and 24 GB of

RAM per node, 48 nodes with two 2.00 GHz 8-core

AMD Magny-Cours CPUs and 16 GB of RAM per

node, 12 nodes with a 3.00 GHz 4-core Intel Wood-

creest quadcore CPUs and 8 GB of RAM per node,

11 nodes with two 2.33 GHz 2-core Intel Woodcreest

CPUs and 4 GB of RAM per node, and 4 nodes with

two 2.66 GHz 4-core Intel Woodcrest CPUs and 16

GB of RAM per node. The computing nodes in HER-

MES are connected by Gigabit links, allowing high-

speed data transfers.

At the moment of this writing, the cluster is man-

aged by the Condor

middleware version 7.6.3.

The cluster is used by a vast variety of researchers,

mainly focused on inductive and physical systems,

automotive systems, discrete event system analysis

and complex semantic workﬂow analysis. System uti-

lization is usually focused on the use of CPUs rather

than memory consumption. Data inputs are usually

small sized, although there is a group handling com-

plex experiments with ﬁles of more than 20TB. The

analysis of relevant workloads shown that the aver-

age user is not aware of load peaks or advanced con-

ﬁguration issues, which normally produces that ex-

periments last extremely long, require oversized re-

sources or even are queued for long times. In this

scenario, our proposal for a framework which would

optimize such situations is extremely useful from both

the researcher and also the system usage perspectives.

3.2 Implementation Details of the

HERMES Simulator

Alea (Klus´aˇcek and Rudov´a, 2010) has been used to

implement the internal simulator in the HERMES me-

diator component. Alea is an event-based simulator

built upon the GridSim toolkit (Sulistio et al., 2008).

Alea extends GridSim and provides a central sched-

uler, extending some functionalities and improving

scalability and simulation speed. Alea has been de-

signed to allow an easy incorporation of new schedul-

ing policies and to easily extend its functionalities.

Also, Alea provides an experimentation environment

easy to conﬁgure and use, which helps in the quick

http://i3a.unizar.es

http://research.cs.wisc.edu/condor/

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

and rapid development of simulators when a new in-

frastructure is going to be added to the system.

The original implementation of Alea has been ex-

tended to allow some Condor features such as user

priorities, RAM requirements and preemptions. Fig-

ure 3 depicts the structure of the simulator. As shown,

it consists of two input ﬁles, the workload and the

Grid model, and four main modules, the Job Loader,

the Machine Loader, the Scheduler and the Result

Collector, respectively.

Figure 3: Architecture of the Condor simulator based on

Alea.

Multiple workload have been composed using the

cluster execution logs from the last year and identi-

fying common situations of resource utilization and

job submission. The workload is represented using

the Grid Workload Format (GWF format) proposed

by the Grid Workload Archive (GWA) (Iosup et al.,

2008a). For each job, the job execution time, the num-

ber of CPUs required, the memory requirements, the

user and group who executes the job and the job de-

pendencies (if exists) are provided. More details on

the creation of workloads is provided in subsection

5.1.

The Grid model is a text ﬁle that contains the in-

formation of each computing node. The representa-

tion of each node includes a node identiﬁer, the num-

ber of machines, the number of CPUs per machine,

the total amount of memory per machine, the sys-

tem architecture, its operating system and the network

characteristics. Also, a failure model can be detailed

to reﬂect dynamic changes in the infrastructure during

the simulation.

The Job Loader component reads the job descrip-

tions and sends them to the scheduler. This module

has been extended to allow RAM requirements and

user and group details of the submitted jobs.

The Machine Loader component is responsible for

reading the resource description from a ﬁle containing

the Grid model. This module has been extended to be

able to parse and save the information provided.

The Scheduler component is the more complex

one. It has been extended with a new scheduling

policy considering the schema for user priorities that

Condor applies in HERMES. This scheduling policy

works as follows: when a job sent by the Job Loader

reaches the scheduler, the job is queued in the right

user queue. This queue is ordered by the job prior-

ity and the job arrival time. When the scheduler re-

quests a new job to be executed, jobs are ordered by

their user priority and the job with the highest prior-

ity is chosen. Then, the machines with available re-

sources (CPUs and RAM) and also the machines that

could have available resources (if some running jobs

are evicted) are selected as potential candidates to ex-

ecute the job. The list of all potential candidates is or-

dered by multiple criteria (job preferences, machine

preferences, etc.) to get the most suitable resource. If

there is no resource available to execute the job, this

is queued again and the scheduler looks for the next

job. Finally, when a job and a resource have been

chosen, the job is sent to the resource and its state is

updated. In addition, some of the current running jobs

are evicted from the selected resource if necessary to

execute the new job. These evicted jobs are requeued

and will be reexecuted later.

Finally, the Result Collector component is respon-

sible for storing the simulation results and provide

them as output. When a job is sent to a resource,

evicted or a machine fails, the Result Collector stores

this information. When a job ends, the Result Collec-

tor stores the job information in an output ﬁle. For

each job, the arrival time, the time the job has spent

queued, the execution time of the resource, the re-

source where the job was executed and the number

of evictions suffered by the job are stored in the ﬁle.

3.3 Validation of the HERMES

Simulator

The aim of the developed simulator is to be used as

a decision tool at meta-scheduling level. In terms of

simulation accuracy, its validation is a key issue to

verify its feasibility and usefulness for this purpose

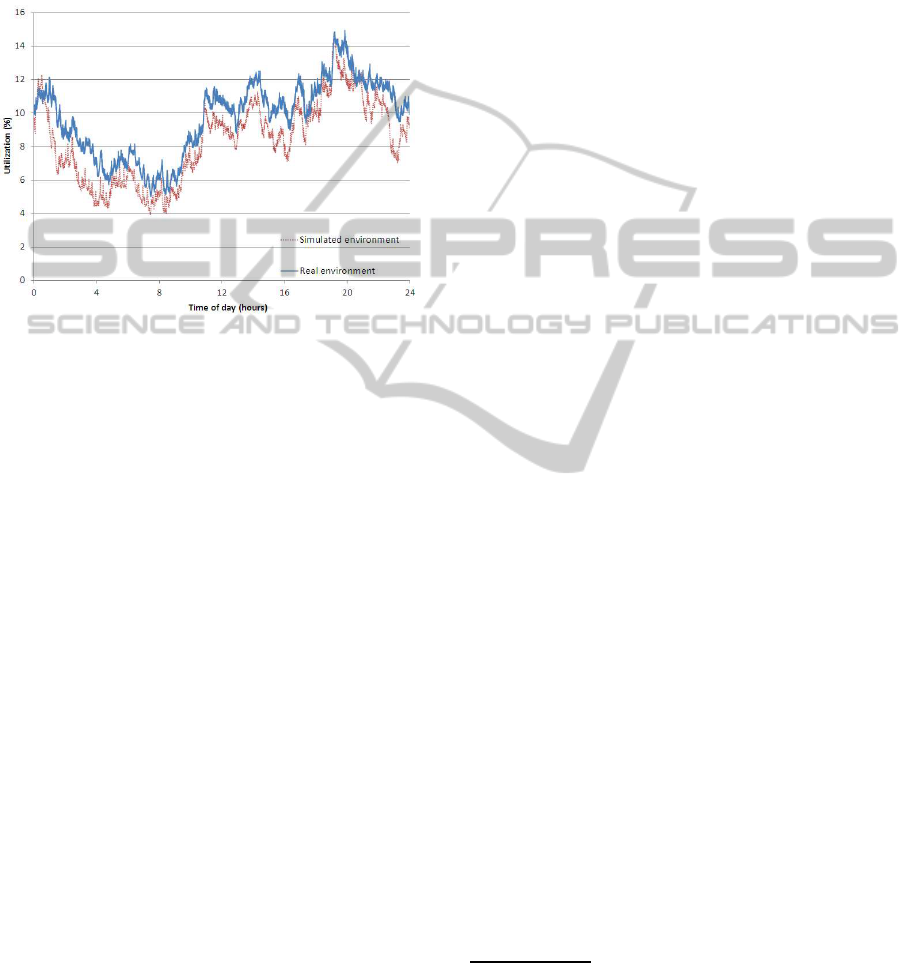

(Sargent, 2010). Figure 4 shows a comparison of the

actual cluster utilization, extracted from the logs, and

the simulated utilization, obtained from the simula-

tion of the tasks described in the workload. The com-

parison is presented as a daily cycle in which the hor-

izontal axis indicates the time (in hours) and the ver-

ASimulation-basedSchedulingStrategyforScientificWorkflows

tical axis shows the CPU utilization rate (in percent-

age). As it can be observed, the simulation results are

very similar to real results. Both plots follow the same

trend, being the simulation utilization slightly lower.

In terms of the deviation of the simulation results, an

average error of 15.09% and a standard deviation of

8.03% is observed.

Figure 4: Condor cluster utilization for the real and simu-

lated environment.

In order to validate the job performance indicator,

two metrics are provided: the execution time and the

queue time. Figure 5 shows the cumulative distribu-

tion function for the execution time (Figure 5-a) and

the queue time (Figure 5-b). For the sake of clarity,

the horizontal axis is shown on a log scale. Figure 5-a

illustrates that job execution time is almost the same

in the simulation and the real environment. In con-

trast, there is an important difference between queue

time in both environments, which can be explained

because the simulator is able to schedule a job without

delay when there are available resources to execute a

job. However, Condor middleware suffers for several

delays due to different reasons such as delay notiﬁ-

cations between distributed components, scheduling

cycle duration or status update. To ﬁx this error and

reduce its inﬂuence on the results, two techniques are

proposed: the ﬁrst one adds a synthetic delay to the

job execution time, whereas the second one adds the

synthetic delay to the job queue time results. Also,

how this feature can be incorporated in the simulator

to get more accurate simulations is being studied for

the meantime.

4 EXPERIENCE REUSE FOR THE

SIMULATION OF A GLITE

GRID

In this section, how a simulator for a multi-cluster

Grid can be easily implemented replacing some parts

of the previously developed simulator is shown. Also,

we illustrate the usefulness of the methodology pre-

sented to validate the simulator results.

4.1 Overview of the AraGrid Grid

AraGrid

is a research and production Grid hosted by

the Institute for Biocomputation and Physics of Com-

plex Systems (BIFI)

and it is part of the European

Grid Initiative (EGI)

. AraGrid consists of four ho-

mogeneous sites located at four different faculties in

different geolocated cities. Every site is formed by 36

nodes with two 2.67 GHz 6-core Intel Xeon X5650

CPUs and 24 GB of RAM per node, making a total

amount of 1728 cores and 4 TB of RAM. Both sites

and nodes are interconnected by Gigabit links.

The Grid is managed by the gLite

middleware

version 3.2.0 and every site use openPBS

version 2.5

as local batch system.

The AraGrid infrastructure is oriented to long-

term experiment in the ﬁelds of physics, biochemistry,

social behaviour analysis, astronomy, etc. Users are

more conscious of loads and resource usage, although

they deploy experiments similarly to the HERMES

case, getting long waiting times.

4.2 Implementation and Validation of

the AraGrid Simulator

Starting from the simulator structure, the design and

implementation of the Condor simulator has been

reused to develop a gLite simulator valid for the Ara-

Grid computing infrastructure. This is an easy and

quick implementation process, and the resulting sim-

ulator can be easily adapted to another gLite infras-

tructure. The reasons to implement these two simu-

lators is twofold. On the one hand, HERMES (man-

aged using Condor), AraGrid (gLite) and also Pire-

Grid (gLite) are connected using high speed Gigabit

links, which enhances data movement performance

(which is left out of the scope of this paper). On

the other hand, Condor and gLite are well known and

http://www.araGrid.es/

http://biﬁ.es/es/

http://www.egi.eu/

http://glite.cern.ch/

http://www.mcs.anl.gov/research/projects/openpbs/

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

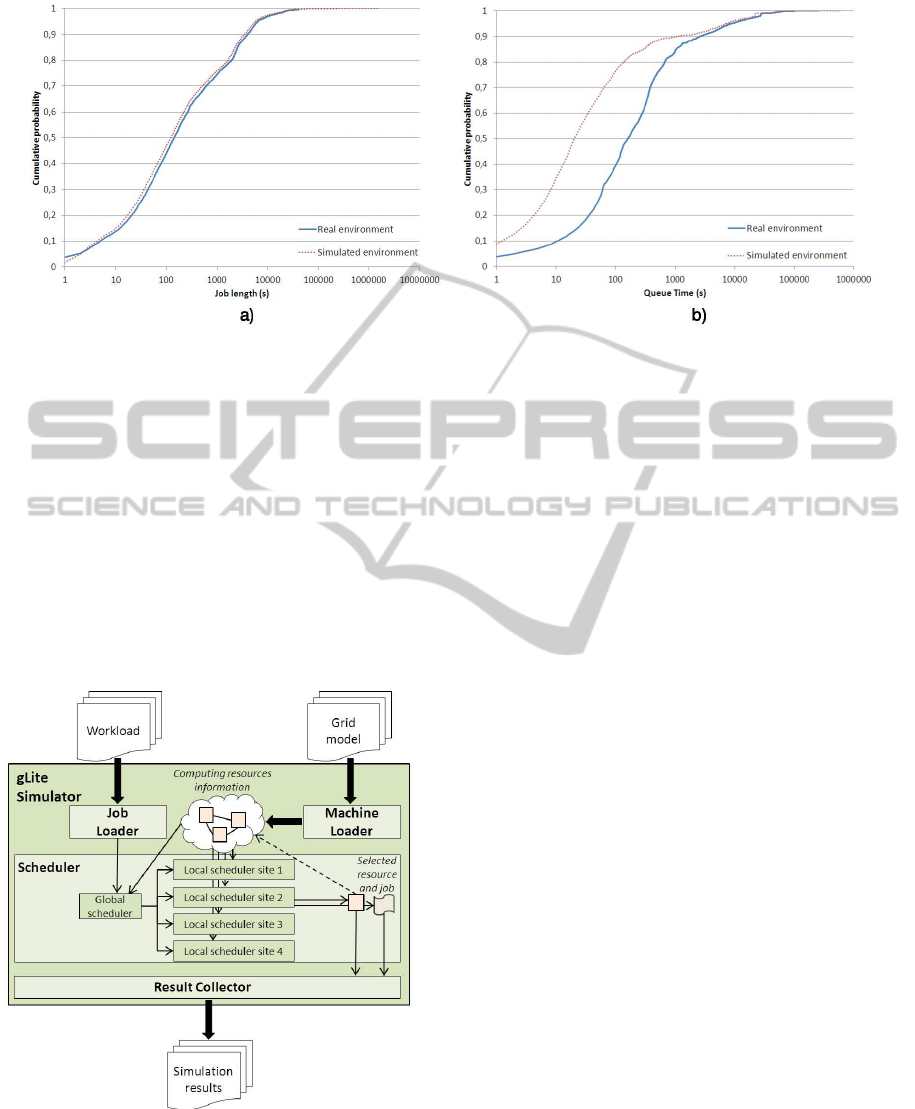

Figure 5: Job performance comparison between real data and simulation results in terms of: (a) job execution time, (b) job

queue time.

widespread cluster/Grid middlewares in the research

community.

The only component that needed a custom adap-

tation to ﬁt the behaviour of AraGrid with respect

to the HERMES simulator component is the sched-

uler. The scheduler’s policy follows a hierarchical ap-

proach, as shown in Figure 6. Jobs sent by the Job

Loader are managed by the global scheduler compo-

nent that sends them to the right local scheduler con-

sidering job requirements, job rank and site occupa-

tion are taken. Meanwhile, every local scheduler uses

a custom First Come First Serve (FCFS) policy.

Figure 6: Architecture of the gLite simulator and detail of

the local scheduler of a site.

It is important to consider a special case. As some

sites are shared with other Grid initiatives such as

EGI, the workload used as input contains jobs that

can only be executed in shared sites. Sites where a

job can be executed depends on the Virtual Organi-

zation (VO). Since this information is included in the

workload, this special case can be properly treated by

the scheduler when this kind of job reaches the global

scheduler.

The resulting simulator component has been inte-

grated into the AraGrid gLite mediator. The valida-

tion of the component has been carried out following

the same approach depicted in subsection 3.3. In this

case, the results are more accurate than in the HER-

MES case. That is because AraGrid scheduling policy

is easier to replicate. The average error is of 1.19%

with a standard deviation of 0.85%.

5 A CASE STUDY: INSPIRAL

ANALYSIS WORKFLOW

In this section, the proposed simulation-based ap-

proach is applied in order to improve the performance

of the Inspiral analysis scientiﬁc workﬂow. The ex-

periment setup is detailed, with particular attention

to the workload creation method used for modelling

other users jobs that are executed in HERMES and

AraGrid at the same time. Finally, performance re-

sults showing the beneﬁts of our infrastructure are

presented and discussed.

One of the main research lines of the Laser Inter-

ferometer Gravitational Wave Observatory (LIGO) is

the detection of gravitational waves produced by var-

ious events in the universe (based on Einstein’s the-

ory of general relativity). The LIGO Inspiral Anal-

ysis Workﬂow is a scientiﬁc workﬂow which ana-

lyzes and tries to detect gravitational waves produced

by various events in the universe using data obtained

from the coalescing of compact binary systems such

ASimulation-basedSchedulingStrategyforScientificWorkflows

as binary neutron stars and black holes (Taylor et al.,

2006). Figure 7 depicts a simpliﬁed view of the main

structure of the workﬂow. Although the workﬂow

has a simple structure, it allows a high level of par-

allelism. As shown, the whole experiment is split

into several smaller stages or blocks for analysis. The

time-frequency data from any event for each of the

LIGO detectors is arranged into template banks and

used as an input for the workﬂow, which generates a

subset of waveforms belonging to the parameter space

and computes the matched ﬁlter output in each stage.

Inspiral jobs are the most computationally intensive

tasks in the workﬂow, generating most of the comput-

ing requirements. In case a true inspiral is detected,

the matched ﬁlter output is computed and a trigger

is generated and tested for consistency by the Thinca

jobs as a result from the experiment. Finally, template

banks are then generated from these trigger outputs

and the process repeats.

Figure 7: Workﬂow of the LIGO Inspiral analysis scientiﬁc

workﬂow.

Several scientiﬁc workﬂows management systems

could be used to develop the workﬂow. In our case, a

high level Petri nets implementation (Reference nets)

has been developed using the workﬂow editor pro-

vided by the framework depicted in Section 2. How-

ever, the workﬂow implementation details are out of

the scope of this paper.

5.1 Experiment Setup

The experiment setup is not speciﬁc for this experi-

ment or case study, but it is a general setup automati-

cally generated by the components of the framework.

This design simpliﬁes the use of the infrastructure,

making the simulation-based meta-scheduling com-

pletely transparent to the user.

The process is as follows: ﬁrst, when a mediator

retrieves a simulation request, it builds a workload de-

scribing the tasks to be simulated. Next, it gets infor-

mation about the state of the computing infrastructure

it represents. These data are used to adapt the pre-

deﬁned Grid model to its current situation (introduc-

ing resource failures) and to build a second workload

representing the infrastructure state during the simu-

lation. Details about the creation of this second work-

load are shown below. Once both workloads have

been created, they are combined into one that is used

as the simulation input. Then, the simulation starts

its execution. Once it has ﬁnished, the simulation re-

sults are analysed by the mediator and only the infor-

mation concerning the target tasks is provided to the

meta-scheduler. Finally, the meta-scheduler chooses

the best computing infrastructure based on data ob-

tained from several simulations. For that purpose, the

meta-scheduling policy uses a better-execution-time

algorithm. Nevertheless, more complex policies in-

volving the information obtained in previous simula-

tions could be easily used.

The creation of the workload used to represent

the state of the computing infrastructure is a key step

in the simulation process. The importance of using

an appropriate workload has been identiﬁed as a cru-

cial input in some previous work (Feitelson, 2002; Li

et al., 2004). Using a wrong workload can cause the

simulation results not to correspond to the actual be-

haviour of the involved Grids. These research papers

propose the generation of a single workload based on

historical information from a long period of time and

only considering representative periods (e.g. the peak

hours during weekdays in job-intensive months). It

is assumed that the longer the observation period is,

the more representative is the workload, which al-

lows tunning the Grid in extreme situations (Feitel-

son, 2002). Nevertheless, for simulation purposes

these approaches are not valid because the state of the

resources must be considered as the simulation starts.

If an average or extreme workload is used, it is very

likely to get very inaccurate results that lead to wrong

scheduling decisions. Our proposal is to build several

representative workloads with different situations de-

pending on the state of the infrastructure (e.g. low

load, average load and high load) and date. There-

fore, the current computing infrastructure state is ob-

tained before starting a simulation and used to select

the most suitable workload. Also, the recovered in-

frastructure information, including currently running

jobs and queued jobs, is added at the beginning of the

workload, obtaining this way a workload describing

the current infrastructure state and its evolution.

The model proposed in (Iosup et al., 2008b) has

been used for workload creation. This model incorpo-

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

rates the notions of different users and jobs in Bag-of-

Tasks (BoTs) to the Lublin-Feitelson model (Lublin

and Feitelson, 2003). Due to the fact that the HER-

MES and AraGrid analysis has shown that more than

90% of jobs belongs a BoT and a few users are re-

sponsible for the entire load, this model is suitable for

modelling jobs in our infrastructures.

5.2 Analysis of the Results

To prove the usefulness of the proposed approach,

the workﬂow has been executed for a whole day (24

hours). Figure 8 depicts the CPU load observed in

HERMES and AraGrid during the experiment. Note

that HERMES load is different from the one sketched

in ﬁgure 4. That is because the load in Figure 4 is

an average load extracted from the execution log cor-

responding to the whole last year, whereas Figure 8

shows the cluster load on a particular day. As it can

be observed, both computing infrastructures have dif-

ferent load models. Throughout the day there are bet-

ter periods of time for submitting jobs to HERMES

(mostly at early morning and night), and times more

appropriate to submit jobs to AraGrid (in the after-

noon). However, this is not the only criterion to be

considered as the performance of a Grid infrastruc-

ture depends on many factors.

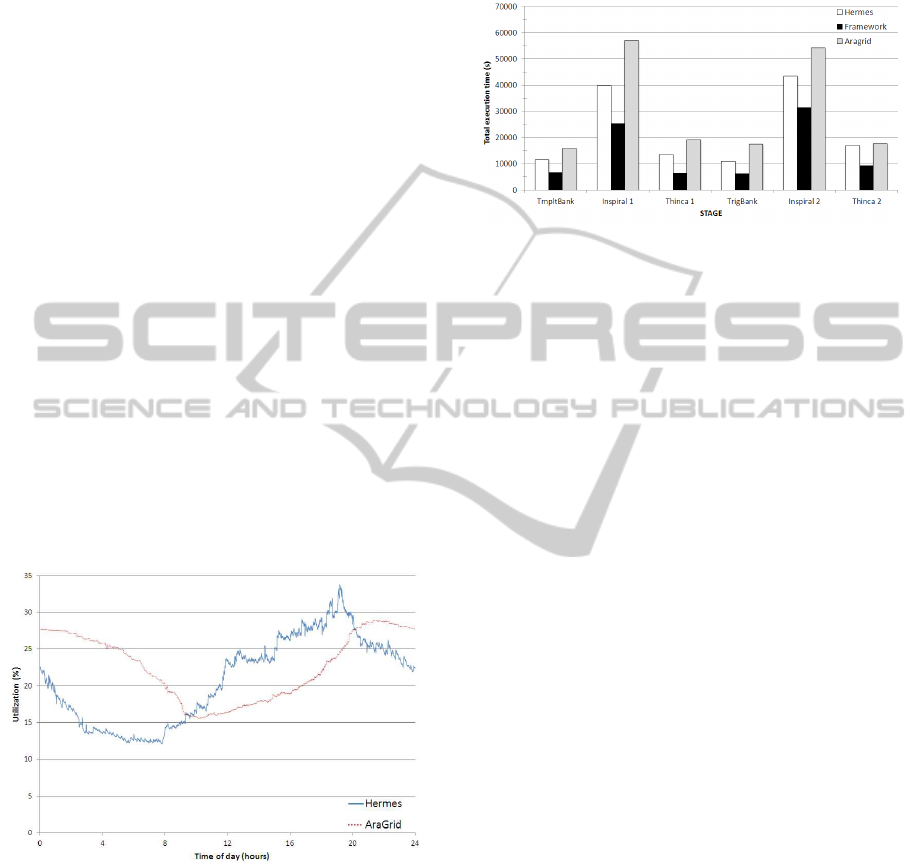

Figure 8: HERMES and AraGrid utilization (in percentage)

observed during workﬂow execution.

The use of the simulation as a decision tool for

meta-scheduling deals with this complexity and im-

proves the performance obtained in the execution of

the workﬂow as shown in Figure 9. The ﬁgure shows

the total execution time for each stage of the In-

spiral workﬂow entirely executed in each comput-

ing infrastructure (HERMES on the left bar and Ara-

Grid on the right bar ) and using the framework with

the simulation-based meta-scheduling strategy (cen-

ter bar) depicted previously. The results show that

the use of the proposed approach leads to an improve-

ment of 59% in HERMES execution time and a 111%

in AraGrid execution time.

Figure 9: Experimental results for LIGO Inspiral analysis

workﬂow.

Regarding the simulation overhead in terms of ex-

ecution time, the simulation process for HERMES is

more complex (more iterative structures) and can take

up to 3-4 minutes for a bag of 10000 tasks, whereas

for gLite it takes one minute approximately. There-

fore, simulation times are insigniﬁcant in comparison

to the execution time of each stage. Also, data move-

ment has been measured. For the sake of clarity, as

HERMES and AraGrid are connected by a Gigabit

link, these times are small and can be avoided in the

calculation of the overall execution time.

6 CONCLUSIONS

In this paper, a simulation component based on realis-

tic workload usage has been presented. This compo-

nent allows modelling and simulating different com-

puting infrastructures in terms of performance, re-

source usage, cost, etc. We have also described a

framework developed for the ﬂexible deployment of

scientiﬁc workﬂows in Grid environments, and which

allows researchers to transparently work simultane-

ously with different and heterogeneous Grid middle-

wares.

The integration of the simulation component into

the framework allows improving the meta-scheduling

process. Not only a simulation process can be carried

out to ﬁnd the best computing infrastructure to exe-

cute a task (or a bag of tasks) in terms of performance

or costs, but also the process may vary depending on

the used workload. The use of realistic workloads

provides very suitable and reliable results.

The ﬂexible design and implementation of the

simulation component also allows an easy adaptation

for being used with different computing infrastruc-

tures, as it was shown by means of the reuse of the

ASimulation-basedSchedulingStrategyforScientificWorkflows

HERMES simulator component (Condor) to develop

the AraGrid one (gLite). Both Condor and gLite are

two of the most used cluster/Grid middlewares in the

research community. Thus, an additional advantage

is that the developed components can be easily reused

for simulating other existing computing infrastruc-

tures.

Finally, the integration of the presented approach

into the framework has been applied to the develop-

ment and execution of the Inspiral analysis over two

different computing infrastructures, HERMES and

AraGrid. As a result, the overall execution cost was

signiﬁcantly reduced.

Currently, the proposed simulation component is

being extended to support the dynamic building of

workloads. The use of dynamic workloads will mini-

mize the effort required to build a new simulator and

allow to obtain more accurate simulations. Also, the

addition of new features in the simulator is being ad-

dressed in order to get more accurate queue times in

simulations. Finally, the incorporation of complex

meta-scheduling approaches that can use the informa-

tion provided by the simulation process will be stud-

ied.

ACKNOWLEDGEMENTS

This work has been supported by the research project

TIN2010-17905, granted by the Spanish Ministry of

Science and Innovation.

REFERENCES

Abraham, A., Liu, H., Zhang, W., and Chang, T.-G. (2006).

Scheduling Jobs on Computational Grids Using Fuzzy

Particle Swarm Algorithm. In Proceedings of the 10th

International Conference in Knowledge-Based Intel-

ligent Information and Engineering Systems – KES

2006, volume 4252, pages 500–507.

Fabra, J., Hern´andez, S.,

Alvarez, P., and Ezpeleta, J.

(2012). A framework for the ﬂexible deployment of

scientiﬁc workﬂows in grid environments. In Proceed-

ings of the Third International Conference on Cloud

Computing, GRIDs, and Virtualizations – CLOUD

COMPUTING 2012.

Feitelson, D. G. (2002). Workload Modeling for Perfor-

mance Evaluation. In Proceedings of Performance

Evaluation of Complex Systems: Techniques and

Tools – Performance 2002, volume 2459, pages 114–

141.

Foster, I. and Kesselman, C. (2003). The Grid 2: Blueprint

for a New Computing Infrastructure. Morgan Kauf-

mann Publishers Inc., San Francisco, CA, USA.

Hamscher, V., Schwiegelshohn, U., Streit, A., and

Yahyapour, R. (2000). Evaluation of Job-Scheduling

Strategies for Grid Computing. In Proceedings of

the First IEEE/ACM International Workshop on Grid

Computing – GRID 2000, pages 191–202.

Iosup, A. and Epema, D. H. J. (2011). Grid Computing

Workloads. IEEE Internet Computing, 15(2):19–26.

Iosup, A., Li, H., Jan, M., Anoep, S., Dumitrescu, C.,

Wolters, L., and Epema, D. H. J. (2008a). The Grid

Workloads Archive. Future Genereration Computer

Systems, 24(7):672–686.

Iosup, A., Sonmez, O., Anoep, S., and Epema, D. (2008b).

The performance of bags-of-tasks in large-scale dis-

tributed systems. In Proceedings of the 17th inter-

national symposium on High performance distributed

computing – HPDC 2008, pages 97–108.

Kert´esz, A. and Kacsuk, P. (2010). GMBS: A new middle-

ware service for making grids interoperable. Future

Generation Computer Systems, 26(4):542–553.

Klus´aˇcek, D. and Rudov´a, H. (2010). Alea 2 – Job Schedul-

ing Simulator. In Proceedings of the 3rd International

ICST Conference on Simulation Tools and Techniques

– SIMUTools 2010.

Li, H., Groep, D., and Wolters, L. (2004). Workload char-

acteristics of a multi-cluster supercomputer. In Pro-

ceedings of the 10th International Conference on Job

Scheduling Strategies for Parallel Processing – JSSPP

2004, pages 176–193.

Lublin, U. and Feitelson, D. G. (2003). The workload

on parallel supercomputers: modeling the characteris-

tics of rigid jobs. Journal of Parallel and Distributed

Computing, 63(11):1105–1122.

Ludwig, S. A. and Moallem, A. (2011). Swarm Intelligence

Approaches for Grid Load Balancing. Journal of Grid

Computing, 9(3):279–301.

Rahman, M., Ranjan, R., Buyya, R., and Benatallah, B.

(2011). A taxonomy and survey on autonomic man-

agement of applications in grid computing environ-

ments. Concurrency and Computation: Practice and

Experience, 23(16):1990–2019.

Sargent, R. G. (2010). Veriﬁcation and validation of sim-

ulation models. In Proceedings of the 2010 Winter

Simulation Conference – WSC 2010, pages 166–183.

Sulistio, A., Cibej, U., Venugopal, S., Robic, B., and Buyya,

R. (2008). A toolkit for modelling and simulating data

Grids: an extension to GridSim. Concurrency and

Computation: Practice and Experience, 20(13):1591–

1609.

Taylor, I. J., Deelman, E., Gannon, D. B., and Shields, M.

(2006). Workﬂows for e-Science: Scientiﬁc Workﬂows

for Grids. Springer-Verlag New York, Inc., Secaucus,

NJ, USA.

Yu, J. and Buyya, R.(2005). A taxonomy of scientiﬁc work-

ﬂow systems for grid computing. SIGMOD Record,

34(3):44–49.

Yu, Z. and Shi, W. (2007). An Adaptive Rescheduling Strat-

egy for Grid Workﬂow Applications. In IEEE Inter-

national Parallel and Distributed Processing Sympo-

sium, 2007 – IPDPS 2007, pages 1–8.

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications
