DDoS Detection with Information Theory Metrics and Netflows
A Real Case
∗
Domenico Vitali
1
, Antonio Villani
2
, Angelo Spognardi
1
, Roberto Battistoni
1
and Luigi V. Mancini
1
1
Dipartimento di Informatica, “Sapienza” University of Rome, Via Salaria 113, 00198, Rome, Italy
2
Dipartimento di Matematica, University of Roma Tre, Largo S. L. Murialdo, 00146, Rome, Italy
Keywords:
DDoS, Attack Detection, Information Divergence, Relative Entropy, Autonomous System, Internet Security.
Abstract:
Denial-of-Service (DoS) and Distributed Denial-of-Service (DDoS) constitute one of the main issues for criti-
cal Internet services. The widespread availability and simplicity of automated stressing tools has also promoted
the voluntary participation to extensive attacks against known websites. Today the most effective (D)DoS
detection schemes are based on information theory metrics, but their effectiveness is often evaluated with syn-
thetic network traffic. In this work we present a comparison of the main metrics proposed in the literature
carried on a huge dataset formed by real netflows. This comparison considers the ability of each metric to de-
tect (D)DoS attacks at an early stage, in order to launch effective and timely countermeasures. The evaluation
is based on a large dataset, collected from an Italian transit tier II Autonomous System (AS) located in Rome.
This AS network is connected to all the three main network infrastructures present in Italy (Commercial, Re-
search and Public Administration networks), and to several international providers (even for Internet transit
purposes). Many attempted attacks to Italian critical IT infrastructures can be observed inside the network
traffic of this AS. Several publicly declared attacks have been traced and many other malicious activities have
been found by ex-post analysis.
1 INTRODUCTION
One of the most critical aspect of (D)DoS (Denial of
Service and Distributed DoS) attacks is their artless-
ness and simplicity. While the synchronization of at-
tacking entities is still performed using botnets of un-
aware compromised hosts, nowadays, simple word-
of-mouth ways are used to coordinate volunteers at-
tackers (e.g. chat/twitter/irc channels). Recently, one
of the most used tool to perform DDoS is “LOIC”
(Low Orbit Ion Cannon), a software originally de-
signed to test the robustness of services and able
to quickly flood with connections a target IP. LOIC
and similar tools make these activities exploitable
by all Internet users: political hacktivists, individu-
als or interested groups keep increasing their use to
express disagreement against private companies or
public entities. Many examples can be found in the
past years (Cisco Systems, 2010). For example, in
September 2010, a DDoS attack named Operation
∗
This paper has been supported by the Prevention, Pre-
paredness and Consequence Management of Terrorism and
other Security-related Risks Programme European Com-
mission - Directorate-General Home Affairs, under the Ex-
TraBIRE project, HOME/2009/CIPS/AG/C2-065
Payback was launched against the Motion Picture As-
sociation of America’s (MPAA) web-page. Similarly,
strong emphasis was given to the series of DDoS at-
tacks against several companies which resulted in a
cut off for WikiLeaks.org or to the Playstation’s on-
line store as a form of revenge towards Sony’s law-
suit against the PS3 hacker George Hotz. More re-
cently, DDoS attacks have been reported to the Ital-
ian Government and the Vatican State web sites and
many other international institutions. In general, ev-
ery Internet Critical Infrastructure or any sensitive
economic service can be considered a possible target.
The effects of (D)DoS attacks can be serious: in
the best cases, the network services hosted by the tar-
get Autonomous System become unavailable as long
as the attack activity persists; in the worst cases, the
session between the target AS and its ISP breaks
out, making a black hole where the packets are all
dropped, eventually causing a chain reaction that am-
plifies the attack and spreads its effect on other ASes.
(D)DoS attacks are considered really challenging and
have generated a large amount of research activity.
Several works in the last decade try to survey metrics,
strategies and tools to protect network services and
to reduce the impact of such malicious activities. At
172
Vitali D., Villani A., Spognardi A., Battistoni R. and V. Mancini L..
DDoS Detection with Information Theory Metrics and Netflows - A Real Case.
DOI: 10.5220/0004064501720181
In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 172-181
ISBN: 978-989-8565-24-2
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
the same time, new attack flavors (ip-spoofing, low-
rate attacks, botnet and others) keep raising the level
of challenge. Finally, privacy concerns and the lack
of secure techniques to make data anonymous, keep
researchers unable to freely share their own traffic
datasets and network dumps, slowing and hindering
the research on this topic.
This paper focuses on DoS and Distributed DoS
attacks that consume the bandwidth resources of
a whole AS. In the DDoS taxonomy defined by
Mirkovic et al. (Mirkovic and Reiher, 2004), such
kind of attack has code VT-4, since it generates an ex-
tremely large number of network flows, saturating all
the router resources (CPU or ram or bandwidth capac-
ity) of the AS (we defer the formal definition of flow
to Section 3.2). Increasing router resources is typ-
ically helpless against bandwidth saturation attacks,
mainly for stub ASes: they usually purchase the min-
imal required bandwidth, but suffer (D)DoS attacks
from intermediate ASes, with much higher traffic ca-
pacity. A more effective solution is to block the ma-
licious traffic in advance, in the upper ASes, before it
could reach the target AS. The most used approach to
distinguish malicious packets among the aggregated
traffic at AS level is the adoption of information the-
ory metrics, since they are able to make traffic anoma-
lies to “emerge” from the whole traffic flows. As
it will be clear in the following, the effectiveness of
proposed metrics is evaluated using synthetic traffic,
where attack patterns are artificially injected. In this
paper, instead, we compared the metrics directly on
the aggregate traffic with genuine attacks at the AS
level, using a real network environment. In fact, we

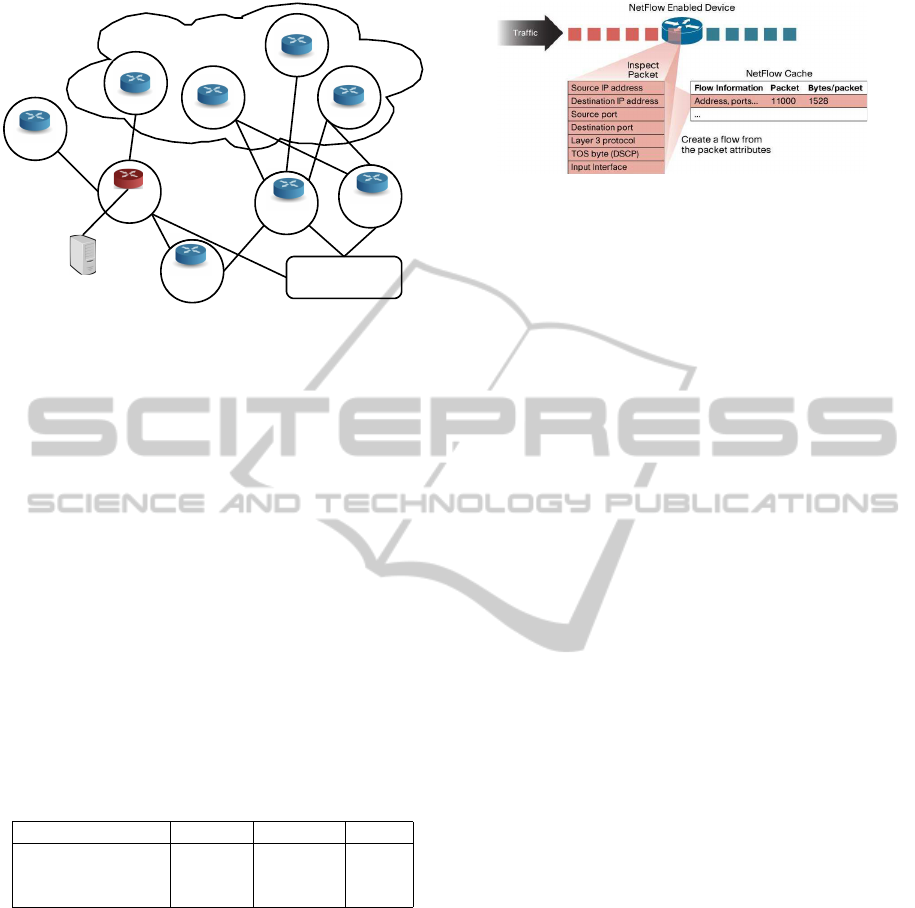

collected the traffic flowing through an important Ital-
ian Tier II AS, as shown in Figure 1, that plays the role
of transit for some stub ASes and shares connections
within other ISPs in a IXP (Internet eXchange Point).
In order to protect customers privacy, we avoid any
references about real IP addresses, identities or re-
lated contents in this paper. In our dataset we recorded
meaningful high resources network events and several
attacks that we used to evaluate and estimate the ef-
fectiveness of information theory metrics for (D)DoS
attack detection, just using NetFlow data.
Contributions. Starting from the huge dataset of
real network traffic, in this paper we provide sundry
contributions:
• we validate the theoretical research results, apply-
ing the most used information theory metrics;
• we propose the use of the above metrics on
lightweight dump dataset, requiring no heavy
computation or I/O efforts. Indeed, our dataset
only contains compact netflow records;
• we report the ability to perform (D)DoS detection
by the analysis of “aggregated” network traffic
data. We claim and prove that analyzed metrics
can be effectively used to detect such attacks in
real-time on upstream provider side. This would
prevent and mitigate attacks that focus on band-
width saturation, since network operators could
use a single network monitoring point (like a bor-
der router);
• we compare the different metrics and evaluate
their effectiveness against several uncommon net-
work activities (like (D)DoS attacks and nightly
scheduled maintenance jobs), in terms of anomaly
detection and robustness.
Organization of this Paper. Section 2 introduces
the main representative works on (D)DoS detection;
Section 3 describes our network environment and sur-
veys on some meaningful recorded malicious events.
Section 4 quickly introduces information theory met-
rics used for attack detection, while Section 5 presents
our results. Section 6 concludes our work and draws
some directions for future research on this topic.
2 RELATED WORKS
Detection and mitigation of (D)DoS attacks is still an
open challenge (Di Pietro and Mancini, 2008; Curt-
mola et al., 2005). A systematic analysis of DDoS
attacks is presented by (Mirkovic and Reiher, 2004),
where the authors define a complete taxonomy of at-
tacks, proposing different criteria such as Exploited
Weaknesses, Degree of Automation, Exploited Weak-
ness to Deny Service, Source Address Validity, Possi-
bility of Characterization, Dynamics, Persistence of
Agent Set, Victim Type or Impact on the Victim.
During the exposition of our results, we usually re-
fer to cited taxonomy. Many results like (Feinstein
and Schnackenberg, 2003) and (Oshima et al., 2010)
(just to cite a few) agree upon the use of Entropy and
Relative Entropy (information divergence) as effec-
tive metrics for anomaly detection (a formal intro-
duction to those metrics will follow in Section 4).
In (Feinstein and Schnackenberg, 2003), the authors
analyze several genuine network traces, using blocks
of 1000 consecutive packets to compute entropy and
frequency-sorted distribution of selected packet at-
tributes. Since the network traces are not known to
contain malicious activities, the authors overlay syn-
thetic DDoS attacks at various degree of concentra-
tions. An attack alarm is raised if the computed en-
tropy value overcomes a threshold, pre-determined
from empirical analysis.
DDoSDetectionwithInformationTheoryMetricsandNetflows-ARealCase
173
(Oshima et al., 2010) show that the use of en-
tropy with fixed-dimension block of packets can be
very time consuming even for small organizationsand
imposes a CPU-burning process for big bandwidth
network edge. Moreover, they introduce a dynamic
threshold evaluation in order to mitigate entropy fluc-
tuations, based on its standard deviation. Others
works like (No and Ra, 2009) and (Sardana et al.,
2008) improve attack detection using other informa-
tion theory metrics, like cumulative entropy. Other
entropy based metrics are based on the concepts of in-
formation divergence, such as R´enyi (Li et al., 2009b)
and Kullback-Leibler divergence (Li et al., 2009a).
Their main advantages are the ability to improve the
anomaly detection, providing at the same time earlier
responses and low false positive rate (Xiang et al.,
2011). The previous entropy based approaches, in-
deed, experience many false positives in case of fluc-
tuations of traffic pattern. We address this and several
other aspects in Section 5.
Common issues of related works is the consis-
tency and the nature of used dataset. Almost all the
papers refer to datasets that are historically consol-
idated (like the DARPA dataset) or that have been
collected from restricted and unrepresentative traffic
((Feinstein and Schnackenberg, 2003), (Lawniczak
et al., 2009)). DARPA dataset was created by the In-
formation Systems Technology Group (IST) of MIT
Lincoln Laboratory, under Defense Advanced Re-
search Projects Agency (DARPA) and Air Force Re-
search Laboratory (AFRL/SNHS) sponsorship. The
purpose of this dataset is to collect and distribute the
first standard corpora for evaluation of computer net-
work intrusion detection systems (IDS (Di Pietro and
Mancini, 2008; Di Pietro et al., 2010)). Although its
nature, MIT datasets have been used by researchers
to evaluate malicious activities, like DoS or DDoS in
(Li et al., 2009a), (Oshima et al., 2010), (No and Ra,
2009) and (Sardana et al., 2008). As stated in (Hugh,
2000), the methodology used to generate the data by
MIT Lincoln Laboratory and the nature of data it-
self are not appropriate for simulating different, non
academic, network environments. So the experimen-
tal results of many works suffer of the above limita-
tion. In general, all the proposed works use synthetic
traffic in combination with attack-free network traces,
like (Li et al., 2009b) and (Xiang et al., 2011). Such
methodology can limit the validity of the research re-
sults and lack of generality. In fact, malicious activi-
ties artificially injected can miss relevant features that
real activities exhibit: this lacking can produce unre-
alistic behavior and, in the worst case, unreal or un-
expected results. The work in (Xiang et al., 2011) is
an example of such limitation: in order to enrich sim-
ulations dataset, authors generate synthetic traffic and
attack traffic using, respectively, Gaussian and Pois-
son distributions.
Huge and genuine datasets are needed today also to
analyze the emergent types of coordinated and DDoS
attacks, made by volunteer users, as opposite to the
early crackers with bad intention. A recent analysis
of high tech criminal threats to national critical in-
frastructures (Choo, 2010) introduced the concept of
“hacktivism”, to emphasize the new user role. The
authors reported some real cases where citizens were
involved to disrupt national infrastructures, “carrying
out politically-motivated hacking and bringing down
Government agencies’ website”. The recent Oper-
ation Payback is actually a proof of this statement.
Again, in the case of historically consolidated datasets
(Oshima et al., 2010), it is easy to notice that they are
too old to represent recent (D)DoS attack under the
hacktivists or zombies.
One recent study that used NetFlow technology
to perform DDoS detection is (Sekar and Merwe,
2006), that proposes a multi-layer approach that com-
bines several steps on sampled netflows. In this work,
again, synthetic attacks were introduced in the real
traffic gathered from a tier I ISP, in order to simu-
late DDoS attack. Our work, instead, is based on
completely genuine traffic with known and real traf-
fic anomalies that we were able to analyze with our
metrics.
3 NETWORK ENVIRONMENT
In this section we depict the network used as case
study and provide a contextualization of (D)DoS at-
tacks. In detail, we present the network architecture,
the netflow collector’s position and several technical
and statistical information related to the observed at-
tacks.
3.1 Monitored Network
We remind that with the respect of the Non-
Disclosure-Agreement of the ExTrABIRE project, no
detailed information about AS (such as AS name or
number) nor ISP interconnections will be provided to
preserve AS and host privacy.
The monitored network is schematically sum-
marized by AS1 in Figure 1. It is a multihomed
Autonomous System, namely an AS that maintains
several connections to more than one other ASes.
AS1 provides several services, hosting web and mail
servers publicly reachable and sundry x-DSL con-
nections. AS1 uses a connection toward a Tier2 AS
SECRYPT2012-InternationalConferenceonSecurityandCryptography
174
Figure 1: Network architecture.
(AS2) as upstream provider and has a secondary link
(backup) with a Tier3 AS (AS3). AS2 has three
high speed optical fiber links with three Tier1 AS,
while AS3 receives connectivity toward Internet from
a Tier2 and a Tier1 AS. Both AS2 and AS3 exchange
their traffic inside an IXP (Internet eXchange Point),
with several other national and international ISPs.
Since our AS is composed by heterogeneous net-
works and services, we state that it can be consid-
ered as a good testing case for our research activ-
ity; furthermore, it is general enough to represent
many other real contexts. To show the dimension
of our AS, Table 1 reports the average of the ex-
changed traffic. Considering that it manages thou-
sands of unique IP addresses and that the amount of
packets is around 30K every second, the monitored
AS can be considered of medium size for an Euro-
pean member state. Despite previous studies which
Table 1: Network traffic characterization (IN/OUT).
Time of the day Flows/s Packets/s Mbit/s
00:00AM-11:00AM 377/312 8.8K/6.4K 37/44
11:00AM-06:00PM 1.3K/930 21K/13K 113/54
06:00PM-11:59PM 764/575 14K/ 8K 80/27
used synthetic datasets, we use genuine traffic data
and a real network setting to evaluate the considered
metrics. Moreover,many works about anomaly detec-
tion over synthetic datasets report conflicting results.
For instance, (Li et al., 2009a) obtained the best re-
sults with the R´enyi metric while others, (Xiang et al.,
2011), proposed the use of the Kullback-Leibler met-
ric. For this reason, we choose to avoid direct com-
parisons with results of any synthetic dataset, and we
focused only on our collected material.
3.2 Netflows Dataset
NetFlow is a Cisco
TM
technology used for monitoring
Figure 2: How netflow creates flow aggregates. This image
is taken from Introduction to Cisco
TM
IOS NetFlow.
IP traffic (Cisco Systems, 2004). Despite the classi-
cal packet collector (packet dump), NetFlow collects
data in Layers 2-4 and determines applications by port
numbers, aggregating the information.
NetFlow efficiently monitors a network, enabling ser-
vices like traffic accounting, usage-based network
billing, network planning, as well as Denial of Ser-
vices monitoring. Netflow records are extremely
compacts and representative, avoiding to maintain the
packet’s payload and making analysis and computa-
tion lighter. While several kind of attacks crafted in
the trafficpayload are able to circumvent the detection
filter, traffic anomalies are still effectively observable.
NetFlow is therefore recognized as a network mon-
itoring tool: many research papers as well as profes-
sional software use this tool as source of data to query
network status or get back data log.
The typical configuration to leverage the NetFlow
protocol is made by a router with netflow capabili-
ties and a probe (netflow collector) able to store re-
ceived data (see Figure 1). Netflow records are sent
as a UDP stream of bytes. A netflow-enabled router
creates one record with only selected fields from the
TCP headers of each transiting connection (Figure 2):
a single netflow record is a unidirectional sequence of
packets all sharing the 7 values source and destination
IP addresses, source and destination ports (for UDP
or TCP, 0 for other protocols), IP protocol, Ingress
interface (SNMP ifIndex) and IP Type of Service.
Other valuable information associated to the flow, like
timestamp, duration, number of packets and trans-
mitted bytes are also recorded. Then, we can con-
sider a single flow as a record that represents the data
exchanged between two hosts only in one direction,
since it aggregates all the IP packets that composed a
single communication session. Indeed, a single TCP
connection is represented by two distinct flows in op-
posite directions, despite the number of IP packets or
the number of exchanged bytes.
A netflow-enabled router sends to the probe a
single flow as soon as the relative connection ex-
pires. This can happen when 1) when TCP connec-
tion reaches the end of the byte stream (FIN flag or
RST flag) are set; 2) when a flow is idle for a specific
DDoSDetectionwithInformationTheoryMetricsandNetflows-ARealCase
175
timeout; 3) if a connection exceeds long live terms
(30 minutes by default).
The use of NetFlow technology has several advan-
tages with respect to the raw packet sniffing, since us-
ing just few information it is able to give a lightweight
picture of monitored network. Several researchers
proposed use netflow collectors as IDSs (Intrusion
Detection Systems), traffic classifiers as well as a spe-
cific security tools ((Chan et al., 2008), (D¨ubendorfer
et al., 2005)). To have a flavor of the advantages of a
netflow dataset in terms of dimension and required ef-
fort, we can consider this simple statistic of our data
set: a 2 GBytes of full netflow entries contains 110
millions of flows, 2 billions of packets and about 1, 5
TByte of exchanged data, corresponding to the data
gathered in one single day. Until today, our dataset
consists in a collection of 12 months long netflow
records (about 900 GBytes) and keeps growing.
We note that, despite the advantage of low compu-
tational requirements to process an extensive amount
of data, netflows inevitably sacrifice many valuable
information related to traffic payload: carried at-
tacks to single host services, virus or malware spe-
cific signatures, particular malformed packets and so
on are dropped and cannot be recovered from net-
flows. Clearly comparison between detection effec-
tiveness of NetFlow and Deep Packet Inspection is a
very interesting problem that deserves a full study all
its own. In our particular case, due to some privacy
issues, we could not access to the whole payload to
perform a full packet inspection. In fact, we monitor
several governmental networks that exchange sensi-
tive data and any access to their packet payloads is re-
stricted. Furthermore, the probe used in our project
is not enough powerful to handle the huge volume
of traffic generated by the monitored networks. The
above points prevented us to perform a full traffic in-
spection and comparison with the collected netflows
across the 12 months of monitoring. Our work is
based on real events and we cannot be aware of them
in advance, then it is impossible to recover full net-
work traffic information of the attack through an a
posteriori analysis.
Comparing a synthetic dataset with our real
dataset in order to have an estimation of false posi-
tive or false negative events raises many difficulties.
First of all, we should build a representative and huge
synthetic dataset similar to ours, but that is out of the
scope of this work. Moreover, there would not be any
guarantee that the synthetic dataset has the same traf-
fic behavior than our veritable dataset. Finally, we
probably would still remain without any real knowl-
edge of the actual attacks our dataset contains.
4 ENTROPY AND RELATIVE
ENTROPY METRICS
The use of entropy analysis aims to capture fine-
grained patterns in traffic distributions that simple
volume based metrics cannot identify. Interestingly,
information theory based metrics enable sophisticated
anomaly detections directly with the whole traffic that
are difficult to provide with simpler metrics, like ag-
gregated traffic workload, number of packets or sin-
gle host traffic. As it will be described in the next sec-
tions, the eventsdetected by combinatorialmetrics are
not really predominant when observed with the tradi-
tional ways: within the aggregate traffic of our ISP
(order of 1Gbit/s), a (D)DOS attack against a single
VLAN is not noticeable, since the Mbits needed to
perform a (D)DOS attack are well-hidden in the ag-
gregate traffic, and would not determine any apparent
anomaly. On the other hand, the Kullback-Leibler di-
vergence is effectively able to notice the anomaly and
to raise an alarm. To provide the same level of ac-
curacy, any traditional metric should be continuously
evaluated on every possible target, in order to detect
the anomalies. Combinatorial metrics, instead, are
able to detect the anomalies within the whole traffic;
moreover, those are less affected by the fluctuations
of traffic workload or any any other quantitative mea-
sure.
The first metric we studied is the simple entropy,
that captures the degree of dispersal/concentration of
a distribution. Then, we also considered two rela-
tive entropy measures, namely the Kullback Leibler
divergence (Li et al., 2009a) and R
´
enyi divergence (Li
et al., 2009b).
The concept of Entropy was introduced by Shan-
non in (Shannon, 1948). The classic definition says
that entropy is a measure of the uncertainty associ-
ated with a random variable. The entropy H(X) of a
discrete random variable X is defined as:
H(X) = −
∑
i
p
i
log
2
p
i
(1)
where p
i
= P[X = i] is the probability that X assumes
the value i.
Relative entropy (also known as information di-
vergence) is a non-symmetric measure of the similar-
ity between two probability distributions P and Q and
quantifies the distance between two statistical objects.
The Kullback-Leibler divergence equation (Li et al.,
2009a) we used is:
D
KL
(P||Q) =
∑
i
P(i)log
P(i)
Q(i)
(2)
A low D
KL
value means a high similarity in the two
probability distributions, on the other hand, high di-
SECRYPT2012-InternationalConferenceonSecurityandCryptography
176
vergence values correspond to low similarity. Since
it is not symmetric, the divergence measure can not
be strictly considered a metric (i.e. D
KL
(P||Q) 6=
D
KL
(Q||P)).
The R´enyi divergence generalizes the Kullback-
Leibler divergence, providing a family of metrics
based on a parameter α. Formally, we use (Li et al.,
2009b):
D
α
(P||Q) =
1
1− α
log
∑
i
p
α
i
q
α−1
i
(3)
Notice that D
a→1
(P||Q) = D
KL
(P||Q). Intuitively,
R´enyi divergencewith high values of α takes in higher
account the more likely events, while with low values
of α it considers more equally all the events, regard-
less of their likelihood.
4.1 Metrics Implementation
In this section we describe how we exploit netflow
data to implement the mentioned metrics. As stated
by (Nychis et al., 2008), port and address IP distribu-
tions are highly correlated in network traffic. For this
reason we only considered source and destination IP.
Network flows are aggregated into time blocks of
a fixed size (1 minute by default). Let f
t
be the num-
ber of flows that cross the monitored network in a time
block. Let f
t
i
be the number of flows that have IP
i
as
source (or destination) address. For each time block
t, the entropy is evaluated by the following formula:
H(X) = −
∑
∀distinct IP i
f
t
i
f
t
log
2
f
t
i
f
t
(4)
Concerning the relative entropy metrics (Kullback-
Leibler and R´enyi), we associate p
i
to the packet dis-
tribution over a time block t and q
i
to the packet dis-
tribution of the previous time block t − 1:
p
i
=
f
t
i
f
t
, q
i
=
f
t−1
i
f
t−1
We compute Kullback-Leibler divergence as follows:
D
KL
(t||t + 1) =
∑
i
f
t
i
f
t
log
f
t
i
f
t
f
t−1
i
f
t−1
=
∑
i
f
t
i
f
t
log
f
t
i
f
t−1
f
t
f
t−1
i
and R´enyi divergence as:
D
α
(P||Q) =
1
1− α
log
∑
i
(
f
t
i
f
t
)
α
(
f
t−1
i
f
t−1
)
α−1
Notice that we only considered the entries that ap-
pear in both t and t − 1 time blocks, since the rela-
tive entropy imposes Q(i) > 0 for each P(i) > 0. An-
other key aspect is the choice of the parameter α in
the R´enyi divergence. According to the results of (Li
et al., 2009b), in our experiments we set the value of
α to 5. The time block dimension affects the relation-
ship between detection reactivity and detection sen-
sibility, directly influencing the results. With empiri-
cal analysis we find that 1 minute is a good compro-
mise between reactivity and sensibility. For a matter
of space, we do not discuss here the results obtained
using different time block dimensions.
5 ATTACK AND ANOMALY
ANALYSIS
In this section we report the comparison of the three
metrics presented in the above section, applied to sev-
eral anomalies collected in our data set. Remember
that our netflow dataset refers to the period between
September 2010 and August 2011, that has been the
scenario for several (D)DoS episodes, in Italy and
abroad. In order to make a complete and fair com-
parison between Entropy, Kullback-Leibler and R´enyi
metrics with the previous research results, we evalu-
ated the above metrics considering separately the des-
tination and the source IP distributions.
Our experiments considered the whole dataset of net-
flows and are based on the evaluationof the three met-
rics for all the 12 months.
2
. However, since we did
not have a complete knowledge of the attacks present
during the whole period, we only considered as at-
tacks the official report of the AS administrators. We
believe that the detailed analysis of these events and
the comparison of the different metrics is the most
relevant contribution of our paper. As depicted in
the next figures, the reported anomalies correspond to
metric fluctuations that produced peaks in their val-
ues. Once such high peaks were identified, we con-
ducted a deeper inspection in order to capture the
motivations behind the anomaly. This kind of analy-
sis produced several insights about the behaviors and
limitations of the metrics.
In addition to the reported anomalies, we chose
to analyze another kind of network activity, namely
the abnormal traffic generated by scheduled and auto-
mated administration activities (e.g. scheduled back-
ups or maintenance procedures). Since those ac-
tivities can make sensible service outage to users,
they are programmed in the period that spans from
12:00am to 8:00am, when regular traffic is low and
the connection flows reach their minimum. By ob-
serving the relative netflows is possible to identify
2
Please refer to the website www.extrabire.eu for the
complete result sets
DDoSDetectionwithInformationTheoryMetricsandNetflows-ARealCase
177
sudden and relatively short mutations of the traffic
pattern, resulting in a deep alteration of the metrics.
5.1 Sample Events
We report the results of four sample events(E
1
, E
2
,E
3
,
E
4
): Table 2 summarizes how the implemented met-
rics (Entropy H, Kullback Leibler KL and R´enyi R)
reacted during these events.
The three metrics are evaluated both on source and
destination IP with the exception of the R´enyi diver-
gence which is evaluated only on destination IP. We
chose to not report the R´enyi on source address due to
its extremely fuzzy behavior. With the shortened form
H
s
, KL
s
and H
d
, KL
d
, R
d
we refer to entropy, Kullback
Leibler and R´enyi respectively evaluated on source
and destination IP distributions.
For each event (the rows of table 2) we report
the behavior of all metrics (the columns of table 2)
with the following notation: if we observe an abrupt
variation to a higher value we say that the metric In-
creases; otherwise if we observe an abrupt variation
to a smaller value we say that the metric Decreases.
Finally we indicate the absence of observable varia-
tion with Unvaried.
Table 2: Events and metrics reactions.
E
1
E
2
E
3
E
4
(DoS) (DoS) (DDoS) (Routines)
KL
d
Increases Increases Increases Unvaried
H
d
Decreases Decreases Decreases Increases
R
d
Unvaried Unvaried Unvaried Unvaried
KL
s
Unvaried Increases Increases Unvaried
H
s
Decreases Decreases Increases Decreases
All the comparison charts we show in this section
are composed by all the metric results. Actually, in or-
der to avoid metrics overlapping, we plot Entropy and
Kullback-Leibler results with the source IP mirrored
with respect to the x axis.
E
1
- DoS Attack. This episode has been classified
as a DoS attack. In fact, we made a brief statistic to
show which IP generated the highest number of flows
directed to our network and we found that there was
a single IP playing a primary role during the attack
against one single host server. There were also few
other IP addresses participating to the attack, with
a smaller contribution. All the metrics correctly de-
tected the malicious activity, as shown by the fluctu-
ations and the spikes of Figure 3. Indeed, R´enyi dis-
tribution shows the lower peak. The DoS nature of
the attack is well described by the downfall of both
entropy lines (in the lower part of the plot) around

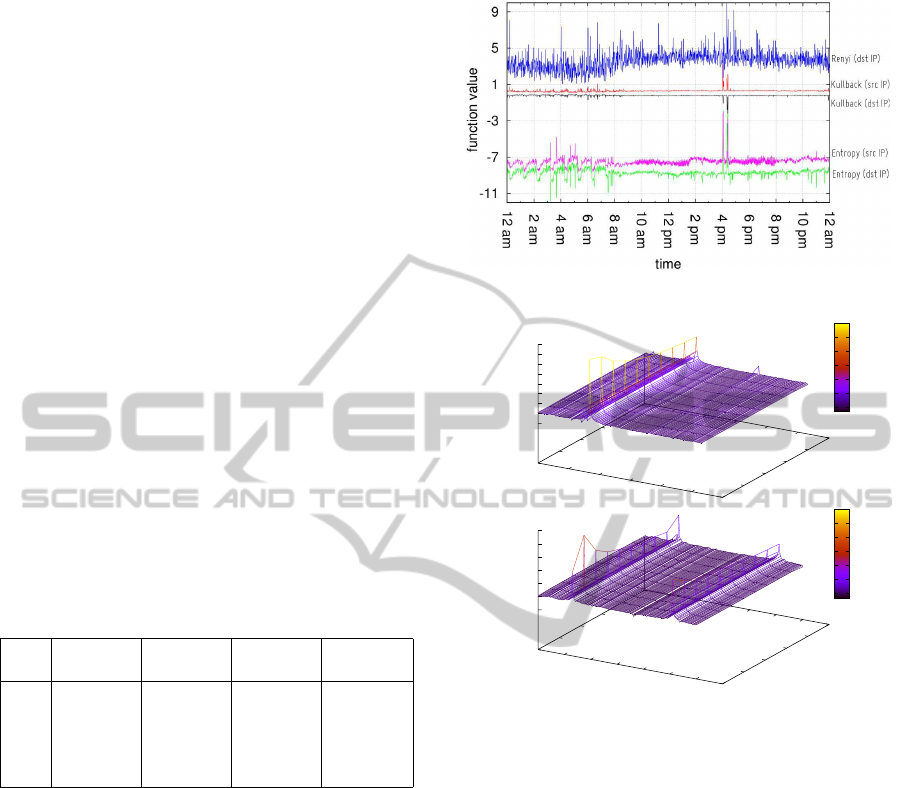

Figure 3: E
1
— metrics comparison.
0
1000
2000
3000
4000
5000
6000
0
2
4
6
8
10
-1
0
1
2
3
4
5
6
7
terms of the sum (KL)
destination IP
time block
(60 seconds)
terms of the sum (KL)
0
0.5
1
1.5
2
2.5
3
0
1000
2000
3000
4000
5000
6000
7000
0
2
4
6
8
10
-0.5
0
0.5
1
1.5
2
2.5
terms of the sum (KL)
source IP
time block
(60 seconds)
terms of the sum (KL)
0
0.5
1
1.5
2
2.5
3
Figure 4: E
1
— Kullback-Leibler details on destination (up-
per plot) and source (lower plot) IP address.
4:00pm. This behavior expresses that a small num-
ber of source addresses generates the largest amount
of connections towards a small set of destinations,
namely the typical scenario of a DoS attack. At the
same time, KL on destination IP grows significantly.
To have a deeper insight of KL behaviors, we graphi-
cally report the contribution of every destination IP to
the final KL
s
and KL
d
values. In Upper Figure 4 we
report the first ten time-blocks since the beginning of
the malicious activity. It is evident how the final value
of KL
d
is obtained by the contribution of one main
component (the victim host 2000), while the contri-
bution of the other hosts is negligible. On the other
hand, since during a DoS attack, only few sources
generate the largest part of the traffic, each attacking
host addresses many flows towards the victim host.
Sampling the network traffic we will see that the at-
tacking IPs are the most frequent among the source
addresses. This anomaly is perfectly captured by the
peaks of lower Figure 4, that corresponds to the main
contributors to the KL
s
value.
SECRYPT2012-InternationalConferenceonSecurityandCryptography
178
In the same plot of Figure 3 is possible to observe
the anomaly that we introduced as administration ac-
tivity (maintenance jobs) and that we labeled with
E
4
: before 7:00AM indeed both source and destina-
tion entropy metrics rise and fall continuously, since
they generate maximum (respectively minimum) traf-
fic compared to high (respectively low) traffic. More
details will be provided in Section 5.1.
E
2
- DoS Attack. In this episode, the main contri-
bution to the attack came from a single IP and consists
in more than 50% of all the flows towards one single
victim host; moreover, the five most active IPs have
generated the 93.8% of the whole traffic.
In this event the victim host does not involve a large
portion of network flows, while several other services
of the networks (web, mail, DNS servers etc.) gen-
erated the larger amount of flows. Nevertheless, the
traffic diversity expressed when the attack occurred
has been well detected by both KL measures. This as-
pect represents a scalability factor of this measure and
suggests that the attack is detectable among the whole
aggregated traffic: that is, the attack emerges from the
traffic thanks to its informational fingerprint. As en-

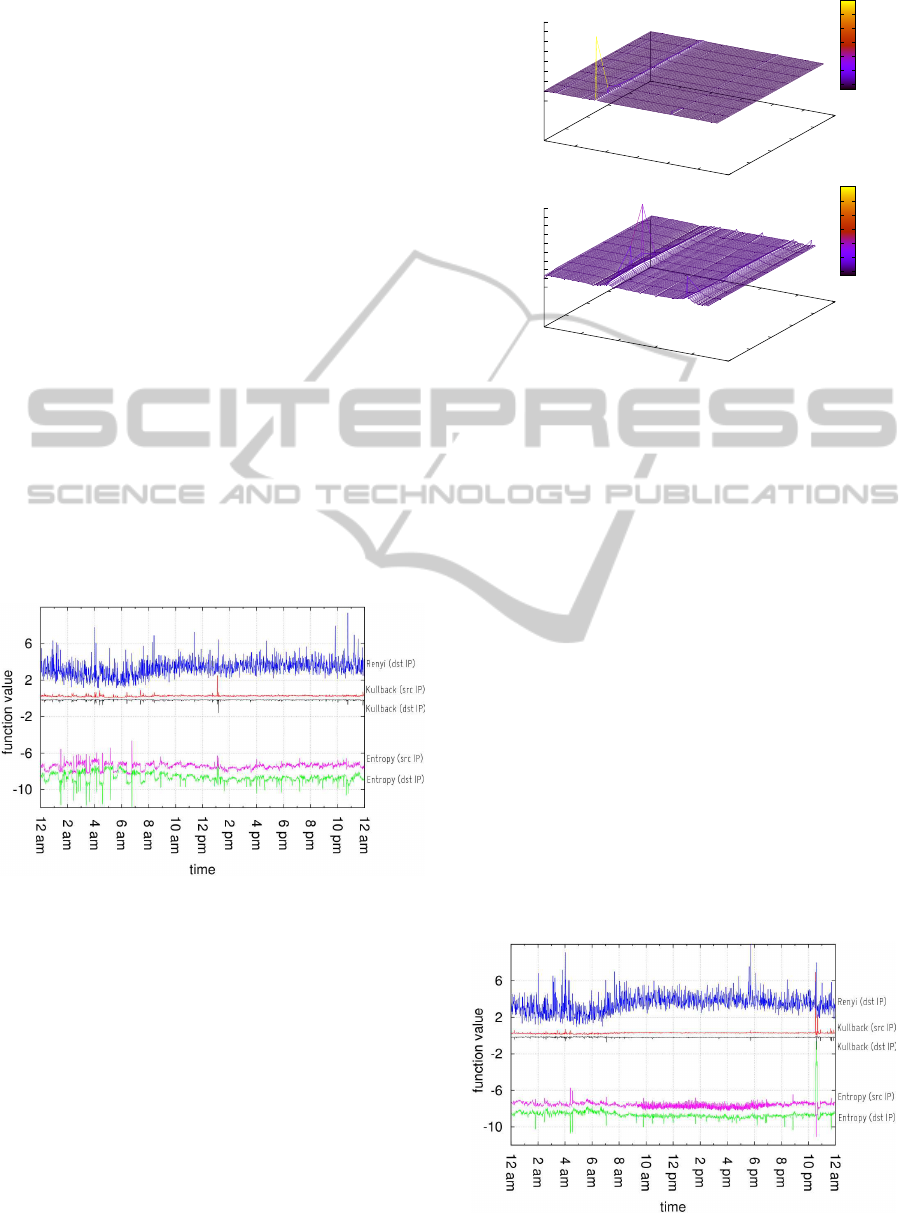

tropy line shows (Figure 5), the attack starts soon af-
ter 1:00PM. The entropy on both attributes decreases,
Figure 5: E
2
— metrics evaluations.
representing a non-uniform distribution of destination
IP as well as source IP fields. The R´enyi distribution
reveals a small peak, but this is hidden by the fuzzy
behavior it exhibits.
Even in this case it is possible to observe the perturba-
tions due to the maintenance jobs: in the case of the
entropy, the peaks are higher than the ones relative
to the attack E
2
, generating some false positive (as it
will be clear in the following). R´enyi divergence also
suffers the same issue. In this particular DoS attack,
the intensity of malicious traffic is significantly lower
than E
1
, making the detection more difficult. Indeed,
the entropy peaks associated to the attack are not re-
ally evidentsince they are lower than the false positive
0
500
1000
1500
2000
2500
3000
0
2
4
6
8
10
-1
0
1
2
3
4
5
6
7
terms of the sum (KL)
destination IP
time block
(60 seconds)
terms of the sum (KL)
0
0.5
1
1.5
2
2.5
3
0
50
100
150
200
250
0
2
4
6
8
10
-0.2
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
terms of the sum (KL)
source IP
time block
(60 seconds)
terms of the sum (KL)
0
0.5
1
1.5
2
2.5
3
Figure 6: Kullback Leibler details on destination (upper
plot) and source (lower plot) IP address.
of the early morning; nevertheless, the KL is still able
to detect the anomaly. Again, the deeper representa-
tions of the KL contributors at the time of the attack
(Figure 6) show how this metric correctly reveals the
attack and characterizes it as a DoS.
E
3
- DDoS Attack. In this case we describe a Dis-
tributed DoS attack, characterized by a large number
of attack sources. In this event the most active host
generates only the 0.5% of the traffic flows. This kind
of attack is really different from E
1
of Section 5.1,
where the most active IP addresses more than half
of total flows. Figure 7 reports the metric behav-
ior. As in E
1
, R´enyi distribution seems to gener-
ate several peaks associated to a non-attack instances.
The most significant example can be found around
6:00PM. The attack started soon after 10:00PM: both
entropy metrics reveal the event and catch its DDoS
nature. The abrupt growth of source IP entropy line
suggests that there was a great amount of diversity
in this field. The peak of destination IP entropy rep-
Figure 7: E
3
— metrics evaluations.
DDoSDetectionwithInformationTheoryMetricsandNetflows-ARealCase
179
0
500
1000
1500
2000
2500
3000
0
2
4
6
8
10
-1
0
1
2
3
4
5
6
7
terms of the sum (KL)
destination IP
time block
(60 seconds)
terms of the sum (KL)
0
0.5
1
1.5
2
2.5
3
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
0
2
4
6
8
10
-0.2
0
0.2
0.4
0.6
0.8
1
terms of the sum (KL)
source IP
time block
(60 seconds)
terms of the sum (KL)
0
0.5
1
1.5
2
2.5
3

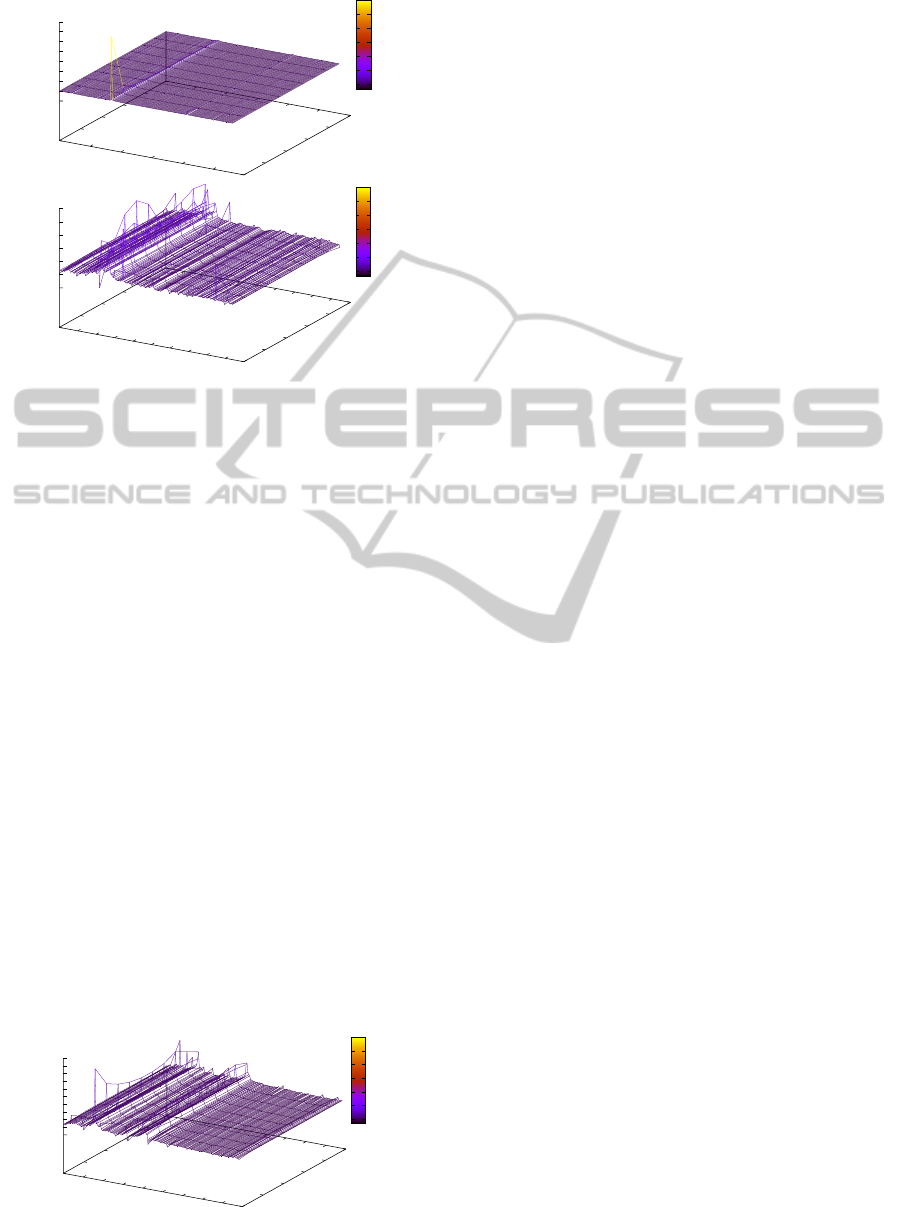

Figure 8: Kullback Leibler details on destination (upper
plot) and source (lower plot) IP address.
resents that there is an anomalous variation in the
connected endpoints. Attack dynamic is represented
in upper Figure 8, where the roughness and quick-
ness of the malicious event causes a jump of the KL
value. The presence of several new entities drawn by
the DDoS attack induces a continuous variation in the
source IP distribution (see lower Figure 8) and, then,
causes the KL to fluctuate constantly. As opposite to
previous cases, the plot shows that the variation of
the KL metric is caused by multiple components, that
contribute to its final value.
E
4
- Maintenance Jobs. In order to explore how
entropy metrics are prone to false positive (see intro-
duction of Section 5.1), we perform a deep analysis
of maintenance job events. These events are common
to all networks and consist in backup activities sched-
uled during the early hours of each days, aimed to
reduce host workload and service degradation. Like-
wise other cases, we plot in Figure 9 a graph showing
how each IP contributes to the final KL value. The
component’s order of magnitude is clearly smaller
than the other KL detailed graphs. KL values, as well
as the values of entropy metrics, are sensible to traf-
fic variation. Since the entropy metrics sense desti-
0
200
400
600
800
1000
1200
1400
1600
1800
0
2
4
6
8
10
-0.05
0
0.05
0.1
0.15
0.2
0.25
0.3
0.35
0.4
0.45
terms of the sum (KL)
destination IP
time block
(60 seconds)
terms of the sum (KL)
0
0.5
1
1.5
2
2.5
3
Figure 9: E
4
— metrics evaluations.
nations (respectively sources) IP address distribution
diversity, they notice a lacks of regularity in the traf-
fic flows and increase their values. On the opposite,
KL values warns distributions divergence, but the low
level of trafficactivity attenuates the final result, keep-
ing the value of the metric under below suspicious
value.
5.2 Metrics Comparison
Our experiments show that all the aforementioned
metrics are able to detect the traffic alterations but
some of them are prone to a high false positive rate.
In particular we observed that the R´enyi is the more
unstable metric: it exhibits many spikes during the
whole analysis, making very unsuitable its use for
(D)DoS anomaly detection with netflows. Similarly,
the Entropy metric shows many fluctuations, making
difficult to find a feature related to (D)DoS attacks.
The Kullback-Leibler (KL), instead, appear to have
the more stable trend, showing evident spikes only
during the attack events. According to other studies
like (Xiang et al., 2011), our analysis also suggests
that the KL is the most suitable information theory
metric to detect (D)DoS.
We can also observe the difficulty to define a
threshold value that could be used to determine if a
spike corresponds to an attack or not. Threshold se-
lection is easier with simple metrics (like packet num-
ber or packet size), but it seems much harder with
statistical metrics (Chang et al., 2006; Sardana et al.,
2008). Both the Entropy and R´enyi metrics show very
unstable values and, in coincidence with some known
attacks (like E
2
and E
3
), exhibit lower values than the
ones obtained during the regular traffic. In our analy-
sis KL metric assume a value greater than 1 during
the known attacks, suggesting a possible empirical
threshold. However, the evaluation of KL threshold
is a subtle argument and is out of the scope of this
work.
6 CONCLUSIONS AND FUTURE
WORKS
In this paper we reported our study on real and huge
netflow data set, to efficiently detect (Distributed) De-
nial of Services attacks at Autonomous Systems level.
We were able to compare and evaluate the main in-
formation theory metrics proposed in the literature,
bringing several insights. We show that malicious ac-
tivities can be detected in aggregated traffic, making
the attacks to emerge from the whole set of aggregated
SECRYPT2012-InternationalConferenceonSecurityandCryptography
180
netflows. We observed that the Kullback-Leibler met-
ric seems to be the best suited to analyze huge amount
of traffic, since it has been able to detect DoS and
DDoS activity, maintaining a low level of false posi-
tives.
An interesting challenge is the formal definition of
a threshold value, whose correctness distinguish legit-
imate and malicious activities. In the future we plan
to release an obfuscated version of our dataset provid-
ing the community with a common ground, where the
proposed solutions can be fairly compared.
REFERENCES
Chan, Y.-T. F., Shoniregun, C. A., and Akmayeva, G. A.
(2008). A netflow based internet-worm detecting sys-
tem in large network. In Pichappan, P. and Abraham,
A., editors, ICDIM, pages 581–586. IEEE.
Chang, C. I., Du, Y., Wang, J., Guo, S. M., and Thouin,
P. D. (2006). Survey and comparative analysis of en-
tropy and relative entropy thresholding techniques. Vi-
sion, Image and Signal Processing, IEE Proceedings
-, 153(6):837–850.
Choo, K.-K. R. (2010). High tech criminal threats to the
national information infrastructure. Inf. Secur. Tech.
Rep., 15:104–111.
Cisco Systems (2004). Cisco Systems NetFlow Services
Export Version 9. rfc3954.
Cisco Systems (2010). Cisco 2010 Annual Security Report,
Highlighting global security threats and trends.
http://www.cisco.com/en/US/prod/vpndevc/annual
security report.html.
Curtmola, R., Sorbo, A. D., Ateniese, G., and Del, A.
(2005). On the performance and analysis of dns se-
curity extensions. In in Proceedings of CANS, pages
288–303. SpringerVerlag.
Di Pietro, R. and Mancini, L. V. (2008). Intrusion Detection
Systems. Springer-Verlag.
Di Pietro, R., Oligeri, G., Soriente, C., and Tsudik, G.
(2010). Intrusion-Resilience in Mobile Unattended
WSNs. In INFOCOM, pages 2303–2311. IEEE.
D¨ubendorfer, T., Wagner, A., and Plattner, B. (2005). A
framework for real-time worm attack detection and
backbone monitoring. In IWCIP 2005.
Feinstein, L. and Schnackenberg, D. (2003). Statistical ap-
proaches to DDOS attack detection and response. In
In Proceedings of the DARPA Information Survivabil-
ity Conference and Exposition, pages 303–314.
Hugh, J. M. (2000). Testing intrusion detection systems: a
critique of the 1998 and 1999 DARPA intrusion detec-
tion system evaluations as performed by lincoln labo-
ratory. ACM Trans. Inf. Syst. Secur., 3:262–294.
Lawniczak, A. T., Di Stefano, B. N., and Wu, H. (2009).
Detection & study of DDoS attacks via entropy in
data network models. CISDA’09, pages 59–66, Pis-
cataway, NJ, USA. IEEE Press.
Li, K., Zhou, W., and Yu, S. (2009a). Effective met-
ric for detecting distributed denial-of-service attacks
based on information divergence. IET Communica-
tions, 3(12):1851–1860.
Li, K., Zhou, W., Yu, S., and Dai, B. (2009b). Effec-
tive DDOS attacks detection using generalized en-
tropy metric. ICA3PP ’09, pages 266–280, Berlin,
Heidelberg. Springer-Verlag.
Mirkovic, J. and Reiher, P. (2004). A taxonomy of DDOS
attack and DDOS defense mechanisms. SIGCOMM
Comput. Commun. Rev., 34:39–53.
No, G. and Ra, I. (2009). An efficient and reliable DDOS
attack detection using a fast entropy computation
method. ISCIT’09, pages 1223–1228, Piscataway, NJ,
USA. IEEE Press.
Nychis, G., Sekar, V., Andersen, D. G., Kim, H., and Zhang,
H. (2008). An empirical evaluation of entropy-based
traffic anomaly detection. IMC ’08, pages 151–156,
New York, NY, USA. ACM.
Oshima, S., Nakashima, T., and Sueyoshi, T. (2010). DDoS
detection technique using statistical analysis to gen-
erate quick response time. BWCCA ’10, pages 672–
677, Washington, DC, USA. IEEE Computer Society.
Sardana, A., Joshi, R., and Kim, T.-h. (2008). Deciding
optimal entropic thresholds to calibrate the detection
mechanism for variable rate DDOS attacks in ISP do-
main. In ISA, pages 270–275, Washington, DC, USA.
IEEE Computer Society.
Sekar, V. and Merwe, J. V. D. (2006). Lads: Large-scale au-
tomated ddos detection system. In In Proc. of USENIX
ATC, pages 171–184.
Shannon, C. E. (1948). A mathematical theory of commu-
nication. The Bell system technical journal, 27:379–
423.
Xiang, Y., Li, K., and Zhou, W. (2011). Low-rate DDOS at-
tacks detection and traceback by using new informa-
tion metrics. In Information Forensics and Security,
IEEE Transactions, volume 99. IEEE Press.
DDoSDetectionwithInformationTheoryMetricsandNetflows-ARealCase
181
