Model Driven Development of Process-centric Web Applications

Mario L. Bernardi

, Marta Cimitile

and Fabrizio M. Maggi

Department of Engineering-RCOST, University of Sannio, Benevento, Italy

Faculty of Jurisprudence, Unitelma Sapienza University, Rome, Italy

Department of Mathematics and Computer Science, Eindhoven University of Technology, Eindhoven, The Netherlands

Keywords:

Model Driven Engineering, Declarative Processes, Domain Speciﬁc Languages, Code Generation, Web

Applications Development.

Abstract:

Despite Model Driven Engineering (MDE) approaches are largely used to develop, update and evolve Web

Applications (WAs), the use of these approaches for the development of process-centric WAs is still very

limited. This is an important issue in the context of MDE considering that WAs are often used to support users

in the execution of business processes. In this paper, we propose the integration of three MDE metamodels

used to represent the structure of information, service and presentation layers of a WA with the metamodel of

Declare, a declarative language for business process rapresentation. The declarative nature of Declare allows

us to combine an efﬁcient roundtrip engineering support with the advantages of an MDE approach. We present

and discuss a case study where the proposed approach is used to develop a typical online shopping application

with the aim to validate and verify the feasibility and the effectiveness of the approach.

1 INTRODUCTION

In the last years, Model Driven Engineering (MDE)

approaches have been used to quickly and easily de-

velop, update and evolve Web Applications (WAs). In

this way, it has been possible to meet the increasing

necessity for a rapid customization of WAs according

to the changeability of the market requests.

Despite the ample diffusion of MDE principles ap-

plied to the development of WAs (Ceri et al., 2000;

Bernardi et al., 2010), the adoption of these ap-

proaches in the context of process-centric WAs (Rets-

chitzegger and Schwinger, 2000) has not largely been

investigated and still suffers from a lack of uniformity

in terms of languages, technologies and models dur-

ing the entire development life-cycle.

Moreover, the generation of the business process

management components is still not completely auto-

mated and needs several manual customizations that

are often not trivial and require the developers to it-

erate the generation steps several times. This lack of

adequate round-trip engineering support still thwarts

the beneﬁts arising from the MDE adoption.

Nevertheless, the most limiting aspect for a

widespread adoption of MDE in industrial contexts is

the lack of ﬂexibility in the process deﬁnition. There-

fore, it is necessary the integration of MDE approach-

es with adequate metamodels for process representa-

tion that ensure ﬂexibility.

In this paper, we propose an approach based on

the integration of three MDE metamodels used to rep-

resent the structure of information, service and pre-

sentation layers of a WA with the metamodel of De-

clare (Pesic, 2008; Pesic et al., 2007; van der Aalst

et al., 2009), a declarative language to represent busi-

ness processes. This approach enables the automatic

generation of a fully working prototype of a process-

centric WA. The use of MDE technologies in conjunc-

tion with a declarative process modeling language al-

lows the developers to represent the behavior of a

WA with a high level of ﬂexibility as a compact set

of constraints (Zugal et al., 2011). Furthermore, this

approach allows the developers and the designers to

work on the process only at the model level without

spending any effort customizing and maintaining the

generated code.

The paper is structured as follows. In Section 2,

we discuss the related work. In Section 3, we de-

scribe the proposed metamodels, their integration and

the generation approach. Section 4 discusses the ap-

plication of our approach to a case study while Sec-

tion 5 provides some conclusive notes and remark.

340

L. Bernardi M., Cimitile M. and M. Maggi F..

Model Driven Development of Process-centric Web Applications.

DOI: 10.5220/0004069903400346

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 340-346

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

The topic of the integration of process modeling tech-

niques with MDE approaches for the development of

WAs is not new in literature. In (Merialdo et al.,

2003), the authors use a workﬂow conceptual model

supporting the interaction between the hypertext and

an underlying workﬂow management system. In

(Koch et al., 2004), an approach is proposed based

on the integration of the Object-Oriented Hyperme-

dia method (OO-H) and the UML-based Web En-

gineering (UWE). In (Torres and Pelechano, 2006),

Business Process Management (BPM) (Weske, 2007)

and Object Oriented Web Solution (OOWS) (Fons

et al., 2003) are combined: model-to-model trans-

formations are used to generate a navigational model

from the BPM deﬁnition while model-to-text trans-

formations are used to produce an executable process

deﬁnition in BPEL. This approach has been extended

in (Brambilla et al., 2006).

The integration of MDE with process modeling

languages proposed in literature has always been

based on procedural notations. In our approach, we

decided to integrate the MDE methodology with De-

clare, a declarative process modeling language pro-

posed by Pesic and van der Aalst in (Pesic, 2008;

Pesic et al., 2007; van der Aalst et al., 2009). Declare

was adopted because it is equipped with a powerful

graphical notation together with a formal Linear Tem-

poral Logic (LTL) semantics. Based on its formal se-

mantics, tools for the execution and the veriﬁcation of

Declare models have been developed

that are useful

in simulation and rapid prototyping to provide formal

veriﬁcation of process properties. Moreover, our pre-

liminary studies shows several advantages, concern-

ing maintenance, quality and development effective-

ness, deriving by the adoption of MDE methodology

in combination with a declarative language.

3 THE APPROACH

In this paper, we propose an MDE approach for de-

veloping WAs based on four integrated metamodels

each one associated to a corresponding Domain Spe-

ciﬁc Language (DSL) describing a particular aspect

of the WA: (i) an information layer metamodel, used

to represent domain elements and their relationships;

(ii) a service layer metamodel used to model and ex-

press system operations and business logic; (iii) a pre-

sentation layer metamodel introducing the concepts

of Views, Sub-views, Canvas, Widgets and a model-

based component hierarchy to describe how the user

http://www.win.tue.nl/declare

interface is structured and how it behaves; and (iv) a

process layer based on the Declare metamodel, inte-

grated with the previous ones, that allows us to repre-

sent the business process underlying the WA as a set

of constraints.

In the deﬁnition of the WA information layer

metamodel, our aim is to use a common set of mod-

eling concepts that allow us to deﬁne sound and rich

information models. In order to deﬁne the necessary

constructs and modeling primitives, we decided to ad-

here to the well known object-oriented standard, i.e.,

to the semantics and notation provided by the UML

class diagrams. The information layer metamodel

resembles the standard Entity-Relationship model,

widely used and accepted for information modeling

tasks. An excerpt of this model is shown in Fig. 1-(a).

Here, the main concept is the Classiﬁer that models a

generic domain object specialized as an Entity (rep-

resenting the super-class of unique and persistent ob-

jects in the WA domain model). A relationship speci-

ﬁcation is represented as an Association in the model.

It speciﬁes minimum and maximum cardinality of re-

lationship roles, caching attributes, mappings to the

relational model and other properties useful to support

the generation of the source code and of the other arti-

facts needed for the WA development. The ValueOb-

ject metaclass can represent a TransferObject (needed

to handle values), a PrimitiveType (mapped to a lan-

guage type) or a UserDeﬁnedType that refers to types

that need special treatment (e.g., binary objects, im-

ages, internationalized text). The metamodel also in-

troduces the Operation concept representing behav-

iors that refer to the elements of the information layer

metamodel.

Fig. 1-(b) shows the metamodel used to represent

the service layer of the WA. The main metaclass is

ServiceDeﬁnition, deﬁned as an externally accessible

entry point in the WA specifying a set of behaviors ad-

hering to a well known interface. This interface and

its properties, speciﬁed through the ServiceOperation

metaclass, allow the designer to customize the ser-

vice behavior in several ways. Each ServiceOperation

can specify a behavior directly or delegate it to one or

more operations of a DataAccessObject (DAO).

The presentation layer metamodel, shown in Fig.

1-(c), is devoted to the description of the presentation

layer. The UIRoot is the entry point of this layer. It is

centered on the Activity concept regarded as either a

user activity requiring human intervention or a batch

activity that can be performed automatically by the

process execution engine. The Activity metaclass is

the root of a hierarchy of several kinds of predeﬁned

activities such as BatchActivity, CRUDActivity (as-

sociated by the code generator to the CRUD services

ModelDrivenDevelopmentofProcess-centricWebApplications

341

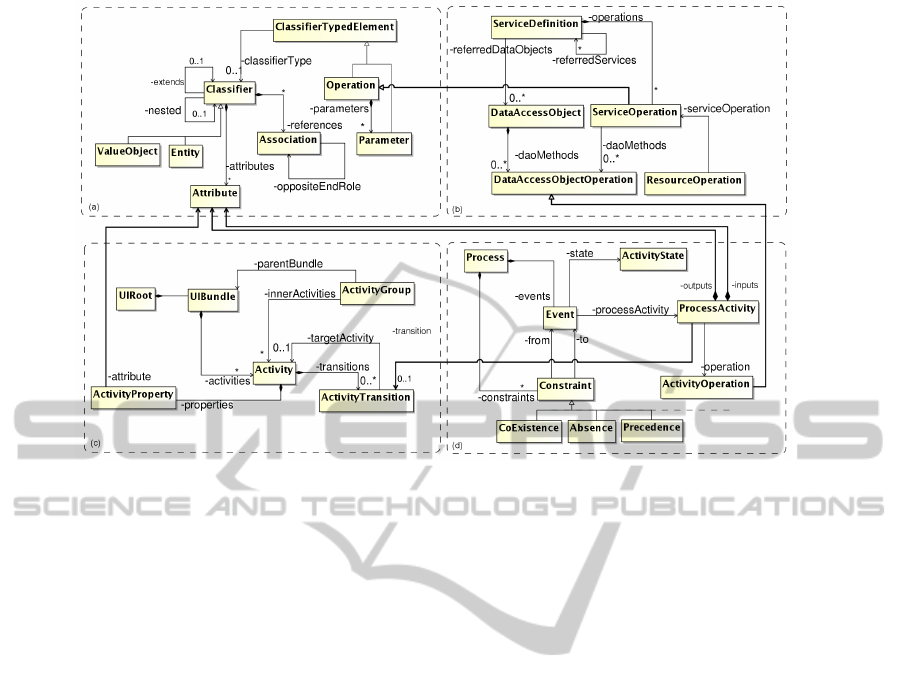

Figure 1: The four linked metamodel.

delegated to DAO classes), ListActivity, TableActiv-

ity, GridActivity and ViewActivity. These gather data

from the elements of the information model using dif-

ferent kinds of layouts (i.e., lists, tables, views). An-

other important aspect of the presentation layer meta-

model is the navigability: each Activity can spec-

ify transitions towards other activities and the post-

conditions that must be satisﬁed on the output data.

This is particularly important to ensure the informa-

tion exchanges among instances of activities as spec-

iﬁed by the process deﬁnition. As further discussed

in the next section, the code generator is responsible

for the generation of the ProcessManager code that

dynamically injects ActivityTransition instances into

ProcessActivity objects by querying the Declare En-

gine. Finally, when the user chooses to execute an ac-

tivity, the ProcessManager collects the referenced in-

put instances and process variables by wrapping them

into a context object, and expose them to the target

activity.

We chose to describe the processes underlying a

process-centric WA through Declare, a user-friendly

constraint-based language. We do not describe the

language in detail (we refer the reader to (Pesic, 2008;

Pesic et al., 2007; van der Aalst et al., 2009) for more

information about the language) but we will explain

the main concepts through the process layer meta-

model reported in Fig. 1-(d). In this metamodel, a

Process is composed of a set of possible events and

constraints on events. The Constraint metaclass is the

abstract root of a rich set of constraints (e.g., Prece-

dence, NotCoexistence) each one having a well de-

ﬁned LTL semantics and a graphical representation

as speciﬁed by the Declare language deﬁnition. On

the other hand, an Event puts together a ProcessActiv-

ity instance with an ActivityState representing a valid

state in which that activity can be at a given time.

The ProcessActivity is linked to the information layer

metamodel mapping attributes to the input/output pa-

rameters of the ServiceOperation. It speciﬁes the be-

havior associated to the ProcessActivity itself. Each

ProcessActivity is also linked to the presentation layer

being associated to a single UIRoot containing several

inner activities. These activities can be created by us-

ing the Attribute information thus allowing the user to

interact with the process.

3.1 Code Generation

The proposed approach adopts MDE technologies to

enable the automatic generation of a fully working

workﬂow-enabled WA starting from its design mod-

els. At the heart of our solution there is a genera-

tive approach centered on the four linked metamodel

illustrated in the previous section. These metamod-

els are provided as input to a code generator that

is able to generate the implementation for a target

platform adopting different well-known architectural

patterns. In our case, a J2EE spring-based platform

was selected as target; it exploits the Command-based

Model-View-Controller design to build the UI, an

aspect-orientation approach to modularize persistence

and logging, and dependency injection to increase

ﬂexibility and reuse. The approach is conceived to

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

342

fulﬁll two goals: ﬁrst, the use of DSL editors sup-

ports the designers with precise speciﬁcations driving

the modeling of all the aspects of the WA (i.e., in-

formation, service, presentation and process points of

view); second, it allows them to link the models of

the WA, written using the DSL editor, to the code au-

tomatically generated from the models by the target

platform.

The model-to-text transformations are imple-

mented as a hierarchy of templates written in the

Xpand language. There are several templates used to

generate the UI views and the navigational bars that

allow users to move through the application contents.

In particular, for each Entity deﬁned in the informa-

tion model, a page containing a CRUDActivity is gen-

erated. This CRUDActivity is built by composing a

ListActivity (to implement the retrieve operation) and

a contextual menu on the Entity instances that allows

the execution of the other CRUD operations. A navi-

gational bar with links to those pages is generated by

another template and injected into each view of the

application, allowing the user to quickly reach and

manage the contents.

Another key page generated is the PendingTasks

page, in which all process instances (grouped by pro-

cess) are shown (using a TableActivity). On each in-

stance a contextual menu is built. This menu mixes

a static part (containing process management actions

such as start, stop or remove activities) and a dynamic

one obtained by querying at runtime the Declare En-

gine component. This dynamic portion shows only

the valid steps that can be executed.

In order to support the approach, a prototypical

MDE tool was developed. The core layer of our gen-

eration environment is based on the Eclipse Model-

ing Platform including the Xtext framework, needed

to develop the DSL Editors, and the Xpand frame-

work, used to drive the generation tasks. On top of

it, the code generation layer contains the Xpand Tem-

plate manager component. It is responsible of apply-

ing templates on the user models in order to gener-

ate the needed resources. During this step, several

resource-speciﬁc generators are used. The IDE inte-

gration layer is comprised of four DSL editors (one

for each metamodel). They are built using the Xtext

framework and integrated into the tool thus allowing

the developer to model the application and to start the

generation process. The platform also supports the

reconciliation of changed artifacts with respect to the

models changes.

WebApplication On l i n e S h o p p i n g {

Namespace d at am od el {

Entity O rd e r {

S t r i n g name , d e s c r i p t i o n ;

L i s t <Ite m Li n e> l i n e s oppositeEnd( It em L i n e .

r e f e r e n c e d I n O r d e r ) ; }

Entity I t e m L i n e {

Or d er r e f e r e n c e d I n O r d e r oppositeEnd( Ord e r . l i n e s ) ;

It e m i t e m ;

Long q u a n t i t y ;

Operation B igD e cim a l l i n e P r i c e ( ) ; }

Entity I n v o i c e {

Cus t o m er cu st o m e r ;

Or d er o r d e r I d ;

Bi g D eci m al t o t a l p r i c e , v a t ; }

a b s t r a c t Entity It e m {

S t r i n g name , d e s c r i p t i o n ;

Bi g D eci m al p r i c e ;

L i s t <I t e m P r o p e r t y> p r o p e r t i e s oppositeEnd( it e m ) ; }

Entity Book e x te nd s It e m { . . . }

Entity It e m P r o p e r t y {

It e m i t e m oppositeEnd( p r o p e r t i e s ) ;

S t r i n g p r o p e r t y , v a l u e ; }

Entity C u s t om er {

Dat e b i r t h D a t e p a s t

Gender s e x ! c h a n g e a b l e

CustomerName name

L i s t <Add r e ss> a d d r e s s e s oppositeEnd( c u st o m e r ) ; }

Enum Ge n de r { FEMALE( "F") , MALE("M" ) }

UserDefinedType A d dr es s { . . . }

. . .

}

Figure 2: An excerpt of the DSL describing the information

model.

4 THE CASE STUDY

We evaluated the feasibility and the effectiveness of

our approach through an example application that il-

lustrates its main steps, starting from the deﬁnition

of the models to the execution of the code generation

tasks. The example concerns a typical use case for

ordering a product in an online shop.

Fig. 2 shows an excerpt of the DSL instance used

to represent the information model of the proposed

example. In this model, the main concepts of the do-

main are represented by entities (Order, ItemLine, In-

voice and a small Item hierarchy) linked together by

several Association classes. Secondary concepts such

as Address, Country and CustomerName are value

objects that do not need object identity properties or

persistence and hence are represented by means of the

PrimitiveType, UserDeﬁnedType and Enum classes.

The model also allows us to specify generic collec-

tions in order to represent sets of objects of given

types. These collections are used to express an Asso-

ciation having roles involving multiple objects (such

as the aggregation between Order and Item or the

composition between Item and Property).

The service model imports the information model

of Fig. 2 and deﬁnes the operations needed to im-

plement the business logic of our online shopping ex-

ample. The model deﬁnes a DAO for each Entity in

the model and introduces a mapping between Service

ModelDrivenDevelopmentofProcess-centricWebApplications

343

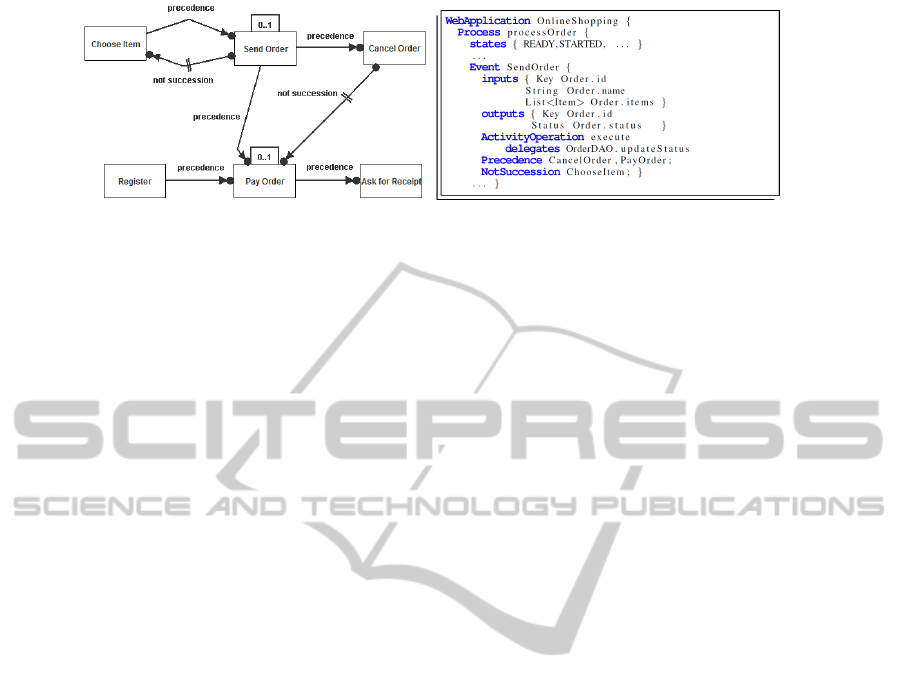

(a) The Declare process model. (b) An excerpt of the DSL describing the Declare

model.

Figure 3: Declare model of the online shopping example.

and DAO classes. Each DAO in the model introduces

CRUD operations for the entities and each ServiceOp-

eration speciﬁes dependencies on them. The model

also includes the deﬁnition of three services (Cus-

tomerService, OrderService and InvoiceService) used

to manage customer information, order management

and invoice issuing respectively.

The Declare process model underlying the online

shopping WA (depicted in Fig. 3-(a)) is represented

as a set of events (e.g., Choose Item) and a set of con-

straints (e.g., not succession) on events. In the model,

the precedence constraint between Choose Item and

Send Order indicates that the buyer cannot send an

order without having chosen at least an item. More-

over, the absence constraint associated to Send Order

(labeled with 0..1) means that Send Order can be exe-

cuted at most once in a process instance. The not suc-

cession between Send Order and Choose Item speci-

ﬁes that when an order has been sent it is not possible

to choose further items anymore. It is possible for the

buyer to register an account at any point in time in

the process and more than once. It is possible, how-

ever, to pay only once, as indicated by the absence

constraint associated to Pay Order. Moreover, it is

possible to pay only after the registration and after

having sent an order (as indicated by the precedence

constraints between Register and Pay Order and be-

tween Send Order and Pay Order respectively). In

any point of the process, the buyer can cancel the or-

der but this can be done only after having sent an order

(as indicated by the precedence between Send Order

and Cancel Order). After having canceled an order it

is not possible to pay anymore (as indicated by the not

succession constraint between Cancel Order and Pay

Order). It is possible for the buyer to ask for a receipt

more than once but only after having payed (as indi-

cated by the precedence between Pay Order and Ask

for Receipt). In Fig. 3-(b), we show the deﬁnition of

the SendOrder activity and of the constraints deﬁned

on it.

The online shopping application has been made up

of 13kLOC of code of which only a small ratio was

manually customized by hand (less than 1kLOC). The

overall model of the application included 9 entities, 9

DAOs and 4 services. For each Entity, a CRUDActiv-

ity was automatically generated with its gap classes

allowing for the customization. The process was com-

prised of 6 events and 9 constraints. After the gen-

eration, the entire application was comprised of 54

classes and 12 interfaces; 22 classes were generated

as prescribed by the Generation Gap pattern to allow

for the customization of data objects, services and ac-

tivities behaviors.

Fig. 4 is a screenshot of the resulting online shop-

ping WA. In particular, it shows the CRUDActivity

of entity Item of the information model. The Items

List includes a set of items and for each of them the

contextual item menu reports the CRUD operations

that are available for it. The upper part of the ﬁgure

shows the navigation bar that is automatically gener-

ated from the information model (with a button for

each Entity of the model) and injected into each UI

activity to allow navigation: in this case, the appli-

cation administrator is able to execute CRUD opera-

tions on each Entity. The PendingTasks button (in the

navigation bar) lists the active process instances for

ProcessOrder.

As Fig. 5 shows, for each process (in the exam-

ple ProcessOrder), a ListActivity is used to list the

corresponding active instances. This list reports, for

each process instance, the process instance id, the ti-

tle, the history of the activities already executed (Ac-

tivity Path), the associated items (quantity and ID)

and the current state (the customization class in this

case was created to indicate quantity and ID of the se-

lected items). The example shows that in the process

order number 258762 three items have been chosen

and that this order is valid and running. In the ﬁgure,

also the contextual menu for this order is shown. The

static part of the menu includes the actions for pro-

cess management (stop, edit and remove). The dy-

namic part (queried using the Declare Engine) shows

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

344

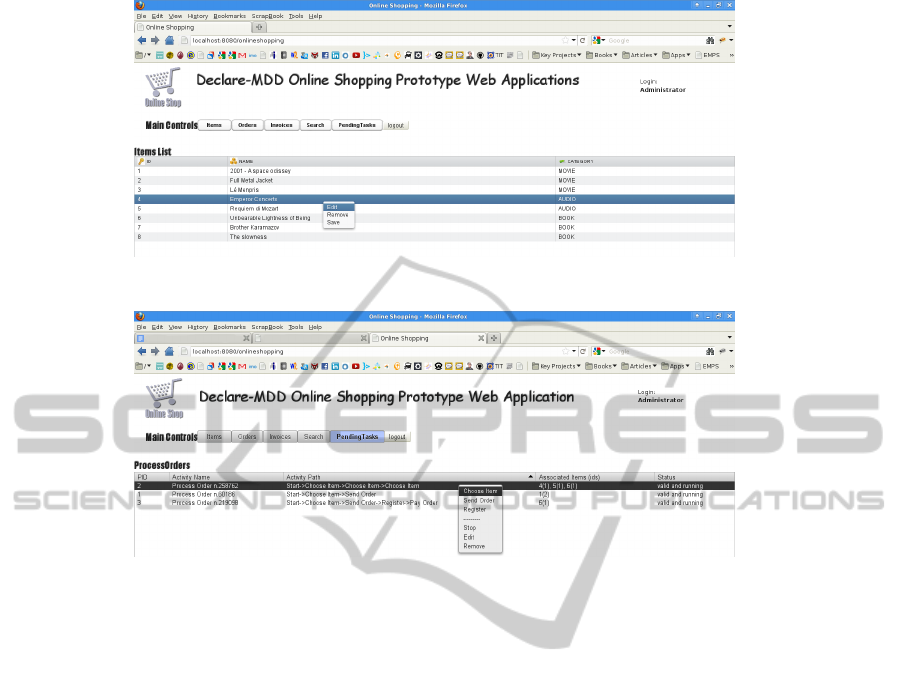

Figure 4: The online shopping example: the auto-generated CRUDActivity of Entity Item.

Figure 5: The online shopping example: the possible actions on a running process instance.

that in this process instance it is only possible to exe-

cute Choose Item again, Send Order to buy the items

or Register according to the reference Declare process

model.

5 CONCLUSIONS

This paper proposes an approach based on the integra-

tion of four MDE metamodels representing the main

components of a WA and the declarative process mod-

eling language Declare. The approach is assessed de-

scribing a typical online shopping WA. This appli-

cation shows the applicability of the approach and

underlines some advantages deriving by its adoption.

First, we found that our set of metamodels was very

effective to model a process-centric WA. Indeed, we

observed that in the online shopping application only

a small ratio of LOC had to be manually customized.

This is a valuable advantage for the developers in the

implementation and the maintenance of a WA. The

integration of different metamodels supports a clear

separation of concerns and enables not only the reuse

of the analysis models but also the reuse of the design

models (e.g., customer sign in and checkout models)

in different contexts.

REFERENCES

Bernardi, M. L., Cimitile, M., Distante, D., and Mazzone, F.

(2010). Web applications design evolution with UWA.

In WSE, pages 3–12.

Brambilla, M., Ceri, S., Fraternali, P., and Manolescu, I.

(2006). Process modeling in web applications. ACM

TOSEM, 15:360–409.

Ceri, S., Fraternali, P., and Bongio, A. (2000). Web mod-

eling language (webml): a modeling language for

designing web sites. In Web Modeling Language

(WebML): a modeling language for designing Web

sites, pages 137–157.

Fons, J., Pelechano, V., Albert, M., and Pastor,

O. (2003).

Development of web applications from web enhanced

conceptual schemas. In Conceptual Modeling - ER,

pages 232–245. Springer.

Koch, N., Kraus, A., Cachero, C., and Meli

a, S. (2004).

Integration of business processes in web application

models. J. Web Eng., 3:22–49.

Merialdo, P., Atzeni, P., and Mecca, G. (2003). Design and

development of data-intensive web sites: The araneus

approach. ACM Trans. Internet Technol., 3:49–92.

Pesic, M. (2008). Constraint-Based Workﬂow Management

Systems: Shifting Controls to Users. PhD thesis, Beta

Research School for Operations Management and Lo-

gistics, Eindhoven University of Technology.

Pesic, M., Schonenberg, H., and van der Aalst, W. M. P.

(2007). Declare: Full support for loosely-structured

ModelDrivenDevelopmentofProcess-centricWebApplications

345

processes. In IEEE International EDOC Conference

2007, pages 287–300.

Retschitzegger, W. and Schwinger, W. (2000). Towards

modeling of dataweb applications - a requirement’s

perspective.

Torres, V. and Pelechano, V. (2006). V.: Building business

process driven web applications. In Springer Berlin /

Heidelberg, pages 322–337.

van der Aalst, W., Pesic, M., and Schonenberg, H. (2009).

Declarative workﬂows: Balancing between ﬂexibility

and support. Computer Science - Research and Devel-

opment, 23:99–113.

Weske, M. (2007). Business Process Management: Con-

cepts, Languages, Architectures. Springer.

Zugal, S., Pinggera, J., and Weber, B. (2011). The impact of

testcases on the maintainability of declarative process

models. In BMMDS/EMMSAD, pages 163–177.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

346
