Sevigator: Network Conﬁnement of Malware Applications and

Untrusted Operating Systems

Denis Efremov and Nikolay Pakulin

Institute for System Programming, Alexander Solzhenitsyn st. 25, Moscow, Russian Federation

Keywords:

Virtualization-based Security, Network Access Control, Hypervisor, Virtual Machine Monitor, Virtualization,

Security, Privacy Protection.

Abstract:

This project is an attempt to combine the advantages of software ﬂexibility and security of hardware ﬁrewalls.

It aims at the implementation of these advantages in the hypervisor source code for the purpose of creating

user data conﬁdentiality protection against its leakage from the personal computer through the network. The

hypervisor implementation is based on the hardware virtualization extensions of both processors and moth-

erboards. This constitutes a key feature, which enables hypervisor to combine the following advantages: the

advantages of access to the OS environment and hardware protection against various intruders’ methods of

compromise, including those capable of exploiting OS kernel resources for performing the malicious actions.

1 INTRODUCTION

Traditional ﬁrewalls provide only partial protection

from viruses and alikes, since they do not know ex-

act context for IP packets — whether the sender is a

trusted process or a malware, whether the contents of

the packet is valid or it is altered by a malicious soft-

ware. This statement holds for both bump-in-the-wire

ﬁrewalls that run on physically separate computer or

router, and ﬁrewalls running on the same network

node with the malware. The reason is that modern

monolithic OS grant low-level software virtually un-

bounded rights. If a malware managed to compromise

OS and installed a driver deep into the kernel, it can

either mimic a system process or even inject malware

code into running trusted application.

This paper presents Sevigator – a toolkit for net-

work conﬁnement when only trusted application gain

access to local network while other application and

even OS kernel have no networking at all. Sevigator

is based on hardware virtualization support: a cus-

tom hypervisor hides network interface card from the

OS kernel and delegates network-related system calls

of trusted applications to a dedicated service virtual

machine. To prevent code injection or data alteration

by a malicious kernel code or driver the hypervisor

maintains integrity of the trusted applications bina-

ries, shared objects and in-memory data.

2 ARCHITECTURE

In Sevigator the hypervisor ensures simultaneous ex-

ecution of two virtual machines (VM), primary and

service, completely isolated from each other. The pri-

mary VM contains secured applications; it is the VM

that potential users have access to. The service VM is

designed to process network input/output for trusted

application of the primary VM. (Ta-Min et al., 2006);

(LeVasseur et al., 2004)

A user works in the primary VM, which controls

all devices except for the network adapter, through

which the information leakage might occur. The pri-

mary VM contains sensitive data, and software han-

dling this data (both trusted and untrusted). The data

are stored in a plaintext (unencrypted) form, and pro-

tection system does not limit read access of processes

(both system and user level) to these data making its

processing possible by any programs including un-

trusted ones.

When primary VM starts the hypervisor blocks

its access to the network interface. An OS running

in it believes a network adapter to be physically ab-

sent. Therefore any attempt to establish a network

connection from within this VM and transfer data to

the remote computer will unavoidably lead to an error.

Hence the malicious code running within the primary

VM with any level of hardware processor privileges

will not be able to transfer data, even though it man-

ages to get read access to it.

395

Efremov D. and Pakulin N..

Sevigator: Network Conﬁnement of Malware Applications and Untrusted Operating Systems.

DOI: 10.5220/0004070103950398

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 395-398

ISBN: 978-989-8565-24-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Among all user programs included in the primary

VM, a number of trusted programs is distinguished.

The service VM is used to provide network access

to them. This VM runs in background mode. Any

application within this VM can interact with remote

network computers.

The support of network communication for the

trusted applications is implemented by means of re-

mote servicing of the required set of system calls from

the primary VM to the service VM. The only data

communicated outside the primary VM are explicitly

speciﬁed by the arguments of a trusted process system

call. Transfer of data outside this VM is performed by

the trusted code - the hypervisor.

The trusted processes are executed under an un-

trusted OS. In the absence of proper control by the

security system, the malicious code in the OS kernel

can inject code into the address space of the trusted

process, pass control to it, and the trusted process in

its own name may send sensive data to a remote com-

puter controlled by intruder. To avoid this threat, se-

curity system protects the context of the trusted appli-

cation from an unauthorized modiﬁcation by any code

in the primary VM, including privileged code.

3 PROTECTION OF THE

TRUSTED APPLICATIONS

CONTEXT

Malicious software in OS kernel has capabilities to al-

ter application’s executable ﬁle or modify the shared

libraries that the application uses. As a countermea-

sure we perform transparent validation of the appli-

cation’s executable ﬁle and its shared libraries when

a trusted application is being launched. Authenticity

is validated by means of secure control sums of the

pages of the memory-mappedﬁle of the application or

a library. Checksums are 160-bit SHA-1 hashes, one

for each page of static data and code in a binary ﬁle.

Checksum failure for at least one hash causes loss of

the trusted status of the application. The procedure of

checksum veriﬁcation is implemented in the hypervi-

sor. System administrator has ability to dynamically

load them into the hypervisor during the system oper-

ation.

Besides the libraries speciﬁed in the executable,

an application may dynamically load libraries. The

hypervisor intercepts mapping of those ﬁles into

memory and validate the libraries.

Every trusted process is executed in a separate se-

curity domain. It is essential to maintain statuis of

control tables and ensure access interception to the

desired memory pages. Security domain is nothing

more than a dynamically changeable set of physical

pages with speciﬁed read and write access rights. An

attempt of an executable code to get access to the

physical page outside its domain as well as an access

to the page within its domain accompanied by the ac-

cess violation is intercepted by the hypervisor.

The implementation of security domain technique

is based on nested page tables for each domain (NPT)

(AMD, 2008). Nested tables specify translation of

nominal physical VM addresses to the actual abso-

lute physical addresses. The hypervisor creates a new

(empty) set of nested tables for a process when it en-

ters the trusted mode for the ﬁrst time. Every time the

control is passed to the process, the hypervisor sets

the nested tables for this process as active for the vir-

tual machine. Upon the interruption of process execu-

tion and control pass to the OS, the hypervisor toggles

active nested tables and sets the tables of an untrusted

domain (domain of kernel and untrusted processes).

(Chen et al., 2008); (Yang and Shin, 2008)

4 THE HYPERVISOR AND VM

DATA COMMUNICATION

METHODS

Remote servicing of the system calls is implemented

by the hypervisor in association with the system com-

ponents, working in both VMs, primary and service.

During the system initialization modules are dynami-

cally loaded into the kernel of the primary and service

VM.

Each module allocates continuous physical mem-

ory space for ring buffer, registers several interrupt

handlers which are used by the hypervisor to notify

virtual machine of incoming events or processing, and

communicates this information (buffer address and

interrupt numbers) to the hypervisor through a hy-

percall (AMD, 2011). Synchronous nature of hyper-

call makes it possible to transfer hypercall parameters,

much as the user process transfers parameters to the

OS kernel during the system call execution: numeri-

cal parameters and memory area addresses are passed

through the registers, the hypervisor reads virtual ma-

chine memory area at the speciﬁed addresses and

fetches addition information from there (or records it

there) when needed.

To notify VM about event the hypervisor uses a

capability to throw interrupts and exceptions into the

virtual machine by means of the corresponding ﬁelds

in the VM control structure VMCB (AMD, 2011)

provided by the virtualization hardware. Upon VM

SECRYPT2012-InternationalConferenceonSecurityandCryptography

396

resumption, the hardware ensures interrupt delivery

immediately before the execution of the ﬁrst VM in-

struction. In response to the interrupt OS passes con-

trol to the corresponding interrupt handler which was

registered in the interrupt handlers table by the kernel

module during the system initialization process.

System call parameters are passed through the

ring buffer. If the buffer is overﬂowed, the request

delivery is suspended until space in the buffer is freed

up. The data structure representing a ring buffer el-

ement is common for all system calls and includes

ﬁelds for all possible ﬁxed-size parameters. Variable-

size parameters are transferred through a separate

buffer allocated in the storage (hypervisor memory).

The coordinates of a variable-size parameter, an off-

set from the storage origin and a size, are speciﬁed

in the data structure of the ring buffer. The hypervi-

sor maintains a separate storage copy for every trusted

process.

Upon the receipt of a request containing variable-

size parameters, the VM code for which this request

is intended performs a hypercall for the storage ac-

cess sending a requested parameter coordinates and

an address of the buffer in its own memory intended

for holding the data from the storage. The hypervisor

services the call and resumes VM execution.

5 REMOTE SERVICING OF THE

NETWORK SUBSYSTEM

SYSTEM CALLS

User applications use sockets for networking. One

of the parameters speciﬁed during creation of a new

socket is a protocol type. This parameter deﬁnes

which handlers need to be called by the OS kernel

for correct completion of a system call and creation

of a new socket. In the subsequent data reading, writ-

ing, and other actions with the created socket the OS

kernel handlers related to this protocol are called.

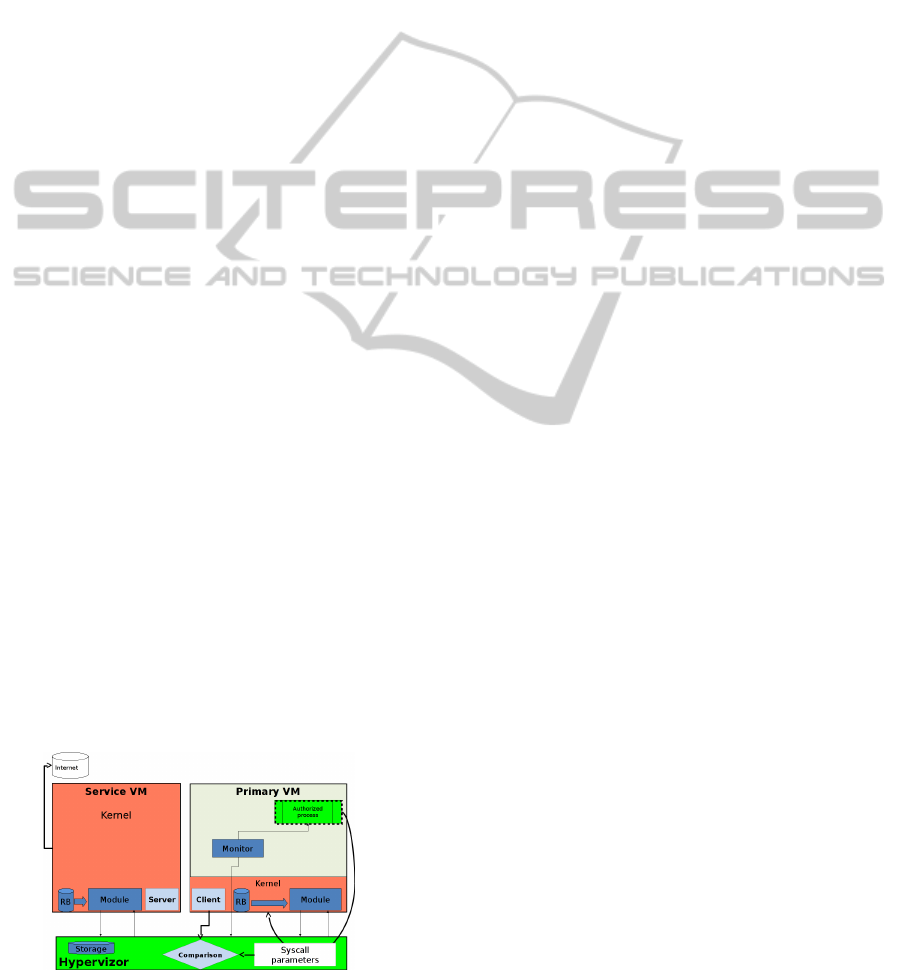

Figure 1: Conﬁguration of the security system components

in charge of remote execution of the system calls, and sim-

pliﬁed chart of their interaction.

To ensure data conﬁdentiality for trusted applica-

tions, untrusted applications and OS kernel in the pri-

mary VM are deprived of network access: when ker-

nel enumerates PCI bus the hypervisor intercepts all

replies from network card. As a result, the primary

VM gets no knowledge about available network facil-

ities and runs in network-less mode. For application

it means that only loopback adapter is available, no

ways to send or receive data from outside of VM.

Network access to trusted applications is provided

by means of a dedicated stub in the kernel that routs

all network requests to the service VM through hyper-

visor. To make the data routing transparent to applica-

tion the system call

socket

is intercepted by hypervi-

sor: it substitutes protocol family parameter with the

ID of the stub protocol.

Stub crotocol can be divided into client and server

parts, with server part running in the service VM, and

the client – in the primary VM (Figure 1).

When a trusted application invokes a

socket

sys-

tem call, the execution of the primary VM is inter-

rupted and control is passed to the hypervisor. The hy-

pervisor substitutes the protocol identiﬁer in the argu-

ments of the system call by a special one correspond-

ing to the stub protocol. The hypervisor also copies

certain parameters of system call from the trusted ap-

plication. Then the execution of the primary VM is

resumed. System call is received by the OS kernel. It

analyses the system call parameters and passes con-

trol to the registered handlers in the client part of the

stub protocol.

The client part allocates required kernel resources,

creates packet containing system call arguments,

writes it to the ring buffer and notiﬁes the hypervisor

through the hypercall. The hypervisor partially com-

pares previously stored system call arguments with

those transferred through the ring buffer of the pri-

mary VM. Since the primary VM kernel is considered

to be untrusted, such a comparison is required to avoid

data leakage to forged addresses and ensure data in-

tegrity. In case of comparison error the received sys-

tem call will not be executed in the service VM.

The hypervisor writes received data into the ring

buffer of the service VM and throws an interrupt to

it. Interrupt handler passes the control to the server

part of the protocol. The data from the ring buffer

are then unpacked. Then the standard handling of a

system call with the received arguments is performed,

as if this call was received from the user application

running in the service OS without security system.

The track presented above results in socket creation

and IP packets been sent out by the service VM for a

trusted application. Processing of inbound packets is

performed in the reverse order.

Sevigator:NetworkConfinementofMalwareApplicationsandUntrustedOperatingSystems

397

The hypervisor guarantees that only parameters

explicitly speciﬁed in the system call of trusted pro-

cess address ranges may be modiﬁed. To accom-

plished it the stub driver allocates memory area of the

required size and modiﬁes the system call parameters,

OS writes results in this memory area. The hypervisor

copies the data into the corresponding memory area

of the trusted process upon the return from the system

call.

6 IMPLEMENTATION

Currently, the protection system is implemented as

extension of KVM hypervisor. KVM runs in a host

operating systems and uses x86 emulator QEMU for

device emulation. In our work, we use KVM 88 ver-

sion, QEMU 0.15 version and Linux kernel of 2.6.32

version.

6.1 Performance

In order to measure overhead of memory protection

and system call servicing, we have performed several

tests. In each measurement there was only one trusted

process. The list below presents results of the tests for

a few popular applications. Percent value is the ex-

tra time spent by the trusted application compared to

the time spent by the same application with protection

system disabled.

Table 1: Measurements.

Software Description Overhead

Apache Flood test. 2%

Ttcp Ordinary execution. 2%

SSH&SCP SCP 4Gb ﬁle copy. 22%

7 CONCLUSIONS

This article presents an approach to protect applica-

tion conﬁdentiality from untrusted (potentially com-

promised) OS. The approach is implemented by se-

lectively granting a network resource access to the

speciﬁc trusted user applications. Conﬁdentiality is

achieved by preventing untrusted, malware or com-

promised OS components from communication chan-

nels to the outside world.

The implementation of the approach is based on

the execution of the untrusted OS within a virtual ma-

chine and placement of the trusted part of the secu-

rity system in the hypervisor body. It allows achiev-

ing full control of access of the processes executed

under VM to the hardware resources. The security

system therewith remains inaccessible for attacks by

malicious software.

Facilities of system call intercepting, reading their

parameters, and writing syscall results provided by

virtualization makes it possible to protect access to

any peripheral hardware resources.

The possibility to grant to certain processes a con-

trolled access to the resources not accessible by the

OS itself, provides a way to effectively solve particu-

lar issues of the user data conﬁdentiality preservation

problem and conﬁnes untrusted applications, includ-

ing the OS kernel, within the network node, making

malicious networking impossible.

At the moment the implementation of the hyper-

visor is based on KVM for Linux on AMD platform

and it supports network conﬁnement for Linux only.

Future research goals are extension of the approach to

Intel VT-x platform, support MS Windows family of

operating systems, and “bare-metal” execution of the

hypervisor.

REFERENCES

(2008). AMD-V

Nested Paging. Advanced Micro Devices

Inc.

(2011). AMD64 Architecture Programmer's Manual Vol-

ume 2: System Programming. Advanced Micro De-

vices Inc.

Chen, X., Garﬁnkel, T., Lewis, E. C., Subrahmanyam, P.,

Waldspurger, C. A., Boneh, D., Dwoskin, J., and

Ports, D. R. (2008). Overshadow: a virtualization-

based approach to retroﬁtting protection in commod-

ity operating systems. In ASPLOS XIII: Proceedings

of the 13th international conference on Architectural

support for programming languages and operating

systems, pages 2–13, New York, NY, USA. ACM.

LeVasseur, J., Uhlig, V., Stoess, J., and G¨otz, S. (2004).

Unmodiﬁed device driver reuse and improved sys-

tem dependability via virtual machines. In OSDI'04:

Proceedings of the 6th conference on Symposium on

Opearting Systems Design & Implementation, pages

2–2, Berkeley, CA, USA. USENIX Association.

Ta-Min, R., Litty, L., and Lie, D. (2006). Splitting inter-

faces: making trust between applications and operat-

ing systems conﬁgurable. In OSDI '06: Proceedings

of the 7th symposium on Operating systems design

and implementation, pages 279–292, Berkeley, CA,

USA. USENIX Association.

Yang, J. and Shin, K. G. (2008). Using hypervisor to

provide data secrecy for user applications on a per-

page basis. In Proceedings of the fourth ACM SIG-

PLAN/SIGOPS international conference on Virtual

execution environments, VEE ’08, pages 71–80, New

York, NY, USA. ACM.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

398
