Development of a Snort IPv6 Plugin

Detection of Attacks on the Neighbor Discovery Protocol

Martin Sch¨utte

, Thomas Schefﬂer

and Bettina Schnor

Department of Electrical Engineering, Beuth University of Applied Sciences, Berlin, Germany

Department of Computer Science, Potsdam University, Potsdam, Germany

Keywords:

IPv6, Neighbor Discovery, Intrusion Detection System.

Abstract:

This paper describes the implementation and use of a preprocessor module for the open source Intrusion De-

tection System Snort. Our implementation utilizes preprocessor APIs for the extension of Snort and provides

several new IPv6-speciﬁc rule options that make the deﬁnition of IPv6-speciﬁc attack signatures possible. The

preprocessor detects attacks against the IPv6 Neighbor Discovery Protocol and can identify suspicious activity

in local IPv6 networks. This includes misconﬁgured network elements, as well as malicious activities from

attackers on the network. To our knowledge this is the ﬁrst such implementation in an Open Source IDS.

1 INTRODUCTION

The IPv6 protocol was standardized in 1998 and is

now implemented in virtually all operating systems

and network devices. Since then, network security

has developed considerably but there was little in-

centive to strengthen IPv6 against attacks, because

deployment in “real networks” (i.e. outside of aca-

demic or industrial test labs) has remained marginal.

This combination leads to the present situation where

widespread IPv6 deployment is imminent (due to

IPv4 address depletion), but protocol design and im-

plementation in devices leave ample opportunity for

local network based man-in-the-middleand denial-of-

service attacks.

Intrusion Detection Systems (IDS) are established

tools for the detection of attacks against computers

and networks. In the past, the spread of the IPv4-

based Internet has lead to a co-evolution of network

security research, engineering, and IDS development.

For the IPv6-based Internet, this co-evolution is to be

expected as well, so there is evident demand for new

advances in detection capabilities.

Snort (Roesch, 1999) is a powerful and widely

used IDS, that already supports the IPv6 protocol.

Based on practical experiments we analyzed capa-

bilities and limitations for the detection of critical

events in IPv6 networks (Era˜na and Schefﬂer, 2010).

Here we found that Snort provides basic IPv6 support,

but lacks the ability to detect many attacks on IPv6-

speciﬁc protocol mechanisms.

We developed a plugin for the Snort IDS that

provides the ability to detect IPv6-speciﬁc attacks

and makes Snort easily deployable in common net-

work setups. It combines previously implemented

and new detection functionality and can be integrated

into every Snort IDS installation. The main goal lies

in the tracking of the Neighbor Discovery Protocol

(NDP) used for IPv6 autoconﬁguration. Addition-

ally it makes speciﬁc IPv6 protocol ﬁelds and ex-

tension headers available to the Snort detection en-

gine. A network administrator is now able to write

speciﬁc Snort rules that enable the detection of link-

local denial-of-service attacks like those implemented

in “The Hacker’s Choice” toolkit (Heuse, nd).

2 RELATED WORK

Our work builds upon related work describing known

security issues in IPv6 and NDP (Hogg and Vyncke,

2009; Nikander et al., 2004). Existing work on IDSs

and IPv6 support only describes the necessary decod-

ing of IPv6 packets for upper layer processing, but

not the detection of IPv6-speciﬁc attacks using gen-

eral purpose, open source IDS products.

The root cause of most problems lies in the early

authentication problem (Nikander, 2002), which is

common to all layer 2 protocols without strong node

authentication (most importantly Ethernet). There-

fore, most mitigation techniques like port-based Net-

399

Schütte M., Schefﬂer T. and Schnor B..

Development of a Snort IPv6 Plugin - Detection of Attacks on the Neighbor Discovery Protocol.

DOI: 10.5220/0004073303990402

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 399-402

ISBN: 978-989-8565-24-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

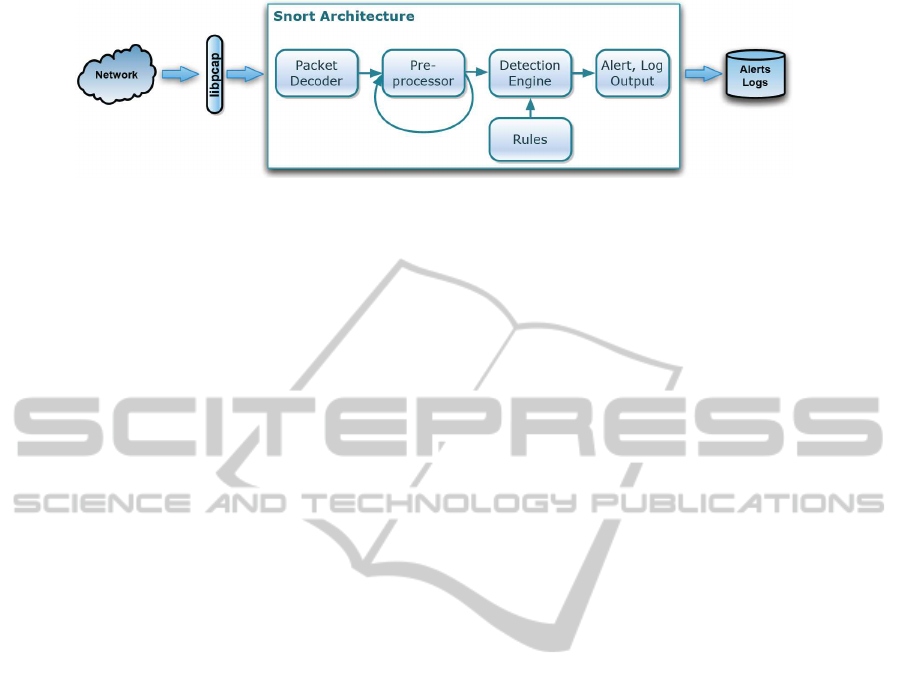

Figure 1: Schematic data ﬂow in the Snort IDS.

work Access Control (IEEE 802.1X), IP Security

(IPSec) and SEcure Neighbor Discovery (SEND) pro-

pose a cryptographic host authentication. Another ap-

proach are ﬁlter criteria for NDP messages on layer 2

devices as speciﬁed by the IPv6 Router Advertise-

ment Guard (Levy-Abegnoli et al., 2011).

One existing software tool that detects NDP

anomalies is “ndpmon” (Beck et al., 2007), a host-

based tool that listens to all Neighbor Discovery mes-

sages to track active nodes on its subnet. Our solution

builds upon this approach but extends an existing IDS

as a framework that already implements packet cap-

turing, decoding, conﬁguration, logging mechanisms,

and log analysis tools.

3 SNORT ARCHITECTURE

Snort was created in 1998 by Martin Roesch. It is

probably the most widespread open source IDS and

provides multiple interfaces for third-party rules and

plugins. One of its most powerful features is its rule

language, which allows everyone to deﬁne and share

their own signatures in a relatively simple plain-text

format. Figure 1 shows the main data processing

stages of the IDS. The main architectural elements

that inﬂuence the detection capabilities of the IDS are

the Detection Engine and the Preprocessors which are

discussed next.

3.1 Detection Engine

The core of Snort’s detection capabilities lies in the

evaluation of conﬁgured attack signatures. A sim-

ple rule notation allows developers and users to eas-

ily conﬁgure and customize the IDS policy for their

own networks. A rule header describes very basic

attributes (action, protocols, direction and endpoints)

and is followed by a rule body which contains a num-

ber of options to select certain packets or sequences

of packets.

Basic IPv6 support was added to Snort in version

2.8 in 2007. Following versions added checks to the

decoder (e. g. resulting in decoder alerts for packets

alert icmp any any -> any any (itype: 3; \

msg: "dest unreachable or time exceeded?";\

sid: 1000000; rev: 1;)

Figure 2: Ambiguous Snort signature without IP protocol

distinction.

with a multicast source address) and the ability to nor-

malize IPv6 packets. In regard to detection signatures

the developers decided to pass all IPv6 values the

same way as IPv4 values to the detection engine, thus

a rule option for the IPv4 time-to-live (e. g.

ttl:100

)

will also match an IPv6 hop limit. This has the ad-

vantage that all existing signatures continue to work

well on IPv6, but has the disadvantage that signatures

cannot distinguish between IPv4 and IPv6 packets.

For example, the rule in Figure 2 is ambiguous and

matches different ICMP messages in IPv4 and IPv6.

Rules are designed to be stateless, and have very

limited capabilities to keep state, for example by set-

ting own ﬂags on TCP connections. Therefore, the

rule management does not haveto consider dependen-

cies among differentrules. However,it cannot be used

to detect patterns in connectionless protocols, such as

ICMP and IPv6 autoconﬁguration.

3.2 Snort Preprocessors

Snort preprocessors generally have three functions:

They implement their own checks to trigger alerts,

they normalize data to simplify detection rules and

they provide new rule options for the detection layer.

For example, the http inspect preprocessor imple-

ments preprocessor alerts, rule options, and addition-

ally normalizes HTTP-speciﬁc data such as URIs.

The preprocessor stage can include multiple mod-

ules; providing functions such as defragmentationand

portscan detection. Preprocessors may perform addi-

tional payload decoding for a number of application

layer protocols such as HTTP, SMTP and DNS.

Snort provides a dynamic plugin API; so it is pos-

sible to develop third-party preprocessors and deploy

them as dynamically linked libraries. These plugins

get access to the packet data and some of Snort’s sub-

systems, like event logging queues. These capabil-

SECRYPT2012-InternationalConferenceonSecurityandCryptography

400

ities make the preprocessor stage most suitable for

the inspection of additional connectionless protocols;

therefore we chose to implement our IPv6 autocon-

ﬁguration checks as a preprocessor plugin using the

dynamic preprocessor API.

4 IPV6 PLUGIN

FUNCTIONALITY

Our preprocessor plugin provides two services: First

it adds new IPv6-speciﬁc rule options to Snort’s sig-

nature language, second it maintains its own network

view by tracking all neighbor discovery messages in

the IPv6 subnet.

4.1 Rule Options

A new set of rule options makes IPv6 protocol val-

ues available for Snort detection signatures; these val-

ues include the basic header ﬁelds, extension head-

ers, and options contained in destination or hop-by-

hop headers. Examples are the version number of

the Internet Protocol, the ﬂow label value, inclu-

sion of routing headers, or included router alert op-

tions. Most rule options are implemented with a set

of operators to enable not only exact matching (like

with

ip6 flow:0

), but also negation and compar-

isons (like

ip6 extnum:>3

). A list of new rule op-

tions is given in Table 1. Figure 3 shows an improved

version of the ruleset in Figure 2. By using the plu-

gin’s

ipv:

rule option for IP protocol selection, we

can now correctly distinguish between the different

error semantics of the ICMP and ICMPv6 types.

Table 1: IPv6 rule options provided by our preprocessor.

ipv

IP version

ip6 tclass

Trafﬁc Class

ip6 flow

Flow Label

ip6 exthdr

Extension Header

ip6 extnum

Num. of Ext Hdrs.

ip6 option

Dst-/HbH-Option

ip6 optval

Dst-/HbH-Option Value

ip6 rh

Routing Header

icmp6 nd

is NDP pkt

icmp6 nd option

NDP Option

We already used the new rule options to imple-

ment several IPv6-speciﬁc signatures to check for un-

usual header values and packets. We expect these rule

options to become important building blocks for the

detection of future IPv6-speciﬁc attacks.

alert icmp any any -> any any ( \

ipv: 4; itype: 3; \

msg: "ICMPv4 dest unreachable"; \

sid: 1000002; rev: 1;)

alert icmp any any -> any any ( \

ipv: 6; itype: 3; \

msg: "ICMPv6 time exceeded"; \

sid: 1000003; rev: 1;)

Figure 3: New Snort signatures, with rule options for IP

protocol distinction.

4.2 Preprocessor

The preprocessor hooks into Snort’s packet process-

ing and receives all IPv6 packets. This allows it to in-

spect every packet and keep state information for the

monitoring of the connectionless IPv6 autoconﬁgura-

tion.

The basic functions of the preprocessor are state-

less checks of all IPv6 packets with extension headers

for consistency and standard conformance. For exam-

ple a packet should never include an empty extension

header (carrying only padding), or padding options

containing data. Packets like this show unusual node

behavior and the preprocessor will raise an alert.

The main purpose of our plugin is to build and

maintain its own network view by observing all

ICMPv6 Neighbor Discovery messages. This allows

it to keep track of all routers and hosts with their ten-

tative and acquired IP addresses. Every change in this

network view triggers a Snort event; this happens ev-

ery time a new host or router appears on the net, a

router changes its advertisement, or a duplicate ad-

dress detection fails.

The network model of the preprocessor is sim-

ple and regards every observed pair of MAC and IP

addresses as a host; those hosts that send router ad-

vertisement messages are considered routers and their

announced network attributes (preﬁx, lifetime, ﬂags)

are stored to detect later changes in these values.

One of the most common IPv6 related security

issues is the resource exhaustion attack, for exam-

ple against a node’s neighbor cache or routing table

(Wheeler, nd). An attacker can easily generate lots

of neighbor or router announcements (and “ﬂood” the

network), while the target has to keep state and al-

locate memory for every new binding. Because this

attack vector applies equally to all network monitor-

ing tools, our plugin is designed to handle a ﬂood-

ing situation. All seen nodes are kept in three col-

lections, each with a maximum number of entries:

one for routers, one for active hosts, and one for new

hosts with tentative addresses. The last one does not

only increase the level of detail but also strengthens

DevelopmentofaSnortIPv6Plugin-DetectionofAttacksontheNeighborDiscoveryProtocol

401

Table 2: IPv6 preprocessor alerts.

SID Message

1 RA from new router

2 RA from non-router MAC address

3 RA preﬁx changed

4 RA ﬂags changed

5 RA for non-local net preﬁx

6 RA with lifetime 0

7 new DAD started

8 new host in network

9 new host with non-allowed MAC addr.

10 DAD with collision

11 DAD with spoofed collision

12 mismatch in MAC/NDP src ll addr.

13 extension header has only padding

14 option lengths 6= ext length

15 padding option data 6= zero

16 consecutive padding options

the preprocessor against denial of service attacks. In

case of a simple ﬂooding attack, where the attacker

sends bogus neighbor announcements to our network,

the number of tentative address entries will exceed

the limit and further addresses are simply ignored. A

more sophisticated attack may keep state to ﬁll the ac-

tive host list as well, thus causing a limited denial of

service, but even then the plugin will only use a ﬁxed

amount of memory and is not susceptible to memory

exhaustion attacks.

The preprocessor is conﬁgurable and can be sup-

plied with additional information about the monitored

network; among these are the used IP address preﬁx,

router MAC addresses, and host MAC addresses. If

these options are conﬁgured, then all IPv6 packets are

checked against them and an alarm is raised if e.g. an

unexpected address preﬁx is announced. A list of all

implemented alerts is given in Table 2.

5 CONCLUSIONS

The IPv6 protocol has several weaknesses in its

neighbor discovery and autoconﬁguration services.

Most of these problems arise from the unsolved early

authentication problem and the implicit assumption

that all link-local nodes are trustworthy. Thus, an at-

tacker with physical network access and control over

a connected node is usually able to assume a man-

in-the-middle position and also to perform various

denial-of-service attacks against particular hosts or

the router.

A new IPv6 plugin was developed to extend the

Snort IDS with integrated IPv6-speciﬁc detection rou-

tines. It includes neighbor discovery tracking to alert

when new hosts and routers appear on-link. It also

provides additional rule options that expose IPv6 spe-

ciﬁc header ﬁelds to the Snort detection module. The

rule options facilitate the writing of new detection sig-

natures using the ﬂexibility of Snort’s rule language,

for example to detect attacks from the THC toolkit.

The integration into the Snort infrastructure facili-

tates an easy deployment and integration into existing

IDS setups. A number of test cases verify the plu-

gin’s functionality and demonstrate that known ﬂood-

ing and neighbor discovery attacks can be detected.

The plugin may become part of future Snort re-

leases; its current development repository is available

at https://github.com/mschuett/spp ipv6.

ACKNOWLEDGEMENTS

This work was carried out as part of the IDSv6 re-

search project (http://ipv6-ids.de), funded by the Ger-

man Federal Ministry of Education and Research

(BMBF).

REFERENCES

Beck, F., Cholez, T., Festor, O., and Chrisment, I. (2007).

Monitoring the Neighbor Discovery Protocol. In The

Second International Workshop on IPv6 Today - Tech-

nology and Deployment - IPv6TD 2007, Guadeloupe.

Era˜na, E. I. and Schefﬂer, T. (2010). IPv6 Intrusion De-

tection mit Snort. In Forschungsbericht der Beuth

Hochschule f¨ur Technik Berlin. Beuth Verlag GmbH

Berlin-Wien-Z¨urich.

Heuse, M. (nd). THC IPv6 attack tool kit.

Hogg, S. and Vyncke, E. (2009). IPv6 Security. Cisco

Press, Indianapolis, IN 46240 USA.

Levy-Abegnoli, E., de Velde, G. V., Popoviciu, C., and Mo-

hacsi, J. (2011). IPv6 Router Advertisement Guard.

RFC 6105, Internet Engineering Task Force.

Nikander, P. (2002). Denial-of-Service, Address Owner-

ship, and Early Authentication in the IPv6 World.

In Christianson, B., Malcolm, J., Crispo, B., and

Roe, M., editors, Security Protocols, volume 2467

of Lecture Notes in Computer Science, pages 12–21.

Springer, Berlin/Heidelberg.

Nikander, P., Kempf, J., and Nordmark, E. (2004). IPv6

Neighbor Discovery (ND) Trust Models and Threats.

RFC 3756, Internet Engineering Task Force.

Roesch, M. (1999). Snort: Lightweight Intrusion Detection

for Networks. In Proceedings of the 13th USENIX

conference on System administration, pages 229–238.

Wheeler, J. S. (nd). IPv6 NDP Table Exhaustion Attack.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

402
