Quantifying the Beneﬁts of File Size Information for Forensic Hash

Matching

Johan Garcia

Department of Computer Science, Karlstad University, Karlstad, Sweden

Keywords:

Hashing, Digital Forensics, File Size Distributions.

Abstract:

Hashing is a widely used technique in the digital forensic practice. By using ﬁle size information in addition

to hashes, hash matching can potentially be made more effective since there is no need to calculate a hash

value if there is no ﬁle in the hash set that has the same ﬁle size as the ﬁle being examined. Based on an

examination of 36 million ﬁle sizes from ﬁve different data sets, this paper provides a quantiﬁcation of the

obtainable improvements. For the evaluated data sets the ﬁle reduction, i.e the fraction of ﬁles that can be

skipped without hash calculations, ranged from 0.009 to 0.525. The byte reduction, i.e. the fraction of bytes

that can be skipped, ranged from 0.514 to 0.992. Simulation results showed that these reductions in many

cases could decrease the time necessary for hash scanning by 50% or more.

1 INTRODUCTION

In computer forensics the use of hash sets to compare

the contents of a storage device to a set of known ﬁles

have long been commonplace(Roussev, 2009). Vari-

ous hash-sets are created by organizations to be used

internally or shared externally to aid in different types

of forensic investigations. Hash sets can be used to

perform positive matching, i.e. identifying ﬁles on a

storage media that do correspond to a ﬁle in the hash

set. Additionally, negative matching can also be done

to identify those ﬁles that do not correspond to a ﬁle

in the hash set. The information structure of a hash

set varies with the hash set provider, and the tool used

to create the hash set. In many instances the hash-set

is just a text ﬁle containing only one hash value per

line. Other hash sets provide additional information,

such as the name and directory position of the hashed

ﬁle, the ﬁle size, a ﬁle type classiﬁcation etc.

Forensic examinations are done differently ac-

cording to the particular need of the individual case,

legal requirements, available tools, etc. One frequent

use of hashes and hash sets are to assist in examina-

tions by identifying ﬁles that are either of particular

interest in an investigation, or ﬁles that can be re-

moved from an investigation as they are ﬁles known

to be uninteresting such as unmodiﬁed operating sys-

tem ﬁles, application ﬁles, and similar. Such scenar-

ios are the main motivator of this work, as the inclu-

sion of ﬁle size information has the potential to con-

siderably improve the performance of hash matching.

We do not consider hashing for uses such as providing

forensic integrity or as a basis for naming in uniﬁed

evidence repositories, as these applications typically

requires hashes to be computed for all ﬁles regardless

if they might match a hash set or not.

As storage devices continue to increase in size, the

need to improve the speed of hash matching grows

larger and larger. In order to quantitatively examine

what potential gains the use of ﬁle size information

can provide this paper performs an analysis of ﬁvedif-

ferent data sets from the perspective of ﬁle size distri-

bution and overlap. Around 36 million ﬁle sizes were

processed to generate reduction values that show what

fraction of ﬁles, and bytes, that can be skipped from

hash calculation because the examined ﬁle has a size

for which there is no corresponding size match in the

hash set. The results show ﬁle reduction values up to

around 0.5 and byte reduction values above 0.9, im-

plying that half of the ﬁles and more than 90% of the

bytes need not be processed. Simulations modeling

a mechanical hard drive show that these reductions

often result in a 50% or larger decrease in the time

required for hash processing.

2 BACKGROUND

Hashing is based on the use of hashing algorithms that

produce a unique hash of a ﬁle. Typically the objec-

333

Garcia J..

Quantifying the Beneﬁts of File Size Information for Forensic Hash Matching.

DOI: 10.5220/0004077303330338

In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 333-338

ISBN: 978-989-8565-24-2

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

tive is to make an exact match which is the case for

this paper, but there also exists hash variations that

do fuzzy matching such as ssdeep (Kornblum, 2006),

with variations (Baier and Breitinger, 2011).

When performing positive matching the pre-

computed hash set contains hashes of ﬁles that are

of particular interest to the examiner. Locating any

occurrence of these ﬁles on the media under exami-

nation is thus the purpose of these kinds of examina-

tions. One example where this methodology is com-

monly used are investigations related to Child Sexual

Abuse (CSA) material. By performing locating hash-

ing against a hash set of known illegal material such

material can easily be found on the storage media.

Negative matching is instead used to remove ﬁles

from further examination. In this case the hash set

contains hash values from ﬁles known to be benign

in relation to the examination conducted, such as un-

modiﬁed application and operating system ﬁles. One

example where this approach can be used is in the

examination of infections of new malware. In these

examinations it is necessary to work broadly as the

malware could potentially have modiﬁed a number of

ﬁles on the storage media in various ways to perform

the various spreading, hiding, and anti-forensics func-

tionalities that have been designed into it. By using

excluding hashing ﬁles which are known to be un-

modiﬁed can be safely excluded from further inves-

tigation, thus considerably decreasing the effort re-

quired.

File size information is a potentially useful piece

of information to have in a hash-set in addition to the

hash value. It is easily concluded that it is only neces-

sary to compute hashes for ﬁles on the storage media

which has a ﬁle size identical to a ﬁle size which exist

in the hash set. Depending on the size distribution of

the ﬁles in the hash set and of the ﬁles on the stor-

age media, a smaller or larger fraction of the ﬁles on

the storage media can be skipped without having to

compute a hash value for them. This contributes to a

corresponding decrease in the amount of time needed

to process all the information on the storage media.

Time can be saved both from the perspective of not

having to read in all the ﬁle contents and compute the

hash as well as avoiding a seek operation to the loca-

tion of the storage media where the ﬁle is located.

The purpose of the work reported here is to pro-

vide some empirically based intuition on the order of

magnitude of the improvements that can be obtained

by using side ﬁle size side information when perform-

ing hash matching. To make these examinations a

number of evaluation data sets were used which are

described in the next section.

3 EVALUATION DATA SETS

To perform the evaluation ﬁve different ﬁle size data

sets from different sources were used. These data sets

are of two different categories, the ﬁrst category being

hash data sets. These data sets provide ﬁle size infor-

mation for ﬁles that are used to create hash sets. The

second category are scan data sets that reﬂect actual

contents of a number of storage devices. In an inves-

tigation hash sets are used when examining ﬁles on

storage devices. The ﬁle sizes on a device follows a

particular distribution, such as the distributions exem-

pliﬁed by the scan data sets. Some general statistics

on the data sets are provided in Table 1.

Table 1: Data set characteristics.

Data set Number Unique Total ﬁle

of ﬁles sizes size (GB)

Hash sets

CSA 180057 88498 255

NSRL 22502929 896382 5382

Scan sets

PC 9984693 188545 1140

GOVDOCS 986278 340955 466

RDC 2689123 149012 4930

3.1 Hash Data Sets

CSA Data Set

This ﬁle size data set was obtained from a law-

enforcement organization in a European country. The

organization keeps their own collection of ﬁles that

are known to be illicit Child Sexual Abuse (CSA) ma-

terial according to their national legal rules. This col-

lection is used to create hash sets employed to per-

form positive, or locating, hashing when new incom-

ing material is examined. At the date of data collec-

tion, the collection consisted of 180057 ﬁles. Since a

number of those ﬁles have exactly the same size, the

number of unique ﬁle sizes is lower (88498). These

unique ﬁle sizes make up the CSA data set, for which

the unique ﬁle size distribution is shown in Figure 1.

The left histogram shows the ﬁle size distribution

in the range 0 - 100 000 bytes, with each bar repre-

senting the number of unique ﬁle sizes in a particular

interval. For example, the interval 0 to 1000 bytes has

quite a small number of unique ﬁle sizes, only around

100. Furthermore, we can see that in the range from

approximately 10,000 to 40,000 the number of unique

ﬁle sizes is very high. Followingthe downwards slope

we can see that around a ﬁle size of 70,000 the num-

ber of occurrences are around 500.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

334

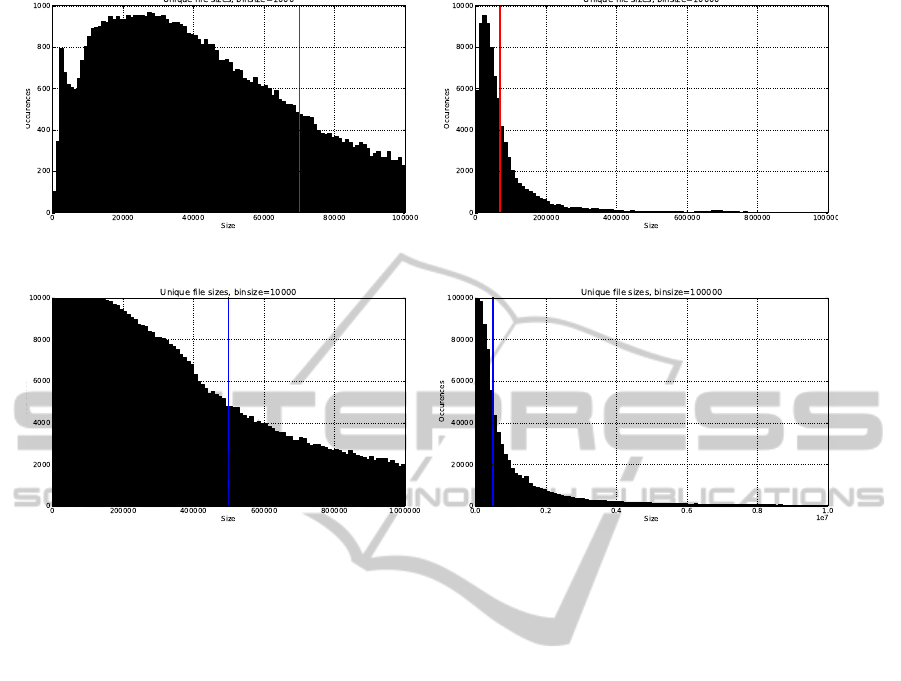

Figure 1: CSA data set characteristics.

Figure 2: NSRL Data set characteristics.

When a hash set has 500 unique ﬁle sizes in a

particular ﬁle size interval of size 1000 it means that

when performing scanning, on average half of the

scanned ﬁles that fall within that particular interval

will have a size that is identical to a ﬁle in the hash

set. This 50% point can thus serve as an visual an-

choring point, illustrating the ﬁle size border where

scanned ﬁles of larger size has less than 50% proba-

bility of requiring hash computation. The 50% point

is marked by a red line. The right histogram shows

the same data, but in this ﬁgure the X axis has been

extended to 1 million bytes, and each bar now repre-

sents a ﬁle size interval of 10,000. It is clearly visible

that for larger ﬁle sizes the number of unique ﬁle sizes

that are present in this hash set is very low.

NSRL Data Set

A very large public hash set is provided by

the National Software Reference Library (NSRL)

project(NSRL, 2007). The stated goal of this project

is to collect software from various sources and incor-

porate ﬁle proﬁles and hashes for the software into a

Reference Data Set (RDS). The RDS hash set is typ-

ically used to perform excluding, or negative, hash-

ing. For this examination, version 2.35 of the RDS

was used which contains 74,555,829 ﬁles of which

22,502,929 are unique. These 22 million unique ﬁles

together had 896382 unique ﬁle sizes, and the distri-

bution of these ﬁle sizes are shown in Figure 2.

Again, the ﬁgure shows a histogram of the num-

ber of unique ﬁle sizes within ﬁle size intervals. Note,

however, that in this ﬁgure the ﬁle intervals are a

factor 10 larger than in Figure 1. If the same scale

had been used the left picture would be completely

black as is visible from the left part of the left ﬁgure.

Clearly, this is an effect of the fact that this data set

has many more ﬁles and thus a higher probability of

all ﬁle sizes within a given ﬁle size interval. For the

NSRL hash set the 50% point is around 700,000 and

is marked by a blue line.

3.2 Scan Data Sets

In order to be able to evaluate the potential gain from

using ﬁle size information when hashing, knowledge

of the ﬁle size distribution of the media that is be-

ing scanned is also necessary. The purpose of the

scan data sets are to provide ﬁle size distributions

that could be similar to what an investigator may face

when doing different kinds of forensic investigations.

In this evaluation three different scanned data sets are

used which are brieﬂy presented here, before their ex-

amination results are discussed in the next section.

PC Data Set

The PC data set is based on ﬁle size information

QuantifyingtheBenefitsofFileSizeInformationforForensicHashMatching

335

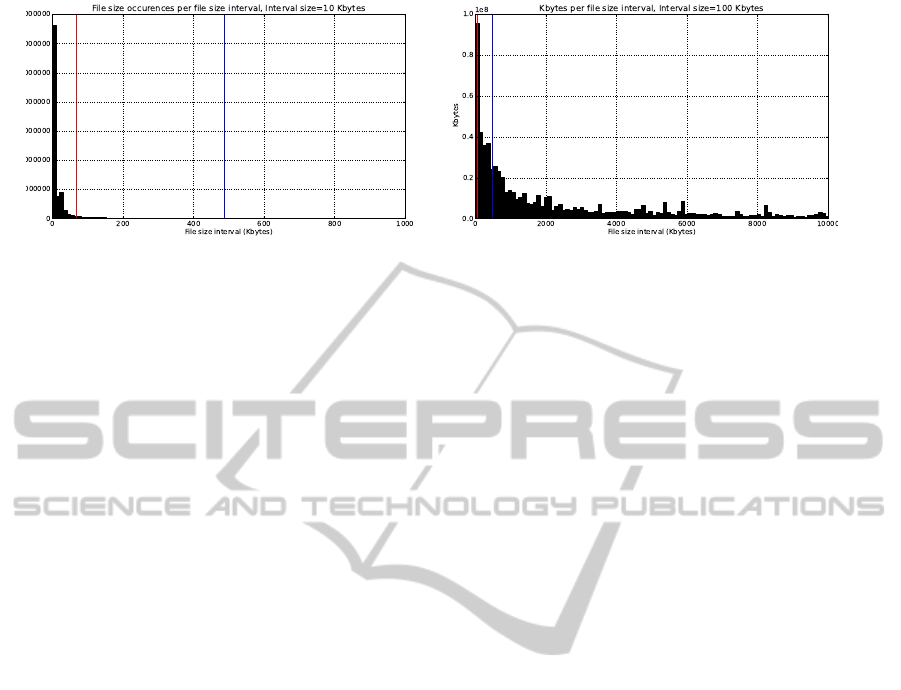

Figure 3: PC Data set characteristics.

collected from 57 public PCs located in a European

Technical University. These PCs have operating sys-

tem and application ﬁles installed. Some of them also

to some extent contain additional ﬁles which were

stored there temporarily, for example when perform-

ing downloads. On average, each PC had 20 Gbytes

of ﬁles stored on it which in produced a total data

set containing almost ten million different ﬁles with

188545 unique ﬁle sizes.

GOVDOCS Data Set

The GOVDOCS data set is based on the publicly

available corpus of ﬁles that has been collected from

public web servers as described in (Garﬁnkel et al.,

2009). As such, this data set can be viewed as one rep-

resentation of the ﬁle size distribution of ﬁles stored

on public web servers such as those which were sam-

pled during the collection.

RDC Data Set

The Real Data Corpus (RDC) data set comes from a

corpora collected mainlyby purchasing hard driveson

the second hand market(Garﬁnkel and Shelat, 2003;

Garﬁnkel et al., 2009). The ﬁle sizes in this data set

are based on actual ﬁle size distributions found on the

obtained storage devices, and are based on data re-

trieved by the

fiwalk

forensic utility. The version of

RDC used to construct the ﬁle size data used in this

examination has been sanitized in order to avoid pri-

vacy concerns, and is thus a somewhat reduced ver-

sion of the complete RDC.

4 RESULTS

4.1 Matching of Distributions

We have seen from the above description that the ma-

jority of ﬁles in the hash sets are fairly small. Thus,

the number of unique ﬁle sizes in relation to the ﬁle

size interval is the largest for small ﬁle sizes. The

point where 50% of the ﬁle sizes in an interval ex-

ists in the hash set is around 70 kB for the CSA data

set and around 500 kB for the NSRL data set. This

needs to be related to the distribution of ﬁle sizes for

the three different scan sets.

The distribution of ﬁle sizes for the PC data set is

shown in Figure 3. On the left the number of ﬁle oc-

currences are shown, and also shown in the ﬁgure are

the scan set 50% points discussed above. The red line

shows the position of the CSA 50% point and the blue

line the NSRL 50% point. As can be seen the over-

whelming majority of the ﬁles are so small that they

fall below both points. Note that the interval size is

10Kbytes, and that the graph shows occurrences and

not number of unique ﬁle sizes.

The right part of Figure 3 provides a graph show-

ing the total number of bytes consumed by all ﬁles

within each ﬁle size interval. The graph uses an inter-

val size of 100Kbytes and shows that, while the ma-

jority of ﬁles seemed to be of a size smaller than both

of the 50% points, this is not as true for the total num-

ber of bytes stored in the ﬁles. Larger ﬁles by deﬁni-

tion hold more bytes, which drives up the number of

bytes for the higher ﬁle size intervals even though the

number of ﬁles in the interval is small. From the ﬁg-

ure it can be reasonably assumed that the majority of

bytes for this scan set belongs to ﬁles that would not

have their hash computed. The corresponding graphs

for the GOVDOCS and RDC scan sets are shown in

Figures 4 and 5.

While the pictures provide a visual intuition, they

can only show a restricted range. To provide a fuller

picture numerical values were computed using all size

values for each particular hash and scan set combi-

nation, which are shown in Table 2. File reduction

is used as a metric and is deﬁned as the fraction of

ﬁles for which hashes need not be computed because

there are no ﬁle in the hash set with a corresponding

ﬁle size. For the PC data set, when CSA is used as

the hash set, it is seen that the ﬁle reduction is 0.497.

Thus, almost half of all ﬁles need not to have their

SECRYPT2012-InternationalConferenceonSecurityandCryptography

336

Table 2: File, byte and simulated time reduction results.

Data set File Byte File reduction Byte reduction Complete Size-assisted Time

reduction reduction (min 0.99) (min 0.99) scan (s) scan (s) reduction

CSA

PC 0.497 0.887 0.492 0.667 65200 30535 0.532

GOVDOCS 0.487 0.947 0.481 0.922 20125 7640 0.620

RDC 0.525 0.992 0.521 0.890 9503 1787 0.812

NSRL

PC 0.009 0.519 0.004 0.078 65124 61594 0.054

GOVDOCS 0.125 0.679 0.118 0.554 20129 14377 0.286

RDC 0.082 0.959 0.076 0.529 9515 3619 0.619

hash computed, which may at ﬁrst seem strange given

the shape of the PC ﬁle occurrence graph. When re-

viewing the CSA distribution in Figure 1 it however

becomes clear that the very lowest ﬁle size intervals

actually have a smaller number of unique ﬁle sizes,

and this is where the majority of the PC ﬁle size oc-

currences fall. Going down to the NSRL hash set re-

sults, the results are markedly different. The PC ﬁle

reduction is less than 1%, i.e. almost all ﬁles will have

to have their hashes calculated. This is a result of the

very dense coverage of ﬁles sizes shown in Figure 2.

Turning to the byte reduction, which is the fraction

of bytes on a storage media belonging to ﬁles which

could be skipped, it can be seen that a useful reduc-

tion of the number of bytes that need to be processed

can be achieved in all cases.

To examine the sensitivity of these results to the

existence of a small number of large ﬁles in the scan

sets a sensitivity analysis was performed. The top 1%

of the ﬁles which had the largest ﬁle sizes were re-

moved and the calculations redone. These results are

marked in the table as (min 0.99). For the particu-

lar NSRL-PC combination, the heavy-tailed nature of

the ﬁle size distribution and the actual number of ﬁles

removed (99847) results in a signiﬁcantly lower byte

reduction for the sensitivity analysis case.

Considering the GOVDOCS and RDC scan sets, it

can be seen that they provide similar reduction values

as the PC scan set, mirroring fairly high values for the

CSA hash set and lower for the NSRL hash set. They

are also considerably less sensitive to removal of the

largest ﬁles as shown by the sensitivity analysis.

4.2 Simulation Results

A simulation was also performed to estimate the time

required to scan a 500 Gb hard drive completely full

with ﬁles. The simulator randomly draws ﬁle sizes

from the ﬁle size distribution of each scan set to ﬁll

up 500Gb. It then computes the times necessary to

compute hashes for all ﬁles assuming that each ﬁle

needs one random access to position the head, and

that the disk read speed is the limiting factor rather

than computing the hashes.

The hard drive characteristics were modeled from

measurementson a Western Digital 2.5inch hard drive

(WD500BEKT) with a measured read access time of

14.5 ms and average throughput of 81.6 Mb/s. 100

replications were performed for each hash and scan

set combination, using a normal complete scan as well

as a size-assisted scan. The average results are shown

in the right side of Table 2. The 95% conﬁdence inter-

vals were less than 1% for all results. As can be seen

in the results considerable reductions in the required

time is achieved in a majority of cases, saving hours

of processing times.

5 CONCLUSIONS

This paper aims to quantify the beneﬁt of performing

size-information assisted hash matching in the con-

text of forensic hash processing. Contributions in-

clude the characterization of ﬁve different large scale

data sets as a way to increase the knowledgesurround-

ing ﬁle size distributions. Two different hash data sets

were examined, in conjunction with three different

scan data sets. Furthermore, simulations were used

to quantify the potential impact on total hashing time

when using ﬁle sizes to enhance hash processing.

File and byte reduction are used as primary met-

rics to signify the fraction of ﬁles and bytes that do not

need to be processed due to the lack of a ﬁle with a

corresponding size in the hash set. For ﬁle reduction,

the values were between 0.009 and 0.525, while the

byte reduction value ranged between 0.514 and 0.992.

Thus, size information has the potential to consider-

ably decrease both the number of ﬁles and the amount

of bytes that needs to be processed when performing

hash matching. Simulation results further showed that

these reductions translated to considerable time gains,

in many cases decreasing the time necessary for hash

scanning by 50% or more. While the presence of large

ﬁles have a relatively large impact on the byte reduc-

QuantifyingtheBenefitsofFileSizeInformationforForensicHashMatching

337

Figure 4: GOVDOCS Data set characteristics.

Figure 5: RDC Data set characteristics.

tion, a sensitivity analysis showed that the obtainable

reduction is typically not dependent only on the pres-

ence of a very small number of very large ﬁles.

Possible avenues for future work includes further

examinations using actual storage devices such as me-

chanical hard drives, SSDs, and USB memory de-

vices. As shown in this paper the reduction factors

are markedly different between ﬁle reduction and byte

reduction. Different types of storage devices have dif-

ferent combinations of seek times and read speed and

thus beneﬁt differently from ﬁle and byte reduction.

Further examination of how the reductions from this

study translate into actual time gains for hash process-

ing of different physical storage device types is thus

one interesting topic for further study.

REFERENCES

Baier, H. and Breitinger, F. (2011). Security aspects of

piecewise hashing in computer forensics. IT Security

Incident Management and IT Forensics, International

Conference on, 0:21–36.

Garﬁnkel, S., Farrell, P., Roussev, V., and Dinolt, G. (2009).

Bringing science to digital forensics with standard-

ized forensic corpora. Digital Investigation, 6, Sup-

plement(0):S2 – S11.

Garﬁnkel, S. L. and Shelat, A. (2003). Remembrance of

data passed: A study of disk sanitization practices.

IEEE Security and Privacy, 1:17–27.

Kornblum, J. (2006). Identifying almost identical ﬁles using

context triggered piecewise hashing. Digital Investi-

gation, 3, Supplement(0):91 – 97.

NSRL (2007). National Software Reference Library

(NSRL). National Institute of Standards and Tech-

nology (NIST). U.S. Department of Justice’s National

Institute of Justice (NIJ), http://www.nsrl.nist.gov/.

Roussev, V. (2009). Hashing and data ﬁngerprinting in dig-

ital forensics. IEEE Security and Privacy, 7:49–55.

SECRYPT2012-InternationalConferenceonSecurityandCryptography

338
