Aspect-based On-the-Fly Testing Technique for Embedded Software
Jong-Phil Kim, Jin-Soo Park and Jang-Eui Hong
Department of Computer Science, Chungbuk National University, Cheongju, Rep. of Korea
Keywords: Aspect-oriented Programming, On-the-Fly Testing, Embedded Software.
Abstract: Various techniques for testing embedded software have been proposed as a result of the increased need for
high quality embedded systems. However, it is hard to perform accurate testing with these techniques on
failures that can occur unexpectedly in a real environment, because most of the tests are performed in
software development environment. Therefore, it needs a testing technique that can dynamically test
software’s latent faults in a real environment. In this paper, we propose an aspect-based On-the-Fly testing.
The purpose of which is to test the functionalities and non-functionalities of embedded software using
aspect-oriented programming at run-time in a real environment. Our proposed technique provides some
advantages of prevention of software malfunction in a real environment and high reusability of test code.
1 INTRODUCTION
Many types of embedded software, especially
aerospace software and national defense software
are tested on functionality and non-functionality in a
development environment as well as in an
operational environment. These tests are expensive
and require much time and heavy test harness
(Michael, 2006). In spite of such testing, embedded
software malfunctions frequently occur in real
operation. To address these problems, a built-in
testing approach and aspect-based testing approach
have been attempted. However, the built-in testing
was performed for interface conformance testing to
integrate a reusable component in component-based
development, and aspect-based testing was
performed to test the functionality of software
during development. Therefore, the existing research
has various limitations to test unexpected behaviors
that can happen to the run-time of embedded
software.
In this paper, we propose an On-the-Fly testing
technique to perform self-testing while embedded
software is executed in a real environment. This
technique can perform testing in a real operation
environment including some test cases that are not
covered in development testing. Our proposed
testing technique can provide a method to prevent
malfunction that can happen during real operation of
a system, since the technique uses aspect
components defined with aspect-oriented
programming concepts to test embedded software.
Using the aspect components, we can develop
separately the function code of embedded software
and the test code. The test code is installed in the
target system by weaving with the function code of
the embedded software. The test code can inspect
that execution of a program code is performed
correctly at run-time and can prevent the occurrence
of unexpected failures, which were not detected in
host-based testing. In this way, our testing technique
provides advantages of prevention of software
malfunction in a real environment and high
reusability of test code.
The paper is organized as follows. Section 2
surveys related work about existing aspect-based
testing techniques. Section 3 explains the issues that
we want to test in our research. In section 4 we
design aspect components to test the issues
described in section 3. We present a process to
perform On-the-Fly testing using aspect
components, and show a case study of our approach
in section 5. The paper concludes with a summary of
our research and directions for future work in
section 6.
2 RELATED WORK
To test whether reusable components have the
correct functionalities, an aspect with Built-in testing
characteristics is proposed (Jean et al, 2003). In
375
Kim J., Park J. and Hong J..
Aspect-based On-the-Fly Testing Technique for Embedded Software.
DOI: 10.5220/0004081503750380
In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 375-380
ISBN: 978-989-8565-19-8
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
(Dehla and Matthias, 2003), they developed an
aspect to test the problem of inheritance or
information concealment etc. in object-oriented
programming. In (Martin and Cristina, 2000), they
defined an aspect to inspect grammatical difference
(i.e. difference of data type) between unit modules.
Also, in (Fernando et al, 2007), they defined an
aspect to perform error handling. In (Jani, 2006), he
tested mobile operating systems by weaving a
testing aspect into the Symbian operating system.
However, these researches focused on development
testing and the role of a test agent or a test oracle.
Our proposed testing technique is able to
perform on-the-fly testing in a real operation
environment using aspect components which can
independently perform a test by itself and can
control the behavior of software with the testing
results.
3 ISSUES OF ON-THE-FLY
TESTING
Software testing is generally categorized into
functional testing and non-functional testing. In
particular, embedded software is important to test
non-functional issues such as platform portability,
memory constraints etc. as well as normal

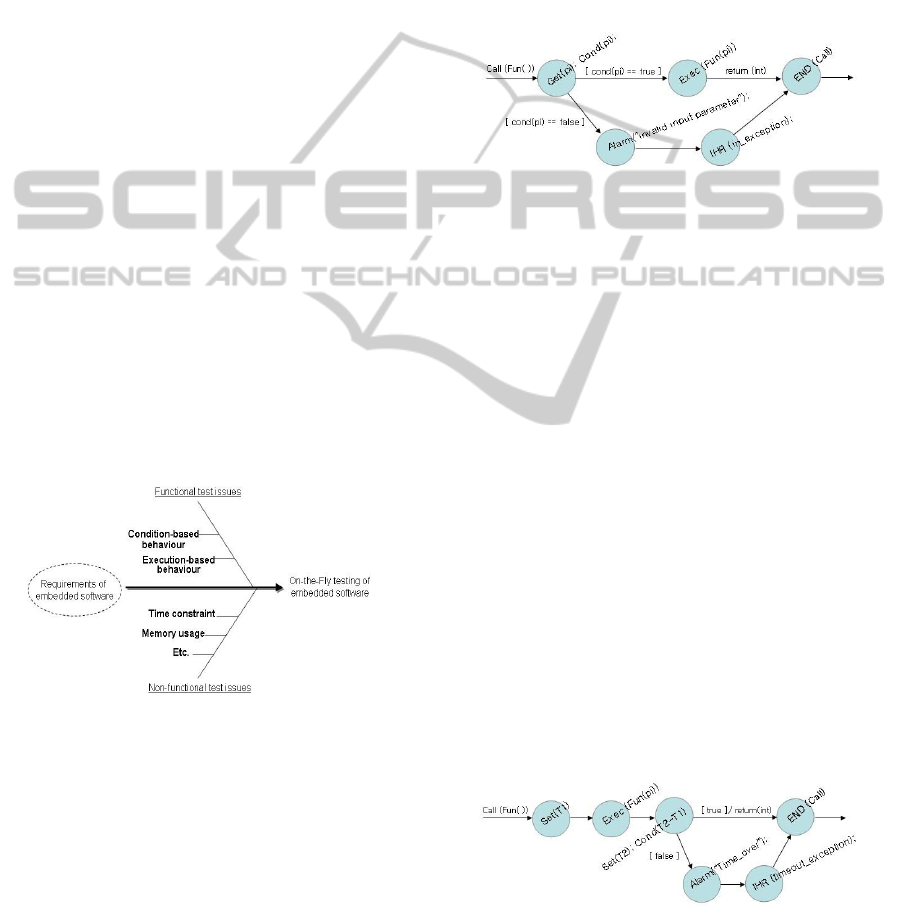

functionality (Mirko et al, 2005). Figure 1 shows
issues to be tested for embedded software.
Figure 1: Testing issues of embedded software.
3.1 Functional Testing Issues
3.1.1 Condition-based Behavioural Test
The condition-based behavioural test is to test the
pre-condition or post-condition of a specific module
during execution. This inspects whether input events
or state variables of a target module satisfy specific
conditions. Figure 2 shows the procedure of a
condition-based behavioural test. In order to explain
the procedure, we define the following basic
functions.
int Fun(Pi,i=1…n): function to test a target
module that has n input parameters and the
return value of integer type
Get(x): function to read input variable or state
variable x
Cond(x)::={true|false}: function to inspect
whether the current value of variable x
satisfies a functional requirement
Alarm(): function to notify exception
occurrence
IHR(): function to perform exception handling
Figure 2: Procedure of pre-condition based behavioural
Test.
3.1.2 Execution-based Behavioural Test
The execution-based behavioural test is to inspect
the execution result of a module by analysing the log
data after logging the state changes for module
execution. For example, after the booting-up module
of an embedded system is executed, this test can be
used to confirm that the initialization of the system
was executed correctly.
3.2 Non-functional Testing Issues
3.2.1 Time Constraint Test
The time constraint test is to inspect whether the
execution time of a specific module or a method
satisfies the time constraint specified in the
requirements. Figure 3 shows the procedure of the
time constraint test. To describe the test procedure,
we define the following a basic function. Other
functions have the same behaviour as the condition-
based behavioural test.
Set(T): function to save current time clock
Figure 3: Procedure of time constraint test.
3.2.2 Memory Usage Test
The memory usage test checks that the available
ICSOFT 2012 - 7th International Conference on Software Paradigm Trends
376
memory of the system is enough to execute a
module. If there is more available memory than
required memory, this executes the relevant
function. Otherwise it exits executing the function.
Such behaviours are represented in Figure 4.

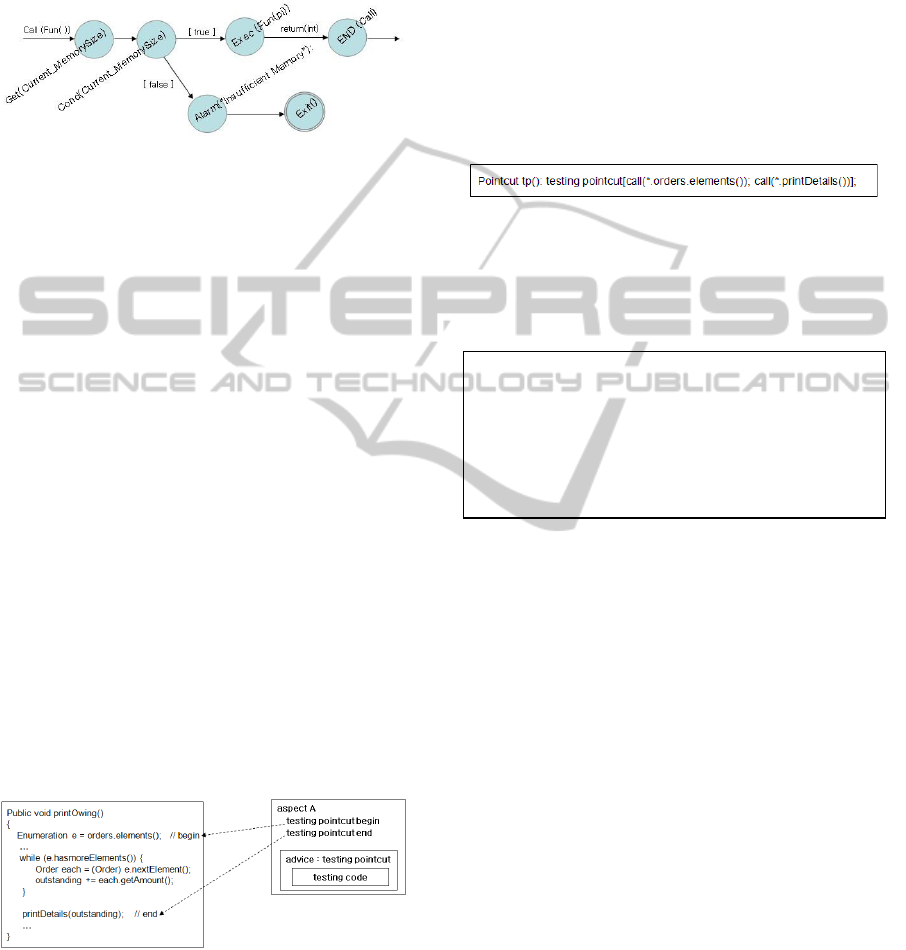

Figure 4: Procedure of memory usage test.
4 DESIGN OF ASPECT
COMPONENT
4.1 New Pointcut for Non-functional
Testing
The existing aspect-oriented programming (AOP)
languages provide pointcut designators that pick out
a point in execution flow, for example, when a
method is called. Advices are executed at that join
points which is defined by pointcut designators.
However, a non-functional testing such as time
constraint test and memory usage test can need
advices that are called when a specific code block is
executed because it is necessary to test a non-
functional requirement in a specific behavior area.
The existing AOP languages do not allow
developers to pick out the area in time while a code
block is executed.
To address this limitation of AOP, we define a
new pointcut, which we call “testing pointcut”. As
shown in Figure. 5, the testing pointcut picks out a
join point which is the code block selected by a
tester.
Figure 5: Testing pointCut for non-functional testing.
For example, in Figure 5, the testing pointcut of
aspect A specifies the call to orders.elements() as the
beginning of the testing pointcut and the call to
printDetails() as the end of it. So, it is able to
perform a selective non-functional testing for time-
critical or memory usage-critical code block,
because all statements within a code block specified
by the testing pointcut are defined as the join point.
The matching of the testing pointcut is performed
through control flow graph that specifies the event
sequence of a target system. The following syntax
defines a testing pointcut tp:
tp::=testing pointcut[call(a); call(a)]
a::=class name.method()
For example, the following testing pointcut:
4.2 Example System for Testing
For easy understanding of our further explanation,
we introduce an example robot application with the
following requirements.
4.3 Functional Behaviour Test
Component
The functional behaviour test checks whether
function codes can be executed correctly. This test
can examine the pre-condition and post-condition of
the test target using “before” or “after” advice.
For example, a malfunction of the example robot
system can happen when input data transmitted by a
sound sensor of the robot is out of a predefined data
range. Therefore, we define an aspect to examine
this malfunction. The aspect component is
represented in Figure 6 using AspectJ (Gregor,
2001). This aspect tests whether the value of decibel
inputted from a sensor exists between 80dB and
120dB. If the decibel value is out of the allowed
range, the aspect logs the status and exits the
execution of the target module.
4.4 Time Constraint Test Component
General embedded software has time constraints in
its functional execution. Because satisfying the time
constraints is an important issue of embedded
software, it is critical to test the time constraints in a
A military reconnaissance robot receives external sound
from sound sensors. This robot recognizes the input sound
and identifies the direction from which the sound originated.
Then, the robot takes a picture of the object using a camera
after a change of direction to the origin of the sound. The
robot must be able to react quickly to movement of the
sound (with a maximum of one second until turning of
direction).
Aspect-based On-the-Fly Testing Technique for Embedded Software
377

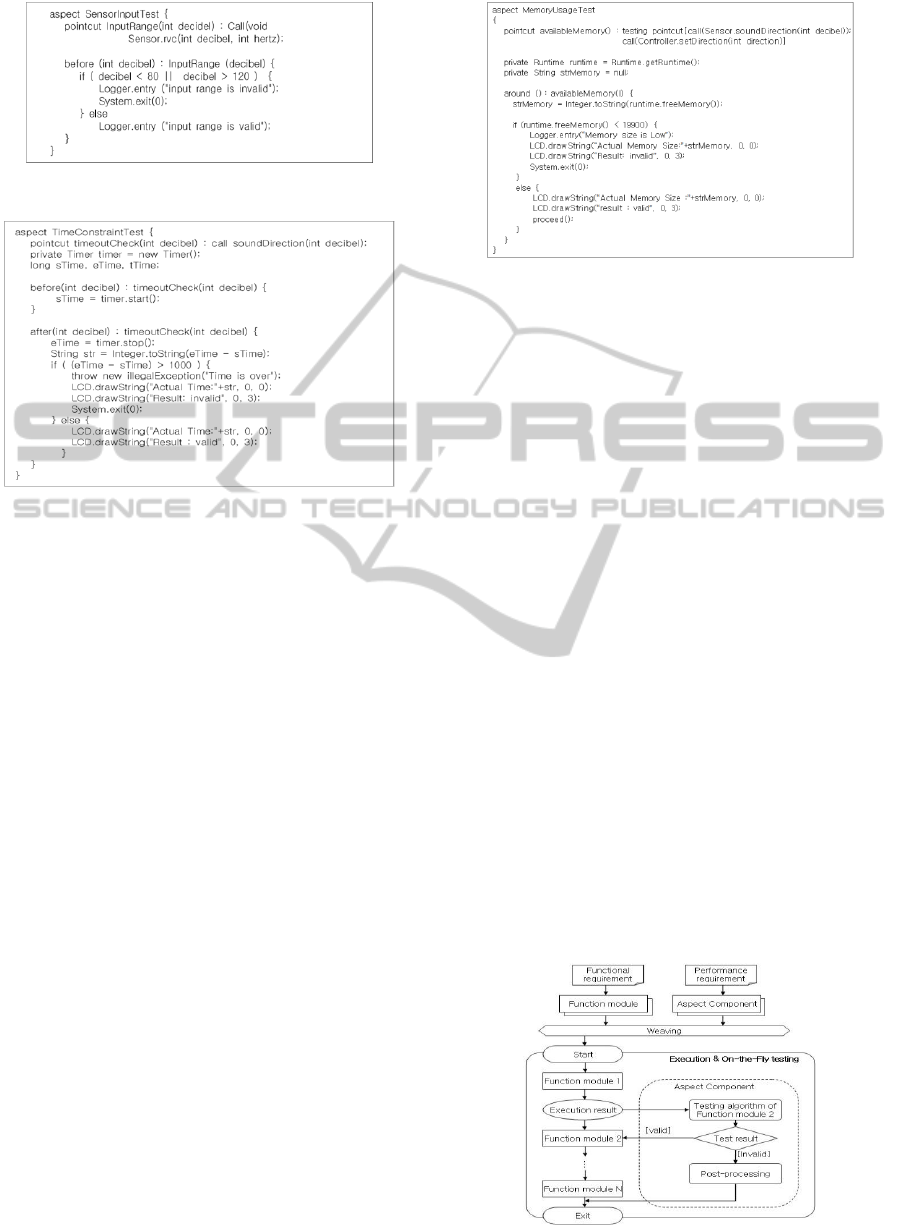

Figure 6: Aspect component to test functional behaviour.
Figure 7: Aspect component to test time constraint.
real environment. Figure 7 shows an aspect
component to test a requirement of time constraints.
This aspect tests the time requirement that the
turning action to change the direction of the robot
toward sound direction should be performed within
1000ms in our robot application. That is, if the
change of direction is not executed within 1000ms,
the test result is invalid. The “before” advice of this
aspect sets up the timer before the soundDirection()
method is called and the “after” advice is used to test
time over after the method is executed.
4.5 Memory Usage Test Component
The embedded software that should be operated with
a restricted resource can lead to invalid action when
the system does not have enough memory for
execution. Thus, if the system cannot provide the
memory that is needed for execution, the system
should exit the execution or wait until enough
memory to execute is guaranteed. Memory usage
required in the execution of a specific module can be
analysed using a tool such as Eclipse Profiler and the
analysed result is used to test the condition of
memory usage in the advice of aspect component.
Figure 8 shows an aspect component to test memory
usage using the testing pointcut, which specifies
selected code block for test target. The role of this
aspect component is to stop the operation of the
system when the current memory size of the system
is smaller than 19,900 bytes.
Figure 8: Aspect component to test memory usage.
5 ASPECT-BASED DYNAMIC
TESTING
To test embedded software using aspect
components, a source code and testing aspect should
be woven with each other through compiling. The
woven execution file can examine and cope with
exceptional cases that can occur while the system is
running. We define “On-the-Fly testing” with such
dynamic testing while the system is running.
5.1 On-the-Fly Testing Process
If the aspect component arrivals statements that is
described at join point, while the function modules
are executed sequentially in a real environment, the
aspect component starts the testing of the function
module. This aspect tests whether the corresponding
module may perform the correct action or whether
the input parameters for the function module are
valid. According to the test result, it is determined
whether the function module should be executed.
Therefore, our On-the-Fly testing can dynamically
cope with those cases that cannot be detected in
development testing. Figure 9 shows the On-the-Fly
testing process of embedded software.
Figure 9: On-the-fly testing process.
ICSOFT 2012 - 7th International Conference on Software Paradigm Trends
378
5.2 Applying Aspect to Example
System
To test the requirements (i.e. testing issues) of our
example system, we apply three aspects, designed in
section 4. The experiment for each test issue is
performed by weaving only a single aspect for the
adequate examination of a single requirement.
5.2.1 Experiment Environment
The test environment for aspect-based On-the-Fly
testing is developed using JDK 1.6.0, Eclipse 3.6,
AspectJ 2.1.0 and Aspect Bench Compiler
(Avgustinov, 2005). We extended the AspectJ with
the Aspect Bench Compiler for the new pointcut.
Also, an assistance tool is used, Eclipse Profiler
0.5.33 (Eclipse, 2007), to measure memory usage.
The target machine for our robot application is Mind
Storm Robot NXT #9797 that has 32bits ARM7

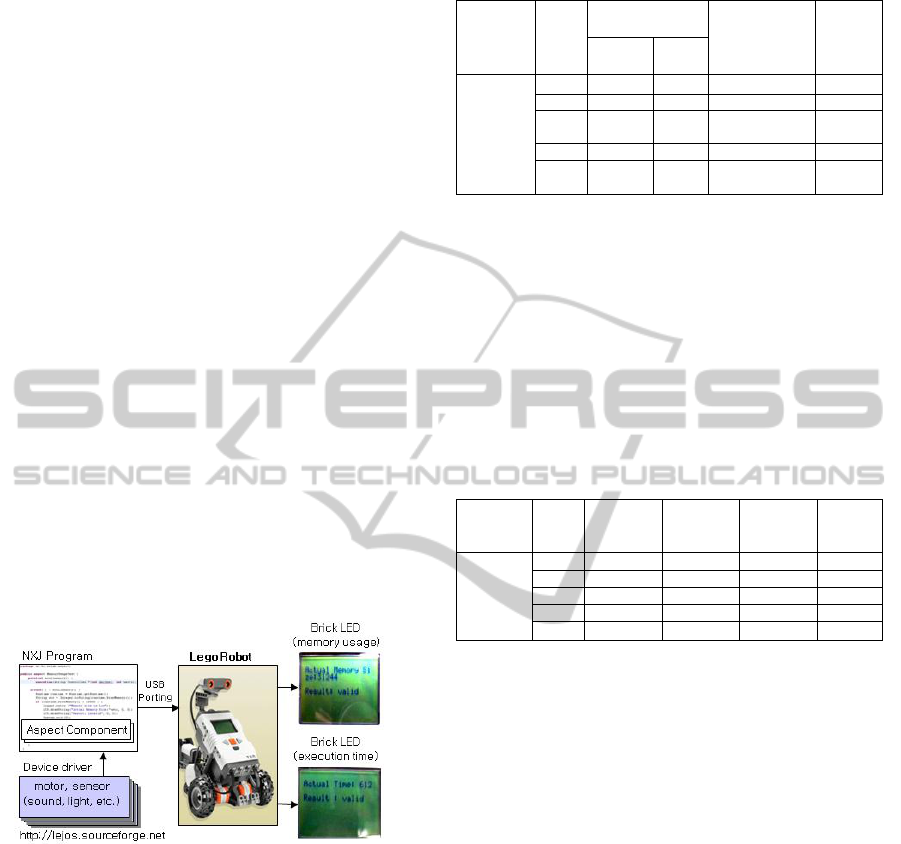

processor and 64K RAM. Figure 10 shows the
experiment environment to test our example system.
In order to do an experiment, we developed function
code using NXJ Java language and aspect
components using AspectJ. These are executed after
installing in the brick board of NXT and the
experiment result is displayed on the LED of the
Robot.
Figure 10: Experiment environment of example system.
5.2.2 Test Result of Functional Behaviour
The goal of the functional behaviour test in our
experiment is to confirm that the Robot’s sound
sensor correctly recognizes and processes sound of
fixed range. The test result of the method
Sensor.rvc() using the aspect component of Figure 6
is shown in Table 1. From Table 1, two test cases t3
and t5 do not satisfied the input condition of test
module Sensor.rvc().
Table 1: Test result of functional behaviour.
Test
Module
Test
case
Input
conditions
Expected
results
Actual
results
hertz
Sensor.rvc
t1
1200
valid-turning
turning
t2
1200
valid-turning
turning
t3
1200
invalid-no
change
no
change
t4
1200
valid-turning
turning
t5
1200
invalid-no
change
no
change
5.2.3 Test Result of Memory Usage Test
The estimated values of memory usage are used as a
test oracle for aspect component. This aspect
component judges whether the amount of available
memory of the system is enough or not. If the
memory amount is not enough, the execution of the
function module is stopped. Table 2 shows the test
result of memory usage of the selected code block in
our example application.
Table 2: Test result of memory usage.
Test
Module
Test
case
Estimate
d
memory
Availabl
e
memory
Expecte
d results
Actual
results
Selected
behavior
block
t1
19900
32440
valid
valid
t2
19900
31244
valid
valid
t3
19900
28046
valid
valid
t4
19900
14586
valid
invalid
t5
19900
34228
valid
valid
The memory usage of the code block estimated
by Eclipse Profiler was 19,900 bytes. The amount of
available memory measured by the
runtime.freeMemory() method of Java Virtual
Machine is represented in the available Memory
field of Table 2. When we consider the system
memory size of the NXT board, all expected results
are valid. However, unfortunately the actual result of
test case t4 is invalid. From this result, we knew that
a memory leakage occurs by memory garbage
during execution of t4. Therefore execution of the
selected code block is stopped at test case t4.
5.2.4 Test Result of Time Constraint
The time constraint test is to calculate the elapsed
time from recognizing an input sound data to turning
the direction of the robot wheel. However, the
accurate elapsed time of the module execution is
hard to measure because the execution can be
interfered by external or internal factors. Therefore,
we added statements that can measure the elapsed
time within the aspect component. Table 3 shows the
result of time constraint testing.
Aspect-based On-the-Fly Testing Technique for Embedded Software
379
Table 3: Test result of time constraint.
Test
Module
Tes
t
cas
e
Input
condition
(decibel)
Estimate
d
Time
(ms)
Actual
time
Expected
results
Actual
results
Sound
Direction
t1
88
1000
610
valid
valid
t2
97
1000
600
valid
valid
t3
115
1000
600
valid
valid
t4
43
1000
590
valid
valid
t5
139
1000
610
valid
Valid
6 CONCLUSIONS
In spite of various techniques on testing of
embedded software, the frequent failures of
embedded systems occur in real operation
environments. The cause of these failures exists
fundamentally in the software itself, but the problem
is that the defects for such failure are not discovered
in development testing. Therefore we proposed an
On-the-Fly testing technique to perform self-testing
while the system is running in a real environment.
The proposed testing technique can find defects
missed during development testing and can prevent
unexpected malfunctions that can happen during real
operation of a system. In a hard real-time system, the
test execution of aspect components can cause delay
of response time. However, because our aspect
components are very small in size and simple in
complexity compared with function modules, there
is no large delay on execution time. We believe that
our proposed On-the-Fly testing technique gives
some benefits of a real test of unexpected input
conditions, prevention of software malfunction, and
high reusability of test components.
Our future work is to develop techniques that can
test issues such as dead lock, pre-emption
scheduling and race condition between modules
through extension of the aspect concept. Also, we
are also going to apply our testing technique to a
large-scale embedded application.
ACKNOWLEDGEMENTS
This research was supported by Next-Generation
Information Computing Development Program
(No.2011-0020523) and also partially supported by
Basic Science Research Program (2011-0010396)
through the National Research Foundation of
Korea(NRF) funded by the Ministry of Education,
Science and Technology.
REFERENCES
Michael, J.K., William, I.B., Carl, B.E., 2006. Effective
Test Driven Development for Embedded Software. In
International Conference on Electro/Information
Technology, pp. 382-387.
Jean, M.B., Joao, A., Ana, M., Albert, R., 2003. Using
Aspects to Develop Built-in Tests for Components. In
International Workshop on UML, pp. 1-8.
Dehla, S., Matthias, V., 2003. An Aspect-Oriented
Framework for Unit Testing. In International
Conference on QOSA/SOQUA, pp. 257-270.
Martin, L., Cristina, V.L., 2000. A Study on Exception
Detection and Handling Using Aspect-Oriented
Programming. In International Conference on
Software Engineering, pp. 418-427.
Fernando, C.F., Alessandro, G., Cecilia, M.F., 2007. Error
Handling as an Aspect. In International Workshop on
BPAOSD.
Jani, P., 2006. Extending Software Integration Testing
Using Aspects in SymbianOS. In International
Conference on Practice Research Techniques, pp.
147-151.
Mirko, L., Tiziana, M., Graziano, P., Bernhard, S., 2005.
Dynamic and formal verification of embedded systems.
Journal of Parallel Programming, Vol. 33, pp. 585-
611.
Gregor, K., Erik, H., Jim, H., Mik, K., Jeffrey, P., William,
G.G., 2001. An Overview of AspectJ. Springer LNCS,
Vol. 2072, pp. 327-353.
Avgustinov, P., 2005. abc – an extensible AspectJ
compiler. In International Conference on AOSD, pp.
87-98.
Eclipse, 2007. Eclipse Profiler. http://eclipsecolorer.
sourceforge.net/index_profiler.html.
ICSOFT 2012 - 7th International Conference on Software Paradigm Trends
380
