Service-oriented Design of Metamodel Components

Henning Berg

Department of Informatics, University of Oslo, Oslo, Norway

Keywords:

Metamodelling, DSLs, Model Weaving, Model Integration, Aspect-orientation, Service-oriented Architecture.

Abstract:

Integration of models is an important aspect of Model-Driven Engineering. Current approaches of model

integration rely on model weaving and model transformations. In particular, weaving of metamodels allows

extending a metamodel with additional concepts, and thereby supporting a larger problem space. Unfortu-

nately, weaving of metamodels is not trivial and requires in-depth knowledge both of the problem domains of

the constituent metamodels and the modelling environment. In addition, name conﬂicts have to be resolved in

an intrusive manner. Another disadvantage of many model weaving approaches is that concepts describing dif-

ferent concerns are mixed together without the possibility for semantically tracing the origin of the concepts.

In this paper, we propose a new approach for combining metamodels by deﬁning these as reusable services

at a conceptual level. We will show that this approach both addresses the issues that arise when models are

woven, and illustrate how metamodel components simplify modelling.

1 INTRODUCTION

Metamodels have a central role in Model-Driven En-

gineering (MDE) (Kent, 2002) where they e.g. are

used as formalisations for language and tool design.

In most MDE environments, metamodels are realised

as class models. Class models do not have other

structure than what can be realised using inheritance,

composition and association relationships, and simple

packages. This means that all metamodel concepts,

regardless of purpose, are reiﬁed in the same mod-

elling space without the ability to differentiate one

type of concept from another. The lack of additional

metamodel structure is not critical in metamodels

consisting of a limited number of classes. However,

as metamodels become larger and more complex, as

a consequence of increasing maturity in model-driven

approaches, several troubling issues emerge.

Model weaving/composition is a popular ap-

proach of elaborating a metamodel with additional

concepts, e.g. (Fabro et al., 2006) (Kolovos et al.,

2006) (Groher and Voelter, 2007) (Morin et al., 2009)

(Morin et al., 2008). Model weaving is achieved by

combining a set of models in an assymmetric or sym-

metric manner. Regardless of method, the result is

a composite model containing all classes from the

source models. There are some evident issues with

this approach. First, the resulting metamodels be-

come large which makes it difﬁcult to relate to the

models. Second, classes reﬂecting concepts of differ-

ent concerns are all blended without adding any addi-

tional metainformation describing from what source

models the concepts in question originated, i.e. trace-

ability is not semantically backed up. Third, weav-

ing of models induces conﬂicts that have to be re-

solved. E.g. class merging implies that the con-

stituent classes do not contain equally named prop-

erties of different types, etc. Fourth, weaving of

models requires that the source models are altered

intrusively. In particular, such alteration is required

to integrate the constituent models’ dynamic seman-

tics. Fifth, integration of models requires explicit

knowledge in metamodel design and insight into

the speciﬁc environment used to realise the meta-

models, e.g. Eclipse Modeling Framework (EMF)

(EMF, 2012), MetaEdit+ (Tolvanen and Kelly, 2009),

Generic Modeling Environment (GME) (GME, 2012)

or similar. The main problem combining proprietary

metamodels is that these are not structured as reusable

artefacts. In particular, there are no apparent ways

metamodels should be composed. This gives a lot of

ﬂexibility since the metamodels can be combined in

many different ways. However, this also induces sev-

eral problematic issues as motivated.

A metamodel is domain-speciﬁc, in the sense that

it contains concepts related to one particular prob-

lem domain. Combining metamodels is primarily per-

formed to increase expressiveness by extending the

Berg H..

Service-oriented Design of Metamodel Components.

DOI: 10.5220/0004082900700079

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 70-79

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

set of concepts that can be used in the conformant

models. Weaving heterogenous metamodels belong-

ing to different domains results in different concerns

being tangled. This is not practical as metamodels be-

come difﬁcult to grasp. Even more critical is the dis-

ability to differentiate between the different concerns

in associated tooling and editors. E.g. a Domain-

Speciﬁc Language (DSL) made on the basis of three

combined heterogenous metamodels yields an associ-

ated concrete syntax where language constructs per-

taining to three different concerns are all mixed up.

We believe that the ability to consider one concern at

the time is important to facilitate more complex meta-

models and associated tooling.

In this paper, we present the novel idea of con-

sidering metamodel components as services. Specif-

ically, we will discuss how the dynamic semantics of

metamodels can be integrated in a service-oriented

manner, and thereby support loosely coupled inte-

gration of metamodels. Service-oriented design of

metamodel components yields an alternative to model

weaving, where the metamodels are kept separated.

Still, the metamodels and their conformant models

are integrated and can be utilised in unison to fulﬁll

modelling requirements. Note that we do not consider

every aspect of services in this paper, but use the con-

cept of service-orientation as inspiration for deﬁning

loosely coupled metamodel components.

The paper is organised as follows. Section 2 ex-

plains the concept of metamodel components and uses

SoaML (SoaML, 2012) to illuminate how metamodel

components are connected. Section 3 delves into de-

tails on how metamodel components can be realised,

while Section 4 presents a case study where meta-

model components are used in concert to construct

an e-commerce solution. Section 5 discusses related

work, and Section 6 conludes the paper.

2 METAMODELS AS SERVICES

Service-Oriented Arhitectures (SOAs) is a software

engineering branch that deals with services and how

they interact to realise a software system. A service is

a reusable set of functionalities that provides value to

its clients, e.g. other services. SOA is a broad ﬁeld. In

this paper, we will only use a small subset of the SOA

terms and concepts to describe our approach. We will

use SoaML (SoaML, 2012) in our examples. SoaML

is an Object Management Group (OMG) standarised

modelling language for describing services architec-

tures. It provides terminology for bridging the busi-

ness and IT levels of service design. Note that we will

not follow the SoaML speciﬁcation strictly, but use it

as a platform for describing the concepts of this paper.

Some additional terminology is used.

A metamodel formalises the structure and seman-

tics of models. We consider both static and dynamic

semantics as part of the metamodel. E.g. EMF allows

deﬁning dynamic semantics, referred to as model

code, in methods of plain Java classes. Alternatively,

Kermeta (Muller et al., 2005) is a metalanguage that

allows deﬁning dynamic semantics within the opera-

tions of the metamodel classes. We will not go into

details on how the abstract syntax and dynamic se-

mantics are mapped, and consider the dynamic se-

mantics to be deﬁned in operations within the meta-

model classes.

A metamodel is constrained to a particular prob-

lem domain, and can be observed as a service that

provides structure and semantics for expressing prob-

lems in this domain; in particular, dynamic semantics

for performing some kind of processing. We will use

the term metamodel component as an entity that com-

prises four elements: the metamodel (abstract syntax

and static/dynamic semantics), concrete syntax (op-

tional), one or more service contracts and an informal

description of the metamodel’s domain and purpose,

see Figure 1.

Abstract syntax Concrete syntax

Static semantics Dynamic semantics

Service contracts

Metamodel description

Metamodel component

Figure 1: Overview of a metamodel component.

Each service contract deﬁnes an integration point

between the referenced metamodel and another com-

patible metamodel. In SoaML, this can be mod-

elled as a service channel between a consumer and

a provider role. A composite metamodel is created

by orchestrating a set of metamodel components by

binding these to the roles of the service contracts, and

thereby fulﬁlling the service contracts. Metamodel

components are combined in an asymmetric manner.

Thus, the metamodel of a component bound to a con-

sumer role of a service contract implies a base model,

while the metamodel of a component bound to the

provider role of the contract implies an aspect model.

A metamodel can act as both model types depend-

ing on whether its component takes a consumer or

provider role. It can also fulﬁll several roles in par-

allel. Refer (Groher and Voelter, 2007) for details on

Service-orientedDesignofMetamodelComponents

how these terms are used in model weaving. An ex-

ample of a generic services architecture for a com-

posite metamodel is given in Figure 2. Notice that a

composite metamodel is more of a conceptual notion,

as its constituent metamodels are not woven together.

«ServicesArchitecture»

Composite Metamodel Architecture

mma : MetamodelA mmb : MetamodelB

mmc : MetamodelC

b: ProvideB1

a : ProvideA1 b : ProvideB2

consumer provider

provider

consumer

ProvideA1

ProvideA2

ProvideB1

ProvideB2

ProvideB3

ProvideC1

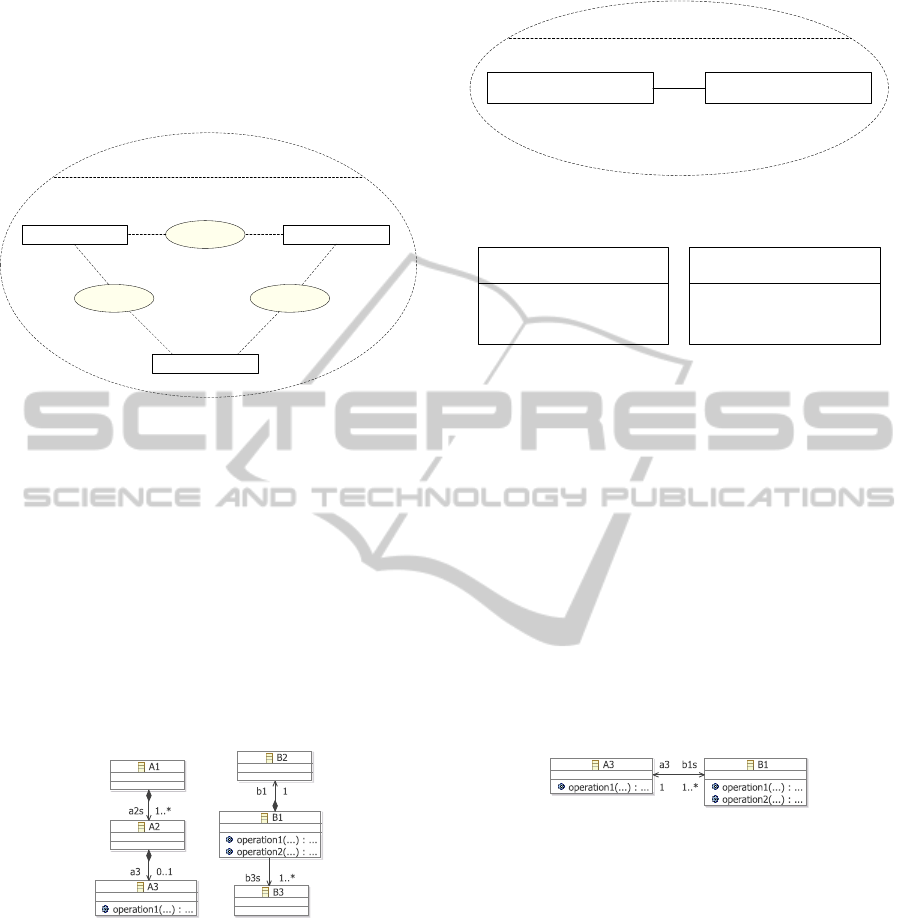

Figure 2: Services architecture consisting of three partici-

pating metamodel components.

A services architecture consisting of the three

metamodel components: MetamodelA, MetamodelB and

MetamodelC, is given in Figure 2. The three meta-

model components specify various service contracts.

E.g. MetamodelB deﬁnes the three service constracts:

ProvideB1, ProvideB2 and ProvideB3, whereas the two

ﬁrst are fulﬁlled as part of realising the composite

metamodel. We have included fragments of the ab-

stract syntax for two example metamodels that ful-

ﬁll the requirements of the ProvideB1 service contract.

See Figure 3.

Figure 3: Excerpts of compatible metamodels for the Meta-

modelA (left) and MetamodelB (right) components.

Let us focus on the ProvideB1 service contract and

see how it is deﬁned. The ProvideB1 service con-

tract consists of two roles: baseModel and aspectModel,

which are connected through a service channel. See

Figure 4. The roles are associated with a consumer

and provider interface, respectively, as described by

the SoaML speciﬁcation.

Each service contract speciﬁes an integration

point between two classes: one class from the base

model and one from the aspect model. The connec-

tion between the classes can be realised e.g. as an as-

«ServiceContract»

ProvideB1

baseModel : RequiredInterface aspectModel : ProvidedInterface

service channel

Figure 4: The ProvideB1 service contract.

«Interface, Consumer»

RequiredInterface

<opposite B1>::operation1(…) : ...

«Interface, Provider»

ProvidedInterface

B1::operation1(…) : ...

B1::operation2(…) : ...

Figure 5: Consumer and provider interfaces.

sociation or composition relationship. We will later

come back to how this connection can be realised.

The interfaces for the ProvideB1 service contract are

given in Figure 5. The ProvidedInterface speciﬁes two

operations: operation1(...) and operation2(...). Both op-

erations are deﬁned within the B1 class. The service

contract is part of the MetamodelB component. Thus,

the B1 class represents the aspect model part of an

integration point. RequiredInterface speciﬁes one op-

eration: operation1(...). This operation has to be im-

plemented by the base model class that relates the as-

pect model B1 class, and indicates a bidirectional re-

lation between the two metamodels’ dynamic seman-

tics. See Figure 6.

Figure 6: Realised integration point.

Figure 6 shows how the ProvideB1 service con-

tract is realised by the class A3 in the metamodel of

the MetamodelA component and B1 in the metamodel

of the MetamodelB component. In the remainder of

this paper, we will only differentiate between a meta-

model and metamodel component where this is re-

quired. E.g., we may use ’MetamodelA’ to denote the

metamodel of the MetamodelA component.

3 REALISING METAMODEL

COMPONENTS

So far we have deliberately avoided discussing how

metamodel components can be realised. The reason

for this is that metamodel components can be realised

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

in various manners using several supporting mecha-

nisms. Here we discuss some general issues in re-

alising metamodel components and present a brief

overview of the most promising approaches.

Weaving metamodels together gives a resulting

composite metamodel where all the source metamod-

els are tightly integrated. Creating models that con-

form to the composite metamodel takes the same form

as creating models of either of the source models, i.e.

using an editor that provides representations for all

the composite metamodel concepts. Modelling us-

ing metamodel components orchestrated as services

works slightly different. Speciﬁcally, it is still possi-

ble to model using concepts from each of the source

metamodels separately, see Figure 7. This allows

modelling different concerns one at the time. Let us

see how this is achieved.

: A

MetamodelA perspective

Model name: m

: B

MetamodelB perspective

Model name: m

Figure 7: Modelling separate concerns in different perspec-

tives.

A service contract deﬁnes an integration point be-

tween two metamodels. An integration point is re-

alised as a (possibly bidirectional) relation between

two classes and two sets of operations that can be ac-

cessed (navigated) using the relation. The operations

are speciﬁed by the associated consumer and provider

interfaces. The relation can take many forms, but

would typically be an association or composition. The

type of relation is selected as part of the service or-

chestration.

Let us return to the running example. When mod-

elling, it should be possible to refer the B1 concept

from within a model of MetamodelA, since Metamod-

elB is an aspect model that increases the expressive-

ness of MetamodelA. However, the metamodels are not

woven together. To address this, a placeholder/proxy

representing B1 is used in the model of MetamodelA,

see Figure 7. The proxy is linked to an actual object

of the B1 class at runtime in a loosely manner using

XML-based messages. The object of the B1 class is

selected from a repository of models conforming to

MetamodelB.

Modelling using the metamodel of a metamodel

component results in a model that is automatically ac-

cessible via a model repository. This facilitates link-

ing the proxy of a model object in one perspective

to a model of another perspective. Additionally, the

same model (clones) can be used several times. Fig-

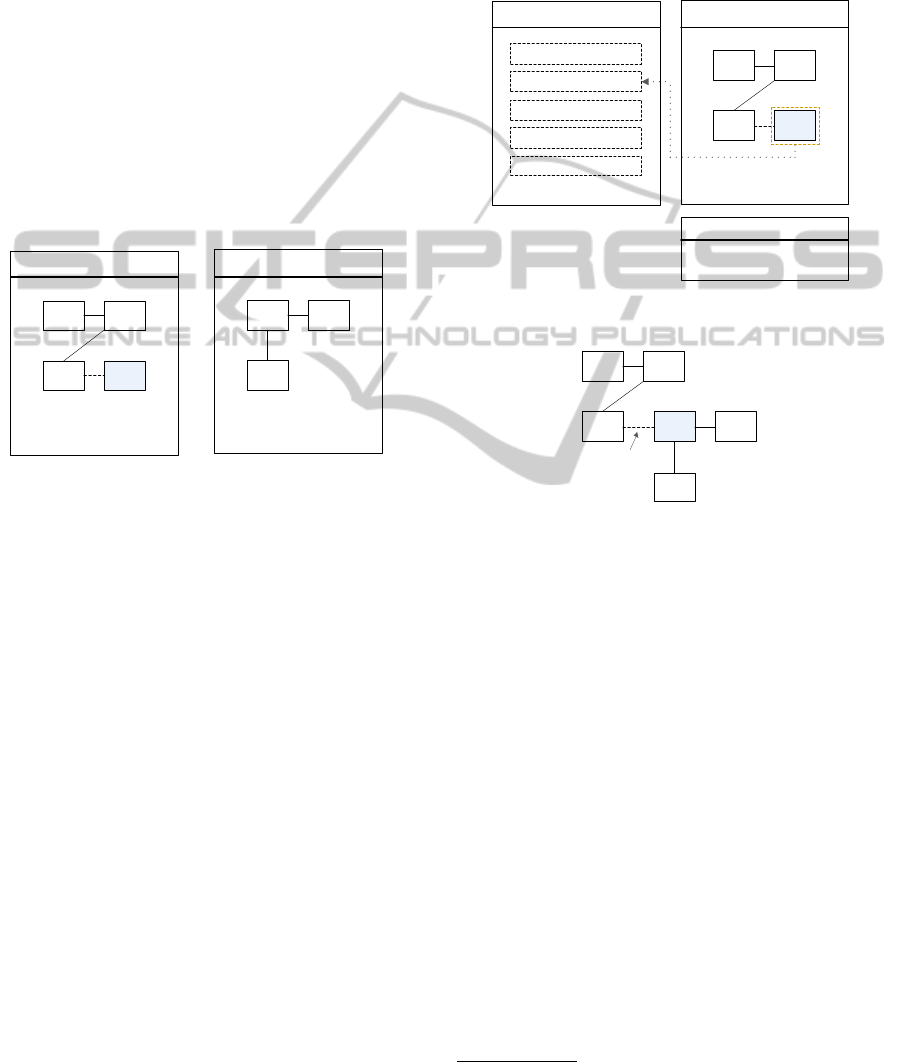

ure 8 illustrates this. We assume there are ﬁve models

available in the repository.

: A

MetamodelA perspective

Model name: m

: MetamodelA

Model repository

: MetamodelB

: MetamodelA

: MetamodelB

B1 proxy #1 properties

Model: m

Figure 8: Linking a proxy to a model.

: A

: B

dynamic link

Figure 9: The resulting model as used at runtime.

Message-based links between models are estab-

lished and maintained by the runtime environment.

The runtime environment acts as a superstructure on

top of a modelling environment, like EMF. The re-

sulting (apparent) model at runtime is given in Figure

3.1 Service Orchestration

Orchestration of metamodel components comprises

two steps: instantiating service contracts and select-

ing relation type with multiplicity. Orchestration can

be performed graphically. Speciﬁcally, a relation is

made between a base model class and a service con-

tract of the aspect model. In Figure 10, the A3 class

of MetamodelA is related to MetamodelB through the

ProvideB1 service contract

. MetamodelC is integrated

with both MetamodelA and MetamodelB. The C1 class

has an assosiation to the class A1 (via the ProvideA1

service contract). Objects of the C2 class are com-

posed of B2 objects, as indicated by the composition

The name of the relation indicates base model class.

Service-orientedDesignofMetamodelComponents

relation between C2 and the ProvideB2 service con-

tract. Notice how MetamodelA is both a base model

and aspect model, depending on its role of the ful-

ﬁlled service contracts.

MetamodelA

MetamodelB

ProvideA1

ProvideA2

ProvideB1

ProvideB2

ProvideB3

MetamodelC

ProvideC1

class model

base model

aspect model

base model

aspect model

base model

1..*

1..1

0..1

1..*

Figure 10: Orchestrating metamodel components.

3.2 Mechanisms for Realisation of

Metamodel Services

There are several mechanisms that may support reali-

sation of metamodel components as discussed in this

paper. Model types (Steel and Jézéquel, 2005), class

nesting and mechanisms used in component technolo-

gies are all promising alternatives.

One potential application of model types is for

deﬁnition of service contracts. A model type can

be used to specify one or more classes of the aspect

model that form the basis for integration points. This

approach would allow deﬁning generic service con-

tracts that can be reused by several metamodels.

Class nesting may be used to identify different

perspectives or subsets of classes within a metamodel.

In particular, an inner nested class may represent an

interface for interacting with other metamodels.

There exist several component technologies used

for distributed systems. Some may provide mecha-

nisms that can be used to realise metamodel services.

An interesting topic is how to serialise models which

can be distributed over a network. This would allow

different stakeholders to model a given system with-

out being at the same location. The metamodel com-

ponents and respective models could later be com-

bined to form the composite model of the system.

4 CASE STUDY: AN

E-COMMERCE SOLUTION

In this section, we will illustrate metamodel compo-

nents using a practical example in the domain of web

design. We will use two DSLs for modelling of two

different concerns: web site structure and queries.

The metamodels of the DSLs are given in Figures 11

and 12. We will refer to the metamodels as Website

and Query, respectively.

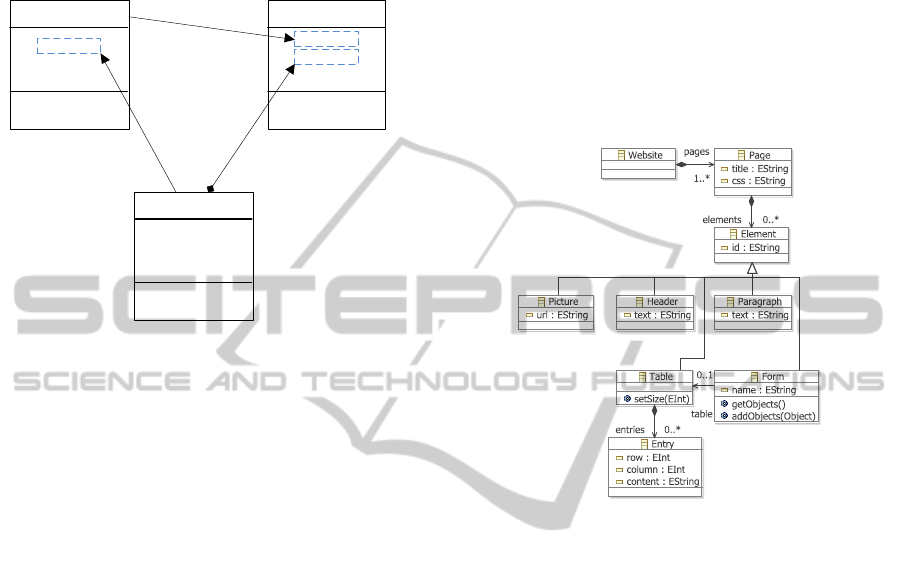

Figure 11: Metamodel for the website design language.

As seen in Figure 11, a website comprises one or

more pages that contain an arbitrary number of ele-

ments. In particular a page may contain forms re-

alised within a table structure. An example of a form

is a list of products or similar, that can be selected by

the end user. The Form dynamic semantics include an

operation addObjects(...) which accepts a list of (dese-

rialised) objects. The operation populates a form us-

ing a table element. The number of rows and columns

in the table is determined automatically by the num-

ber and type of objects used as argument. We assume

that the metamodels are deﬁned in EMF, thus, the dy-

namic semantics would be written in Java.

A simple query language is given in Figure 12. It

captures concepts for expressing queries that can be

used for acquisition of objects, e.g. from a database

abstraction. A query consists of one or more object

identiﬁers. An object identiﬁer is composed of a set of

property name-value pairs which are used to identify

a given set of objects. For instance, an e-commerce

solution for selling computer hardware may utilise a

domain model including the domain class Product. An

excerpt of the deﬁnition of such a class is given in

Figure 13.

Distinct products have different values for the at-

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

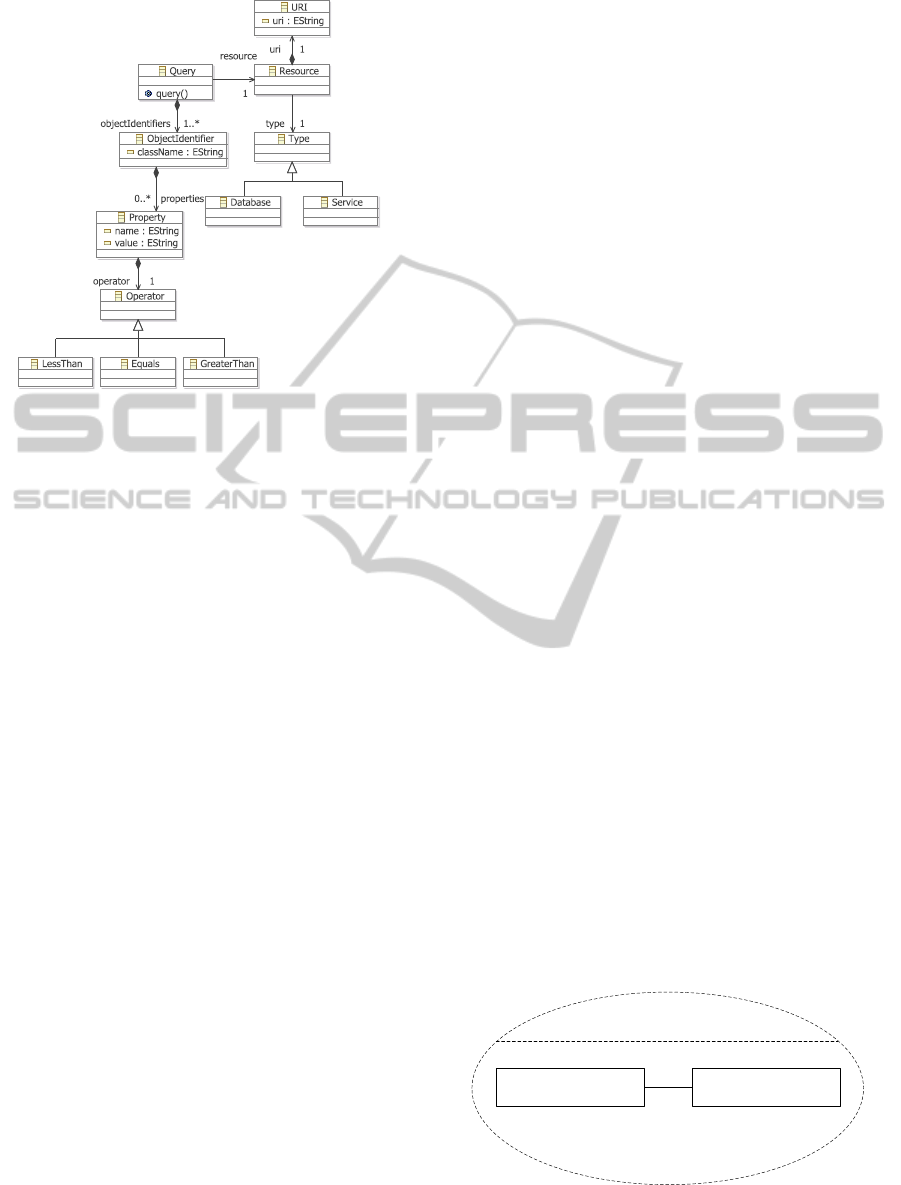

Figure 12: Metamodel for the query language.

class P rod uct

{

private S tr i ng man u fac t ure r :

private S tr i ng n ame ;

private int v ers ion ;

private S tr i ng des c rip t ion ;

private double pri ce ;

.. .

}

Figure 13: The Product domain model class.

tributes. Querying for a given type of products is per-

formed by using object identiﬁers and property name-

value pairs. An example of a statement that identiﬁes

a set of products from a couple of target manufactur-

ers is given in Figure 14 in a textual concrete syntax.

The query statement of Figure 14 returns all products

that are manufactured by Toshiba or Acer and cost

under $300.

Describing queries that are issued to a database is

a natural part of designing an e-commerce solution.

Designing the website and programming the queries

represent two different concerns. It is likely that dif-

ferent stakeholders would model these concerns. A

graphical designer could construct the website, while

a programmer would deﬁne the backbone business

logic including database queries.

We have identiﬁed two DSLs that address each of

these concerns. The traditional approach would be to

weave the metamodels of the DSLs to create a richer

language that can be used to both model the website

and express database queries, i.e. the Form and Query

classes would be merged. First, combining Form and

Query is awkward, since these two classes are not se-

mantic coherent. Second, the weaving process clearly

mixes two concerns. E.g. a graphical concrete syntax

Query {

ObjectIdentifier[ " P rod uct " ] {

Property: " m anu f act u rer " = " Tos hib a "

Property: " m anu f act u rer " = " Ac er "

Property: " pri ce " < 3 00

}

Resource[ D a tab ase ] {

URI: " jdbc :/ /.. . "

}

Figure 14: An example query in a textual notation.

for the composite language would yield a palette of

language constructs for the entire language, whereas a

textual syntax would provide the user with code com-

pletion suggestions for all the constructs. The graph-

ical website designer would not be interested in the

language constructs for performing queries as used

by the programmer, and vice versa. One alternative is

to manually program the concrete syntax of the com-

posite language to differentiate the two sets of lan-

guage constructs, yet the resulting model of a web-

site and associated queries would still be expressed in

the same modelling space. Providing two sets of con-

crete syntax concepts would require in-depth techni-

cal knowledge, which reduces the reuse value of the

languages/metamodels. Additionally, the website lan-

guage would typically be implemented with a graph-

ical concrete syntax, whereas the query language is

better designed using a textual syntax. Combining

different kinds of syntaxes is not a trivial task.

Let us see how metamodel components tackle the

same scenario. The dynamic semantics of Form in

Figure 11 comprises the operations getObjects() and

addObjects(...). The semantics of Query in Figure 12

consists of the operation query(). These operations

could either be a natural part of the classes’ seman-

tics or be deﬁned explicitly in order to construct the

metamodels as reusable components. The three oper-

ations will reify the consumer and provider interfaces

of a Query service contract. For this example, only the

query component will feature a service contract.

«ServiceContract»

Perform Query

ql : QueryTaker qp : QueryProvider

Figure 15: The Perform Query service contract.

Service-orientedDesignofMetamodelComponents

The service contract of the query component is

given in Figure 15. It speciﬁes two roles, each typed

with an interface. The interfaces are given in Figure

16.

«Interface, Consumer»

QueryTaker

<opposite Query>::initiate()

<opposite Query>::addObjects(Object[] objects)

«Interface, Provider»

QueryProvider

Query::query()

Figure 16: The consumer and provider interfaces associated

with the Perform Query service contract.

As can be seen, the provider interface comprises

one operation named query(), while the consumer in-

terface speciﬁes the operations getObjects() and addOb-

jects( Object[] objects ). The actual operations of the

class that fulﬁll the consumer interface do not have to

match the operation names in the interface, however,

the target operations’ signatures and return types are

required to match those of the interface operations.

How to ensure that the correct operations are cho-

sen is out of scope of this paper

. We assume that

each service contract has a description that informally

speciﬁes the required semantics of its operations.

The services architecture describing the e-

commerce modelling solution is given in Figure 17.

«ServicesArchitecture»

E-commerce Solution Architecture

structure : QueryTaker

queries : QueryProvider

query: Perform Query

Perform Query

Figure 17: The e-commerce modelling solution services ar-

chitecture.

The modelling process of the e-commerce solu-

tion consists of three steps:

• Service orchestration.

• Modelling each concern in distinct perspectives.

• Linking the base model proxies by acquiring as-

pect models from the model repository.

Assuring that the operation does what it should is also

out of scope of this paper.

Figure 18 shows the three steps of modelling the e-

commerce solution (with imagined tool support). The

Form class of the Website metamodel is related to the

Query metamodel via the Perform Query service con-

tract using an association (1). This is possible since

the Form class contains operations with the signatures

and return types as speciﬁed by the service contract

(required operations). The initiate() operation of the

consumer interface is realised as getObjects() in the

Form class, while the addObjects(...) interface opera-

tion is realised by the equally named operation. I.e.

the service contract is fulﬁlled. A simpliﬁed descrip-

tion of the functionality offered by the query com-

ponent is given in XML format. The website and

queries are modelled separately (2). The website con-

tains two forms, thus two queries have to be modelled.

The website model is named website

, while the query

models are named query

and query

. All models are

stored in the model repository (when saved). Note

the two proxies in the website model representing the

Query class objects. The two proxies are linked to the

query models in properties panes/views (3). Conse-

quently, each proxy is bound to the respective Query

object of the speciﬁed query model. The class of the

model object represented by the proxy, and the de-

tails on how the proxy object connects to the aspect

model, are determined by the service contract and as-

sociated interfaces. Thus, there is no need for ex-

plicitly designating the proxy to a speciﬁc model ob-

ject. It is already deﬁned in the interfaces. Several

proxies can be assigned clones of the same model.

E.g. if both forms required the same type of query,

they could both be linked to e.g. query

. Models are

cloned automatically by the tooling. At runtime, the

different operations speciﬁed in the interfaces are in-

voked to exchange data between the constituent mod-

els (website

, query

and query

) using an XML-based

message format. Population of a form is initiated

when the dynamic semantics of the website language

invokes getObjects(). This invocation is resolved by

the runtime environment and results in invocation of

query() in the associated query model. Consequently,

a set of objects are acquired from the database and

returned to the website model via the addObjects(...)

operation. The models are linked dynamically. Thus,

proxies are linked to model objects at runtime. As

pointed out, the runtime link is realised as messages

sent as serialised XML data (loose coupling).

The example shows how two metamodels can be

used together without using model weaving. Here,

only one service contract was fulﬁlled. A metamodel

component can feature an arbitrary number of service

contracts. This allows creating complex architectures

with many metamodels. In addition, it is possible to

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

Website

Query

Perform Query

class model

Form

Website perspective

Model name: website

Query perspective

Model name: query

Query perspective

Model name: query

website

: Website

Model repository

query

: Query

query

: Query

Products page

Campaign page

Query proxy #1

Query proxy #2

Product list form

Campaign product list form

Query proxy #1 properties

Model: query

Query proxy #2 properties

Model: query

Query {

ObjectIdentifier

[”Product”] {

Property: …

Property: ...

}

...

}

Query {

ObjectIdentifier

[”Campaign”] {

Property: …

Property: ...

}

...

}

</provider>

</operation>

</consumer>

</interface>

1..1

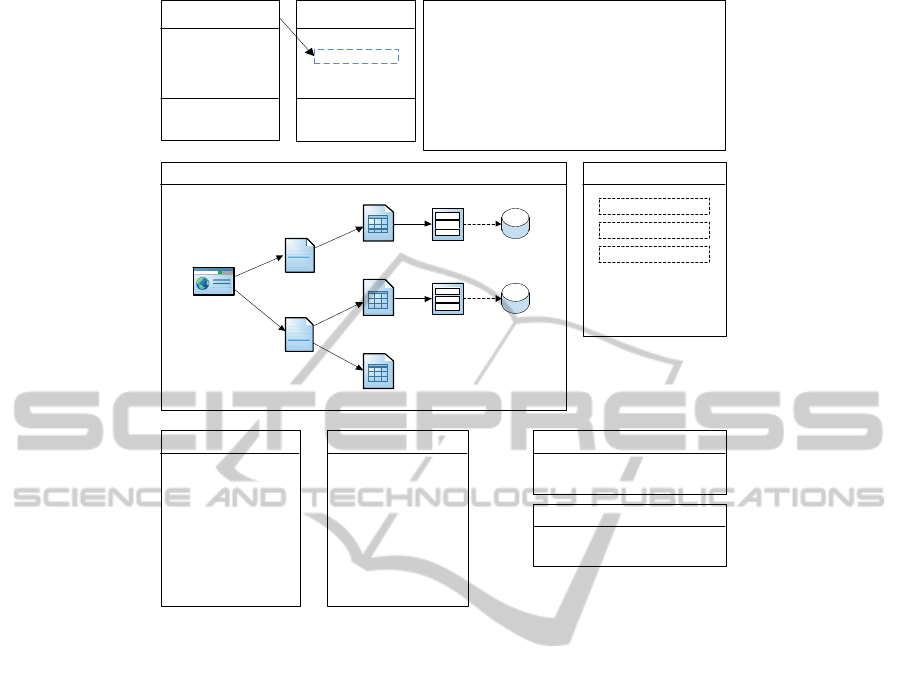

Figure 18: Orchestration of metamodel components and modelling of an e-commerce solution.

integrate a metamodel with other metamodels in sev-

eral ways depending on what service contracts that

are fulﬁlled.

5 RELATED WORK

The work of (Weisemöller and Schürr, 2008) dis-

cusses how metamodel components can be realised

using a graph transformation based formalisation of

MOF. In essence, a metamodel component provides

export and import interfaces. Each interface identi-

ﬁes a submodel. A submodel of an export interface

can be bound with the submodel of an import inter-

face using graph morphisms, and thereby combining

the metamodels. The work resembles the approach of

this paper. The main difference is that our approach

allows a higher degree of decoupling, since metamod-

els are integrated through proxies.

An approach for enabling generic metamodelling

is elaborated in (Lara and Guerra, 2010). The pa-

per investigates how C++ concepts, model templates

and mixin layers can be used to specify generic be-

haviour and transformations, create model component

and pattern libraries and extend metamodels with new

classes and semantics. A concept can be bound to

models that fulﬁll a set of requirements speciﬁed by

the concept. The bounding is performed using pattern

matching. Consequently, generic behaviour can be

reused for instances of the compatible models. Model

templates allow deﬁning reusable patterns and com-

ponents which can be instantiated with actual param-

eters. The parameters comprise models and model el-

ements. Finally, mixin layer templates facilitate ex-

tending metamodels with new classes and semantics

in a non-intrusive manner.

Package extension is a mechanism that allows

merging equally named classes of metamodels that re-

side in packages (Clark et al., 2003). A package can

be deﬁned by extending other packages. The paper

also describes a package template concept. A pack-

age template is a package that can be parameterised

with string arguments. The arguments facilitate re-

naming of several package elements simultaneously.

An approach for loose integration of models, in

the form of model sewing, is discussed in (Reiter

et al., 2005). Model sewing is an operation that al-

lows models to be both synchronised and depend on

each other without utilising model weaving. The dis-

cussed advantages are the ability to utilise existing

Service-orientedDesignofMetamodelComponents

GUI for the constituent models of a sewing operation,

and avoidance of entanglement of concepts from dif-

ferent models. The approach identiﬁes the need of

mediating entities that bind the models together. The

work resembles the approach of this paper. The main

difference is that we utilise interfaces and treat meta-

models as components that are combined in a service-

oriented manner.

6 DISCUSSION AND

CONCLUSIONS

Metamodel components allow using metamodels in

unison without weaving these explicitly together.

This has apparent advantages. First, it is possible to

create models that express different concerns in a sep-

arate fashion. The models of different concerns are

still integrated by the modelling environment using

model links that are maintained dynamically. This en-

sures a loosely coupled integration. Second, models

of different concerns can be validated and tested in-

dependently one at the time. Speciﬁcally, the proxies

can communicate with mock-ups that represent mod-

els (simulation mode). Third, orchestration of meta-

model components can be achieved by non-technical

stakeholders since the metamodels do not need to

be altered in order to combine these. The service

contracts formalise the integration points. Fourth,

a model or model fragment (clone) can be acquired

from the model repository and reused, which simpli-

ﬁes the modelling process. Thus, it is not required to

model the same thing twice.

Model weaving usually requires that classes are

merged. However, it is not always reasonable to

merge two classes, particularly when the classes rep-

resent concepts of different problem domains. Using

the approach of this paper, an aspect model class is in-

stead used to type the relation between this class and

a base model class (and vice versa). This resembles

class reﬁnement as discussed in (Emerson and Szti-

panovits, 2006).

A consequence of weaving the abstract syntax of

metamodels is the need of combining concrete syn-

taxes as well. This is avoided by using components,

since each component independently provides its dis-

tinct textual or graphical concrete syntax. Compo-

nents also address evolution issues. Model confor-

mance is a term that indicates whether a model is

compatible with its metamodel. Weaving metamod-

els breaks model conformance. This requires using

model transformations to create a conformant com-

posite model from the basis of pre-existing models.

Components address this by deﬁning a sand box/s-

cope for each metamodel. Changing or revising the

metamodel of one component will only break confor-

mance with the existing models of this component’s

metamodel. Models of the other components’ meta-

models in the services architecture will still conform

to their metamodels.

Two important aspects of service-oriented ap-

proaches are service repositories and service discov-

ery, which facilitate service reuse and availability.

Metamodel components may follow a similar scheme.

In particular, reusable generic metamodel patterns can

be stored in searchable, distributed repositories and

used as language building blocks by language engi-

neers. A metamodel pattern may describe an aspect

or requirement that is common for several metamod-

els/languages, e.g. a state machine or similar (Cho

and Gray, 2011). Analysis and validation of services

are important parts of service-oriented engineering

methodologies and required to ensure high quality ar-

chitectures and systems. This has not been addressed

in this paper.

An interesting application of metamodel compo-

nents is for integrating metamodels and languages

(and their models) deﬁned in different modelling en-

vironments. This is possible since the dynamic se-

mantics of each metamodel component can be run

separately, yet connected as speciﬁed in the service

contracts. E.g. a metamodel and conformant models

deﬁned in EMF could utilise models deﬁned in GME,

or similar. This is one particular application of meta-

model components that justiﬁes the high-degree of

separation provided by a service-oriented metamodel

integration.

We believe that combining metamodels in a

service-oriented manner addresses current limitations

of model weaving by simplifying integration of mod-

els and the modelling process, and thereby increasing

the reusability and value of metamodels and models.

REFERENCES

Cho, H. and Gray, J. (2011). Design patterns for metamod-

els. In Proceedings of the OOPSLA/SPLASH DSM’11

Workshop.

Clark, T., Evans, A., and Kent, S. (2003). Aspect-oriented

metamodelling. The Computer Journal, 46(5).

Emerson, M. and Sztipanovits, J. (2006). Techniques for

metamodel composition. In The 6th OOPSLA Work-

shop on Domain-Speciﬁc Modeling.

EMF (2012). Eclipse modeling framework (emf).

http://www.eclipse.org/modeling/emf.

Fabro, M. D. D., Bézivin, J., and Valduriez, P. (2006).

Weaving models with the eclipse amw plugin. In

Eclipse Modeling Symposium.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

GME (2012). Generic modeling environment (gme).

http://www.isis.vanderbilt.edu/projects/gme.

Groher, I. and Voelter, M. (2007). Xweave: Models and

aspects in concert. In Proceedings of AOM Workshop

’07.

Kent, S. (2002). Model driven engineering. In Proceedings

of IFM’02.

Kolovos, D. S., Paige, R. F., and Polack, F. A. (2006). Merg-

ing models with the epsilon merging language (eml).

In Proceedings of MODELS 2006.

Lara, J. and Guerra, E. (2010). Generic meta-modelling

with concepts, templates and mixin layers. In Pro-

ceedings of MODELS’2010.

Morin, B., Klein, J., and Barais, O. (2008). A generic

weaver for supporting product lines. In Proceedings

of the Workshop on Early Aspects (EA’08).

Morin, B., Perrouin, G., Lahire, P., Barais, O., Van-

wormhoudt, G., and Jézéquel, J.-M. (2009). Weaving

variability into domain metamodels. In Proceedings

of MODELS 2009.

Muller, P., Fleurey, F., and Jézéquel, J. (2005). Weaving

executability into object-oriented meta-languages. In

Proceedings of MODELS 2005.

Reiter, T., Kapsammer, E., Retschitzegger, W., and

Schwinger, W. (2005). Model integration through

mega operations. In Proceedings of the Workshop on

Model-Driven Web Engineering MDWE 2005.

SoaML (2012). Service-oriented architecture modeling lan-

guage (soaml). http://www.omg.org/spec/SoaML.

Steel, J. and Jézéquel, J.-M. (2005). Model typing for im-

proving reuse in model-driven engineering. In Pro-

ceedings of MODELS 2005.

Tolvanen, J.-P. and Kelly, S. (2009). Metaedit+: Deﬁning

and using integrated domain-speciﬁc modeling lan-

guages. In OOPSLA 2009.

Weisemöller, I. and Schürr, A. (2008). Formal deﬁnition of

mof 2.0 metamodel components and composition. In

Proceedings of MODELS 2008.

Service-orientedDesignofMetamodelComponents
