An Intelligent Grading System for e-Learning

Environments

Shehab A. Gamalel-Din

Faculty of Computing & Information Technology, King Abdulaziz University, Jeddah, K.S.A.

Abstract. Many educators believe that among effective learning methods are

learning-by-explaining-experience and learning-by-correcting-mistakes through

one-on-one interactions with students. It is not surprising, then, that an effective

way of teaching is to give students immediate feedbacks on exercises and

problems that they have just solved. Unfortunately, such one-on-one teaching

scenarios are becoming increasingly difficult to arrange in e-learning, especially

web-based learning, where the number of participating students is continuously

increasing. Computerized empowered intelligent graders that provide students

with comprehensive explanations on their mistakes and what a correct answer

would be are of urgent need to overcome such difficulties. This research have

introduced the new concept of Intelligent Grading Systems (IGS), designed a

generic framework, and implemented Smart Grader (SG) – a simple proof of

concept prototype. SG is assumed to either work as a separate grading tool or as

an integrated component to e-Learning systems for grading programming and

mathematics problems.

1 Introduction

E-Learning technology offers various e-tools to support all types of education and

training systems. This paper presents one of such tools, the Smart Grader, that

supports one critical activity for all education systems, namely, student assessment.

Due to the lack of enough human resources, full independence on a human grader was

a target, which limits the types of questions to those that could be machine marked. In

such types of questions, the final result is what matters, which means that the

approach/strategy the student followed to reach a specific selection doesn’t matter and

is not assessed. This is just enough for the first three levels of Bloom’s taxonomy, but

doesn’t generally suit the higher levels, e.g., application, synthesizing, analyzing, and

evaluation, especially in those subjects, such as programming and mathematics, where

the assessment of the problem-solving skill is what really matters.

Studies [1,2] have revealed that immediate feedback of tutors in problem-solving

yields the most efficient learning model than those that do not provide such a

feedback. Accordingly, these researches suggested that explicit guidance is required

to improve the efficiency of learning. This observation had motivated the idea behind

this research.

Therefore, this research tries to assess the above hypothesis by introducing a new

concept that we analogously call it Intelligent Grading Systems (IGS). In contrast

A. Gamalel-Din S..

An Intelligent Grading System for e-Learning Environments.

DOI: 10.5220/0004087300030013

In Proceedings of the 1st International Workshop on Interaction Design in Educational Environments (IDEE-2012), pages 3-13

ISBN: 978-989-8565-17-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

with current grading systems, an IGS does not only evaluate students based on their

final answers to quizzes and exercises but also on the steps they followed to reach

those answers. A student might reach a correct problem solution; however, the grader

might not accept the followed approach, as it doesn’t match the taught concepts being

tested; or on the other hand, the grader might suggest a better approach, which adds to

the effectiveness of the learning process.

Unfortunately, current e-Learning systems do not usually interfere with the

students during their exercise/test sessions. Therefore, integrating Interactive IGS

with e-Learning environments would overcome such a weakness and improve its

learning effectiveness. An interactive online IGS may interfere with the student in a

testing/tutorial session for several reasons among them are correcting misconceptions,

and highlighting better or more advanced approaches [3], which makes the

assessment process an integral part of the learning process and which adds to its

efficiency. Therefore, an interactive grader should be active, alert, and ignited all the

time during problem solving sessions.

On the other hand, offline IGS would allow a totally new dimension of questions

that had never been thought in distance learning tests. Such questions would usually

require human graders, which in most cases is either practically impossible or very

expensive, especially in case of international exams that are conducted worldwide

simultaneously on the Internet with a huge number of students.

In summary, the Intelligent Graders (IGS) are computerized empowered intelligent

graders. This research introduced the new concept of Intelligent Grading Systems

(IGS), developed a model of IGSs, designed a generic framework, and implemented

Smart Grader (SG)—a prototype for grading Lisp programming problems. SG can

work both offline or as integrated to Intelligent Tutoring Systems (ITS), to provide

more effective learning through grading student tests, correcting mistakes, and

providing advices on better ways of problem solving.

2 Intelligent Grading Systems—The Model

Active help systems (AHS) [4,5], intelligent assistants (IAS) [6,7], and intelligent

coaching systems (ICS) [8,9] monitor their users, predict and evaluate their action

plans, and give them advices on correct or more optimum directions. IGSs have many

things in common with such systems; however, they also differ in many ways. The

following discusses some of the major unique characteristics of an intelligent grader

in contrast to help, assistance, and coaching systems. This discussion is aimed at

highlighting the design directions of an IGS framework.

2.1 Action Plan Recognition in IGS

Generally, students during a problem solving session follow steps of a certain Action

Plan leading to the final answer. Grading systems need to analyze such steps, evaluate

them, and assess the student’s grasping of the concepts being tested for assigning

grades. Generally, those action plans have some unique characteristics that motivated

this research:

• The goal is already known in advance; it is the solution to the given problem.

Therefore, the grader is not puzzled with what the student is trying to achieve.

Therefore, the space of solutions, and hence action plans, is limited and known.

• The student previous knowledge, with regard to those subjects under current

training, will further narrow down the space to a subset of the solution space.

• In some cases, students may skip some steps to shorten their answer text. This

will require the grader to try to infer how to relate the given high level steps to

the detailed ones that are not explicitly stated in the answer and that lead to such

results.

• Intelligent Graders are either synchronous (online) or asynchronous (offline) as

opposed to the other systems that have to be active and interfering with the user

actions all the times.

Because of these similarities and dissimilarities with AHS, IAS, and ICS systems,

similar techniques are adopted with appropriate adaptations in this research to suit

those IGSs’ unique characteristics.

2.2 IGS as Integrated to an e-Learning Environment

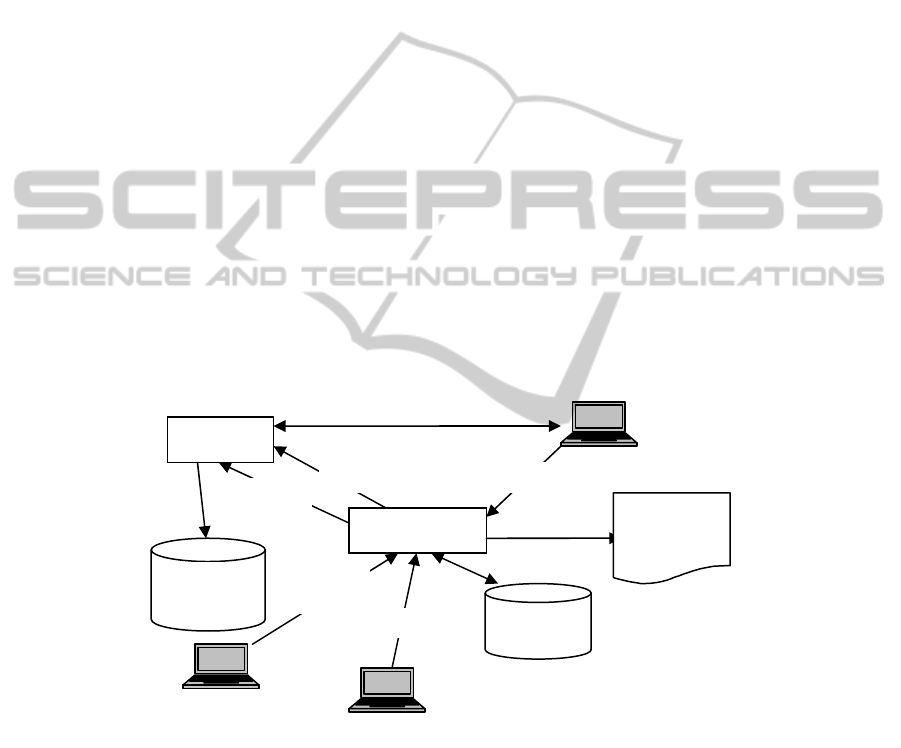

Fig. 1 depicts the different types of interactions of the Intelligent Grader with the

different components of an e-learning environment. Based on whether the Grader is

working under synchronous mode (online problem solving sessions simulating oral

exams) or asynchronous mode (off/online assessment exams), IGS responses will

differ.

Fig. 1. IGS in the Context of e-Learning (A Use Case).

An Asynchronous Grading Scenario. The following is one possible scenario for

Smart Grader interaction with the student:

1 A problem is drawn from a question bank and is given to the student to answer.

IGS

(Smart Grader)

LMS/ITS

Q-Bank

Add Question

Instructor

Define test

Criteria

Examiner

Assessment

Report

Evaluation

Student

Model

Update

Take test

Generate test

Student

2 The student writes down the answer in a format that is acceptable and

understandable by the Intelligent Grader. An intelligent editor for the problem

domain is helpful here.

3 IG, would then, syntactically and semantically analyzes the answer trying to

recognize the action plan behind it. The answer is compared to the

knowledgebase of expert’s solutions. Inconsistencies are analyzed and reasons

for errors are identified by the Executable Action Plan Recognition Machine.

Hence, comments and feedbacks are compiled for reporting back to the student

with proper explanations and suggestions.

4 The Smart Grader, then, gives appropriate grade according to its assessment of

how much the student have grasped the concepts being tested in the given

question. This step will be guided by grading framework as described in the

expert’s knowledgebase.

A Synchronous Grading Scenario. Another possible scenario might look like the

asynchronous scenario except that the system is kept active during the answer session.

Although the grader is kept silent with no interference with the student actions, it

keeps analyzing his actions in the background and tries to recognize the strategy

behind them through matching them with previously fed instructor’s solution(s)’

strategies. Interference is possible only upon a help request from student. IGS allows

student to request a support: help, hint, or next answer step; the impact of each on

marking will be weighed differently.

Assessment Reports and Evaluation. Different types of information could be

reported:

• Annotation report in which explanations, suggestions, correct answers are

annotated to each wrong step.

• The instructor’s strategy is reported as a model solution’s strategy.

• Overall assessment of the achievement level with reference to course objectives,

knowledge, and other soft skills, e.g., good at solving problems, grasped and

missed knowledge, … etc.

3 The Intelligent Grading Systems (IGS)—A Conceptual

Framework

The Smart Grader uses the AI technique of Action Plan Recognition for its grading

technique. The unique characteristics of action plans as mandated by IGS, simplifies

the job of the automated IGS as it will not be puzzled with what the student is trying

to achieve. This would also limit the space of solution strategies and action plans.

Accordingly, the instructor can design few strategies and detailed action plans for

possible solutions as model answers.

The following sections discuss how IGS utilizes action plan recognition through

introducing what we called it the Executable Action Plan Machine (EAPM). The next

section discusses the structure of APM in terms of the description of the Plan

Hierarchy knowledge-base and how the different APMs might interact.

3.1 The Action Plan Hierarchy Knowledgebase

It should be noted that most problems might be solved by several correct ways. The

student needs to follow only one single approach of them. Accordingly, the “Action

Plan Hierarchy” (APH), a modified AND/OR tree, is a hierarchical structure in which

the root node is the goal and all intermediate nodes are the sub-goals and the terminal

leaves are the primitive actions or events. A sub-goal node can also be viewed as a

root of a sub-tree for solving a reduced problem, the sub-goal.

IGS requires the instructor to define an APH for each problem. The root of the tree

represents the problem’s main plan. The next level below the root is either OR or

AND branches but not both: AND branches indicate that this plan requires all the sub-

plans to be done to achieve its goal, and OR branches indicate that there are several

possible correct sub-plans. Similarly, all intermediate tree nodes are recursively

defined. The leaves of the tree are the student’s steps that are required to achieve the

solution. To explain, let us consider the following example problem:

“The student is asked to write down a Lisp program that takes three lists A,

B, C, and manipulates them to return a new list that is composed of the first

element of A and the last two elements of C embedded with the reverse of B

in between. In other words, Write a Lisp function that takes the lists (a b c),

(d e f), and (g h i j) to return (a f e d i j).”

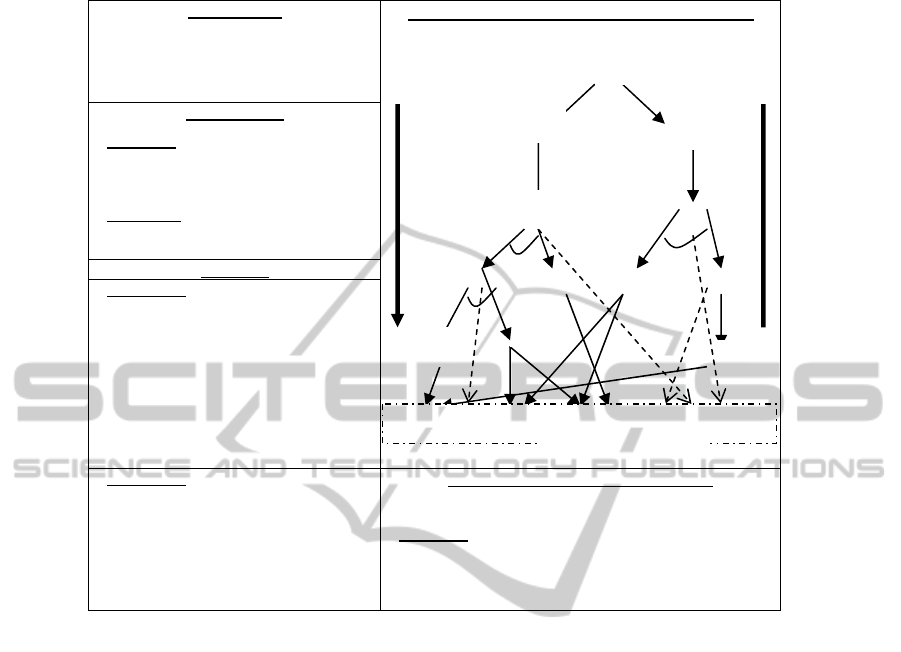

This problem can be solved in different ways. Two solutions with their strategies are

presented in Fig. 2, which presents a portion of the frame structure used to represent

the knowledge regarding the Action plans and Strategies for each problem. The

instructor will be requested, with the aid of tools, to define one such a frame for each

problem.

Noteworthy, the Action Plan Hierarchy is a top-down breakdown structure while

student actions lie at the bottom of the hierarchy and hence, plan recognition goes

bottom-up, which adds to the complexity of the recognition job.

3.2 The Executable Action Plan Machine

The plans of Fig 2 indicate that the solution strategies follow several interacting

threads. Accordingly, students also might follow multiple threads during answering

the question. Some of those threads might be in the correct direction and are actual

sub-plans towards the final solution, while others have nothing to do with the solution

and are only investigative trials in the answering process. Multiple threads are usually

active concurrently and the student swaps from one thread to another. Therefore, this

research investigated the use of Dataflow graphs (DFG) as an active pictorial means

for representing such concurrency behavior. Action Plan Machine (APM) is an

adaptation of DFG to get an executable effect for simulating and, hence, identifying

the actual student behavior during the answering session. The graphical depiction of

action plans by APM is automatically constructed from the APH representing the

problem solutions. Fig 3 depicts the APM for the APH of Fig 2.

The construction process of APM starts from the Action Plan Hierarchy. The

constructs of the APM are only action nodes and directed links. Each action node

represents one strategy step (or sub-strategy) of the problem solution. Those action

a iii ii

Problem

Breakdown

Plan

Recognition

reverse append cddr nthcdr2 car replacd cons append

Elementary Actions

The Problem:

Write a Lisp function that takes the lists

(a b c),

(d e f), and (g h i j) to return (a f e d i j).

AND/OR Action Plan Hierarchical Structure

Two Solutions

Solution 1:

(cons (car ‘(a b c)) (append (reverse ‘(d e

f)) (cddr ‘(g h i j)) ) )

Solution 2:

(append (rplacd ‘( a b c) (reverse ‘(d e f)))

(nthcdr 2 ‘(g h i j)) )

Strategies

Strategy S1:

a. Extract a from (a b c).

b. Reverse the list (d e f).

c. Extract the sub-list (i j) from (g h i j).

d. Combine 2 lists into ( f e d i j).

e. Combine into the final list (a f e d i

j).

Strategy S2:

i. Reverse the list (d e f).

ii. Combine 2 lists into (a f e d).

iii. Extract the sublist (i j) from (g h i j).

iv. Combine into the final list (a f e d i

j).

Indexing and Referencing Information

Supported Topic: T9

Tested Student Level: intermediate

Node S1.b: (a section for each node)

Reference Material: T5, T2.

Messages: expert: xx, intermediate: yy, …….

……etc….. etc…. etc

Fig. 2. A Problem Case-Frame for a Lisp Example.

nodes are connected together through the directed links to compose an Action Plan

Network (APN). The action nodes in an APN are organized in such a way to reflect

the order of execution for a correct plan. Therefore, both sequences and concurrencies

are natively represented. The inputs to each action node are the parameters (or data)

required for that sub-strategy to be achieved; hence, it might be an external input data

or an intermediate result from another interlinked intermediate sub-strategy.

In fact, a node is an active actor that contains all necessary information for the

grader to perform its job, e.g., messages, responses … etc. Therefore, each action

node is an active mini-grader for the sub-goal it represents.

On the other hand, alternative strategies (OR branches in the Action Plan

Hierarchy) are represented by separate nodes internal to the mother strategy node. The

inputs to the mother strategy node are also inputs to each alternative sub-strategy, and

so are the outputs. Fig

. 4 depicts an Action node for the sub-strategy S1.c or S2.iii of

the example of Fig. 3. Those internal alternative nodes are mutually exclusive.

Noteworthy, the constructed machine can be verified for consistency by verifying

that all inputs to the modeled sub-strategy are consumed by the different action nodes.

Note that some nodes exist in both machines expressing common sub-strategies,

which adds another complexity dimension to the plan recognition process since such

actions will confusingly activate both plans simultaneously.

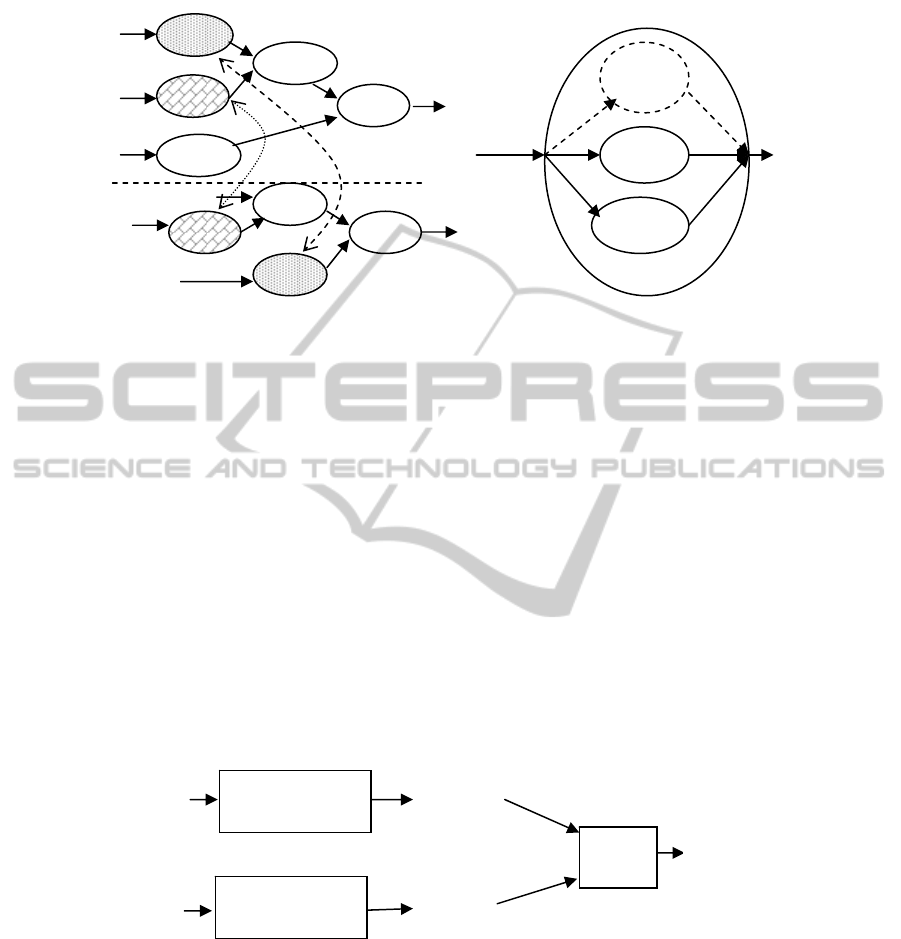

Fig. 3. Example APM. Fig. 4. Nested Alternative APM fo

Strategy S1.c and S2.iii.

4 Prototype Implementation—Smart Grader

The Smart Grader (SG) is the prototype implemented to test the IGS framework. It is

partially developed using the .NET C# development environment. The core of SG is

the Smart Assessor responsible for implementing the IGS model.

4.1 The Implementation of the Smart Assessor

Fig. 5 simplifies the overall process followed by the Smart Assessor to fulfill its

function. The Lisp machine is an APM whose nodes are active nodes corresponsing to

Lisp constructs and hence can execute. Student’s answer is first parsed to construct

the Lisp APN. However, a Smart Lisp editor, through which the student writes down

the answer, can also be used and hence, parsing is embedded and the machine would

be implemented incrementally.

Fig 5. The Components of Smart Assessor.

Therefore, the parsed student’s answer is first projected onto the APM structure. A

time stamped token is generated to represent each terminal in the parse tree. The

terminals of the parse tree are considered the input literals of the APM. Therefore, the

algorithm matches those tokens with those literal inputs and, hence places them at the

Instructor‘s

Strategy

Student’s

Strategy

Instructor ‘s

Lisp APN

Student’s

Lisp APM

Testing

Results

Lisp Machine

Construction

Lisp Machine

Construction

EAPM

(g h i j)

cdr

cddr

nthcdr

(a b c)

(g h i j)

(a b c)

(d e f)

(g h i j)

S1.c

S1.

S1.a

S1.d

S1.e

S2.i

S2.ii

S2.i

appropriate places in the APM. The internal nodes of the parse tree represent the

student actions corresponding to the APM’s active nodes. In fact, the projection

process uses existing nodes in the model APM, if they exist; otherwise it generates

new ones and superimposes them on the same APM. In summary, the parse tree is

projected onto the APM machine by inserting the appropriate time stamped tokens to

the appropriate APM nodes.

Once the APM inputs are properly placed and the active nodes are properly

colored, the APM is activated and tokens propagate through the APM network. Once

the inputs of any node of the APM are complete and the node is colored, that node is

activated to generate an output token that propagates through the corresponding

output pipeline (link) to the next node. Token propagation indicates the plan followed

by the student to answer the problem. If that plan followed those nodes of the original

APM till the final goal node, then the answer is correct. Using newly inserted nodes

that don’t finally merge with the original APM would be reported and will require

human evaluation.

4.2 SG Interaction with the Student

Student interactions with SG may take many forms: solution actions and event-

request actions. This is done via a set of interface buttons: Hint, Help, or even go back

to ITS for reviewing certain material. SG working in a synchronous mode (e.g.,

simulating oral exams) detects when the students take longer than expected for the

next move and accordingly issue a time-out event. In addition, the student can request

a report on his/her performance to which the Grader reviews the Working APN and

the token time stamps, and then reports a full detailed history of the student actions

and events during solving a specific problem.

5 Model Validation and Evaluation

To validate the mode of IGS, other examples were tried. A Java programming

problem for calculating Factorial(n) is used. Recursive and non-recursive strategies

with many alternative sub-strategies are considered. Fig. 6 depicts the alternative

hierarchical solution strategies, which are used as the basis for building the APH

Frame.

Factorial (n)

Non-Recursive

Forward multiplication

Two Loop control strategies

Backward multiplication

Two Loop control strategies

Recursive

Two termination condition strategies

Fig. 6. Hierarchical strategic plans for Factorial(n) Java Programming Problem.

6 Related Work

Gamalel-Din [9] presented the Smart Coach (SC). He introduced an approach for

action plan recognition, which is more suitable for coaching systems. This approach is

based on architecture of an executable Action Plan Machine (APM) that arranges

planned actions into a DFD network of active nodes. This architecture made the plan

recognition process as well as student advising possibly automated. SC intrudes with

the student work to offer more appropriate solution strategies. SC reports graphical

depictions of both expert’s and student’s solution strategies for more powerful and

effective coaching. SG research is the most inspiring for this IGS research.

On the other hand, many researches focused on supporting the grading process by

providing human graders with supportive tools. For instance, Eftimie et al. [10] had

designed Korect that is a solution for automatic test generation, processing and

grading, with inline answer marks, and answer sheet processing using auto-feed

scanners and OCR detection with an objective of optimizing the process workflow.

Wu et al [11] designed a computer-aided grading support system for spoken English

tests. Answer data are divided into numerous independent data cells. Human graders

are then automatically allocated by the system to do grading jobs and independently

report grading results to the system. Rules are defined to obtain a final result.

Bloomfield [12] designed a system that allows digital grading, by a human, of

traditional paper-based exams or homework assignments, which is intended to reduce

the grading time due to the automation of: flipping to the correct page, summing up

the pages, recording the grades, returning the exams, etc.

Furthermore, other researchers worked on semi-automating the grading. For

instance, Juedes [13] presented a semi-automated Web-based grading system for data

structure courses in which the student is requested to write Java codes that are then

assessed partially automatic through running the code with predefined test cases and

with providing aids for the human grader for evaluating the program design and

documentation.

On the other hand, other researchers focused on student assessment rather than test

grading. For instance, Zhang [14] designed an indicator system for evaluating college

student performance based on student characteristics. They used the analytic

hierarchy process (AHP) and case based reasoning (CBR). Antal and Koncz [15]

discussed the need for computer-based test systems according to the student model,

and hence, proposed a method for the graphical representation of student knowledge.

7 Conclusions and Future Work

This research introduced the new concept of Intelligent Grading Systems (IGS). IGS

monitors students, analyzes their steps in solving problems, predicts and evaluates

their action plans, and gives them advices on correct or more optimum solutions. In

contrast with ITS systems, IGS does not only evaluate students based on their final

responses to quizzes and exercises but also on the plans they had considered in

reaching those responses. IGS’s feedback considers course objectives, e.g., a student

might reach a problem solution correctly; however, the grader might not accept

his/her followed approach, as it doesn’t match the taught concepts that were the

subject of the current training being tested.

Accordingly, this research have studied and identified the characteristics of IGS as

opposed to other active support systems. Achieved are models for testing, questions,

and grading, which led to the design of a framework for IGS systems. Finally a

prototype (Smart Grader—SG) was then implemented. SG is supposed to integrate to

ITS systems to provide more effective learning through grading student tests,

correcting mistakes, and providing, on the spot, advices on better solution strategies.

A List programming problem was used for experimentation.

In general, the results achieved by the Smart Grader research project were

promising and encouraging. However, further investigations are still required along

several directions: first, assessing SG’s practical viability through measuring the cost

and time efficiency of the whole process of creating a question bank, preparing a test,

and holding a testing session, and hence, improving the framework design; second,

adding accumulative experience and machine learning component to the framework

so as to detect new correct answers and hence enlarging the knowledgebase; third,

adding dynamic adaptation of the Grader’s behavior; finally, Implementing a more

comprehensive environment with practical considerations, e.g., using the mobile and

cooperative agent technology to give more flexibility and power.

References

1. Corbett and H. Trask, “Instructional Interventions in Computer-Based Tutoring:

Differential Impact on Learning Time and Accuracy”, in the ACM CHI Letter, the

Proceedings of the CHI 2000 Conference on Human Factors in Computing Systems, Vol. 2,

issue 1, April 2000.

2. Corbett, J. Anderson, “Locus of Feedback Control on Computer-Based Tutoring: Impact on

Learning Rate, Achievement, and Attitudes”, Proceedings of the SIGCHI Conference on

Human Factors in Computing Systems, 2001.

3. Y. Shang, H. Shi and S. Chen, “An Intelligent Distributed Environment for Active

Learning”, Journal of Education Resources in Computing, ACM, Vol. 1, No. 2, Summer

2001.

4. W. Hefley, “Helping Users Help Themselves”, IEEE Software magazine, Vol. 11, No. 2,

March/April 1995.

5. G. Knight, D. Kilis, and P. Cheng, “An Architecture for an integrated Active Help System”,

in the Proceedings of the 1997 ACM Symposium on Applied Computing, 1997.

6. C. Gutierrez and J. Hidalgo, “Suggesting What to Do Next”, in the Proceedings of the 1988

ACM SIGSMALL/PC Symposium on ACTES, 1988.

7. J. Davies, A. Gertner, N. Lesh, C. Rich, C. Sidner, and J. Rickel, “Incorporating Tutorial

Strategies Into an Intelligent Assistant”, in the Proceedings of the 6th International

Conference on Intelligent User Interfaces, 2001.

8. H. Shah and A. Kumar, “A Tutoring System for Parameter Passing in Programming

Languages”, in the Proceedings of the 7th Annual Conference on Innovation and

Technology in Computer Science Education, 2002.

9. Shehab Gamalel-Din, “Intelligent Active Coaching – An Executable Plan Approach”,

AUEJ, Vol. 5, No. 4, Sept. 2002.

10. Eftimie, M. Bardac, R. Rughinis, “Optimizing the workflow for automatic quiz evaluation”,

in the Proceedings of the 10th Roedunet International Conference (RoEduNet), 2011, pp.1-

11. Yijian Wu; Wenyun Zhao; Xin Peng; Yunjiao Xue, “A Computer Aided Grading System

for Subjective Tests”, In the proceedings of the International Conference on Internet and

Web Applications and Services/Advanced, AICT-ICIW '06, 2006, pp.2.

12. A. Bloomfield, “Evolution of a digital paper exam grading system”, Frontiers in Education

Conference (FIE), IEEE, 2010, pp. T1G-1 - T1G-6.

13. D.W. Juedes, “Experiences in Web-based grading”, 33rd Annual Frontiers in Education,

IEEE, 2003, Vol. 3, pp. S3F: 27-32.

14. Yucai Zhang, “Research on intelligent college student evaluation system based on CBR and

AHP”, In the Proceedings of IEEE International Conference on Service Operations and

Logistics, and Informatics, 2008. IEEE/SOLI 2008, Vol. 1, pp. 39 - 43

15. Margit Antal, Szabolcs Koncz, “Student modeling for a web-based self-assessment

system”, Expert Systems with Applications, Vol. 38, Issue 6, June 2011, Pages 6492-6497.
