Integrating a Model for Visual Attention

into a System for Natural Language Parsing

Christopher Baumg

artner and Wolfgang Menzel

University of Hamburg, Hamburg, Germany

Abstract. We present a system for integrating knowledge about complex visual

scenes into the process of natural language comprehension. The implemented

system is able to choose a scene of reference for a natural language sentence

from a large set of scene descriptions. This scene is then used to inﬂuence the

analysis of a sentence generated by a broad coverage language parser. In addi-

tion, objects and actions referred to by the sentence are visualized by a saliency

map which is derived from the bi-directional inﬂuence of top down and bottom-

up information on a model of visual attention highlighting the regions with the

highest probability of attracting the attention of an observer.

1 Motivation

We introduce a system for natural language processing that integrates knowledge about

visual context into the task of parsing sentences. This integration of contextual infor-

mation can result in different interpretations of the same sentence depending on the

knowledge of a listener, as well as on the selectively perceived surroundings at the mo-

ment of processing language input.

An artiﬁcial system that incorporates contextual knowledge should utilize descrip-

tions of scenes in order to modify the interpretation of a given sentence. This is straight-

forward as long as it is evident which parts of contextual information has to be used to

inﬂuence processing. The task gets more difﬁcult when a wide range of possibly inﬂu-

ential information units are accessible to the system. In this case processing all available

contextual information might not be feasible.

Our system ﬁnds a scene of reference for a given sentence and uses this scene to

improve the processing of a language parser. For this purpose we adopt ﬁndings about

context integration in humans as an inspiration for properties our system should exhibit.

2 Related Work

Several models were built that integrate language and vision, attempting to realize lan-

guage driven reference resolution albeit not directly addressing the issue of attention

focusing. Winograd’s SHRDLU [18] relates written language to objects in a blocks

world domain. Knowledge about this domain is stated in a database of facts. The sys-

tem receives instructions about what to do with the objects of its domain, parses these,

Baumgärtner C. and Menzel W..

Integrating a Model for Visual Attention into a System for Natural Language Parsing.

DOI: 10.5220/0004088100240033

In Proceedings of the 9th International Workshop on Natural Language Processing and Cognitive Science (NLPCS-2012), pages 24-33

ISBN: 978-989-8565-16-7

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

ﬁnds referents for parts of the parsed sentence and acts accordingly, asking questions

whenever an instruction is not understandable or ambiguous.

The system Bishop [6] is based on studies of how people describe objects and their

spatial relations. It operates in a domain of cones with different colors. The system

receives descriptions like: the purple cone in the middle to the left of the green cones

parses them and chooses the correct referents accordingly. This is done by incorporating

information about color (green or purple), grammatical number (cone or cones) and

spatial relations (middle, left, front-most).

In [12] language ambiguity is resolved by integrating external contextual knowledge

into a language parser. The system is able to use the context information while process-

ing German utterances by adopting a predictor-based approach: Contextual knowledge

is provided prior to processing a sentence, thus inﬂuencing the results of subsequent

parsing decisions. This inﬂuence is mediated by a semantic level which was incorpo-

rated into a system originally intended solely for syntactic analysis. So far, however,

the system has not been shown to be able to select referents from competing alternative

context items according to their relevance for language comprehension.

3 System Architecture

To implement the described behavior in a computational system at least four subsystems

are required: a system for natural language processing, a model for the representation

of the visual context, a system determining the focus of attention in a picture that shows

the visual context and a component for managing hypotheses of referential context in-

formation. Our model assumes the role of an agent listening to a sentence while looking

at a visual scene.

3.1 WCDG

Contextual knowledge need not be fully consistent with the propositional content of

an utterance. Minor deviations or even serious conﬂicts can be observed in almost any

communicative setting. To be able to beneﬁt from information which is partly unreli-

able, a component for natural language processing is required that allows the analysis

to make use of such evidence by arbitrating between competing interpretations based

on individual estimations of conﬁdence.

Weighted Constraint Dependency Grammar (WCDG) [16] seems to be a promising

candidate for such a task. It has been shown to be able to successfully integrate cues

from a wide range of external predictors in a robust manner [5], it can be used to cap-

ture the relationships between parallel levels of representation (syntax and semantics)

without enforcing a rigid mapping between them [12] and it can be easily interfaced to

external reasoning components.

WCDG is based on constraints which are used to disambiguate structural interpre-

tations of a given sentence. The system receives a lexicon, a grammar and a written

sentence as input. The constraints in the grammar are weighted with values from zero

to one indicating their relevance, with zero implying a hard constraint that must be sat-

isﬁed by any solution and one indicating an unimportant constraint. The output is a

forest of parse trees of word-to-word dependencies.

Parsing in WCDG is a global optimization task. The standard solution procedure is

a transformation-based algorithm (frobbing) [4]. It starts from an initial analysis for

the input sentence which is likely to violate at least some of the constraints imposed by

the grammar. The algorithm repairs the most important violation by exchanging those

edges of the analysis that are accountable for violating the constraint. If the repaired

analysis still violates important constraints, the algorithm starts over by repairing the

next violation. By this WCDG can even revoke decisions previously made.

As the grammar contains weighted constraints the algorithm does not need to repair

all violations of constraints contained in a particular analysis to obtain a solution to

the parsing problem. In most cases any analysis will violate some constraints. As long

as these do not include hard constraints (those with value zero) the analysis is still a

viable solution. The system will proceed to repair this analysis in order to optimize the

solution to the problem.

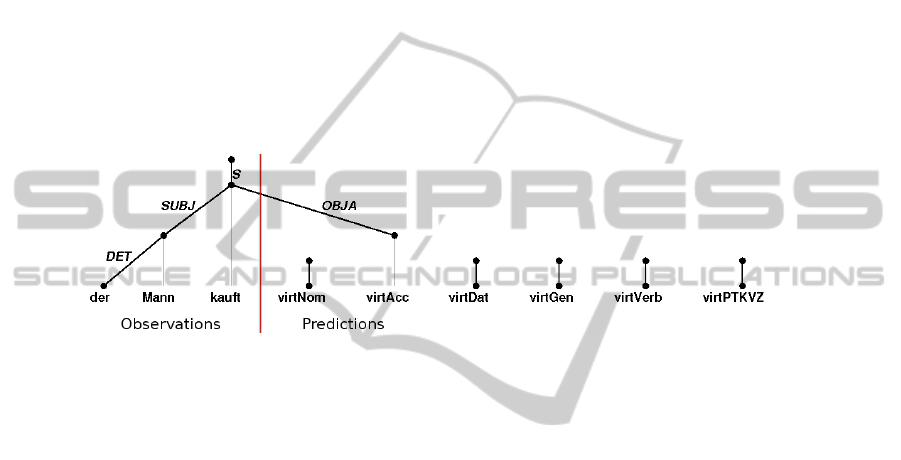

Fig. 1. Prediction of the upcoming object for the fragment Der Mann kauft (The man buys) by

selecting the not yet instantiated virtAcc node from a set of possible candidates.

The integration of contextual information is a bi-directional process where language

processing inﬂuences search for information, which in turn inﬂuences language pro-

cessing, which again might inﬂuence visual search. In order to implement this kind of

behavior, a language processing system that outputs only the ﬁnal analysis of a sentence

without giving intermediate results is of little use. In order to inﬂuence context process-

ing, we need access to analysis results at an early stage when processing is not ﬁnished

yet.

WCDG is useful in this regard because of the anytime property of the frobbing algo-

rithm: As the system generates a ﬁnal solution to a problem by continuously improving

suboptimal solutions, it is possible to access crucial information contained in these less-

than-perfect analyses at a very early point in time. In particular, such information can

be used to resolve referential ambiguity among a large set of available visual entities.

One feature of the parser is its ability to deal with sentences incrementally, i.e.

word by word [1]. In this mode of operation it processes a sentence-preﬁx to a certain

degree, adds a new word and uses the results of the already analyzed sentence fragment

as a starting point of further processing. If additional nodes for yet unseen words are

included into the model the parser is even able to predict upcoming elements of the

sentence(Figure 1).

3.2 Knowledge Representation

We use OWL [14] to manually build a formal description of the visual context of a

scene. The representation describes objects in the scene including their properties (like

color(cube, red)). These descriptions also include spatial relationships between ob-

jects. In addition to descriptions of processes solely by spatial terms, for our system we

also use descriptions of actions and the persons and objects that are engaged in them.

The system also has access to knowledge about taxonomic relations between concepts

of objects (i.e. that a poodle is a dog; a dog is a mammal; a mammal is an animal).

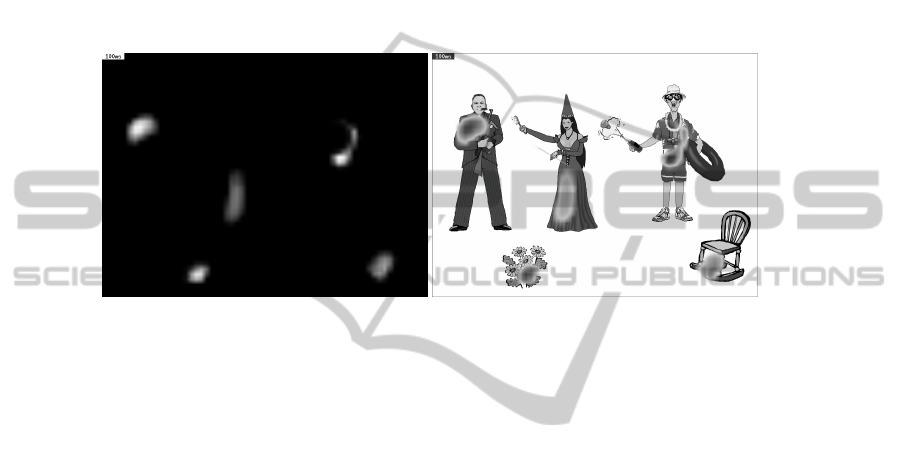

Fig. 2. Saliency Map for a scene consisting of three characters (Underlying picture adapted

from [9]).

3.3 Modeling Bottom-up Visual Attention

While the top-down inﬂuence of the visual context on language processing is working

with symbolic descriptions of a given scene, a model driven by sensor-data is used to

capture the bottom-up inﬂuence on attention [8] and to visualize the effects of com-

bining top-down and bottom-up information on visual attention. In this model, visual

attention of subjects is predicted, depending on low-level features of the picture. It ex-

tracts visual cues in the dimensions of color, intensity and orientation. Saliency maps

are computed from these features, indicating regions most likely to attract the attention

of an observer (Figure 2).

Humans do not stick to just one region in the picture but move their eyes over time,

thus exploring different regions. To model this behavior, the saliency of a region is

changed, depending on which parts of the picture are currently in focus. This is accom-

plished by a mechanism called ”Inhibition of Return”: saliency is reduced for the region

currently in focus. As soon as the saliency of this region drops below the saliency of

another part of the picture, attention will switch to the new saliency maximum, whose

saliency will then be reduced subsequently. As the former region is not in focus any

more, saliency will start to increase again. Due to this dynamics of the saliency land-

scape, focus always moves towards the region that is currently the one with the global

maximum, resulting in a sequence of predictable eye-movements.

3.4 Finding a Scene

The information from different modalities is encoded by means of different representa-

tions, which are tailored to meet the speciﬁc requirements of the different input chan-

nels. Unfortunately, the differences between the representations make it difﬁcult to in-

tegrate the information they contribute. Therefore, a component has been included that

mediates between these representations in both directions.

On the one hand, the information integration component makes a choice about

which subset of contextual representation ﬁts the given linguistic information best. In

order to do this, the possible referential scenes must be graded with regard to how good

they match a given sentence.

On the other hand this component computes a score describing how strong the in-

ﬂuence of the chosen visual context will be. For any given sentence a scene is identiﬁed

that describes the content of the pictures ﬁtting the sentence best.

4 Beneﬁts

The system architecture presented provides the beneﬁt of being able to predict upcom-

ing parts of the utterance, to combine top-down and bottom-up evidence in order to

determine the focus of attention and to capture the dynamic aspects of language pro-

cessing as the sentence unfolds over time.

4.1 Predicting Elements

During incremental parsing upcoming elements of a sentence can be predicted by inves-

tigating those parts of the context which are connected to the parts chosen as referents

for the already parsed subsentence. For example in Figure 1 the subsentence Der Mann

kauft (The man buys) has already been parsed and referents have been found in the con-

text. As the context model contains a description of a man buying a book, the missing

object of the sentence is inferred to be the book.

4.2 Shifting Focus

When a picture is input without any kind of additional language information, the saliency

of regions depends only on the visual elements. An initial saliency landscape is given

in (Figure 2 left side) which evolves gradually over time, driven by bottom-up cues.

Additional top-down inﬂuence might change the saliency of a picture region depending

on the linguistic input and the chosen referents for parts of a sentence (Figure 3).

To model the inﬂuence of the language on the saliency of regions in a picture (and

therefore on the choice of the focus of attention) WCDG constraints are used. They

select the linguistic input which is likely to provide top-down information for guid-

ing attention to a speciﬁc part of the picture and connect the information contained in

WCDG’s parsing results (words, lexical features or word-to-word dependencies) with

parts of the context information. Thus, the occurrence of certain linguistic phenomena

analyzed by WCDG will result in an increase or decrease of saliency for certain picture

regions.

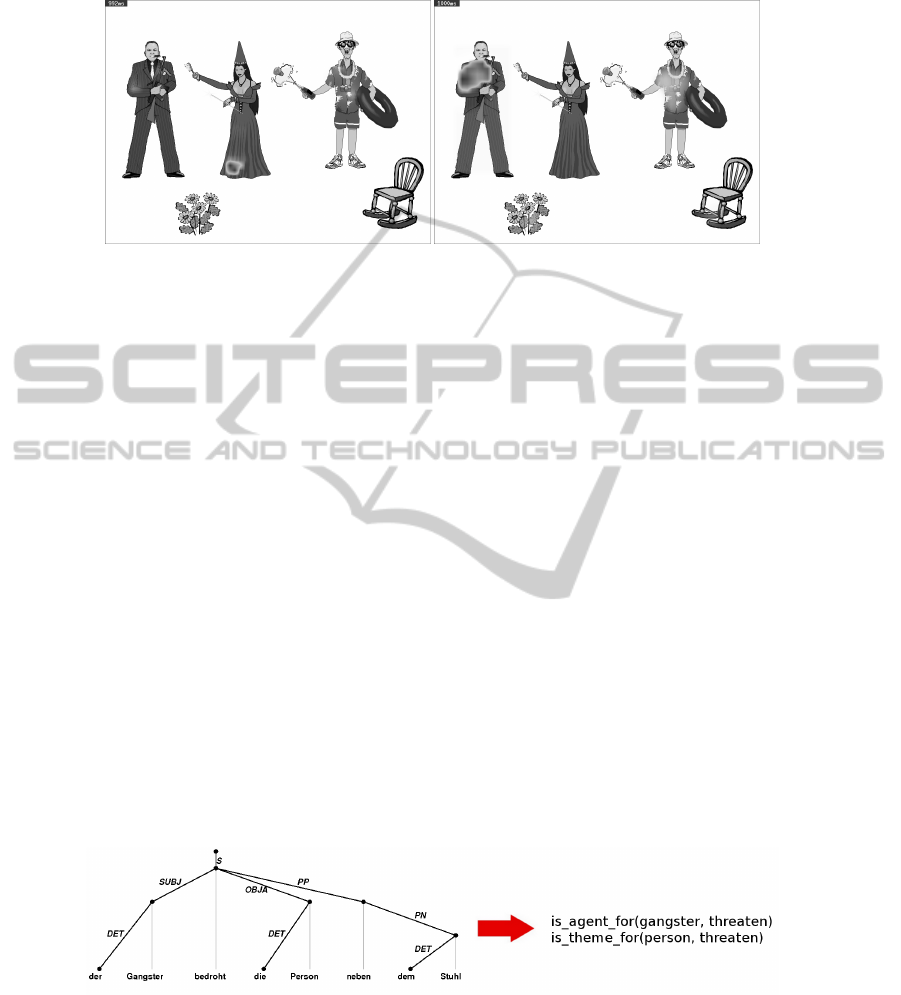

Fig. 3. Saliency before and after processing the sentence The fairy brushes the gangster (Under-

lying picture adapted from [9]).

4.3 Cyclic Reﬁnement

A simple constraint stating that during incremental parsing each new word would in-

crease saliency of the referent of this word in the picture can already be used to model

the linguistic inﬂuence. The integration of language and vision, however, requires a

more complex approach which can be illustrated by the sentence Der Gangster bedroht

die Person neben dem Stuhl (The gangster threatens the person next to the Chair.) refer-

ring again to Figure 3. Finding the correct references for this sentence is not a straight-

forward task for a number of reasons.

First of all there is the structural ambiguity caused by the different attachment possi-

bilities of the PP neben dem Stuhl (next to the chair). It might be stating that the event of

threatening happens next to the chair or, as in our case, the person threatened is located

somewhere next to the chair. This problem is solved by inserting a constraint into the

grammar making the attachment of a prepositional phrase dependent on the existence

of a relationship between visually present persons in the corresponding context. So,

without context the sentence will be parsed to the default analysis in (Figure 4). Intro-

ducing, however, the context represented in (Figure 5 right side)the parser will switch to

the analysis in Figure 5 as its ﬁnal result. The reason for choosing different attachments

in the two cases is the contextual description of a person (the tourist) standing next to

the chair.

Fig. 4. Parsing the sentence The gangster threatens the person next to the chair without context.

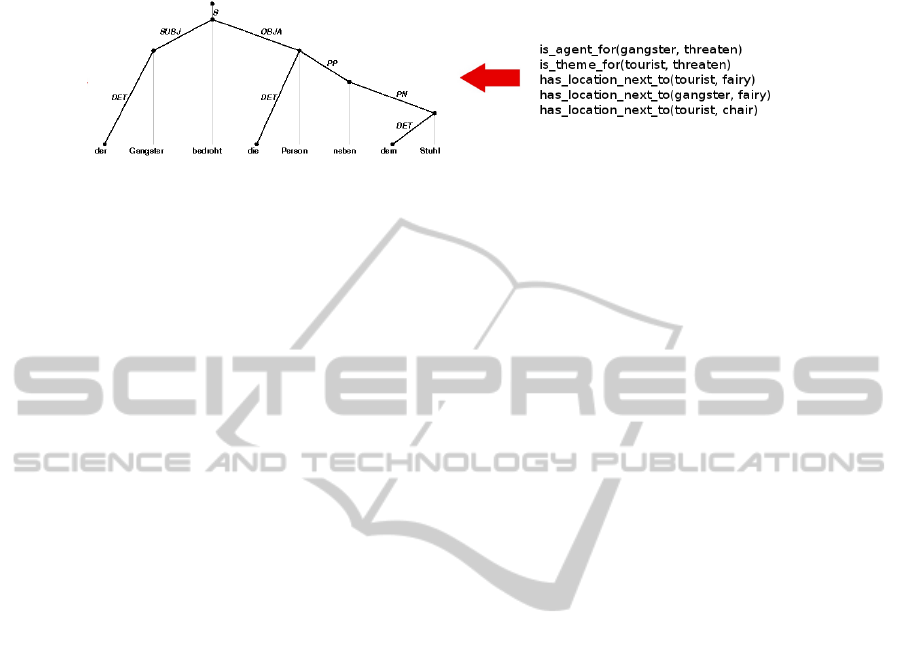

Fig. 5. Parsing the sentence The gangster threatens the person next to the chair with context.

A more serious issue regarding the connection between the subsystems is ﬁnding the

correct referent for the word Person (person). Obviously this word is ambiguous given

the context illustrated in the picture, as it might refer to any of the three individuals

since all of them are related in the taxonomic hierarchy mentioned in Section 3.2 to the

concept person. It is disambiguated by a constraint in the grammar, that prefers PP-

attachment if there is some kind of corresponding connection in context as well, be it

a spatial relationship or the participation in an action depicted. Using this constraint as

part of the evaluation process, the system will choose as referent for the word Person the

individual stated as having a connection with the chair, indicated by the prepositional

phrase of the dependency tree (Figure 5 left side). This individual is, in our case, the

tourist.

Unfortunately the two problems just addressed are connected in a way that each can-

not be solved without ﬁrst solving the other one. The system ﬁnds the correct attachment

for the prepositional phrase by ﬁnding a spatial connection between the referents for the

words Person and Stuhl but it can only ﬁnd the correct referent for Person by ﬁrst hav-

ing the prepositional phrase attached in a way compatible with contextual information.

This dilemma is solved by constantly exchanging information between the subsystems

while the sentence unfolds over time. Due to our additional visual constraint that makes

the PP-attachment between connected referents more likely, each time the parser builds

such an edge between words with unconnected referents, this solution is penalized. This

will force the parser to search for a less penalized analysis with a different attachment-

point for the preposition.

When, at some point of processing, the parser attaches the PP/PN-edges between

Person and Stuhl this analysis might be penalized too, as the referent for Person can be

incorrect or not chosen at all. But in this case the second visual constraint increases the

likelihood that the referent for Person is an individual that is spatially connected to the

tourist, ensuring that the tourist will be chosen as the correct individual.

5 Results

We evaluated our system with pictures and sentences taken from [9] where they have

been used to investigate he interaction of language and visual context of human partic-

ipants.They show scenes like the one in Figure 3 with three characters: one that is the

agent of an action (the tourist), one that is the patient of an action (the gangster) and one

that is ambiguous with regard to agent/patient-role (the fairy). Each picture is accompa-

nied by two sentences describing the actions depicted. For Figure 3 sentences were Die

Fee b

urstet hier den Gangster. (Literally: The fairy brushes here the gangster.) and Die

Fee bespritzt hier der Tourist. (Literally: The fairy is splashed here by the tourist.) In

German, the ﬁrst noun (the fairy) is ambiguous with regard to its role until the second

noun phrase is received during incremental parsing. [9] suggested that humans are able

to assign the correct role for the ﬁrst noun phrase and to anticipate the missing role

already after hearing the verb, by incorporating the visual knowledge of the perceived

scene as a substitute for the not yet available parts of the sentence.

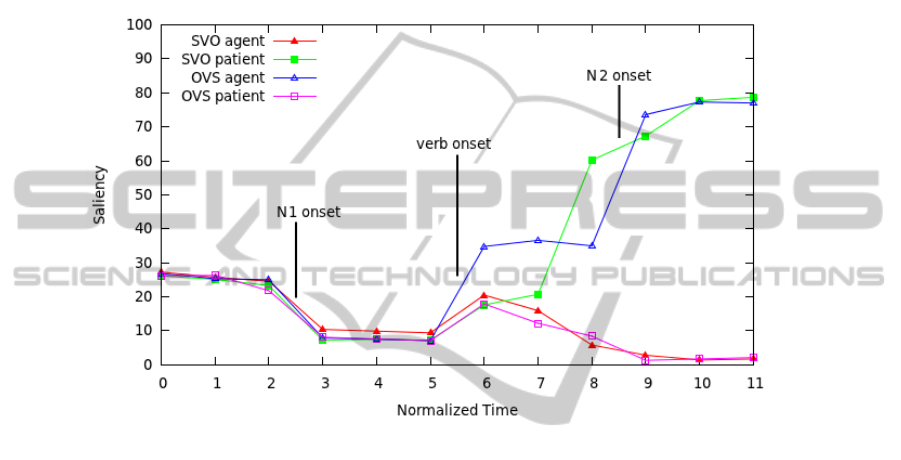

Fig. 6. Development of saliency for agent and patient in SVO and OVS sentences.

Figure 6 shows the development of saliency for the different characters. The graphs

present the saliency for agent and patient of the picture for OVS and SVO sentences.

The time course is normalized over all trials, such that any sentence processed is divided

into twelve time steps, depending on the progress of the incremental parsing. Time

steps 0-2 show the saliency before the onset of the ﬁrst noun. Time steps 3-5 depict the

development after the ﬁrst noun has been added to the sentence fragment. This results in

a drop of the saliency for the agent as well as the patient, because saliency is increased

for the ambiguous character in the picture, as denoted by the ﬁrst noun of the sentence.

Time steps 6-8 show saliency after verb onset. The crucial effect is the development

of the saliency of the character not yet addressed (i.e. the patient for SVO-sentences,

the agent for OVS-sentences). Although the second noun is not processed until steps

9-11, saliency already increases for the corresponding character. This development is in

agreement with ﬁndings about human eye-movements as described in in [10]. Indeed,

a closer inspection of the parsed sentences shows that this development is caused by

the fact, that the ﬁrst noun and the verb enable the system to assign the correct roles to

both characters, even if the second noun is not yet part of the sentence fragment. This

prediction of the correct role for an unnamed referent results in an increase in saliency

for the corresponding region.

6 Future Work

We have described a complex system which integrates visual context into language

processing. The system is able to differentiate between relevant and irrelevant context

items, choosing only those entities of the described visual scene that seem to be im-

portant for a given sentence. In contrast to previous approaches our system can ﬁnd

the applicable information in a diverse, dynamic context, switching between its choice

whenever additional information is received, thereby guiding the focus of a model of

human visual attention.

So far, the integration of context information is restricted to descriptions of static scenes.

In the future, we will also investigate changing representations of context to model the

inﬂuence of a dynamic environment.

At the moment the selected referents inﬂuence saliency of a picture over time, but once

a scene of reference has been selected for parts of a sentence, even major changes in

saliency due to low-level cues in the picture will not be able to question this choice.

To remove this limitation a goal of future research will be to model the inﬂuence of

bottom-up attention on the choice of visual referents for linguistic input.

References

1. Beuck, N., K

ohn, A., Menzel. W.: Incremental parsing and the evaluation of partial depen-

dency analyses In Proceedings of the 1st International Conference on Dependency Linguis-

tics, DepLing-2011 (2011) 290–299

2. Eberhard, K. M., Spivey-Knowlton, M. J., Sedivy, J. C:, Tanenhaus, M. K.: Eye Movements

as a Window into Real-Time Spoken Language Comprehension in Natural Contexts. Journal

of Psycholinguistic Research 24 (1995) 409–436

3. Egeth, H. E., Yantis, S.: Visual attention: Control, representation, and time course. Annual

Review of Psychology 48 (1997) 269-297

4. Foth, K.: Transformationsbasiertes Constraint-Parsing Diplomarbeit Universit

at Hamburg

(1999)

5. Foth, K.: Hybrid Methods Of Natural Language Analysis PhD Thesis Universit

at Hamburg

(2006)

6. Gorniak, P., Roy, D.: Grounded Semantic Composition for Visual Scenes. Journal of Artiﬁ-

cial Intelligence Research 21 (2004) 429–470

7. Haddock, N. J.: Computational models of incremental semantic interpretation. Language and

Cognitive Processes 4(3) (1989) 337–36.

8. Itti, L.: Models of Bottom-Up and Top-Down Visual Attention. California Institute of Tech-

nology Ph.D. Thesis (2000)

9. Kn

oferle, P.: The Role of Visual Scenes in Spoken Language Comprehension: Evidence from

Eye-Tracking. PhD thesis Universit

at des Saarlandes (2005).

10. Kn

oferle, P., Crocker, M. W., Scheepers, C., Pickering M. J.: The inﬂuence of the immediate

visual context on incremental thematic role-assignement evidence from eye-movements in

depicted events. Cognition 95 (2005) 95–127

11. Kn

oferle, P., Crocker M. W.: The inﬂuence of recent scene events on spoken comprehension:

evidence from eye movements. Journal of Memory and Language 57(2) (2007) 519-543

12. McCrae, P.: A model for the cross-modal inﬂuence of visual context upon language pro-

cessing. Proceedings of the International Conference Recent Advances in Natural Language

Processing (2009) 230–235

13. Menzel, W.: Towards radically incremental parsing of natural language. Current Issues in

Linguistic Theory 309 (2009) 41–56

14. W3C-World Wide Web Consortium. OWL Reference, 10.02.2004. http://www.w3.org/TR/

2002/REC-owl-ref-20040210 (2004).

15. Scheutz, M., Eberhard, K., Andronache, V.: A Real-time Robotic Model of Human Reference

Resolution using Visual Constraints. Connection Science Journal 16(3) (2004) 145–167

16. Schr

oder, I.: Natural Language Parsing with Graded Constraints PhD Thesis Universit

Hamburg (2002).

17. Sedivy, J. C., Tanenhaus, M. K., Chambers, C. G., Carlson, G. N.: Achieving incremental

semantic interpretation through contextual representation. Cognition 71 (1999) 109–147

18. Winograd, T.: A Procedural Model of Language Understanding. Computer models of thought

and language (1973)
