Topological Functioning Model and Services Identiﬁcation

An Approach for Services Identiﬁcation from a Topological Functioning Model

Gundars Alksnis, Erika Asnina and Uldis Sukovskis

Department of Applied Computer Science, Institute of Applied Computer Systems,

Faculty of Computer Science and Information Technology, Riga Technical University, Meza iela 1 k-3, Riga, LV-1048, Latvia

Keywords:

Service Oriented Architecture, Topological Functioning Model, Services Identiﬁcation.

Abstract:

To support the initial elicitation of software services, IT industry organizations have proposed various Service

Oriented Architecture (SOA) speciﬁcations and frameworks. However most of them do not assume speciﬁc

approach of SOA construction and what the service model should consist of. There are also approaches that

suggest various practices for services identiﬁcation, but the issue of proper services modeling still remains

open. In this paper we propose an approach for services identiﬁcation from a Topological Functioning Model,

therefore enabling another viewpoint which fosters the quality of identiﬁed services.

1 INTRODUCTION

It is assumed that Service Oriented Architecture

(SOA) analysis and modeling approaches mostly

should focus on the business alignment with IT and

the integration of existing assets than the development

of SOA systems from the very beginning. Therefore

the main focus is rather on the application assembly

from available “bricks” with externalized interfaces

(i.e., services), than the implementation of the service

internals (which are just software assets implemented

in particular technology platform, e.g. Java or .NET).

To support the initial elicitation and speciﬁca-

tion of software services, IT industry organizations

have proposed various SOA speciﬁcations and frame-

works (Kreger and Estefan, 2009), for example:

• The Open Group’s SOA Reference Architecture,

Ontology, Governance, etc.

• OASIS’s SOA Reference Architecture, Reference

Model, etc.

• OMG’s SoaML, BPMN, etc.

However mostly these speciﬁcations talk about the

deﬁnition of vocabulary and some common concep-

tual framework that can be applied to all SOA imple-

mentations – they do not assume or force speciﬁc pro-

cess/method/approach of SOA construction and what

the services model should consist of. Therefore the is-

sue of proper selection/combination of services mod-

eling approaches remain open.

The main scope of our research is to contribute to

the services identiﬁcation and modeling approaches

in order to improve their quality.

In this paper we propose an approach in which

the candidate services are obtained from Topologi-

cal Functioning Model (TFM) of system’s function-

ing. Our approach fosters the quality of identiﬁed (or

candidate) services, because takes into account infor-

mation obtained from the TFM. Our approach does

not disregard other service identiﬁcation approaches

but rather can be used to complement them.

The paper is organized as follows. In Section 2

we review the main aspects for services identiﬁcation

and the Object Management Group’s SoaML standard

which is used in our approach. Section 3 reviews the

basics of TFM and demonstrates it with the example

case study.

Section 4 gives the main statement and discusses

the propositions for candidate service identiﬁcation

from TFM. Finally in Sections 5 and 6 we review the

related works and give conclusions.

2 SERVICES IDENTIFICATION

AND MODELING

In SOA, the services constitute the main units of func-

tionality for the integration of various legacy applica-

tions and information sources by using a shared and

standards-based communication. According to the

241

Alksnis G., Asnina E. and Sukovskis U..

Topological Functioning Model and Services Identiﬁcation - An Approach for Services Identiﬁcation from a Topological Functioning Model.

DOI: 10.5220/0004090702410248

In Proceedings of the 7th International Conference on Evaluation of Novel Approaches to Software Engineering (MDA&MDSD-2012), pages 241-248

ISBN: 978-989-8565-13-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

best SOA practices, a service must exhibit particu-

lar architectural principles and patterns such as mod-

ularity, encapsulation, high cohesion, loose coupling,

separation of concerns, reusability, composability and

should have stand-alone implementation. These prin-

ciples and patterns are required in order to support the

following SOA goals:

• To enable the integration of the services across

and within organizations.

• To be independent from the implementation tech-

nology and communication transport.

• To enable offering by service providers and used

by service consumers.

• To have support for intermediaries (e.g., Enter-

prise Service Bus) which provide various support-

ing services like services discovery, dynamic se-

lection, monitoring, QoS levels, etc.

In order to support the achievement of these goals

it is a common practice to perform system’s business

modeling in order to obtain various viewpoint mod-

els, formalized processes and other documents which

thereafter are used as an input for service identiﬁca-

tion approaches. Services identiﬁcation is the pro-

cess in which candidate services are identiﬁed, cata-

logued and speciﬁed so that they are aligned and sup-

port business. Afterwards services speciﬁcations are

used as a basis for business process composition, in-

tegration and implementation.

According to the IBM Rational SOMA Prac-

tices (Arsanjani, 2008) there are three main service

identiﬁcation approaches that can be used:

• Top-down or Domain Decomposition – the re-

ﬁnement of business processes and business use

cases. These approaches focus on the details re-

garding the tasks and roles that are involved in the

realization of the business processes.

• Bottom-up or Existing Asset Analysis – such ex-

isting assets as systems, legacy applications mod-

els and components are examined for a candidate

services.

• Middle-out or Goal-service Modeling – focuses

on the allocation of candidate services such as to

fulﬁll and serve particular business goals. This ap-

proach looks both at the business processes from

the business domain, and at the existing services

and IT assets.

Usually the use of combination of those ap-

proaches is essential for the proper determination of

candidate services. Thus the weaknesses of each ap-

proach can be mitigated and the overall quality of

identiﬁed services can be increased.

Even though there are proliferation of various no-

tations for service modeling and speciﬁcation, we

believe that only the movement to standardization

will substantially inﬂuence SOA adoption across and

within organizations, especially in today’s globaliza-

tion. We can draw analogy with the Uniﬁed Modeling

Language (UML) – because of the common notation,

nowadays modeling adoption and tool support is in-

tegral. We also support this and to demonstrate our

approach we will use standardized notation – SoaML.

SoaML (SOA Modeling Language) (SoaML,

2012) is OMG’s speciﬁcation to provide a standard

ways to architect and model SOA solutions using the

UML proﬁle.

SoaML supports modeling of both business and

IT perspectives, that collaboratively support the orga-

nization’s mission. This is achieved by creating the

services architectures therefore “separating the con-

cerns of what needs to get done from how it gets done,

where it gets done or who or what does it.” (SoaML,

2012, p. 7)

“SoaML can leverage Model Driven Architecture

(MDA) to help map business and systems architec-

tures, the design of the enterprise, to the technologies

that support business automation, like web services

and CORBA.” (SoaML, 2012, p. 7)

Our approach will use the SoaML vocabulary,

therefore we will summarize the main notation used.

In order to understand the main principles of

SoaML the following terminology needs to be re-

viewed (SoaML, 2012, p. 8):

• Participant – represents speciﬁc entity (people, or-

ganizations, information systems, etc.) that pro-

vides and/or consumes services via explicit inter-

action points called ports.

• Capability – the feature that participant provides

and what is exploited to provide a service, or

something that an organization needs that can be

used to identify candidate services.

Service speciﬁcation in SoaML can be take one of

the following forms (SoaML, 2012, p. 8):

• Simple Interface – are used to model simple ser-

vices which need not to know anything about the

service consumers.

• ServiceInterface based – are used to model ser-

vices which impose speciﬁc requirements regard-

ing the service consumers, e.g. to model callbacks

of asynchronous service calls.

• ServiceContract based – are used to model ser-

vices collaboration which usually involves more

than two participants that play in speciﬁc se-

quence (contract) in order to achieve the goal or

add value.

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

242

SoaML ServicesArchitecture is UML collabora-

tion diagram that “[..] puts a set of services in context

and shows how participants work together to support

the goals [..]” (SoaML, 2012, p. 15)

ServiceContract is UML collaboration diagram

that “[..] deﬁnes the terms, conditions, interfaces and

choreography that interacting participants must agree

to (directly or indirectly) for the service to be en-

acted.” (SoaML, 2012, p. 18)

”ServiceArchitectures and ServiceContracts pro-

vide a formal way of identifying the roles played by

parties or Participants, their responsibilities, and how

they are intended to interact in order to meet some

objective using services.” (SoaML, 2012, p. 29)

However in some cases Participants may not yet

be known, but it is important to be able to specify

the behavior of a service or capability that will realize

a ServiceInterface. In these situations it is useful to

express a ServicesArchitecture in terms of the logical

Capabilities of the services.

“SoaML Capabilities represent an abstraction of

the ability to affect change. [..] [They] identify or

specify a cohesive set of functions or resources that

a service provided by one or more Participants might

offer. [..] [N]etworks of capabilities are used to iden-

tify needed services, and to organize them into cata-

logues in order to communicate the needs and capa-

bilities of a service area, whether that be business or

technology focused, prior to allocating those services

to particular Participants.” (SoaML, 2012, p. 29)

Having reviewed the main SoaML aspects, we

will continue by reviewing the Topological Function-

ing Model which will be used in our approach as a

source and will show how mentioned SoaML aspects

can be supported.

3 TOPOLOGICAL

FUNCTIONING MODEL

In this section we give the review of Topological

Functioning Model (TFM) (Osis and Asnina (2),

2011) and then continue with the demonstration of

TFM construction (Asnina and Osis, 2011) by using

example case study.

3.1 The Basics of Topological

Funtioning Model

Theoretical foundations for TFM (also called a topo-

logical model of system functioning) was initially de-

veloped in 1969 by J. Osis. Since then it has found nu-

merous applications and extensions for various prob-

lem domains. But since the introduction of OMG’s

Model Driven Architecture, TFM also has been suc-

cessfully applied in the context of MDA, see, for ex-

ample (Osis, Asnina and Grave, 2008), (Osis, Asnina

and Grave, 2007) and (Osis, Donins, 2010).

In general, TFM allows to represent the formal

functionality of a complex system (organization) in

a form of topological space which consists of ﬁnite

set of functional features (system’s properties) and a

topology between them to indicate the existence of

cause-and-effect relations.

The main advantages that TFM provides is the

possibility of analysis of both topological (connect-

edness, closure, neighborhood, continuous mapping)

and functional (cause-and-effect relational, cyclic

structure, inputs, outputs) properties of the system be-

ing modeled.

In the context to the MDA, TFM is mainly used

to represent the computationally independent (CIM)

viewpoint of the system, i.e. it depicts the business

domain model (Asnina and Osis, 2011).

In order to construct TFM, ﬁrst functional features

must be obtained ”through the acquisition of the ex-

perts knowledge about the complex system, verbal de-

scription, and other documents concerning the struc-

ture and functioning (in documental, analytical, sta-

tistical, etc. form)” (Asnina and Osis, 2011, p. 46).

Functional features can be represented in the form of

a tuple (1).

< Id, A, R, O, PreCond, PostCond, Pr, Ex, S > (1)

Where:

• Id – an identiﬁer (e.g., an integer) that used to

identify topological node.

• A – an object’s action (description of functional

feature).

• R – the result of object’s action.

• O – an object which gets the result of the action

and/or object which participates in an action.

• PreCond – the precondition(s) (if any) which must

be satisﬁed for an action A to be executed.

• PostCont – the postcondition(s) (if any) which

must be satisﬁed after an action A has completed.

• Pr – an actor(s) that provides or suggests an ac-

tion.

• Ex – an actor(s) that enacts a concrete action.

• S – denotes whether the functional feature is inner

or external to the system being modeled.

For more elaborated explanation TFM’s back-

ground and approach in general, we refer to (Osis and

Asnina (1), 2011), (Asnina and Osis, 2011) and (Osis

and Asnina, 2008).

TopologicalFunctioningModelandServicesIdentification-AnApproachforServicesIdentificationfromaTopological

FunctioningModel

243

3.2 TFM with Example Case Study

Let us now introduce the example case study for

which we demonstrate TFM construction and later

perform services analysis. We will start with the in-

formal problem domain description.

Consider the ﬁctional company “MuSt” which op-

erates online business by providing licensed audio

content to consumers by using the Web. The infor-

mal description of this company follows (objects and

actors are marked in italic, verbs are marked in bold).

”In order to provide licensed audio content to

the consumers “MuSt” has signed agreements

with various music publishers. “MuSt” also

has agreements with online payment provider

and shipping companies. In order to advertise

company’s services it has various advertise-

ment agreements with music related Web por-

tals. In order for a consumer to buy a single,

an album or a set of singles, (s)he must regis-

ter. (S)he does it by ﬁlling out and submit-

ting online registration form via the “MuSt”

Web site application, which contains such in-

formation items as account name and pass-

word, personal information/address, various

interests related to music genres, and also pay-

ment related account information. Registra-

tion form data is validated against fraudulent

actions, and conﬁrmation e-mail is sent to the

consumer. From this point on the consumer

can log on on the “MuSt” Web site by using

his/her account, browse for an audio content

and place an order for both electronic only

and/or Compact Disc (CD) versions of an au-

dio content. If electronic only version is or-

dered, a payment request is sent to the online

payment provider and if successful acknowl-

edgment is received, the consumer is notiﬁed

and is able to download MP3 type ﬁle(s) of

the purchased audio content. If (also) a CD

version is purchased, then if it is not avail-

able in the stock, it is ordered from the pub-

lisher. Then a new shipment order is created

with the shipping company which ships the

ordered CD to the consumer’s address. Upon

successful or unsuccessful shipment, the ship-

ping company notiﬁes “MuSt” and therefore

the purchase is closed. Required hardware is

located on the ISP’s data center premises to

whom monthly payments are paid. Monthly

payments also go to the shipping company, the

online payment provider and the advertisers.”

By analyzing the verbs and associated nouns of

this description, we have obtained the list of func-

tional features (see Table 1).The analysis of the verbs

are required, because as stated in (Osis and Asnina

(2), 2011, p. 20):

[..] functional feature is a characteristic of the

system (in its general sense) that is designed

and necessary to achieve some system’s goal.

Functional features must be deﬁned in accor-

dance with the verbs (actions) deﬁned in the

description of the system.

By analyzing the cause-and-effect relations be-

tween the obtained functional features, we have con-

structed corresponding TFM (see Fig. 1).Again, these

relations were obtained in accordance with (Osis and

Asnina (2), 2011, p. 21):

[..] a cause-and-effect relation between two

functional features of the system exists if the

appearance of one feature is caused by the ap-

pearance of the other feature without partici-

pation of any third (intermediary) feature.

Currently the identiﬁcation of such cause-and-

effect relations is rather intuitive task – the proper

identiﬁcation relies upon the analyst’s understanding

of the nature of such relations.

It is important to note that the causal implication

is characterized by the nature or business rules not

by logic rules and that cause-and-effect relations also

have a time dimension, since a cause chronologically

precedes and generates an effect. For more detailed

explanation we refer to (Osis and Asnina (2), 2011).

According to the TFM requirements, each TFM

model must have one main functional cycle which

represents the sequence of crucial functional features.

It is assumed that functional feature is crucial if the

failure of it will lead to the whole system’s inabil-

ity to function. Usually they represent functional fea-

tures from the main line of business. In our case, the

main functional cycle consists of the functional fea-

ture sequence “9-10-11-18-20-9,” i.e. audio content

provisioning and order processing (in the ﬁgure it is

marked with the bold cause-and-effect relations).

There also can be present other functional cycles

which usually extends the main functional cycle by

including connected subsequences of functional fea-

tures. However the malfunction within such subse-

quence must not interrupt the whole systems’ func-

tionality. For example, the subsequence “..-11-13-19-

18-..” represents the CD delivery.

4 SERVICES IDENTIFICATION

In this section we review various sources for services

identiﬁcation with the speciﬁc emphasis in this pro-

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

244

Table 1: “MuSt” business domain functional features.

Id Functional Feature (A) Precondition (PreCond) Actor (Ex) S

1 Signing an agreement with a publisher Owner I

2 Signing an agreement with an online

payment provider

Owner I

3 Signing an agreement with a shipping

company

Owner I

4 Signing an agreement with an

advertiser

Owner I

5 Registering a new consumer Not yet registered Consumer E

6 Validating a registration form Employee I

7 Log in to a web site Consumer E

8 Browsing an audio content Logged in Consumer E

9 Placing an audio content order Logged in Consumer E

10 Opening an order Employee I

11 Notifying a consumer Payment acknowledged Employee I

12 Downloading an audio content Consumer E

13 Checking availability of a CD CD version purchased Employee I

14 Ordering CD to a publisher Purchased CD is not in the stock Employee I

15 Receiving CD from a publisher Employee I

16 Shipping CD to a customer address CD is in the stock Shipping Company E

17 Notifying about a shipment Shipping Company E

18 Closing an order Employee I

19 Placing CD shipment order Employee I

20 Provisioning an audio content Agreement with publisher is signed Web Application I

21 Performing a payment Payment Provider E

22 Acknowledging a payment Payment Provider E

2 6

1112

16 17

14 15

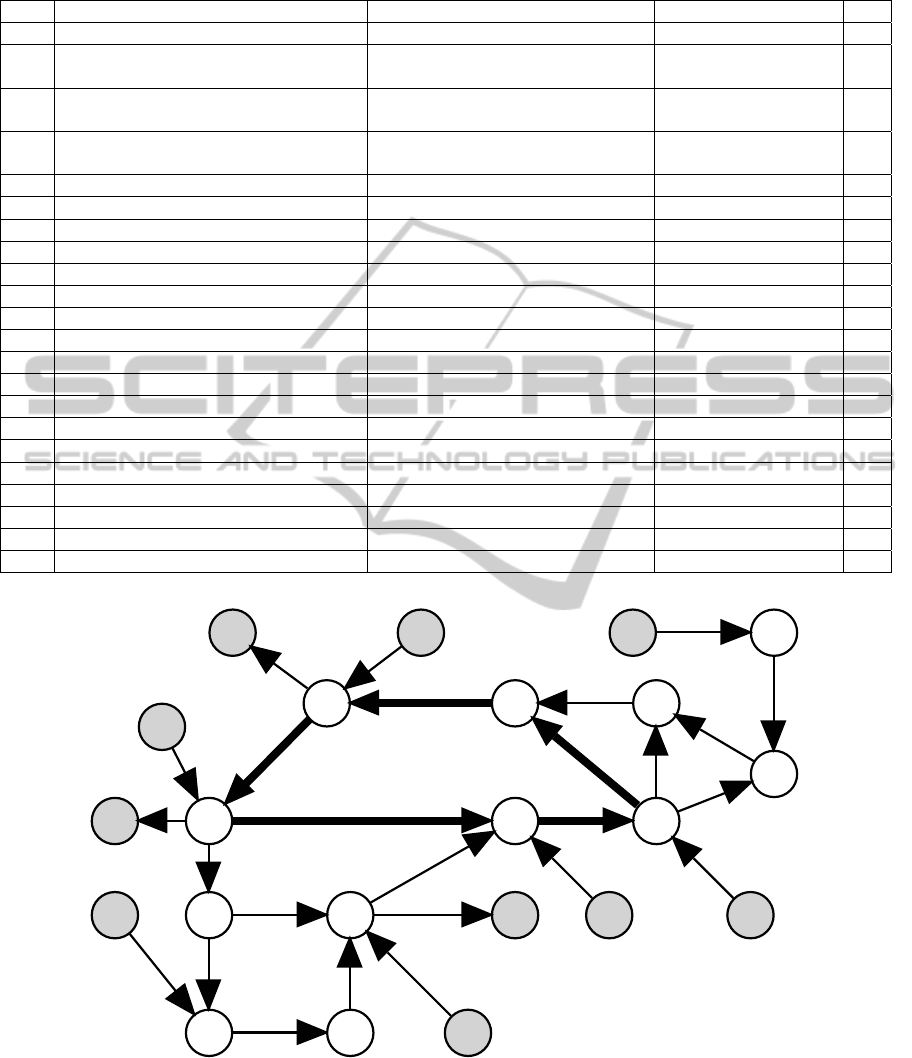

Figure 1: “MuSt” business domain Topological Functioning Model. White nodes represent inner functional features, while

the gray nodes represent system’s inputs or outputs. Bold arrows links the main functional cycle of the system.

cess on the role of business goals.

In order to identify (candidate) services, we can

use any available domain analysis method to obtain

various business domain information from such arti-

facts as:

TopologicalFunctioningModelandServicesIdentification-AnApproachforServicesIdentificationfromaTopological

FunctioningModel

245

• Business process model;

• Business goals;

• Information (data) model;

• Existing non-SOA systems and applications; and

others.

Therefore we propose that among such artifacts

also can be used TFM. In the remainder of the section

we argue regarding the following statement:

Statement 1. It is possible to use the problem do-

main’s TFM to identify SoaML Capabilities and/or

Participants for ServicesArchitectures and Services-

Contracts.

But before that we want to review what role in

the service identiﬁcation plays the system’s business

goals.

4.1 The Role of Business Goals

According to the goal-service approach (Ang, 2008),

before the elicitation of services, it is important to

state what business goals the system (organization)

must achieve. Namely, all eventual services should

directly support at least one stated business goal in

order for them to be business aligned.

In order to show that our approach also follows

this principle, we must state some business goals. Let

assume that for our example case study the following

business goal and subgoals have been stated:

1. Increase Revenue by 10% each quarter

(a) Increase the active consumer base by 3% each

month

(b) Increase the amount of provisioned content

i. Seek for agreement with additional publishers

ii. Question the consumers about missing content

As we later show, most of the identiﬁed candidate

services will directly support speciﬁc business goal or

subgoals.

4.2 Services Identiﬁcation from

Topological Functioning Model

In this subsection we give two propositions and de-

tailed explanations regarding candidate services iden-

tiﬁcation from Topological Functioning Model.

Proposition 1. Topological Functioning Model’s in-

ner functional feature can be transformed to SoaML

Capability or Participant classiﬁers’ operation.

This statement is true because functional feature,

SoaML Capability and Participant all have an ability

to affect cause.

To make the Proposition 1 clear, we must remind

that the inner functional features (shown as white

nodes in the Fig. 1) are the properties that are not

inputs or outputs of the system, whereas the inputs

and the outputs (shown as gray nodes) identify what

functionality from and to the external environment the

system receives or generates, respectively.

By referring to the example case study, we have

elicited the following SoaML Capabilities:

• Purchasing – capability which deals with con-

sumer activities regarding purchase of audio con-

tent (with the operations as functional features

No. 9, 10, 11 and 18).

• Provisioning – capability which deals with the

presentation of available licensed audio content,

both with online and CD versions and the latter

ordering from the publisher (with the operations

as functional features No. 6, 7, 8 and 20).

• StockManagement – capability to deal with CD

stock management and ordering from publishers

(with the operations as functional features No. 13,

14, 15 and 19).

• SiteManagement – for the Web site application

support (with the operations as functional features

No. 6 and 7)

This list of capabilities were obtained by analyz-

ing functional features and grouping them under one

coherent name.

If there are already exists Capabilities that, for ex-

ample, were obtained from other business domain ar-

tifacts, then it might be the case that the existing Ca-

pabilities are just amended with the new operations

from the functional features.

Proposition 2. Topological Functioning Model’s in-

put or output functional feature can be transformed

to SoaML Capability or Participant classiﬁers’ oper-

ation if it directly supports at least one business goal.

This proposition covers the aspects of the problem

domain which are related to system’s environment or

can lead to the need for an access of external services.

The following Capabilities can be selected from

the example case study:

• OnlinePaymentProvisioning – for interaction with

the online payment provider (with the operations

as functional features No. 2, 21 and 22).

• Shipping – for interaction with the shipping com-

pany for the CD delivery (with the operations as

functional features No. 3, 16 and 17).

• Publishing – for interaction with the publishers for

obtaining licenses for both the online (MP3) and

the CD versions of singles and albums (with the

operations as functional features No. 1, 12 and 4).

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

246

Table 2: The goal-service model for the “MuSt” example

case study.

Business Goal KPI Candidate

Service

1. Increase Revenue 10%

each

quarter

OnlinePayment-

Provisioning

1 a. Increase the ac-

tive consumer base

each

month

Purchasing

Shipping

1 b. Increase the

amount of provi-

sioned content

- Provisioning

1 b i. Seek for agree-

ment with additional

publishers

- Publishing

• SiteManagement – for the Web site application

support (with the operation as functional feature

No. 5)

To support this selection, we matched them with

the appropriate business goals (see Table 2). As we

can see, each candidate service (SoaML Capability)

has direct relation to the business goal. Thus we

can assure that eventual services also will be business

aligned. However, there can also be business goals for

which there are no corresponding Capability. Such

business goals then will be out of the SOA implemen-

tation domain.

The next logical step is to specify all obtained Ca-

pabilities by specifying then in SoaML ServiceCon-

tracts, ServicesArchitectures, Participants and Ser-

vicesInterfaces.

For our example case study we could identify

such Participants as OnlinePaymentProvider, Shipper,

Consumer, Provisioner and Publisher. There could be

one ServiceContract based speciﬁcation in which Pro-

visioner, Consumer and Shipper are involved. There

also could be two ServiceInterface based speciﬁca-

tions. The ﬁrst in which Provisioner and Publisher

and the second in which Provisioner and OnlinePay-

mentProvider are involved.

We do not give the process of their acquirement

in this paper because basically it is the same as, for

example, described in (Arsanjani, 2008) or (Amsden,

2012). We just show the possible ServicesArchitec-

ture which can be obtained from these ServiceCon-

tract speciﬁcations (Fig. 2).

Depending on the tool availability, such speciﬁ-

cation process can be performed in the model driven

way thus contributing to the automated SOA imple-

mentation.

5 RELATED WORKS

Since the coining of the term SOA in 1996 by Gart-

ner Research and refreshing it in 2003 (Natis, 2003),

many approaches to service identiﬁcation and design

were proposed. However mostly all of them follow

either bottom-up or top-down or both approaches.

As were mentioned, top-down approaches assume

the reﬁnement from business processes and use cases,

whereas bottom-up approaches seek a ways to adapt

existing IT assets for the service oriented communi-

cation. It is important to note, that the combination of

both ways are important to use in order to successful

determine proper services architecture.

IBM was among those who ﬁrst announced SOA

related methodology – Service-Oriented Modeling

and Architecture (SOMA) (Arsanjani, 2008) and con-

tinues to extend it by incorporating newest trends,

adopting to the emerging standards like OMG’s

SoaML and providing tool support for them.

There are also other attempts to standardize SOA

service speciﬁcation notations. For example, Uni-

ﬁed Service Description Language (USDL) (USDL,

2011). However we see that SoaML mainly aims to

standardize analysis and modeling aspects, whereas

USDL has different goals, namely to cover the speciﬁ-

cation not only of IT and business but also to serve for

a reference and exchange purposes of implemented

services.

Our approach can be integrated with IBM’s

SOMA top-down approach by using TFM as an addi-

tional source for candidate services identiﬁcation. In

fact our approach can be adapted to any top-down ap-

proach of services identiﬁcation and modeling. How-

ever because we assume the usage of SoaML, it is the

best suited especially for approaches which support

standardized model driven frameworks.

6 CONCLUSIONS

In this paper we have proposed an approach to the ser-

vices identiﬁcation from TFM in order to elicit busi-

ness aligned candidate services (Capabilities in terms

of SoaML) so that they fulﬁll the typical properties of

the services. Our approach can be integrated and used

in conjunction with other top-down services identiﬁ-

cation approaches, however it is the best suited with

approaches which incorporate the SoaML standard.

The future plans are regarding more propositions

in order to provide transformation rules from TFM

to SoaML classiﬁers. Also we want to investigate

how TFM functional feature’s cause-and-effect re-

lations and properties can be used to support auto-

TopologicalFunctioningModelandServicesIdentification-AnApproachforServicesIdentificationfromaTopological

FunctioningModel

247

«Service» delivery: DeliveryService

shipper: Shipper

consumer: Consumer

«ServicesArchitecture» Solution Architecture

«Service» delivery: DeliveryService

provisioner: Provisioner

: ProvisionContract

: ShippingContract

: DeliveryContract

publisher: Publisher

«Service» service:Publishing

«Service» service: OnlinePayments

- client

- orderer

«Service» shipping: Shipping

«ServiceChannel»

- client

- shipping

- provisioning

onlinePaymentProvider: OnlinePaymentProvider

«Service» service: OnlinePayments

- shipping

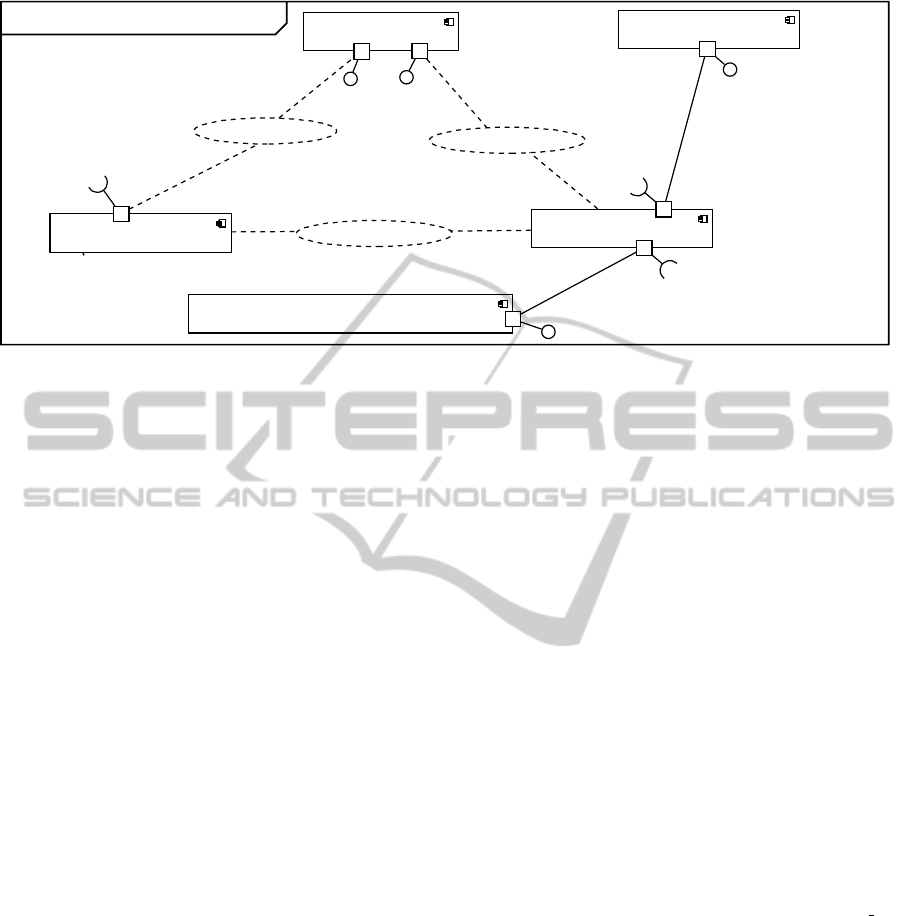

Figure 2: SoaML services solution architecture for “MuSt” example case study.

mated speciﬁcation of SoaML ServiceContract and

ServicesArhitecture.

REFERENCES

Amsden, J. (2012). Using SoaML services architecture.

IBM developerWorks. Retrieved May 7, 2012,

from http://www.ibm.com/developerworks/rational/

library/soaml-services-architecture/

Ang, J. S. H., et al. (2008). Goal-service modeling. Patent

No. 20080027784. United States. Retrieved May 7,

2012, form http://www.freepatentsonline.com/y2008/

0027784.html

Asnina, E. and Osis, J. (2011). Topological Functioning

Model as a CIM-Business Model. In Osis, J. and As-

nina, E. (Eds.), Model-Driven Domain Analysis and

Software Development: Functions and Architectures.

Hershey - New York: IGI Global. 40-64.

Arsanjani, A., et al. (2008). SOMA: A method for develop-

ing service-oriented solutions. IBM Systems Journal,

47(3), 377-396. doi: 10.1147/sj.473.0377

Kreger, H. and Estefan, J. (2009). Navigating

the SOA Open Standards Landscape Around Ar-

chitecture. The Open Group. Retrieved May 7,

2012, from http://www.opengroup.org/onlinepubs/

7699909399/toc.pdf

Natis, Y. V. (2003). Service-Oriented Architecture

Scenario. Gartner Research. Retrieved May 7,

2012, form http://www.gartner.com/resources/

114300/114358/114358.pdf

Object Management Group. (2012). Service Ori-

ented Architecture Modeling Language (SoaML),

Version 1.0. Retrieved May 7, 2012, form

http://www.omg.org/spec/SoaML/1.0/PDF

Osis, J. and Asnina, E. (1) (2011). Is Modeling a Treatment

for the Weakness of Software Engineering?. In Osis,

J. and Asnina, E. (Eds.), Model-Driven Domain Anal-

ysis and Software Development: Architectures and

Functions. Hershey - New York: IGI Global. 1-14.

Osis, J. and Asnina, E. (2) (2011). Topological Modeling

for Model-Driven Domain Analysis and Software De-

velopment: Functions and Architectures. In Osis, J.

and Asnina, E. (Eds.), Model-Driven Domain Analy-

sis and Software Development: Functions and Archi-

tectures. Hershey - New York: IGI Global. 15-39.

Osis, J. and Asnina, E. (2008). A Business Model to Make

Software Development Less Intuitive. Proceedings of

the 2008 International Conference on Innovation in

Software Engineering. Los Alamitos: IEEE Computer

Society CPS, 1240-1246.

Osis, J., Asnina, E. and Grave, A. (2008). Formal Problem

Domain Modeling within MDA. Communications in

Computer and Information Science. Vol. 22, Software

and Data Technologies. Berlin Heidelberg: Springer-

Verlag, 387-398.

Osis, J., Asnina, E. and Grave, A. (2007). Computation

Independent Modeling within the MDA. IEEE Inter-

national Conference on Software-Science, Technology

Engineering (SwSTE’07). 22-34. doi: 10.1109/Sw-

STE.2007.20.

Osis, J. and Donins, U. (2010). Formalization of the UML

Class Diagrams. Evaluation of Novel Approaches to

Software Engineering. Berlin Heidelberg: Springer-

Verlag. 180-192. doi: 10.1007/978-3-642-14819-4 13

Uniﬁed Service Description Language. (2011). Re-

trieved May 7, 2012, from http://www.internet-of-

services.com/index.php?id=264&L=0

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

248
