Free Web-based Personal Health Records: An

Assessment of Security and Privacy

Inma Carri´on, Jos´e-Luis Fern´andez-Alem´an and Ambrosio Toval

Department of Informatics and System, Faculty of Computer Science, University of Murcia,

Murcia, Spain

Abstract. Several obstacles prevent the adoption and use of Personal Health

Record (PHR) systems, including users’ concerns regarding the privacy and secu-

rity of their personal health information. The purpose of this study is to examine

current PHR systems in order to verify what privacy and security characteristics

are deployed in them, in an American context. The strengths and weaknesses of

the PHRs identiﬁed will be useful for PHR users, healthcare professionals, de-

cision makers and builders. The myPHR website was reviewed since it contains

relevant information related to PHRs. For this end, the Privacy Policy of each

PHR selected was reviewed in order to extract the main characteristics of privacy

and security. The results show that the Privacy Policies of PHR systems do not

provide an in-depth description of the security measures that they use. This may

be a problem because users might not believe that their data are really protected.

The designs of Privacy Policies should be improved to include more detailed in-

formation related to security measures, and this may be one of the reasons why

users do not trust in PHR systems.

1 Introduction

A PHR is ”an electronic record of an individual’s health information by which the indi-

vidual controls the access to the information and may have the ability to manage, track,

and participate in his or her own health care” [1]. Nevertheless, several important ob-

stacles prevent the adoption and use of PHR systems, including concerns regarding the

privacy and security of users’ data [2]. Most PHR development and current use is in

the US, what justiﬁes a certain US focus in this paper. Ninety-one percent of American

people state that they are very worried about the privacy and security of their health in-

formation [3]. Moreover,the consequences of an attack include reductions in the quality

of care, service disruptions, reduced revenues, higher operating costs, regulatory ﬁnes,

unsecured privacy and unauthorized access to personal information [4]. Our objective

is to analyze the main characteristics related to security and privacy in PHR systems to

verify what security measures are deployed. The strengths and weaknesses in matters of

the privacy and security of PHRs will be useful for PHR users, healthcare professionals,

decision makers and builders.

The aim of this review is to answer the following research question (RQ):

RQ1 What security and privacy features do current PHR systems have?

Carrión I., Fernández-Alemán J. and Toval A..

Free Web-based Personal Health Records: An Assessment of Security and Privacy.

DOI: 10.5220/0004090800610068

In Proceedings of the 9th International Workshop on Security in Information Systems (WOSIS-2012), pages 61-68

ISBN: 978-989-8565-15-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

In this paper, the privacy policies of 24 free web-based PHRs are analyzed and as-

sessed. The authors have veriﬁed that the information contained in the Privacy Policies

is met by PHRs. The remainder of the paper is organized as follows. Section 2 intro-

duces the research method. Section 3 offers the main results of the data collected. The

main ﬁndings are discussed in Section 4. Finally, Section 5 presents some concluding

remarks.

2 Methods

2.1 Review, Protocol and Eligibility Criteria

This review followed the quality reporting guidelines set out by the Preferred Reporting

Items for Systematic reviews and Meta-Analysis (PRISMA) group [5]. We developed

a review protocol describing each step of the process (including eligibility criteria),

even before beginning the search for literature and data extraction. This protocol was

performed by one of the authors, and was reviewed and approved by the other two.

The following inclusion criteria were used:

IC1 Free PHRs

IC2 PHRs with a Web-based format

IC3 PHRs with a Privacy Policy

Among the current variety of PHR support technologies, we have focused our study

on Web-based, free PHRs. Free PHRs can be used by anyone and are easier to access

(IC1). Web-based PHRs have certain beneﬁts with regard to the use of the Internet

(IC2). Finally, we deﬁned IC3 because our study is based on the analysis of Privacy

Policies. Privacy Policy is a document that involves the manners in which the client

information is used, disclosed and managed by the company/provider.

2.2 Information Sources and Study Selection

The majority of the PHRs were published on the myPHR website. This website was

created by the American Health Information Management Association (AHIMA) and

contains information related to the use and the creation of PHRs. To the best of our

knowledge, this website provides the most comprehensive list of PHRs that a user can

ﬁnd, and has also been used to select PHRs in multi-source sampling [6].

The PHR selection was organized in the following four phases:

1) The search for PHRs from the myPHR website; 2) The exploration of the PHRs

found, and a selection based on eligibility criteria IC1 and IC2; 3) The exploration of the

PHR websites identiﬁed in order to ﬁnd each one’s Privacy Policy (IC3); 4)A complete

reading of each of the PHR Privacy Policies selected in the previous phase to extract

their principal privacy and security characteristics.

2.3 Data Collection Process and Data Items

Data collection was carried out by using a data extraction form. Each PHR was assessed

by two of the authors of the work presented herein who read the full texts of the Privacy

Policies, and any discrepancies were resolved by the third author. These PHR Privacy

Policies were used to extract the methods used to maintain the privacy and security

of the users’ data. The privacy policy should satisfy the security safeguards that are

appropriate to the sensitivity of the information,and will be used for protecting personal

information [7].

This study analyzes security based on ISO 13606 standard [8]. Security is ana-

lyzed from the standpoint of availability, conﬁdentiality, integrity and accountability.

ISO 13606 standards do not included privacy characteristics, and this topic was ana-

lyzed according to Westin, who deﬁned the privacy as “the claim of individuals, groups,

or institutions to determine for themselves when, how, and to what extent information

about them is communicated to others” [9].

A template was designed which contained the data that should be extracted from

each PHR. In total, 23 characteristics were analyzed and grouped into ﬁve categories.

Each of them satisﬁed one or more of the eight principles concerning Privacy Policies

by the Canadian Standards Association [7].

Account Management (AM) describes the data management when the users’ ac-

counts are deleted, along with the account types deﬁned in the PHR system.

1. Deleted by the user (AM1). The PHR mentions in its Privacy Policy how it manages

the users’ data when the individuals remove their accounts.

2. Account types (AM2).

Access Management (ASM). describes who shares the information, with whom it

is shared, and types of permissions.

1. Users grant access (ASM1).

2. Users grant healthcare professionals access (ASM2).

3. Users grant others roles access (ASM3) (like friends, family, or applications).

4. Permission types (ASM4).

5. Access in case of emergency (ASM5).

Access criteria (AC). The system must establish what actions the user is permitted

to perform on that resource.

1. Roles (AC1). The role is based on a job assignment or function.

2. Time (AC2). Access is only permitted for a period of time.

Authentication (AU). Method used to prove that the user is who s/he says s/he is.

1. Something known (AU1) (like a password, PIN, etc.).

2. Something had (AU2) (a key, an access card, a badge, etc.).

Safeguards (S). This category describes security measures deployed by the PHR

system.

1. Physical security measures (S1).

2. Access limited (S2). Computer servers with access limited to a small number of

people.

3. Electronic security measures (S3).

4. Encrypted data (S4).

5. Back-up system (S5).

6. Data security plan deﬁned (S6).

7. Staff training (S7). The staff receives training on the latest security technology.

8. Privacy Seal (S8). The PHR website has obtained certiﬁcation from, for example,

TRUSTe. This certiﬁcation indicates that the site has been self-certiﬁed as comply-

ing with the site’s own privacy statement.

2.4 Quality Assessment

Each PHR was evaluated depending on the characteristics which were satisﬁed in it.

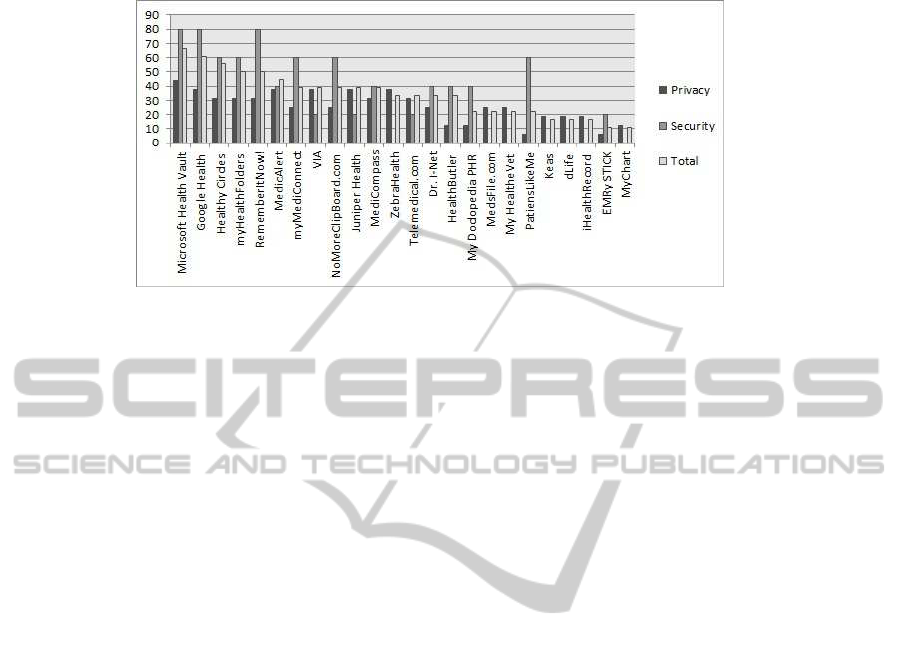

Three different scores were assigned to each PHR: Total Score, Security Score and

Privacy Score. The Total Score was obtained by adding one point to the PHR for each

characteristic that was satisﬁed. The privacy and security scores group the characteristic

categories related to information privacy and security, respectively. The categories were

grouped as follows, in accordance with the security and privacy deﬁnitions described in

Section 2.3:

Total All categories deﬁned in Section 2.3

Security Access Criteria, Authentication, Safeguards

Privacy Access Management

The privacy policies were assessed by two researchers with experience in this ﬁeld,

and were then cross-checked against an evaluation of 50% of the PHRs. The Cohen’s

Kappa coefﬁcient was used to calculate the interrater agreement among the two re-

searchers in the privacy policy evaluation. The Kappa coefﬁcient was 0.95, which, ac-

cording to Landis and Koch [10], indicates an almost perfect agreement between the

two assessments.

3 Results

A total of 24 PHRs were identiﬁed in the review. The search of the myPHR website

provided a total of 52 different PHRs, although 11 were discarded because they did not

satisfy the IC1 criterion. Another 13 PHRs were then discarded because they clearly

did not satisfy the IC2 criterion. The Privacy Policies of the remaining 28 PHRs were

examined, and 4 of these were discarded because they did not ﬁnd their Privacy Poli-

cies (IC3). Table 1 shows the results obtained after analyzing each PHR, indicating the

characteristics which are satisﬁed by each one.

4 Discussion

With regard to PHR access management, sixteen PHRs allow users to grant and revoke

access to their data. This characteristic is particularly important because users require

Table 1. Description of PHRs, indicating characteristics satisﬁed.

PHR AM ASM AC AU S

dLife AU1 S1, S8

Dr. I-Net ASM1, ASM2 AU1 S1, S3, S4

EMRy STICK ASM1 AU1

Google Health AM1 ASM1, ASM2, ASM3, ASM4 AU1 S1, S2, S3, S4, S5

HealthButler AM1, AM2 ASM1, ASM2 AC1 AU1

Healthy Circles AM1, AM2 ASM1, ASM2, ASM4 AC1 AU1 S1, S3, S8

iHealthRecord AC1 AU1 S1

Juniper Health ASM1 AU1 S1, S2, S3, S4, S8

Keas AU1 S1, S3

MedicAlert ASM1, ASM5 AC1 AU1 S1, S3, S5, S7

MediCompass ASM1, ASM2 AC1 AU1 S1, S3, S4

MedsFile.com AC1 AU2 S1, S2

Microsoft HealthVault AM1 ASM1, ASM3, ASM4, ASM5 AC2 AU1 S1, S2, S3, S4, S8

MyChart AC1 AU1

My Doclopedia ASM1, ASM2 AU1 S3

My HealtheVet AC1 AU1 S3, S4

myHealthFolders AM1 ASM1, ASM2, ASM5 AC1 AU1 S1, S3, S4

myMediConnect ASM1, ASM2, ASM5 AU1 S1, S3, S4

NoMoreClipBoard ASM1, ASM2, ASM5 AC1 AU1 S3, S4

MediCompass ASM1, ASM2 AC1 AU1 S1, S3, S4

PatiensLikeMe ASM1, ASM4, ASM5 AU1

RememberItNow! ASM1, ASM2, ASM3, ASM4 AC2 AU1 S2, S3, S4

Telemedical ASM1 AC1 AU1 S3, S4, S5

VIA ASM1 AC1, AC2 AU1 S1, S3, S4

ZebraHealth AC1 AU1 S1, S3, S5, S6

more ﬂexible ways in which to share data and links with health professionals [11]. En-

CoRe [12], a research project performed by the UK industry and members of academia,

investigates how to make an individual’s consent a useful means to control what hap-

pens to the personal information they disclose to organizations. These issues are related

to PHR access management

One characteristic not found in the PHRs reviewed is that of notifying users when

their data have been exposed. Users have the right to know this, but the designers have

not taken this issue into account because the inadvertent disclosure or loss of unen-

crypted Protected Health Information (PHI) would be considered as a data breach. Most

states in the US have data breach notiﬁcation laws [13]. These require a data custodian

to report a data breach to the individuals affected, state attorneys general, the media,

consumer reporting agencies, and/or other government agencies. One means to ensure

that users trust their data’s security is to obtain a certiﬁcation for the PHR website from

a certiﬁcate authority.

The PHR systems should take measures to protect user information. These measures

should be physical and electronic for total protection. The physical security measures

attempt to protect the servers which contain the users’ data. The principal electronic se-

curity measures involve the encryption of any users’ data that is stored in and transmit-

ted over the network. The process of encryption hides data or the contents of a message

in such a way that the original information can be recovered through a corresponding

decryption process to ensure that message data are not disclosed. Some PHRs (17%)

explicitly indicate in their Privacy Policy that the data are encrypted both for transmis-

sion and storage. However, encryption is only part of the solution which keeps the data

protected. There are also other threats, such as a virus laden-system, against which the

PHR systems must be protected.

The security measures deployed by PHRs are an important question, particularly

for the PHRs included in this review which are Web-based, thus increasing the vulner-

ability of these applications, systems, and sensitive data. An attacker who successfully

exploits application vulnerability could quickly and signiﬁcantly affect a healthcare fa-

cility in a variety of ways, such as disrupting services, stealing data and identities, or

taking control of host computers and using them for illicit purposes [14]. Since there

are no well documented examples of PHR/EHR (Electronic Health Record) systems

linked to security breaches [15], designers should consider threats to Web applications

at least when they deploy their PHR. In 2008, over 63% of all documented vulnera-

bilities concerned Web applications [16]. Moreover, the National Institute of Standards

and Technology (NIST) has identiﬁed 46467 Common Vulnerabilities and Exposures

(CVE) between 1997 and 2011, which have been grouped into categories. Of these,

Cross-Site Scripting (XSS), the most important categories of vulnerabilities that affect

Web applications, has 2823 CVEs [17]. This is just one example of the amount of threats

which could affect Web-based PHRs and should be carefully considered in their design.

Finally, all the PHRs analyzed used only one authentication method, using some-

thing which the users know or have. However, two of the following three methods are

recommended for inclusion in an identiﬁcation system: “something a person knows”

such as login ID, email address, password, PIN; “something a person has” such as a

key, swipe card, access card, digital certiﬁcate; or “something that identiﬁes a person”

such as biometrics. Designers should incorporate another authentication system in order

to provide strong authentication [18]. Moreover, the use of passwords as authentication

mechanisms is exposed to multiple types of attacks, such as “electronic monitoring”

for listening to network trafﬁc to capture information, or ”unauthorized access the pass-

word ﬁle“.

4.1 Final Evaluation

Few differences have been found, and those that have appeared have occurred because

the PHR has a particular functionality which is not described in the Privacy Policy.

This error is not grave: users are simply not informed about those functionalities. If

a particular functionality were not deployed, but was stated in the Privacy Policy, the

designers would be making a serious error, since the users are being deceived. The

scores calculated in Section 3 help us to compare the PHRs. Figure 1 shows a histogram

of the privacy and security scores obtained by the PHRs. In general, the PHRs obtain

a privacy score that is higher than the security measure score deployed. PHR designers

should therefore focus their efforts on increasing the quality of security measures at all

stages of the PHR development [19].

5 Conclusions

In accordance with the Privacy Policies, PHRs do not provide an in-depth description

Fig.1. Histogram of the Privacy and Security Scores of PHRs.

of the security measures used, which might be a problem, leading users to be concerned

about whether their data are really protected. The designs of Privacy Policies also need

to be improved to include more detailed information related to security measures. These

ﬁndings can be extended to any web system.

Our study may have some limitations, such as the following: (1) the authors may

have not included PHRs relevant for this study; (2) the authors may have not included

PHRs in which a Privacy Policy is deﬁned, when this was not mentioned on the PHR’s

website; (3) lack of analysis of user’s perceptions or actions with regard to this topic;

(4) lack of analysis of important privacy issues.

The development of third party applications that add new functionality to PHRs is

increasing. An example of this is Microsoft HealthVault which has more than 50 third

party applications at the present. This connection to other applications, such as PHRs,

could cause security breaches. Moreover,some PHRs use cloud computing, such as Mi-

crosoft which provides a PHR which offers cloud-computing services through its API.

Some PHRs, like HealthATM, have been deployed around Microsoft HealthVault, thus

making it possible to design low-cost PHRs that are customized for speciﬁc functions

and populations. However, PHRs which offer cloud services must consider the new

arising security and privacy threats [20]. The goals are involved in achieving adequate

security: availability, conﬁdentiality, data integrity, control and auditing [21].

Future research involves to perform a deep analysis about threats related to PHRs,

detailing them and the actors, the expected impact and likelihood, and corresponding

requirements and countermeasures.

Acknowledgements

This work has been partially ﬁnanced by the Spanish Ministry of Science and Innova-

tion, project PANGEA, TIN2009-13718-C02-02

References

1. HHS - OCR: Personal Health Records and the HIPAA Privacy Rule (2008)

2. Liu, L.S., Shih, P. C., Hayes, G. R.: Barriers to the adoption and use of personal health record

systems. In: Proceedings of the 2011 iConference. iConference ’11, New York, NY, USA,

ACM (2011) 363–370

3. Kaelber, D. C., Jha, A. K., Johnston, D., Middleton, B., Bates, D. W.: A research agenda for

personal health records (phrs). J Am Med Inform Assoc 15 (2008) 729–736

4. Mellado, D., Fern´andez-Medina, E., Piattini, M.: Security requirements engineering frame-

work for software product lines. Information & Software Technology 52 (2010) 1094–1117

5. Liberati, A., Altman, D. G., Tetzlaff, J., Mulrow, C., G¸tzsche, P. C., Ioannidis, J. P., Clarke,

M., Devereaux, P., Kleijnen, J., Moher, D.: The PRISMA statement for reporting systematic

reviews and meta-analyses of studies that evaluate health care interventions: explanation and

elaboration. Journal of Clinical Epidemiology 62 (2009) e1–e34

6. Hulse, N. C., Wood, G. M., Haug, P.J., Williams, M. S.: Deriving consumer-facing disease

concepts for family health histories using multi-source sampling. J Biomed Inform 43 (2010)

716–724

7. Yee, G., Korba, L.: Personal Privacy Policies. Computer and Information Security Hand-

book. (2009)

8. ISO: Norma ISO/CEN 13606. Available from: www.aenor.es (2010)

9. Westin, A.: Privacy and Freedom. Atheneum, Ed. NY (1967)

10. Landis, J. R., Koch, G. G.: The measurement of observer agreement for categorical data.

Biometrics 33 (1977) 159–174

11. Greenhalgh, T., Hinder, S., Stramer, K., Bratan, T., Russell, J.: Adoption, non-adoption, and

abandonment of a personal electronic health record: case study of healthspace. BMJ 341

(2010) c5814

12. UK industria & academia: EnCoRe. Ensuring Consent and Revocation. http://www.encore-

project.info/index.html (2010)

13. Lesemann, D.: Once more unto the breach: An analysis of legal, technological and policy is-

sues involving data breach notiﬁcation statutes. Akron Intellectual Property Journal 4 (2010)

203

14. Brigade, T.: The new threat: Attackers that target healthcare (and what you

can do about it). Technical report, http://www.infosecwriters.com/text resources/pdf/

New Threat Brigade.pdf (2006)

15. Greenhalgh, T., Stramer, K., Bratan, T., Byrne, E., Russell, J., Hinder, S., Potts, H.: The

devil’s in the detail: Final report of the independent evaluation of the summary care record

and healthspace programmes. Technical report, University College London (2010)

16. Huynh, T., Miller, J.: An empirical investigation into open source web applications’ imple-

mentation vulnerabilities. Empirical Software Engineering 15 (2010) 556–576

17. NIST Vulnerabilities Database: CWE - Common Weakness Enumeration.

http://nvd.nist.gov/cwe.cfm. archived at: http://www.webcitation.org/60iaz4jzw (2011)

18. Park, M. A.: Embedding security into visual programming courses. In: Proceedings of

the 2011 Information Security Curriculum Development Conference. InfoSecCD ’11, New

York, NY, USA, ACM (2011) 84–93

19. Fernandez-Medina, E., Piattini, M.: Designing secure databases. Information & Software

Technology 47 (2005) 463–477

20. Carri´on, I., Fern´andez Alem´an, J. L., Toval, A.: Personal Health Records: New Means to

Safely Handle our Health Data? Computer (2012)

21. Rebollo, O., Mellado, D., Fern´andez-Medina, E.: A Comparative Review of Cloud Security

Proposals. In: WOSIS. (2011) 3–12
