How to Define and Apply Mobile Personal Learning

Environments

Miguel Ángel Conde

, Francisco J. García-Peñalvo

, Marc Alier

and Jordi Piguillem

Computer Science Department, Science Education Research Institute (IUCE),

GRIAL Research Group, University of Salamanca, Salamanca, Spain

Services and Information Systems Engineering Department, UPC

Campus Nord, building Omega, Barcelona, Spain

Abstract. The application of ICT to learning, the 2.0 trends and the widespread

of technologies such as the mobile devices make necessary to provide new

solutions to satisfy learner necessities. Such solutions should take into account

the students as the center of the learning process. They should be able to decide

what tools they use to learn and the institution, independently of the context

where learning activities are carried out, must consider what students do in such

personal learning activities. In addition those environments should be accessible

through mobile devices. During this paper a service-based approach to define

mobile personal learning environments that allow communication with the

institutional learning platforms, is described. Such approach is implemented and

evaluated in order to show that such kind of mobile learning platform is

possible, increase students’ motivation and help them to learn.

1 Introduction

The context in which teaching and learning processes are carried out has changed

because different factors. In the recent years the application of the Information and

Communications Technologies (ICT) and the emergence of the 2.0 trends have

different effects on those contexts.

ICT application implies the definition of a huge number of educational software

systems and the use of different tools to learn, such as the Internet, mobile devices,

TVs, games and so on. This leads to different learning modalities such as eLearning,

mLearning, gLearning and so on. Especially eLearning it is widely accepted and used

in many different contexts and also the systems that give this kind of learning support,

the LMS (Learning Management System)[1, 2]. The use of an LMS provides students

and teachers with a set of tools for improving learning processes and managing them.

However, despite this high level of adoption they have not resulted in the educational

improvements, which might have been expected. Three principal reasons have been

offered for this: 1) The tools provided are not used properly and often are used as

mere spaces to publish courses [3-5], 2) LMSs restrict opportunities for collaboration

in student learning and for the promotion of social constructivism which is not limited

to a period of time (i.e. academic year)[6, 7], 3) They are focused on the course and

the institution rather than the student and their needs [8].

Conde González M., García Peñalvo F., Alier M. and Piguillem J..

How to Deﬁne and Apply Mobile Personal Learning Environments.

DOI: 10.5220/0004097000570066

In Proceedings of the 1st International Workshop on Interaction Design in Educational Environments (IDEE-2012), pages 57-66

ISBN: 978-989-8565-17-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

In order to address these problems, learning institutions need to change their

strategies. They must provide environments more adapted to the student and open to

include the new set of Web 2.0 tools that are under the student’s control. The rationale

for the shift of this ‘locus of control’ is that personalization can improve learning by

empowering the student to manage their learning at their own pace [9] with their own

technology within the context of the activities of their daily lives which are also

managed by the same technologies. Consequently, the PLE (Personal Learning

Environment) seeks to unburden the learner of the need to learn new systems when

they engage in formal learning. PLEs facilitate the user learning process by allowing

them to use those tools they want to use and not joining them to an specific

institutional context or learning period [10].

On the other hand one of the most popular technologies used in the current society

are mobile devices. In fact there is an 86,7% of this technology penetration and more

than 5981 millions of mobile devices connections, which means that most of first

world population use one or more mobile devices [11]. This technology has also

influence in learning in which its application is known as mLearning.

Taking into account such high uptake and the necessity to consider personal

environments, the next step is to represent PLE in a mobile device. The PLE should

be open to other context but also needs to consider the connection with LMS because

they have been highly successful in stimulating online engagement by teachers and

learners and also they are widespread and big amounts of money have been invested

on them [12]. So the representation of a set of educational tools in the PLE under

student control is not enough, such space should be able to interoperate with the LMS.

The aim of this paper is to show how to represent and apply such kind of PLE in a

mobile device. That is, how it is possible to represent the PLE in different devices and

at the same time how that Mobile PLE version is connected to the LMS. In order to

do so a service-based approach and different ways to represent information are

described.

The paper is structured as follows: in second section, some possibilities to

represent a PLE in other contexts such as mobile devices are presented. The third

section will describe the architectural approach. The forth includes an implementation

of such approach and how it is applied during a proof of concept and finally some

conclusions are provided.

2 PLE Representation other Context

The present technological landscape makes it necessary not only to consider web

environments, but also new realities such as mobile devices or interactive TVs. That

is, the LMS and/or PLE should not only be considered from a traditional perspective,

but they must be open to other contexts. There are several possibilities to achieve this

desired portability.

Some trends consider that it is not necessary any kind of adaptation of neither

information nor functionality because the new contexts must provide the tools and

frameworks which allow the personalization of student learning. For example, mobile

devices or tablets [13-15] could be understood as a PLE. This idea is correct but the

integration of the tools the students use to learn is not so clear because they are not in

the same space, which can disorient the learner.

Other initiatives define tools for learning using such devices and considering the

specific capabilities of mobile devices (GPS, camera, accelerometer, etc.). A good

example would be the CONTSENS Project [16] used in several learning experiences

in London; a Mobile Personal Environment (MPE) helping students to communicate

between them and with experts by using the mobiles [17]; experiences to learn

languages by using the mobile and taking into account the context of the user [18].

The problem of these solutions is that they have great dependence with the hardware

and software of the mobile devices.

On the other hand, there are many projects that exploit mobile devices as PLE by

adding learning functionalities and institutional tools to them. Two representative

examples could be MOLLY project (http://mollyproject.org/), a free open initiative

integrated with the LMS Sakai, which allows students to contact with experts, to

access to academic podcasts and libraries and to obtain information related with a

institution; and CampusM, a mobile application that provides different tools to each

student adapted to her necessities (internal messages, blogs, portfolio, maps,

calendars, alerts, etc.) and which allows integration with LMSs like Moodle or

Blackboard [19]. The main drawback of this kind of solutions is that they are too

specifically defined for an institution although this can be solve through the use

specifications and standards.

Other possibility is to use mobile communication features, such as the use of RSS

clients or SMS. Two examples of this use of mobile devices’ features are

OnlineConnect Project, which sends custom information to each student’s mobile

phone [20] or REACh (Researching Emerging Administration Channels), which

sends alerts from the LMS to mobile devices by using that technologies [21]. The

problem of these solutions is that they are quite limited by the use of technologies

such as RSS and SMS.

There are also some interesting initiatives to define PLEs such as Elgg

(http://www.elgg.com), that has released mobile versions in order to make possible an

easy way to build PLE and access to them through mobile devices [22]. With this

system it is possible to access from mobile to virtual communities defined with Elgg

but this tool is not always enough to define a PLE because it should be enriched with

other learning tools and has no communication ways with the LMSs.

Moreover, it is also possible to use the widgets employed to define a PLE in other

contexts. In this sense, there are several initiatives such as Aplix Web Runtime

(http://www.iasolution.net/products/aplix-web-runtime/), the Widget runtime: WAC-

1.0 Compliant Golden for Android (http://dev.opera.com/articles/view/labs-widget-

runtime-wac-1-0-compliant-golden-for-android/) and the consortiums between

different companies to define common interfaces for mobile applications [23].

Also related with widgets, other projects such as Webinos (http://webinos.org/)

should be considered. Webinos defines an open platform to share applications

between different contexts. This means that an application can be used in a TV, a

mobile device, in a car navigation system etc. Particularly, they define interfaces to

allow information exchange and component integration (components that are an

extended version of the W3C widgets) [24].

Last, but not least, it is possible to use tools LMS native tools from the mobile

device, in a way that these tools can be combined with the device own tools. These

are very common solutions implemented by most LMS [25-31].

With all these initiatives, it is evident that it is absolutely possible to open the PLE

to other contexts. However, the heterogeneity of communication interfaces, software

and hardware, and the lack of control over the activity, is hampering the definition of

real independent PLEs.

In the following section a possible solution based on web services is described.

3 Architectural Approach to Define a Mobile PLE

In the previous sections the necessity to represent a Mobile PLE able to interact with

the LMS, has been presented. To achieve so, it is necessary the use of service oriented

approaches. The authors of the present paper have defined in a previous work a

service-based approach to support such kind of representation and interoperability

[32]. It is based on an institutional environment represented by one or several LMSs

and a PLE that includes different tools represented as widgets (that can be included in

different contexts including mobile devices). Those components interact between

them by using the web service layers provided by the LMSs and interfaces based on

interoperability specifications. In addition, some elements are introduced to facilitate

such interoperability as mediators. In order to describe the most common interaction

ways between the LMS and the PLE, some interoperability scenarios have been

defined [33]. Such architecture is shown in Fig 1.

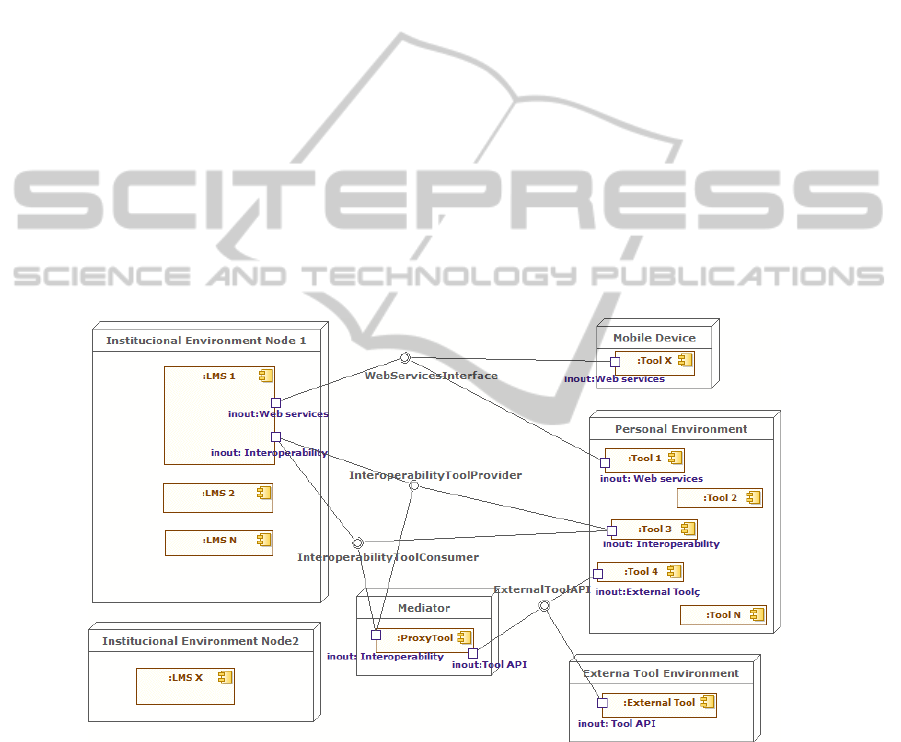

Fig. 1. Architecture deployment diagram. It includes two institutional nodes with different

LMS, a proxy tool in a mediator node, the personal environment, an external learning tool and a

Mobile device.

In this case just one of the interoperability scenarios and the some of the

components should be taken into account, because the aim of this work is to describe

how to represent the PLE in the mobile device. This means that from the previous

diagram just the institutional node with the LMS 1 and a web service interface that is

used by the Mobile device should be considered. The functionality in the mobile

device is represented in two possible ways, as a widget (a kind of mini-application),

which can be displayed in a widget container (such as Aplix Web Runtime or the

Widget runtime: WAC-1.0-compliant Golden for Android described above); or as a

LMS mobile version that can include other tools such as could be Moodbile

(http://moodbile.org). The widget option allows the user to combine functionalities

exported from the LMS with other tools she used to learn. The LMS mobile version

includes several tools and can include new ones (although this is conditioned by the

solution selected from the existing ones).

In Fig 2. it is shown how the components involved in the architecture are

connected. The tool, represented in the mobile device uses an interface based on web

services and implemented by the LMS web service layer. This layer receives a request

for an LMS service and access to the LMS core in order to return the results of the

service, such information is later displayed in the mobile device. In this way it is

possible to carry out an activity by using a tool of a Mobile PLE and such tool

provides information to the LMS of what is happening there.

In order to check the approach an implementation has been carried out and it is

described in the following section.

Fig. 2. Connection between the components included in the approach. It includes the LMS, the

WebServicesInterface used by the tool and tool with a WebServiceConsumer.

4 Proof of Concept

The above-described architecture should be implemented to validate it. To do so a

proof of concept is carried out using: 1) Moodle as the LMS in the institutional

environment, this LMS is selected because of its high uptake (http://moodle.org/stats)

and the web service layer that includes [34]; 2) a W3C Widget (http://www.w3.org/

TR/widgets/) to represent the tool into the mobile device [35] because it is the

specification to define widgets proposed by the W3C and in this way it is easier to

represent this widgets in other contexts; 3) Moodbile as a Mobile LMS software to

check the other possible tool representation in the device; and 4) the web services

interfaces to facilitate the interaction with the LMS.

The implementation has considered a specific Moodle tool, the forum. It is

implemented as a widget for one of the representation options and Moodbile includes

it for the other. Such functionality is based on the results returned by the Moodle Web

Service Layer to different requests.

In Fig 3. it is shown the sequence of actions carried out to return the list of forum

discussions through a BPMN (Business Process Management Notation) diagram [36].

Fig. 3. BPMN Diagram for describe the actions exchanged between Moodle and the

ForumTool to list the discussions.

There are two main participants the Tool or Widget and Moodle. A user of the tool

request the list of discussions, such request is received and preprocessed by a

RequestHandler (this means that the arguments are extracted from the messages

something done in a different way depending on the web services implementation,

i.e.: SOAP, REST, JSON-RPC). After that the content of the request is sent to the

request processor where the identity of the user that try to recover the list of

discussions is checked. If she does not have permissions a response is sent with an

error, if she is allowed to gather the information the discussion list is returned

following the web service model used in the request. Once this data is in the tool it is

shown to the user. These actions are exactly the same for both representation choices

but the way in which the results are shown is different.

Once the tool is represented in the Mobile PLE it can be combined with other

applications the student’s use to learn. During the experience a widget following the

W3C recommendation is carried out and it has been represented included with the

widgets of the widget runtime WAC-1.0-compliant Golden for Android. This solution

will be valid for a PLE based on a container that supports these widgets such as

Apache Wookie (Incubating) and not only for a mobile device, but regarding to

mobile devices it is linked to a specific mobile device system (as Android) although it

can be included in other containers. Taking this into account it is also used the

representation with Moodbile that provides a tool for Android Systems, but also an

HTML5.0 (http://www.w3.org/TR/html5/) representation, which makes it

independent of the device system. Both representations are shown in Fig 4. The

problem of this solution is that it is joined to a specific LMS and that, is not so easy to

include other tools. This will be solved by using in Moodle interoperability

specifications such as BLTI (http://www.imsglobal.org/developers/blti/) that

facilitates tools integration that later could be shown through the mobile adaptation.

Fig. 4. Forum representation in a W3C widget (on the left side) and in Moodbile (on the right

side).

5 Conclusions

During this paper two main problems have been presented, one is related with the

shift to the user in learning contexts, which leads to the definition of the PLE concept,

the other is related with how to represent such element into a mobile device and also

to facilitate the communication with the existing LMS.

In order to do so an architectural approach has been posed and a proof of concept

that implements part of it is described. In such implementation two possible ways to

represent the system have been developed. Such implementation has been validated in

a quantitative way with students and teachers of the University of Salamanca.

Specifically several pilot experiences have been carried out. During this experience a

quasi-experimental methodology was used [37], with a control and a experimental

group. The students involve in the latter checked the approach with tablets, android

mobile phones, and a HTML 5.0 interface. Later they filled some tests and the data

gathered has been analyzed by using statistic techniques. From that experience it can

be concluded that, from the experimental group students’ perspective, the opportunity

to represent their PLE in a mobile device that includes functionalities and/or

information from the LMS and can be combined with other tools they use to learn,

encourages them to participate in the subjects and helps them to learn.

In order to guarantee these results the experience should be repeated in other

different contexts such as Secondary and Primary contexts and some improvements

should be done in the system i.e.: new tools needs to be adapted to be included in the

PLE; the activity of the users in other tools included in the PLE should be taken into

account from the LMS; problems related with widget representation in mobile devices

have to be solved; new ways to represent contents in such devices must be developed,

etc.

As a final conclusion it can be said that the definition and application of Mobile

PLE is possible, there exist several ways to do it, but any of them should consider the

interaction with the LMS.

Acknowledgements

This work is partially supported by the Ministry of Industry, Tourism and Trade of

Spain (Project IST-020302-2009-35), the Ministry of Education and Science of Spain

(project TIN2010-21 695-C02) and the Government of Castilla y León through the

project GR47

References

1. Prendes, M. P.: Plataformas de campus virtuales de Software Libre: Análisis compartivo de

la situación actual de las Universidades Españoles., Informe del proyecto EA-2008-0257 de

la Secretaría de Estado de Universidades e Investigación http://www.um.es/

campusvirtuales/informe.html (2009)

2. Wexler, S., Dublin, L., Grey, N., Jagannathan, S., Karrer, T., Martinez, M., Mosher, B.,

Oakes, K., Barneveld, A.v.: LEARNING MANAGEMENT SYSTEMS. The good, the bad,

the ugly,... and the truth., The eLearning Guild http://www.elearningguild.com/research/

archives/index.cfm?id=130&action=viewonly (2008)

3. Sakai-Pilot: Sakai Pilot Evaluation Final Report. University of North Carolina. http://

www.unc.edu/sakaipilot/evaluation/FinalRept-Oct15-09-sm.pdf (2009)

4. Cuban, L.: Oversold and underused: Computers in the classroom. Harvard University Press,

Cambridge, MA (2001)

5. Milligan, C.: The Road to the Personal Learning Environment? CETIS http://

zope.cetis.ac.uk/members/ple/resources/colinmilligan.pdf (2006)

6. Brown, J. S., Adler, R. P.: Minds on Fire: Open Education, the Long Tail, and Learning 2.0.

Educause Quarterly 42, 16-32 (2008)

7. Wesch, M.: From Knowledgable to Knowledge-able: Learning in New Media

Environments. Academic Commons http://www.academiccommons.org/commons/essay/

knowledgable-knowledge-able (2009)

8. Downes, S.: E-learning 2.0. Elearn magazine, http://elearnmag.org/subpage.cfm? section=

articles&article=29-1 (2006)

9. Attwell, G.: The Personal Learning Environments - the future of eLearning? eLearning

Papers 2, 1-8 (2007)

10. Adell, J., Castañeda, L.: Los Entornos Personales de Aprendizaje (PLEs): una nueva

manera de entender el aprendizaje. In: Roig Vila, R., Fiorucci, M. (eds.) Claves para la

investigación en innovación y calidad educativas. La integración de las Tecnologías de la

Información y la Comunicación y la Interculturalidad en las aulas. Stumenti di ricerca per

l’innovaziones e la qualità in ámbito educativo. La Tecnologie dell’informazione e della

Comunicaziones e l’interculturalità nella scuola. Marfil – Roma TRE Universita degli studi,

Alcoy, Spain (2010)

11. ITU: Mesuring the Information Society. International Telecommunication Union http://

www.itu.int/ITU-D/ict/publications/idi/index.html (2011)

12. Sclater, N.: Web 2.0, Personal Learning Environments, and the Future of Learning

Management Systems. Research Bulletin (2008)

13. Pettit, J., Kukulska-Hulme, A.: Going with the grain: Mobile devices in practice. Australian

Journal of Educational Technology - AJET 23, 17-33 (2007)

14. Jenkins, H., Purushotoma, R., Clinton, K. A., Weigel, M., Robison, A.J.: Confronting the

Challenges of Participatory Culture: Media Education for the 21st Century. White paper co-

written for the MacArthur Foundation http://www.projectnml.org/files/working/

NMLWhitePaper.pdf (2006)

15. Attwell, G., Cook, J., Ravenscroft, A.: Appropriating Technologies for Contextual

Knowledge: Mobile Personal Learning Environments. In: Lytras, M.O., P. et al. (ed.)

Second World Summit on the Knowledge Society, WSKS, vol. 2, pp. 15-25, Crete, Greece

(2009)

16. Cook, J.: Travelling Without Moving: Design-Based Research into Augmented Contexts

for Development. Journal of Interactive Media in Education (in press)

17. Thüs, H., Akbari, M., Schroeder, U.: Mobile Personal Environment for Higher Education.

PLE Conference 2011, pp. 1-10, Southampton, UK (2011)

18. Perifanou, M.: Using iphone as my “Personal Mobile Language Learning Environment”: an

exploration and classification of language learning possibilities. PLE Conference 2010,

Barcelona, Spain http://pleconference.citilab.eu/cas/wp-content/uploads/2010/06/

ple2010_submission_74.pdf (2010)

19. Jennings, T.: Technology Audit - CampusM. Ovum’s Knowledge Centers 2011)

20. Frost, C.: Only Connect Project - Final Report. JISC - Joint Information Systems Comitee

http://www.jisc.ac.uk/media/documents/programmes/emergetech/onlyconnectfinalreport.pd

f (2009)

21. Stubbs, M.: Researching Emerging Administration Channel. JISC - Joint Information

Systems Comitee http://www.jisc.ac.uk/media/documents/programmes/emergetech/

reachfinalreport.pdf (2009)

22. Razavi, M. N., Iverson, L.: A grounded theory of information sharing behavior in a

personal learning space. Proceedings of the 2006 20th anniversary conference on Computer

supported cooperative work, pp. 459-468. ACM, Banff, Alberta, Canada (2006)

23. Sachse, J.: The Standardization of Widget-APIs as an Approach for Overcoming Device

Fragmentation. GRIN Verlag GmbH (2010)

24. WEBINOS-Partnership: Webinos phase I architecture and components. 2011)

25. Pratt, J., Hinkelman, D., Bateson, G., Gettings, B., Sekiya, N., Takemoto, T.: Moodle for

Mobile. http://docs.moodle.org/en/Moodle_for_Mobiles (2006)

26. Yingling, M.: Mobile Moodle. Journal of Computing Sciences in Colleges 21, 280-281

(2006)

27. Alier, M., Casany, M.: Moodbile: Extending Moodle to the Mobile on/offline Scenario.

IADIS International Conference Mobile Learning., vol. 1, pp. 11-18, Algarve, Portugal.

(2008)

28. Conde, M. Á., Muñoz, C., García, F. J.: Sistemas de Adaptación de contenidos para

dispositivos móviles. In: Lozano, M., Gallud, J.A. (eds.) Actas del congreso de IX

Congreso Internacional de Interacción Persona - Ordenador, pp. 143-147, Albacete (2008)

29. Meisenberger, M., Nischelwitzer, A.: The mobile learning engine (MLE) - a mobile,

computer-aided, multimedia-based learning application. Multimedia Applications in

Education Conference, MApEC'04, pp. 52-58, Austria http://drei.fh-joanneum.at/mle/

docs/Matthias_Meisenberger_MApEC_Paper_mLearning.pdf (2004)

30. Casany, M. J., Conde, M. Á., Alier, M., García, F.: Applications of Service Oriented

Architecture for the Integration of LMS and m-Learning Applications”. In: Filipe, J.,

Cordeiro, J. (eds.) Fifth International Conference on Web Information Systems and

Technologies – WEBIST 2009, pp. 54-59. INSTICC Press, Lisboa (2009)

31. Google Summer of Code Ideas 2011 https://confluence.sakaiproject.org/display/

MGT/Google+Summer+of+Code+2011+ideas+list#GoogleSummerofCode2011ideaslist-

(Última vez accedido 20/04/2012)

32. García-Peñalvo, F. J., Conde, M. Á., Alier, M., Casany, M.J.: Opening Learning

Management Systems to Personal Learning Environments. Journal of Universal Computer

Science 17, 1222-1240 (2011)

33. Conde, M. Á., García-Peñalvo, F. J., Alier, M.: Interoperability scenarios to measure

informal learning carried out in PLEs. In: F. Xhafa, L.B., M. Köppen (ed.) Third IEEE

International Conference on Intelligent Networking and Collaborative Systems, IEEE

INCoS 2011, pp. 801-806. IEEE CS Press, Fukuoka, Japan (2011)

34. Conde, M. Á., Pozo, A., García-Peñalvo, F. J.: e-Learning Services in Moodle 2.0. CEPIS

Upgrade. 12, (2011)

35. Wilson, S., Sharples, P., Griffiths, D.: Distributing education services to personal and

institutional systems using Widgets. In: Wild, F., Kalz, M., Palmér, M. (eds.) Mash-Up

Personal Learning Environments - 1st Workshop MUPPLE’08, vol. 388, pp. 25-33. CEUR

Proceedings, Maastricht, The Netherlands, (2008)

36. OMG: Business Process Model and Notation. http://www.omg.org/spec/BPMN/1.1/PDF

(2008)

37. Campbell, D. T., Stanley, J.C.: Experimental and quasi-experimental designs for research.

Rand McNally (1963)
