Ontology and Fuzzy Measures based System for

Information Security Risk Assessment

Raihan Muratkhan, Dauren Kabenov and Dina Satybaldina

L. Gumilyov Eurasian National University, 5 Munaitpasov str., 010000 Astana, Kazakhstan

Abstract. Traditionally the information security risk is defined as a

combination of probability of negative event and a potential impact. But risk of

the breach of information security of the modern organization is the

multidimensional complex concept which is including set of interconnected

variables. Often values of risk factors cannot be precisely defined. Therefore

the information security risk assessment may be defined as a fuzzy problem. In

this paper algorithm of the problem decision of alternative's assessment which

has network-like estimation criteria structure is considered. Connections in

criteria structure are formalized by means of fuzzy integral of Sugeno.

Ontology-based information security knowledge domain has net-like structure

incorporating the most relevant information security concepts (assets, threats,

vulnerabilities and controls) and relations among them. Slots describe

properties of concepts and instances. Each property can be set to a specific

fuzzy value. The estimation criteria structure is network-like and is formalized

as the oriented graph with one source and many drains. The alternative's

estimation result is calculated in criterion-source.

1 Introduction and Related Work

Computational Intelligence (CI) is as advanced low level artificial intelligence that

uses computational adaptation to mimic human logic and reasoning. CI can be

realized in a number of different ways [1]. CI core methods such as artificial neural

networks, fuzzy systems, evolutionary computation, artificial immune systems,

swarm intelligence, and soft computing are described in [2]. The authors analyze a

significant number of research works and provide useful insights into how CI might

be used in an intrusion detection system. It was shown that many of these CI

technologies could easily be adapted to be used as mechanisms that can deal with the

numerous securities.

On the other hand recent studies have shown that the lack of information security

knowledge at the management level is one reason for inadequate or non-existing

information security risk management strategies [3].

Authors of [4] identified information security risk management as one of the top

ten grand challenges in information technology security and demanded sound theories

and techniques to support and enhance existing risk management approaches.

Incomplete knowledge about the information security domain in general and the

Muratkhan R., Kabenov D. and Satybaldina D..

Ontology and Fuzzy Measures based System for Information Security Risk Assessment.

DOI: 10.5220/0004097800770084

In Proceedings of the 9th International Workshop on Security in Information Systems (WOSIS-2012), pages 77-84

ISBN: 978-989-8565-15-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

current information security status of the organization was one of the main problems

in information security risk management. A creation of ontologies (e.g. General

Privacy Ontology [5], Security Ontology [6], NRL Security Ontology [7]) that define

the conceptual system of the subject area of information security reduced the severity

of the problem.

The essence of estimation problems consists in the following. On the basis of set

of alternative's characteristics values it is necessary to receive a unique estimation of

this alternative according to the criteria system. The criteria system is considered as

the estimation standard (ideal alternative). The estimation is considered as conformity

degree of this alternative to ideal alternative. Solutions of the multy-criteria problems

of assessment and classification with using of the integral of Sugeno or Choquet are

known [8-10]. However hierarchical problems with not crossed branches of hierarchy

are mainly considered in publications. It is essential restriction for many applications.

Therefore a universal algorithm development for solution of the fuzzy problems of

network structure criteria assessment is importance aspect. In this work the

information security risk estimation algorithm on the base of fuzzy measures is

considered. Reuse-used ontology [6], developed by authoritative experts in the field

of ontological modeling is a positive feature of the approach of risk analysis

2 Decision Algorithm of Fuzzy Assessment Problems with

Network-like Criteria Structure

The considered algorithm provides the problem decision of alternative's estimation

which has network-like estimation criteria structure. Criteria can be quantitative and

qualitative. Quantitative criteria correspond to alternative's characteristics which are

measured in quantitative scale. Qualitative criteria correspond to alternative's

characteristics which are measured in qualitative discrete scales. The algorithm

estimates alternative in several criterion contexts. Use of contexts provides the

description of network-like criteria structure. Criterion contexts formalize the

different view-points on estimation value. Connections in criteria structure are

formalized by means of fuzzy measures Sugeno.

Let's consider formal representation of criteria's system with network-like

structure. We are denoting set of estimation criteria:

},1,{

QicC ==

(1)

The criteria system is formed by means of relations set. Relations can have various

senses which depend on a problem. For example, relations can reflect functional

dependences of criteria or attributive connections. By analogy to the graphs theory,

the criteria system is the acyclic oriented graph with one source cs (the upper-level

criterion) and with many drains (the lower-level criteria)

},1,{

QjCcdCD =∈=

(2)

without dangling tops. The set CD is considered to be as the set of alternative's

characteristics. This set also is universal set in estimation problem.

Using fuzzy measures and fuzzy integrals, it is possible to construct the algorithm

for estimation problem decision. This algorithm will consist of following steps.

1) Transformation of alternative's characteristics values to values which are assigned

on discrete set D

Transformation is performed for formation of membership h

, which is used for

integration in quantitative criterion c

. Transformation is performed differently for

qualitative and quantitative characteristics of alternative.

For Qualitative Characteristics of Alternative. The assignment of qualitative

characteristics is performed directly on discrete set. Estimations of alternative's

qualitative characteristics are represented as membership

]1,0[: →

(3)

For Quantitative Characteristics of Alternative. For quantitative characteristics this

transformation is performed by means of linguistic variable, for example as shown in

[9].

To each quantitative criterion c

the linguistic variable is attributed:

]1,0[],[:;,1),,{(

maxmin

→==

ijijij

iji

RRtQjtdT

(4)

where ],[

maxmin

ijij

RR - is numerical interval which can be various for different pairs

),(

The linguistic variable T

is composed of functions which correspond to values set

elements of drain-criterion. These functions are assigned on numerical intervals. The

membership for integration is determined as the conformity degree of characteristic's

value to linguistic descriptions

iijijijiji

QjrtRReh ,1),,min(],max[{

maxmin

===

(5)

2) Consecutive aggregation of alternative's characteristics values in criteria. To each

criterion the set of fuzzy measures according to elements quantity of criterion

determination set is attributed:

iji

QjM ,1],1,0[2:)({ =→•=

(6)

This set is named as criterion contexts. For source-criterion the context is the self

criterion. Fuzzy measures are determined on values set of criterion.

The fuzzy integral of membership along fuzzy measure µ

provides calculation of

an alternative's estimation in criterion c

for context j:

;,1,)(

iij

Qjhse ==

∫

(7)

where membership is composed of alternative's estimations in criteria from D

Integration is performed consistently in all tops of criteria structure.

3 Security Ontology

Ontology is an explicit formal specification of the terms in explicit speciﬁcations the

domain and relations among them [11]. Ontologies are useful as means to support

sharing and reutilization of knowledge [12]. This reusability approach is based on the

assumption that if a modeling scheme, i.e., ontology, is explicitly speciﬁed and

mutually agreed upon by the parties involved, and then it is possible to share, reutilize

and extend knowledge. Many disciplines now develop standardized ontologies that

domain experts can use to share and annotate information in their fields. Problem-

solving methods, domain-independent applications, and software agents use

ontologies and knowledge bases built from ontologies as data [13].

Reusing existing ontologies may be a requirement if our system needs to interact

with other applications that have already committed to particular ontologies or

controlled vocabularies [13]. There are libraries of reusable ontologies on the Web

and in the literature, for example, the Ontolingua ontology library [14], or the DAML

ontology library [15].

An ontology is a formal explicit description of concepts in a domain of discourse

(classes (sometimes called concepts)), properties of each concept describing various

features and attributes of the concept (slots (sometimes called roles or properties)),

and restrictions on slots (facets (sometimes called role restrictions)) [15]. Ontology

together with a set of individual instances of classes constitutes a knowledge base.

Ontology development includes [15]:

• defining classes in the ontology,

• arranging the classes in a taxonomic (subclass– superclass) hierarchy,

• defining slots and describing allowed values for these slots,

• filling in the values for slots for instances.

Security Ontology [6] was used in this work. It was proposed based on the security

relationship model described in the National Institute of Standards and Technology

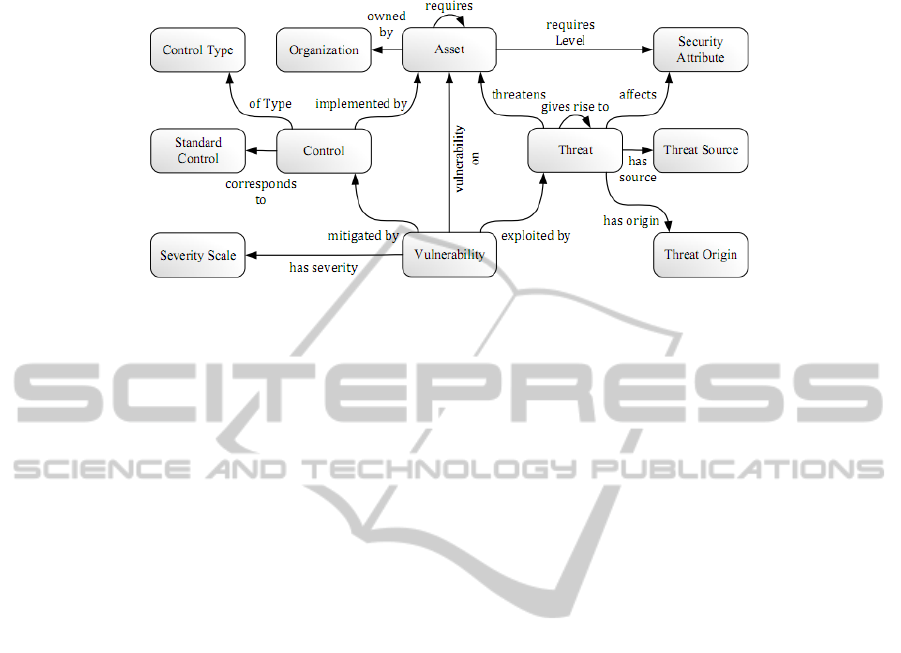

Special Publication 800-12 [16]. Figure 1 shows the high-level concepts and

corresponding relations of ontology.

Slots describe properties of classes and instances. Each property can be set to a

specific value or a formula to calculate this value of the property. All subclasses of a

class inherit the slot of that class. On the other hand, subclasses can have their own

properties.

Fragments of the ontology, including the structure and properties of concepts are

the basis for description of the situation, which is determined by the input data. The

concepts and relationships defined by the input conditions are introduced in addition

to these ontology fragments.

The security ontology comprises about 500 concepts and 600 formal restrictions;

to ensure a minimal encoding bias the ontology is represented by either graphical,

textual, or description logics (DL) representations, which were used to represent

knowledge in a structured, formal, and reasonable form.

Fig. 1. High-level concepts and corresponding relations of ontology [6].

4 Proposed Concept of Information Security Risk Assessment

System

Most existing risk analysis models are based on quantitative techniques such as

Monte Carlo Simulation and Annual Loss Expectancy. However, the information that

is related to most uncertainty factors is not numerical. FST provides an approximate

model for the evaluation of the risk faced by EC projects through a linguistic

approach. The procedure for fuzzy risk analysis is based on the works from [17] that

consisted of five steps: risk identification, natural language representation, fuzzy

assessment aggregation, and linguistic approximation.

The first step is to conduct risk identification and compile a list of the most

significant uncertainty factors and their descriptions. Before conducting fuzzy risk

analysis, one must identify the components of risks for the assets on the security

ontology base.

Knowledge base (metaclasses of the assets, threats, vulnerabilities, evaluation

criteria, etc) are developed with based on a comprehensive literature review and

interviewed with practicing auditors of an information security management system

[18,19].

Information security risk is a function of the likelihood of a given threat-source’s

a particular potential vulnerability, and the resulting impact of that adverse event on

the organization. To determine the likelihood of a future adverse event, threats to an

IT system must be analyzed in conjunction with the potential vulnerabilities and the

controls in place for the IT systems. The adverse impact of a security event can be

described in terms of loss or degradation of any, or a combination of any, of the

following three security goals: integrity, availability, and confidentiality. Therefore, it

is necessary to consider a large set of information sources and uncertainty of the

information. On the second step (natural language representation) the linguistic terms

sets, characterizing values of input parameters (asset value, asset criticality, threat

level, vulnerability level, impact level) and an output parameter (risk level) are

defined (see Table 1).

Table 1. Membership functions and the triangular fuzzy numbers of the linguistic term.

Likelihood Severity

Unlikely Low =1-4x 0≤x≤0.25

Medium Moderate =2(1-2x) 0.25≤x≤0.5

Likely High =3-4x 0.5≤x≤0.75

Very likely Critical =4x-3 0.75≤x≤1

In third stage (fuzzy assessment aggregation) an aggregate of several experts’

fuzzy assessment is performed by using the fuzzy average operation for aggregate

method. Adequacy of expert's preferences formalization depends on mathematical

properties of aggregation operator. Most effective formalization tool for connections

between criteria is the fuzzy measure Sugeno. And most effective aggregation tool is

the fuzzy integral.

From the mathematical view-point the Sugeno and Choquet integrals are in detail

considered in [10]. The Sugeno and Choquet integrals provide various properties of

aggregation procedure which depend from properties of fuzzy measure [20]. For

probability measure (0 = l) the fuzzy integral is equivalent to additive aggregation.

For possibility measure (1 - = l) the fuzzy integral is equivalent to maximum of

membership (fuzzy logic "OR"). For necessity measure (0 >> l) the fuzzy integral is

equivalent to minimum of membership (fuzzy logic "And"). Other values l will

determine other aggregation properties.

As the result of the calculated fuzzy weighted average is a fuzzy number, it is

necessary to translate it back into linguistic terms for easy interpretation. The goal of

linguistic approximation is to find the linguistic term with the closest possible

meaning to that of a defined fuzzy set. There are three techniques in linguistic

approximation: best fit, successive approximation, and piecewise decomposition [17].

The difference between these three techniques was discussed by Schmucker [21]. In

the present study, the best fit method is adopted because it is easy to understand and

easy to implement on computers [21]. This method is based on the ‘‘Euclidean

distance’’ between two fuzzy sets, as proposed in [22]. The model then assigns the

appropriate natural language expression to the lowest Euclidian distance associated

with fuzzy set X.

Fig. 2. Structure of assessment problem decision.

The proposed structure of risk assessment system does not differ from classical

structure of expert systems [20]. It is shown in figure 2.

The algorithm is software implemented by authors. The example of the

information security risk assessment of the organization according to international

standards requirements and preferences of the information assets owner is considered.

5 Conclusions and Future Work

This paper presented an ontology-based approach that addresses the problem of

information security risk assessment. The considered algorithm provides the problem

decision of alternative's estimation which has network-like estimation criteria

structure. Quantitative criteria correspond to alternative's characteristics which are

measured in quantitative scale. Qualitative criteria correspond to alternative's

characteristics which are measured in qualitative discrete scales.

The algorithm estimates alternative in several criterion contexts. Use of contexts

provides the description of network-like criteria structure. Connections in criteria

structure are formalized by means of fuzzy measures Sugeno.

The information security risk assessment focused on risk identification, analysis,

and prioritization. Less attention was given to the risk management planning,

resolution, and monitoring. Further research should be conducted into such risk

management planning. In addition, risk monitoring should be conducted regularly to

track the status of the identified risks. With such insight and improvement, the

proposed approach could be further enhanced to handle the functionality of risk

management.

References

1. Mazur, S., Blasch, E., Chen, Y. and Skormin, V.: Mitigating Cloud Computing Security

Risks usinga Self-Monitoring Defensive Scheme. Distribution Statement A: Approved for

Public Release, (2011) 88ABW-2011-3983.

2. Wu, S. X. and Banzhaf, W.: The use of computational intelligence in intrusion detection

systems: A review. Applied Soft Computing, Vol. 10, (2010) 1–35.

3. Straub, D. and Welke, R.: Coping with systems risk: Security planning models for

management decision making. MIS Quarterly, Vol. 22(4), (1998) 441-469.

4. Smith, S. and Spaord, E.: Grand challenges in information security: Process and output.

IEEE Security & Privacy, Vol. 2(1), (2004) 69-71.

5. Hecker, A., Dillon, T., and Elizabeth, C.: Privacy Ontology Support for E-Commerce,

Internet Computing, Issue No. 2, (2008) 54 – 61.

6. Fenz, S. and Ekelhart, A.: Formalizing information security knowledge. ASIACCS ‘09:

Proceedings of the 2009 ACM symposium on Information, computer and communications

security, ACM, (2009) 183-194.

7. Kim, A, Luo, J. and Myong, K.: Security Ontology for Annotating Resources. Naval

Research Lab, NRL Memorandum Report, NRL/MR/5540-05-641: Washington, D.C.,

(2005).

8. Yeong Min Kima and Chee Kyeong Kimb.: Fuzzy based state assessment for reinforced

concrete building structures. Engineering Structures, Vol. 28. 9 (2006) 1286-1297.

9. Magyla, T.: The evaluation implementation impact of centralized traffic control systems in

railways. Kaunas University of Technology - Transport, Vol.17, No. 3 (2002) 96-102.

10. Pham, T. and Wagner, M.: Similarity normalization for speaker verification by fuzzy

fusion. Pattern Recognition, vol. 33 (2000) 309-315.

11. Gruber, T. R.: Toward principles for the design of ontologies used for knowledge sharing.

International. J. of Human-Computer Studies, Vol. 43(5-6), (1195) 907–928.

12. Decker, S., Erdmann, M., Fensel, D. and Studer, D. Ontobroker: Ontology based access to

distributed and semi-structured information. DS-8: Semantic Issues in Multimedia Systems,

1999.

13. Noy, Natalya F. and McGuinness, Deborah L.: Ontology Development 101: A Guide to

Creating Your First Ontology'. Stanford Knowledge Systems Laboratory Technical Report

KSL-01-05 and Stanford Medical Informatics Technical Report SMI-2001-0880, March

2001.

14. The Ontolingua ontology library. [Online] Available from:

http://www.ksl.stanford.edu/software/ontolingua/

15. The DAML ontology library. [Online] Available from: http://www.daml.org/ontologies

16. NIST. An Introduction to Computer Security – The NIST Handbook. Technical report,

NIST (National Institute of Standards and Technology) (1995). Special Publication 800-12.

17. Ngai, E. W. T. and Wat, F. K. T.: Fuzzy decision support system for risk analysis in e-

commerce development. Decision Support Systems, Vol. 40 (2005) 235–255.

18. Satybaldina, D.: A Fuzzy Rule Knowledge-Based System for Information Security Risk

Analysis. American Index of Central Asian Scholarship (AICAS), Vol.1, № 2 (2010) 61–

67.

19. Satybaldina, D.: A formalized approach to determining security requirements. Proceeding

of the Third Congress of the World Mathematical Society of Turkic Countries. Almaty,

(2009) 215-221.

20. Sveshnikov,S. and Bocharnikov, V.: Contextual algorithm for decision of fuzzy estimation

problems with network-like structure of criteria on the basis of fuzzy measures Sugeno.

MPRA Paper No. 17351, posted 17 (2009). [Online] Available from: http://mpra.ub.uni-

muenchen.de/17351

21. Schmucker, K. J.: Fuzzy Sets, Natural Language Computations and Risk Analysis,

Computer Science Press, Rockville, MD (1984).

22. Dubois, D. and Prade, H.: Fuzzy Sets and Systems, Academic Press, New York (1980).
