Zero-knowledge Authentication for Self-managed

Vehicular Networks

C. Caballero-Gil, P. Caballero-Gil and J. Molina-Gil

Department of Statistics, Operations Research and Computing,

University of La Laguna, 38271 Tenerife, Spain

Abstract. This paper proposes a new solution for the practical, fast and secure

deployment of vehicular networks. Its main contribution is a self-managed au-

thentication method that does not require the participation of any certiﬁcation

authority because the nodes themselves certify the validity of the public-keys of

the nodes they trust, and issue the corresponding certiﬁcates that are saved in lo-

cal key stores according to an algorithm here proposed. In addition, the new node

authentication method includes a cryptographic protocol that each node can use

to convince another node about the possession of certain secret without revealing

anything about it. Thanks to all these tools, cooperation among involved vehi-

cles can be used to detect and warn about abnormal trafﬁc conditions. One of the

most interesting aspects of the proposal is that the required devices can be simple

existing mobile devices equipped with wireless connection. This work includes a

performance analysis of a simulation of the proposed algorithms and the obtained

results are promising.

1 Introduction

A Vehicular Ad hoc NETwork (VANET) is a spontaneous wireless network that allows

providing communications among nearby vehicles with the primary goal of improv-

ing road trafﬁc conditions. VANETs can be seen as a special type of Mobile Ad hoc

NETworks (MANETs) where nodes are vehicles. In many situations, communications

among vehicles might be used to prevent road accidents and to avoid trafﬁc collapses.

Consequently, a fast VANET deployment could help drivers to save time and money,

and to reduce contamination of the environment and consumption of fuel reserves.

There are several general security requirements, such as authentication, scalabil-

ity, privacy, anonymity, cooperation, stability and low delay of communications, which

must be considered in any wireless network. Those requisites are even more challeng-

ing in VANETs because of speciﬁc characteristics such as no ﬁxed infrastructure and

rapidly changing scenarios that range from rural roads with little trafﬁc to cities or high-

ways with a huge number of communications. In particular, wireless authentication in

VANETs has deep implications for privacy as it could lead to electronic tracking of

vehicles. Consequently, VANET security may be considered one of the most difﬁcult

research topics that need to be taken into account before a wide deployment of such

networks [11].

Caballero-Gil C., Caballero-Gil P. and Molina-Gil J..

Zero-knowledge Authentication for Self-managed Vehicular Networks.

DOI: 10.5220/0004098400390048

In Proceedings of the 9th International Workshop on Security in Information Systems (WOSIS-2012), pages 39-48

ISBN: 978-989-8565-15-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

The proposal here presented has as starting point the consideration that the intro-

duction of a complete model of VANET including Road Side Units (RSUs) and On

Board Units (OBUs) would be extremely expensive both for users, who would have to

buy new cars or install speciﬁc devices in their vehicles, and for the State, which would

have to deploy a huge infrastructure to support VANET services. Therefore, this work

proposes a self-managed VANET that does not require any infrastructure, and might be

used as a fast and secure introduction to more complex and complete VANETs.

This paper is organized as follows. Related work is reviewed in Section 2. In Section

3, proposals for the generation of public/private key pairs, for node characterization

and for beacon management are included. A zero-knowledge authentication protocol is

proposed and its simulation is shown in Section 4. In Section 5, a new method to save

certiﬁcates in key stores is brieﬂy described and its implementation is studied. Finally,

the paper is concluded with Section 6.

2 Related Work

The main goal of this paper is the deﬁnition of a simple, scalable and cross-layer design

for the immediate deployment of VANETs in order to exploit the potential of existing

mobile systems. The proposed scheme involves that users can cooperate through their

mobile devices and can start to obtain updated information of their interest about road

trafﬁc in order to choose the best updated route to their destinations. Our proposal takes

into account that the practical implementation of VANETs will be gradual, without any

RSUs or OBUs, and with only a few mobile devices at the beginning. The growth of

VANETs will be faster or slower depending on their popularity, acceptance and ease of

use. In this paper we focus on the ﬁrst phase, when the number of cooperating devices

on the road will be low. Once VANETs have grown, the model should be checked to

avoid unnecessary communications that might degrade the network. This particular is-

sue has been studied and possible solutions based on clusters have been proposed in [1],

where speciﬁc characteristics of inter-vehicle and vehicle-to-roadside communications

were taken into account to deﬁne different authentication services.

With respect to requirement minimization, several papers focus on different aspects

and applications of VANETs. [9] proposes a parking notiﬁcation scheme that does not

need any extensive infrastructure, but in that paper RSUs are required in the supported

parking spaces. [12] proposes a key management scheme for VANETs, which is used

to authenticate messages, identify legitimate vehicles and remove malicious vehicles.

However, such a proposal is based on the use of a public-key infrastructure, which

involves several difﬁculties in VANETs.

There are other bibliographic references that propose different types of authenti-

cation schemes for self-managed VANETs, following approaches that are entirely dif-

ferent to the one here presented. [3] proposes an authentication scheme that is based

on pseudonyms, while [8] describes a scheme that combines authentication, key estab-

lishment and blind signature techniques. With respect to public-key certiﬁcation, [7]

presents a method for certiﬁcate revocation based on car-to-car epidemic distribution,

and [6] proposes another mechanism for revoking security certiﬁcates, which needs a

certiﬁcation authority and certiﬁcate revocation lists.

Another paper with the same general objective as this work is [5], but it does not

address the communication security issue. Unlike the previous work, two papers that

analyze privacy issues in VANETs are [10], which is based on asymmetric and sym-

metric cryptography, and [13], which uses session keys.

Neither of the aforementioned works proposes a self-managed and secure approach

to VANETs, which is the main objective of this work. In particular, our proposal focuses

on allowing the immediate and secure deployment of VANETs through existing devices.

3 Components of the Proposal

The authentication proposal is based on a Zero-Knowledge Proof (ZKP), which is a

cryptographic protocol that a prover can use to prove possession of a certain piece of

information to a veriﬁer without revealing anything about it. During the authentication

procedure, the prover, denoted A, must answer to a number of challenges issued by

the veriﬁer, denoted B. The admission control included in the authentication proposal

described below uses the general scheme of ZKP described in [2] based on the graph

isomorphism problem, for the particular case of the Hamiltonian Cycle Problem (HCP),

which involves the determination of whether a cycle that visits each node exactly once

exists in a graph.

In the scheme here used based on certiﬁcate graphs [4], each node A has a pri-

vate/public key pair and a key store (KeyStore

) including a list of all node certiﬁcates

that A trusts. The set of stored public-keys and certiﬁcates might be represented as an

undirected graph G = (V, E), known as certiﬁcate graph, in which each vertex repre-

sents both a public-key and its owner, and each edge (A, B) symbolizes two public-key

certiﬁcates: of node A signed with the private key of node B and vice versa. A certiﬁ-

cate chain is an undirected path in a certiﬁcate graph. The subgraph G

of the certiﬁcate

graph G contains exactly the current certiﬁcates stored by node A in KeyStore

The generation of the public/private key pairs, and the characterizations of nodes

and management of beacons are explained in the following subsections.

3.1 Public/Private Key Pair Generation

In order to make it easier the implementation of the ZKP for the Hamiltonian cycle

in the node authentication process described below, the public-key is computed from

the decimal value of the binary representation for the upper triangular submatrix of the

symmetric adjacency matrix containing the elements corresponding to a Hamiltonian

cycle in a graph (see Figure 1). Such a decimal number corresponding to the binary

representation is used in the proposal as the exponent of the public-key in RSA encryp-

tion used by the mobile device to encrypt and decrypt messages and to sign public-key

certiﬁcates.

Figure 2 shows a trace of an election of a public/private key pair by using the HCP

for the generation of the public-key. After choosing the prime numbers p and q, the

public exponent e is generated from a random Hamiltonian cycle, so that it is lower

than and coprime with (p − 1)(q − 1). Afterwards, the private exponent d is generated.

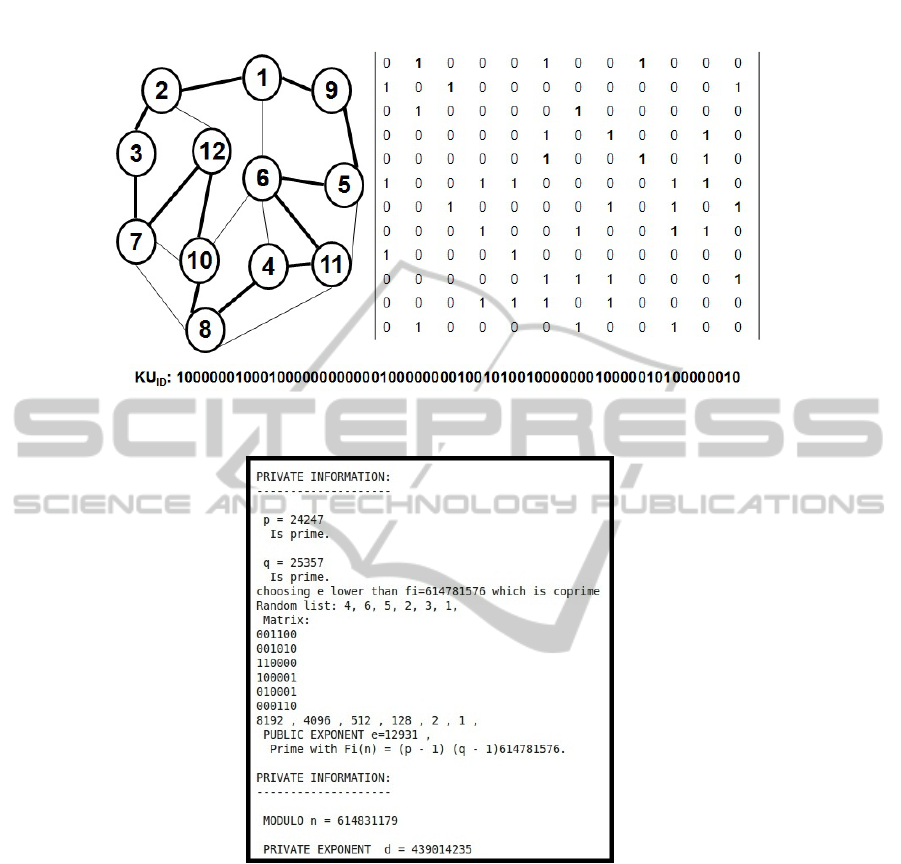

Fig. 1. Example of Hamiltonian Cycle Based Public-Key.

Fig. 2. Implementation of Hamiltonian Cycle Based RSA.

3.2 Node Characterization and Beacons

The present proposal assumes that each node in the network is characterized by the

following parameters:

ID, (KU

, KR

), (ID

, KU

, Cert(KU

))

∈KeyStore

which include:

– A unique IDentiﬁer (denoted ID), obtained as the output of a one-way function on a

single value. For example, if the used device is a mobile phone the value can be its

number, while in other cases an email address might be used. The one-way function

could be any hash function.

– A ﬁxed public/private key pair (denoted (KU,KR)) and called identity keys, which

are used in an asymmetric cryptosystem such as RSA.

– A key store containing various IDs and corresponding public-keys and certiﬁcates,

which the node keeps always updated.

Sending multicast beacons containing variable sender IDs are required both for the

active node discovery process and also to avoid vehicle tracking. In the same step where

beacons are sent, each node commits to its secret by sending to its neighbours also a

witness of its secret. The variable ID of each node that is sent as part of its beacon is

the hash of the IDs that are present in its key store at that moment.

In particular, the beacons sent by a node are formed by the following elements:

– Frame-Control (FC), which indicates the type of data being sent.

– Pseudonym (Pseu), which is a temporal ID of the node.

– Timestamp (Time), which allows knowing the speciﬁc time when the information

was generated.

– Pair formed by public-key and timestamp (KU, Time) encrypted with the private-

key (KR) of the node, which is used by nodes who have already authenticated it

when its Pseu changes.

4 Authentication

Within this proposal, the device associated to each network node should be able to gen-

erate its public/private key pair and also to sign the public-keys of other nodes that are

trustable and want to become part of the network. In order to be able to authenticate

its public-key, every node must exchange signatures with a number of legitimate net-

work nodes that depends on the width of the VANET. In the birth of the VANET, two

signatures are considered enough to prove that the user is reliable and cannot self-sign

certiﬁcates to compromise the network security, but the number of required signatures

must grow with the expansion of the VANET.

When a node A wants to check the validity of the public-key of another node B,

A must ﬁnd a certiﬁcate chain from it to B in the certiﬁcate graph that results from

merging the subgraphs G

and G

corresponding to KeyStore

and KeyStore

respectively. In particular, the authentication process of the public-key of a node A by

another node B and vice versa, is based on a chain of correct and not expired certiﬁcates

between A and B in the graph resulting from the union of the two key stores because:

1. The ﬁrst certiﬁcate in the chain can be veriﬁed directly by A (respectively B) be-

cause it was signed by itself.

2. Each of the other certiﬁcates in the chain can be veriﬁed by using the public-key of

the previous certiﬁcate in the chain.

3. The last certiﬁcate is B’s public-key (respectively A).

Fig. 3. Self-Managed Authentication Protocol.

Special packets are sent between users to authenticate each other. Among other

information, they contain the data FC, source Pseu and destination Pseu. Figure 3 shows

schematically the three phases of interaction included in the proposed self-managed

protocol for authentication between two nodes A and B.

The phases are fully described below. The ﬁrst phase is the discovering process,

which includes part of the beacons sent by nodes A and B, containing the hash of

the IDs stored respectively in KS

and KS

. Within this phase, both nodes ﬁnd out

whether a common public-key x exists in both keystores KS

∩ KS

. In such a case,

a graph is generated by each node from such an element. Those graphs G

(x) and

(x) are used in the second phase, based on a ZKP, to mutually prove the knowledge

of the common key x. In this way, during the last phase, both nodes are sure that they

can use the shared key x to exchange their temporal secret keys and key stores.

Algorithm 1: Authentication Scheme.

function Authentication Scheme()() (...)

D1. A → B: beacon with {h(ID

) : ID

∈ KS

}

D2. B → A: {h(ID

) : ID

∈ KS

} and a graph G

(x), if ∃x ∈ KS

∩ KS

D3. A → B: a graph G

(x) if ∃x ∈ KS

∩ KS

Z1. A → B (B → A): a graph GI

(x)(GI

(x)) isomorphic with G

(x)(G

(x))

Z2. B → A (A → B): a binary random challenge b(a)

Z3. A → B (B → A): if b = 0(a = 0) GI

(x) ≈ G

(x)(GI

(x) ≈ G

(x))

Z3. Otherwise a Hamiltonian circuit in GI

(x)(GI

(x))

E1. A → B (B → A): E

(KU

)(E

(KU

))

E2. B → A (A → B): KU

)(KU

))

E3. A → B (B → A): E

(KS

)

end function

The above algorithm allows any node to authenticate another node as well as to

exchange both secret keys to update both key stores.

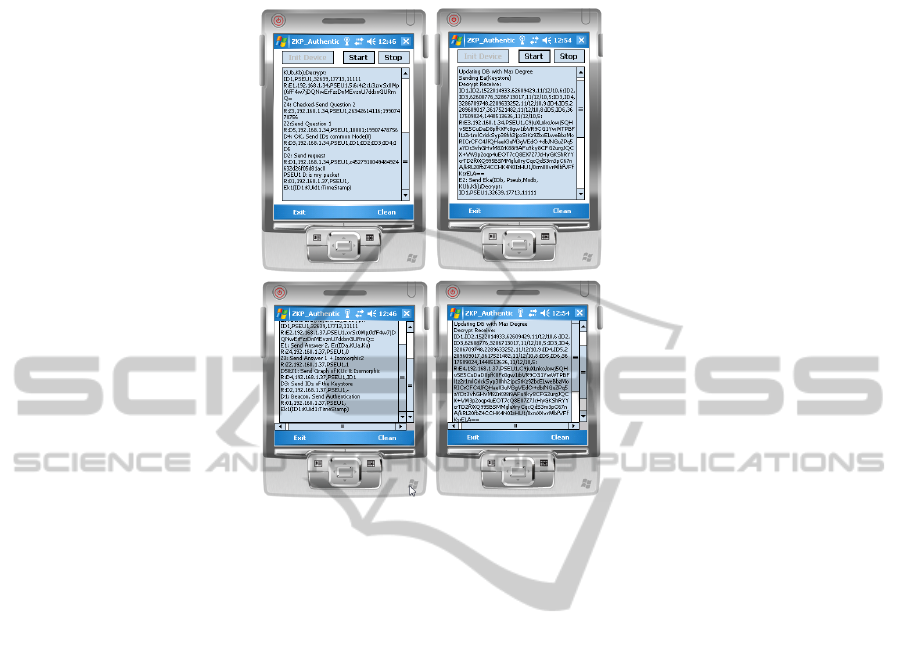

Figure 4 shows an implementation of the proposed authentication scheme performed

using Microsoft Visual Studio in C#.

A client-server capable of multiple connections at the same time is implemented

in each device. All signals about authentication and beacons are performed with UDP

Fig. 4. Implementation of the Authentication Scheme.

packets. Each client broadcasts beacons periodically to all connected devices in the

network. Each beacon is formed by the following data:

”01,” + thisIpAddr + ”,” + PSEU + ”,” + Ek1(ID1,KUid1,TimeStamp)

Before starting to use the device, the node needs information to communicate with

other devices, and in particular a database with three tables is loaded. These tables keep

data for a low number of users whose data (certiﬁcates and public key) are generated

with the generator:

certiﬁcateStore (idcolumn INT PRIMARY KEY, idA NTEXT, idB NTEXT, certAB

BIGINT, certBA BIGINT, date DATETIME);

keyStore (idcolumn INT PRIMARY KEY, idA NTEXT, PseuA NTEXT, module BIG-

INT, publicKey BIGINT, secretKey BIGINT, degree INT );

myStore (idcolumn INT PRIMARY KEY, idA NTEXT, PseuA NTEXT, modulo BIG-

INT, publicKey BIGINT, privateKey BIGINT, secretKey BIGINT, degree INT );

Incoming connections are managed on the server so that when one is received, the

server checks the identity of the node who sent the packet. After that, it checks whether

the node is already authenticated in the network, and if not, the authentication protocol

begins. The procedure the nodes use to send and receive information as indicated in

Algorithm corresponding to the Authentication Scheme.

5 Key Store Update

For the self-managed VANET here proposed, it is required that each node has its own

key store to authenticate other nodes. In these networks the number of users might be

huge, so we propose a scheme for storage of public-key certiﬁcates that exploits the

aforementioned principle of six degrees of separation. Thanks to such a property, it is

not necessary that each user stores the certiﬁcates of all nodes to be able to authenticate

them. Instead, only a minimum number of certiﬁcates have to be stored by each node

so that by merging the key stores of two users who want to authenticate each other, the

probability to ﬁnd at least one certiﬁcate chain in the merged graph will be high.

Consequently, the optimal update of the key stores is an important part of the pro-

posal as it allows limiting the number of stored keys to a value here denoted lim. Such

a value is generally less than the number of users forming the network, and equal to the

minimum number that allows any node to connect to any other node in the network.

In order to maximize the probability that any node is able to authenticate to any other

node while limiting the size of the key stores, different algorithms to update the key

stores can be used. A possible algorithm is proposed below. To update its key store, each

node chooses those public-key certiﬁcates corresponding to nodes that have issued or

received more valid certiﬁcates, what is represented by the degrees of the vertices is the

corresponding certiﬁcate graph. This choice maximizes the probability of intersection

between key stores, what is necessary for the authentication process.

Algorithm 2: Key Store Update.

01:function Update KeyStore() (...)

02: Initialize data structures;

03: Union:= KS

∪ KS

;

04: KS

= {B}

05:for each i ∈ KS

06: for each j /∈ KS

: (i, j) ∈ Union

07: if ((degree (j) = max(degree(neighborof iinU nion)))

&&(cardinal(KS

) < lim))

08: (i, j) ∈ (KS

)

09: end if

09: end for

10: end function

An implementation of the proposed key store update scheme has been performed

with the Network Simulator tool NS-2. In the performed simulation, an initial wire-

less network where nodes are randomly located produces the ﬁrst certiﬁcate graph.

Each node saves in its local key store the certiﬁcates of the nodes at distance 1. Then,

the nodes begin to move randomly, and when two nodes are at distance 1, they verify

whether they can trust each other and initiate a key store exchange for key store update.

New nodes can form part of the network by inserting new certiﬁcates in the certiﬁcate

graph. Also, any node can get out of the certiﬁcate graph if its certiﬁcate is not re-

newed.

After performing 25 simulations for 15, 20, 30 and 60 nodes, the average results

of executions with different types of networks show that performance may be consid-

ered in general acceptable. According to the simulations we can also conclude that the

scheme is affected by the mobility of the nodes because a higher mobility leads to a

faster increase and balance of the key stores. Thus, this is a convincing argument for

considering vehicular networks, since these are high mobility networks.

15 nodes 20 nodes 30 nodes 60 nodes

Total Connections 966,9 1011,52 2764,7 5309,0

Successful Connections 909,7 985,4 2749,8 5216,5

Failed Connections 57,15 26,12 14,92 92,5

Added Information 102,28 56,4 80,51 191,9

Key Store Updates 628,7 420,2 690,24 1475,9

6 Conclusions

This paper proposes a self-managed authentication method for VANETs that does not

require deploying any infrastructure on the road or any special equipment on vehicles,

what allows a gradual introduction of VANETs without any economic investment. To

make it possible, existing devices like smartphones can be used to run the algorithms

here proposed. The main contributions of this paper are a self-managed node authenti-

cation protocol based on public/private key pairs and certiﬁcate graphs, and a vehicle

discovering scheme with variable pseudonyms to protect node privacy and prevent vehi-

cle tracking. Another contribution of this paper is an algorithm to update key stores that

maximizes the probability of communication between any pair of nodes. Our proposal

allows the use of a hybrid scheme that combines secret and public-key cryptography,

what can be used both to optimize resources and to enforce node cooperation by avoid-

ing passive behavior of nodes. All the proposed algorithms have been simulated with

the Network Simulator NS-2 and implemented with Microsoft Visual Studio in C# in

mobile phones. The obtained results in both cases show a high level of performance.

Acknowledgements

Research supported by the Ministerio de Ciencia e Innovaci

on and the European FEDER

Fund under Project TIN2011-25452 and FPI scholarship BES-2009-016774, and by the

ACIISI under FPI scholarship BOC Number 60.

References

1. Caballero-Gil, P., Caballero-Gil, C., Molina-Gil, J., Hern

andez-Goya, C.: Flexible Authen-

tication in Vehicular Ad Hoc Networks. 15th Asia-Paciﬁc Conf. Communications, pp. 576–

879 (2009)

2. Caballero-Gil, P., Hern

andez-Goya, C.: Zero-Knowledge Hierarchical Authentication in

MANETs. IEICE - Trans. Inf. Syst. E89-D(3), 1288–1289 (2006)

3. Calandriello, G., Papadimitratos, P., Hubaux, J. P., Lioy, A.: Efﬁcient and Robust Pseudony-

mous Authentication in VANET. VANET ’07: 4th ACM international workshop on Vehicular

Ad Hoc networks, pp. 19–28. ACM, New York, NY, USA (2007)

4. Capkun, S., Buttyan, L., Hubaux, J. P.: Self-organized Public-Key Management for Mobile

Ad Hoc Networks. IEEE Transactions on Mobile Computing. 2(1), 52–64 (2003)

5. Dornbush, S., Joshi, A.: StreetSmart Trafﬁc: Discovering and Disseminating Automobile

Congestion Using VANET’s. VTC2007-Spring Vehicular Technology Conf. pp. 11–15

(2007)

6. Haas, J. J., Hu, Y. C., Laberteaux, K. P.: Design and Analysis of a Lightweight Certiﬁcate

Revocation Mechanism for VANET. VANET ’09: Sixth ACM international workshop on

VehiculAr InterNETworking, pp. 89–98. ACM, New York, NY, USA (2009)

7. Laberteaux, K. P., Haas, J. J., Hu, Y. C.: Security Certiﬁcate Revocation List Distribution for

VANET. VANET ’08: Fifth ACM international workshop on VehiculAr Inter-NETworking,

pp. 88–89. ACM, New York, NY, USA (2008)

8. Li, C. T., Hwang, M. S., Chu, Y. P.: A Secure and Efﬁcient Communication Scheme with

Authenticated Key Establishment and Privacy Preserving for Vehicular Ad Hoc Networks.

Comput. Commun. 31(12), 2803–2814 (2008)

9. Panayappan, R., Trivedi, J. M., Studer, A., Perrig, A.: VANET-Based Approach for Parking

Space Availability. VANET ’07: Fourth ACM international workshop on Vehicular Ad Hoc

Networks, pp. 75–76. ACM, New York, NY, USA (2007)

10. Plobl, K., Federrath, H.: A Privacy Aware and Efﬁcient Security Infrastructure for Vehicular

Ad Hoc Networks. Comput. Stand. Interfaces 30(6), 390–397 (2008)

11. Raya, M., Hubaux, J. P.: The Security of Vehicular Ad Hoc Networks. 3rd ACM workshop

on Security of Ad Hoc and Sensor Networks, pp. 11–21 (2005)

12. Studer, A., Shi, E., Bai, F., Perrig, A.: TACKing together Efﬁcient Authentication, Revo-

cation, and Privacy in VANETs. 6th Annual IEEE communications society conference on

Sensor, Mesh and Ad Hoc Communications and Networks, pp. 484–492 (2009)

13. Wang, N. W., Huang, Y. M., Chen, W. M.: A Novel Secure Communication Scheme in Ve-

hicular Ad Hoc Networks. Comput. Commun. 31(12), 2827–2837 (2008)
