Towards Experimental Assessment of Security Threats

in Protecting the Critical Infrastructure

Janusz Zalewski

, Steven Drager

William McKeever

and Andrew J. Kornecki

Dept. of Software Engineering, Florida Gulf Coast University, Ft. Myers, FL 33965, Florida, U.S.A.

Air Force Research Lab, Rome, NY 13441, New York, U.S.A.

Embry-Riddle Aeronautical University, Daytona Beach, FL 32114, Florida, U.S.A.

Keywords: Computer Security, Software Safety, Trustworthy Systems, Automation Systems, Industrial Control

Systems, Critical Infrastructure.

Abstract: Security is a system and software property essential in protecting infrastructure critical to the nation’s

business and everyday operation. It is often related to and overlapping with other trustworthiness properties,

such as safety and/or reliability. Mutual relationships of these properties and their interactions in real world

systems have been studied by multiple authors in a recent decade; however, they are rarely viewed jointly in

the context of critical infrastructure. The objective of this paper is to take a closer look at the relationship of

security with safety in computing systems, and present a unified view for further research. In particular, the

paper presents an overview of the state-of-the-art and focuses on the discussion of the unifying architecture,

which leads to interesting observations how security and safety are related. Preliminary experiments on

using safety concepts to assess security in industrial control systems with monitoring tools are discussed.

1 INTRODUCTION

Security as a computer system property has been

studied for several decades (Landwehr, 1981). Only

in this century it has become an important

component of investigating the protection of

nation’s critical infrastructure (U.S. GAO, 2004).

However, it has been mostly considered as separate

system attribute rarely associated with other

properties contributing to system or software

trustworthiness, such as safety or reliability.

A critical infrastructure can be viewed from a

number of different perspectives, ranging from plain

business viewpoint, on one hand, to a strictly

technical point of view, on the other hand. From the

technical perspective, the security issues cannot be

treated in isolation from other properties of

computing systems, because it impacts safety and

reliability, and vice versa.

In industrial applications, with a control system

in charge of the technological process, which are an

essential part of critical infrastructure, typically

safety was considered a critical system property. The

computer systems were designed such that the

behavior of computer software or hardware would

not endanger the environment in a sense that

equipment’s failure would cause death, loss of limbs

or large financial losses.

On the other hand, the security of industrial

computer control systems was typically limited to

the physical plant access and off-line protection of

data. With the miniaturization of computing devices,

growing sophistication of control, and with the

advent of the Internet, multiple functions of

industrial control systems have become accessible

online, which opens doors to enormous security

threats to the entire infrastructure.

Thus, to increase trustworthiness of industrial

computer systems, security and safety concerns

cannot be treated in isolation, and the mutual

relationships of safety and security have to be

studied and reconciled. One particular problem,

which is the motivation for this work, is that

currently there are no standards, or even adequate

research, to guide developers and manufacturers

through the issues of safety and security combined

together. Similarly, the relationship between security

and reliability has been complex and is an intrinsic

part of this research, but is not discussed in this

paper due to space limitations.

The objective of this paper is to look more

closely into the relationships of security and safety,

and analyze some of the impacts they may have on

207

Zalewski J., Drager S., McKeever W. and Kornecki A..

Towards Experimental Assessment of Security Threats in Protecting the Critical Infrastructure.

DOI: 10.5220/0004098502070212

In Proceedings of the 7th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2012), pages 207-212

ISBN: 978-989-8565-13-6

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

each other in the context of protecting the critical

infrastructure. The ultimate goal would be to

develop techniques to measure these properties and

enable assessment of system trustworthiness.

The rest of the paper is structured as follows.

Section 2 depicts the basic distinction in the roles

security, safety and reliability play in the interaction

between a computer system and its environment.

Section 3 outlines how security has been viewed,

historically, in the context of safety. Section 4

presents results of preliminary experiments on

relating security with safety, and Section 5 ends the

paper with some conclusions.

2 THE ROLES OF SECURITY,

SAFETY AND RELIABILITY

While security, safety and reliability are strictly

related and intertwined, they can be separated using

as a criterion the system’s interaction with the

environment (Figure 1). Such separation leads to

interesting analogies in studying overall

trustworthiness properties.

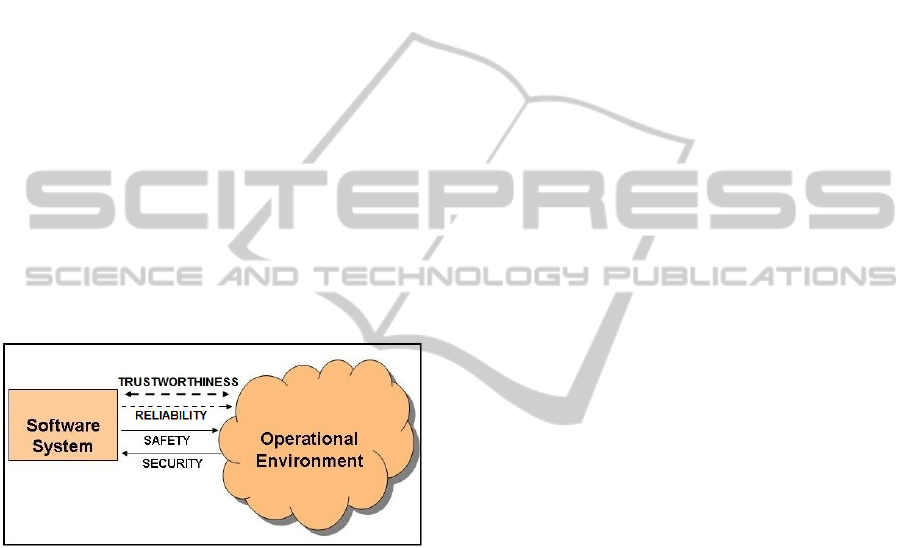

Figure 1: Illustration of trustworthiness properties.

The user or system designer usually views these

properties from the perspective of guarantees on

system behavior in terms of risk that “nothing bad

will happen” or that the risk of “something bad may

happen” is low. The risk is usually analyzed

involving potential hazards or threats that are related

to computer failures (both hardware and software).

Thus, in terms of risk and failures, the individual

roles of all three properties in the context of the

environment, as illustrated in Figure 1, can be

briefly described as follows:

 Security: when a failure leads to severe

consequences (high risk) to the computer

system itself;

 Safety: when a failure leads to severe

consequences (high risk) to the environment;

 Reliability: when failure does not lead to severe

consequences (high risk) to the environment or

a computer system, nevertheless the failure rate

is of principal concern.

To state it differently, reliability is relevant to

minimizing undesired situations and their effects (to

keep the system running), while security and safety

are relevant in preventing the computer system and

environment, respectively, from undesired situations

and their effects. The next section discusses the

relationship between security and safety.

3 MODELS RELATING

SECURITY TO SAFETY

There is a vast amount of literature discussing

jointly safety and security from the broader

perspective of placing these properties in the context

of system trustworthiness. A thorough literature

review reveals multiple entries only in the last

decade, discussing both general issues (Schoitsch,

2004; Nordland, 2007; Romanski, 2009; Pietre-

Cambacedes and Chaudet, 2010, Goertzel and

Winograd, 2011), as well as concerns of specific

industries, such as railways (Smith et al., 2003);

chemical (Hahn et al., 2005), off-shore (Jaatun et al.,

2008), automation (Novak and Treytl, 2008), nuclear

(Jalouneix et al., 2009), and industrial control

(Kornecki and Zalewski, 2010).

One particular early paper, by Burns, McDermid

and Dobson (1992), is worth mentioning, because

it’s probably the first one, which analyzes issues of

mutual dependency of safety and security. It is

essential in setting the scene for understanding

safety and security, as two complementary system

properties. The authors define both concepts

implicitly, as follows:

 a safety critical system is one whose failure

could do us immediate, direct harm;

 a security critical system is one whose failure

could enable, or increase the ability of, others to

harm us;

What Burns et al. call “us” is, in more

contemporary terms, the environment of a computer

system that is safety or security critical.

This view had far reaching consequences for

studying mutual relationships of safety and security,

probably best expressed in a series of papers by

Nordland (2007). Without referring to the original

paper by Burns et al., he defines both properties in

terms of computer system’s relationship with its

environment:

 safety – the inability of the system to have an

undesired effect on its environment;

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

208

 security – the inability of the environment to

have an undesired effect on the system.

As is clear from the above definitions, both by

Burns et al. and Nordland, safety and security are

understood as negative properties, that is, to provide

either safety or security one has to make sure that

certain events do not happen. This has severe

consequences to and causes significant problems in

system design, since the engineers are normally used

to designing systems to meet functional

requirements, which are expressed in terms “what

the system shall do”, rather than in terms of “what

the system shall not do”, as is clearly the case for

respective safety and security requirements.

In a view of these definitions it may be

surprising that newer publications not necessarily

take them into account, possibly assuming implicitly

the case. Most recently, for example, Goertzel and

Winograd, in their comprehensive survey (2011),

seem to have overlooked this fact in definitions of

safety and security, concentrating – however – on

other important relations between the two properties.

They characterize safety following MIL-STD-882D

as: “Freedom from those conditions that can cause

death, injury, occupational illness, damage to or loss

of equipment or property, or damage to the

environment,” which is consistent with the

understanding outlined above, however, they stop

short of defining security in terms of the interaction

between the system and its environment.

Instead, they concentrate on some important

characteristics of safety and security. For example,

the conditions referred to in the MIL-STD-882D

definition of safety are called hazards and

compared, incorrectly, to risks; incorrectly, because

risk is involved both with security and safety. What

is equivalent in security models to a hazard in safety

models is not risk but a threat, which is justly

pointed out by Goertzel and Winograd as a cause of

risk.

This analogy between hazards for safety and

threats to security leads to a deeper insight into the

relationship between both properties, and brings it to

the concept of dependability. This is because, as

pointed out by Nordland (2007), threats can lead to

exploitation of vulnerabilities in a system. In a

safety critical system, this would be equivalent to

activating faults in a system to endanger safety.

Thus, an analogy exists between vulnerabilities with

respect to security and faults with respect to safety.

To summarize, the results of this analysis

provided stronger evidence that, while safety and

security are strictly related and intertwined, they can

be separated using as a criterion the system’s

interaction with the environment (Figure 1). Such

separation leads to interesting analogies in studying

both properties within the framework of

trustworthiness.

Before proceeding with the analysis, it must be

noted that the view of safety and security properties

adopted in this work relies on the engineering

understanding of both properties. Another view

often used in studies of both properties, especially

that of safety (or liveness), having its roots in formal

specifications (formal methods), although important

in itself is out of scope of the current work.

4 PRELIMINARY

EXPERIMENTS

Based on the literature surveys, three types of safety

and security models have been distinguished:

 analytical models, built with formal theories;

 experimental models, based on measurements;

 computational models, which use simulations.

In this research, we are involved with the latter

two models, experimental model being the one

covered in the current paper.

4.1 Model Description

All models can be viewed in the context of a

particular architecture of real-time computing

systems, previously published in the literature (Sanz

and Zalewski, 2003). This architecture is based on

the typical control system, which interacts with the

environment via a number of input/output channels,

and involves all essential components of an

embedded system or a distributed control system, as

illustrated in Figure 2:

 interactions with the controlled process via

sensors and actuators;

 user interface;

 communication (network) interface;

 database interface.

The diagram shows an embedded controller

interacting with the controlled plant, which can be

any controlled device, such as an aircraft, missile,

not only a plant in a strict sense, such as a chemical

or nuclear power plant. In addition to specific

measurement and control signals, through which the

controller interacts with the plant, it also has

interfaces to interact with other controllers on the

network, the operator, and the database. These

multiple controller interfaces to the plant, the

network, the operator, and the database, are all

TowardsExperimentalAssessmentofSecurityThreatsinProtectingtheCriticalInfrastructure

209

subject to security threats. More importantly, to take

the analogy further, just like control theory assumes

that the plant (controlled object) is subject to

disturbances, security theory, if one is built for this

model, could assume that known or unknown threats

play the role of disturbances to the controller.

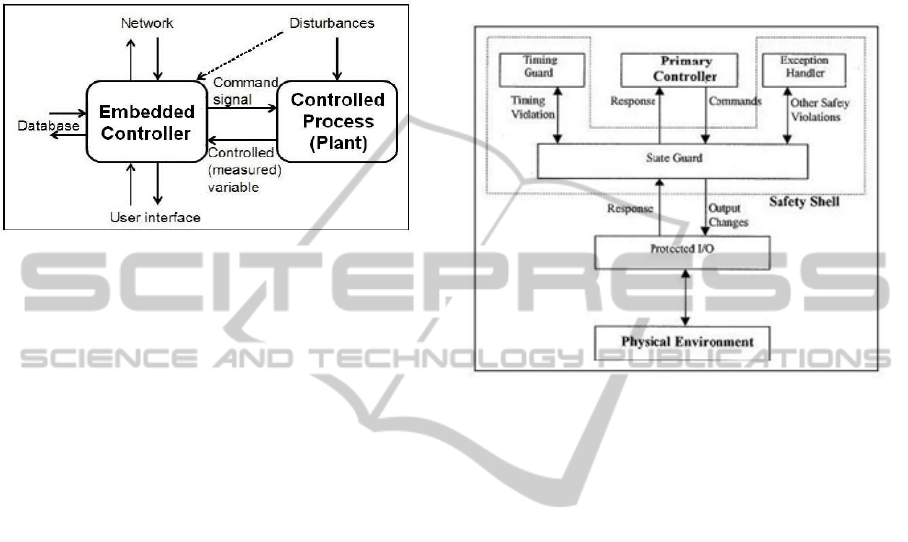

Figure 2: Typical real-time system architecture.

In other words, disturbances affecting the plant

in a traditional model of an embedded control

system can play a role of unexpected hazards, to

which controller’s software has to respond without

failure, mitigating faults. Threats affecting the

embedded controller can be modeled as disturbances

impacting controller’s behavior. Thus, analyzing

security breaches can be viewed in this model as

analyzing system failures, essential in the same way

as it is done in safety analysis.

4.2 From Safety Shell to Security

Safety analysis of a computer system starts with

identifying potential hazards that may be caused by

software or hardware failures or external conditions

(Leveson, 1995). Analyzing software architecture is

particularly helpful, in this respect, because it

identifies the major components that may be

potential sources of such hazards. Since security

analysis originates by identifying potential

threats/attacks, it is assumed that techniques

developed for safety analysis will be applicable to

providing security and its assessment.

There are multiple, well established

methodologies and techniques to address safety

concerns during the development process (Leveson,

1995), however, for the model presented in Figure 2,

we opted to choose an approach named safety shell,

because it fits well into a concept of analogy

between safety and security (Figure 3, Gumzej and

Halang, 2009).

The shell relies on an architectural model

enabling design of control systems. The concept is

based on implementing a “test first” design element

to prevent dangerous situations from occurring,

which is meant to detect a hazardous situation at its

beginning. By “testing first” the hardware processor

or software shell will either validate or invalidate the

current action and/or the desired action. It has been

developed further by Gumzej and Halang (2009) to

map the design on the UML model.

Figure 3: The concept of safety shell (Gumzej/Halang,

2009).

In essence, as shown in Figure 3, the physical

environment is separated from the controller by an

array of guards forming the shell. A state guard

constitutes the core of the shell layer and, with the

help of watchdogs performing specific lower-level

functions (such as responding to timing violations or

handling exceptions), is monitoring the status of all

signals interchanged between the controller and the

plant, acting as a protecting entity, before any

emergency occurs.

The safety shell is built for monitoring signals

interchanged between the controller and the plant,

that is, for sensors and actuators in the model from

Figure 2. However, nothing prevents the designer

from using the same concept for network

communication between the controller and the

environment. Given that the controller’s model from

Figure 2 is a generic model suitable for a modern

control system, the concept of a safety shell has been

applied in this research to the controller’s

communication interface, to monitor its network

access.

4.3 Actual Experiments

Thus, the concept of safety shell can be viable in

Industrial Control Systems (ICS), where controllers

and other computing devices forming a system are

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

210

spread over a larger area and external access is

provided to and from the enterprise network. This

configuration of ICS is typical for systems such as

SCADA (SCADA = Supervisory Control And Data

Acquisition), commonly used in larger plants, such

as water management plants, power plants, etc. A

usual ICS configuration is shown in Figure 4

(Schwartz et al., 2010). It includes all components of

a generic model from Figure 2, that is:

 central controller, shown as a control system;

 user interface (HMI – Human Machine

Interface);

 database (Historian);

 interaction with sensors and actuators (using a

number of protocols);

 the network interface.

Figure 4: Typical industrial control system (ICS)

architecture (Schwartz et al., 2010).

Given this analogy, we applied the concepts of a

shell to the actual ICS system in a Software

Engineering Lab at XYZ University. The role of the

watchdog guards of a safety shell is played by

network monitoring and penetration tools, in this

case: Wireshark and Metasploit, respectively (Top

Network Security Tools, 2012). The tools run in real

time and the data collected are stored in files

analyzed by the shell’s State Guard.

Because of limited space, in this paper, we only

analyze the Wireshark tests. They were conducted

by packet capturing sessions. During each session,

over 5000 packets were captured. Most of these

packets have little to do with the ICS security

testing, however they can be filtered out by looking

at specific features. For example, one can see the

regarding potential security violations. Fortunately,

the ICS implementation software successfully

encrypts the password part of the data packet.

A typical Wireshark packet capture screen

(Figure 5) shows multiple packets being highlighted

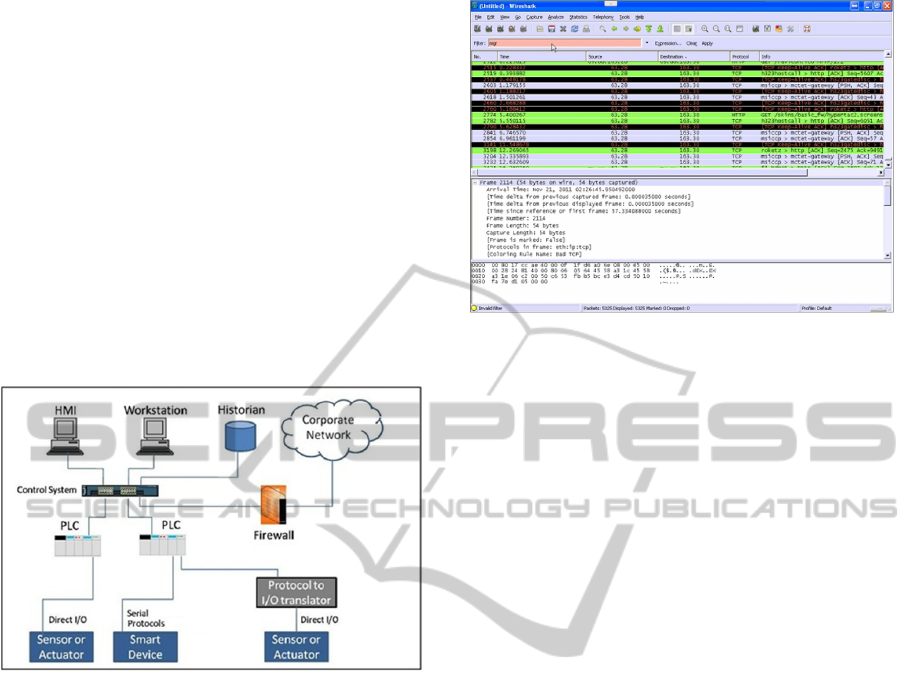

Figure 5: Illustration of broken packets caught by

Wireshark.

in black with red font. In Wireshark this type of

highlighting is reported as a “bad TCP” packet. With

TCP, each packet is sent with a checksum. When the

packet arrives at the server end, the checksum is

verified, however with these packets, the checksums

are not met. This does not necessary report a

security threat. Nevertheless, having a constant

stream of incomplete packets may be a potential

vulnerability that could be exploited. Further

investigation into why so many packets are being

sent with bad checksum would be recommended.

Similar analysis can be performed by the shell

for the Matesploit guard. In this case, however, we

only performed manual analysis of data. For the

actual real-time operation an automated data

analysis is needed, which requires use of artificial

intelligence techniques, due to massive amounts of

data produced by the tool.

5 CONCLUSIONS

The driving force of this research is that security,

safety and reliability properties represent

complementary ends of the same problem: system

trustworthiness, which is important in protecting the

nation’s critical infrastructure. While computer

safety prevents the environment from being

adversely impacted by the computer, computer

security prevents the computer system from being

adversely affected by the environment.

With a multitude of diverse issues and challenges

in trustworthiness of industrial computer systems,

including embedded systems, and a lack of a unified

approach to security, safety and reliability, we

propose a framework for an integrated treatment of

trustworthiness properties. The central point of this

TowardsExperimentalAssessmentofSecurityThreatsinProtectingtheCriticalInfrastructure

211

framework is a unified architectural model to study

mutual relationships among these three properties,

based on a controller’s interaction with the

environment. The model takes advantage of the fact

that all practical configurations of control systems

have a limited set of categories for input/output.

For the proposed framework, we conducted

initial experiments to evaluate the validity and

effectiveness of the process. In particular a concept

of safety shell was successfully applied in security

assessment for an ICS system.

Finally, it is worth noting that at this time no

single practice, process, or methodology offers a

universal “silver bullet” for evaluating system

trustworthiness. However, there exist a number of

practices and methodologies, to which the presented

approach can be adapted to increase the

trustworthiness of the produced software, both in its

development and operation.

ACKNOWLEDGEMENTS

This project has been funded in part by a grant

SBAHQ-10-I-0250 from the U.S. Small Business

Administration (SBA). SBA’s funding should not be

construed as an endorsement of any products,

opinions, or services. The first author acknowledges

the AFRL 2011 Summer Faculty Fellowship through

the American Society of Engineering Education.

Additional funding has been provided by the

National Science Foundation Award No. 1129437.

Students Michael Humphries (FGCU) and

Wendy Stevenson (ERAU) are gratefully

acknowledged for assistance in the use of tools and

conducting the experiments.

REFERENCES

Burns A., J. McDermid, J. Dobson (1992), On the

Meaning of Safety and Security, The Computer

Journal, Vol. 35, No. 1, pp. 3-15.

Critical Infrastructure Protection: Challenges and Efforts

to Secure Control Systems (2004), Report to

Congressional Requesters, GAO-04-354, U.S.

Government Accounting Office, Washington, DC.

Goertzel K. M., T. Winograd (2011), Safety and Security

Considerations for Component- Based Engineering of

Software-Intensive Systems, Booz Allen Hamilton.

Gumzej R., W. Halang (2009), A Safety Shell for UML-

RT Projects Structure and Methods of UML Pattern,

Innovations in Systems and Software Engineering: A

NASA Journal, Vol. 5, No. 2, pp. 97-105.

Hahn J., D. P. Guillen, T. Anderson (2005), Process

Control Systems in the Chemical Industry: Safety vs.

Security, Proc. 20th Annual CCPS International

Conf., Report INL/CON-05-00001.

Jaatun M. G., T. O. Grotan, M. B. Line (2008), Secure

Safety: Secure Remote Access to Critical Safety

Systems in Offshore Installations, Proc. ATC 2008,

5th Intern. Conf. on Autonomic and Trusted

Computing, Oslo, Norway, June 23-25, pp. 121-133.

Jalouneix J., P. Cousinou, J. Couturier, D. Winter (2009),

A Comparative Approach to Nuclear Safety and

Nuclear Security, IRSN, Tech. Rep. 2009/117.

Kornecki A., J. Zalewski (2010), Safety and Security in

Industrial Control, Proc. CSIIRW 2010, 6th Annual

Workshop on Cyber Security and Information

Intelligence Research, Oak Ridge, Tenn., April 21-23.

Landwehr C. E. (1981), Formal Models for Security, ACM

Computing Surveys, Vol. 13, No. 3, pp. 247-278.

Leveson N. (1995), Safeware: System Safety and

Computers. Addison-Wesley, Boston.

Nordland O. (2007), Safety and Security – Two Sides of

the Same Medal, European CIIP Newsletter, Vol. 3,

No. 2, pp. 20-22, May/June.

Novak T., A. Treytl (2008), Functional Safety and System

Security in Automation Systems, Proc. ETFA’08, 13th

IEEE Conf. on Emerging Technologies and Factory

Automation, Hamburg, Germany, pp. 311-318.

Pietre-Cambacedes L., C. Chaudet (2010), The SEMA

Referential Framework: Avoiding Ambiguities in the

Terms “Security” and “Safety”, Intern. Journal of

Critical Infrastructure Protection, Vol. 3, pp. 55-66.

Romanski G. (2009), Safe and Secure Partitioned Systems

and Their Certification, Proc. WRTP 2009, 30th IFAC

Workshop on Real-Time Programming, Mragowo,

Poland, October 12-14.

Sanz R., J. Zalewski (2003), Pattern Based Control

Systems Engineering, IEEE Control Systems, Vol. 23,

No. 3, pp. 43-60.

Schoitsch E. (2004), Design for Safety and Security of

Complex Embedded Systems: A Unified Approach,

Proc. NATO Advanced Research Workshop on

Cyberspace Security and Defense: Research Issues,

Gdansk, Poland, September 6-9, pp. 161-174.

Schwartz M. D. et al. (2010), Control System Devices:

Architectures and Supply Channels Overview, Report

SAND2010-5183, Sandia National Laboratories,

Albuquerque, NM.

Smith J., S. Russell, M. Looi (2003), Security as a Safety

Issue in Rail Communications, Proc. SCS 2003, 8th

Australian Workshop on Safety Critical Systems and

Software, Canberra, October 9-10, pp. 79-88.

Top 125 Network Security Tools (2012). URL:

http://sectools.org/

ENASE2012-7thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

212
