Elicitation of Specific Requirements of Data Quality

during the Web Portal Development

César Guerra-García

1,2

, Ismael Caballero

, Rodrigo Testillano

, Rafael Llamas

and Mario Piattini

Department of Information Technologies and Telemathic,

Polytechnic University of San Luis Potosí, Urbano Villalón 500, San Luis Potosí, México

Alarcos Research Group, Institute of Technologies and Information Systems,

University of Castilla-La Mancha, Paseo de la Universidad 4, Ciudad Real, Spain

Abstract. Data is one of the most important assets for making decisions and

concretizing business in organizations. So, providing data with adequate levels

of quality, especially for Internet applications is a very important issue.

However, most of developers of these applications do not take in account the

incorporation of artifacts to the necessary management of data quality (DQ)

from the early stage of development. Due to that, we have elaborated a strategy

with two approaches: methodologic and technologic. The first one is aimed to

identification the requirements corresponding to the Web portal functionalities

for the different kind of users and their specific DQ software requirements. For

the technologic approach, an UML profile to model the DQ software

requirements is shown; it embraces aspects considered basics to integrate in the

specification and modeling of these kinds of requirements. The final objective

is developing applications that satisfy the different DQ software requirements

specified by each user, at the moment to perform a function with the system.

1 Introduction

During the last years, the number of organizations and enterprises which have

developed Web portals have increased considerably [1]. This applications enable to

users the access to large amounts of data and information on line [2], through

different data resources [3]. Web portals have provided users with a more intuitive

and simple work environment, allowing users to find the data they need to perform

their tasks in a better way. However, the apparition of problems due to inadequate

levels of data quality (DQ) has been proven to negatively affect the tasks performed

by people, and consequently the performance of organizations. These problems can

cause a negative impact with a substantial cost, and not only in economic terms but

also social in the organizations [4]. The concept of DQ should not be longer

understood only as “zero defects” in the data, but “fitness for use” of data for a task

for a specific user, that is, the ability of a data set to satisfy user´s requirements [5]. In

this sense, a DQ software requirement supplied by a user can be specified, in which

indicates the characteristics of DQ required or needed to some data when they are

Guerra-García C., Caballero I., Testillano R., Llamas R. and Piattini M..

Elicitation of Speciﬁc Requirements of Data Quality during the Web Portal Development.

DOI: 10.5220/0004099700810093

In Proceedings of the 10th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems and 1st

International Workshop on Web Intelligence (WEBI-2012), pages 81-93

ISBN: 978-989-8565-14-3

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

used in certain specific task. The focus of this research is centred on how to elicit and

introduce in the stage of requirements analysis, the corresponding software

requirements for the management of DQ as a new kind of requirements. With this in

mind, in this paper we describe the work made. Firstly, it was carried out a systematic

review of the literature related with the purpose of getting a list of works done [6],

which could be presumably related both methodologic focus as technologic into the

area of DQ requirements specification. We have only found few proposals, as shown

by [7], [8] and [9] for the relational model, or these related to semantic technology

showed in [10] and [11], but none specifically related to deal with DQ requirements

management. Due to this reason, as part of the methodologic focus of the research, it

was designed a strategy of work in which the first step was relate the DQ problems

(potholes) identified in Information Systems (IS) described by Strong et al. in [12] to

the specific Web portal functionalities defined by Collins in [13]. In order to identify

the DQ characteristics that could be critiques at the moment to implement each one of

Web functionalities. Within this strategy, we got a list with a generic set of DQ

software requirements that any development team would like to include into a System

Requirements Specification (SRS) document. These requirements should guide to the

analyst in the identification of software requirements related to DQ from the

viewpoint of each role performing a task. Due to the above, the first objective of this

work is DAQUA-VORD, a methodology aimed to identify and elicit both kinds of

software requirements for Web portal development: those focused to functionalities,

and those ones oriented to DQ management. The second objective is included as part

of the technological approach, in which a UML profile is proposed in order to model

in a clear way, all DQ requirements related to each one of Web functionalities.

The remainder of the paper is structured as follows: Section 2 reviews the three

pillars in which our proposal is grounded: data quality measurement, Web portal

functionalities and the requirements elicitation method. Section 3 presents our

proposal: firstly the list of DQ software requirements, immediately the methodology

DAQUA-VORD, and finally the UML profile. In Section 4 an example of application

is shown. Finally in section 5 we introduce some conclusions.

2 Revision of Related Areas

2.1 Data Quality

In order to reduce the negative impact of problems (technical, organizational or legal)

due to inadequate levels of DQ [14], it is paramount that companies can have a

quantitative perception of their actual importance. So, they must assess how good

their organizational data resources are for the tasks at hand. Organizations have to

deal to the DQ, both in subjective perceptions by individuals that use the data, as

objective measures based on a set of data. An assessment of DQ in a subjective way

can reflect the needs and experiences of users with a set of data [8]. If the users assess

the quality of data as poor, their tasks could be influenced by this assessment [15]. As

mentioned, the most accepted definition for the concept “Data Quality” is “fitness for

use” [16]. This means that a user typically evaluates the quality of a set of data for a

particular task, which it is done in a specific context according to a set of criteria or

dimensions of DQ. An user performing a role within a IS can specify for a piece of

data different DQ software requirements as be necessary, specifying the DQ

dimensions that better represent this kind of requirements for a determined task. So,

the perception about the DQ level of a set of data could be different for diverse tasks,

even for the same user performing different roles. For measuring the level of DQ of a

piece of data, it is necessary to identify several DQ dimensions (known the set as “DQ

model”) which can characterize the DQ requirements in a better way. Although there

exists many DQ models most of them are quite domain dependant, which diminishes

their applicability. In order to get a broader perspective as possible, we chose for our

research the generic DQ model proposed in the standard ISO/IEC 25012 [17]. This

international standard brings together fifteen DQ dimensions from two points of view:

Inherent and System dependent.

2.2 Web Portal Functionalities

In stated in the introduction, our first step is to associate the relationships between

Web portal functionalities and those DQ dimensions, which would best represent the

various roles’ DQ software requirements. So, we must first enumerate and review

these functionalities as described by Collins [13]. We have reordered them in base to

our experience and knowledge in both data quality and web development areas:

Content Management, Process and actions, Search capabilities, Administration,

Security, Data points and integrations, Communication and collaboration,

Presentation, Taxonomy, Personalization and Help features. This reordering was

taking as criterion the following: a greater probability of using of a Web functionality,

a greater probability of being susceptible of finding inadequate levels of DQ.

2.3 Requirements Elicitation Method

The Requirements Elicitation is perhaps the activity most often regarded as the first

step in the Requirements Engineering process, this activity is responsible to identify

the stakeholders of the system and discover the requirements from them [18]. The

viewpoint-oriented approach takes into consideration the different viewpoints of the

different roles to structure and organize the requirement elicitation process [19]. The

key point of the viewpoint-oriented analysis takes into account the existence of

several perspectives and provides a framework to discover conflicts between the

requirements proposed by different viewpoints. The viewpoint can be used as a form

to classify the stakeholders. The VORD (Viewpoints-Oriented Requirements

Definition) method proposed in [19] was designed to guide the process of elicitation

and analysis of requirements having into account the different point of views of a

system. The steps of this method are: VI-1.Viewpoints Identification, VS-2.Viewpoints

Structuring, VD-3.Viewpoints Documentation and VL-4.Viewpoints Layout.

3 A Methodology for the Elicitation of DQ Software Requirements

3.1 Relation between DQ Dimensions and Web Portal Functionalities

Once presented in section 2.1 the DQ dimensions, and listed the Web functionalities

in section 2.2, we performed an analysis in both areas, it getting a matrix of

relationship between the DQ dimensions and Web portal functionalities. Considering

these relations at the moment to develop every one of Web functionality, it would be

possible to ensure that the data that will be stored and manipulated by the

functionalities have an acceptable level of DQ. Therefore, it is necessary to describe

the DQ requirements that can be drawn to avoid or minimize the effect of the

common source of problems, as those described by Strong et al. in [12]. So the main

challenge is not only to specify the relations itself, but also to express them through of

the specification of DQ software requirements. Once defined these kinds of

requirements the analyst will be able to specify the DQ dimensions that should be

observed and implemented for each one of the Web functionalities. In this sense, we

made an analysis about what kind of problems (defined by Strong et al. in [12]) could

be related to each one of the Web portal functionalities, it getting as result the next

matrix (see Table 1). Once completed the matrix, it was performed an analysis and

comparison of each one of DQ dimensions described both in the model proposed by

Wang and Strong [20] as in the standard ISO/IEC 25012. The aim of this comparison

was to resolve possible conflicts in the description of the different DQ dimensions,

either the existence of dimensions with the same name and different meaning, or

dimensions with different name but the same meaning.

Table 1. Matrix of relationship between web functionalities and problems identified by [12].

Problems (potholes)

Multiple

sources

Subjective

production

Production

errors

Too Much

information

Distributed

systems

Nonnumeri

information

Advanced

analisys

requiremen

Changing

task needs

Security

requiremen

Lack of

resources

Functionalities

Content Management √ √ √ √ √ √ √ √ √

Process and Action √ √

Search capabilities √ √ √ √ √

Administration √

Security √

Data points and

integration

√ √ √

Collaboration and

Communication

√ √ √ √

Presentation √

Taxonomy √

Personalization √ √

Help features

Finally, taking as reference the research published by Strong et al. in [12], where

the DQ dimensions that affect each one of the problems (“potholes”) were classified

based on their model [20], it was obtained the next matrix of relation (see Table 2). In

this matrix, the DQ dimensions established in the Wang´s model were changed by

their similar described in the standard ISO/IEC 25012.

Table 2. Matrix of relationship of web functionalities and DQ dimensions.

DQ Dimensions

(ISO 25012)

Accuracy

Completeness

Consistency

Credibility

Currentness

Accesibility

Compliance

Confidentiality

Efficiency

Precision

Traceability

nderstandabilit

Availability

Portability

Recoverability

Web Portal

functionalities

Content

Management

√ √ √ √ √ √ √

Process and

Action

√ √ √ √

capabilities

√ √ √ √ √ √

Administration √ √

Security √ √ √

Data points and

integration

√ √ √ √ √ √

Collaboration

and

Communication

√ √ √ √ √

Presentation √ √

Taxonomy √ √ √

Personalization √ √ √ √

Help features

3.2 DAQUA-VORD Methodology

As one result of this research, the DAQUA-VORD methodology is proposed, it can

guide developers in the specification of DQ requirements, it identifying for each one

of the functionalities selected, those DQ dimensions that have to be considered (and

implemented) according to previous matrix (Table 2). The specification of these DQ

dimensions from different perspectives (viewpoints) of the users performing a specific

task should be introduced as new software requirements. The reason why we decided

to use the “VORD” method as reference is that it allows the incorporation of DQ

management aspects during the requirement elicitation process. In this way, DQ

software requirements can be introduced as normal ones, but always taking into

account the diverse viewpoints of the different kind of users performing a task. It is

important assuring that techniques to be used can adequately capture and organize all

kind of requirements (e.g. functional requirements together with specific DQ

requirements). Descriptions of the stages of DAQUA-VORD methodology, mapped

from those one from VORD, as well as its subactivities, its input and output products,

and techniques/tools related will be next shown.

1. IWPV. Identification of the Web Portal Viewpoints. This stage is analogous to the

step VI-1 of VORD method. It implies to discover the different viewpoints that will

receive the functionalities of the Web Portal, besides the identification of the Web

Portal functionalities together with the DQ dimensions associated (see Table 3).

2. VS. Viewpoints Structuring. It is aimed at grouping the viewpoints related in a

suitable hierarchy. The main functionalities are located at the top levels of the

hierarchy, once done that, these functionalities are inherited to the viewpoints of low

level, besides the DQ dimensions are hierarchized in the same context (see Table 4).

Table 3. Artefacts and subactivities for the IWPV.

IWPV.1. Identification of the Web Portal Functionalities (IWPF) to be implemented, it implies to

identify the specific functionalities that are provided to each viewpoint.

Input Product

- List of identified viewpoints being able to propose software requirements

for the system.

- List of all Web Portal functionalities [13].

Output Product - List of chosen functionalities for satisfying requirements of each viewpoint.

Tools and techniques - Interviews - Study of documentation - Questionnaire - Brainstorming

IWPV.2. Identification of the Data Quality Dimensions (IDQD), it implies to identify the different DQ

dimensions related to each one of the functionalities described for each viewpoint, taking as base the

matrix of Table 2.

Input Product

- List of viewpoints identified being able to propose DQ requirement for the

system.

- List of chosen functionalities for satisfying requirements of each viewpoint.

- List of DQ dimensions (see Table 2) for each functionality.

Output Product

- List of DQ dimensions associated to the different functionalities.

- Document of System Requirements Specification.

Tools and techniques - Interviews - Work sessions - Brainstorming

Table 4. Artefacts and subactivity for the VS.

VS.1. Choose a DQ Model (CDQM), it consists of classifying the DQ dimensions according to the

hierarchy, in base at the priority level that the Web Portal functionalities have (listed in section 2.2).

Input Product

- List of viewpoints identified in the system.

- List of DQ dimensions associated to the different functionalities.

Output Product - List of classification of DQ dimensions (DQ Model).

Tools and techniques - Work sessions - Judgment of experts

3. DV. Documentation of the Viewpoints. It encompasses the refinement of the

description of the viewpoints and the functionalities identified, adding the DQ

dimensions (Table 5).

Table 5. Artefacts and subactivity for the DV.

DV.1. Documentation of the Data Quality Dimensions (DDQD), it consists of documenting or modeling

if possible, the DQ dimensions identified (e.g. through use cases diagram).

Input Product

- List of classification of data quality dimensions.

- Document of System Requirements Specification.

Output Product

- Document of System Requirements Specification (SRS) augmented with DQ

Requirements Specification.

Tools and techniques

- Work sessions - Judgment of experts - Tools like Word processors - Modeling

tools for UML

4. LVS. Layout of the Viewpoints of the System. It encompasses identifying the main

objects in an object-oriented design using the information of the functionality

encapsulated in the viewpoints (see Table 6).

3.3 UML Profile to Management of DQ Software Requirements

In this section we show the proposal for modeling of DQ software requirements, by

using a UML profile. Unlike of the proposals founded in the systematic review [21],

this profile is focused in modelling DQ software requirements from the perspective of

each user (viewpoint) at the moment to perform a specific task. The motivation of this

Table 6. Artefacts and subactivities for the LVS.

LVS.1. Modeling of Data Quality Requirements (MDQR), it consists of modeling the different DQ

requirements (DQ dimensions) in a data model and later on, in a process model.

Input Product - Document of SRS augmented with DQ Requirements Specification.

Output Product

- Document of high level design with awareness of data quality (data model and

process).

Tools and

techniques

- Object oriented modeling tools (Rational Rose, Visual Paradigm, Poseidon,

ArgoUML, etc.).

LVS.2. Validation of Model (VM), it consists of validating the complete model with the stakeholders.

Input Product

- Document of System Requirements Specification augmented with DQ

Requirements Specification.

- Document of high level design with awareness of data quality.

Output Product

- Final Document approved of “System Requirements Specification augmented

with DQ Requirements Specif”.

- Final Document approved of “High level design with awareness of data

quality“.

Tools and

techniques

- Work sessions - Interpersonal negotiation techniques

proposal appears from the necessity of allowing analysts and designers specifying in a

more clear way, which DQ dimensions (related each Web functionality) should be

implemented from the specification of user requirements. For this reason, both

functional requirements (information requirements) as DQ software requirements

should be considered from the earliest stages of development, because it will allow to

designer to model all the requirements through the convenient extensions (e.g. use

case diagrams). This UML profile specifies how the concepts of the Web

functionalities and the DQ dimensions are related and represented, through

stereotypes of UML language. The package that contains the stereotypes defined into

the profile (see Fig. 1) is represented with a extended class diagram of UML2 [22].

Fig. 1. Profile to specification of DQ requirements.

4 Example of Application

In Table 7, a typical problem statement for developing a Web portal is showed.

Table 7. Document of problem statement.

The ACME Realtors company would like to create an e-development solution that will replace the home

listing catalogs that are printed on a monthly basis. The new system will allow to any user doing search

in the property´s database for current listings or find a Realtor, but only users registered (prospective

buyers) will be able to initiate the loan process. Realtors will be able to list their properties on the

ACME Realtor system and update the pictures of every property. A prospective buyer will be able to log

on to the system and set up a personal profile. This profile will allow the buyer to enter a set of personal

preferences and search requirements. Buyers will also be able to bookmark properties to the personal

planner for easy reference the next time they log on. After a buyer has logged on to the system they may

choose to search for a home, find a Realtor, or apply for a mortgage loan. The buyer and Realtor should

be able to search for a home in a geographic area by city, zip code, or the Multiple Listing Service

(MLS) number. The buyer should be able to further narrow their search through a series of filter criteria

until they find a number of homes they are interested in. Any user and buyer should be able to view a

picture of the home and see a full text description on all the amenities and features that the home has to

offer. Finally, if the buyer is interested in receiving more information on the home, the buyer will be

able to send an e-mail to the listing broker. The prospective buyer has the option to apply for a mortgage

loan using the ACME Realty System. ACME Realtors has an existing Loan System that communicates

with a number of partner lenders to gain loan pre-qualification approvals. This system should continue

to be used for sending loan requests to potential lenders. The Realty System will ask the prospective

buyer a series of questions about their current financial standing. After the prospective buyer has

answered all questions, the system will send the data to the Loan System and receive a list of possible

offers for a loan. If the buyer chooses to select one of the pre-qualification offers, the system will inform

the customer that a credit report must be generated. The Administrator will be responsible to generate

the Credit Reporting. Realtors subscribe to a Credit Reporting service, and the existing interface to this

system should be used to provide this service. The buyer should be allowed to view the broker's

personal profile that may contain any type of information that the broker enters and also a summary of

all the properties that the broker currently has listed. Realtors must be able to access the on-line system

to modify their personal profiles that are displayed to buyers. The Administrator will be responsible to

create a new listing of properties and assign them to every Realtor. Besides, the Administrator will

assign the nominal fee of each property and he will be able to update some pictures.

Once shown the problem statement, we can begin with the application of the

methodology as follows:

1. IWPV. Identification of the Web Portal Viewpoints. One of main output product of

this stage is identifying the viewpoints, which are: (a) Buyer, (b) Realtor, (c) User,

and (d) Administrator.

IWPV.1. Identification of the Web Portal Functionalities (IWPF) to be implemented.

The output product consists of a list of requirements and functionalities identified (see

Table 8).

IWPV.2. Identification of the Data Quality Dimensions (IDQD). List of

DQdimensions identified for each one of the web functionalities (see Table 9). This

listwill be useful to analyst, since they will be able to select whatever of them.

2. VS. Viewpoints Structuring. The level of importance of each proposed

requirement, taking into account in this example the number of times that every

requirement is related to each viewpoint, it is as follow: (1) Login to the system, (2)

Search of properties, (3) Send an email, (4) Update pictures of properties, (5)

Subscribe to Credit Reporting Service, (6) See full description of properties, (7) Find

a realtor, (8) View a picture, (9) Initiate a loan process, (10) Setup a personal profile,

(11) Permit to mark properties to the personal planner, (12) Respond questions about

financial standing, (13) Choose a pre-qualification offer, (14) View the broker´s

personal profile, (15) View summary of properties assigned to realtors, (16) List their

properties assigned, (17) Modify personal profile, (18) Generate a credit report, (19)

Create a new list of properties, (20) Assign the nominal fee of each property. Taking

as basis the importance level of each requirement, we can hierarchize the viewpoints

in the next order: 1. Realtor, 2. Buyer, 3. Administrator, 4. User.

VS.1. Choose a DQ Model (CDQM). The output product is a hierarchized list of DQ

dimensions identified (taking as base Table 4): 1. Accessibility, 2. Compliance, 3.

Confidentiality, 4.Completeness, 5.Consistency, 6.Currentness, 7.Credibility.

Table 8. Identification of the Web Portal Functionalities (IWPF).

Viewpoint Functional Requirement

Web functionality described by

[13]

Buyer

FR1. Search of properties. Search capabilities

FR2. Initiate a loan process. Process and actions

FR3.Login to the system. Security

FR4. Setup a personal profile. Content Management

FR5. Permit to mark properties to the personal

planner.

Personalization

FR6. Find a realtor. Search capabilities

FR7. View a property´s picture. Search capabilities

FR8. See full description of properties. Presentation

FR9. Send an email.

Collaboration &

Communication

FR10. Respond questions about financial standing. Process and actions

FR11. Choose a pre-qualification offer. Process and actions

FR12. View the broker´s personal profile.

Collaboration &

Communication

FR13. View summary of properties assigned to

realtors.

Search capabilities

Realtor

FR14. List their properties assigned. Search capabilities

FR15. Update pictures of properties. Content Management

FR16. Subscribe to Credit Reporting Service. Process and actions

FR17. Modify personal profile. Content Management

FR9. Send an email.

Collaboration &

Communication

FR3. Login to the system. Security

FR1. Search of properties. Search capabilities

Administrator

FR18. Generate a credit report. Administration

FR19. Create a new list of properties. Content Management

FR20. Assign the nominal fee of each property. Administration

FR3. Login to the system. Security

FR9. Send an email.

Collaboration &

Communication

FR16. Subscribe to Credit Reporting Service. Process and actions

FR15. Update pictures of properties. Content Management

User

FR1. Search of properties. Search capabilities

FR7. View a property´s picture. Search capabilities

FR8. See full description of properties. Presentation

FR6. Find a realtor. Search capabilities

3. DV. Documentation of the Viewpoints. We use the following templates to

conveniently document the different viewpoints and requirements. The results are

gathered in Tables 10 and 11 (due to pages restriction of the paper, we only describe

some of them). This documentation is a key part of a System Requirement

Specification document augmented with DQ Requirements Specification.

Table 9. Identification of DQ dimensions.

Web functionality DQ dimensions related

Administration Completeness, Compliance.

Security Accessibility, Compliance, Confidentiality.

Process and actions Completeness, Currentness, Accessibility, Compliance.

Search capabilities

Completeness, Consistency, Credibility, Currentness, Efficiency,

Traceability, Understandability, Availability.

Personalization Completeness, Accessibility, Compliance, Confidentiality.

Collaboration and

Communication

Completeness, Consistency, Currentness, Accessibility, Compliance.

Presentation Completeness, Compliance.

Content Management

Completeness, Consistency, Credibility, Currentness, Accessibility,

Compliance, Confidentiality.

Table 10. Specification of viewpoint "Buyer".

Reference Buyer.

Focus Viewpoint of the Buyer, he performs the main business functionalities of the

application.

Attributes Name, address, telephone, email, salary.

Requirements Search of properties, Initiate a loan process, Login to the system, Setup a personal

profile, Permit to mark properties to the personal planner, Find a realtor, View a

property´s picture, See full description of properties, Send an email, Respond

questions about financial standing, Choose a pre-qualification offer, View the

broker´s personal profile, View summary of properties assigned to realtors.

Web

functionalities

Search capabilities, Process and actions, Security, Content Management,

Personalization, Presentation, Collaboration and Communication.

Exceptions None.

History No alterations.

Table 11. Requirement “Setup a personal profile”.

Reference Setup a personal profile.

Description

This requirement is related to manage and update of all the buyer personal

information.

Data Name, address, email, salary.

Viewpoints Buyer.

Non-functional

requirements

None.

DQ requirements

Completeness, Consistency, Credibility, Currentness, Accessibility,

Compliance, Confidentiality.

DV.1. Documentation of the Data Quality Dimensions (DDQD). As part of the output

product of this stage based on the Table 5, and with the goal of documenting and

modeling the DQ dimensions, we apply in this point the UML profile proposed

previously, this profile will permit us modeling DQ requirements (DQ dimensions)

associated to the different functionalities that the system will provide, taking as basis

this profile we can model an “Information case diagram”, which is much more

explicit that a common use case diagram. In this “Information case diagram” (see Fig.

2) we can see the requirements previously referred: “FR4. Set up a personal profile”

and “FR20. Assign the nominal fee of each property”, which can be modelled like

“Information cases” (IC), they maintain a relation of type “include” with the use

cases stereotyped like “DQDim”, it means that data managed for each one of

Information cases should satisfy the DQ dimensions specified. Thus, the developer

will have to consider the DQ dimensions at the moment of implementing the different

functionalities of the application. In this diagram, the Information Case “Set up a

personal profile” (associated with the Web functionality “Content Management”)

manages mainly the following pieces of data: name, address, email and salary. It

means that these data should be compliant with the DQ dimensions of Completeness,

Consistency, Credibility, Currentness, Accessibility, Compliance and Confidentiality.

In this specific case, the analyst has chosen modeling only three of them. Similarly,

the Information case “Assign the nominal fee of each property” (associated with the

Web functionality “Administration”) will manage the following pieces of data: ID

property, nominal fee, Realtor in charge and address. So, these data should be

compliant with the DQ dimensions of Completeness and Compliance.

4. LVS.1. Modeling of Data Quality Requirements (MDQR). The output product of

this stage based on Table 6, it consists mainly in getting an object-oriented design, it

should contains the main classes responsible for providing the functionalities of the

Web portal, as well as the classes responsible for implementing the DQ dimensions.

These diagrams are part of a document of high-level design with awareness of DQ.

LVS.2. Validation of Model (VM). Finally, the main documents obtained once

applied the methodology (“Document of System Requirement Specification with DQ

Requirements Specification” and “Document of high-level design with awareness of

DQ”) should be validated with the client.

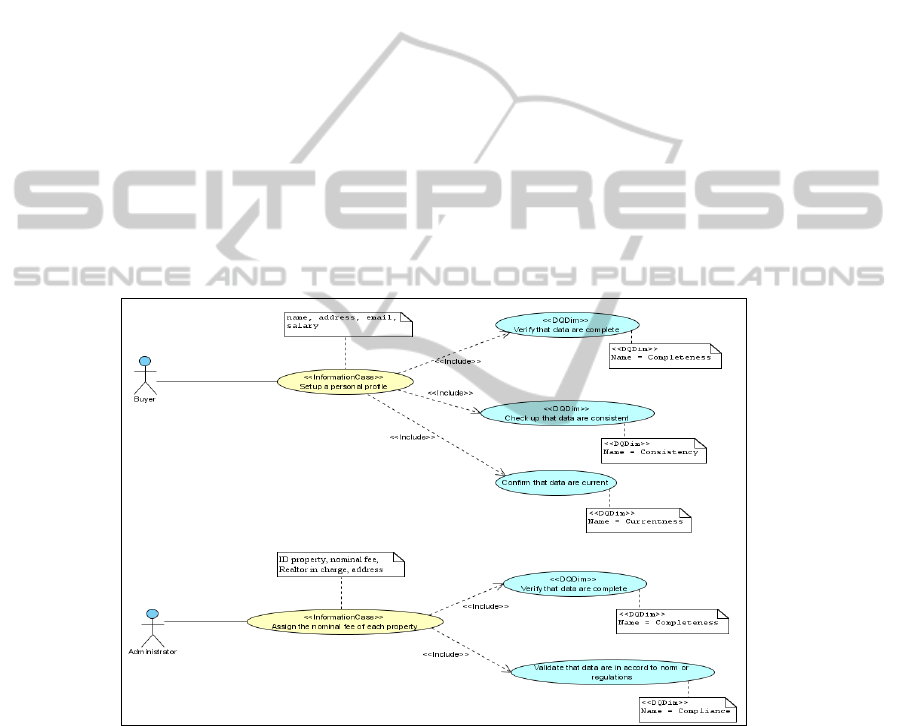

Fig. 2. Information case diagram.

5 Conclusions

At present, data and information are fundamental assets of any organization. In the

last years the Web portals has established as one of the main information sources in

Internet, and as means for allowing the access to information for all people.

Nevertheless, the great majority of users who seek information needs to be sure that it

has the adequate DQ level for the use that they require. A first solution to this

problem is showed in this paper, where it is described which DQ dimensions are

presumably related with the different Web functionalities. Immediately, we show a

Methodology to elicit and define DQ requirements (DAQUA-VORD), besides a UML

profile in order to modeling these kinds of requirements. Thus, we are able to

encompass both approaches: methodological and technologic. These approaches

could facilitate to the analyst and developers getting awareness about the DQ level

that need to be implemented for each one of the functionalities during all Web

development process.

Acknowledgements

This research is part of the PEGASO-MAGO (TIN2009-13718-C02-01), and IQMNet

(TIN2010-09809-E) projects, supported by the Spanish Ministerio de Educación y

Ciencia. ALTAMIRA project (PII2I09-0106-2463) supported by JCCM Consejería de

Educación y Ciencia.

References

1. Calero, C., A. Caro, and M. Piattini, An Applicable Data Quality Model for Web Portal

Data Consumers http://dx.doi.org/10.1007/s11280-008-0048-y World Wide Web 2008. 11

(4 ): p. 465-484

2. Yang, Z., et al., Development and validation of an instrument to measure user perceived

service quality of information presenting Web portals. Information and Management, 2004.

42(4): p. 575-589.

3. Mahdavi, M., J. Shepherd, and B. Benatallah. A Collaborative Approach for Caching

Dynamic Data in Portal Applications. in Proceedings of the fifteenth conference on

Australian database. 2004.

4. Eppler, M. and M. Helfert. A Classification and Analysis of Data Quality Costs. in

International Conference on Information Quality. 2004. MIT, Cambridge, MA, USA.

5. Cappiello, C. and M. Comuzzi. Efficient Allocation of Quality Improvement Efforts to

Support the Definition of Data Service Offerings. in 12th International Conference on

Information Quality. 2007. Cambridge, MA.

6. Guerra-García, C., I. Caballero, and M. Piattini, A Survey on How to Manage Specific Data

Quality Requirements during Information System Development. Lecture Notes in

Computer Science, 2011(Evaluation of Novel Approaches to Software Engineering).

7. Wang, R. Y. and S. Madnick. Data Quality Requirements: Analysis and Modelling. in

Ninth International Conference on Data Engineering (ICDE'93). 1993. Vienna, Austria:

IEEE Computer Society.

8. Wang, R. Y., A Product Perspective on Total Data Quality Management. Communications

of the ACM, 1998. 41(2): p. 58-65.

9. Becker, D., W. McMullen, and K. Hetherington-Young. A Flexible and Generic Data

Quality Metamodel. in International Conference on Information Quality. 2007.

10. Caballero, I., et al. DQRDFS:Towards a Semantic Web Enhanced with Data Quality. in

Web Information Systems and Technologies. 2008. Funchal, Madeira, Portugal.

11. Missier, P., et al., Quality views: capturing and exploiting the user perspective on data

quality. Proceedings of the 32nd international conference on Very large data bases-Volume

32, 2006.

12. Strong, D., Y. Lee, and R. Wang, Ten Potholes in the Road to Information Quality. IEEE

Computer, 1997: p. 38-46.

13. Collins, H., Corporate Portal Definitions and Features.2001, New York, NY, USA:

Amacom Books.

14. Caballero, I., et al. MMPRO: A Methodology Based on ISO/IEC 15939 to Draw Up Data

Quality Measurement Processes. in ICIQ. 2008.

15. Pipino, L., Y. Lee, and R. Wang, Data Quality Assessment. Communications of the ACM,

2002. 45(4): p. 211-218.

16. Ge, M. and M. Helfert. A Review of Information Quality Research. in International

Conference on Information Quality. 2007. MIT, Cambridge, MA, USA.

17. ISO-25012, ISO/IEC 25012: Software Engineering-Software product Quality Requirements

and Evaluation (SQuaRE)-Data Quality Model. 2008.

18. Sommerville, I., Integrated Requirements Engineering: A Tutorial. IEEE Softw., 2005.

22(1): p. 16-23.

19. Kotonya, G. and I. Sommerville, Requirements engineering with viewpoints. Software

Engineering Journal, 1996.

20. Wang, R. and D. Strong, Beyond accuracy: What data quality means to data consumers.

Journal of Management Information Systems; Armonk; Spring 1996, 1996. 12(4): p. 5-33.

21. Guerra-García, C., I. Caballero, and M. Piattini. A Systematic Literature Review of How to

Introduce Data Quality Requirements into a Software Product Development. in 5th.

International Conference on Evaluation of Novel Approaches to Software Engineering,

ENASE. 2010. Athens, Greece.

22. OMG. Unified Modeling Language: Superstructure. Versión 2.0. 2005; Available from:

<http://www.omg.org/docs/formal/05-07-04.pdf%3E.
