This paper presents the case for constraints (requirements formalised as logical assertions) as the key starting

point for software development. We describe how system development from such constraints can be auto-

mated.

1 INTRODUCTION

Software development methodologies such as Model-

driven Architecture (MDA) and Model-driven De-

velopment (MDD) have placed increasing emphasis

upon the modelling of systems at a level which ab-

stracts from speciﬁc platforms and implementation

technologies, and even from the details of particular

design strategies.

In this paper we describe an MDD approach based

on synthesis of executable systems from constraints

and declarative models, termed constraint-driven de-

velopment (Lano, 2008).

2 CONSTRAINT-BASED

SPECIFICATION

A unifying concept across many kinds of software

system is the notion of constraint preservation (or

invariant preservation): the system purpose can be

characterised as being to maintain the truth of some

properties relating real-world elements (people, ar-

tifacts, devices) and their representations within the

system, and to maintain properties that inter-relate

these representations.

For example:

1. A reactive controller for a lift system must main-

tain invariants for safety (if a lift is moving, its

doors must be closed) and performance (the re-

sponse time of the lift system to respond to a re-

quest should not exceed 5 minutes).

2. An online banking system should maintain data

integrity invariants for its persistent data storage

(that each account has a valid primary owner, that

customers must have valid ages and names, etc),

and invariants relating the stored data to the real

world elements they represent (each real-world

customer has an entry in the stored data which ac-

curately represents their personal attributes such

as name and address, etc, and vice-versa).

3. A machine translation system should ensure that

the sentences and texts that it outputs (eg., in Rus-

sian derived from English input) has the same se-

mantics as the input natural language sentences

and text.

4. A software development tool which allows co-

construction of UML class diagrams and state ma-

chine diagrams should maintain consistency be-

tween these models (eg., the transitions in the

state machine for a class must be triggered by op-

erations or events of the class).

In each case, we could represent the intention of

the system as the maintenance of some set

C1,...,Cn

of constraints. Sometimes these constraints are ex-

plicit and deﬁned as part of the requirements analysis

of the system (eg., cases 1 and 4 above), but more of-

ten they remain implicit and are not usually expressed

as system requirements (eg., cases 2 and 3).

Constraints and invariants, despite their appar-

ently static nature, are more fundamental than

behaviour-based descriptions of a system, because

system behaviour can be derived and deduced from

the constraints, whilst the reverse is not generally true.

If some event occurs which causes or may cause

the violation of a constraint, then the system must re-

act/respond to this event in such a manner as to pre-

vent the violation.

For example:

1. If the lift door sensor indicates that the doors are

open, the lift motor actuator should be set off.

355

Lano K. and Kolahdouz-Rahimi S..

Synthesis of Software from Logical Constraints.

DOI: 10.5220/0004101903550358

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 355-358

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

2. If a new customer is accepted by the online bank,

their details should be added correctly to the per-

sistent data store.

3. If a new input text is presented to the translation

system, its output text must be a semantically cor-

rect translation of the input.

4. If the set of operations of a class are altered on the

class diagram editor (eg., by deletion of an opera-

tion), then the state machine must change accord-

ingly (eg., all transitions triggered by the deleted

operation should be removed).

If the constraints are sufﬁciently complete and ex-

plicit, then the precise action required in response to

each potentially constraint-breaking event can be au-

tomatically deduced.

3 A SPECIFIC

CONSTRAINT-BASED

METHODOLOGY: UML-RSDS

UML-RSDS is a model-based development approach

with the following principles:

• Systems should be speciﬁed at a high level of

abstraction, to promote reuse. The abstract

speciﬁcations are computation-independent mod-

els (CIMs) in terms of the MDA, and are based on

the system constraints, expressed in UML models

such as class diagrams, use cases, state machines

and interactions.

• The generation of a design and implementation

from the speciﬁcation should be automated as far

as possible, so that correct executable systems can

be rapidly developed from abstract speciﬁcations,

and so that changes to the executable versions of

the system can be carried out in an agile manner

by modifying the speciﬁcation and regenerating

the code.

The approach is supported by an extensive

toolset (http://www.dcs.kcl.ac.uk/staff/kcl/uml2web)

which has been applied to a wide range of software

systems over 15 years (Lano et al, 2003b; Lano and

Kolahdouz-Rahimi, 2011a).

Related tools and methodologies are xUML

from Abstract Solutions Ltd. (http://www.kc.com)

and Perfect Developer from Escher Technologies

(http://www.eschertech.com/products/). Speciﬁca-

tions in these approaches however require the explicit

deﬁnition of operations as actions or pseudocode,

which are effectively detailed designs at the platform-

independent modelling (PIM) level in MDA terms.

UML-RSDS also supports direct design at this level,

but in addition it provides a higher level of abstrac-

tion at the level of constraints, and this is the recom-

mended style of speciﬁcation in UML-RSDS.

A simple system speciﬁcation in UML-RSDS

consists of a system data model deﬁned by a UML

class diagram and system functionalities deﬁned by

use cases, with various constraints, expressed in a

simpliﬁed form of the UML constraint language,

OCL:

1. Class invariants.

2. Global constraints of a class diagram.

3. Operation pre and postconditions.

4. Use case pre and postconditions.

5. State machine state invariants. and transition

guards.

For example, we could have a class diagram such

as that of Figure 1, with a global constraint deﬁning

that the value of x for a particular A object is the sum

of the z values of its attached C objects:

x = br.cr.z.sum

z : Integer

cr*

x : Integer

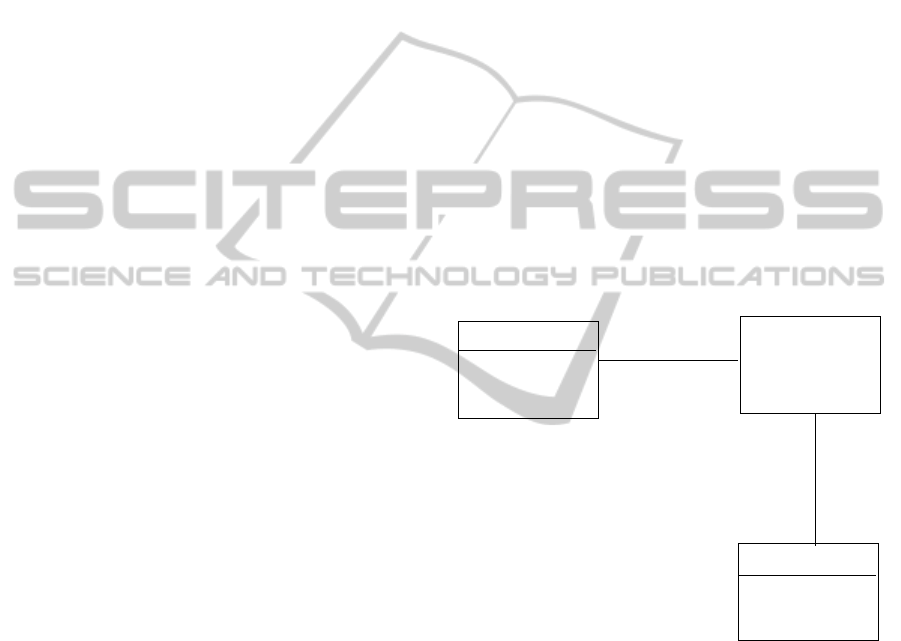

Figure 1: Composition of associations.

Changes to br, cr and z may affect the truth of the

constraint, and hence will require some response code

to re-establish the constraint. Such response code

can be mechanically calculated using the concept of

weakest precondition. The weakest precondition of a

constraint Cn with respect to an action or activity act

is denoted by [act]Cn, and is the most general con-

dition prior to execution of act which is sufﬁcient to

ensure that Cn holds after performing act.

We consider the following basic incremental

changes to a model:

• setatt(v) – Set the value of attribute att to v

• setrole(v) – Set the value of association end role

to v

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

356

• addrole(vx) – Add vx to the collection-valued as-

sociation end role

• removerole(vx) – Remove vx from the collection-

valued association end role

• setrole(i,vx) – Set the i-th element of a sequence-

valued association end role to vx.

Table 1 shows examples of wpc calculations for

these different kinds of operation, for local class in-

variants P of the class to which the operation belongs.

Table 1: Local constraint wpc calculations.

Operation act Weakest precondition [act]P

setatt(v) P[v/att]

addrole(vx) P[(role∪ {vx})/role]

removerole(vx) P[(role− {vx})/role]

setrole(i, vx) P[(role⊕ {i 7→ vx})/role]

In the example speciﬁcation, br is a local feature

of A, so the calculations of Table 1 apply to give the

condition

x = v.cr.z.sum

which must be established in order that setbr(v) re-

establishes the constraint.

In other words, the code of setbr(v) must perform

both its basic action

br = v

and the additional action

x = v.cr.z.sum

derived from the constraint. These actions can be per-

formed in parallel or sequentially in either order, as

neither action writes to data read by the other.

We can derive similar change-propagation code

for addbr(vx) and removebr(vx).

More interesting, and more challenging, is the

case of actions which affect non-local (ie., global)

constraints. For this example, changes to cr and to

z are in this category. The response to such changes

is performed in a class called Controller, which has

access to all objects of the system. In this class are

operations setatt(obj : C, v : T) which apply setatt(v)

to object obj, addrole(obj : C,vx : D) which apply

addrole(vx) to obj, and removerole(obj : C,vx : D)

which apply removerole(vx) to obj.

Globally, a constraint P based on class A has the

meaning that for all instances of A, P holds:

A→forAll(P)

Table 2 shows the response code for such global

operations, where A→forAll(P) contains the modiﬁed

feature f of the operation, and this is not a local fea-

ture of the class A upon which the constraint is based.

Table 2: Global operation wpc calculations.

Operation act Weakest precondition [act]P

setatt(ob,v) A→forAll(ob ∼ self implies

P[((ref − {ob}).att∪ {v})/ref .att])

setrole(ob,v) A→forAll(ob ∼ self implies

P[((ref − {ob}).role∪ v)/ref .role])

addrole(ob,vx) A→forAll(ob ∼ self implies

P[(ref.role∪ {vx})/ref.role])

removerole(ob,vx) A→forAll(ob ∼ self implies

P[((ref − {ob}).role ∪

(ob.role− {vx}))/ref.role])

In the second, third and fourth cases, role is a many-

valued association end.

In each case the condition ob ∼ self expresses that

the object ob is reachable via associations of the sys-

tem from self, a speciﬁc object of A. ref is the nav-

igation route from self to role, ie, role occurs in an

expression ref.role in P. The computation is iterated

over all the occurrences of the feature in P.

In the example speciﬁcation, this results in the fol-

lowing response code in addcr(bx, crxx):

A→forAll(bx : br implies

x = (br.cr∪ {crxx}).z.sum)

This deﬁnes a for loop over the instances of A. Only

the elements of A linked to bx via br need to modify

their x values to maintain the global constraint: other

instances of A cannot be affected by the change to

bx.cr.

In some cases a ﬁxpoint computation is needed to

enforce a constraint. An example is the calculation of

the maximum inheritance depth in a class diagram. If

generalisations have an integer attribute depth to ex-

press their depth in the inheritance hierarchy, this fea-

ture is characterised by the two constraints:

Generalization→forAll(g |

g.general.generalization.size = 0 implies

g.depth = 1)

Generalization→forAll(g |

g.general.generalization.size > 0 implies

g.depth = 1 +

g.general.generalization.depth.max)

Since depth is both read and written in the second

constraint, a ﬁxpoint iteration is used to enforce it.

From the computed response codes, complete

Java implementations of the operations of individual

classes and the controller class can be synthesised.

These operations are guaranteed to maintain the in-

variants (assuming the correctness of the Java virtual

machine, the operating system and hardware, etc).

In some cases a constraint Cn cannot be used to

produce executable response code, but instead it is

maintained by checking if application of an operation

SynthesisofSoftwarefromLogicalConstraints

357

op with particular parameter values would break the

constraint:

[op(pars)]not(Cn)

and if so, refusing the request for the operation. That

is, [act]Cn is taken as a precondition of the operation,

where act is the basic effect of the operation.

In general, given an operation op with basic code

act, and a constraint Cn, the UML-RSDS tools will

identify if (i) op can invalidate Cn, and if so, whether

(ii) response code or a precondition should be used to

react to or prevent this invalidation.

The ﬁrst check for a match between an operation

and a constraint is:

(I) : wr(act) ∩rd(Cn) 6= ∅

ie., some feature or entity updated by op is read by

Cn, or

(II) : wr(act) ∩wr(Cn) 6= ∅

ie., both the operation and constraint write to the same

entity or feature.

In some cases (eg., addbr and a constraint s ⊆ br

with br 6∈ rd(s)) the operation cannot invalidate the

constraint, despite the apparent data conﬂict.

If (I) holds and (II) does not, and if op deﬁnitely

affects Cn, then if Cn has an explicit operational in-

terpretation as an activity stat(Cn), then this activity

is added to the code of op to restore Cn, as described

above. If Cn does not have an operational form, then

[act]Cn is added instead as a precondition of op.

If (II) holds and op affects Cn, then [act]Cn is

added as a precondition of op.

4 EVALUATION

The UML-RSDS approach has been used for sub-

stantial applications, such as the speciﬁcation and

implementation of model slicing tools (Lano and

Kolahdouz-Rahimi, 2011b) and migration of UML

1.4 models to UML 2.1 (Lano and Kolahdouz-

Rahimi, 2010). The constraint-based speciﬁcations

are usually more concise than procedural speciﬁca-

tions in languages such as Kermeta (Drey et al, 2009),

and have been shown to be more comprehensible

(Kolahdouz-Rahimi et al, 2012).

REFERENCES

Drey, Z. and Faucher, C. and Fleurey, F. and Mahe, V. and

Vojtisek, D., Kermeta Language Reference Manual,

https://www.kermeta.org/docs/KerMeta-Manual.pdf,

April, 2009.

Kolahdouz-Rahimi, S. and Lano, K. and Pillay, S. and

Troya, J. and Gorp, P. V. Goal-oriented measurement

of model transformation methods, submitted to Sci-

ence of Computer Programming, 2012.

Lano, K. and Clark, D. and Androutsopoulos, K. Formal

speciﬁcation and veriﬁcation of railway systems using

UML, FORMS 2003.

Lano, K. and Clark, D. and Androutsopoulos, K. RSDS: A

subset of UML with precise semantics, L’ Objet, vol.

9, no. 4, pp. 53–73, 2003.

Lano, K. Constraint-driven development, Information and

Systems Technology, 50, 2008, pp. 406–423.

Lano, K. and Kolahdouz-Rahmi, S. Model migration trans-

formation speciﬁcation in UML-RSDS, TTC 2010.

Lano, K. and Kolahdouz-Rahimi, S. Model-driven develop-

ment of model transformations, ICMT 2011, 2011.

Lano, K. and Kolahdouz-Rahimi, S. Slicing techniques for

UML models, Journal of Object Technology, vol. 10,

pp. 11: 1–49, 2011.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

358
