Composing Model Transformations at Runtime

An Approach for Adapting Component-based User Interfaces

Diego Rodr

ıguez-Gracia

, Javier Criado

, Luis Iribarne

Nicol

as Padilla

and Cristina Vicente-Chicote

Applied Computing Group, University of Almer

ıa, Almer

ıa, Spain

Dpt. of Info. Communication Technologies, Tech. University of Cartagena, Cartagena, Spain

Keywords:

Adaptive Transformation, Rule Selection, MDE.

Abstract:

Nowadays, large part of the efforts in software development are focused on achieving systems with an as high

as possible level of adaptation. With the traditional technique of model-driven development this can be largely

accomplished. The inconvenience of these techniques however, is that the models are usually manipulated at

design-time by means of ﬁxed transformation. Furthermore, the transformations that manipulate these models

cannot change dynamically according to the current execution context. This paper presents a transformation

pattern aimed to adapt architectural models at runtime, this means that these models may change dynamically

at runtime. The transformations that produce this model adaptation are not ﬁxed, but dynamically composed

by selecting the most appropriate set of rules from those available in a repository. As an example scenario for

the application of these transformations, we chose architectural models representing component-based UIs.

1 INTRODUCTION

Model Driven Engineering (MDE) is based on the

construction of models using formal modeling lan-

guages, which can be either general-purpose (e.g.,

UML) or domain-speciﬁc. In order to allow models

to dynamically evolve, we need to use model transfor-

mations. This mechanism enables automatic model

redesign and improves model maintainability. Model

transformations usually show a static behavior which

prevents models to adapt to requirements not taken

into account a priori. Therefore, it is necessary to

provide model transformations with a dynamic behav-

ior that allows them to vary in time according to new

application or user requirements. The proposal pre-

sented in this paper aims to provide model transfor-

mations with such a dynamic behavior. In particular,

our proposal addresses the adaptation of architectural

models by means of transformations that are them-

selves adapted at runtime (Blair et al., 2009). The

architectural model deﬁnition is described in (Criado

et al., 2010a). We present a transformation pattern

according to which the transformations that carry out

the adaptation are not prepared a priori, but dynami-

cally composed at runtime from a rule model. At each

transformation step, this rule model evolves by apply-

ing a rule selection algorithm which selects the most

appropriate set of rules (from those available in a rule

repository) according to the current situation.

In order to achieve these goals, we use model-

to-model and model-to-text transformations

. When-

ever an adaptation of the architecture is required (e.g.,

when the user or the system trigger an event), a new

adaptation process is invoked. It takes the current ar-

chitectural model (containing information about the

current context) and generates an M2M transforma-

tion, speciﬁcally composed to carry out the adapta-

tion. We have implemented our M2T transformation

using Java Emitter Templates

, while the generated

M2M transformations are deﬁned in ATL (Jouault

et al., 2008). We selected ATL as it enables the

adoption of an hybrid (of declarative and impera-

tive) M2M transformation approach (Czarnecki and

Helsen, 2003). In fact, in ATL it is possible to de-

ﬁne hybrid transformation rules in which both the

source and the target declarative patterns can be com-

plemented with an imperative block. It is in this im-

perative logic where the rule selection algorithm has

been implemented. We have also deﬁned a rule meta-

model, aimed to help designers: (1) to deﬁne correct

transformation rules (the metamodel establishes the

EMP – http://www.eclipse.org/modeling/

JET – http://www.eclipse.org/modeling/m2t/

261

Rodríguez-Gracia D., Criado J., Iribarne L., Padilla Soriano N. and Vicente-Chicote C..

Composing Model Transformations at Runtime - An Approach for Adapting Component-based User Interfaces.

DOI: 10.5220/0004102702610266

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 261-266

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

structure of these rules and how they can be com-

bined), and (2) to store these rules in a repository.

As a case study, we have chosen the domain of

user interfaces as part of a project of the Spanish

Ministry to develop adaptive user interfaces at run-

time (Criado et al., 2010b). Here, user interfaces

are described by means of architectural models that

contain the speciﬁcation of user interfaces compo-

nents (Iribarne et al., 2010). These architectural mod-

els (which represent the user interfaces) can vary at

runtime due to changes in the context—e.g., user

interaction, a temporal event, visual condition, etc.

Therefore, our proposal is useful to adapt component-

based architecture systems at runtime (such as user

interfaces based on components) by means of mod-

els and model-driven engineering techniques. Our

approach presents two main advantages concerning

the adaptation of architectural models: (a) the model

transformation applied to the architectural model is

not ﬁxed, but dynamically composed at runtime, and

(b) this composition is made by selecting the appro-

priate set of rules from those available in a repository,

making the adaptation logic for the architectural mod-

els be upgradable by changing the rule repository.

The rest of the article is organized as follows: Sec-

tion 2 introduces the goal of adapting component-

based UIs. In Section 3 we detail the proposed ap-

proach to achieve model transformation adaptation at

runtime. Section 4 reviews related work. Finally, Sec-

tion 5 outlines the conclusions and future work.

2 UI ADAPTATION

The main objective of our proposal is to achieve the

adaptation of user interfaces at runtime. Speciﬁcally,

we are interested in simple and friendly User Inter-

faces (UI) based on software components, in a similar

way as iGoogle widget-based user interfaces do (i.e.,

a set of UI components). Thus, user interfaces are

described by means of architectural models that con-

tain the speciﬁcation of user interfaces components.

These architectural models (which represent the user



Chat

GUI

ideo

Audio

GUI

User Interface 1 User Interface 2

Architectural Model 1

Architectural Model 2

Chat

Audio Video

Adaptation

Process

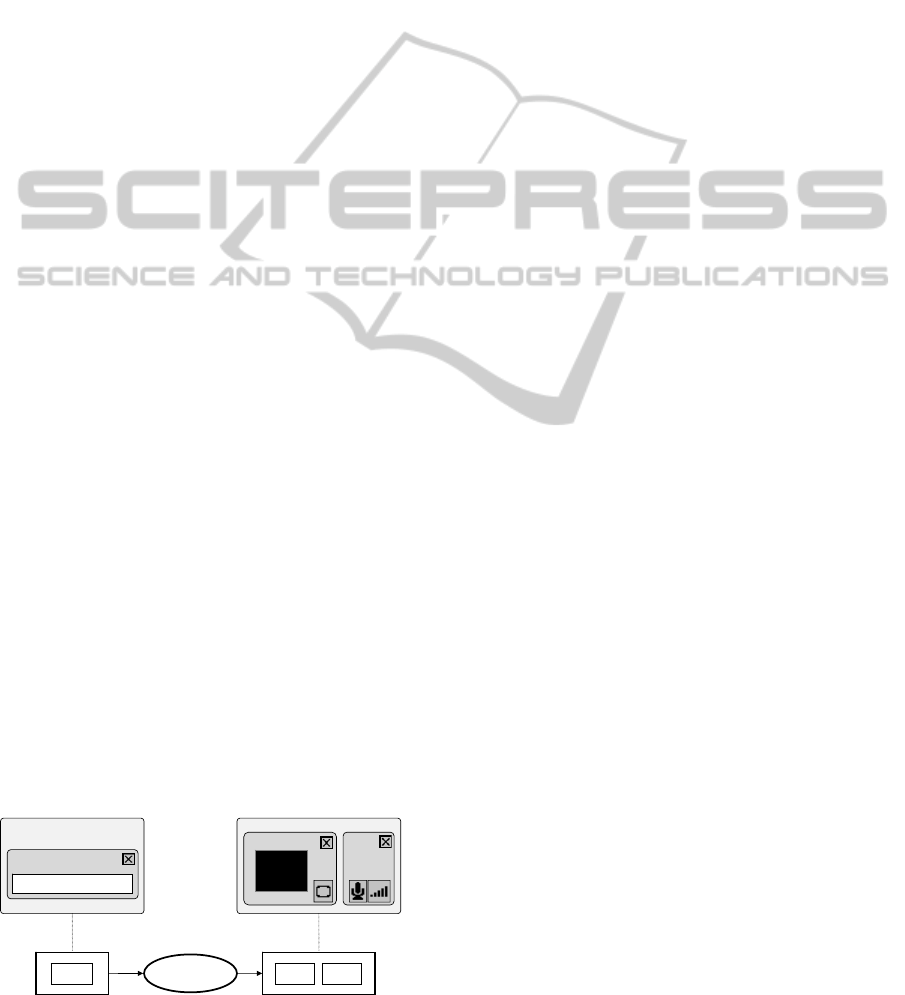

Figure 1: User interface adaptation.

interfaces) can vary at runtime due to changes in the

context –e.g., user interaction, a temporal event, vi-

sual condition, etc. For example, let us suppose an

user that is performing a communication by a chat

with other users. Consequently, the graphical user in-

terface offered by the system contains an UI compo-

nent providing the Chat service. Then, due to causes

out of the scope of this work, the system detects the

need for adapting the user interface to change the

communication method. This adaptation will aim to

to remove the chat component while audio and video

components will be inserted.

Figure 1 illustrates that the adaptation process is

performed at the level of architectural models repre-

senting the user interfaces. Once the new architec-

tural model is obtained, it will be executed a regener-

ation process to show the adapted user interface. This

regeneration process is not described because in this

paper we focus on the model transformation process

adapting the architectural models and how this M2M

is dynamically composed from a rule repository.

3 ADAPTATION PROCESS

As previously advanced, models created at design

time from model deﬁnition language are, in principle,

static elements. Here we will deﬁne design-time ar-

chitectural models and we want them to be changing

and adapting to the system’s requirements by means

of automatic changes. In order to modify our archi-

tectural models, we follow an MDE methodology so

that we can achieve their change and adaptation by

M2M transformations. We will design an M2M trans-

formation where both the input and output metamod-

els are the same: the abstract architectural metamodel

(AMM). Therefore, this process will turn an abstract

architectural model AM

into another AM

i+1

This ModelTransformation process enables the

evolution and adaptation of architectural models. Its

behaviour is described by the rules of such transfor-

mation. Thus, if our goal is to make the architectural

model transformation not be a predeﬁned process but

a process adapted to the system’s needs and require-

ments, we must get the transformation rules to change

depending on the circumstances. In order to achieve

this goal, we based on the following conditions: (a)

Build a rule repository where all rules that may be

applied in an architectural model transformation are

stored; (b) Design a rule selection process that takes

as input the repository and generates as output a sub-

set of rules; (c) Ensure that the rule selection process

can generate different rule subsets, depending on the

circumstances; (d) Develop a process that takes as in-

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

262

put the selected rule subset and generates an architec-

tural model transformation; and (e) Ensure that both

the described processes and their elements are within

the MDE framework. According to these steps, we

observed a variety of similarities and analogies be-

tween the elements present here. Such similarities

have been generalized and expressed in the transfor-

mation pattern described in Section 3.1.

3.1 Transformation Pattern

Building a transformation pattern allows us to model

the structure and composition of generic elements that

may exist in our transformation schema. Such ele-

ments provide us with some information about the

types of modules that can be included in possible

transformation conﬁgurations and how they connect

with the rest of the schema elements. Furthermore,

this pattern offers us the possibility of changing such

schema by creating a different model from the meta-

model deﬁned in Figure 2.

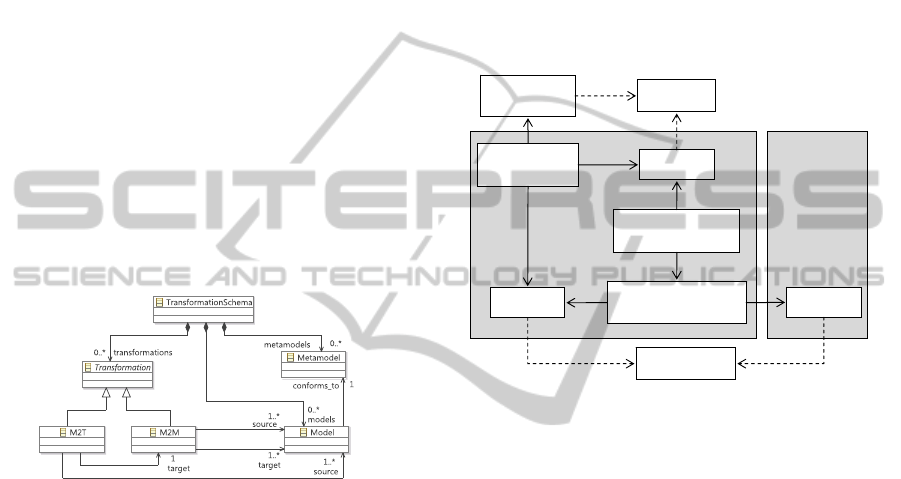

Figure 2: Transformation pattern.

A TransformationSchema is made up of three

different types of elements: transformations, mod-

els and metamodels. Metamodel elements describe

the model deﬁnitions of the transformation schema.

Model elements identify and deﬁne the system mod-

els. Transformation elements can be classiﬁed into

two groups: M2M and M2T. M2M transformations repre-

sent model-to-model transformation processes; there-

fore, they will have one or more schema models asso-

ciated both as input and output through the source

and target references, respectively. On the other

hand, M2T transformations represent the transforma-

tion processes that take as input one or more system

models (through source) and generate as output a

model-to-model transformation (through target).

3.2 Transformation Schema

In accordance with the transformation pattern in Sec-

tion 3.1, we developed our adaptive transformation

for architectural models at runtime whose transforma-

tion schema is shown in Figure 3. The behaviour and

sequence are as follows:

(a) RuleSelection, is the rule selection process that

starts when an attribute from a deﬁned class in the

initial architectural model (AM

) takes a speciﬁc

value (i.e., when the user or the system trigger an

event). This process, that is carried out at runtime,

is obtained as an instance of the M2M concept. It

takes as input the repository model (RRM) and the

(step #1 in Figure 3), and generates as output

(step #2) a rule transformation model (RM

) for

architectural models, being RM

⊆ RRM.

<<model>>

RRM

(repository)

<<metamodel>>

RMM

<<model>>

<<transformation>>

RuleSelection

(M2M)

<<transformation>>

RuleTransformation

(M2T)

<<transformation>>

ModelTransformation

(M2M)

<<metamodel>>

AMM

<<model>>

conforms_to

1: source

2: target

3: source

4: target

5: source 6: target

1: source

state i state i+1

Figure 3: Transformation schema.

(b) RuleTransformation, is obtained as an instance

of the M2T concept. It takes as input (step

#3 in Figure 3) the rule model (RM

) and gen-

erates as output (step #4) a new transforma-

tion process for architectural models at runtime

(ModelTransformation

stance of the M2M concept and generates as output

(step #6 in Figure 3) a new architectural model at

runtime (AM

i+1

) starting from the initial architec-

tural model (AM

3.3 Transformation Rules

As previously indicated, our goal is to achieve the

adaptability of architectural model transformations at

runtime. To this end, and given a transformation rule

repository (RRM), the system generates the models of

selected rules (RM

) adapting the architectural models

to the context. That is why we focus on the descrip-

tion of the transformation rules and the attributes that

affect the rule selection process (RuleSelection) and

the RRM, where the transformation rules of the archi-

tectural models are stored.

Both the RM

and the RRM are deﬁned accord-

ing to the transformation rule metamodel (RMM). In

ComposingModelTransformationsatRuntime-AnApproachforAdaptingComponent-basedUserInterfaces

263

Table 1: Example rule repository (RRM).

Rule Repository Model (RRM)

rule name purpose is priority weight

Insert Chat InsertComponentChat true 9

Insert AudioLowQuality InsertComponentAudioLQ false 8

Insert AudioHighQuality InsertComponentAudioHQ true 5

Insert VideoLowQuality InsertComponentVideoLQ false 6

Insert VideoMediumQuality InsertComponentVideoMQ false 7

Insert VideoHighQuality InsertComponentVideoHQ false 3

Delete Chat DeleteComponentChat true 1

Delete Audio DeleteComponentAudio true 1

Delete Video DeleteComponentVideo true 1

such metamodel, we will focus on describing the class

(Rule) which is directly involved with the rule selec-

tion logic belonging to the rule model generation pro-

cess (RuleSelection). The class Rule has the follow-

ing attributes: (a) rule name, which is unique and

identiﬁes the rule; (b) purpose, which indicates the

purpose of the rule. Only those rules of the rule repos-

itory (RRM) whose purpose coincides with one of

the values of the the purposes attribute deﬁned in the

architectural model (AM

), will belong to the trans-

formation rule model (RM

); (c) is

priority, which

is boolean typed. If its value is true in a speciﬁc

rule of the rule repository (RRM!Rule.is priority

= true), it indicates that the rule must always be

inserted in the transformation rule model (RM

provided that it satisﬁes the condition detailed in

purpose; (d) weight, which indicates the weight of

the rule. That rule in the rule repository (RRM)

which satisﬁes the purpose condition, has the at-

tribute is priority = false and has the biggest

weight of all rules satisfying such conditions, will be

inserted in the transformation rule model (RM

The transformation rules that will adapt the archi-

tectural models are stored in the rule repository model

(RRM). It is a model deﬁned according to a rule meta-

model (RMM) and is made up of the transformation

rules. Table 1 shows different rules belonging to the

rule repository. As previously mentioned, those rules

that fulﬁl a speciﬁc metric are chosen through the rule

selection process (RuleSelection).

3.4 Rule Selection

After an overview of the transformation rules de-

scribed in Section 3.3, we studied the transformation

process known as RuleSelection through which rule

models (RM

) are generated from the rule repository

(RRM) to get the transformation adaptation at run-

time. According to our transformation schema, this

process is obtained as an instance of the M2M concept

of the transformation pattern. Hence, RuleSelection

is an M2M transformation process that takes the ini-

tial architectural model (AM

) and the rule repository

model (RRM) as source. As target, it generates the

Table 2: Model of selected rules (RM

Rule Model (RM

)

rule name purpose is priority weight

Insert AudioHighQuality InsertComponentAudioHQ true 5

Insert VideoMediumQuality InsertComponentVideoMQ false 7

Delete Chat DeleteComponentChat true 1

transformation rule model (RM

The sequence of this M2M transformation process

is as follows. It starts when an attribute of a class

deﬁned in the AM

takes a speciﬁc value. This class

is known as Launcher. The RM

is generated start-

ing from the RRM. This new rule model is made

up of a subset of rules existing in the rule repository;

their purpose attribute will coincide with one of the

purposes attribute of the class Launcher, deﬁned in

the AM

and they must fulﬁl a selection metric based

on speciﬁc values of the is priority and weight at-

tributes. The selection logic is as follows: those rules

a priori deﬁned as priority (is priority = true)

in the RRM will be copied in the RM

regardless of

the weight value assigned at state i, provided that the

value of the purpose attribute of the rule coincides

with one of the values of the purposes attribute of

the architectural model (AMi!Launcher.purposes

contains RRM!Rule.purpose). Regarding those

rules not deﬁned as priority in the rule repository

(is priority = false), the process will copy in the

transformation rule model the rule with the biggest

weight value among all assigned to the rules of the

RRM, where the value of the purpose attribute of the

rule coincides with one of the values of the purposes

attribute of the AM

As an example, let’s suppose that we take as

input an AM

where AMi!Launcher.purposes =

[‘DeleteComponentChat’,‘InsertComponentAu-

dioHQ’, ‘InsertComponentVideoMQ’]. We as-

sume the RRM is the one speciﬁed in Table 1. If the

state of the running attribute of the AM

changed

into true, the RuleSelection process would start.

Then, the RM

would be generated by selecting those

rules with the purpose attribute equals to one of the

purposes indicated by the Launcher which have

the biggest weight or which have their attribute

is priority = true, as shown in Table 2.

3.5 Rule Transformation

Starting from the rule model generated by the Rule-

Selection, the next process involved in the adap-

tive transformation is known as RuleTransformation.

Within our transformation schema, this process is ob-

tained as an instance of the M2T concept of the trans-

formation pattern (Section 3.1). Therefore, the Rule-

Transformation process is an M2T transformation

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

264

Table 3: Example of the RuleTransformation process.

Portion of transformation M2T

module t1;

create

<c:iterate var="model_ref" select="/RuleSet/model_ref[@model_type =

’OUT’]" delimiter=",">

<c:get select="$model_ref/@model_name"/> :

<c:get select="$model_ref/conforms_to/@metamodel_name"/>

</c:iterate>

from

<c:iterate var="model_ref" select="/RuleSet/model_ref[@model_type =

’IN’]" delimiter=",">

<c:get select="$model_ref/@model_name"/> :

<c:get select="$model_ref/conforms_to/@metamodel_name"/>

</c:iterate>;

M2M generated

module t1;

create

AMOUT : AMM

from

AMIN : AMM;

process that takes as input (source) the rule model

selected by the RuleSelection process and generates

as output (target) an M2M transformation ﬁle.

The main goal here is to generate an M2M trans-

formation that is responsible for changing the sys-

tem’s architectural models (ModelTransformation

As indicated in our transformation pattern, this new

transformation is an instance of the M2M concept

whose source is an architectural model (AM

) and

target is another architectural model (AM

i+1

). Since

the rule models of the RuleSelection process will

be changing depending on the system’s require-

ments, the RuleTransformation process (that takes

them as its input) is responsible for creating a run-

time architectural model transformation that contains

new rules considered to be necessary. Hence, this

ModelTransformation

process will achieve the adap-

tation of the architectural models at runtime.

Table 3 shows the code fragment of the RuleTrans-

formation process transforming the part of the M2T

transformation that generates the header section of the

ATL ﬁle of the ModelTransformation

process. For

each element of the RM

, there is a part of the Rule-

Transformation process that is in charge of translat-

ing the rules into the ATL code, which constitutes the

M2M transformation of the ModelTransformation

process. Despite the RuleTransformation process has

been developed in order to adapt architectural mod-

els representing user interfaces, this approach is ex-

tendable to generate any type of M2M transformation,

which is executed on a rule model.

4 RELATED WORK

Nowadays there are different proposals to achieve

adaptive transformations for architectural models at

runtime. To this end, in (Gray et al., 2006) the au-

thors developed meta-transformations as transforma-

tions which produce transformations. However, un-

like this proposal, in our approach the new transfor-

mations are created to get adaptability in the architec-

tural models (horizontal transformations) rather than

make the transformation from PIM to PSM models

(vertical transformations). In (Floch et al., 2006), the

architectural models must contain variation and selec-

tion criteria so the middleware can automate the trans-

formation. In contrast, we propose to store the adap-

tation logic in a repository of transformation rules.

Other approaches face the problem of achieving

model-adaptability at runtime through high level lan-

guage implementations. For instance, in (Serral et al.,

2010) the authors used Java modules executed in-

side an OSGi platform. In our case, we achieved the

runtime model adaptation and update through model

transformations (M2M and M2T). Such transforma-

tions are made by means of rules implemented in

the ATL model transformation language. One of the

features of ATL which made us use this language

to implement rules, is that it enables to use explicit

rule calls internally as a mechanism for rule integra-

tion (Kurtev et al., 2007); thus, rules are assembled so

that one rule calls another one.

Different proposals of internal composition tech-

niques for model transformation languages haven

been developed. In (Wagelaar, 2008) the authors

present an internal composition mechanism of model

transformation, implemented in a rule-based model

transformation language which uses ATL language as

an example. The authors suggest creating transforma-

tion modules that can be either called from other mod-

ules or imported from an ATL transformation ﬁle. To

our opinion, as ATL is the metamodel of these mod-

ules, it would be harder to manage and interpret them

automatically. Thus, we chose to create ATL rules

deﬁned by a DSL and dynamically build ATL trans-

formation modules.

On the other hand, in (Tisi et al., 2009) the au-

thors suggested the use of M2M transformations to

generate as output transformation models in order

to adapt or modify an M2M transformation process.

This composition method for transformation process

guarantees well-built transformation modules, since

we used the ATL metamodel as reference to generate

transformation models; however, these Higher-Order

Transformations (HOT) are very complex to be built

when there are signiﬁcant rule modiﬁcations or when

we wish to create an ATL transformation model from

a rule model of our system.

The approach developed in (Porres, 2005) pro-

poses to describe and execute model refactorings

ComposingModelTransformationsatRuntime-AnApproachforAdaptingComponent-basedUserInterfaces

265

based on transformation rules or checked actions

where rules have formal parameters that are matched

with a model subset. The main difference with our

proposal is that we used speciﬁc MDD tools, Ecore

models instead of UML ones and ATL language

rather than Python. We carried out the selection of

transformation rules through model transformations.

5 CONCLUSIONS

Here we presented our proposal of adaptive transfor-

mations for architectural models at runtime. Thus,

we developed a transformation pattern that enables to

model the structure and composition of the generic el-

ements that may exist in our transformation schema.

With this pattern, it is also possible to change the

transformation schema by creating a different model

starting from the metamodel that deﬁnes it. This

provides our proposal with a high degree of ﬂexibil-

ity and scalability. We got the transformation rules

to change depending on the context. Therefore ,the

transformation rules deﬁne the degree of adaptabil-

ity of our system; the adaptability is determined by

the ability of the transformation rule model (RM

) to

modify itself in view of external events of the system,

where both the degree and scope of adaptability are

also deﬁned by means of the rule selection logic.

As future work, we intend to achieve a higher de-

gree of adaptability for our proposal taking into ac-

count, in the selection logic, factors as use frequency

of transformation rules, rule weight management pol-

icy, etc. We also intend to possibly carry out, through

HOT (Tisi et al., 2009), the process by which we turn

rule models into transformation processes applied to

architectural models. We will focus on providing our

system with a decision-making technique to be able to

manipulate the rule repository so that the system can

evolve at runtime and adapt itself to the interaction

with the user.

ACKNOWLEDGEMENTS

This work has been supported by the EU (FEDER)

and the Spanish Ministry MICINN under grant of

the TIN2010-15588 and TRA2009-0309 projects, and

under a FPU grant (AP2010-3259), and also by the

JUNTA ANDALUC

IA ref. TIC-6114.

REFERENCES

Blair, G., Bencomo, N., France, R.B.: Models@run.time

(Special issue on Models at Run Time). Computer,

40(10):22–27 (2009)

Criado, J., Vicente-Chicote, C., Iribarne, L., Padilla, N.: A

Model-Driven Approach to Graphical User Interface

Runtime Adaptation. Models@Run.Time, CEUR-WS

Vol 641 (2010)

Criado, J., Padilla, N., Iribarne, L., Asensio, J.: User In-

terface Composition with COTS-UI and Trading Ap-

proaches: Application for Web-Based Environmental

Information Systems. WSKS’2010, Part I, CCIS 111,

pp. 259–266, Springer (2010)

Czarnecki, K., Helsen, S.: Classiﬁcation of model trans-

formation approaches. In: Proceedings of the 2nd

OOPSLA Workshop on Generative Techniques in the

Context of the Model Driven Architecture, pp. 1–17.

Citeseer (2003)

Floch, J., Hallsteinsen, S., Stav, E., Eliassen, F., Lund, K.,

Gjørven, E.: Using Architecture Models for Runtime

Adaptability. IEEE Software, 23(2):62–70 (2006)

Gray, J., Lin, Y., Zhang, J.: Automating change evolution

in model-driven engineering. Computer, 39(2):51–58

(2006)

Hearnden, D., Lawley, M., Raymond, K.: Incremen-

tal model transformation for the evolution of model-

driven systems. Model Driven Engineering Languages

and Systems, pp. 321–335 (2006)

Iribarne, L., Padilla, N., Criado, J., Asensio, J., Ayala, R.: A

Model Transformation Approach for Automatic Com-

position of COTS User Interfaces in Web-Based Infor-

mation Systems. Information Systems Management,

27(3):207–216 (2010)

Jouault, F., Allilaire, F., B

ezivin, J., Kurtev, I.: ATL: A

model transformation tool. Science of Computer Pro-

gramming, 72(1-2):31–39 (2008)

Kurtev, I., van den Berg, K., Jouault, F.: Rule-based mod-

ularization in model transformation languages illus-

trated with ATL. Science of Computer Programming,

68(3):138–154 (2007)

Porres, I.: Rule-based update transformations and their ap-

plication to model refactorings. Software and Systems

Modeling, 4(4):368–385 (2005)

Serral, E., Valderas, P., Pelechano, V.: Supporting run-

time system evolution to adapt to user behaviour. In:

Advanced Information Systems Engineering, pp. 378–

392. Springer (2010)

Tisi, M., Jouault, F., Fraternali, P., Ceri, S., B

ezivin, J.:

On the use of higher-order model transformations.

ECMDA-FA, pp. 18–33 (2009)

Wagelaar, D.: Composition techniques for rule-based

model transformation languages. ICMT, pp. 152–167

(2008)

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

266
