Evolving a Retention Period Classiﬁer for use with Flash Memory

Damien Hogan

, Tom Arbuckle

, Conor Ryan

and Joe Sullivan

Computer Science and Information Systems, University of Limerick, Limerick, Ireland

Electrical and Electronic Engineering, Limerick Institute of Technology, Limerick, Ireland

Keywords:

Genetic Programming, Binary Classiﬁer, Solid State Drive, Flash Memory.

Abstract:

Flash memory based Solid State Drives (SSDs) are gaining momentum toward replacing traditional Hard Disk

Drives (HDDs) in computers and are now also generating commercial interest from enterprise data storage

companies. However, storage locations in Flash memory devices degrade through repeated programming and

erasing. As the storage blocks within a Flash device deteriorate through use, their ability to retain data while

powered off over long periods also diminishes.

Currently there is no way to predict whether a block will successfully retain data for a speciﬁed period of

time while powered off. We detail our use of Genetic Programming (GP) to evolve a binary classiﬁer which

predicts whether blocks within a Flash memory device will still satisfactorily retain data after prolonged use,

saving considerable amounts of testing time. This is the ﬁrst time a solution to this problem has been proposed

and results show an average of over 85% correct classiﬁcation on previously unseen data.

1 INTRODUCTION

Solid State Drives (SSDs) (Chen et al., 2009) store

data electronically using solid state memory, and are

gaining momentum towards eventually replacing the

traditional Hard Disk Drives (HDDs) used to store

data in computers. Since SSDs are based on solid

state memory (normally Flash memory), they do not

contain any moving parts and are faster, lighter, gen-

erate less noise, and emit less heat than their elec-

tromechanical counterparts.

The strengths of SSDs are all due to the NAND

Flash memory (Pavan et al., 1997) upon which they

are based. Advantages of Flash include low power

consumption, non-volatility, speed, small size, low

heat emission, and durability. The two main weak-

nesses of Flash memory are known as endurance and

retention. These are concerned with memory blocks,

the smallest erasable

unit in Flash, and refer to their

ﬁnite lifetime (measured in number of writes) and

ability to retain contents without power.

The bit error rate (BER) (Mielke et al., 2008) is

calculated by counting the number of incorrect bits

when the data written to a block is compared to the

data read back from the same block. A single error

occurs when the data bit stored at a location changes

As described in Section 2.1, there are different sized

regions which can be accessed, depending on the operation.

value. Error Correction Codes (ECC) (Yaakobi et al.,

2010) identify and correct these errors, with the de-

vices tested as part of this research capable of correct-

ing 12 bits per 528 bytes. Blocks are marked as bad

and removed from service when the BER exceeds the

maximum number of bits correctable through ECC.

Over time, through repeated writes, generally re-

ferred to as programming and erasing (p/e cycling),

blocks degrade and the BER increases until the accu-

mulating errors can no longer be corrected through

ECC and the location becomes unreliable. This is

known as the endurance of the device and is quan-

tiﬁed by manufacturers as the number of p/e cycles

each block can reliably complete.

Although Flash memory is non-volatile, it is not

perfect, and the contents of storage locations will

slowly degrade if left powered off, i.e. the charge

stored can leak, making it increasingly more difﬁcult

to establish whether a location contains a 1 or 0. The

longer a device is left powered off, the higher the BER

will be. It is possible for a device to be left without

power for too long, resulting in the BER increasing

above the ECC level. The retention of a device spec-

iﬁes the length of time for which a block can reliably

store data.

A trade-off exists between the endurance and

retention characteristics of Flash memory devices

meaning that devices with higher endurance will have

Hogan D., Arbuckle T., Ryan C. and Sullivan J..

Evolving a Retention Period Classiﬁer for use with Flash Memory.

DOI: 10.5220/0004116200240033

In Proceedings of the 4th International Joint Conference on Computational Intelligence (ECTA-2012), pages 24-33

ISBN: 978-989-8565-33-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

lower retention and vice versa. Devices must meet

both the endurance and retention speciﬁcations out-

lined by the manufacturer, but tests to evaluate actual

endurance and retention are hugely time consuming.

It is important to test the worst-case retention of a de-

vice – i.e. the retention when blocks have already

been signiﬁcantly degraded through p/e cycling, since

the device must meet the speciﬁed retention require-

ment regardless of the number of cycles completed.

To examine the retention period of a block within

a Flash device, the block is ﬁrst cycled at high tem-

perature (Mielke et al., 2006) to simulate real-world,

lifetime usage. Following this, a predeﬁned data pat-

tern is written to the device before it is placed in a

high temperature oven

. After a ﬁxed period of time

the previously stored data is then read from the test

block and the corresponding BER is calculated, al-

lowing evaluation of the retention ability of the de-

vice. In total, this test process takes almost eight days.

There is currently no method to predict the dete-

rioration of data stored in a Flash memory block over

a ﬁxed period of time. In this paper, we use Genetic

Programming (GP) (Koza, 1992; Poli et al., 2008) to

evolve a Retention Period Classiﬁer which predicts

whether Flash memory blocks will retain data for the

required length of time. This binary classiﬁer deter-

mines whether the number of errors following the re-

tention period will exceed a predetermined decision

boundary, allowing us to determine quickly blocks

which will not correctly retain data over the course

of a retention period without having to complete the

time consuming assessment itself.

Analysis of the data points acquired from destruc-

tive tests on actual Flash devices shows the difﬁculty

of the problem while the results of classiﬁcation tests

performed on previously unseen data show its poten-

tial for real world application. We show that, in spite

of this analysis revealing inconsistencies and even

contradictions in the data, we evolve a classiﬁer that

can correctly predict the result of a retention period

assessment over 85% of the time, across a variety of

cycling conditions on previously unseen data.

The remainder of this paper is structured as fol-

lows. Section 2 will provide more information on

SSDs and Flash memory while Section 3 introduces

research related to this topic. Section 4 gives de-

tails of the experiments used to gather the retention

data and also our GP conﬁguration while Section 5

presents our results. We then give an overview of our

proposed future work in Section 6 before concluding

the paper in Section 7.

Arrhenius’ Equation is the standard technique used to

determine the variable values (duration and temperature) for

temperature accelerated tests.

2 BACKGROUND

2.1 Flash Memory

Flash memory is a non-volatile, electrically erasable

programmable read only memory (EEPROM). Non-

volatility is achieved through a ﬂoating gate transis-

tor (Kahng and Sze, 1967) which utilises an insulat-

ing oxide layer in order to maintain the ﬂoating gate’s

charge. The quantity of charge stored on the gate is

read to determine the data stored at that location.

There are two main forms (Brewer and Gill, 2008)

of Flash memory that are named after the organisa-

tion of the arrays of ﬂoating gates within the devices,

namely, NOR Flash and NAND Flash, which operate

in different ways, making them suitable for different

applications. NOR Flash cells are connected in paral-

lel which allows the cells to be read and programmed

individually while the NAND Flash memory conﬁgu-

ration is based on cells in series. NOR Flash is ideal

for code storage and execution applications while the

NAND Flash memory conﬁguration makes it denser

and therefore cheaper than NOR memory. NAND

Flash memory is used in data storage applications and

is the standard form of memory used in SSDs.

The traditional method of storing data in Flash

cells is to store a single bit per ﬂoating gate transis-

tor. This is the fastest and most reliable method and

is referred to as single level cell (SLC) Flash. In or-

der to increase the density of cells and decrease the

costs of Flash, multilevel cell (MLC) technology has

emerged which lowers the cost of Flash devices by

storing multiple bits per ﬂoating gate.

MLC Flash SSDs are more appealing to con-

sumers due to their lower cost and higher capacity

but do not offer the same performance (in terms of

endurance, speed or retention) as SLC based drives.

However, Flash manufacturers are focusing more on

the consumer MLC market, since these devices are

approximately half the cost of SLC devices to produce

and their performance in general is good enough for

the consumer market, e.g. mobile devices, memory

sticks, and so on. However, this has led to a signif-

icant reduction in the number of SLC devices being

manufactured, effectively raising the price of SLC,

with SLC devices selling for up to 6 times the price

of MLC devices (Shread, 2009).

NAND Flash memory is composed of accessible

regions known as pages (comprised of arrays of cells)

and blocks with the size of these areas varying be-

tween devices due to factors such as storage capacity.

In the MLC devices tested as part of this research, a

page contains 4096 bytes for storage and an additional

224 spare bytes (not visible to the user) which are typ-

EvolvingaRetentionPeriodClassifierforusewithFlashMemory

ically used for error correction and other meta-data,

while a block is composed of 128 pages with 16384

blocks on the chip. Read and program operations can

occur at page level with a block being the smallest

area that can be erased. An important characteristic

of programming Flash memory is that locations must

be erased before they can be programmed.

Unlike NOR Flash, which is required to be error-

free, ECC is essential for NAND Flash memory,

working at the page level and correcting a small num-

ber – for example 12 bits per 528 bytes – of single

bit errors per page. NAND chips may also ship with

some bad blocks which are identiﬁed during the man-

ufacturing process. These blocks are recorded on the

device and not used, allowing far more chips to be

shipped, lowering chip cost.

2.1.1 Endurance versus Retention

One of the main characteristics of Flash memory is

the degradation (Aritome et al., 1993) through re-

peated p/e cycling of the oxide layer insulating each

ﬂoating gate. This leads to blocks having a ﬁnite life-

time, termed endurance, generally quantiﬁed by man-

ufacturers as a maximum number of p/e cycles before

the block will become unreliable or fail completely.

A second important characteristic of Flash mem-

ory, known as retention, is the ability of stored bits

within the device to retain their state over long peri-

ods of time. Retention errors occur due to leakage of

electrons (Aritome et al., 1990) from a cell over time

and can be accelerated by increased temperature and

wear (through p/e cycling).

A typical manufacturer’s speciﬁcation for SLC

NAND Flash endurance is 100,000 cycles, while

MLC endurance is generally far less and usually in

the region of 5,000 to 10,000 cycles. Speciﬁed reten-

tion for MLC NAND consumer grade devices is typi-

cally 10 years while the retention of enterprise devices

ranges from 3 months up to 1 year. The difference be-

tween the retention rating of consumer and enterprise

devices is due to the endurance / retention trade-off as

enterprise devices accept a lower retention rating in

order to gain a higher endurance speciﬁcation.

2.1.2 Operating Parameters

Flash memory devices contain a number of control

registers, which store the various operating parame-

ters required by the device including values to rep-

resent voltage levels and timings for read, program,

and erase operations. Many of these values are in-

terdependent and all are set before the device leaves

the manufacturing plant, remaining unchanged for the

lifetime of the device.

2.2 Solid State Drives

SSDs are designed to mirror HDDs in terms of their

external attributes such as size, form factor and com-

munication interface. Since SSDs do not contain

any moving parts, their latency (the delay between

requesting and receiving data) is typically orders of

magnitude better than HDDs and they also perform

much faster, due to their large amount of internal

parallelism, with many Flash components providing

data at the same time. SSDs use far less energy than

HDDs, which leads to longer battery life in mobile

devices and, in enterprise situations, can lead to huge

savings on cooling expenditure since using less power

generates less heat.

Momentum is now growing towards using SSDs

in enterprise environments for large scale data stor-

age. However, consumer grade SSDs favour cost over

performance, so MLC NAND Flash memory is the

standard memory for them, while the performance

demands of an enterprise data storage environment

require that the more expensive SLC NAND Flash

memory is used. Enterprise data storage companies

are hopeful that the improvement of MLC NAND

Flash performance will continue so that it will soon

be capable of meeting the demands of an enterprise

storage device.

3 RELATED RESEARCH

(Sullivan and Ryan, 2011) reported on their applica-

tion of an Evolutionary Algorithm (EA) to the prob-

lem of Flash memory degradation. Their research

investigated the viability of developing a hardware

platform to facilitate the use of an EA to automati-

cally discover improved operating parameter settings

within NOR Flash memory. The results of their exper-

iments showed an average endurance improvement of

between 250% and 350% with a maximum achieved

improvement of 700%.

Information is not available as to how manufac-

turers set these operating parameters, but Sullivan and

Ryan’s research has shown that they are not optimal.

This is in agreement with our view that a GA can be

used to adjust them in order to improve the endurance

of MLC NAND Flash memory and will be discussed

further in Section 6.

Research by (Grupp et al., 2009) determined that

the performance of Flash memory varies signiﬁcantly

between devices. Their results showed that program

operations on certain pages within blocks are faster

than others. These pages perform approximately 5

times faster than the rest of the pages. MLC NAND

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

program performance was found to have increased on

average by 10-15% over the lifetime of each block, in-

dicating that, as the devicesdegrade, it becomes easier

to program them. This is due to the fact that the in-

sulating oxide layer has deteriorated, resulting in less

resistance to the tunnelling of electrons through it.

The work by Grupp et al. found that even devices

made by the same manufacturer can perform at differ-

ent levels. This reinforces our belief that tests must be

performed on a number of devices, and in particular,

on a number of Flash memory devices of the same

speciﬁcation and model, in order to generate results

which can be generalised to all devices of that type.

(Desnoyers, 2010) found that the actual lifetimes

of blocks in a Flash memory device vary greatly with

some lasting up to 100 times longer than the man-

ufacturers’ speciﬁcations. Endurance was tested by

repeatedly p/e cycling a single page within a block

with all zeros. Desnoyers also reported that program

time decreases with block usage, while erase time in-

creases as the block wears.

Tests performed by Desnoyers show that manufac-

turers’ speciﬁcations are extremely conservative since

the endurance of many test blocks was two orders of

magnitude greater than the speciﬁed rating. Pages

within blocks perform at different levels and in or-

der to stress the complete block, our experiments pro-

grammed all pages within each block and assessed the

combined error count for the entire block.

4 EXPERIMENTAL DESIGN

The data required for the GP portion of this research

was accumulated through the destructive testing of

four NAND Flash memory devices. Blocks in each

Flash device were initially p/e cycled over a period of

one week in an oven which simulated real world usage

for the devices. Following this simulation of usage,

a 12 hour retention period was observed. This tem-

perature accelerated phase of the process simulates 3

months real world retention. Data was gathered by

performing error counts immediately before and af-

ter the retention period. Following this series of tests,

the data acquired was used by GP to evolve our Re-

tention Period Classiﬁer. The procedures mentioned

above will now be discussed in more detail.

4.1 Hardware

A purpose built hardware platform was constructed to

facilitate the issuing of commands from a PC to per-

form detailed tests on Flash chips. A software pro-

gram was then developed to use this hardware to per-

form detailed endurance cycling and retention period

evaluations on NAND Flash memory devices. All de-

tails of the tests and data acquired from the tests were

saved to a database for future reference.

4.2 Testing

Due to the time consuming nature of these tests and

the number of available Flash testing units, four chips

of the same model from the same manufacturer were

tested. One requirement of the week long simula-

tion of usage test is to allow blocks some recovery

time between programs. This is because the speed

with which a device degrades is directly related to the

speed with which it is being cycled; a drive that is

completely rewritten ten times in a single day will ac-

cumulate considerably more damage than one that is

completely rewritten ten times in one week.

Table 1: Blocks were cycled to a number of different levels

in order to gain a wide range of test data. Intervals of 5,000

cycles were used in the range of 5,000 to 30,000 cycles.

Target Cycles Test Blocks

5,000 Cycles 11 Blocks

10,000 Cycles 11 Blocks

15,000 Cycles 11 Blocks

20,000 Cycles 11 Blocks

25,000 Cycles 11 Blocks

30,000 Cycles 11 Blocks

Taking this into account, as well as our aim of ac-

quiring data at varying levels of cycling across many

chips, 66 blocks were tested per device. These blocks

were randomly chosen and divided into six cycling

groups as shown in Table 1. The test software was

written to balance the cycling rate throughout the

week so that all cycling groups would run for the full

duration of the process regardless of their target num-

ber of cycles. This meant, for example, that blocks

with a target of 5,000 p/e cycles would have more re-

covery time between cycles than blocks completing

30,000 cycles.

Error counts were performed by writing a prede-

ﬁned pattern (a hexadecimal string) to a block and

then reading it back, counting the number of errors

introduced by storing the data in the block. During

the temperature accelerated parts of the process, the

blocks were cycled by iterating through a group of six

pre-determined random hexadecimal string patterns.

The pattern used to perform error counts at the end

EvolvingaRetentionPeriodClassifierforusewithFlashMemory

Table 2: The testing procedure produced three inputs and one output for use with GP. Blocks were cycled for one week at

temperature before the retention period was evaluated.

Step Duration Temperature Operation(s) Result

1 1 Week 85

◦

C Repeated cycling of 66 blocks using a number of

pre-deﬁned random patterns. 1 cycle was per-

formed on each block before moving on to the

next block in the sequence. This allows some

recovery time between cycles on each individual

block.

Number of cycles

completed is GP

input 1.

2 — 85

◦

C At the end of step 1, an error count was performed

on all blocks using the difﬁcult pattern.

Number of errors is

GP input 2.

3 — 25

◦

C Prior to the start of the 12 hour retention period,

the chip was cooled to room temperature, with an

error count performed on all blocks using the ran-

dom pattern.

Number of errors is

GP input 3.

4 12 Hours 85

◦

C The chip remained idle for the duration of the re-

tention period.

—

5 — 25

◦

C Following the 12 hour idle time, the chip was

cooled to room temperature, and an error count

was performed on all blocks using the random pat-

tern.

Number of errors is

GP output.

of the week long cycling phase was supplied to us

by our industrial partners. This pattern is referred to

as the difﬁcult pattern

, and stressed blocks far more

than regular data patterns due to the arrangement of

bits (and in turn the charge stored in adjacent cells)

required to represent the pattern. The pattern used

to determine the number of errors in each block im-

mediately before and after the retention period was a

pre-determined random pattern.

The steps required during the overall process are

listed in Table 2. All four test devices were placed

in an oven and, when the oven temperature had sta-

bilised at 85

◦

C, the week long temperature acceler-

ated cycling was initiated. During this period, data

such as error counts and read, program, and erase

times were recorded every 1,000 cycles for future ref-

erence. At the end of the week-long test, the difﬁcult

pattern was written to each test block and the corre-

sponding error count was recorded.

The temperature accelerated retention period re-

quired that the blocks be programmed and read at

room temperature. Following the completion of the

week long test, the oven was cooled to 25

◦

C and

the pre-retention random pattern error count was per-

formed. The oven was then reheated to 85

◦

C and the

We have not included the hexadecimal string used in

the difﬁcult pattern due to a Non Disclosure Agreement

with our partners in industry.

chips were left idle at this temperature for 12 hours.

Upon completion of this, the data was then read from

all test blocks, and error counts performed, when the

chips had cooled to 25

◦

C once more.

The four chips successfully completed this series

of procedures, each providing data from 66 blocks

for use in our GP experiments. The fact that it took

eight days and the destruction of blocks on a number

of Flash memory devices to accumulate just 264 data

points stresses just how expensive this form of testing

is in terms of both time and hardware.

Table 3: The input parameters for the GP system are the

number of cycles performed and two error counts, each us-

ing a different pattern. A single output is produced.

Parameter Description

Input 1 Cycles Completed

Input 2 Pre-Retention ‘Difﬁcult Pattern’

Error Count

Input 3 Pre-Retention ‘Random Pattern’

Error Count

Output Post-Retention ‘Random Pattern’

Error Count

Input 3 was later removed from the dataset as all values,

regardless of cycles completed were 0.

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

100

120

5000 10000 15000 20000 25000 30000

Pre-Retention Errors

Cycles Complete

DataPoint

(a) Pre-retention Errors.

500

1000

1500

2000

5000 10000 15000 20000 25000 30000

Post-Retention Errors

Cycles Complete

DataPoint

(b) Post-retention Errors.

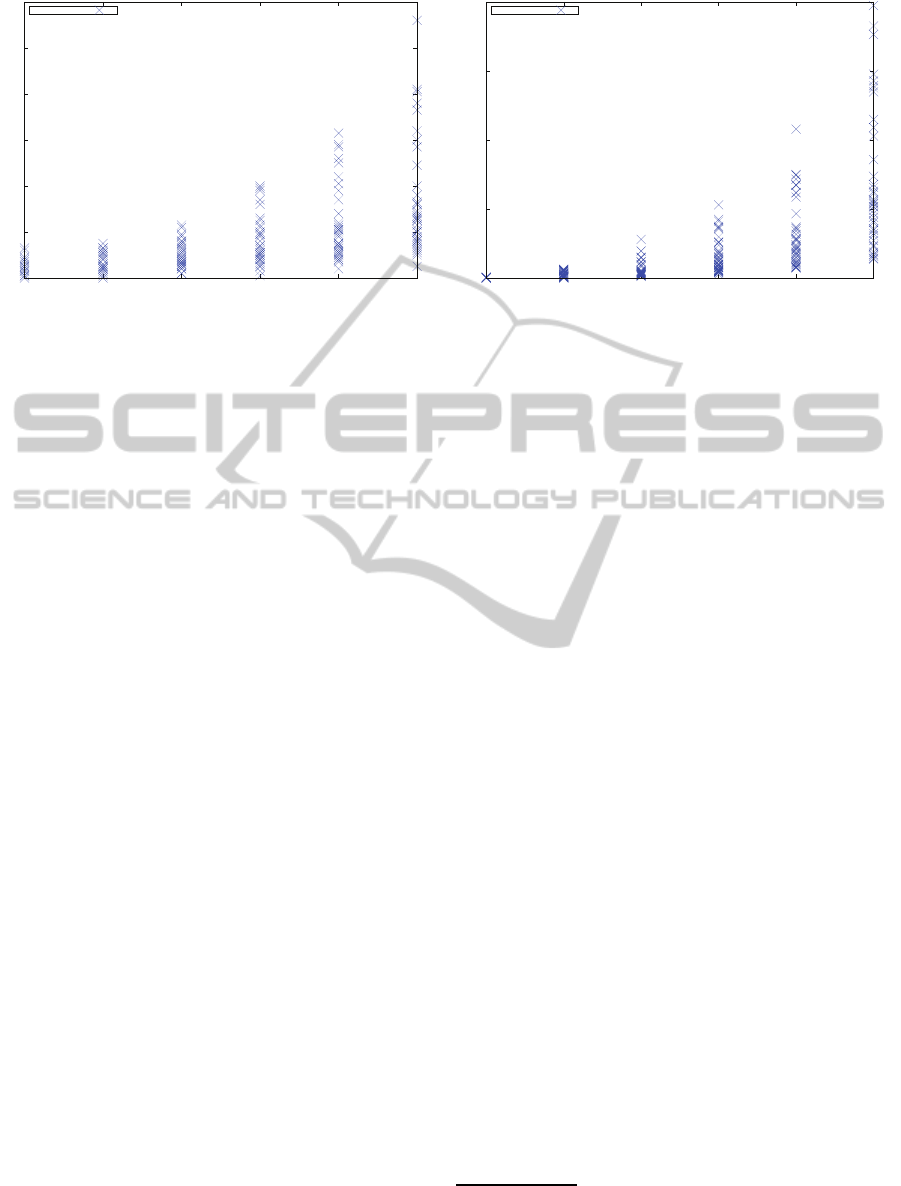

Figure 1: The error counts before and after the retention period. The different scales are to be expected as the number of

post-retention errors should far exceed the number of pre-retention errors. The number of cycles has a signiﬁcant effect on

both the number of pre-retention and post-retention errors.

4.3 Test Data

In order to evolve our Retention Period Classiﬁer, we

determined that the inputs and output for the GP sys-

tem should be those shown in Table 3, since these are

the quantiﬁable characteristics of the test blocks be-

fore and after the retention period. The ﬁrst input is

the number of cycles completed by the block at the

end of the seven day temperature accelerated simu-

lation of usage. The other two inputs are both error

counts performed on the test block.

As expected (based on trial runs and related re-

search), the data acquired before and after the reten-

tion period was extremely noisy, meaning experimen-

tal data points containing similar, or even identical in-

puts produced varied outputs. Furthermore, the pre-

retention random error pattern resulted in zero errors

on every test so this column was removed from our

data set, leaving us with the other two inputs and one

output already described.

Figure 1 shows the data acquired from the earlier

tests. This shows the levels of variation in the data

acquired from the temperature accelerated retention

periods. For example, the pre-retention error rates at

30,000 cycles vary in the range of 5 to 112 errors,

while the post-retention error rates for blocks cycled

to 30,000 cycles vary from 136 to 1974 errors.

The Flash devices under test have a speciﬁed en-

durance of 5,000 cycles and a speciﬁed retention of 10

years. As mentioned previously, a trade-off exists be-

tween these two characteristics which is why devices

cycled to higher levels than 5,000 (and up to 30,000)

can reasonably be expected to successfully retain data

over the relatively short time period of three months.

4.4 Decision Boundary for Binary

Classiﬁer

In a Flash memory device, a block is marked as bad

(and removed from service) when the number of sin-

gle bit errors is greater than the number of errors

correctable by the on chip ECC. This is calculated

as 11,915

correctable single bit errors for the MLC

NAND Flash device described in Section 2.1.

For the purposes of this paper we have chosen 200

post-retention errors as the point at which a block

is deemed to have failed. This number was chosen

as our tests did not cycle any blocks to the level re-

quired to generate error counts of the magnitude of

the maximum correctable bit rate. A decision bound-

ary of 11,915 would lead to all blocks being classiﬁed

as successfully retaining their data beyond the reten-

tion period and would not provide any useful data for

training our GP system.

Using a 200 bit error point of failure results in all

but one data point successfully passing the retention

period up to and including 15,000 cycles. Most data

points pass at 20,000 cycles, while most fail at 30,000.

The 25,000 cycle data points are generally the most

difﬁcult to classify as approximately half the points

fail and do not retain their data. These pass / fail rates

at a decision boundary of 200 errors provide a good

range of data to trial the evolution of our Retention

Period Classiﬁer. Table 4 shows the pass and fail rates

for blocks when the decision boundary for correctable

bit errors is set at 200.

4096 bytes per page * 128 pages = 524288 bytes per

block. 12 bit correction per 528 bytes = 11915 correctable

bits per block.

EvolvingaRetentionPeriodClassifierforusewithFlashMemory

Table 4: The number of blocks which pass and fail at each

level of cycling when the maximum number of correctable

bit errors is set at 200.

Cycles Pass Blocks Fail Blocks

5,000 44/44 (100 %) 0/44 (0 %)

10,000 44/44 (100 %) 0/44 (0 %)

15,000 43/44 (97.73 %) 1/44 (2.27 %)

20,000 32/44 (72.73 %) 12/44 (27.27 %)

25,000 18/44 (40.91 %) 26/44 (59.09 %)

30,000 7/44 (15.91 %) 37/44 (84.09 %)

Total 188/264 (71.21 %) 76/264 (28.79 %)

4.5 Data Analysis

Analysis of the data set found that correctly clas-

sifying every point as being above (fail) or below

(pass) the predeﬁned decision boundary was impos-

sible. This is due to the extremely noisy nature of the

data with identical inputs from multiple data points

resulting in differing outputs.

Data points which had identical inputs but outputs

which led to different results were labelled conﬂicting

data points. At 15,000 cycles, only one data point was

regarded as a fail (a post-retention error count above

the decision boundary of 200). However, this point

was a conﬂicting data point, as another point with

identical inputs resulted in a pass. This meant that

100% success when classifying data points at 15,000

cycles was impossible due to the existence of two con-

ﬂicting data points as only one of them could be clas-

siﬁed correctly.

Details of conﬂicting data points are shown in Ta-

ble 5. The ﬁrst data row in this table states that two

data points contained identical inputs (15,000 cycles,

16 pre-retention errors) with one of the data points re-

sulting in a pass while the other data point failed. The

scale of this problem increased for greater levels of

cycling with a total of 18 conﬂicting points across six

sets of inputs (in some cases up to ﬁve data points had

identical inputs) at 20,000 cycles. This resulted in at

least seven data points which would be impossible to

classify correctly. A minimum of six points would be

impossible to classify correctly at 25,000 cycles while

at least ﬁve data points would always be incorrect at

30,000 cycles due to conﬂicting results.

Further analysis examined data points that showed

high potential for misclassiﬁcation as they produced

a different result to their surrounding neighbours. Po-

tential misclassiﬁcations were data points which pro-

duced different results to other data points which con-

Table 5: The number of conﬂicting data points at each level

of cycling. Conﬂicting data points make 100% correct clas-

siﬁcation impossible as identical inputs produced different

results. For example, the third data row in this table states

that 5 data points contained identical inputs (20,000 cycles,

8 pre-retention errors) with four of the data points resulting

in a pass while the other data point failed.

Inputs Result

Count Cycles Errors Pass Fail

2 15,000 Cycles 16 1 1

2 20,000 Cycles 5 1 1

5 20,000 Cycles 8 4 1

2 20,000 Cycles 10 1 1

5 20,000 Cycles 11 2 3

2 20,000 Cycles 14 1 1

2 20,000 Cycles 26 1 1

2 25,000 Cycles 8 1 1

2 25,000 Cycles 11 1 1

4 25,000 Cycles 14 3 1

5 25,000 Cycles 15 2 3

3 25,000 Cycles 21 1 2

2 30,000 Cycles 12 1 1

2 30,000 Cycles 14 1 1

2 30,000 Cycles 15 1 1

3 30,000 Cycles 16 2 1

2 30,000 Cycles 25 1 1

tained similar inputs. When the majority of data

points containing the same number of cycles and

within a range of 10 pre-retention errors all resulted

in the opposite classiﬁcation to the point under review,

the point was regarded as a potential misclassiﬁcation.

At 15,000 cycles, one data point was prominent

as a potential misclassiﬁcation while at both 20,000

and 25,000 cycles this number increased to 12. The

number of potential misclassiﬁcations then decreased

to six at 30,000 cycles.

4.6 Genetic Programming

Rather than developing our own GP system, ECJ

(Luke, 2010), a Java based Evolutionary Computa-

tion system was employed. Prior to beginning our

GP runs, the data was randomly divided into 8 groups

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

in preparation for (k-fold) cross validation. We did,

however, ensure that all cycling counts were evenly

represented in all data sets.

A small number of preliminary test runs were

completed in order to experiment with different GP

parameter settings and function sets. These runs ex-

amined the results for varying numbers of genera-

tions, population sizes, tree depths, and reproduction,

crossover and mutation rates. A number of combi-

nations of various operators in the function set were

also tested. Following these trial runs, the GP param-

eters listed in Table 6 were chosen. The GP function

set comprised seven functions, while the terminal set

comprised the two inputs discussed earlier and also

ﬁve constants.

Table 6: Tableau showing GP parameters and settings.

Parameter Details

Objective Correctly classify data

points as pass or fail using a

decision boundary of 200.

Terminal Set x, y, 2, 3, 5, 7, 11

Function Set +, -, *, /, sin, cos, tan

Fitness The percentage of data

points correctly classiﬁed.

Hits The number of data points

correctly classiﬁed.

Generations 100

Population 1000

Max Tree Depth 15

Crossover Rate 0.8

Mutation Rate 0.15

Reproduction Rate 0.05

The GP system operated as a binary classiﬁer with

the ﬁtness of each individual deemed to be the per-

centage of data points classiﬁed correctly. The num-

ber of correct classiﬁcations for each individual were

also recorded and are referred to as hits. Each data

point was classiﬁed by ﬁrst calculating the projected

output using the evolved individual. If the individual

resulted in output greater than the decision bound-

ary of 200, the individual predicted a fail, while an

output of less than the decision boundary predicted a

pass. This was then compared to the actual output for

the data point to determine if the evolved individual’s

classiﬁcation was correct.

In order to verify whether the proposed GP pro-

cess would generalise well across the cycling levels

tested, a variant of k-fold cross validation was per-

formed. The standard k-fold cross validation tech-

nique requires that the available data is evenly divided

into k groups. Following this, k GP runs are per-

formed with a different group being used as valida-

tion data for each run while the remaining k-1 groups

are used as training data. The leads to the GP system

training on k-1 groups with the best individual from

each run being validated using the previously unseen

data group set aside for validation. Upon completion

of the k runs, the validation results from the best-of-

run individuals are averaged to give a representation

of how well the system can generalise to solve the

speciﬁed problem.

5 RESULTS

As mentioned in the previous section, the 264 data

points were divided into eight groups. This resulted

in each group containing the same number of points.

A variation of the standard k-fold cross validation

was then used by splitting the training groups into

two parts. Having assigned one of the eight data

groups for validation in each data set, the remaining

seven groups were randomly divided into ﬁve train-

ing groups and two testing groups. This resulted in

each data set using 62.5% of the data for training,

12.5% for validating every individual from the ﬁnal

population on unseen data, and 25% for testing of the

best-of-run individuals. The extra validating step as-

sessed the ability of the entire population at the end of

the run to generalise to previously unseen data points

since there is no guarantee that the individual which

performed best on the training data will also gener-

alise the best.

The best-of-run individual following the valida-

tion stage of the process was chosen to go forward to

the testing stage. In the case of a number of individu-

als achieving the same best-of-run result, the shortest

individual was chosen since it is expected that shorter

individuals will generalise better. Since 8-fold cross

validation requires a minimum of just 8 runs – 1 per

data set – 10 runs were performed per data set giving

a total of 80 runs.

Table 7 shows the results from the 8-foldcross val-

idation runs. An average of 79.09% data points were

classiﬁed correctly by the best-of-run individuals on

the previously unseen testing data across all 80 runs,

while an average of 85.79% data points were classi-

ﬁed correctly by the best performing individuals from

each of the eight folds. Despite the difﬁculties posed

EvolvingaRetentionPeriodClassifierforusewithFlashMemory

Table 7: Results from 8-fold Cross Validation test. Data was divided into 62.5% training, 12.5% validation, 25% testing data.

Fitness refers to the percentage of data points classiﬁed correctly while hits refers to the number of correct classiﬁcations. The

hits column also shows the total number of data points for each subset of the data. The last row in the table shows the average

number of data points classiﬁed correctly by the best-of-run individuals.

Training (62.5%) Validation (12.5%) Testing (25%)

Mean Pop Mean Pop Mean Best

Fold Fitness Hits Fitness Hits Fitness Hits Fitness Hits

0 87.24% 143.95/165 78.46% 25.89/33 78.03% 51.50/66 86.36% 57/66

1 89.30% 147.34/165 80.36% 26.52/33 76.36% 50.40/66 80.30% 53/66

2 86.30% 142.39/165 87.14% 28.76/33 76.97% 50.80/66 84.85% 56/66

3 89.76% 148.10/165 72.93% 24.07/33 76.82% 50.70/66 87.88% 58/66

4 87.79% 144.85/165 77.30% 25.51/33 83.79% 55.30/66 89.39% 59/66

5 87.25% 143.97/165 89.58% 29.56/33 80.30% 53.00/66 84.85% 56/66

6 87.86% 144.96/165 82.13% 27.10/33 83.33% 55.00/66 89.39% 59/66

7 87.67% 144.66/165 70.42% 23.24/33 77.12% 50.90/66 83.33% 55/66

8-fold Cross Validation Average: 79.09% 52.20/66 85.79% 56.63/66

by the data set (as discussed in Section 4.5), the over-

all best performing individual achieved 89.39% cor-

rect classiﬁcation on previously unseen data.

Considering the extremely noisy nature of the data

points (potential misclassiﬁcations) and the fact that

some identical inputs produce differing classiﬁcations

(conﬂicting data points), these results show that the

GP process can be used to generate a Retention Period

Classiﬁer which will correctly classify the majority of

test cases.

Since no other approaches to predict the retention

period for Flash memory blocks have been reported

in the literature, comparativeevaluation with previous

results was not possible. Section 6 includes details

of plans to employ other machine learning techniques

to provide benchmarks against which the GP system

proposed in this paper can be compared.

The levels of correct classiﬁcation achieved in this

ﬁrst set of experiments show the huge potential of this

prediction technique. Future research will aim to fur-

ther validate and improve the initial results reported

here in order to develop a classiﬁer suitable for real

world application.

6 FUTURE WORK

Taking into account what we have learned from this

research, we propose to perform another batch of ex-

periments but to focus on higher levels of cycling.

The maximum number of post-retention errors found

during the data acquisition phase of this experiment

was 1,974. In our next test, we will focus on intervals

of 5,000 cycles starting at 10,000 and proceeding up

to 50,000. Judging by our test data and the results ob-

tained, we believe that this will allow us to evolve an

improved Retention Period Classiﬁer by allowing GP

to train the population using a real world number of

correctable bit errors.

As part of the next iteration of this research we

will also generate classiﬁers using a number of other

methods such as neural networks and support vector

machines. The results obtained will provide data al-

lowing a comparative evaluation between a number of

different machine learning techniques.

This is just one task of a larger research project.

The overall goal of our research is to improve the

performance of SSDs using EA techniques. We aim

to achieve this by improving the endurance of the

NAND Flash memory used by the vast majority of

these drives. A Genetic Algorithm (GA) will be

used to evolve optimised parameter settings for Flash

memory devices under test. As mentioned earlier,

there is a trade-off between endurance and retention.

The classiﬁer evolved in this paper will be used in

forthcoming research to predict whether blocks will

pass a temperature accelerated retention period when

controlled by modiﬁed parameter settings. This will

potentially save a lot of time and avoid performing un-

necessary tests for parameter settings which will fail.

IJCCI2012-InternationalJointConferenceonComputationalIntelligence

7 CONCLUSIONS

This research set out to use GP to evolve a function to

aid the prediction of blocks that would not retain data

for a particular length of time. This has huge poten-

tial for use in SSDs as it aids the early identiﬁcation of

blocks that are likely to lose their contents when pow-

ered off. Initial analysis of the data acquired through

the destructive testing of blocks within a Flash de-

vice showed the extremely noisy nature of the data

including conﬂicting data points and the huge poten-

tial for misclassiﬁcation, making it impossible to cor-

rectly classify all data points.

A form of 8-fold cross validation was used to ver-

ify that our GP process could evolve individuals ca-

pable of generalising to unseen data. A data division

of 62.5% training, 12.5% validation, and 25% test-

ing was used and 80 runs were performed to generate

a variety of potential solutions. The best individual

from our set of potential solutions achieved 89.39%

correct classiﬁcation on previously unseen data while

the average result was 85.79%. This highlights the

huge promise shown by this technique considering the

difﬁculty posed by the noisy data set.

Since no method to predict the deterioration of

Flash memory blocks over the course of a retention

period currently exists, we believe this classiﬁer has

potential for real world application. We will continue

to expand on the research introduced in this paper and

build a more robust Retention Period Classiﬁer by ac-

cumulating more data points at higher levels of cy-

cling for use by GP.

We have conﬁrmed that it is possible to use EAs

to model Flash memory characteristics and now in-

tend to explore this area in greater detail. In future

research, we will progress to using EAs to improve

the endurance of Flash devices by optimising the op-

erating parameters for MLC NAND Flash memory.

ACKNOWLEDGEMENTS

The authors would like to thank Barry Fitzgerald for

his assistance in performing the temperature acceler-

ated tests required for this research.

REFERENCES

Aritome, S., Kirisawa, R., Endoh, T., Nakayama, R., Shi-

rota, R., Sakui, K., Ohuchi, K., and Masuoka, F.

(1990). Extended data retention characteristics af-

ter more than 10,000 write and erase cycles in EEP-

ROMs. In International Reliability Physics Sympo-

sium. 28th Annual Proceedings., pages 259 –264.

Aritome, S., Shirota, R., Hemink, G., Endoh, T., and Ma-

suoka, F. (1993). Reliability issues of Flash memory

cells. Proceedings of the IEEE, 81(5):776 –788.

Brewer, J. and Gill, M. (2008). Nonvolatile Memory Tech-

nologies with Emphasis on Flash (A Comprehensive

Guide to Understanding and Using Flash Memory

Devices). Wiley-IEEE Press.

Chen, F., Koufaty, D. A., and Zhang, X. (2009). Under-

standing intrinsic characteristics and system implica-

tions of Flash memory based solid state drives. In

Proceedings of the Eleventh International Joint Con-

ference on Measurement and Modeling of Computer

Systems, SIGMETRICS ’09, pages 181–192. ACM.

Desnoyers, P. (2010). Empirical evaluation of NAND

Flash memory performance. SIGOPS Oper. Syst. Rev.,

44:50–54.

Grupp, L. M., Caulﬁeld, A. M., Coburn, J., Swanson, S.,

Yaakobi, E., Siegel, P. H., and Wolf, J. K. (2009).

Characterizing Flash memory: Anomalies, observa-

tions, and applications. In Proceedings of the 42nd

Annual IEEE/ACM International Symposium on Mi-

croarchitecture, MICRO 42, pages 24–33, New York,

NY, USA. ACM.

Kahng, D. and Sze, S. (1967). A ﬂoating-gate and its appli-

cation to memory devices. The Bell System Technical

Journal, 46(6):1288–1295.

Koza, J. R. (1992). Genetic Programming: On the Pro-

gramming of Computers by Means of Natural Selec-

tion. The MIT press.

Luke, S. (2010). ECJ 20. A Java-based evo-

lutionary computation research system.

http://cs.gmu.edu/∼eclab/projects/ecj/.

Mielke, N., Belgal, H., Fazio, A., Meng, Q., and Righos,

N. (2006). Recovery effects in the distributed cycling

of Flash memories. In Reliability Physics Symposium

Proceedings, 2006. 44th Annual., IEEE International,

pages 29 –35.

Mielke, N., Marquart, T., Wu, N., Kessenich, J., Belgal,

H., Schares, E., Trivedi, F., Goodness, E., and Nevill,

L. (2008). Bit error rate in NAND Flash memories.

In Reliability Physics Symposium, 2008. IRPS 2008.

IEEE International, pages 9–19.

Pavan, P., Bez, R., Olivo, P., and Zanoni, E. (1997). Flash

memory cells - an overview. Proceedings of the IEEE,

85(8):1248 –1271.

Poli, R., Langdon, W. B., and McPhee, N. F. (2008). A Field

Guide to Genetic Programming. Lulu.

Shread, P. (2009). Fusion-io low-

ers the price of solid state storage.

http://www.enterprisestorageforum.com/hardware/

news/article.php/3829246/Fusion-io-Lowers-the-

Price -of-Solid-State-Storage.htm.

Sullivan, J. and Ryan, C. (2011). A destructive evolu-

tionary algorithm process. Soft Computing - A Fu-

sion of Foundations, Methodologies and Applications,

15:95–102. 10.1007/s00500-009-0513-2.

Yaakobi, E., Ma, J., Grupp, L., Siegel, P., Swanson, S.,

and Wolf, J. (2010). Error characterization and coding

schemes for Flash memories. In GLOBECOM Work-

shops (GC Wkshps), 2010 IEEE, pages 1856 –1860.

EvolvingaRetentionPeriodClassifierforusewithFlashMemory
