Defense Against TCP Flooding Attack
Seungyong Yoon, Jintae Oh, Ikkyun Kim and Jongsoo Jang
Managed Security Research Team, Electronics and Telecommunications Research Institute,
161 Gajeong-dong, Yuseong-gu, Daejeon, 305-700, Republic of Korea
Keywords: DDoS, TCP Flooding Attack.
Abstract: This paper generally relates to a DDoS attack prevention method, more particularly, to a Transmission
Control Protocol (TCP) flooding attack prevention method which defines several session states based on the
type and direction of a packet, tracks the session state for each flow, and detects and responds to a flooding

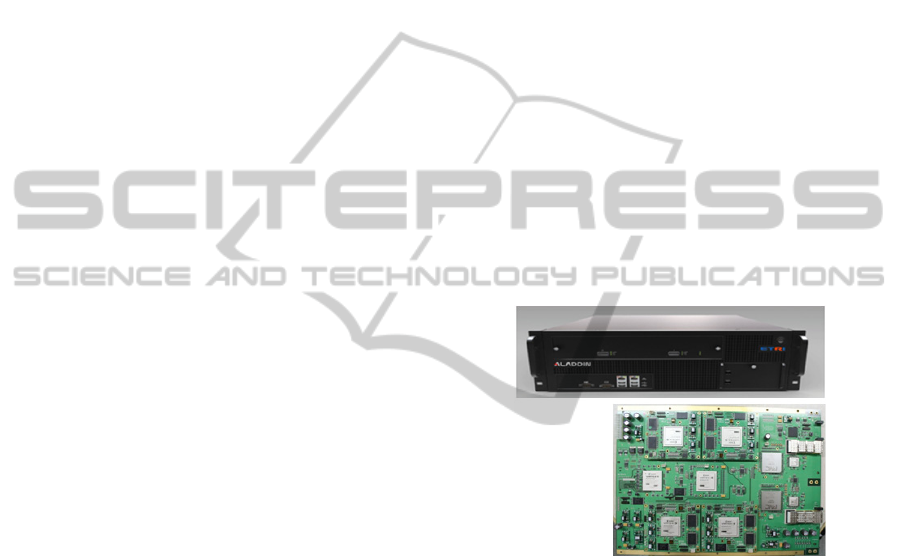

attack. An anti-DDoS system with a capacity of 20Gbps throughput, we call ‘ALADDIN’ system, was
implemented in FPGA based reconfigurable hardware. The possibility of high-speed hardware
implementation was shown in this paper. The system was tested using existing DDoS attack tools in 8Gbps
of background traffic. According to the test results, TCP flooding attacks could be defended through our
proposed method rapidly and accurately.
1 INTRODUCTION
Denial-of-Service (DoS) attack is undoubtedly a
very serious problem in the Internet, whose impact
has been well demonstrated in the computer network
literature. According to the WWW Security FAQ
(Stein, 2002) a DoS attack can be described as an
attack designed to render a computer or network
incapable of providing normal services. Distributed
Denial of Service (DDoS) attack uses many
computers to launch a coordinated DoS attack
against one or more targets. Using client/server
technology, the perpetrator is able to multiply the
effectiveness of the DoS significantly by harnessing
the resources of multiple unwitting accomplice
computers, which serve as attack platforms (Christos,
2004).
This paper generally relates to a DDoS attack
prevention method, more particularly, to a
Transmission Control Protocol (TCP) flooding
attack prevention method which defines several
session states based on the type and direction of a
packet, tracks the session state for each flow, and
detects and responds to a flooding attack.
The rest of this paper is organized as follows.
Section 2 describes the context of prior and ongoing
research related to DDoS attack. And section 3
describes TCP flooding defense mechanism in
detail. Implementation and experimental results are
contained in section 4. And conclusion and future
work are discussed in section 5.
2 RELATED WORK
A DDoS attack is divided into a network level attack
and an application level attack (Xie, 2009). The
network level attack designates a network layer
attack such as TCP flooding, User Datagram
Protocol (UDP) flooding, and Internet Control
Message Protocol (ICMP) flooding. The application
level attack designates an application layer attack
such as Hypertext Transfer Protocol (HTTP)
flooding, Session Initiation Protocol (SIP) flooding,
Domain Name Server (DNS) flooding and so on.
Since the attack properties of the two types of
attacks are different from each other, the detection
and response methods are different from each other.
Most of existing DDoS prevention techniques
use a simple method of measuring the amount of
traffic volume, such as Bit per Second (BPS) or
Packet per Second (PPS), and blocking packets for a
predetermined time if the amount of traffic volume
is greater than a threshold (Talpade, 1998); (Huang,
2001). Further, Intrusion Detection System/Intrusion
Prevention System (IDS/IPS) products use a method
of applying string patterns, which mainly appear in a
DDoS attack tool, to detection rules, performing a
pattern matching function, and instantly blocking a
corresponding packet when the packet is detected
416
Yoon S., Oh J., Kim I. and Jang J..
Defense Against TCP Flooding Attack.
DOI: 10.5220/0004119604160420
In Proceedings of the International Conference on Security and Cryptography (SECRYPT-2012), pages 416-420
ISBN: 978-989-8565-24-2
Copyright
c
2012 SCITEPRESS (Science and Technology Publications, Lda.)
(NFR, 2007); (Snort, 2012). However, since there
are limits on simple pattern matching, attempts at
effective response have been recently made by
providing priority queues combined with Quality of
Service (QoS) or applying a rate limiting scheme
(Mirkovic, 2002); (Kargl, 2001); (Garg, 2002).
However, such existing DDoS prevention
techniques perform detection and response based on
the basically simple amount of traffic volume and
string patterns, so that there are limits on realizing
rapid and accurate prevention in an actual DDoS
attack situation.
3 DEFENSE MECHANISM
3.1 Basic Architecture

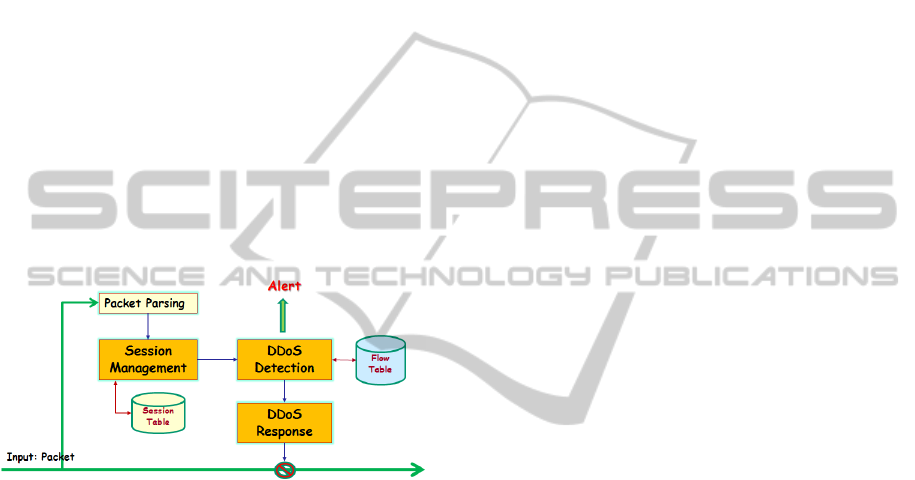

The goal of this paper is to provide a TCP flooding
attack prevention method. Figure 1 shows the basic
architecture.
Figure 1: Basic architecture.
Once the packet is inputted, a packet parser
extracts necessary information for attack detection
from the packet. The TCP flooding attack prevention
system is composed of a session management
module, a DDoS detection module, and a DDoS
response module.
The session management module defines several
session states based on the types and directions of
respective packets which are received at an
intermediate stage between a client and a server. In a
session establishment and termination process,
packets are exchanged at respective steps. Here, the
session state may be variously defined based on the
types and directions of the respective packets so that
the system can detect and response various types of
TCP flooding attacks. The direction of each of the
packets may be determined in such a way as to
compare source IP address with destination IP
address. The session management module may
differently define the session state based on the
direction of a corresponding packet. The session
state will be described next chapter in detail.
The DDoS detection module tracks session state
for each flow, detects a TCP flooding attack, and
identifies the type of the TCP flooding attack. In
order to detect a TCP flooding attack, basically,
session state for each flow should be tracked by the
attack detection module. The flow may be defined as
a set of packet streams having common properties.
In this paper, flow is defined as a set of packet
streams, having the same <destination IP> or the
same <destination IP, destination port>. If specific
session state is tracked for each flow, TCP flooding
can be detected and identified for each attack type.
The DDoS response module responds to the TCP
flooding attack, detected using the attack detection
module based on the type of the flooding attack.
That is, when the DDoS detection module tracks
session state for each flow and then detects a TCP
flooding for each type thereof, the DDoS response
module appropriately responds according to each
attack type.
3.2 Session State Definition
The conventional state transition for the
establishment and termination of a TCP session
between a client and a server may include three
steps, that is, a session establishment step using 3-
way handshaking, a data request and transmission
step, and a session termination step using 4-way
handshaking. State transition which is appropriate
for the client and the server is realized in such a way
as to exchange a connection request (SYN) packet,
an acknowledgement (ACK) packet, and a
termination (FIN) packet.
In this paper, we used the session table
architecture of (Seungyong Yoon, 2008) and newly
defined several session states. The new session state,
which is different from session state defined based
on the conventional TCP state transition (Gordon
Mckinney, 2002), are defined in order to detect a
DDoS attack at the intermediate stage between a
client and a server.

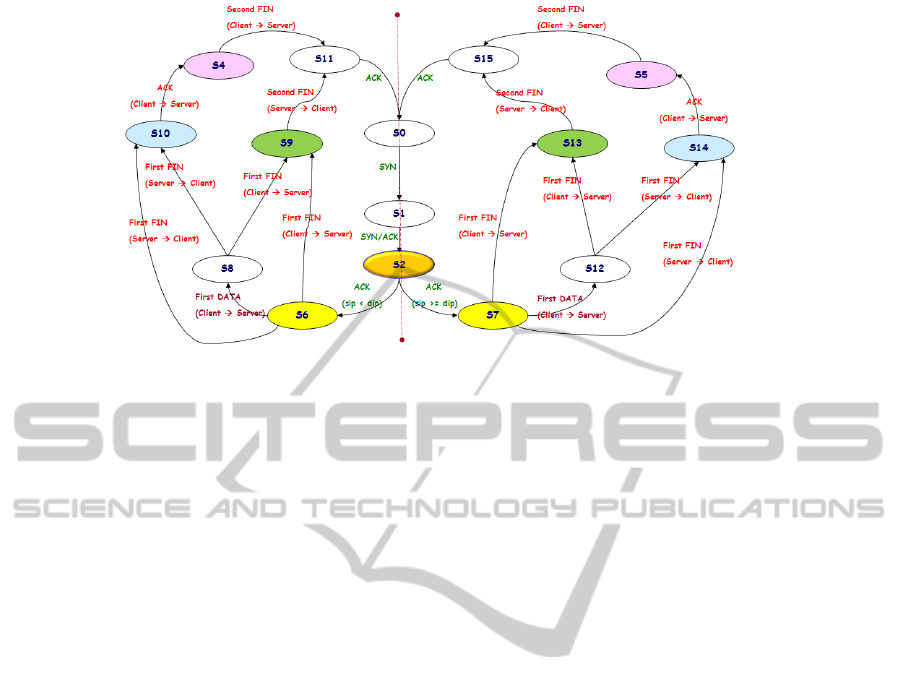

Figure 2 shows a new transition diagram of the
session state defined in this paper. According to the
packet type (SYN, SYN+ACK, ACK, FIN, …) and
direction (Client to Server, Server to Client), each
session state transit the next state appropriately. The
last ACK packet of the TCP 3-way handshaking
process is always transmitted from the client to the
server. Therefore, if the session state is differently
set based on the size of two IP addresses, the
direction of a packet obtained after the session is
created can be easily known, that is, whether the
DefenseAgainstTCPFloodingAttack
417
Figure 2: State transition diagram.
packet is headed for the server from the client or the
packet is headed for the client from the server, can
be easily ascertained.
3.3 Attack Type and Defense
DDoS attacks at the network level may be divided
into TCP flooding, UDP flooding, and ICMP
flooding based on the type of a protocol. Further,
TCP flooding attack may be divided into various
types such as SYN flooding, ACK flooding, FIN
flooding, and so on. Our proposed method provide a
solution of detecting and responding to 6 types of
TCP flooding attacks such as SYN flooding, flag
flooding, open flooding, connection flooding, FIN-
WAIT-1 flooding, and FIN-WAIT-2 flooding.
3.3.1 TCP SYN Flooding
The SYN flooding attack is the most representative
DDoS attack in which a large amount of SYN
packets is transmitted for the purpose of new session
request. In the SYN flooding attack, a large number
of SYN packets are transmitted to a server but no
ACK packet is transmitted in response to
SYN+ACK packets transmitted from the server.
Therefore, the server is full of sessions having SYN
packet received state, that is, “SYN-RCVD” state.
The backlog queue of the server is exhausted and no
more TCP session can be created, so that the server
cannot accept SYN packets from users trying to
connect to the server. During the SYN flooding, the
ACK packet is not transmitted so that session state
in which the client receives the SYN+ACK packet,
that is, the session state “S2”, rapidly increases. In
the case of a normal session, the ACK packet is
instantly transmitted and the session state is changed
to “S6/S7” state, so that the number of sessions state
“S2” is maintained in constant range for a periodic
time. Generally, the number of “S2” state is
maintained to be lower than threshold. Therefore, if
the number of session state “S2” measured for each
flow is equal to or larger than the threshold, it could
be detected that SYN flooding has occurred.
3.3.2 TCP FLAG Flooding
In the flag flooding attack, a large amount of packets
in which a session connection is not established, that
is, out-of-state packets, is transmitted. While a TCP
3-way handshaking process used to create normal
session connection is not performed, arbitrary TCP
flags are generated and a large amount of abnormal
packets are transmitted to the server. When a packet
other than a SYN packet, for example, an ACK
packet, a FIN packet, or a PSH+ACK packet, is
received and session state detection reveals that the
packet does not correspond to relevant session state,
the corresponding packet is regarded as an abnormal
packet since the packet is an out-of-state packet. If
the number of such abnormal packets, measured for
each flow, is equal to or larger than a threshold, it is
determined to be the flag flooding.
3.3.3 TCP Open Flooding
After a session connection is created, a session
connection is continuously made while data packet
is not transmitted. In a normal case, a process of
creating a TCP session connection, transmitting
data, and then terminating the session is performed.
If the open flooding attack is continued, a session
connection is continuously performed without
performing the process of terminating the session, so
SECRYPT2012-InternationalConferenceonSecurityandCryptography
418
that the number of session connections of the server
reaches the maximum limit and the server cannot
provide a new session connection any more.
In the case of normal session connection, after
session connection is created, data transmission is
instantly performed, so that the session state is
changed to the “S8” or “S12” state, thereby
maintaining the number of sessions in which the
session state is “S6” or “S7” within a constant range
for a periodic time. Therefore, the open flooding
could be detected when the number of session state
“S6” or “S7” measured for each flow is equal to or
larger than a threshold.
3.3.4 TCP Connection Flooding
After a TCP session connection is created, a FIN
packet or an RST packet is instantly transmitted
while data packet is not transmitted, so that the
session is terminated, thereby adding to the load of
the server. The connection flooding attack could be
detected when the number of sessions, in which the
FIN packet or the RST packet is received in the
session state “S6” or “S7”, is equal to or larger than
a threshold.
3.3.5 TCP FIN-WAIT-1/FIN-WAIT-2
Flooding
The FIN-WAIT-1 flooding attack is performed in
such a way that an ACK packet is not transmitted in
response to a first FIN packet received from the
server in order to terminate a session, thereby
exhausting the resource of the server. In the case of
normal session termination, after the first FIN packet
is received, the ACK packet is instantly transmitted
and the session state is changed to “S4” or “S5”
state, so that the number of sessions of the session
state “S10” or “S14” is maintained within a constant
range for a periodic time. Therefore, if the number
of session state “S10” or “S14” measured for each
flow is equal to or larger than a threshold, the FIN-
WAIT-1 flooding attack could be detected. The FIN-
WAIT-2 flooding attack is very similar to FIN-
WAIT-1 flooding attack. Server transmits the first
FIN packet used to terminate a session to the client.
If the client does not transmit a second FIN packet
after receiving the first FIN packet and transmitting
an ACK packet, the server is full of sessions of
“FIN-WAIT-2” state. Therefore, resources are
exhausted, so that the server cannot provide normal
service until the sessions of “FIN-WAIT-2” state
have timed out.
4 IMPLEMENTATION AND
EXPERIMENTS
Our proposed method was implemented on a
20Gbps Anti-DDoS system named ‘ALADDIN’
(Advanced Layer-free DDoS Defense
Infrastructure). The developed system prototype and
security board is shown in Figure 3.
The board was configured using two 10Gbps
fiber optic interfaces with a MAC layer. It has one
load balance chip to distribute the input packets to
the DDoS detection engines. The detection engines
each process 5 Gbps of data per second. The
detection engines were implemented as a daughter
board type. The load balancer and detection engines
were implemented using a grade-1 speed Vertex-5
Xilinx FPGA. Each engine had 4 external SRAMs
for session, flow, and ACL tables. The chips were
implemented using the verilog HDL language. The
interfaces between the load balance and detection
engines were implemented using 64-bit bus widths
and a 100Mhz clock speed.
Figure 3: ALADDIN system prototype.
The detection engine processes packets using 32-
bit bus widths internally. The engine was
synthesized successfully at a clock speed of
178Mhz. The maximum performance of the
detection chip is 5.69Gbps. A Synplify pro 9.4
synthesis tool (Synplicity, 2012) was used for
hardware synthesis. A Modelsim PE 6.4 simulator
(Model, 2012) was used for the logic simulation. An
Xilinx ISE 10.1 (Xilinx, 2012) was used for
mapping logic and routing the resources in the
FPGA.
Our system was tested in a local DDoS testing
network using various DDoS tools and test
equipment including IXIA (Ixiacom, 2012). Our test
environment was configured with two racks, 23
servers, several layer-2 gigabit switches, a 10 gigabit
switch with a 24-gigabit interface and two 10Gbit
interfaces, and two routers. First, the system was
DefenseAgainstTCPFloodingAttack
419
tested using real DDoS attack tools including Netbot
Attacker (Han, 2009) and Netkill (Netkill, 2000)
under 8 Gbps of background traffic. Second, the
system was tested using zombie codes that invoked
the 7.7 DDoS attack (Hauri, 2009) in Korea on the
7th of July, 2009.
Table 1 shows the results of test. The test was
performed application level attack as well as
network level attack including UDP and ICMP
flooding attack. In this paper, we only show the test
results of TCP Flooding attack.
Table 1: The test results of DDoS attack.
Attack
Tool
Attack
Menu/Protocol
Result
Netbot
Attacker
[01]SYN Flood TCP SYN Flooding detected.
[05]TCP Flood Not detected.
[06]TCP Multi-
Connect
TCP Connection Flooding
detected.
[11]Route Attack
TCP Connection Flooding
detected.
[12]Smart Auto Attack
TCP Connection Flooding
detected.
[13]SYN+UDP Flood TCP SYN Flooding detected.
[14]ICMP+TCP Flood
TCP Connection Flooding
detected.
[15]UDP+TCP
Connect
TCP Open Flooding detected.
7.7 DDoS
TCP
TCP SYN Flooding detected
(spoofed/non-spoofed)
TCP
TCP Flag (ACK) Flooding
detected (spoofed/non-
spoofed)
Netkill TCP
TCP Fin-Wait-1 Flooding
detected.
5 CONCLUSIONS
TCP Flooding attack can easily overwhelm a server
with big amounts of traffic. Most existing DDoS
prevention techniques perform detection and
response based on the basically simple amount of
traffic or string patterns, so that there are limits on
realizing rapid and accurate prevention in an actual
DDoS attack situation. Our defense mechanism
provide a TCP flooding attack prevention method
which defines several session states based on the
types and direction of a packet, tracks the session
state for each flow, and detects and responds to a
TCP flooding attack. A 20Gbps anti-DDoS system,
we call ‘ALADDIN’ system, was implemented with
our proposed mechanism. The possibility of high-
speed hardware implementation was shown in this
paper. The system was tested using existing DDoS
attack tools in 8Gbps of background traffic. The
system detected TCP flooding attacks during our
test. A test in a real network will be prepared in the
near future.
REFERENCES
L. D. Stein, J. N. Stewart, 2002. The World Wide
WebSecurity FAQ, version 3.1.2, In
<http://www.w3.org/Security/Faq>.
Christos Douligeris, Aikaterini Mitrokotsa, 2004. DDoS
attacks and defense mechanisms; classification and
state-of-the art, In the International Journal of
Computer and Telecommunications Networking,
Vol.44, Issue 5.
Yi Xie and Shun-Zheng Yu, 2009. Monitoring the
Application-Layer DDoS Attacks for Popular
Websites, In IEEE/ACM Transactions on Networking,
Vol.17, No 1.
R. R. Talpade, G. Kim, S. Khurana, 1998. NOMAD:
Trafficbased network monitoring framework for
anomaly detection, In Proceedings of the Fourth IEEE
Symposium on Computers and Communications.
Y. Huang, J. M. Pullen, 2001. Countering Denial of
Service attacks using congestion triggered packet
sampling and filtering, In Proceedings of the 10th
International Conference on Computer
Communiations and Networks.
NFR Security, 2007. NFR Network Intrusion Detection, In
<http://www.nfr.com>.
Snort, 2012, The Open Source Network Intrusion
Detection System, In <http://www.snort.org>.
J. Mirkovic, G. Prier, P. Reiher, 2002. Attacking DDoS at
the source, In Proceedings of ICNP 2002, pp. 312–
321.
F. Kargl, J. Maier, M. Weber, 2001. Protecting web
servers from Distributed Denial of Service attacks, In
Proceedings of the Tenth International Conference on
World Wide Web, pp. 514–524.
A. Garg, A. L. N. Reddy, 2002. Mitigating Denial of
service Attacks using QoS regulation, In Proceedings
of the Tenth IEEE International Workshop on Quality
of Service, pp. 45–53.
Gordon McKinney, 2002. TCP/IP State Transition
Diagram, In RFC793.
Seungyong Yoon, Byoungkoo Kim, Jintae Oh, and
Jongsoo Jang, 2008. H/W based Stateful Packet
Inspection using a Novel Session Architecture, In
International Journal of Computers, Vol.2, Issue 3.
Synplicity, 2012. In <http://www.synplicity.com>
Model, 2012. In <http://www.model.com>
Xilinx, 2012. In <http://www.xilinx.com>
Ixiacom, 2012. In <http://www.ixiacom.com>
K. Han, E. Im, 2009. A Study on the Analysis of Netbot
and Design of Detection Framework, In Proceedings
of JWIS.
Netkill, 2000. Generic remote DoS attack tool, In
<http://www.securiteam.com/tools/5QR0B000AU.html
Hauri, 2009. 7.7 DDos Virus Report. In
<http://www.maxoverpro.org/77DDoS.pdf>
SECRYPT2012-InternationalConferenceonSecurityandCryptography
420
