Simulation of Protection Mechanisms against Botnets on the

Basis of “Nervous Network” Framework

Igor Kotenko and Andrey Shorov

Laboratory of Computer Security Problems, St. Petersburg Institute for Informatics and Automation (SPIIRAS),

39, 14-th Linija, Saint-Petersburg, Russia

Keywords: Security Support Tools, Packet-level Simulation, Botnets, Network Security, Nervous Network.

Abstract: The paper suggests a simulation approach to investigate the protection against botnets on the basis of the

“nervous network” framework. This approach is an example of bio-inspired approaches to the computer

networks protection. The developed simulator is described. Results of the experiments are considered.

Finally, we analyze and compare the performance of the basic protection mechanisms with “nervous

network” protection technique.

1 INTRODUCTION

Today the trend to use botnets by malefactors in the

Internet is becoming increasingly clear. Botnets

allow combining computational capabilities of

multiple compromised hosts. The goal of such

combining is to perform such malicious actions as

scanning of vulnerable hosts, implementation of

“distributed denial of service” (DDoS) attacks,

sending spam, disclosure of confidential data.

On this basis, it becomes obvious that existing

modern botnets are a very important phenomenon in

the network security. Thus, the task of researching

botnets and methods of protection against them is

very important.

One of the promising frameworks used to protect

networks from botnets is a “nervous network”. It is

an example of bio-inspired approaches. Conception

of this approach was suggested in (Chen et al.,

2009). The protection system based on this approach

uses the distributed technique of information data

acquisition and processing. This technique

coordinates operations of main computer network

devices, identifies attacks and takes distributed

coordinated countermeasures. In (Dressler, 2005;

Anagnostakis et al., 2003) the similar techniques for

the computer network protection were proposed.

There are systems which use similar design and

operation principles, for example, such as an

autonomic computing (Huebscher et al., 2008).

To design and implement such protection

frameworks as “nervous network” it is necessary to

have resources for their investigation, development,

testing and adaptation. Investigation of botnets and

protection techniques against them in real networks

is a complicated and hard-to-sell process.

One of the promising approaches to research

botnets and protection mechanisms is simulation.

Simulation permits a more flexible technique for

investigation of complex dynamic systems. This

allows operating with different sets of parameters

and scenarios with less effort than in case of full-

scale experiments.

This paper describes the approach, which

combines discrete-event simulation, component-

based design and packet-level simulation of network

protocols. Initially this approach was suggested for

DDoS attack and protection simulation. The main

contribution of the paper, as compared with other

works of authors, for example, (Kotenko, 2010;

Kotenko et al., 2010), is the development of

“nervous network” framework intended to protect

against botnets in computer networks, the design and

implementation of a special simulation environment

to investigate this framework and the consideration

of a multitude of experiments to analyze the

“nervous network” framework with other protection

mechanisms.

The rest of the paper is organized as follows.

Section 2 discusses the related work. Section 3

describes “nervous network” framework. Section 4

presents the architecture of the integrated simulation

environment developed and its implementation.

Section 5 describes the results of experiments.

164

Kotenko I. and Shorov A..

Simulation of Protection Mechanisms against Botnets on the Basis of “Nervous Network” Framework.

DOI: 10.5220/0004123401640169

In Proceedings of the 2nd International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH-2012),

pages 164-169

ISBN: 978-989-8565-20-4

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

Concluding remarks and directions for further

research are given in Section 6.

2 RELATED WORK

The paper is based on the results of three directions

of research: (1) analysis of botnets as a phenomenon

occurred in the Internet (Bailey et al., 2009; Feily et

al., 2009; Grizzard et al., 2007; Mazzariello, 2008;

Naseem et al., 2010), including the studies of botnet

taxonometry; (2) approaches of creation and

improving the techniques for counteraction against

modern botnets, and (3) enhancement of concepts

and methods for efficient modeling and simulation

of botnet infrastructure and counteraction.

At present moment using public proceedings we

can find many interpretations of different aspects of

botnet functionality. A group of researches, related

to analysis of botnet as a network phenomenon,

defines botnet lifecycle (Feily et al., 2009;

Mazzariello, 2008), which is consisting of several

stages: initial infection and spreading stage, stage of

“stealth” operation and attack stage. Centralized

(Naseem et al., 2010) and decentralized (Feily et al.,

2009; Grizzard et al., 2007; Wang et al., 2007) kinds

of architectures are considered as results of

investigation of feasible node roles, and different

types of botnet arracks are described. In the paper

we consider only worm based spreading techniques.

Due to significant differences of botnet lifecycle

stages, the combined protection methods are used

extensively which take into account specificities of

each stage.

Protection techniques “Virus Throttling”

(Williamson, 2002) and “Failed Connection” (Chen

et al., 2004) are used to oppose botnet propagation

on spreading stage. Such techniques as Threshold

Random Walk (Nagaonkar et al., 2008) and Credit-

based Rate Limiting also require consideration.

Beyond many types of botnets attacks, we

studied botnets which implement DDoS as an actual

attack stage. We considered protection methods for

different phases of DDoS attacks. Approaches

Ingress/Egress Filtering and SAVE (Source Address

Validity Enforcement Protocol) (Li et al., 2002) are

used as attack prevention mechanisms. They realize

filtering of traffic streams for which IP spoofing was

detected. Moreover, such techniques as SIM (Source

IP Address Monitoring) (Peng et al., 2004) and

Detecting SYN flooding (Wang et al., 2002) were

taken into consideration as methods for discovering

DDoS attacks.

We also investigated protection methods

destined to detect botnets of different architectures.

Botnet architecture is defined by the applied

communication protocol. At present moment IRC-,

HTTP- and P2P-related botnet architectures

(Naseem et al., 2010) are important for

consideration.

We analyzed different bio-inspired approaches

which can be applied to protect computer networks.

Nervous system of the human was taken as the

basis of the “nervous network” approach suggested

in (Chen et al., 2009). The nervous system runs

through the all human body and serves as a system

for data acquisition, transmission and processing. It

also produces responses on different stimulus.

“Nervous network” approach borrows structure and

functionality from the human nervous system. It

bases on the distributed mechanism of the data

acquisition and processing, coordination of the

operations of the main network elements, automatic

attack identification and automatic generation of the

countermeasures.

(Dressler, 2005) takes analogy with living cells

as a basis for network protection. Local data are

transferred from cell to cell. Response reaction with

influence on the neighboring cells occurs when

signal is on the cell receptor. Traffic monitor sends

data to the intrusion detection system. The intrusion

detection system processes these data and adds new

rules to firewalls.

(Anagnostakis et al., 2003) suggests a

cooperative mechanism COVERAGE (Cooperative

virus response algorithm) to protect against viruses.

Authors attempted to realize such properties and

mechanisms of immune systems of living organisms

as adaptability, decentralized architecture,

communication mechanisms.

Research on botnet modeling and simulation is

based on a variety of methods and approaches.

A large set of publications is devoted to botnet

analytical modeling. For instance, a stochastic model

of decentralized botnet propagation is presented in

(Owezarski et al., 2004). (Dagon et al., 2006)

proposes an analytical model of global botnet.

Another group of studies uses simulation as

a main tool to investigate botnets and computer

networks in general. Studies in this group mainly

rely on methods of discrete-event simulation of

processes being executed in network structures

(Simmonds et al., 2000; Wehrle et al., 2010), as well

as on trace-driven models initiated by trace data

taken from actual networks (Owezarski et al., 2004).

Other techniques, which are very important for

investigation of botnets, are emulation, combining

SimulationofProtectionMechanismsagainstBotnetsontheBasisof"NervousNetwork"Framework

165

analytical, packet-based and emulation-based

models of botnets and botnet protection (on macro

level), as well as exploring real small-sized networks

(to investigate botnets on micro level).

3 “NERVOUS NETWORK

SYSTEM” FRAMEWORK

“Nervous network” protection system contains two

types of main components – “nervous network”

server and “nervous network” node. Server is

installed in the different subnets. It performs the

most part of data processing and analysis tasks, and

coordinates the operation of neighboring network

devices. Nodes serve for acquisition, initial

processing and transferring of network state

information to servers. They work on the base of

routers. Servers of different subnets exchange

information about states of subnets (Chen et al.,

2009). “Nervous network” framework combines

basic protection mechanisms (“Failed Connection”

(Binkley et al., 2006), “Virus Throttling”

(Williamson, 2002), SAVE (Li et al., 2002), SIM

(Peng et al., 2004), etc.) which work as distributed

detectors and filtering devices. They send data about

the detected anomalies to the servers of the “nervous

system” and operate according to the rules from

these servers. Special protocol is developed to

transfer data between elements of the “nervous

network”.

Let us consider a formal model of “nervous

network” used for simulation. It represents “nervous

network”:

,,,

NN NN

NN Sc En Ev T= , where

simulation planner;

- “Nervous network”

components;

- simulation events;

simulation time. “Nervous network” components are

represented as

En NS NH= , where NS -

“nervous network” servers; NH - “nervous network”

nodes. “Nervous network” server is set as

,, ,NS IM EM DM sDB= , where

M - exchanger

of data with “nervous network” nodes;

EM -

exchanger of data with “nervous network” servers;

- decision-maker and response generator;

DB - database. Data exchangers are connected

with decision-maker and response generator. They

use it to get instructions and data for sending to

other nodes and servers, and deliver information

about the events in the network. Database is

connected to decision-maker and response generator.

It serves as a warehouse for the data from the

external sources and supplies saved information.

We represent a node of the “nervous network” as

,, ,NH AG TR NT HD= , where

G - element of

data acquisition from servers;

TR - element of data

exchange with “nervous network” server;

NT -

element of data exchange between “nervous

network” nodes;

- element which performs

traffic processing.

On the first processing stage, a node distributes

threads according to the sender’s IP-address. Then it

defines types of the packets from the sender and

analyzes processed traffic. Database is connected to

the element of traffic analysis. This element gets

information for the analysis from this database.

If a node detected that traffic is malicious, it

sends this information together with data about the

malicious traffic to the element of the attack traffic

filtering. Legitimate traffic is passed to the network.

Element of attack traffic filtering uses

components of data exchange to send this

information to the server and the nodes. Also it gets

information from them and updates rules and

signatures in the database.

4 SIMULATION ENVIRONMENT

IMPLEMENTATION

The proposed simulation environment realizes a set

of simulation models, called BOTNET, which

implement processes of botnet operation and

protection mechanisms. With narrowing the context

of consideration, these models could be represented

as a sequence of internal abstraction layers:

(1) discrete event simulation on network structures,

(2) computational network with packet switching,

(3) meshes of network services, (4) attack and

protection networks.

The first layer of abstraction is implemented by

use of discrete event simulation environment

OMNET++ (Varga, 2010). The library INET

Framework (INET, 2012) is used for simulation of

packet-switching networks. Simulation of realistic

computer networks is carried out by using the library

ReaSE (ReaSE, 2012). The library is an extension of

INET Framework (INET, 2012). ReaSE includes

also a realistic model of network traffic, modeled at

the packet level (Li et al., 2004; Zhou et al., 2006).

Models of network traffic are based on the approach

presented in (Zhou et al., 2006). This approach

allows generating packet level traffic with

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

166

parameters, which are statistically equivalent to the

traffic observed in real computer networks.

With the help of the developed simulation

environment the following models are built: the

model of the spreading of the network worm

(including model of the vulnerable node), DDoS-

attacks, models of protection mechanisms on the

base of the Failed Connection (FC), Virus Throttling

(VT), SIM, SAVE, the model of the “nervous

network” distributed protection mechanism.

For the experiments, different networks were

generated, including network with 3652 nodes (this

network is used for experiments described). 10 of

these nodes are servers (including one DNS-server,

three web-servers and six mail servers). 1119 nodes

(near 30% from the total number) have

vulnerabilities.

Model of the standard protocol stack is installed

on each node. This stack includes PPP, LCP, IP,

TCP, ICMP, ARP, UDP protocols. Models of the

network components (which implement appropriate

functionality) can be installed additionally

depending on the nodes functional role.

The “neural network” protection mechanism is

implemented as elements which are built-in routers

and typical hosts.

5 EXPERIMENTS

As part of our research, a set of experiments was

performed. They demonstrate the operability of the

developed simulation environment and main

characteristics of protection mechanisms. The

experiments include investigation of protection

activities on the stages of botnet propagation, botnet

management and control (reconfiguration and

preparation to attacks) and attack execution.

5.1 Botnet Propagation Protection

For the botnet propagation phase we used the

spreading of the network worm. To counteract

spreading of the network worm, Failed Connection

and Virus Throttling approaches are used as basic

protection mechanisms. After activation of the

“nervous network”, basic protection mechanisms

work in compliance with connected “nervous

network” server.

Figure 1 shows the number of the infected hosts

if Failed Connection is installed on 100% of routers

(FC-100%), if Virus Throttling is installed (VT-

100%), if “nervous network” protection mechanism

in cooperation with Failed Connection protection

mechanism is installed (NNS-100%) and spreading

of the network worm without protection.

In case of “nervous network” the number of

infected hosts is decreased on nearly 20% relative to

FC and nearly 10% relative to VT.

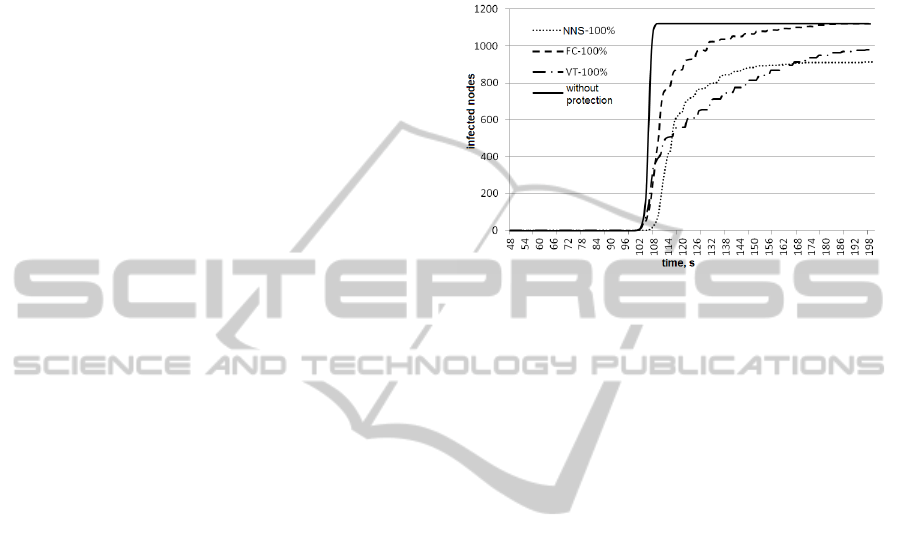

Figure 1: Number of infected hosts.

5.2 Counteracting to Bot Management

On this stage of botnet life cycle we investigated

mainly the protection technique proposed in

(Akiyama et al., 2007). This technique involves

monitoring of IRC-traffic, passing through the

observer node, and subsequent calculation of the

metrics “Relationship”, “Response” and

“Synchronization”, based on the content of network

packets. Metric “Relationship” characterizes the

distribution of clients in IRC-channel.

After analysis of experiments, we can suppose

that a protection mechanism, fulfilled on a small

number of routers which are transit for the main IRC

traffic, can be as effective as the protection

mechanism installed in more number of routers.

We can also assume that a protection

mechanism, having a small covering of the protected

network, generally will not be efficient, because

only a small part of IRC control traffic passes the

vast majority of routers.

We have not verified experiments for the

assessment of quality of filtering of the “nervous

network” protection mechanism on the control stage.

We suppose to conduct such experiments in future.

5.3 Protection against DDoS Attacks

At the last phase of botnet lifecycle it performs

DDoS-attack. Three kinds of protection mechanisms

are considered in the description of experimental

results: SAVE, SIM and the “nervous network”

protection technique. In experiments for simulation

of protection against DDoS-attacks, SYN Flooding

SimulationofProtectionMechanismsagainstBotnetsontheBasisof"NervousNetwork"Framework

167

attacks were executed. Figure 2 shows amount of

traffic on the attacked node to the simulation time,

when DDoS-attack without forging of the sender IP-

address is executed relative.

Figure 2: Volume of traffic on the attacked node

in case of DDoS-attack.

In the first case SAVE mechanisms were installed.

SAVE could not detect malicious threads because

the attack was executed without forging of the IP-

address. In the second case SAVE and SIM

mechanisms were connected to the “nervous

network” mechanism. IP-addresses of the possible

attack sources were detected with help of the SIM on

the attacked server. “Nervous network” transferred

these IP-addresses to the SAVE mechanism. SAVE

was installed on the routers and blocked malicious

traffic directly at the DDoS-attack sources. The

independent basic protection mechanisms used own

methods of attack detection and blocking.

After inclusion in the “nervous network”, basic

protection mechanisms used their own detection

mechanisms, but they provided information about

the detected attacks to the connected “nervous

network” server. These methods waited for the

instructions from the “nervous network”, if there

were no rules for the detected threat.

5.4 Verification of Results

To verify the developed simulation models, we

emulated the functioning of small networks

consisting of many nodes on real computers

combined to a network using Oracle VM Virtual

Box. On emulated computers the typical software

was installed, and the work of legitimate users and

malefactors was imitated. To emulate the botnet

such hosts as “master”, “control center” and

“vulnerable computers” were selected. Furthermore,

the software for monitoring of network traffic was

installed on the computers.

Using the developed network testbed, we

compared the results obtained on the basis of

simulation models with the results of emulation. In

case of discrepancies in the results the corresponding

simulation models were corrected.

We made also performance evaluation for the

“nervous network” protection mechanism relative to

basic protection mechanisms with the help of the

following metrics: errors of the first and the second

kinds, completeness, precision, accuracy, error, F-

measure.

6 CONCLUSION

The paper suggested an approach to the simulation

of the “Nervous network” protection mechanism

against botnets. We proposed a generalized

architecture of simulation environment aiming to

analyze botnets and protection mechanisms. On the

base of this architecture we designed and

implemented a multilevel software simulation

environment. This environment includes the system

of discrete event simulation (OMNeT++), the

component of networks and network protocols

simulation (based on INET Framework library), the

component of realistic networks simulation (using

the library ReaSE) and BOTNET Foundation

Classes library consisting of the models of network

applications related to protection against botnets.

The experiments investigated botnet actions and

protection mechanisms on stages of botnet

propagation, botnet management and control

(reconfiguration and preparation to attacks), and

attack execution. We analyzed several protection

techniques to protect from botnet on the propagation

stage. Botnet propagation was performed via

network worm spreading. We researched techniques

of IRC-oriented botnet detection to counteract

botnets on the management and control stage. We

also analyzed techniques, which work on the

different stages of protection against DDoS attacks.

Experiments demonstrated effectiveness of the

“nervous network” protection mechanism on

different phases of botnet operation.

Future research is connected with the analysis of

effectiveness of botnet operation and protection

mechanisms, including distributed protection

techniques, and improvement of the implemented

simulation environment. One of the main tasks of

our current and future research is to improve the

scalability and fidelity of the simulation. We are also

in the process of developing a simulation and

emulation tesbed, which combines a hierarchy of

SIMULTECH2012-2ndInternationalConferenceonSimulationandModelingMethodologies,Technologiesand

Applications

168

macro and micro level analytical and simulation

models and real small-sized networks.

ACKNOWLEDGEMENTS

This research is being supported by grants of the

Russian Foundation of Basic Research (projects

#10-01-00826), the Program of fundamental

research of the Department for Nanotechnologies

and Informational Technologies of the Russian

Academy of Sciences, the State contract

#11.519.11.4008 and by the EU as part of the

SecFutur and MASSIF projects.

REFERENCES

Akiyama, M., Kawamoto, T., Shimamura, M., Yokoyama,

T., Kadobayashi, Y., Yamaguchi, S. 2007. A proposal

of metrics for botnet detection based on its cooperative

behavior. In SAINT Workshops, pp.82-82.

Anagnostakis, K., Greenwald, M., Ioannidis, S.,

Keromytis, A., Li, D. 2003. A Cooperative

Immunization System for an Untrusting Internet. In

The 11th IEEE International Conference on Networks

(ICON2003), pp.403–408.

Bailey, M., Cooke, E., Jahanian, F., Xu, Y., Karir, M.

2009. A Survey of Botnet Technology and Defenses.

In Cybersecurity Applications Technology Conference

for Homeland Security.

Binkley, J.R., Singh, S., 2006. An algorithm for anomaly-

based botnet detection. In The 2nd conference on Steps

to Reducing Unwanted Traffic on the Internet, Vol.2.

Chen, S., Tang, Y. 2004. Slowing Down Internet Worms.

In The 24th International Conference on Distributed

Computing Systems.

Chen, Y., Chen, H. 2009. NeuroNet: An Adaptive

Infrastructure for Network Security. In International

Journal of Information, Intelligence and Knowledge,

Vol.1, No.2.

Dagon, D., Zou, C., Lee, W. 2006. Modeling botnet

propagation using time zones. In The 13th Annual

Network and Distributed System Security Symposium.

San Diego, CA.

Dressler, F. 2005. Bio-inspired mechanisms for efficient

and adaptive network security. In Service Management

and Self-Organization in IP-based Networks.

Feily, M., Shahrestani, A., Ramadass, S. 2009. A Survey

of Botnet and Botnet Detection. In Third International

Conference on Emerging Security Information Systems

and Technologies.

Grizzard, J.B., Sharma, V., Nunnery, C., Kang, B.B.,

Dagon, D. 2007. Peer-to-Peer Botnets: Overview and

Case Study. In First Workshop on Hot Topics in

Understanding Botnets (HotBots'07).

Huebscher, M., McCann, J. 2008. A survey of autonomic

computing - degrees, models, and applications. In

Journal ACM Computing Surveys (CSUR), Vol. 40,

Issue 3.

INET, 2012. http://inet.omnetpp.org/.

Kotenko, I. 2010. Agent-Based Modelling and Simulation

of Network Cyber-Attacks and Cooperative Defence

Mechanisms. In Discrete Event Simulations, Sciyo,

pp.223-246.

Kotenko, I., Konovalov, A., Shorov, A. 2010. Agent-based

Modeling and Simulation of Botnets and Botnet

Defense. In Conference on Cyber Conflict. CCD COE

Publications. Tallinn, Estonia, pp.21-44.

Li, L., Alderson, D., Willinger, W., Doyle, J. 2004. A

first-principles approach to understanding the internet

router-level topology. In ACM SIGCOMM Computer

Communication Review.

Li, J., Mirkovic, J., Wang, M., Reither, P., Zhang, L. 2002.

Save: Source address validity enforcement protocol. In

IEEE INFOCOM, pp.1557-1566.

Mazzariello, C. 2008. IRC traffic analysis for botnet

detection. In Fourth International Conference on

Information Assurance and Security.

Nagaonkar, V., Mchugh, J. 2008. Detecting stealthy scans

and scanning patterns using threshold random walk,

Dalhousie University.

Naseem, F., Shafqat, M., Sabir, U., Shahzad, A. 2010.

A Survey of Botnet Technology and Detection. In

International Journal of Video & Image Processing

and Network Security, Vol.10, No. 01.

Owezarski, P., Larrieu, N. 2004. A trace based method for

realistic simulation. In 2004 IEEE International

Conference on Communications.

Peng, T., Leckie, C., Ramamohanarao, K. 2004.

Proactively Detecting Distributed Denial of Service

Attacks Using Source IP Address Monitoring. In

Lecture Notes in Computer Science, Vol.3042, pp.771-

782.

ReaSE, 2012. https://i72projekte.tm.uka.de/trac/ReaSE.

Simmonds, R., Bradford, R., Unger, B. 2000. Applying

parallel discrete event simulation to network

emulation. In The fourteenth workshop on Parallel

and distributed simulation.

Varga, A. 2010. OMNeT++. In Modeling and Tools for

Network Simulation, Wehrle, Klaus; Gunes, Mesut;

Gross, James (Eds.) Springer Verlag.

Wang, P., Sparks, S., Zou, C.C. 2007. An advanced hybrid

peer-to-peer botnet. In First Workshop on Hot Topics

in Understanding Botnets (HotBots'07).

Wang, H., Zhang, D., Shin, K. 2002. Detecting SYN

flooding attacks. In IEEE INFOCOM, pp.1530–1539.

Wehrle, K., Gunes, M., Gross, J. 2010. Modeling and

Tools for Network Simulation, Springer-Verlag.

Williamson, M. 2002. Throttling Viruses: Restricting

propagation to defeat malicious mobile code. In

ACSAC Security Conference, pp.61–68.

Zhou, S., Zhang, G., Zhang, G., Zhuge, Zh. 2006.

Towards a Precise and Complete Internet Topology

Generator. In International Conference

Communications.

SimulationofProtectionMechanismsagainstBotnetsontheBasisof"NervousNetwork"Framework

169
