An Agile Approach for Service-Oriented Architectures

Hamza Chehili

, Mahmoud Boufaida

and Lionel Seinturier

Laboratory LIRE, Mentouri University of Constantine, Constantine, Algeria

LIFL-INRIA ADAM, University of Lille, 59655 Villeneuve d’Ascq, France

Keywords: SOA, Agile, Design, SCA, BPMN.

Abstract: Today, service oriented architectures (SOA) has received much interest. the need of methodologies for the

implementation of this architecture is very critical and crucial. In this position paper, we present an agile

approach for the development of SOA with the respect of the principles of agile methods. This approach

exploits the BPMN model to design incrementally business processes and the SCA model to describe the

business functions of the system as an assembly of components. As implementation of this approach, we

announce briefly a computer aided software engineering (CASE) framework.

1 INTRODUCTION

The change and the rapid evolution of needs have

led companies to invest more on their information

systems. The later ones are often criticized for their

limitations in terms of reuse and evolution. Thus, the

problems of incompatibility and redundancy at the

application level have highlighted the need for a

homogeneous enterprise-wide solution. Service-

oriented architecture (SOA) has emerged as a

solution that meets business expectations. It is

considered as an approach to normalize the software

architecture across the enterprise (Erl, 2005). The

service is the key element of this paradigm. It is seen

as an autonomous entity, independent of platforms,

which can be described, published, discovered and

loosely coupled (Papazoglou, 2008). Thus, SOA

offers features that are necessary for the

performance of the company's business processes.

Several methodologies have been proposed in

the literature for the development of such

architectures (Ervin, 2007). These methodologies

have the objective of implementing a solution taking

into account the business process level. However,

they are costly to use at the expense of speed of

development provided for the adoption of SOA. In

the other hand, agile methods know today a

remarkable success in software engineering. This

success essentially amounts to their pragmatic

approach. They are iterative and incremental

allowing the rapid development of deliverable

software. Moreover, these methods take into account

the changing needs by involving the client

throughout the development cycle (Manifesto,

2001). The main theme in agile methods is to

promote and speed up responses to changing

environments, requirements and meeting the

deadlines (Rao, 2011).

In our work, we focus on the complementarity

between the concepts of SOA and those coming

from practices of agile methods in the field of

software engineering. We propose an approach for

developing an agile SOA by benefiting from the

advantages of agile methods.

Our proposed approach exploits the BPMN

model (Business Process Modelling Notation) to

design incrementally the business processes of an

enterprise (Owen, 2004). Next, the SCA model

(Service Component Architecture) is used to

describe the business functions of the system as an

assembly of components (Beisiegel, 2007). They

represent a development of sub-projects similar to

those currently covered by agile methods.

This position paper is structured as follows. First,

an overview of current approaches is highlighted.

Next, the proposed approach is described. Finally, a

short conclusion is given.

2 SOME RELATED WORK

The challenge of adopting an SOA has caused the

enrichment of the literature from a variety of

research that addresses various establishment plans

468

Chehili H., Boufaida M. and Seinturier L..

An Agile Approach for Service-Oriented Architectures.

DOI: 10.5220/0004128304680471

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 468-471

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

of such architectures. Methodologically, some

research work tried to meet the needs in this area by

exploiting various models, techniques and processes.

The following list is not exhaustive: (Kunal, 2006),

(Papazoglou, 2006), (Zimmermann, 2004), (Butlet,

2009), (Seung, 2008), (Vamshi, 2009), (Emig,

2008), (Zou, 2006) and (Engels, 2008).

Let us notice that there is no methodology that

has been developed for the implementation of an

SOA satisfying the conditions of the agility.

Moreover, the methodologies with a degree of

agility are limited to an exploitation of agile

methods at some of their phases winch makes the

development heavy in detriment of, among others,

the rapid response to change and speed of delivery.

Concerning the agile methods used in the

software engineering domain, they don’t cover the

entire lifecycle of an SOA especially the business

process analysis of a company. Moreover, these

methods are more appropriate for small development

projects. Nevertheless, an ideal approach will be the

division of a large scale project in small projects

more suited to the principles of agile methods.

In our approach, we intend to cover the life cycle

of an SOA while adopting agile practices throughout

the development process. Thus, at each phase, the

problem is divided into sub-problems. We start by

dividing the development of a SOA project on many

sub-projects on having a goal for each one in order

to develop their business process. Thus, each

business process is described as an assembly of

components. The potential development of each of

these components is considered as a project in

software engineering. The next section presents the

different phases of our proposed approach.

3 DESCRIPTION OF AN AGILE

APPROACH

The proposed approach is based on an iterative and

incremental process that comprises six phases which

are: analysis of enterprise business, elaboration of

the SCA model for each business process,

identification of the granularity of business

components, development of component operations,

assembling business components, and assembling

business processes (see Figure 1).

This approach is described as agile because it

respects the principles of agile methods specified in

the manifesto of agile methods. In fact, it allows the

development iterative and incremental of business

processes, business components, and components

operations. Thus, it takes into account the changing

needs by involving the client throughout the

different phases.

3.1 Analysis of Enterprise Business

The first phase of this approach is the incremental

modeling of all business processes of the enterprise

using the BPMN model. This allows us to have a

high level abstraction of the interactions leading

services to perform business processes.

3.2 Elaboration of the SCA Model for

Each Business Process

This phase is initiated after a business process is

modeled (we do not wait for the achievement of the

analysis of enterprise business phase). For each

business process, it defines a component architecture

described using the SCA model. The mapping from

BPMN to SCA is based on rules defined in

(Dahman, 2010). These rules allow an automatic

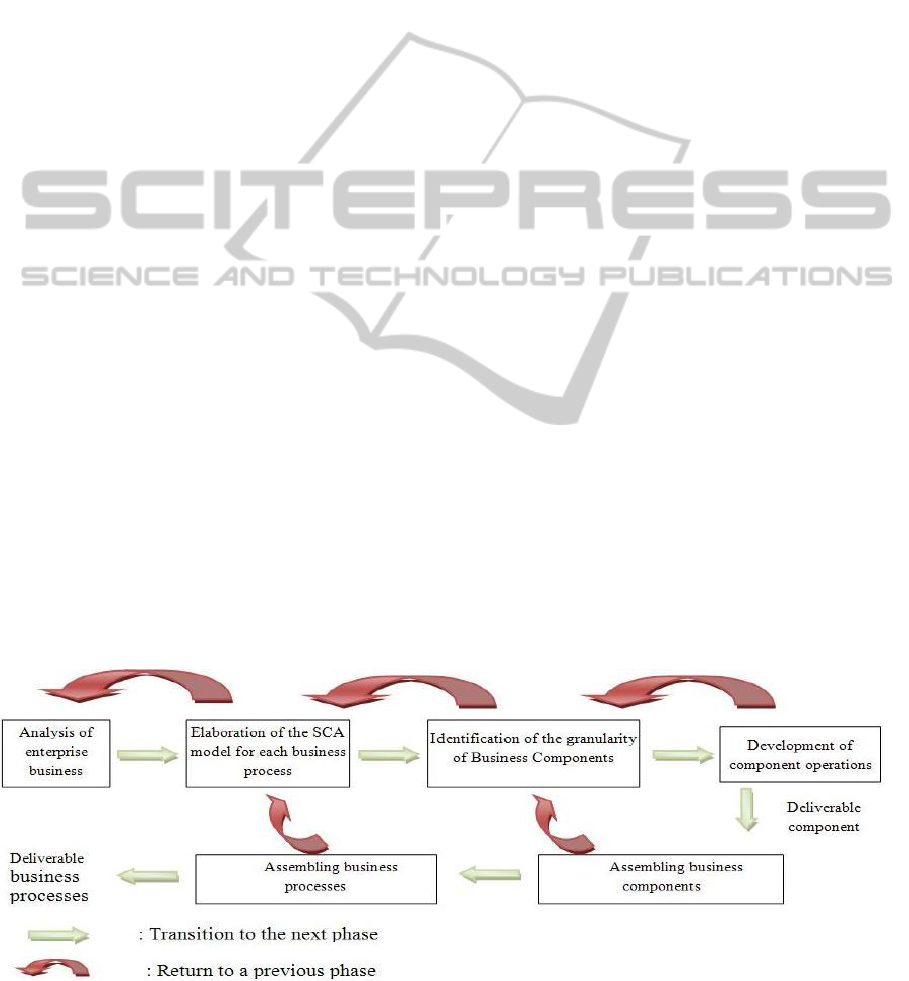

Figure 1: Description of the approach.

An Agile Approach for Service-Oriented Architectures

469

mapping of business process activities described in

the BPMN model to interactions description of a set

of components in the SCA model. These

components represent the high-level business

functionalities of the enterprise. Thus, they can be

assembled from components of a finer granularity

having features or specific services that can be

invoked by several business components.

3.3 Identification of the Granularity of

Business Components

This phase takes as input the business components

constituting the SCA architecture developed in the

previous phase. The outputs of this phase are the

descriptions of the components to be developed and

the granularity of each business component. The

process of this phase consists of the following steps:

Step 'Search': it takes as input the descriptions of

the business components constituting the SCA

architecture one by one and performs a search in

descriptions of available components. It gives as

output the list of components found realizing some

of the requested operations.

Step 'Refinement': it takes as input descriptions

of the components found in the search and

description of the requested business component. It

refines the latter based on fine-grained components

found in the form of an assembly of components.

Research and refinement are repeated in the form

of iterations until the level of refinement is optimal.

Reconfigurations of the assembly of components are

possible in each iteration according to the

components found and the reached level of

granularity.

At the end of this process, the component

descriptions to be developed are passed to the

development phase. The description of the assembly

of the business component will be maintained in the

platform. This description includes the assembly of

the fine-grained components forming the business

component in question (available components and

those developed).

3.4 Development of Component

Operations

This phase takes as input the descriptions of the

components to be developed. The output of this

phase are the components developed, tested and

approved by the customer. The approach in this

phase comes at a lower level of abstraction (process,

components and operations now). Indeed, the

process of this phase is inspired from the workshops

of traditional software engineering, specifically,

those adopted by agile methods.

The development process follows an iterative

and incremental cycle with client involvement in the

identification of tasks and tests. The process of this

phase consists of the following steps:

Step 'Identification of tasks': it receives as input

the description of a component to develop in the

form of operations (identified in the previous phase).

It allows the development team to identify the tasks

to be developed for each operation. The outputs of

this step are the tasks of each operation assigned to

the developers with the tests to be performed.

Step 'development iteration': it takes as input the

tasks to be developed. All developers receive the

tasks allocated to them. In addition, any task

completed must be passed directly to the test.

Step 'Unit testing': it receives the tasks and tests

and allows one to make the planned tests. If there are

anomalies, the task is returned to the development

process.

Step 'Integration testing': it receives as input

tasks that have passed the unit test successfully. It

allows one to perform tests on the integration of

operations and the entire component. If the

integration fails, or the customer is not satisfied and

request changes, the component is returned

according to the change. This may be at one of the

following levels:

 Step 'Development Iteration’ if the change

concerns a task.

 Step 'Identification of tasks' if the change

concerns an operation.

In the case where the integration test passes, the

component is deployed in the platform.

3.5 Assembling Business Components

This phase takes as input, for each business

component, all components developed and deployed,

and the components found in Phase 3. The output of

this phase is the business component deployed. The

process of this phase consists of the following steps:

Step ‘assembling components’: it configures the

business component from available components and

those developed.

Step ' testing business component integration’: it

takes as input the configuration of the assembly. It

allows the integration testing of components

involved in the assembly. If the test fails or the client

is not satisfied and requests changes, the

configuration will be referred to the assembly step or

even to Phase ‘Identification of the granularity of

Business Components' (Phase3) if the changes

ICSOFT 2012 - 7th International Conference on Software Paradigm Trends

470

require the involvement of other components.

3.6 Assembling Business Processes

This phase allows the assembling and the

configuring of a business process in which all the

business components are configured tested and

deployed. It takes as input these business

components and return the business process

deployed. The process of this phase consists of the

following steps:

Step ‘assembling business components': It allows

to configure the business process resulting from the

business components from the previous phase.

Step 'Testing business processes integration': It takes

as input the configuration of the assembly. It lets do

tests the integration of business components

involved in the assembly. If the test fails or the client

is not satisfied wanting change, the configuration is

returned to the assembly step or even at the design

phase of the SCA model for each business process

(Phase 2) whether the changes give rise to the

involvement of other business components.

4 CONCLUSIONS

In this position paper, we have presented an agile

approach for the establishment of SOA. This

approach covers the high level of abstraction of such

architecture. It begins with the analysis of business

on the scale of the enterprise. Thus, the successive

division of the project, the customer involvement,

and the acceptance test parts of the architecture can

meet the terms of the manifesto of agile methods.

Currently, we are focusing on the definition of

the description of components and their assembly in

order to implement the approach. This can be

achieved by identifying the operations of each

component in relation to the processes described in

the phases of the approach. Once the components are

described, we will move to their development and

deployment.

REFERENCES

Erl T, «Service-Oriented Architecture: Concepts

Technology and Design». Prentice Hall. 2005.

M. P. Papazoglou et al., «Service-oriented computing: a

research roadmap», International Journal of

Cooperative Information Systems. Vol. 17, No. 2. P.

223–255. 2008.

R. Ervin et al., «A Survey of Service Oriented

Development Methodologies». The 2nd European

Researchers Workshop on Service Oriented

Computing. 2007.

Agile Manifesto, Manifesto for Agile Software

Development, 2001. Disponible en ligne: http://agile

manifesto.org/.

K. N. Rao, K. Naidu, P. Chakka “A Study of the Agile

software Development Methods, Aplicability and

Implications in Industry”, International Journal of

Software Engineering and its Applications, Vol. 6, No.

2, P. 35-45, 2011.

M. Owen, J. Raj “BPMN and Business Process

Management: An Introduction to the New Business

Process Modelling Standard”, Business Process

Trends, March 2004.

Beisiegel, M. et al., “Service Component Architecture”

2007, www.osoa.org.

M. Kunal: «Service Oriented Unified Process (SOUP)».

2006.

G. Engels et al., «A method for engineering a true Service-

oriented architecture». 2008.

M. P. Papazoglou et al., «Service-Oriented Design and

Development Methodology». International Journal of

Web Engineering and Technology. 2006.

W. S. Seung, K. K. Haeng, «A Framework for SOA-Based

Application on Agile of Small and Medium

Enterprise», Computer and Information Science, SCI

131, P. 107–120, 2008.

K. G. Vamshi, P. C. Andrew, «Implementing a SOA using

Scrum: Achieving improved productivity using

services trees», Proceeding of the Southern

Association for Information Systèms Conference,

Charleston, SC, USA, 2009.

O. Zimmermann et al., «Elements of Service-Oriented

Analysis and Design», IBM Corporation. 2004.

J. Butlet, «An introduction to SoaML and its Place within

the SAE Meta Model», CDBI Journal, Février 2009.

C. Emig and al., «Model-Driven Development of SOA

Services». 2008.

K. Dahman, F. Charoy, C. Godart “Generation of

Compenent Based Architecture from Business

Processes: Model Driven Engineering for SOA», Eight

IEEE European Conference on Web Service, P. 155-

162, 2010.

Z. Zou, Z. Duan, «Building Business Process or

Assembling Service Components: Reuse Services with

BPEL4WS and SCA», European Conference on Web

Service, 2006.

An Agile Approach for Service-Oriented Architectures

471
