Implementation of an A+ Interpreter for .NET

P´eter G´al and

Akos Kiss

Department of Software Engineering, University of Szeged, Dugonics t´er 13., 6720 Szeged, Hungary

Keywords:

A+, .NET, Interoperability.

Abstract:

In this paper, we introduce a clean room implementation of an A+ interpreter for the .NET platform. Our

goal was to allow interoperability between A+ and .NET programs, thus unlocking existing routines to .NET

developers and making .NET class libraries available to A+ developers. In a preliminary experiment, we made

the advantage of interoperability visible: we achieved a 5-fold speedup by calling .NET methods from an A+

script. Additionally, we have also shown how to use A+ as an embedded domain-speciﬁc language in C#

code.

1 INTRODUCTION

A+ is an array programming language (Morgan Stan-

ley, 2008) inspired by APL. It was created more than

20 years ago to suite the needs of real-life ﬁnancial

computations. However, even nowadays, many criti-

cal applications are used in computationally-intensive

business environments. Unfortunately, the original

interpreter-based execution environment of A+ is im-

plemented in C and is ofﬁcially supported on Unix-

like operating systems only.

Our goal was to develop a .NET-based implemen-

tation, thus allowing the interoperability between A+

and .NET programs (calling .NET methods from A+

scripts, or executing A+ code from or even embed-

ding – as a domain-speciﬁc language – into .NET pro-

grams), and the hosting of A+ processes on Windows

systems. This would extend the lifetime of existing

A+ applications, unlock existing ﬁnancial routines to

.NET developers, and make .NET class libraries avail-

able to A+ developers.

In this paper, we introduce a clean room im-

plementation of an A+ runtime

for the .NET en-

vironment utilizing its Dynamic Language Runtime

(DLR) (Chiles and Turner, 2009). We give an

overview of its architecture, we present preliminary

results on its performance, and most importantly,

highlight the potential that lies in the interoperability

between A+ and .NET code.

The rest of the paper is organized as follows. Sec-

tion 2 gives a short introduction to the A+ language,

focusing on its specialities, Section 3 discusses brieﬂy

Project hosted at: https://code.google.com/p/aplusdotnet/.

the implementation of the .NET A+ runtime, Sec-

tion 4 details the experiments conducted with the run-

time, Section 5 overviews related work, and ﬁnally,

Section 6 concludes the paper and gives directions for

futute work.

2 THE A+ PROGRAMMING

LANGUAGE

A+ derives from one of the ﬁrst array programming

languages, APL (Clayton et al., 2000). This legacy of

A+ is one of the most notable differences compared to

more recent programming languages. While the op-

erations in modern widespread programing languages

usually work with scalar values, the data objects in A+

are arrays. Even a number or a character is itself an

array, of the most elementary kind. This approach al-

lows the transparent generalization of operations even

to higher dimensional arrays.

The other striking speciality of A+ is the vast num-

ber of (more than 60) built-in functions, usually called

operators in other languages. These functions range

from simple arithmetic functions to some very com-

plex ones, like the matrix inverse or inner product cal-

culations. Furthermore, most functions have special,

non-ASCII symbols associated. This allows quasi-

mathematical notations in the program source code,

but may cause reading and writing A+ code to be a

challenge for the untrained mind.

Finally, although being a language of mathemati-

cal origin, A+ has an unusual rule: all functions have

equal precedence and every expression is evaluated

297

Gál P. and Kiss Á..

Implementation of an A+ Interpreter for .NET.

DOI: 10.5220/0004129202970302

In Proceedings of the 7th International Conference on Software Paradigm Trends (ICSOFT-2012), pages 297-302

ISBN: 978-989-8565-19-8

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

(+/a) ,

←

1 +

Listing 1: The computation of the sum and product of the

ﬁrst 10 natural numbers in A+.

from right to left.

The above mentioned specialities are exempliﬁed

in Listing 1, which shows how the computation of the

sum and product of the ﬁrst 10 natural numbers can

be formalized in A+. The expression ι

(using the

symbol iota) generates a 10-element array containing

values from 0 to 9, while

1 +

increments each ele-

ment by one, which is then assigned to the variable

The operator ×

computes the product of the vector,

while

computes the sum. The concatenation func-

tion is denoted by comma, which ﬁnally results the

two-element array

55 3628800

. Note the parentheses

around the sum, whithout which concatenation would

be applied to variable

and the product, and summa-

tion would be applied only afterwards because of the

right-to-left order of evaluation.

As the above code shows, quite complex computa-

tions can be easily expressed in a very compact form

in A+. The Language Reference gives further exam-

ples, mostly from ﬁnancial applications, e.g., how to

compute present value at various interest rates in a

single line (Morgan Stanley, 2008, page 62).

3 IMPLEMENTATION OF THE

INTERPRETER

3.1 Problems

Even before the implementation of the .NET-based

runtime could have started, we have run into two ma-

jor problems of the original system. First, it turned

out that A+ has no formal grammar. There are only

two ofﬁcial sources of information available on the

syntax of A+: the Language Reference (Morgan Stan-

ley, 2008), which gives only a textual description of

the language, and the source code of the reference

implementation, which contains a hand-written tok-

enizer and parser, from which the formal rules are

non-trivial to reverse engineer. Thus, we had to for-

malize the grammar of A+ ﬁrst. (The resulting gram-

mar in EBNF form is available from the repository of

the project.)

The second major problem was that the language

reference and the reference implementation conﬂicted

at quite a few points in semantic matters. Some dif-

ferences were clearly the result of the lazyness of the

implementer (e.g., the system command

$mode

de-

termines whether a string equals to “apl”, “ascii” or

.NET Base Class Library

DLR

Parser

Lexers

Helpers

Code Generator

Execution Engine

Figure 1: Components of the A+ .NET runtime.

“uni” based on the second character of the string in-

stead of looking for an exact match). Some other dif-

ferences were, however, the results of extensions to

the semantics documented in the language reference

(e.g., the implementation of the pick function accepts

not only one-dimensional arrays as documented but

multi-dimensional ones as well.) In those cases that

fell into the ﬁrst category, we decided not to repeat

the same errors but to follow the language reference.

However, in the case of the second category, we chose

to accept the extensions in the .NET version since ex-

isting A+ applications may rely on their existence.

Once we handled the disturbing syntactic and se-

mantic problems of the original system, we became

able to work on the adaptation to .NET. The architec-

ture of the resulting system is described in the next

subsection.

3.2 Architecture Overview

Figure 1 depicts the architecture of the .NET-based

A+ runtime and identiﬁes its main components. The

white boxes denote componentsprovided by the .NET

framework, including the base class library and the

DLR that aids the adaptation of scripting languages

to .NET. The shadowed boxes form the system imple-

mented by us. These components build on top of each

other as follows.

The lexer and parser modules are automatically

generated by ANTLR (Parr, 2007), thanks to the for-

malization of the A+ grammar. In the current im-

plementation, we have lexer grammars for two input

modes of the possible three of A+: one for the APL

input mode that is commonly used by the everyday

users of the language (but requires a special APL font

for proper display) and one for the ASCII input mode,

which makes the embedding of A+ scripts into other

source code, e.g., into C#, easier. (The system can be

extended with the now-missing UNI mode lexer eas-

ily if the need arises.)

The output of the generated parser is an abstract

syntax tree (AST), which is transformed by the Code

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

298

64 10

AST

v *

64+10

Lexer & Parser

A+ script

DLR Expression Tree

Code Generator

DLR Compiler

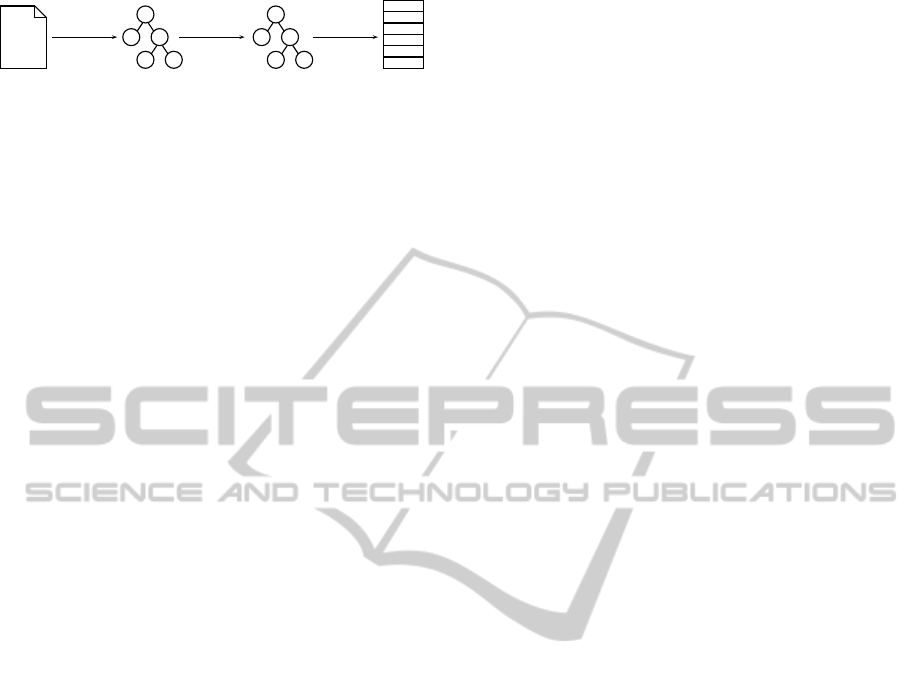

Figure 2: Compilation steps of an A+ script.

Generator module into DLR Expression Trees (ET).

During transformation, part of the semantics – es-

pecially control structures and the structure of state-

ments – are expressed using ETs, while complex

functionalities operating on diverse data structures get

usually transformed to calls to helper functions imple-

mented in C#.

The entry point for the execution of an A+ script is

the Execution Engine. It glues together the parser, the

Code Generator, and the DLR subsystem by feeding

the A+ source code into the lexer-parser, givingthe re-

sulting AST to the Code Generator, passing the gen-

erated ET to the compiler of DLR, and ﬁnally, call-

ing the compiled executable IL code. In Figure 2,

we show how the different components of the run-

time transform an A+ source code until it becomes

executable by the .NET framework.

3.3 Usage

The .NET-based A+ execution engine can be used in

two ways. Since DLR provides a command line host-

ing API, it is very easy to implement a command line

tool mimicking the behaviour of the reference inter-

preter implementation. The biggest advantage of the

.NET-based implementation is, however, that it can be

embedded into other .NET applications. Moreover,

by adding .NET methods into the execution scope of

the engine, it is possible to achieve interoperation be-

tween A+ scripts and the embedding .NET environ-

ment.

4 EXPERIMENTS

Although our primary goal for the initial implemen-

tation of the .NET-based runtime was to make its ob-

servable behaviour as equivalent to the reference im-

plementation as possible and, thus, we did not focus

especially on optimizations, we still wanted to get

preliminary results on its runtime performance. Thus,

we extracted a code fragment from a real-life code

base and extended it with some code performing ex-

ecution time measurement. Listing 2 shows the test

A+ script, where lines 1–20 implement URL encod-

ing of strings, and lines 22–28 drive the encoding by

feeding a set of URLs to the routines (and repeating

uri.AN

←

{ "ABCDEFGHIJKLMNOPQRSTUVWXYZ",

"abcdefghijklmnopqrstuvwxyz",

"0123456789-_.˜" };

string.join{char; strlist}: {

if (0=#strlist)

←

"";

7 ←

(-#char)

↓ ⊃

strlist,

<char;

}

uri.encodechar{char; ignore}: {

if ((char=’ ’)

∧

(’ ’

∈

ignore))

←

’+’;

if (char

∈

uri.AN)

←

char;

if (char

∈

ignore)

←

char;

14 ←

’%’,(16 16

⊤

‘int?char)#"0123456789abcdef";

}

uri.encode{ascii; ignore}: {

bts

←

uri.encodechar

{ascii; <ignore};

19 ←

string.join{’’; bts};

}

uri.encodeD{ascii}:

←

uri.encode{ascii; ""}

start

←

time{}

300 do { uri.encodeD

data; }

end

←

time{}

28 ↓

’elapsed: ’,

⊤◦

end[2] - start[2]

Listing 2: The A+ script used for performance evalua-

tion (written in APL input mode).

this 300 times) and additionally measure the elapsed

time. The input for the encoding has been collected

during a browsing session and contains 50 URLs of

length ranging from 60 to 1439 characters. (Because

of length constraints, the test data is not listed here.)

For our experiments, we used a computer

equipped with a Dual Core AMD Opteron 275

2.2GHz CPU and 4GB RAM. During the evalua-

tion, the reference implementation of the A+ inter-

preter (version 4.22) acted as a baseline for compari-

son, which was executed on a 32-bit Debian Squeeze

Linux installation. Our .NET-based implementation

(revision 231) was ran on Windows 7 (32-bit) and

.NET framework 4.0 by embedding the execution en-

gine into an application utilizing the command line

hosting API of DLR.

In our ﬁrst experiment, we compared the execu-

tion time of the A+ script as measured on the ref-

erence implementation and on the .NET-based inter-

preter. The result of the comparison is shown on the

ﬁrst two columns (A, B) of Figure 3. According to the

measurements, the reference implementation is about

7 times faster than the .NET port, currently.

However, we also experimented with the interop-

erability between A+ and .NET. Since the .NET Base

Class Library contains equivalents of

string.join

and

url.encode

, we performed two additional ex-

ImplementationofanA+Interpreterfor.NET

299

A B C D

Runtime (secs)

Figure 3: Execution times of the test script A) on

the Linux reference implementation, B) on the .NET

implementation, C) on the .NET implementation with

string.join

replaced, and D) on the .NET implementa-

tion with

uri.encode

replaced.

periments where we removed the A+ implementation

of these functions from the test script (lines 5–8 in

the ﬁrst experiment, lines 1–20 in the second) and

added their .NET counterparts to the scope of the

engine before execution. The result of these exper-

iments is shown on the last two columns (C, D) of

Figure 3. The replacement of

string.join

by its

.NET equivalent resulted in a nearly 30% speedup,

even though this version is still slower than the ref-

erence implementation. However, the replacement of

url.encode

yielded a huge performance gain. The

execution time in this experiment dropped to 20% of

the time measured for the reference implementation,

which is equivalent to a 5-fold speedup. This latter

result shows one of the possible exploitations of the

interoperability, i.e., performance improvement of ex-

isting A+ applications by adding .NET implementa-

tions for critical code parts.

Speeding up the execution of A+ scripts by call-

ing .NET routines is not the only interesting ap-

plication of the runtime. Because of the math-

ematical expressive power of A+, it can be used

in .NET code as an embedded domain-speciﬁc lan-

guage. Since A+ is mostly used in ﬁnancial com-

putations, we illustrate the usefulness of the embed-

ding with the mixed-language implementation of the

oft-cited Black-Scholes formula (Black and Scholes,

1973) used to calculate the price of European put and

call options. Listing 3 shows a code fragment where

mathematical formulas are written in A+ but control

structures are in the host C# language.

5 RELATED WORK

Efforts on the integration of script languages into

modern object-oriented frameworks did not begin

with DLR. One of the ﬁrst attempts was the imple-

mentation of the Python language in/on Java, called

JPython (now Jython) (Hugunin, 1997). That ap-

proach featured a Python to Java byte code compiler

to achive its goals. The developer of the port reported

a slowdown by a factor of 1.7 compared to the C im-

plementation.

For the .NET framework, Python was again

among the languages to be ported ﬁrst. However, in

the pre-DLR era that was a hard task and the project

has been abandoned (Hammond, 2000). This negative

result has led some interpreter developers not to reim-

plement their execution engines in .NET but to pro-

vide a bridge between the framework and the existing

interpreter (Mascarenhas and Ierusalimschy, 2004).

Then, however,the idea of porting Python to .NET

was raised again, which resulted in the successful

IronPython project (Hugunin, 2004). In the ﬁrst pub-

licly announced version (0.2), it was considerably

(100-fold) slower on some benchmarks than the C

implementation (while faster on some others). The

project is still under active development and its per-

formance is regularly compared to the reference im-

plementation (Fugate, 2010). Most importantly, the

DLR also grew out from this project (Hugunin, 2007).

The Java community is also putting effort on sup-

porting the execution of script languages on the Java

platform. Several related JSRs (Sun Microsystems,

2006; Sun Microsystems, 2011) reached ﬁnal status

and got incorporated into public releases of the plat-

form.

Besides A+, APL has several other derivatives as

well. Two of these are even designed to work with

the .NET framework. The ﬁrst version of VisualAPL,

an APL-based development platform for .NET, be-

came available in 2003, and it was released as a

consumer-ready product in 2009 (Blaze, 2009). How-

ever, VisualAPL has departed from the conventional

APL and adopted object-orientation, and C# syn-

tax and semantics into the language. More recently,

APL# (Kromberg et al., 2010) was introduced based

on Dyalog APL. In this case, the language designers

have taken careful steps not to introduce language-

breaking features. The APL# language is still under

active development, with an interpreter in a pre-beta

phase.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

300

aplusEngine.Execute("d1 := ((log (S % X)) + T * (r + (vˆ2) % 2)) % (v * T ˆ 0.5)", scope);

aplusEngine.Execute("d2 := d1 - v * T ˆ 0.5", scope);

if (option == "call") {

result = aplusEngine.Execute("(S * CND{d1}) - (X * ˆ(-r * T) * CND{d2})", scope);

} else {

result = aplusEngine.Execute("(X * ˆ(-r * T) * CND{-d2}) - (S * CND{-d1}) ", scope);

}

Listing 3: A C# code fragment embedding A+ expressions (written in ASCII input mode).

6 SUMMARY AND FUTURE

WORK

In this paper we have introduced our .NET-based

clean room implementation of an A+ runtime. Al-

though the current version of the .NET port is slower

than the reference C implementation, its greatest ad-

vantage, i.e., the interoperability between A+ and

.NET, is already visible. In a preliminary experiment

we were able to achieve a 5-fold speedup by substi-

tuting A+ functions with equivalent .NET methods.

Additionaly, we have also shown how A+ scripts can

be embedded into C# code, thus exploiting the expres-

siveness of A+ in ﬁnancial computations.

For the future, several steps are already seen

ahead. We would like to focus on three major ar-

eas, each consisting of several research and/or devel-

opment topics.

The ﬁrst area is the enhancement of the runtime.

First of all, we would like to improve the runtime to

support all language features of A+ (some minor de-

ﬁciencies still exist). Furthermore, besides extending

the compatibility of our implementation, we also wish

to investigate the possibilities of improving its perfor-

mance. This latter topic, i.e., speeding up script en-

gines, is a huge research area on its own.

The second area we would like to focus on is

the analysis and comparison of the two implementa-

tions, i.e., the reference interpreter and the .NET run-

time. By analysing both systems and computing sev-

eral maintainability and modularizability metrics, and

by evaluating their performance on a broader bench-

mark set, we will be able to assess the costs and gains

of porting legacy interpreter implementations to new

platforms.

The third area of our interest is language design.

We would like to develop A+ into a modern program-

ming language of the .NET framework. This will re-

quire the extension of the language with several con-

cepts, like classes and objects, to foster the interoper-

ability between A+ scripts and the host environment.

Moreover, we will have to deﬁne a restricted but still

useful subset of the language that is compilable ahead

of execution time. Last but not least, to aid efﬁcient

programming, we plan to provide IDE support for the

A+ language.

ACKNOWLEDGEMENTS

The authors would like to thank Csaba B´atori for his

valuable help in the development of the .NET port of

A+.

REFERENCES

Black, F. and Scholes, M. (1973). The pricing of options

and corporate liabilities. Journal of Political Econ-

omy, 81(3):637–654.

Blaze, J. (2009). Prior and current versions of VisualAPL.

APL2000 Developer Network Forum,

http://

forum.apl2000.com/viewtopic.php?t=447

(Ac-

cessed 5 June 2012).

Chiles, B. and Turner, A. (2009). Dynamic Language Run-

time.

http://dlr.codeplex.com/documentation

(Accessed 26 April 2012).

Clayton, L., Eklof, M. D., and McDonnell, E. (2000).

ISO/IEC 13751:2000(E): Programming Language

APL, Extended. Internation Standards Organization.

Fugate, D. (2010). IronPython performance comparisons.

http://ironpython.codeplex.com/wikipage?

title=IronPython%20Performance

(Accessed 26

April 2012).

Hammond, M. (2000). Python for .NET: Lessons learned.

ActiveState Tool Corporation.

Hugunin, J. (1997). Python and Java – the best of both

worlds. In Proceedings of the 6th International

Python Conference, pages 11–20, San Jose, CA, USA.

Hugunin, J. (2004). IronPython: A fast Python implemen-

tation for .NET and Mono. In PyCON 2004, Wash-

ington, DC, USA.

Hugunin, J. (2007). A dynamic language

runtime (DLR).

http://blogs.msdn.

com/b/hugunin/archive/2007/04/30/

a-dynamic-language-runtime-dlr.aspx

(Ac-

cessed 26 April 2012).

ImplementationofanA+Interpreterfor.NET

301

Kromberg, M., Manktelow, J., and Scholes, J. (2010). APL#

- an APL for Microsoft.Net. In Conference USB stick

of APL2010, Berlin, Germany.

Mascarenhas, F. and Ierusalimschy, R. (2004). LuaInter-

face: Scripting the .NET CLR with Lua. Journal of

Universal Computer Science, 10(7):892–909.

Morgan Stanley (1995–2008). A+ Language Reference.

http://www.aplusdev.org/Documentation/

(Ac-

cessed 26 April 2012).

Parr, T. (2007). The Deﬁnitive ANTLR Reference: Build-

ing Domain-Speciﬁc Languages. Pragmatic Program-

mers. Pragmatic Bookshelf, ﬁrst edition.

Sun Microsystems (2006). JSR-223: Scripting for the Java

Platform.

Sun Microsystems (2011). JSR-292: Supporting Dynami-

cally Typed Languages on the Java Platform.

ICSOFT2012-7thInternationalConferenceonSoftwareParadigmTrends

302
